HAMPTON BAY Sabitini User manual

Hanging the Fan
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly.
NOTE: This ceiling fan is supplied
with two types of hanging
assemblies; the standard ceiling
installation using the downrod with
ball and socket mounting, and the
"close-to-ceiling" mounting. The
"close-to-ceiling" mounting is
recommended in rooms with less
than 8-foot ceilings or in areas
where additional space is desired
from the floor to the fan blades.
When using standard downrod
installation, the distance from the
ceiling to the bottom of the fan
blades will be approximately 15
inches. The "close-to-ceiling"
installation reduces the distance
from the ceiling to the bottom of the
fan blades to approximately 9 inches.
Once you have decided which ceiling
installation you will use, proceed with
the following instructions. Where
necessary. each section of the
instructions will note the different
procedures to follow for the two types of
installation.
STANDARD CEILING
MOUNTING
1. Remove the canopy ring from the
canopy by turning the ring to the right
until it unlocks (Figure 5).
2. Remove the mounting plate from
the canopy by loosening the four screws
on the top of the canopy. Remove the
two non-slotted screws and loosen the
slotted screws. This will enable you to
remove the mounting plate (Figure 6).

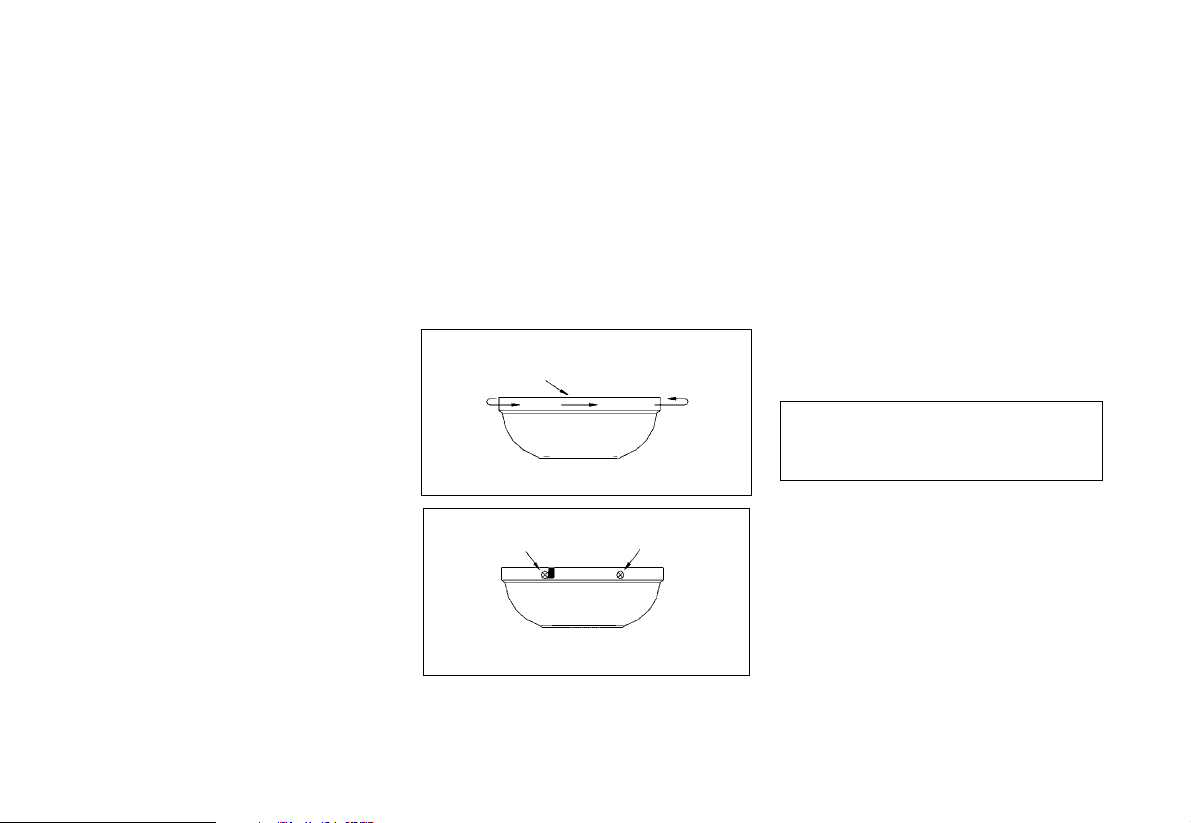

Turn Canopy Ring to Remove
Figure 5
Loosen but Do Not Remove Remove
Figure 6
3. Route the wires exiting the top of
the fan motor through the decorative
motor collar cover then the canopy ring.
Make sure the slot openings are on top.
Route the wires through the canopy and
then through the ball/downrod assembly
(Figure 7).
4. Loosen, but do not remove, the set
screws on the collar on the top of the
motor housing.
5. Align the holes at the bottom of the
downrod with holes in the collar on top
of the motor housing (Figure 7).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hanger pin until it snaps into its
locked position.
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 5
COULD RESULT IN FAN LOOSENING AND
POSSIBLY FALLING.
6. Re-tighten the set screws on the
collar on the top of the motor housing.
7. Make sure the grommet is properly
installed in the collar cover, then slide
the collar cover on the downrod until it
rests on the motor housing. Be sure that
the canopy and the collar cover are both
oriented correctly.
8. Proceed to "Installing the Fan"
section. 4.

Making the Electrical
Connections
REMEMBER to disconnect the power. If
you feel that you do not have enough
electrical wiring knowledge or experience,
have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan
and supplied with remote control. Secure
the connectors with electrical tape. Make
sure there are no loose strands or
connections (Figure 13).
l. Connect both green wires from the
downrod and mounting plate to the bare
copper (Ground) from the electrical box.
2. Connect the black wire (AC IN L)
from the receiver unit to the black wire
from the electrical box.
3. Connect the white wire (AC IN N)
from the receiver unit to the white wire
from the electrical box.
4. Connect the white wire (To Motor N)
from the receiver unit to the white wire
from the fan assembly.
5. Connect the black wire (To Motor L)
from the receiver unit to the black wire
from the fan assembly.
6. Connect the blue wire (For Light)
from the receiver unit to the blue wire
from the fan.
After wires are connected, carefully tuck
them into the electrical box. Insert the
receiver unit into the mounting plate;
make sure the black antenna wire sits on
top of the receiver unit.
NOTE
THE FREQUENCIES ON YOUR RECEIVER AND
TRANSMITTER HAVE BEEN PRESET AT THE
FACTORY, BEFORE INSTALLING THE
RECEIVER, MAKE SURE THE DIP SWITCHES
ON THE RECEIVER AND TRANSMITTER ARE
SET TO THE SAME FREQUENCY. THE DIP
SWITCHES ON THE TRANSMITTER ARE
LOCATED INSIDE THE BATTERY
COMPARTMENT.
WARNING
EACH WIRE NUT (WIRE CONNECTOR)
SUPPLIED WITH THIS FAN IS DESIGNED TO
ACCEPT UP TO ONE 12 GAUGE HOUSE WIRE
AND TWO WIRES FROM THE FAN. IF YOU
HAVE LARGER THAN 12 GAUGE HOUSE
WIRING OR MORE THAN ONE HOUSE WIRE TO
CONNECT TO THE FAN WIRING, CONSULT AN
ELECTRICIAN FOR THE PROPER SIZE WIRE
NUTS TO USE.
Figure 13
7
