HAMPTON BAY Waterton II User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and
material present at time of shipment from the factory for a lifetime after the date of
purchase by the original purchaser. The retailer also warrants that all other fan parts,
excluding any glass or plexiglass blades, to be free from defects in workmanship and
material at the time of shipment from the factory for a period of one year after the date
of purchase by the original purchaser. We agree to correct such defects without charge
or at our option replace with a comparable or superior model if the product is returned
to the retailer. To obtain warranty service, you must present a copy of the receipt as
proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. Because of
varying climatic conditions in the United States this warranty does not cover any
changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the
warranty invalid. There is no other express warranty. The retailer hereby disclaims
any and all warranties, including but not limited to. Those of merchantability and
fitness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specified
in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in
connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specific
legal rights, and you may also have other rights which vary from state to state. This
warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
553-663
11289
792145350941

Safety Rules............................................................................................................
Unpacking Your Fan ..................................................................................................
Installing Your Fan ....................................................................................................
Installing the Light Kit................................................................................................
....................................................................................................
Care of You r Fan ......................................................................................................
Troubleshooting .......................................................................................................
Specifications ..........................................................................................................
Operating Your Fan
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLETBOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7.Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Coupling cover
5. Fan motor assembly
6. Blade arms (5)
Ball/downrod assembly
7. Mounting plate
8. Light kit assembly
9. Glass shades
10. 6
11.
12.
13. Balancing kit
(3)
0Watt intermediate bulbs (3)
Pull chain and fob (2)
Extra plastic plug
1
2
3
4
5
7
8
9
10
11
13
6
14. Loose parts bag containing:
a. Blade attachment hardware
()
b. Mounting hardware
( 3 plastic wire connectors)
16 screws
ab
14
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGEDOR MISSING.
CALL TOLL FREE 1-877-898-1881
12
Unpacking Your Fan 2.

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic
outlet boxes.
Figures 1,2 and 3 are examples of
different ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4 (available at your Hampton Bay
Retailer).
Outlet box
Outlet box
Outlet box
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
18 angle

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by loosening the two screws
on the bottom of the hanging bracket
from the screw head and turning
the canopy counter clockwise.(Fig, 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin
and set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through
the ball / downrod. (Fig. 7)
a
half turn
4.
WARNING
FAILURE TOPROPERLY INSTALL LOCKING PIN AS
NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Step 8. Tighten two set screws at top of the
fan motor collar firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket.
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing (Fig.7). Carefully
insert the hanger pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through the
hole near the end of the hanger pin until it
snaps into its locked position, as noted in
the circle inset of Fig. 7.
Figure 5
Hanger
bracket
Hanger
bracket
Ceiling
canopy
Canopy
cover
Mounting
screws
(supplied with
electrical box)
Hook
UL Listed
electrial
box
Figure 6
120V Wires
Washers
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 7
Hanger pin
Locking pin Collar cover
Canopy
cover
CAUTION
REMOVE 5 RUBBER PACKING MOUNTSAND
DISCARD BEFORE INSTALLATION.

5.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your household
wiring. Use the wire connecting nuts supplied with your fan.
Secure the connectors with electrical tape. Make sure there
are no loose strands or connections.
Step 1 Connect the fan supply (black) wire and light supply
(blue) wire to the black household supply wire as shown in
Figure 8.
Step 2. Connect the neutral fan (white) wire to the white
netura household wire.
Step 3 Connect the fan ground wire (green) to the household
ground wire.
Step 4 After connecting the wires, spread them apart so that
the green and white wires are on one side of the outlet box
and the black and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and push the wiring
into the outlet box.
Figures 9 and 10 illustrate the wiring connections for the
optional wall control (available at your Hampton Bay Retailer,
the wire color out of the wall control may vary, see wall
control's installation manual for correct wire connections.)
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 8
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 9
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
NOTE
LIGHT KITS ARE AVAILABLE AT YOUR
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER
PERSONAL INJURY. MOUNT FAN ONLY ON AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE
THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

6.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
Finishing the Installation
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to ceiling and
over the 2 screws on the hanger bracket.
Rotate canopy clockwise. Next, while
holding the canopy with one hand, slide
the canopy cover over the screws and
rotate clockwise until tight. Note: adjust
the canopy screws as necessary until the
canopy and canopy cover are snug. (Fig.
11)
WARNING
Make sure the notch on the hanging
bracket properly sits in the groove in
the hanger ball before attaching the
canopy to the bracket by turning the
housing until it drops into place.

7.
Rubber
washer
Blade
arm
Figure 12
Blade
Screws
Attaching the Fan
Blades
Step 1 Attach blades to blade arms using
three screws and rubber washers as shown
in Figure 12. Start a screw into the arm, do
not tighten. Repeat for the 2 remaining
screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade
is straight.
Step 3 Fasten the blade arms to the motor
by inserting the tab from the blade arms to
the slot in the bottom motor housing, then
tighten the two screws and washers already
installed in the blade arms (Figure 13).
Step 4 Install an optional light kit if you
wish. Follow the instructions included with
the kit. Figure 13
Motor
Blade arm
Slot
Tab
All blades are grouped by weight.
Because natural woods very in density,
the fan may wobble even though the
blades are weighed equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade bracket
screws are secure.
2. Most fan wobbling problems are
caused when blade levels are unequal.

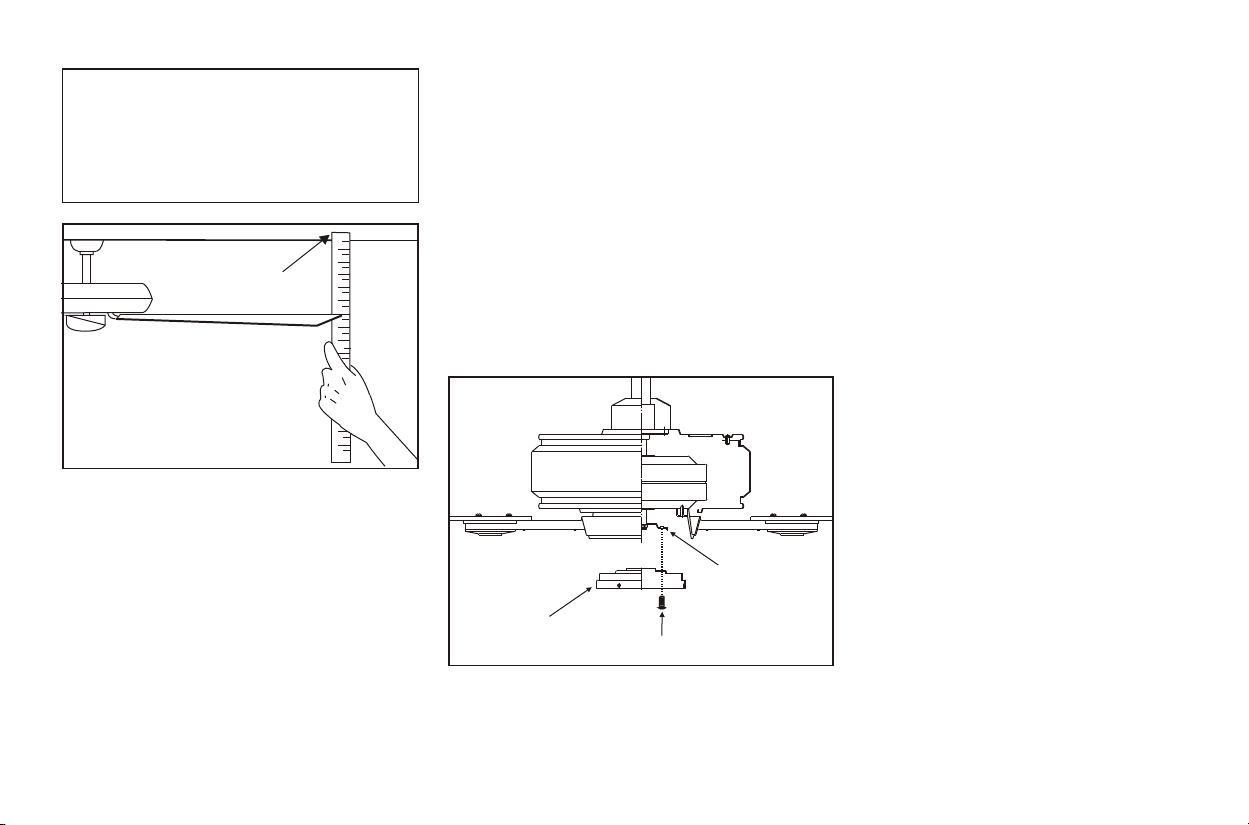

Check this level by selecting a point on
the ceiling above the tip of one of the
blades. Measure this distance as shown
in Figure 14. Rotate the fan until the
next blade is positioned for
measurement. Repeat for each blade.
The distance should be equal
within 1/8".
deviation
3. Use the enclosed Blade Balancing Kit
if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.

8.
Installing the Mounting
Plate
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 15)
Touching
ceiling
Figure 14
Mounting plate
Mounting ring
Screws
Figure 15
WARNING
TO REDUCE THE RISK OF PERSONALINJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING
FAN BLADES.

Glass
holder
Thumb
screws
Bulbs
Glass shade
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is not
sufficient to prevent electric shock.

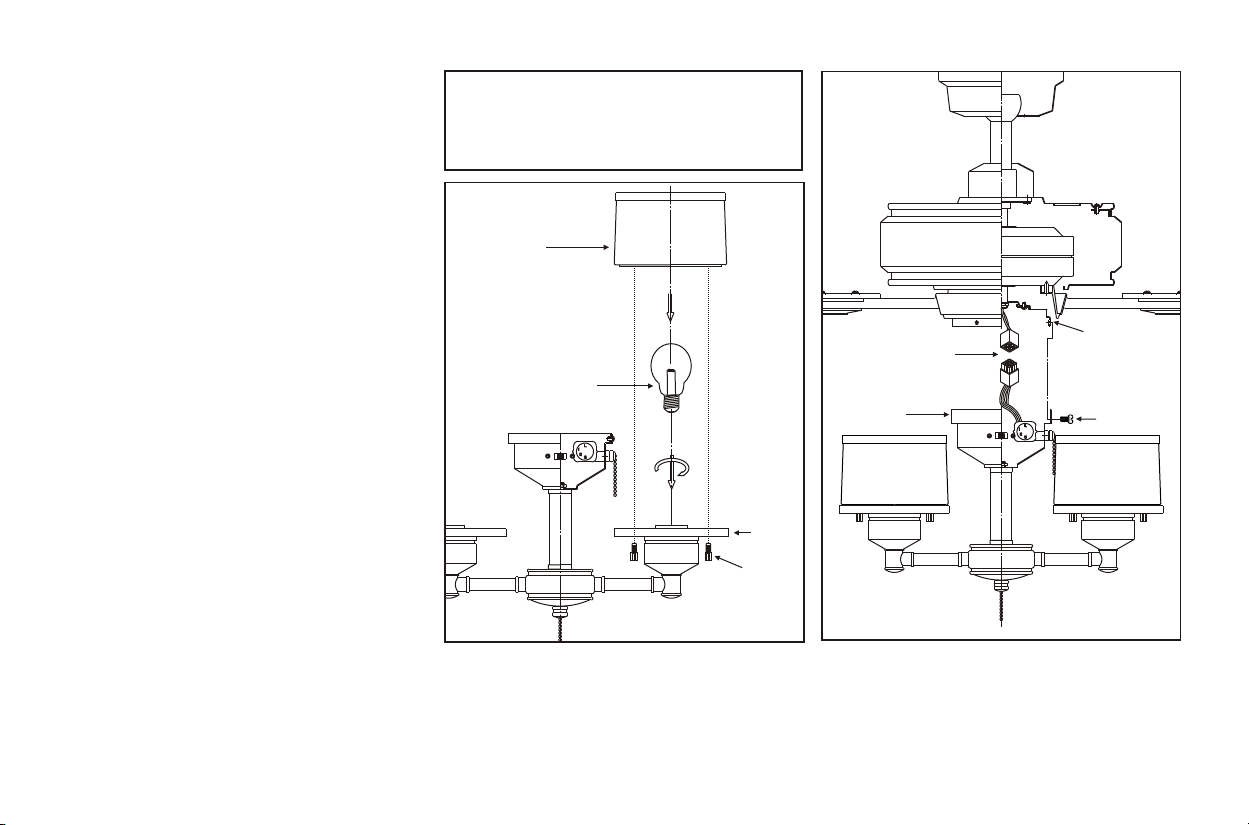

1.Remove the thumb screws from the bottom
of the glass shade. Insert the
bulbs (included) into the light kit
sockets. Max. 60 watts. (Fig. 16)
2.Install the glass shades onto the glass
holder with two thumb screws previously
removed. Be sure to tighten all screws.
(Fig. 16)
3.Remove the three screws from the
mounting plate. (Fig. 17)
4.
(Fig. 17)
5.Carefully push all wires back into the light
kit assembly, then install the light kit
assembly onto the mounting plate with 3
screws previously removed. Be sure to
tighten all screws. (Fig. 17)
6. Restore power and your light kit is ready
for operation.
intermediate
base
While holding the light kit assembly under
your fan, snap together the wire
connection plugs.
Figure 16 Figure 17
NOTE: Light bulbs have no warranty,
can be purchased at local light bulb
specialty store or from our service
center.
9. Installing the Light Kit

Fan without Light Kit
1.
3. olding the under your fan,
snap together the wire connection plugs.
4.
Disassemble the switch housing from
the light kit , you can keep the light kit
for future use.
2. Attach the plastic plug to the switch
housing. (Fig. 18)
H switch housing
(Fig. 18)
Install the switch housing to the mounting
plate with screws provided. (Fig. 18)
Figure 18
Screws
Switch
housing
Plastic plug
Wire connection
plugs
Turn on the power and check the operation of
your fan. Thereare two pull chains available in
your fan:
1. 3-speed pull chain- it controls the fan speed
as follows: 1 pulls- High, 2 pulls- Medium, 3
pulls- Low, and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
2. Light kit pull chain- it controls the light kit
in "ON" or "OFF".
The slide switch controls directions: forward
(switch l ) or reverse (switch ). eft right

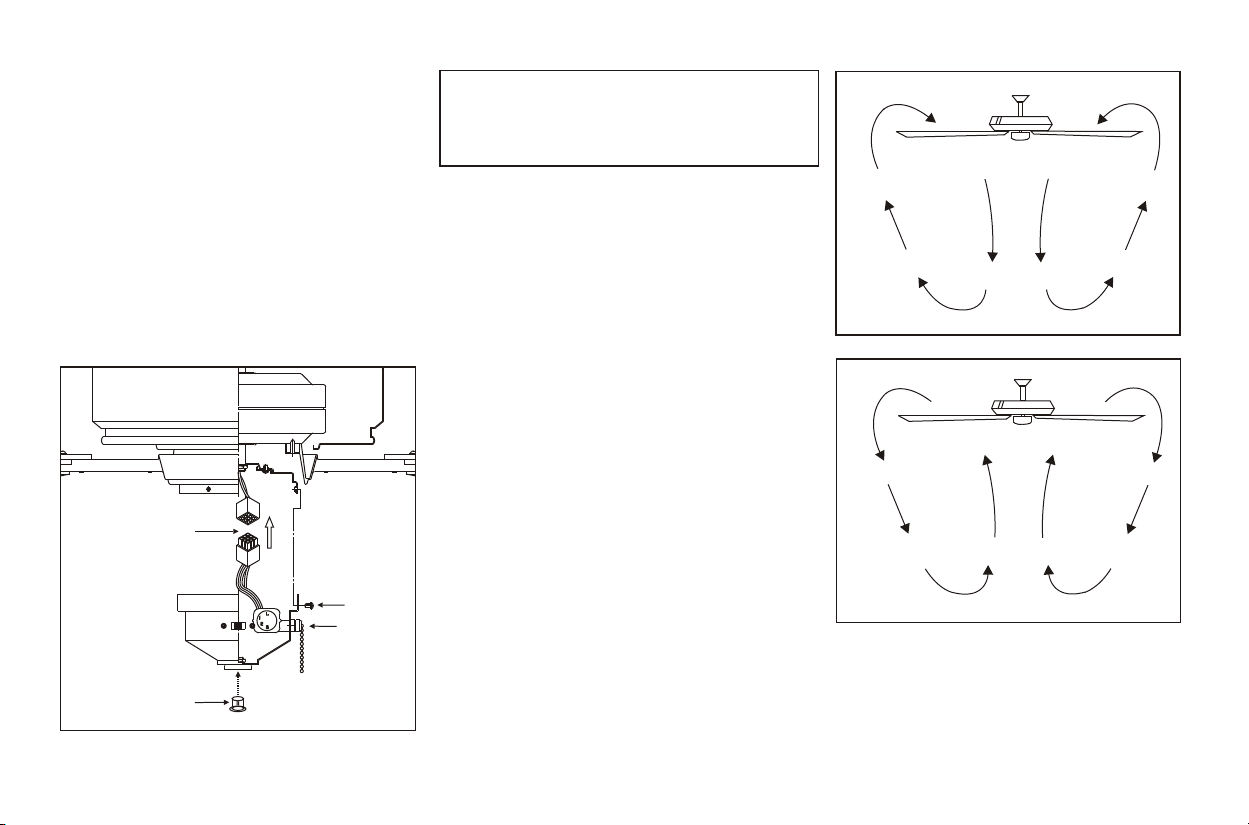

Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
Figure 19. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 20. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE SLIDE
SWITCH.
Figure 19
Figure 20
Operating Your Fan 10.

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan
from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when cleaning.
This could damage the motor, or the wood, or
possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan. The motor
has permanently lubricated bearings.
11. Care of Your Fan
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"

Problem
Fan will not start.
Fan sounds noisy.
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light
bulb is also secure.
6.Some fan motors are sensitive to signals from solid-state variable speed controls.
If you have installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Troubleshooting 12.

These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 2.74'11
kgs
12.6
kgs
0.25
0.40
0.55
11
32
63
60
110
155
3100
4650
6000
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
13. Specifications
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2005 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
