SAFETY RULES
PACKAGE CONTENTS
INSTALLING YOUR FAN
HANGING THE FAN
ELECTRICAL CONNECTIONS
FINISHING THE INSTALLATION
BLADE INSTALLATION
INSTALLING THE MOUNTING PLATE
INSTALLING THE LIGHT KIT
OPERATING YOUR FAN
CARE OF YOUR FAN
1
2
3
4
5
6
7
8
9
10
11
Table of Contents
TROUBLESHOOTING
SPECIFICATIONS
2
1
13

1.Safety Rules
1. Before you begin installing the fan, shut power off at the circuit
breaker or the fuse box.
2 Be cautious! Read all instruction and safety information
.
before i nstalling your new fan. Review accompanying
assembly diagrams.
3. Make sure that all electrical connection comply with local
codes, ordinances, or National Electrical Codes. Hire a
qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
4. M ake sure the installation site you choose allows the fan
blades to rotate without any obstructions. Allow a minimum
clearance of 7 feet from the floor and 18 inches from the tip of
the blades to the wall.
5. If you are mounting the fan to a ceiling outlet box, use U.L.
Listed metal octagonal outlet box marked”Acceptable for fan
support”. Secure the box directly to the building structure, The
outlet box and its support must be able to support the moving
weight of the fan (at least 50 lbs). Do not use a plastic box.
6. Caution: To reduce the risk of personal injury use only the
screws provided with the outlet box.
7. If you are mounting the fan to a joist, make sure it is able to
support the moving weight of the fan (at least 50 lbs.).
8. After you install the fan, make sure that all mountings are
secured to prevent the fan from falling.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER
PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX
OR SUPPORTING SYSTEM MARKED
A CCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS AND
LOCK WASHERS PROVIDED WITH THE OUTLET BOX IN CONJUNCTION,
MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND
NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN
DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE
HOLDERS WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
Note: The important safeguards and instructions appearing in
this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that
common sense, caution and care are factors which can not
be built into this product. These factors must be supplied by
the person(s) installing, caring for and operating the unit.
9. Do not insert anything into the fan blades while the fan is
operating.
10. Turn the fan off and wait for it to stop completely before
changing the fan direction.

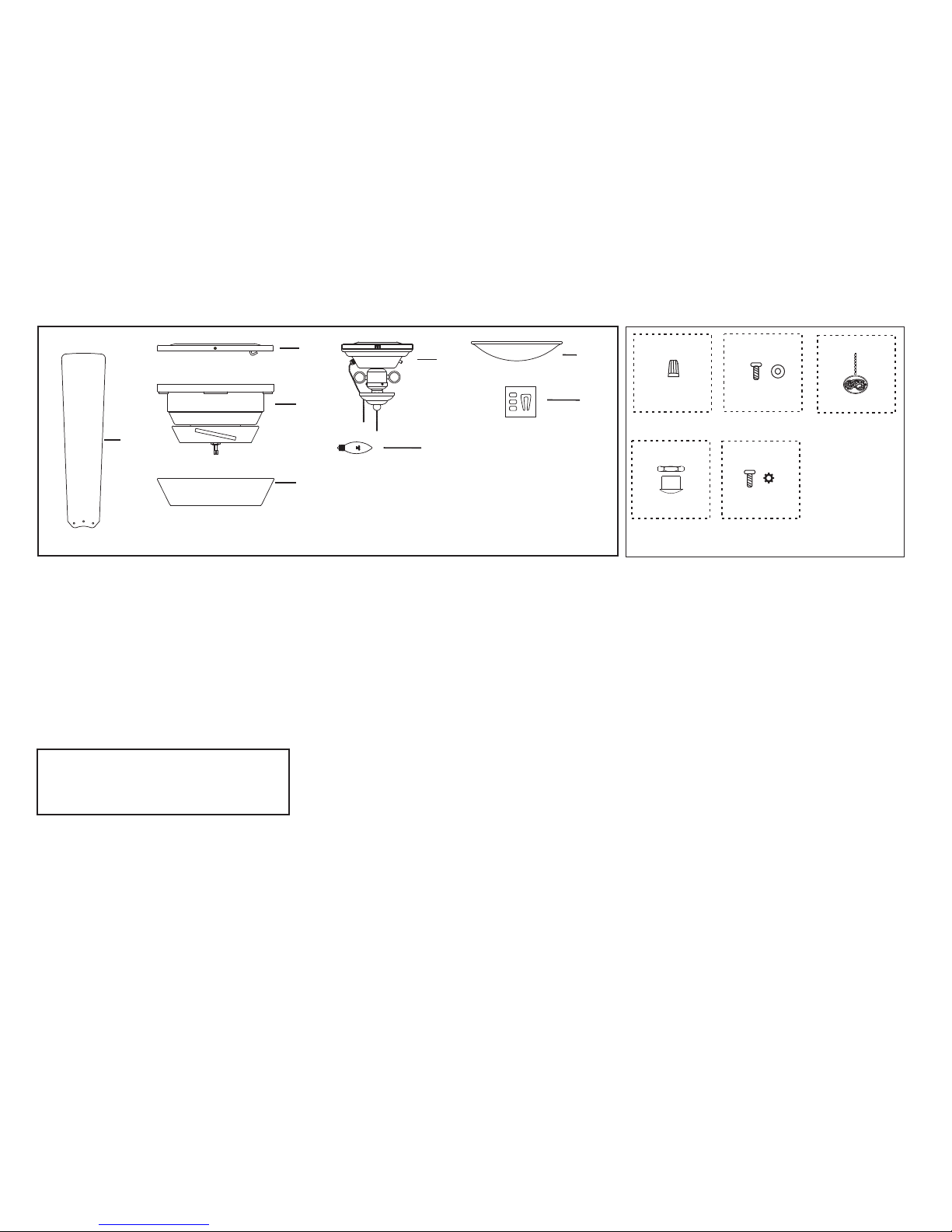

Package Contents 2.
6. 60W candelabra bulbs (2)
7. Glass shade (1)
8. Balancing kit (1)
1.
2. Mounting bracket (1)
3. Motor assembly
4. Mounting housing
5. Light kit with metal cap and finial ( 1 )
Fan blades (5)
(1)
(1)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-800-527-0098
Loose parts bag containing:
a. Mounting hardware
Plastic wire connectors (3pcs)
b . Blade attachment hardware
3/16″1/2 Screw(16pcs)
×
Fiber washer (16pcs)
c. Pull chain fob (2pcs)
d. Extra plug with nut (1)
e. Tumbler bolts (4pcs)
star washer (1)
(2pcs)
Unpack your fan and check the contents. You should have the following items:
1
3
5
2
6
7
8
4
abc
de
3/16″/8
×3 ″

Tools Required
Phil l ips s c rewd rive r ; slot ted sc r ew
driver; stepladder; wire cutters; electrical
tape.
Mounting Options
If there isn't an existing mounting box,
then read the following instructions.
Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the
building structur e . Use appr o p r iate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the
fan (at least 50 lbs). Use a UL Listed
metal outlet box. Do not use a plastic
outlet box.

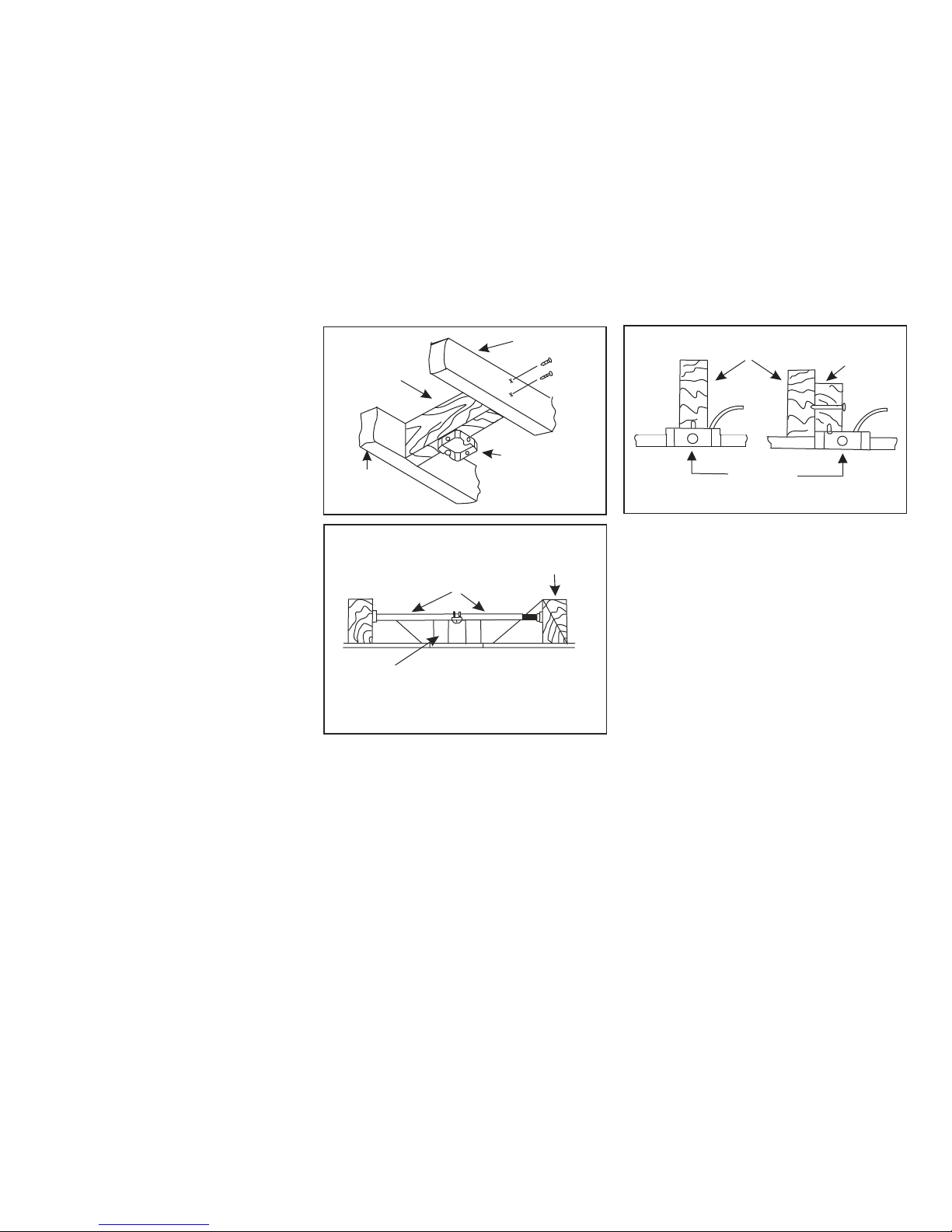

Figures 1 and 2 are examples of different
ways to mount the outlet box. To hang
your fan where there is an existing fixture
but no ceiling joist, you may need to
i n s t a l l a ha n g e r b a r as s h o w n in
fig.3(available at your Hampton Bay
dealer).
3. Installing Your Fan
Outl et box
Figure 2
Outlet Box
Figure 1
Ceiling Joist
Cross Brace
Ceiling Joist
Ceiling Joist
Or Cross Brace Parallel
Wood Brace
Figure 3
Outlet box
Ceiling
joist
Hanger bar
(optional)

4.Hanging the Fan
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly:
Step 1. Attach the mounting bracket to the
outlet box with two screws and washers
provided with the outlet box. Make sure
the bracket is tight and secured. (Figure 4)
Step 2. Lift fan into position by hanging
the motor assembly onto the hook from
the ceiling mounting bracket allowing it to
hang freely. (Figure 5)
Step 3. When the motor a ssembly is
hanged freely, please follow the electrical
connection procedure to connect the fan
wire.
"J"
5.Electrical Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
circuit breaker or main fuse box before
wiring.
Follow the steps below to connect the fan to
your house supply wires. Secure the wire nuts
supplied with your fan by wrapping the
connections with electrical tape.
Step 1. Connect the Black (hot) wire from the
ceiling to the black and blue wires from the
fan. Connect the white (neutral) wire from the
ceiling to the white wire from the fan.
(Figure 6 )
Step 2. your outlet box has a ground wire
(green or bare copper) connect the fan ground
wire to it. If your outlet box does not have a
ground wire, the connect the fans and
mounting bracket wire together. Secure wire
co n ne ct io n w it h the p la st i c wi re nu ts
provided.
Step 3. Figures 7 and 8 illustrate the wiring
co n n ec t i o n s f o r o p t i o n a l w a l l c on t r ol
(available at your Hampton Bay Retailer, the
,
wire color out of wall control s installation
manual for correct wire connections).
If
Outlet box
Mounting bracket
Figure 4
Washer
Screw
Figure 5

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 8
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 7
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
BLUE
BLACK
Figure 6
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
WHITE
BLACK
BLUE
GREEN
Ground
Conductor
WHITE
WHITE

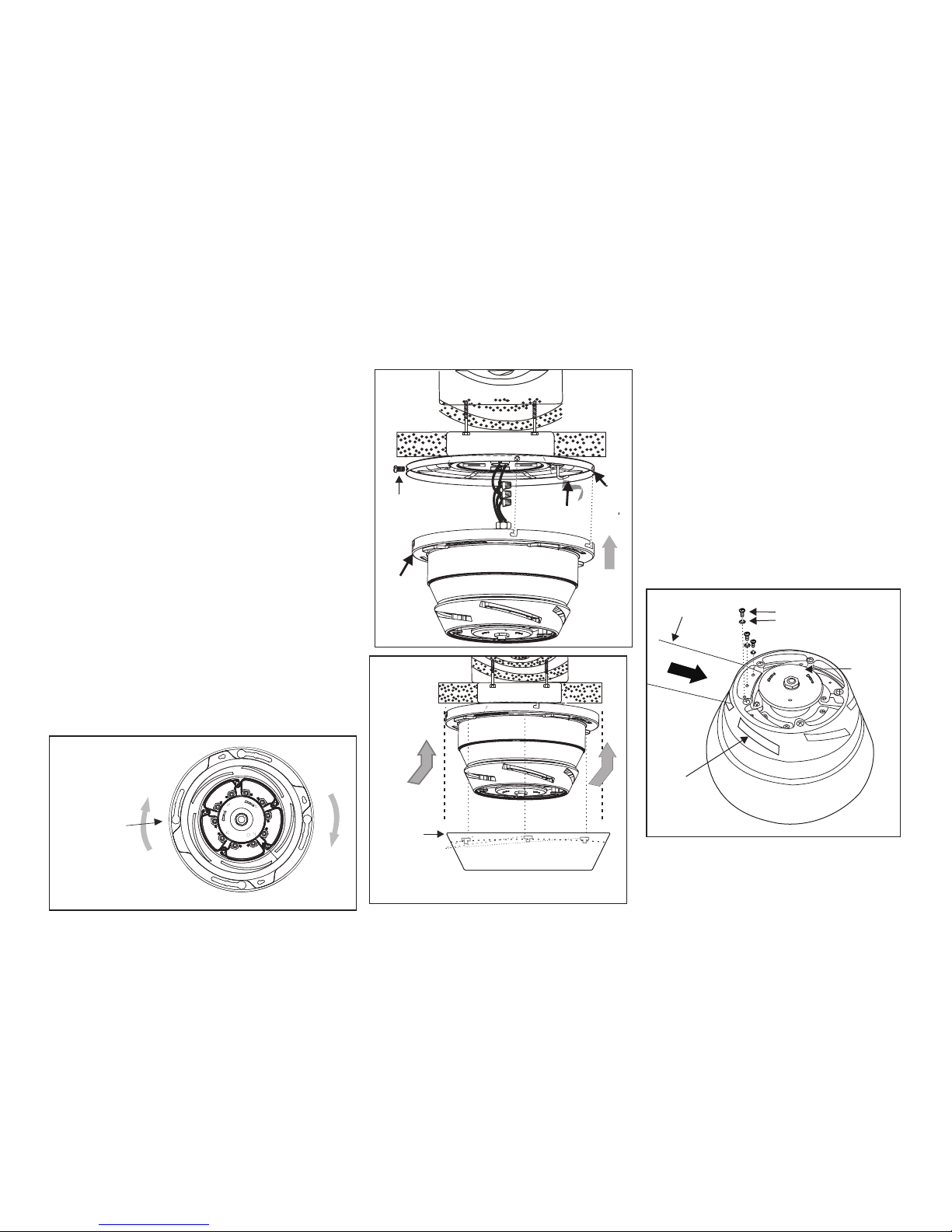

6.Finishing the Installation
Step 1 . Remove motor assembly from "J" hook.
Attach 3 tumbler bolts (in the loose parts bag)to the
mounting bracket, do not tighten. Align slotted holes
on plate at top of motor assembly with 3 tumbler
bolts on mounting bracket. Twist motor assembly to
lock. (Figure 9)
Step 2 . Place the key hole, tighten the last one
tumbler b olt, along with the star washer and tighten
other 3t umbler bolts securely. (Figure 9)
Step 3 . Align large screwheads at mounting housing
with slotted holes in mounting bracket. Turn motor
housing conterclockwise, to the LEFT, until it no
longer turns. (Figure 10,11)
NOTE: You may think that you have turned the
motor housing enough upon feeling it stop when
turning it the first time, but that is probably only the
halfway point and it is extremely important that you
make sure that you turn the motor housing all the
way to ensure that the motor housing is completely
secure. To do this, when you begin turning the motor
housing two more inches(to the left) so that the
screwheads reach the end of each slotted hole, there
by remaining secure.
7.Blade Installation
Step 1. Attach the fan blades to the motor
assembly using the screws and fiber
washer provided, tighten screws securely.
(Figure 12)
Step 2. Align motor holes to blade and
secure with screws provided, tighten
screws securely. Repeat procedure with
remaining blades. (Figure 12)
Large
Screwheads
Figure 11
Figure 12
Blade Screws
Mounting
Ring
Fiber Washers
Blade Slot
Mounting
Figure 10
Housing
Large Screwheads
Figure 9
J hook
mounting
bracket
motor
assembly
Screw

8.Installing the Mounting
Plate
NOTE: Before starting installation, disconnect the
power by turning off the circuit breaker or removing
the fuse at fuse box.
Step 1.Remove one of 3 screws and loosen other two
screws on the mounting ring. (Figure. 13)
Step 2. Remove the mounting plate from the light kit
by removing 4 screws (Keep them for future use).
Step 3.Place the key holes on the mounting plate over
the 2 screws previously loosened from the mounting
ring, turn mounting plate until it locks in place at the
narrow section of the key holes. Secure by tightening
2 screws previously loosened and the one previously
removed. (Figure. 13)
9.Installing the Light
Kit Assembly
N O T E : L i g h t b u l b h a v e n o
warranty, can be purchased at
local light bulb specialty store or
from our service center.
Step 1. While holding the light kit
assembly under your fan, snap together
the connection plugs.(Figure 14)
Step 2. Carefully push all wires back into
the switch housing, then install the light
kit assembly onto the mounting plate with
4 screws previously removed in the
process of installing the mounting plate.
Be sure to tighten all screws. (Figure 14)
Step 3. Install 2×60W candelabra bulbs
(included).
Step 4. I.nstall the glass shade, along
with rubber washer, metal washer, twist
with metal nut; install the cap, then twist
the finial tightly. (Figure 14 )
Step 5. Restore power and your light kit
is ready for operations.
NOTE: Make sure to leave enough space
between the fan pull chain and the bulbs
to the chain doesn’t rub against any of the
bulbs. Light bulbs have no warranty, they
can be purchased at local light bulb
specialty store or from our service center.
Screw
plate
mounting ring
mounting
Light kit
Screw
Figure 14
Light kit
Finial
Cap
Metal Nut
Rubber Washer
Metal Washer
Bulb
Connection plugs
Screws
Mounting plate
Switch housing

Operating Your Fan 10.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE SLIDE
SWITCH.
Figure 16
Figure 17
Turn on the power and check the operation of your
fan. There are three pull chains available in your
fan:
1. Pull chain- it controls t he fan speed as
follows: 1 pulls- High, 2 pulls- Medium, 3 pulls-
Low, and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size, ceiling
height, number of fans, and so on.

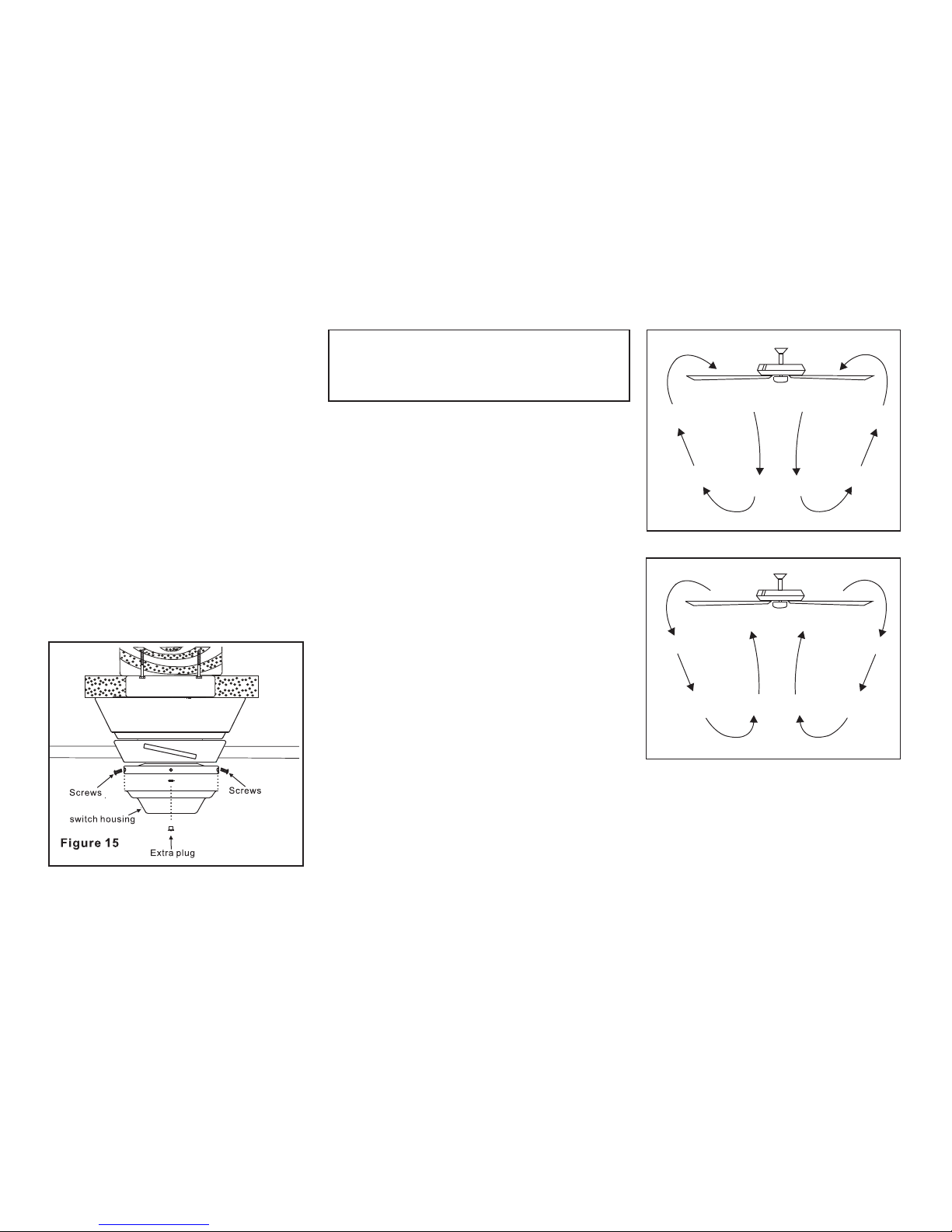

2. The slide switch controls directions: forward
(switch left ) or reverse (switch right ).
Warm weather - (Forward) A downward air flow
creates a cooling effect as shown in. (Figure 16)
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves
warm air off the ceiling area as shown in. (Figure
17) This allows you to set your heating unit on a
lower setting without affecting your comfort.
Fan without Light Kit
1. Disassemble the switch housing from
th e light kit by loosening the nut at
the switch cup (Keep the nut for future
t
use).
2. Attach the extra plug to the switch
housing with nut previously loosened
and tighten securel y . (Figure 15)
3. Holding the switch housing under your
fan, snap together the wire connection
plug.(Figure 15)
4. Install the switch housing to the
mounting plate with the screws provided
in the loose parts bag. (Figure15)
h screws
(Figure 15)

11.Care of Your Fan
Here are some suggestions to help you
maintain your fan
1. Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan
from ceiling.)
2. C lean your fan periodically to help
maintain its new appearance over the years.
Use only a soft brush or lint-free cloth to
avoid scratching the finish. The plating is
s e a l e d w i t h a l a c q u e r t o m i n i m i z e
discoloration or tarnishing. Do not use
water when cleaning. This could damage the
motor, or the wood, or possibly cause an
electrical shock.
3. You can apply a light coat of furniture
polish to the wood blades for additional
protection and enhanced beauty. C over
small scratches with a light application of
shoe polish.
4. There is no need to oil your fan. The
motor has permanently lubricated bearings.
5. If your fan is provided with glass shades,
clean with lukewarm soapy water and a soft
cloth or sponge.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO
THE SECTION "MAKING ELECTRICAL
CONNECTIONS”
DO NOT IMMERSE GLASS SHADES IN HOT
WATER. DO NOT PUT GLASS SHADES INTO
AN AUTOMATIC DISHWASHER.
WARNING : Make sure the power
is off at the electrical panelbox
Before you attempt any repairs.
Refer to the section, “Making
Electrical Connections”
THE HAMPTON BAY FAN&LIGHTING CO.
P.O.Box 395
Norco,CA 92860
Call toll free 1-800-527-0998

Troubleshooting 12.
Problem
Fan will not start
Fans/Light Turn On
and Off intermittently
Fan Sounds Noisy
Fan Wobble
Solution
1. Check to make sure the wall switch is turned on.
2. Check circuit fuses or breakers.
Caution! Make sure the power is turned off before performing the following steps:
3. Remove canopy and check wire connections.
4. If using a remote controlled fan; Check to see that the dip switches from transmitter and receiver are set to
the same frequency code.
5. Check wall control transmitter connections (if applicable).
NOTE: Fan must be installed from a maximum distance of 40 feet from the transmitting unit for proper signal
transmission between the transmitting unit and the fan's receiving unit.
1. This is caused by interference, change the code frequency from the transmitter and receiver. Any
codecombination will operate the fan or light (remote controlled fans only).
1. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time.
2. Make sure all blade attachment screws are tight, both blades and blade irons.
3. Make sure Outlet box is secured to building structure, if necessary use the wood screws provided to further
secure outlet box to joist.
4. Make sure Hanger Bracket is secure to the outlet box, screws are tight.
NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may
wobble even though blades are matched.
1. Make sure all blade attachment screws are tight.
2. Make sure Outlet box is secured to building structure, if necessary use the wood screws provided to further
secure outlet box to joist.
3. Make sure Hanger Bracket is secure to the outlet box, screws are tight.
4. Use the balancing kit provided if the wobble is excessive (follow instructions included with balancing kit).

13.Specifications
48 kgs kgs
120
120
120
Low
Med
High
Distributed by
Home Depot U.S.A.,Inc.
2455 Paces Ferry Rd., N.W.
Atlanta,GA 30339
0.212
0.365
0.484
10.4
30.8
57.8
73
136
194
1584.08
3243.86
4482.00
8.64 10.7 2.22
