HAMPTON BAY Clarkston User manual

Clarkston
in Ceiling Fan
Owner’s Manual
Clarkston
Ventilador de Techo de 1.12m
Manual del Propietario
44
822 744

44

The retailer warrants the fan motor to be free from defects in workmanship and
material present at time of shipment from the factory for a lifetime after the date of
purchase by the original purchaser. The retailer also warrants that all other fan
parts, excluding any glass or plexiglass blades, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of
one year after the date of purchase by the original purchaser. We agree to correct
such defects without charge or at our option replace with a comparable or superior
model if the product is returned to the retailer. To obtain warranty service, you must
present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are your responsibility. Damage to any part such as by
accident or misuse or improper installation or by affixing any accessories, is not
covered by this warranty. Because of varying climatic conditions in the United
States this warranty does not cover any changes in brass finish, including rusting,
pitting, corroding, tarnishing or peeling. Brass finishes of this type give their
longest useful life when protected from varying weather conditions. A certain
amount of wobble is normal and should not be considered a defect. Servicing
performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and
fitness for a particular purpose to the extent permitted by law. The duration
of any implied warranty which cannot be disclaimed is limited to the time period as
specified in the express warranty. Some states do not allow limitation on how long
an implied warranty lasts, so the above limitation may not apply to you. The
retailer shall not be liable for incidental, consequential, or special damages
arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not
apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Hampton Bay Lifetime Limited Warranty
Date purchased
Store Purchased
UL Model No. CF544H-PEH
Serial No.
Vendor No. 82598
UPC 845952000049

Safety Rules
Unpacking Your Fan
Installing Your Fan
Hanging the Fan
Making the Electrical connections
Finishing the Installation
Attaching the Fan Blades
Installing the Light Kit
Operating Your Fan
Troubleshooting
Specifications
1
2
3
4
5
6
7
8
9
10
11
Table of Contents

Safety Rules 1.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
1.To reduce the risk of electric shock, ensure electricity has been turned off
at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two steel
screws ( and lock washers ) provided with the outlet box for mounting to
the outle t box . Most outlet boxe s commonly used fo r the support of lighting
fixtures are not acceptable for fan support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must be securely mounted and capable
o f reliably supporting a minimum of 35 pounds. Use only UL Listed outlet
boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
7. Do not operate reversing switch while fan blades are in motion. Fan
must be turned off and blades stopped before reversing blade
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the equipment-
grounding conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.

2. Unpacking Your fan
6. Glass shade (3)
7. 40 Watt A15C bulbs (3)
8. Set of blades brackets (5)
9. Balancing kit (1)
1.
2. Mounting bracket (1)
3. Motor housing (1)
4. Fan motor assembly ( 1 )
5. Light kit ( 1 )
Set of blades (5) (MDF blades)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 888-886-1579
1
5
6
8
10. Loose parts bag containing:
a . Blade attachment hardware (
and paper washers)
b. Mounting hardware (3 plastic wire
connectors)
c. Set of blade bracket hardware (1 screw)
d. Pull chain fob (2)
16 screws

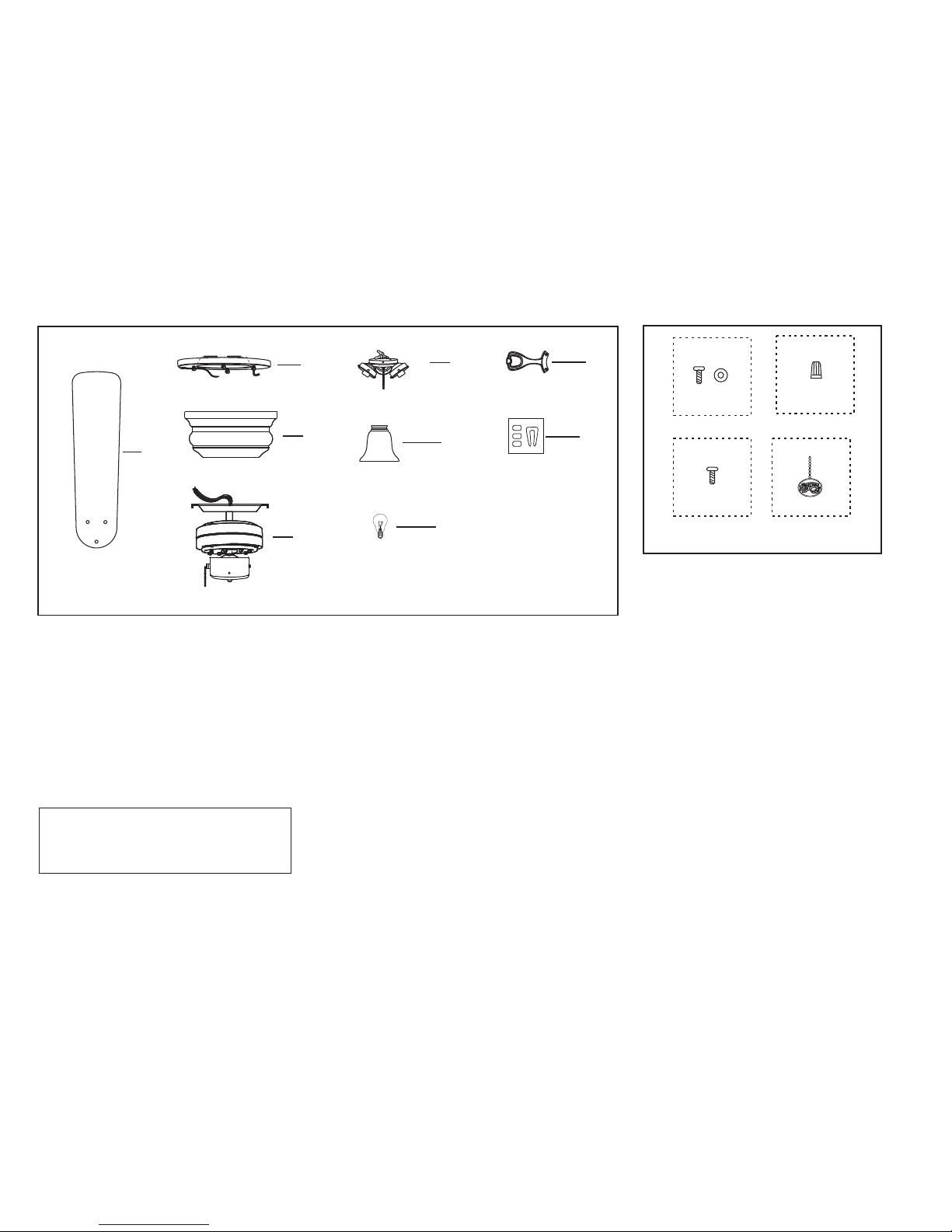

Unpack your fan and check the contents. You should have the following items:
2
10
b
a
c
7
3
4d
9

Tools Required
Phillips screwdriver; slotted screw driver;
stepladder; wire cutters; electrical tape.
Mounting Options
If there isn't an existing mounting box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs).
Use a UL Listed metal outlet box. Do not use
a plastic outlet box.

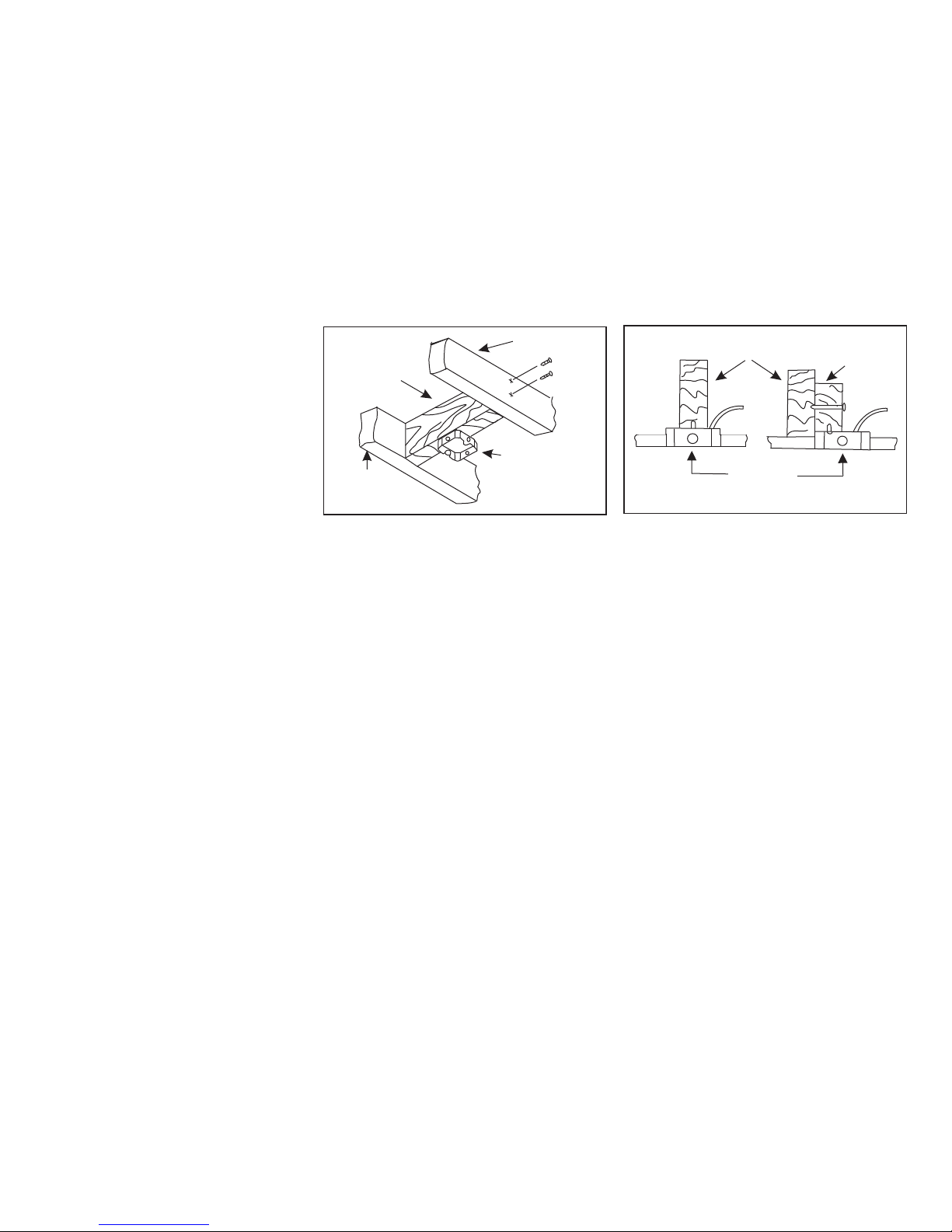

Figures 1 and 2 are examples of different
ways to mount the outlet box.
Installing Your Fan 3.
Outl et bo x
Figure 2
Outlet Box
Figure 1
Ceiling Joist
Cross Brace
Ceiling Joist
Ceiling Joist
Or Cross Brace Parallel
Wood Brace

Outlet box
Mounting bracket
Figure 4
Motor
Figure 5
4.Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:

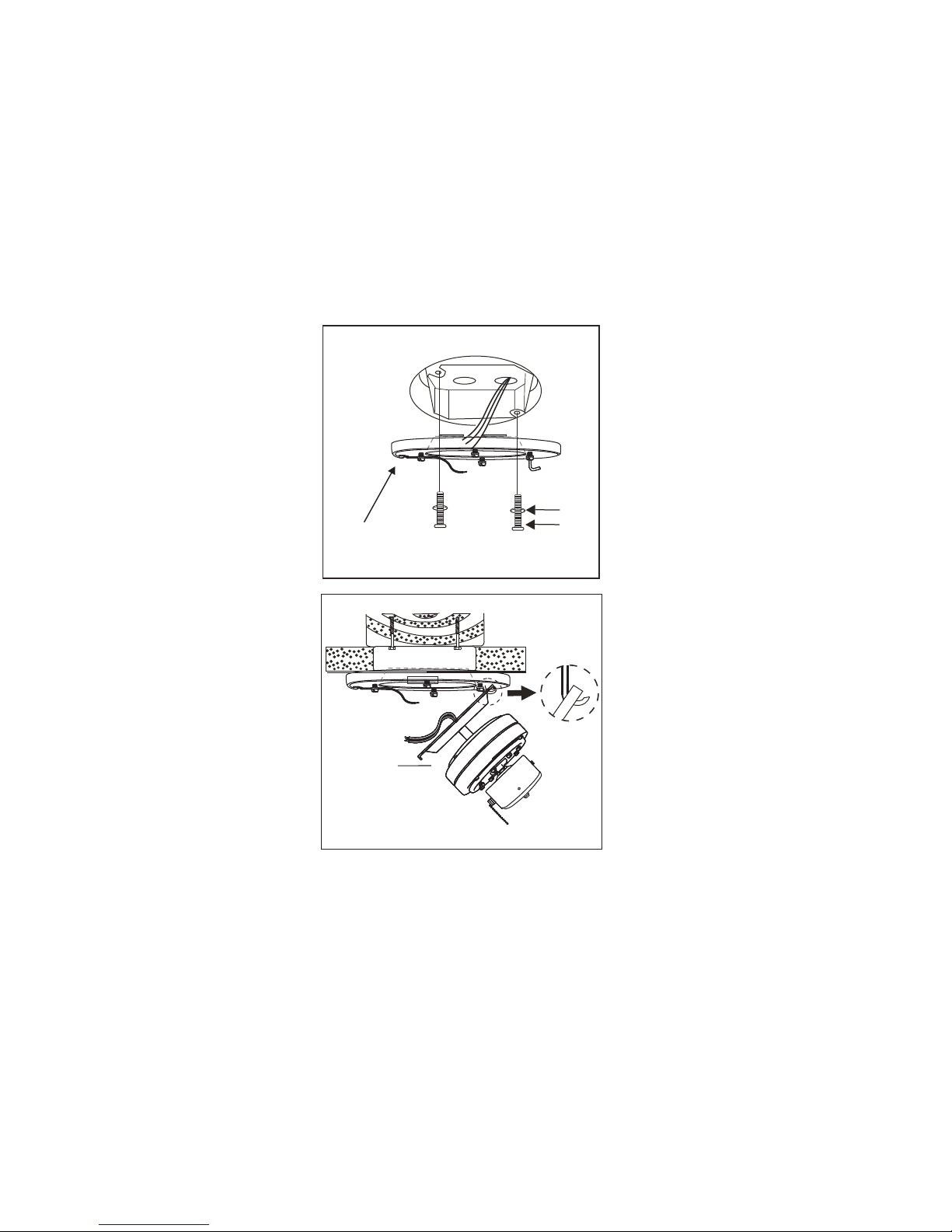

Step 1. Attach the mounting bracket to the
outlet box with two screws and washers
provided with the outlet box. Make sure the
bracket is tight and secured. (Figure 4)
Step 2. Lift fan into position by hanging the
motor assembly onto the hook from the ceiling
mounting bracket allowing it to hang freely.
(Figure 5)
5.Making the Electrical
Connections
WARNING: To avoid possible electrical shock, be
sure electricity is turned off at the circuit breaker
or main fuse box before wiring.
Follow the steps below to connect the fan to your
house supply wires. Secure the wire nuts supplied
with your fan by wrapping the connections with
electrical tape.
Step 1. Connect the Black (hot) wire from the
ceiling to the black and blue wires from the fan.
Connect the white (neutral) wire from the ceiling
to the white wire from the fan. (Figure 6)
Step 2. If your outlet box has a ground wire (green
or bare copper) connect the fan ground wire to it.
If your outlet box does not have a ground wire, the
connect the fans and mounting bracket wire
together. Secure wire connection with the plastic
wire nuts provided.

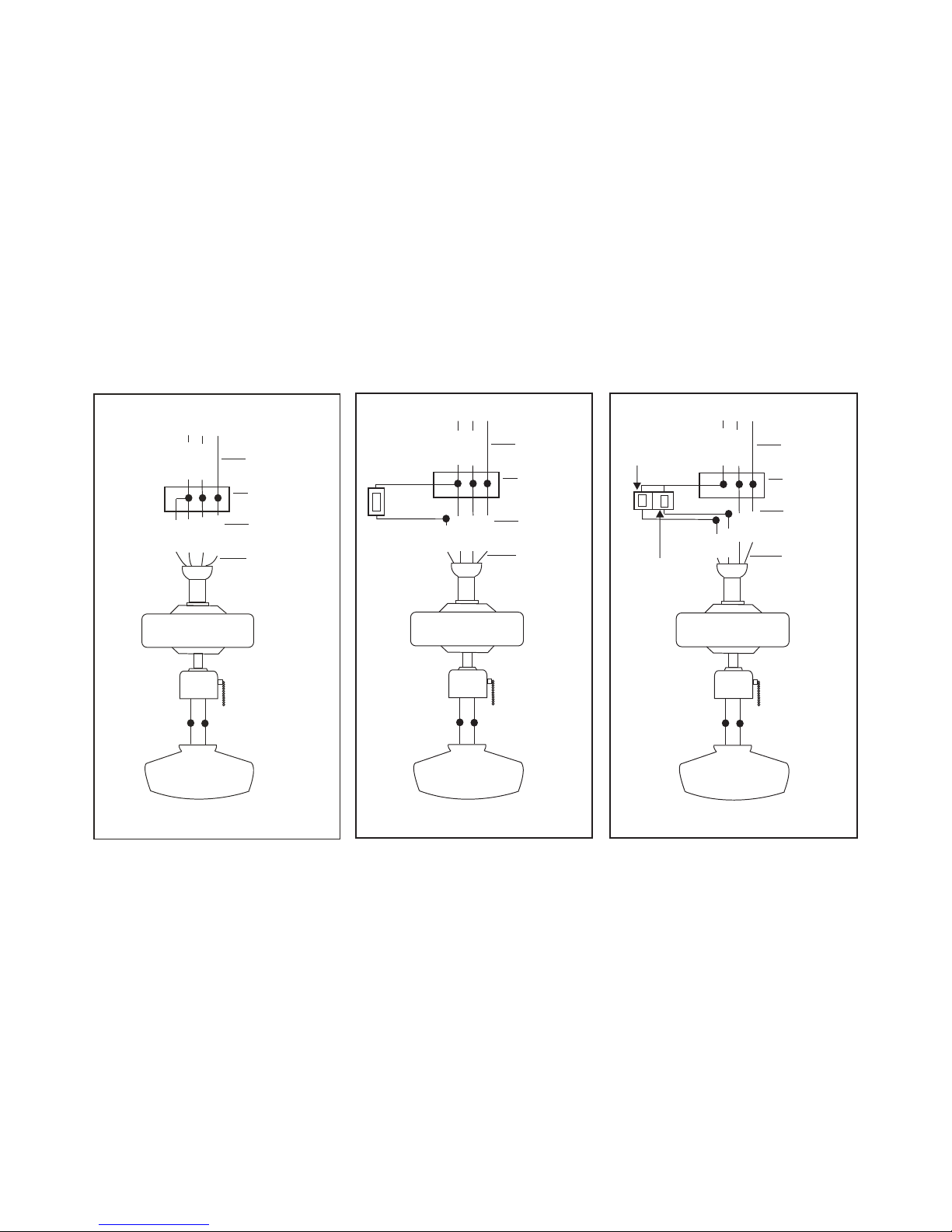

Step 3. Figures 7 and 8 illustrate the wiring
connections for optional wall control (available at
your Hampton Bay Retailer, the wire color out of
wall control’s installation manual for correct
wire connections).
Washer
Screw

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 8
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 7
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
BLUE
BLACK
Figure 6
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
WHITE
BLACK
BLUE
GREEN

6.Finishing the Installation

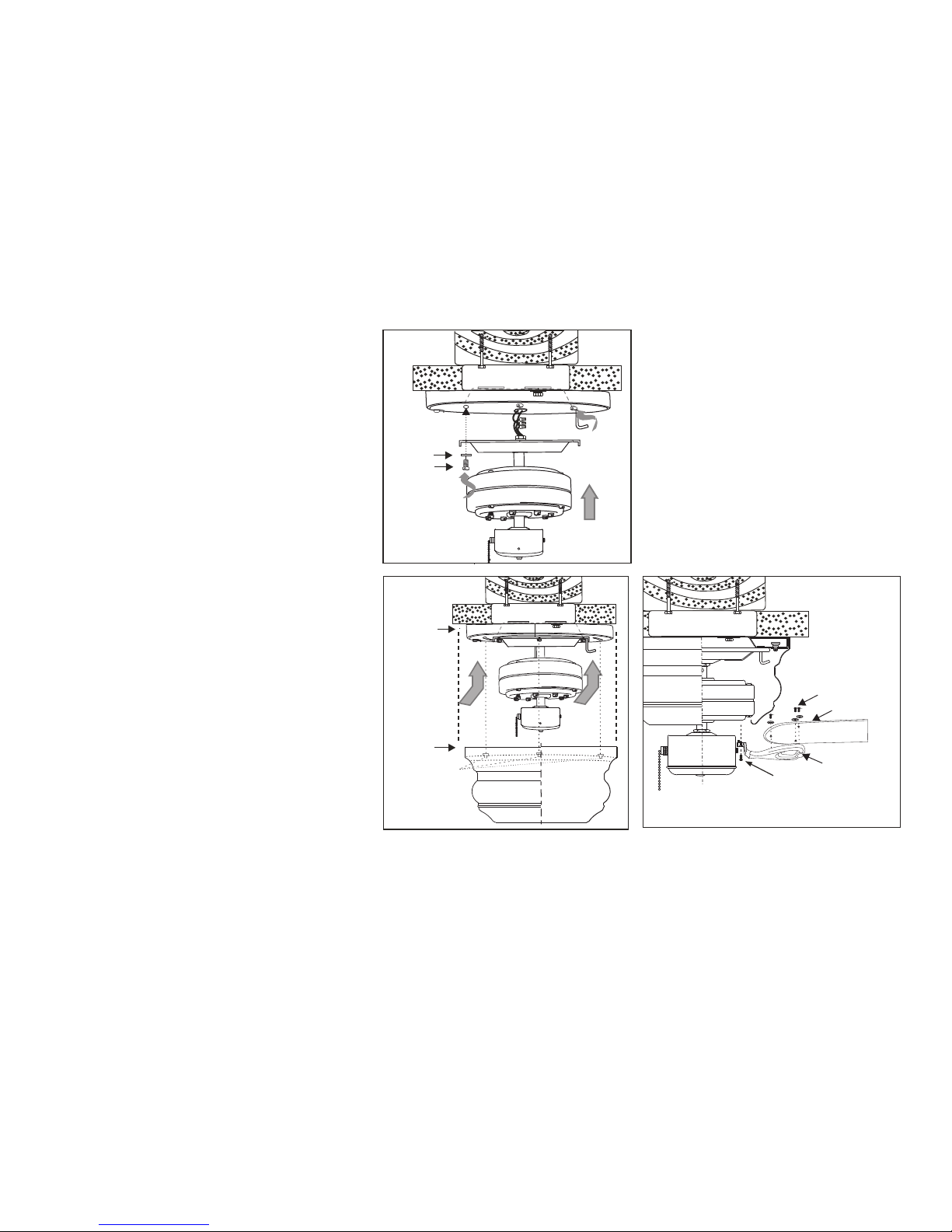

Step 1. Remove motor assembly from "J" hook and lift
motor assembly to mounting plate. Align slotted holes
on plate at top of motor assembly with loosened motor
assembly mounting screws in mounting plate. Twist
motor assembly to lock and re-insert motor assembly
mounting screw, along with lock washer, that were
pre v i o usly r e move d . T i g h ten m o t or a s s embly
mounting screw securely. (Figure 9)
Step 2. Align large screwheads at motor housing
rounded with rounded part of long, slotted holes in
mounting plate. Turn motor housing clockwise, to the
LEFT, until it no longer turns. (Figure 10)
NOTE: You may think that you have turned the motor
housing enough upon feeling it stop when turning it the
first time, but that is probably only the halfway point
and it is extremely important that you make sure that
you turn the motor housing all the way to ensure that
the motor housing is completely secure. To do this,
when you begin turning the motor housing two more
inches (to the left) so that the screwheads reach the end
of each slotted hole, thereby remaining secure.
7.Blade Installation
Step 1. Attach the fan blades to the blade
holders using the screws and rubber washer
provided, tighten screws securely. (Figure
11)
Step 2. Remove rubber stops from motor.
Align motor holes to blade holders and
secure with screws provided, tighten screws
securely. Repeat procedure with remaining
blades. (Figure 11)
Mounting
Figure 10
Studs
Housing
Large Screwheads
Figure 9
Washers
Screw
Blades
Screw
Blade Bracket
Figure 11
Screws

8.Installing the Light Kit
NOTE: Before starting installation, disconnect the power
by turning off the circuit breaker or removing the fuse at
fuse box.
Step 1. D isassemble the switch house cover by removing
3 screws on switch house. (Figure 12)
Step 2. While holding the light kit assembly under your
fan, snap together the wire connection plugs. (Figure 13)
Step 3. Carefully push all wires back into the switch
housing, then install the light kit assembly onto the switch
house with the 3 screws provided. Be sure to tighten all
screws. (Figure 13)
Step
Step 5. Install 3×40W candelabra bulbs (included).
NOTE: Make sure to leave enough space between the fan
pull chain and the bulbs to the chain doesn’t rub against
any of the bulbs. Light bulbs have no warranty, can be
purchased at local home improvement store or from our
service center.
4. To install light kit glass shade, loosen the light kit
screws and install the glass shade to the light kit. Secure
by tightening the 3 screws previously loosened. (Figure 14
)
Restore power and your light kit is ready for operations.
Bulb
Glass shade
assembly
Housing
Light Kit
Figure 14
Screw
Screw
Housing
Light Kit
Screws Connection
Plug
Figure 13
Switch House
Housing
Switch House
Cover
Screws Connection
Plug
Figure 12
Switch House

9. Operating Your Fan
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE SLIDE
SWITCH.
Figure 15
Figure 16
Here are some suggestions to help you
maintain your fan:
1. Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling)
2. Clean your fan periodically to help
maintain its new appearance over the years.
Use only a soft brush or lint-free cloth to avoid
scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or
tarnishing. Do not use water when cleaning.
This could damage the motor, or the wood, or
possibly cause an electrical shock.
3. You
can apply a light coat of furniture
polish to the wood blades for additional
protection and enhanced beauty. Cover small
scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The motor
has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO
THE SECTION "MAKING ELECTRICAL
CONNECTIONS”
Turn on the power and check the operation of your
fan. There are three pull chains available in your
fan:
1 . P u l l c h a i n c o n t r o l s t h e f a n s p e e d a s
follows: 1 pull- High, 2 pulls- Medium, 3 pulls-
Low, and 4 pulls- Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
2. The slide switch controls directions: forward
(switch down ) or reverse (switch up ).
Warm weather - (Forward) A downward air flow
creates a cooling effect as shown in Figure 15. This
allows you to set your air conditioner on a higher
setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves
warm air off the ceiling area as shown in Figure 16.
This allows you to set your heating unit on a lower
setting without affecting your comfort.

Problem
Fan will not start.
Fan sounds noisy.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight.
Check that light bulb is also secure.
6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Troubleshooting 10.

11. Specifications
44
0.22
0.31
0.4
14.7
29.2
48.4
1710.64
2549.29
3241.30
95
135
182
kgs
7.15 kgs
8.6 1.39
120
120
120
Low
Med
High
c
