HAMPTON BAY EF200S-52 User manual

Item #1002 711 610, 1002 726 123, 1002 711 618
Model #57446, 57447, 57448
UL Model #EF200S(R)-52
USE AND CARE GUIDE
CONNOR 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................12
Care and Cleaning.............................................................13
Troubleshooting.................................................................13
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less”.
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer
switch or wall control. Using a dimmer switch or
wall control will damage the fan.

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty

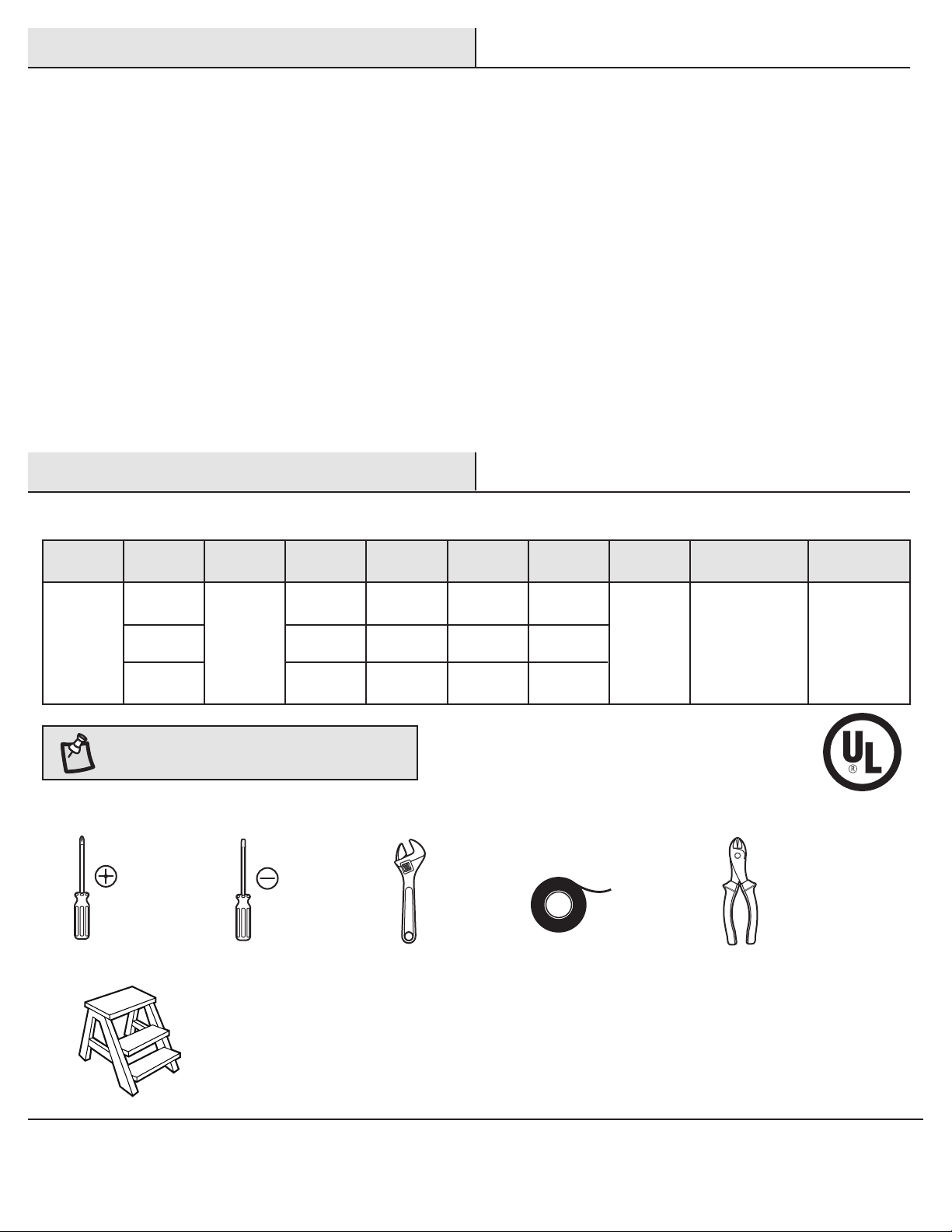

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Watts Amps RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium
High
120
10
30
63
0.22
0.38
0.53
62
109
156
1656
2983
4333
14.77 lbs.
(6.7 kg)
17.2 lbs.
(7.8 kg) 1.48 cu.ft.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and tness
for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time
period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.

4

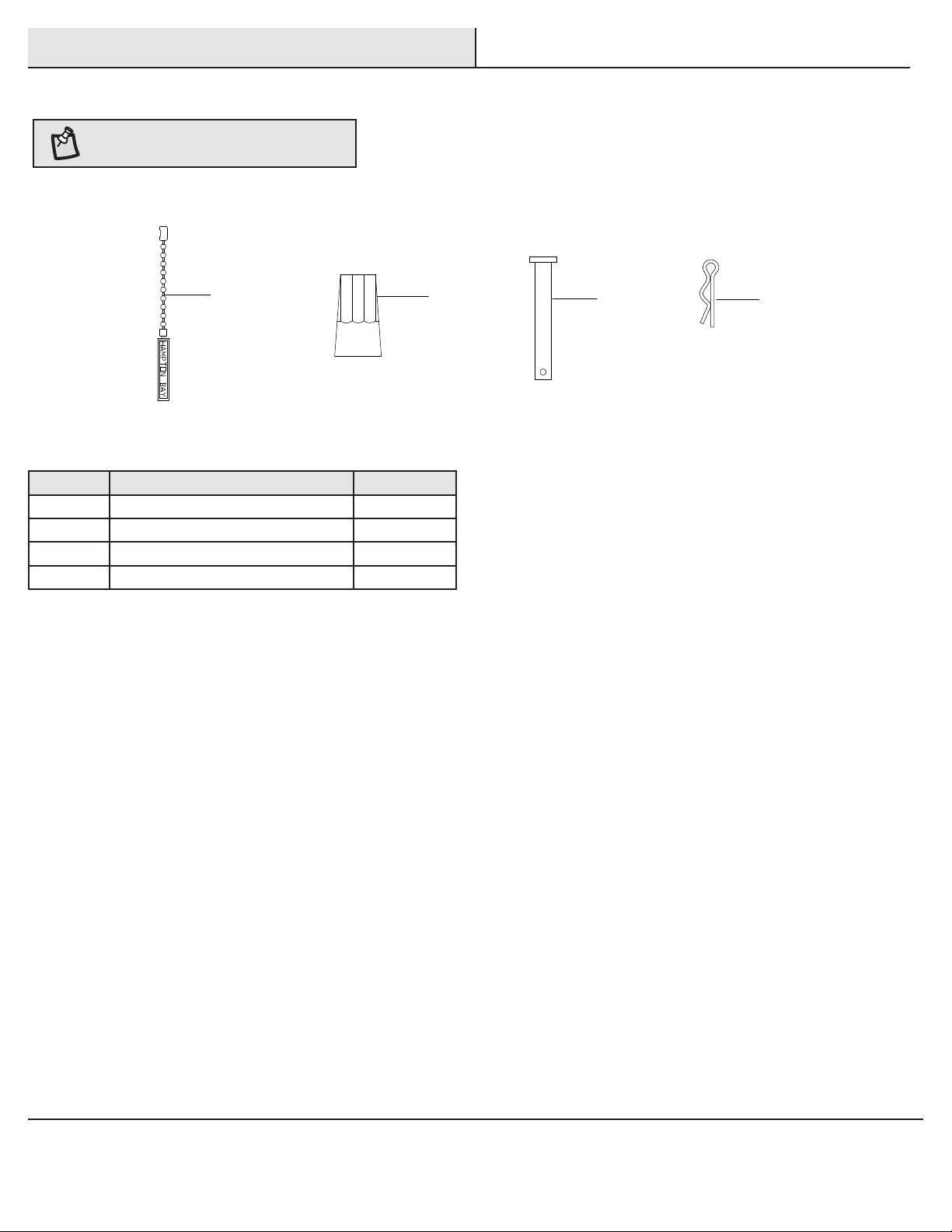

Part Description Quantity
AA Pull chain 2
BB Plastic wire connector 3
CC Hanging pin 1
DD Locking pin 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA CC
BB DD

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Canopy 1
C Canopy bottom cover 1
D Ball/downrod assembly 1
E Fan-motor assembly 1
F Light kit tter assembly 1
G Shatter resistant shade 1
Part Description Quantity
H Blade 5
I Blade arm 5
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
G
D
I
H
F
E

6

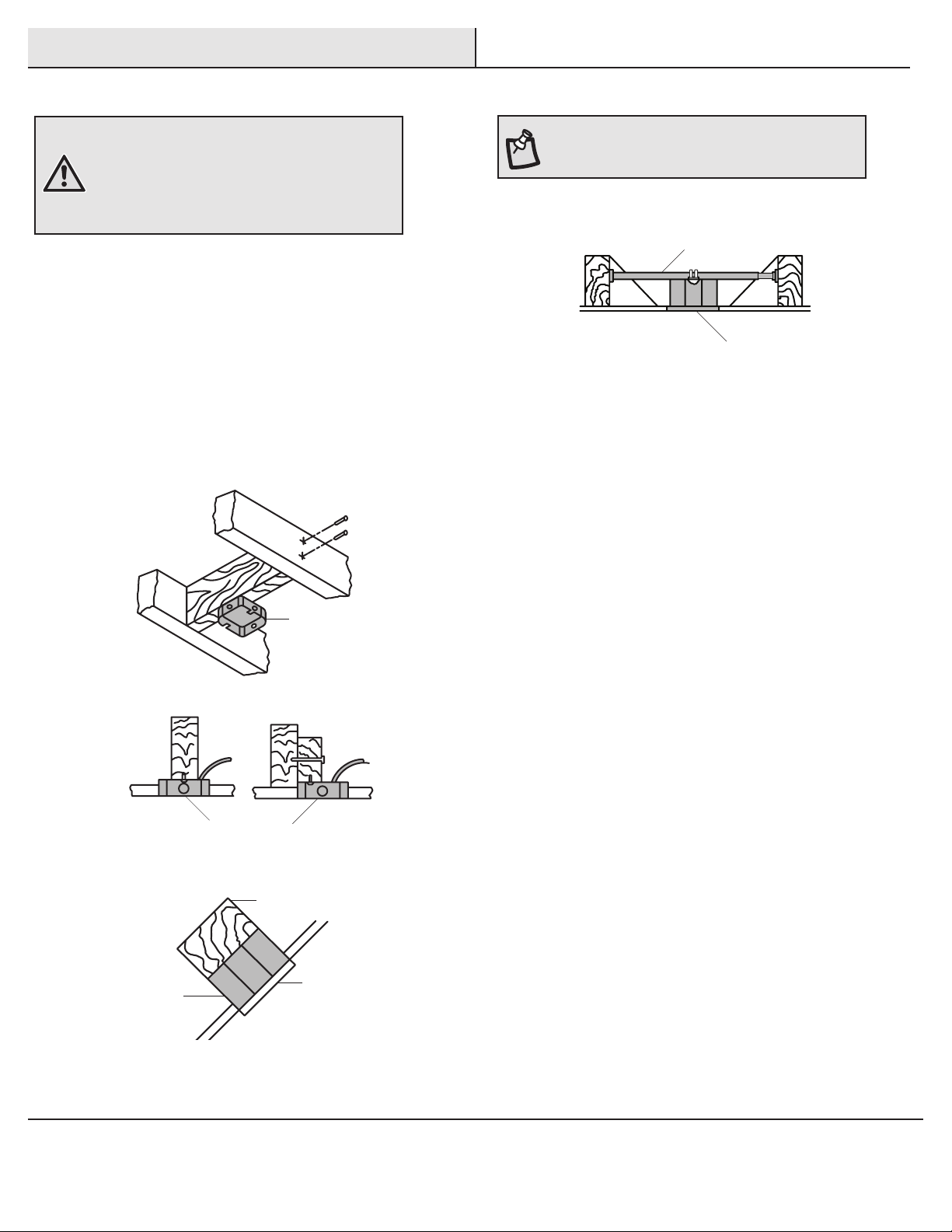

Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the screws provided with
the outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
□Route the wires exiting the top of the fan motor assembly (E)
through the center of the canopy bottom cover (C).
□Make sure the opening of the canopy (B) is on top and insert
the ball/downrod (D) through the canopy (B).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
21
□Remove the canopy bottom cover (C) from the canopy (B) by
turning the bottom cover counterclockwise until it unlocks.
□Loosen the two canopy screws (FF) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from the canopy (B).
Assembling the fan
□Loosen, but do not remove, the 2 setscrews (ZZ) on the
collar on top of the motor housing (E).
□Align the holes at the bottom of the downrod (D) with the
holes in the collar on top of the motor housing (E).
□Carefully insert the hanger pin (CC) through the holes in the
collar and downrod (D). Be careful not to jam the hanger pin
(CC) against the wiring inside the downrod (D).
□Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□Re-tighten the 2 setscrews (ZZ) on the collar on top of the
motor housing (E).
3
B
A
FF
C
C
D
E
B
DD
E
ZZ
B
CC
D
C
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.

8

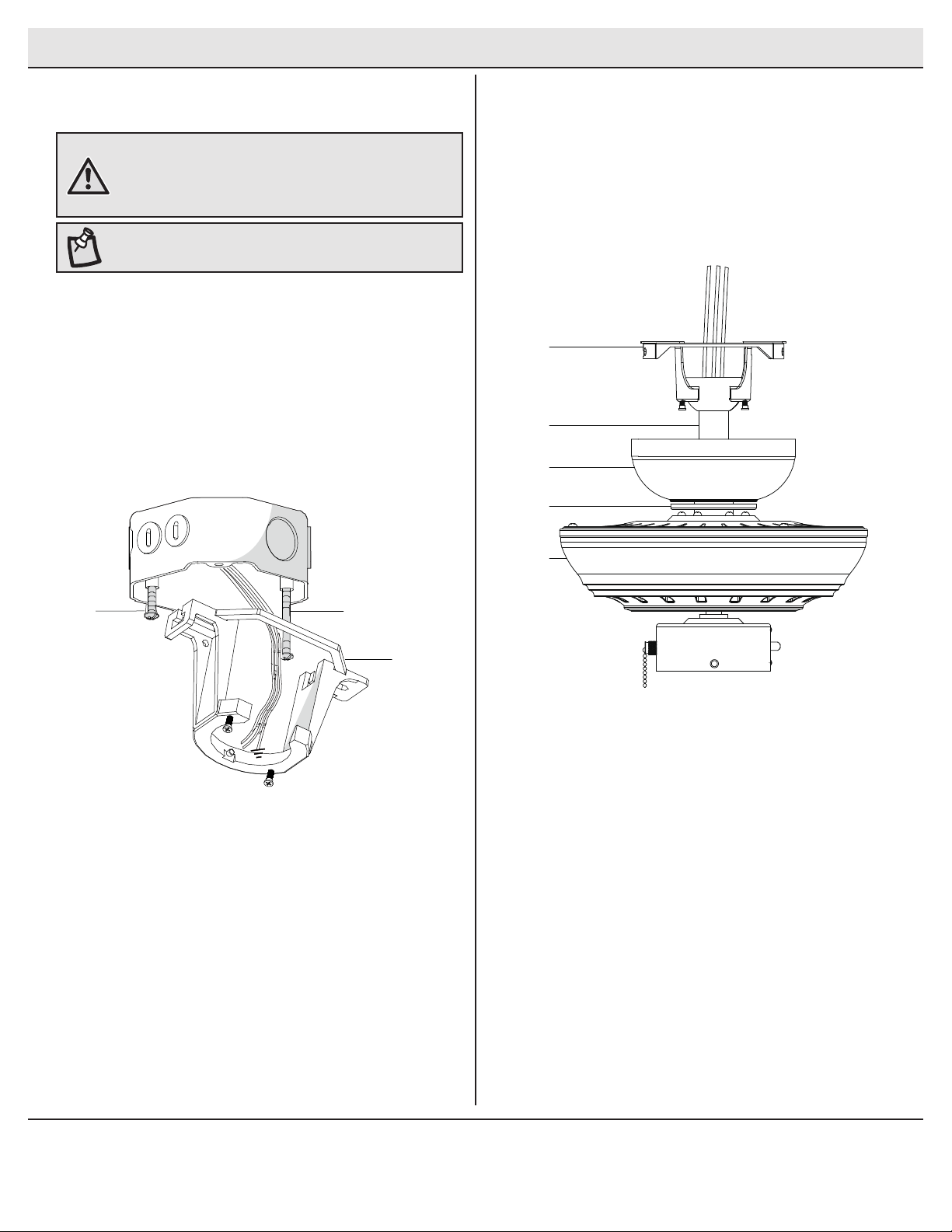

Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□Install the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (JJ) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (D)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the mounting screws provided
with the outlet box.
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (JJ).
A
JJ
JJ
A
B
E
C
D

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
3Making the electrical connection
IMPORTANT: Use the wire connecting nuts (BB) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed
to accept up to one 12-gauge house wire and two wires
from the fan. If you have larger than 12-gauge house wiring
or more than one house wire to connect to the fan wiring,
consult an electrician for the proper size wire nuts to use.
□The fan comes with 30 in. lead wires for use with an extended
ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (D) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.) This will make extra room
in the canopy (B), if you do not wish to cut the wires, you will
need to neatly wrap them.
□Spread the wires apart so that the green and white wires are on
the side of outlet box and the black wire is on the other side.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the black wire connecting nut upward to one side of the
outlet box (MM), turn the green and white wire connecting nuts
upward on the other side, press the wires into the outlet box
(MM).
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Blue and Black
Black
Green (or Bare)
Green
Outlet Box
in the ceiling
MM
White
BB
4Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires.

10
Assembly - Attaching the Blades
Attaching the blade bracket
1
□Fasten the blade bracket (I) to the motor (E) by inserting the
alignment post into the slot on the bottom of the fan-motor
assembly (E) and tightening the motor screws (GG) that are
pre-assembled to the blade bracket (I).
□Repeat for the remaining four blade brackets (I).
Assembly - Hanging the Fan (continued)
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the canopy (B) with the two screws
(FF) and alignment post (EE) in the mounting bracket (A).
□Push up the canopy (B) and turn clockwise until the
alignment post (EE) engages to the round hole and the
screws (FF) engage to the key slots.
□Firmly tighten the two mounting screws (FF).
□Install the decorative bottom cover (C) by aligning the cover
slots with screws in the bottom of the canopy (B). Rotate the
bottom cover (C) clockwise to lock in place.
5
WARNING: When using the standard ball/downrod mounting,
the tab in the ring at the bottom of the mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to the wiring.
C
A
FF
EE
B
E
GG
I
E

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Attaching the Light Kit
□Remove the three screws (HH) from the light kit tter assembly (F).
□Connect the wires exiting the bottom of the motor assembly (E)
by connecting the molded adaptor plugs together (II) (blue to blue,
white to white).
□Slide the light kit (F) and secure it to the switch housing using the
three screws (HH) that were removed in the rst step.
Attaching the light kit
1
Assembly - Attaching the Blades (continued)
Attaching the fan blades
2
□Mount the fan blade (H) to the blade bracket (I) by aligning the
three key-slot holes in the blade (H) with the three posts on
the top of the blade brackets (I).
□Hold the blade (H) close to the blade bracket (I) and press the
blade (H) down rmly. Ensure the key-slot holes are properly
seated on the blade arm posts.
□While still holding the blade (H) down, rmly slide the blade (H)
away from the bracket (I) side until the blade (H) engages in
the locking mechanism.
□Make sure the locking mechanism at the rear of the blade
bracket (I) springs upward and butts against the edge of the
blade (H) indicating a secure connection.
□Visually inspect the top of the blade bracket (I) to ensure the
locking mechanism is securely in place.
□Repeat for the remaining blades (H).
NOTE: Your fan features revolutionary advancements for quick
and easy blade installation.
E
H
I
CAUTION: To reduce the risk of electric shock,
disconnect the electrical supply circuit to the fan
before installing the light kit.
E
II
HH
F

12
XX
XX
Operating Your Fan
Turn on the power and check the operation of the fan.
The pull chain controls the fan speeds as follows:
1 pull - High
2 pulls - Medium
3 pulls - Low
4 pulls - off
The appropriate speed settings for warm or cool weather depends on
factors such as the room size, ceiling height, and number of fans.
The fan is shipped from the factory with the reversing switch
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (XX) (located in switch cup) to
the opposite position, and turn the fan on again. The fan blades will
turn in the opposite direction and reverse airow.
Warm weather - Warm weather - (Forward) A downward airow creates
a cooling effect. This allows you to set your air conditioner on a warmer
setting without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather
Installing the shatter resistant bowl
2
□Position the shatter resistant bowl shade (G) over the
threaded nipple and pass the pull chain for the fan through
the pull chain guide (VV) on the side of the light kit (F) to
avoid the chain from touching the shatter resistant bowl
shade (G).
□Install shade holder (LL), and nial (KK) to the threaded
nipple to secure the shatter resistant bowl shade (G)
properly.
□Attach the pull chain extensions (AA).
CAUTION: Make sure the power is off before attaching or
removing the shatter resistant bowl.
WARNING: Allow the shatter resistant bowl to cool completely
before removing.
Assembly - Attaching the Light Kit (continued)
NOTE: Wait for the fan to stop before reversing the direction of
the blade rotation.
AA
KK
LL
VV
E
G

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switch settings are the same on the transmitter and receiver.
□Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measure-
ment deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact
Customer Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
