HAMPTON BAY SOVANA 14412 User manual

USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store
call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-527-0998
HAMPTONBAY.COM
SOVANA 44 INCH CEILING FAN
THANK YOU
THANK YOU
Item# 161-646
Item #184-595
Model #14412

2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ...............................................................................
Tools Required ..............................................................................
Hardware Included .......................................................................
Package Contents .........................................................................
Installation .....................................................................
Assembly .......................................................................
Hanging the Fan ............................................................................
Setting up the Remote Control ......................................................
Making the Electrical Connections ..............................................
Finishing the Fan Motor Installation ............................................
Attaching the Fan Blades ............................................................
Installing the Light Kit .................................................................
2
3
4
4
4
4
5
6
7
8
8
9
10
11
12
13
Operation ......................................................................
Remote Control Operating Instructions .....................................
Installing the Remote Control Holder ..........................................
Reverse Switch Operating Instructions ......................................
Care and Cleaning .......................................................
Troubleshooting ...........................................................
Service Parts ................................................................
15
15
15
16
16
17
18
Table of Contents

3 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
WARNING: To reduce the risk of fire or electronic shock,
this fan must only use a UC7067RC solid-state speed control
with a UC9050T wall control.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges) when
installing the brackets, balancing the blades, or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to the outlet box marked
acceptable for fan support using the screws provided with the
outlet box.
Safety Information
□Read and save these instructions.
□To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
□All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
□The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
□The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
□Avoid placing objects in the path of the blades.
□To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
□Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
□After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
□All setscrews must be checked and retightened where
necessary before installation.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions, this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing, or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-527-0998 or visit www.hamptonbay.com.
44 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
1.834 ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.26
0.38
0.40
9.9
27.9
48.3
82
162
226
1322.14
2591.99
3851.73
8.05 kgs
(17.71 lbs)
9.11 kgs
(20.04 lbs)

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
AA
BB
CC
DD
EE
FF
GG
HH
II
Blade attachment hardware (3/16 in. x 17mm screws and lock washer)
Plastic wire nut
Balance kit (not to scale)
Mounting bracket screws (preassembled) (3/16 in. x 1/2 in. screws and lock washer)
Remote control holder mounting screws
Remote control holder plugs (preassembled)
Blade support plates (not to scale)
Mounting ring screws (preassembled) (5/32 in. x 8mm screws)
Light kit plate screws (preassembled) (5/32 in. x 8mm screws)
Part
Part
Description
Description
10
3
1
4
2
2
3
3
4
Quantity
Quantity
5 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
EE
FF
DD
GG
HH
II

PACKAGE CONTENTS
PACKAGE CONTENTS
Part
Part
G
H
I
J
K
Description
Description
Receiver
Remote control
Remote control holder
100W halogen bulb
12V MN21/A23 battery
Pre-Installation (continued)
6
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
3
1
1
1
Quantity
Quantity
1
1
1
1
1
Description
Description
Mounting bracket
Fan motor assembly
Blades
Light kit mounting plate
Light kit plate
Glass shade
A
G
H
I
J
K
B
C
D
E
F
HI
MED
LOW
OFF

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (KK) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the ceiling outlet box (JJ) (not included) directly to
the building structure. Use appropriate fasteners and
materials (not included). The outlet box and its bracing
must be able to fully support the weight of the moving fan
(at least 35 lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (JJ) (not included).
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
JJ
JJ
KK
JJ
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

Assembly — Hanging the Fan
1
□Attach the mounting bracket (A) to the outlet box (JJ)
(not included) with the two screws and washers (XX)
provided with the outlet box (JJ). Ensure the mount-
ing bracket (A) is tight and secured.
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Lift the fan into position by hanging the fan motor
assembly (B) onto the hook from the ceiling mounting
bracket (A) allowing it to hang freely.
A
XX
JJ
A
B
2
8
Attaching the mounting bracket
to the electrical box
Hanging the fan motor assembly
from the mounting plate

If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference from or to
other remote units. The frequency switches on your
receiver (G) and remote control (H) have been preset at
the factory. Please recheck to make sure the switches on
the remote control (H) and the receiver (G) are set to the
same position. Any combination of settings will operate
the fan as long as the remote control (H) and receiver (G)
are set to the same position.
□Insert the receiver (G) into the fan motor assembly (B)
with the flat side of the receiver (G) facing the ceiling.
G
B
G
H
CAUTION: The frequency switches on the receiving unit are
covered with a rubber cover. Remove the rubber cover, and
then replace it after making any changes to the frequency
switches.
CAUTION: Do not use this fan with a wall light dimmer
switch.
WARNING: To avoid possible electrical shock, ensure
electricity is turned off at the main fuse box before wiring.
3Preparing the receiver and
remote control
Assembly — Setting up the Remote Control
9 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

4Making the electrical
connections
Assembly — Making the Electrical Connections
RR
TT UU
G
VV
SS
JJ
BB
LL
MM
NN
OO
PP
QQ
WW
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (BB) with your
fan. Secure the wire nuts with electrical tape. Ensure
there are no loose strands or connections.
Motor to receiver electrical connections:
□Connect the black wire (QQ) from the fan to black
wire (LL) marked "TO MOTOR L" from the receiver
(G).
□Connect the white wire (OO) from the fan to the white
wire (NN) marked "TO MOTOR N" from the receiver
(G).
□Connect the blue wire (PP) from the fan to the blue
wire (MM) marked "For Light" from the receiver (G).
Receiver to house supply wires electrical connections:
□Connect the black (hot) wire (TT) from the ceiling to
the black wire (RR) marked "AC in L" from the
receiver (G).
□Connect the white (neutral) wire (UU) from the
ceiling to the white wire (SS) marked "AC in N" from
the receiver (G).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 feet from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
□If your outlet box (JJ) has a ground wire (VV) (green
or bare copper), connect it to the fan ground wires
(WW); otherwise, connect the hanging ball ground
wire to the mounting bracket (A).
□Secure the wire connection with a plastic wire nut
(BB) provided.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (JJ) and black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (JJ).
10
WARNING: To avoid possible electrical shock, ensure
electricity is turned off at the main fuse box before wiring.

Assembly — Finishing the Fan Motor Installation
B
B
DD
DD
A
5Tightening the screws
□Loosen two of the four mounting bracket screws (DD)
from the mounting bracket (A), and remove the other
two screws (DD).
□Remove the fan motor assembly (B) from the
mounting bracket (A) hook, and engage the key holes
with the two mounting bracket screws (DD)
previously loosened.
6
Attaching the fan motor assembly
to the mounting bracket
□Install the two mounting bracket screws (DD)
previously removed, and tighten all four mounting
bracket screws (DD).
11 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

Assembly — Attaching the Fan Blades
7Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms while installing, balancing the blades
(C), or cleaning the fan. Do no insert foreign objects between
rotating fan blades (C).
AA
B
C
GG
□Insert a blade (C) through one of the slots in the
bottom band.
□Align the holes in the blade with the three holes in a
blade support plate (GG). The raised holes in the
blade support plate (GG) should face down.
□Repeat this process to attach the other blades (C).
12

8Attaching the light kit mounting
plate to the mounting ring 9
D
HH
YY
B
II
E
D
B
□Remove one of three mounting ring screws (HH) from
the mounting ring (YY) and loosen the other two
screws. (Do not remove)
□Place the key holes in the light kit mounting plate (D)
over the two screws (HH) previously loosened from
the mounting ring (YY), turn the light kit mounting
plate (D) until it locks in place at the narrow section
of the key holes.
□Secure by tightening the two mounting ring screws
(HH) previously loosened and the one (HH) previously
removed.
Attaching the light kit plate to
the mounting plate
□While holding the light kit plate (E) under your fan (B),
make the polarized plug connections:
- White to white
- Black to black
□Install the light kit plate (E) onto the light kit mounting
plate (D) with four light plate screws (II) provided. Be
sure to tighten all screws (II).

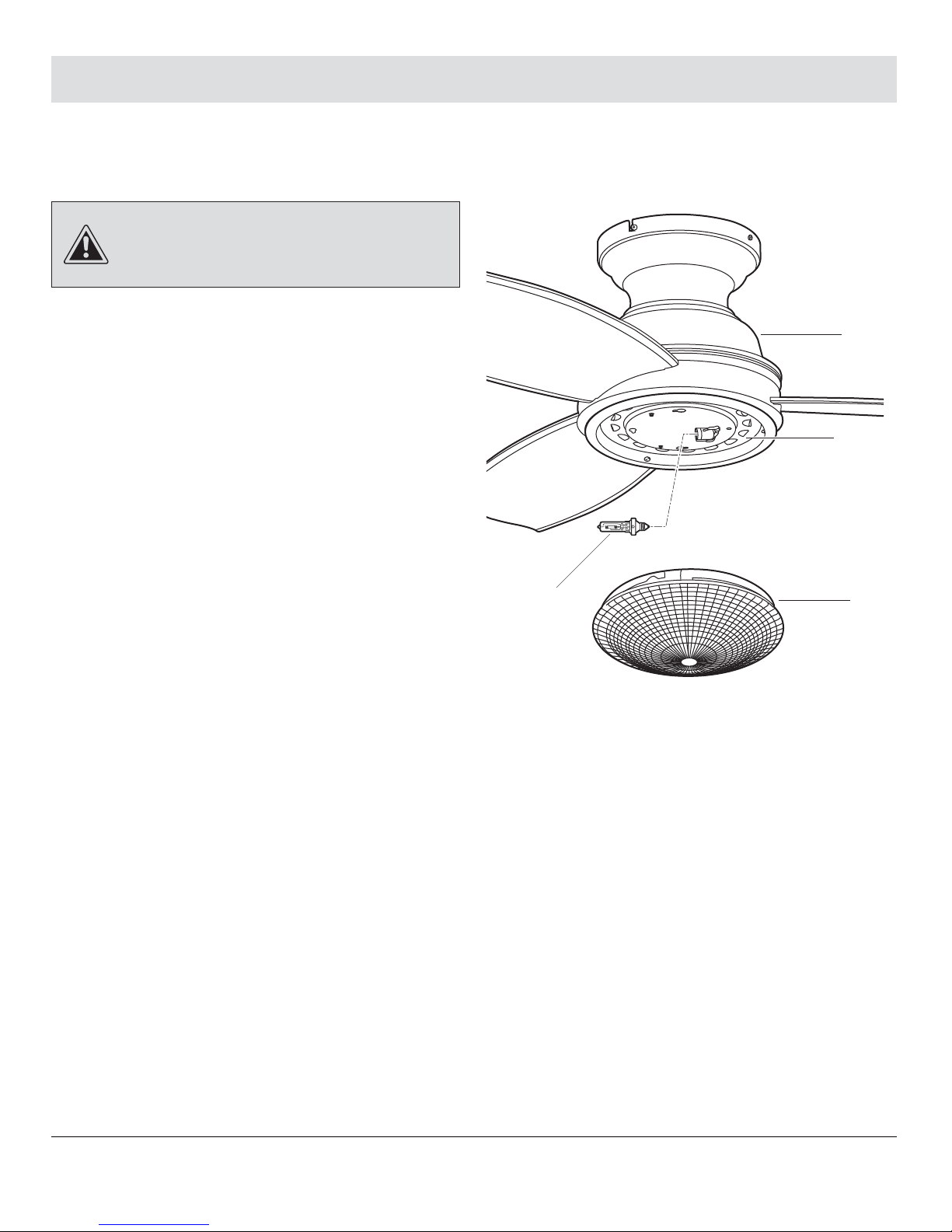

Assembly — Installing the Light Kit
13 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

□Install the 100 Watt halogen bulb (J) (included).
□Raise the glass shade (F) up against the bottom of the
fan housing (B), and secure it to the fan by the
turning glass (F) clockwise until snug. Do not
overtighten.
□Restore the power and your fan is ready for opera-
tion.
10 Finishing the light kit assembly
and mounting the glass shade
Assembly — Installing the Light Kit (continued)
14
WARNING: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
F
J
B
E

Operation
Install a 12V MN21/A23 battery (K) (included) in-to the remote
control (H). To prevent damage to the remote control (H), remove
the battery (K) if not used for long periods.
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
H
K
I
EE
FF
15 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
HI
MED
LOW
OFF
HI MED LOW
HI
MEDLOW
OFF
□Restore power to the ceiling fan and test for proper operation.
" , , " buttons: These three buttons are used to set the
fan speed as follows: = Low speed, = Medium speed,
and = High speed.
" " button: This button turns the fan off.
The " " button turns the light ON or OFF and also controls the
brightness setting. Press and release the button to turn the light
ON or OFF. Press and hold the button to set the desired brightness.
The light button has an auto-resume, it will stay at the same
brightness as the last time it was turned off.
□Remove the two remote control holder plugs (FF) from the
remote control holder (I). Note that the plugs have unique tabs
that allow them to fit only in one hole.
□Attach the remote control holder (I) with the two remote
control holder mounting screws (EE).
□Replace the two remote control holder plugs (FF) each into its
own hole.

Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Do not use water when cleaning. Water could damage the
motor, or the wood, or possibly cause an electrical shock.
□Do not apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch left) or reverse
(switch right).
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
16

□Do not connect the fan with wall mounted variable speed control(s).
□Check to make sure the dip switches from the remote control and receiver are set to the same
frequency.
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for 10 minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
The fan wobbles.
The remote control is
not working.
Troubleshooting
Problem
Problem
Solution
Solution
□Check main and branch circuit fuses or breakers.
□Check line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the dip switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
17 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 4
“Making the electrical connections” on page 10.

Part
Part
A
B
C
D
E
F
G
H
I
J
K
Description
Description
Mounting bracket
Fan motor assembly
3 blades
Light kit mounting plate
Light kit plate
Glass shade
Receiver
Remote control
Remote control holder
100W halogen bulb
12V MN21/A23 battery
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
Description
Description
Blade attachment hardware (3/16 in. x 17mm screws
and lock washers)
Plastic wire nut
Balance kit
Mounting bracket screws (3/16 in. x 1/2 in. screws
and lock washers)
Remote control holder mounting screws
Remote control holder plugs
Blade support plates
Mounting ring screws (5/32 in. x 8mm screws)
Light kit plate screws (5/32 in. x 8mm screws)
18
Service Parts
A
B
C
D
E
F
G
H
I
J
K
HI
MED
LOW
OFF
AA
BB
CC
DD
EE
FF
GG
HH
II

Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-527-0998
HAMPTONBAY.COM
Retain this manual for future use.
11MA0620-1H000001-C
