HAMPTON BAY 134674 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
181-236
14826
792145350224

Safety Rules.....................................................................................................................................
Unpacking Your Fan ........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit......................................................................................................................
Care of Your Fan ...........................................................................................................................
Troubleshooting ............................................................................................................................
Specifications ...............................................................................................................................
Operating Your Transmitter...............................................................................................................
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breakeror fuse boxbefore beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fanspeed control device.
4. WARNING: To reduce the riskof personal injury, use only the two steel
screws (and lock washers) provided with the fan for mounting to the
outlet box. Most outlet boxes commonly used for the support of lighting
fixtures are not acceptable for fan support and may need to be replaced,
consult a qualifiedelectrician if indoubt.
7. Avoid placing objects in the path of the blades.
8. Reverse thefan while themotor is onany speeds.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do notuse water ordetergents when cleaningthe fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
12. Electrical diagrams are for reference only. Light kit that are not
packed with the fan must be CUL Listed and marked suitable for use
with the model fan you areinstalling. Switches must be CUL General
Use Switches. Refer to the Instructions packaged with the light kits
and switches forproper assembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only CUL
Listed outlet boxesmarked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades tothe floor.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE BRACKETS (ALSOREFERRED TOAS FLANGES)DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!
1. Safety Rules

Unpacking Your Fan 2.

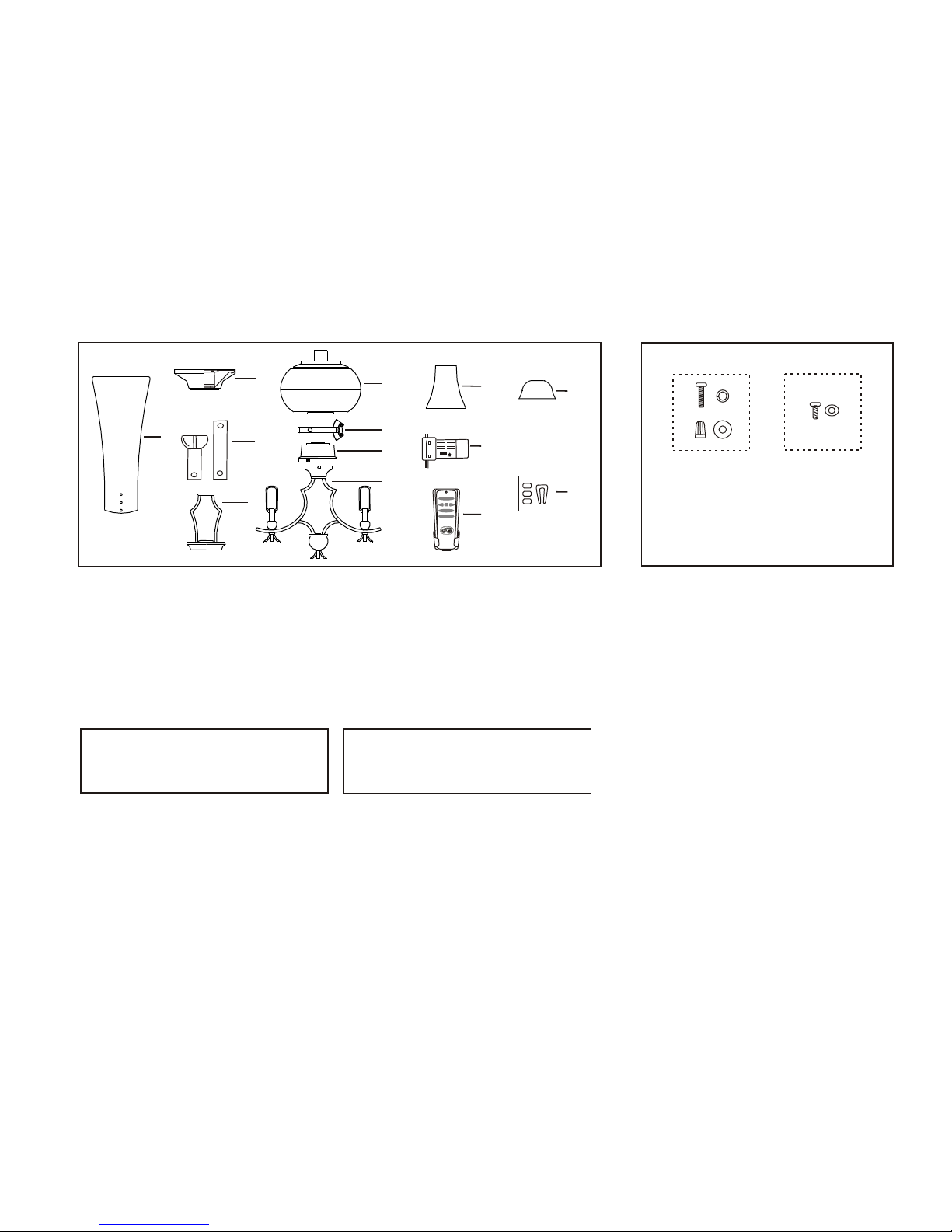

Unpack your fanand check thecontents. You should havethe following items:
1.
2. Canopy assembly
3.
4.
Set of blades(5)
Ball/downrod assembly (1)
& extra downrod(1)
Decorative scroll
5. Fan motorassembly
6. Set ofblade bracket (5 )
7. Switch housing
8. Light kit
(4 )
Receiver+6 wire nuts
11. Transmitter+holder+2 mounting screws
Extra collar cover
Balancing kit
9. Glass shade
10.
12.
13.
3
1
25
6
7
8
9
10
11
12
13
4
LIGHT / DIMMER
LO MED HI
FAN OFF
REVERSE
ONON
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 877-902-5588
NOTE
FOR NON-LIGHT USEPURPOSE, THE
SWITCH HOUSING COVERIS AVAILABLE
BY CALLINGTHE TOLLFREE NUMBER
877-902-5588
14. Loose partsbag containing:
S
b. Blade attachmenthardware
()
a. Mounting hardware
crews (2 PCs.)
Lock washers (2PCs.)
Metal washers (2PCs.)
Plastic wire connectors(3 PCs.)
16 screws, 16fiber washers
ab
14

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
18 angle

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps belowto hang yourfan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise.(Fig.5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket
from the screw head and turning the canopy
counter clockwise. (Fig,5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shownin Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided withyour fan.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the decorative scroll,
canopy cover, canopy and then through the
ball / downrod.(Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with theholes in the collar on top of
the motor housing (Fig.7). Carefully insert
a half turn
WARNING
FAILURETO PROPERLY INSTALL LOCKINGPIN
AS NOTED INSTEP 7 COULD RESULT IN FAN
LOOSENING ANDPOSSIBLYFALLING.
Step 8. Tighten twoset screws ontop of the fan
motor firmly (Figure7)
Step 9. Place the downrod ball into the hanger
bracket socket.
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as notedin the circleinset of Fig. 7.
4.
Mounting
screws
(supplied with
the fan)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
Figure 6 120V Wires
Washers
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover
CHANGING THE DOWNROD
NOTE: Your fan comes with a 6" downrod
attached to the hanging ball for not to use the
decorative scroll in lower ceiling (See Fig. 7A).
In addition, you have been provided with a 12"
downrod to use with the decorative scroll (See
Fig. 7)
Installing the fan with decorative
scroll (with 12" downrod)
(Recommend min. 9 ft. ceiling height)
1.Remove the hanger ball from the 6"downrod by
loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
2.Slide the hanger ball down the downrod
and remove the support pin.
3.Reinstall the ball to the 12" downrod.
4.Follow the Fig. 7 and continue on section
titled "Hanging the Fan" for installation.

5.
Make the Electric
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure the switches on
transmitter and receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to thesame position.(Figure 9)
Step 1. (Figure 10) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing the ceiling.
Step 2. (Figure 11) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO MOTOR
N" from the receiver. Connect the blue wire
from the fan to the blue wire marked "For
Light" from the receiver. Secure the wire
connections with the plastic wire nuts provided.
Step 3. (Figure 11) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire connections
with the plastic wire nuts provided.
Figure 8
Safety Cable
INSTALLATION OF SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer,as illustrated in Figure 8.
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 7
Hanger pin
Locking pin Decorative scroll
Canopy
cover
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 7A
Hanger pin
Locking pin Collar cover
Canopy
cover
With 12" Downrod With 6" Downrod
Installing the fan without
decorative scroll (with 6" downrod)
(Recommend min. 8.25 ft. ceiling height)
1.Remove the hanger pin, lock pin and set
screws from the top of the motor
assembly.
2.Route wires exiting from the top of the
fan motor through the collar cover,
canopy cover, canopy and then through
the ball/downrod (Fig.7A)
3.Follow the steps 7,8,9 in section titled
"Hanging the Fan"for installation.

Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on hanger bracket. Rotate canopy
clockwise, next, while holding the canopy with
one hand, slidethe canopy cover over the screws
and rotate clockwise until tight. Note: adjust
the canopy screws as necessary until the canopy
and canopy coverare snug. (Fig.12)
6.
Figure 12
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 11
WHITE
WHITE
BLUE
BLACK
ONON
Figure 10
Receiver
Hanger
bracket
ONON
Figure 9
Code switch
WARNING
MAKE SURE TAB AT BOTTOM OFHANGER
BRACKET IS HANGERPROPERLYSEATED IN
GROOVE OF HANGERBALL BEFORE
ATTACHING CANOPYTO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD
CAUSE DAMAGE TOELECTRICAL WIRING.
Step 4. (Figure 11) If your outlet box has a
ground wire (green or bare copper) connect it
To the fan ground wires; otherwise connect
the hanging bracket ground wire to the
mounting bracket. Secured the wire
connection with a plastic nut provided. After
connecting the wires spread them apart so
that the green and white wires are on one side
of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box.

Attaching the Fan
Blades
Step 1 Attach blades to blade brackets using
three screws and fiber washers as shown in
Figure 13. Start a screw intothe bracket, donot
tighten. Repeat for the 2 remaining screws and
washers.
Step 2 Tighten each screw securely , make sure
the blade isstraight.
Step 3 Fasten the blade brackets to the motor
by inserting the tab from the blade brackets to
the slot in the bottom motor housing, then
tighten the two screws and washers already
installed in theblade brackets. (Figure 14)
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with the kit.
7.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct
most fan wobble. Check after eachstep.
1. Check that all blade and blade bracket
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 15. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within
1/8".
If all blade levels are not equal, you can
adjust the blade level with the following
procedure.
deviation
Fiber
washer
Blade
bracket
Figure 13
Blade
Screws
Figure 14
Motor
Blade bracket
Slot
Tab

To Adjust the blade tip down, insert a
washer (not supplied) between the blade and
blade bracket at the screw closest to the
motor (Figure 16)
To adjust the blade tip up, insert a washer
(not supplied) between the blade and blade
bracket at the two screws farthest from the
motor (Figure 16)
3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
Figure 16
Fan blade
blade tip down
Fan blade
blade tip up
Blade
bracket
Touching
ceiling

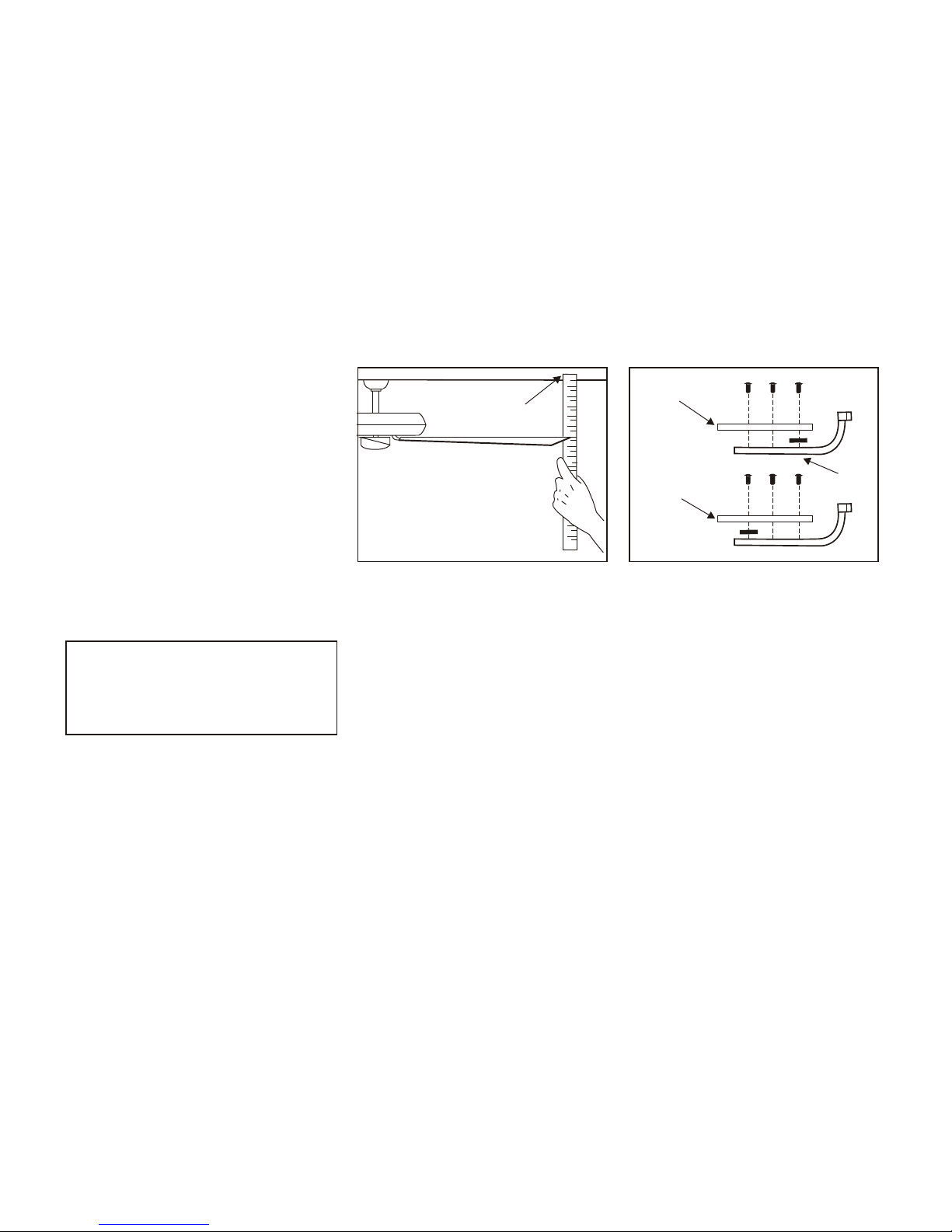

Figure 15
8.

9. Installing the Light Kit
REMEMBER to disconnect the power. The
fan blades mustalready be attachedto the fan.
Your fan and light kit though pre-wired have
been disassembled at the factory to ease in
shipping. Please follow these steps to
complete the installation of your fan and light
kit. TO REDUCE THE RISK OF FIRE DO
NOT EXCEED MAXIMUM WATTAGE
RATING.
Step 1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use.
Loosen the other2 screws. (Do not remove)
Step 2. Place the key holes on the switch
housing over the2 screws previously loosened
from the mounting ring, turn the switch
housing until it locks in place at the narrow
section of the key holes. Secure by tightening
the 2 screws previously loosened and the one
previously removed. (Figure17)
Step 3. Make the wire connections: Connect
the white wire connectors from the light kit
and fan, follow the same procedure with the
black wire connectors.
Step 4. Carefully push all wires back into the
switch housing. Attach the light kit assembly
to the switchhousing with 3screws provided.

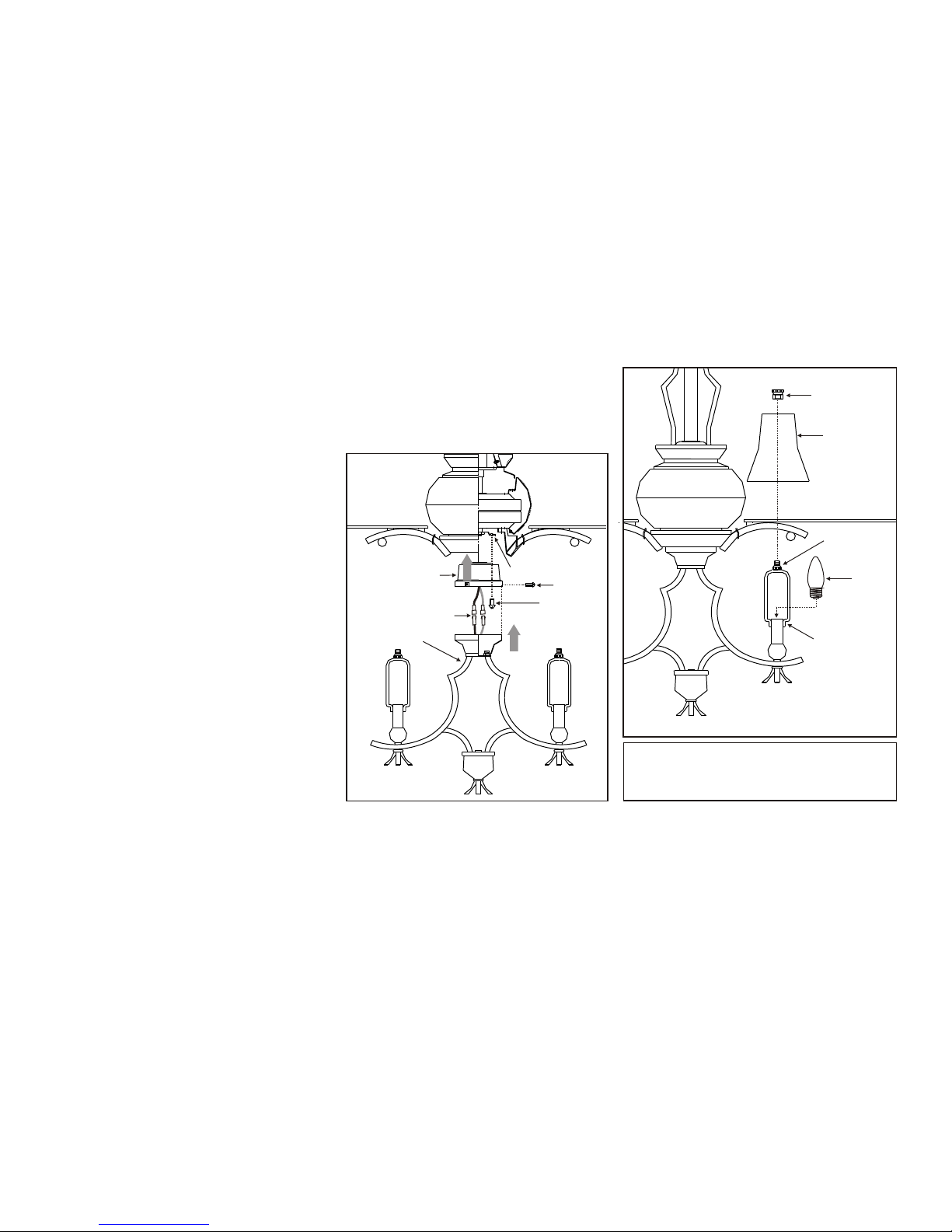

Figure 18
Bulbs
Bulb holder
Screws
Nuts
Glass shade
Figure 17
Screws
Screws
Mounting ring
Light kit assembly
Switch housing
Connection plugs
Step 5. Install four 25 watt (max.) bulbs
(not provided). Place the glass shade onto
the bulb holder and secure with nuts. DO
NOT OVER TIGHTEN (Figure 18)
NOTE
FOR NON-LIGHT USEPURPOSE, THE
SWITCH HOUSING COVERIS AVAILABLE
BY CALLINGTHE TOLLFREE NUMBER
877-902-5588

Restore power to ceiling fan and test for
proper operation.
1. " LO, MED,HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO= Low speed MED= Medium speed
HI= High speed
2. "FAN OFF" button:
This button turns the fanoff.
3. The "LIGHT/DIMMER" button turns the
light ON or OFF and also controls the
brightness setting. Press and release the
button to turnthe light ON or OFF. Press and
hold the buttonto set the desired brightness.
The light key has an auto-resume, it will
stay at the same brightness as the last time it
was turned off.
4.
and so on.
The "REV" button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather):
NOTE: To operate the reverse function on
this fan, press the reverse button while the
fan is running.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans,
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 20. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 21. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Operating Your Transmitter 10.
Figure 20
Figure 21
Figure19
LIGHT / DIMMER
LO MED HI
FAN OFF
REVERSE

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Care of Your Fan11.
Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if notused for longperiods.
9 Volt
Battery
Figure 22

Troubleshooting 12.
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make suremain power is off.
3. Check tomake sure thedip switches from the transmitter andreceiver are setto the samefrequency.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make suremain power is off.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that the light bulb
is also secure.
6.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.
Do not connectthe fan withwall mounted variable speed control (s)
1. Do notconnect the fanwith wall mounted variable speed control(s)
2. Make surethe dip switchesare set correctly.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
Distributed by/
Home Depot ofCanada Inc.
426 Ellesmere RoadScarborough, Ontario M1R 4E7
2004 Homer TLC, Inc.All Rights Reserved
Hampton Bay isa registered trademarkof Homer TLC, Inc.
RPM CFM N.W. G.W.
C.F.
52"
120 2.87'12.5
kgs
13.5
kgs
0.23
0.42
0.60
10
35
70
60
110
165
1510
2766
4150
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
C
13. Specifications
