HAMPTON BAY Florentine User manual

Florentine IV
56 in Ceiling Fan
Owner’s Manual
Florentine IV
Ventilador de Techo de 1,42 m
Manual del Propietario
527-541

Florentine IV by Hampton Bay
®

56” Florentine IV
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
The finish of this fan is weather resistant, but over time will
naturally weather and fade.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Operating Your Fan . . . . . . . . . . . . . . . 9
Care of Your Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
527-541
792145354390
219032

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
WARNING: Use only with light kit marked “Suitable for Use in Wet
Locations”.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
WARNING

2
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
AB
C
1
24
5
6
7
7A
3
Set of blades (3)
Canopy assembly
Ball/downrod assembly (1)
& extra downrod (1)
Coupling cover
1.
2.
3.
4.
Fan motor assembly
Blade arms (3)
4-speed wall control with 2 mounting
screws and 3 wire nuts
Mounting plate with 2 mounting screws
5.
6.
7.
7A.
Blade Attachment Hardware
(13 screws, 13 nut, 13 rubber washers,
13 metal washers, Allen wrench)
Electrical Hardware
(3 plastic wire nuts)
Balance Kit
A.
B.
C.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.

3
Installing Your Fan
Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 22°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot retailer).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Tighten two set screws at top of the fan motor
collar firmly and evenly. (Fig. 6)
6.
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 5)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the bottom
of the mounting bracket and loosening the
other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the canopy cover form the canopy.
(Figure 5)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 6)
Route wires exiting from the top of the fan
motor through the coupling cover, canopy
cover, canopy and then through the ball/
downrod. (Figure 6)
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing (Figure 6). Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
1.
2.
3.
4.
5.
Figure 6
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Canopy Bottom
Cover
Pin in Locked
Positioon
Motor Collar
Coupling
Cover
Tighten Screw
Firmly
Cotter Pin
Clevis Pin
Figure 5
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover

5
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Installing Fan to
the Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY. MOUNT
FAN ONLY TO AN OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN
SUPPORT AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 7.
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box (Figure 7).
Security tighten the two mounting screws.
Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated
in the groove in the hanger ball (Figure 8). This
will help to balance the ceiling fan.
Changing the Downrod
(Optional)
1.
2.
3.
4.
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you have
been provided with a 6" downrod to use if desired.
If you choose to use the 6" downrod, perform the
following steps:
Remove the hanger ball from the 4" downrod
by loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
Slide the hanger ball down the downrod and
remove the support pin.
Insert the support pin in the holes at the top of
the 6" downrod and slide the hanger ball up the
6" downrod. Make sure the support pin is
properly seated in the grooves in the top of the
hanger ball.
Tighten the set screw firmly.
1.
2.
3.
4.
Figure 7
UL Listed Outlet Box
Ceiling Mounting
Bracket
120V
Wires
Mounting
Screws (Supplied
with Electrical Box)
Tab
Figure 8
Groove
Tab

6

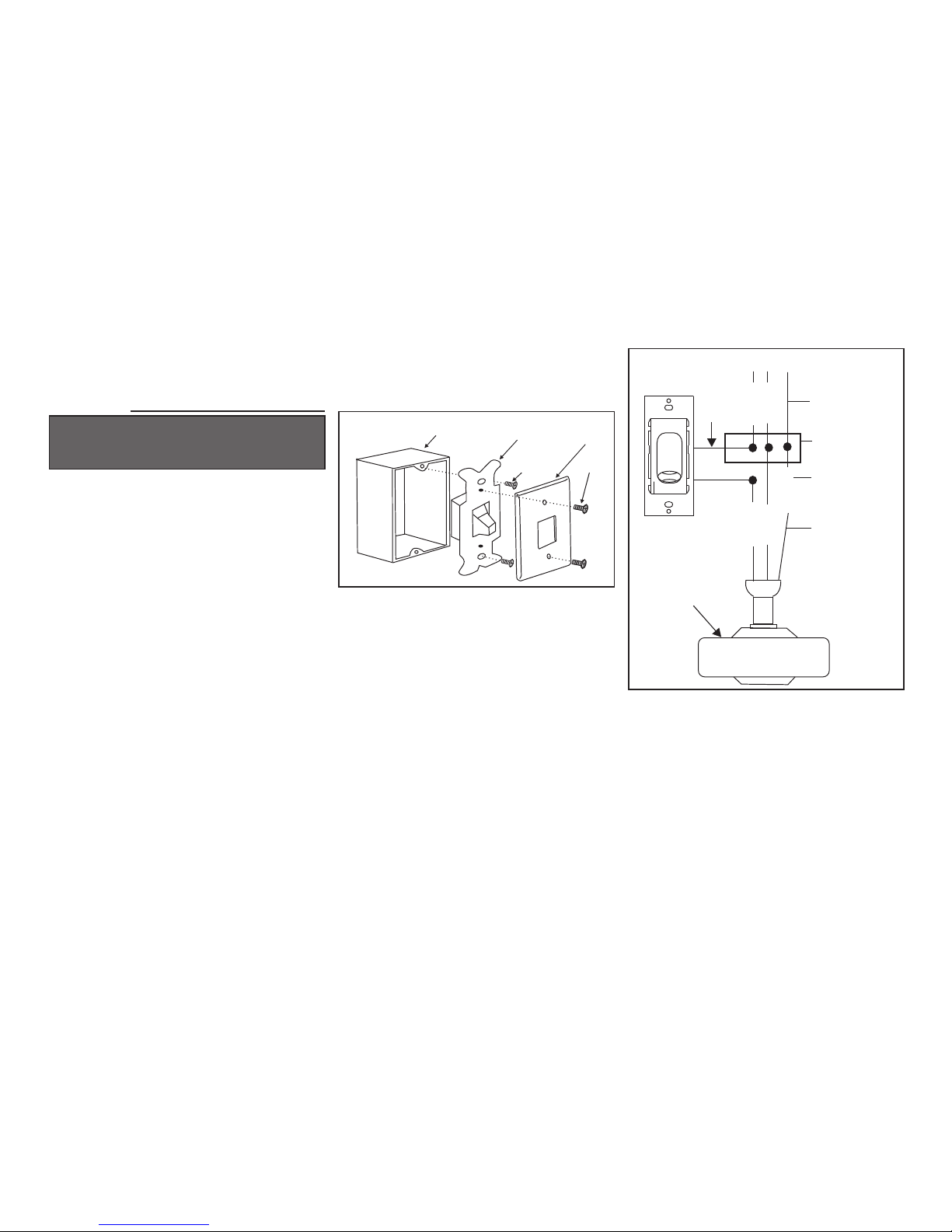

Making the Electrical
Connections
WARNING
TO AVOID POSSIBLE ELECTRICAL SHOCK,
BE SURE ELECTRICITY IS TURNED OFF AT
THE MAIN FUSE BOX BEFORE WIRING.
Disconnect the power and remove the existing
wall plate and switch from the wall junction
box. (Figure 9).
Set switch knobs on the wall control in the 0
position.
Make wire connections (Figure 10) and secure
with wire nuts supplied.
• Black wire from fan to black wire from speed
control.
• Black wire from speed control to black wire
from the A/C supply source.
• White wire from fan to white wire from the
A/C supply source.
• Connect the fan ground wire (green) to the
household ground wire.
If your outlet box has a ground wire (green or
bare copper) connect the wall transmitter's.
1.
2.
3.
4.
ground wire to it; otherwise connect the wall
transmitter's ground wire directly to one of the
screws from the outlet box.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Figure 9
Switch
Outlet Box Wall Plate
Screws
Screws
Figure 10
FAN 4 SPEED
CONTROL
4
3
2
1
0
Fan
SUPPLY CIRCUIT
BLACK
BLACK
BLACK BLACK
Ground
Conductor
Outlet Box
Green Ground
Lead
Ground to
Downrod
GREEN
WHITE WHITE

7
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING
THE CANOPY TO THE BRACKET BY TURNING
THE HOUSING UNTIL IT DROPS INTO PLACE.
(Fig. 11) Carefully tuck the wire connections
inside the junction box. Secure the wall
transmitter with the two screws provided.
Attach the wall plate over the wall transmitter
and secure with the two screws provided.
1.
2.
Remember to shut the power off at the circuit
breaker or fuse box.
Tuck connections neatly into ceiling outlet
box.
Slide the canopy up to mounting bracket and
place the key hole on the canopy over the
screw on the mounting bracket, turn canopy
until it locks in place at the narrow section of
the key holes. (Fig. 12)
Align the circular hole on canopy with the
remaining hole on the mounting bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
1.
2.
3.
Finishing the Fan
Installation
Installing the Wall
Transmtter
WARNING
HOOK UP IN "SERIES ONLY" DO NOT CONNECT
THE HOT AND NEUTRAL WIRES OF ELECTRIC
CIRCUIT TO THE TRANSMITTER WALL SWITCH -
DAMAGE TO THE SWITCH AND POSSIBLE FIRE
COULD OCCUR.
Figure 11
4
3
2
1
0
Screws
Screws
Wall Plate
Switch Outlet Box
Figure 12
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover

8

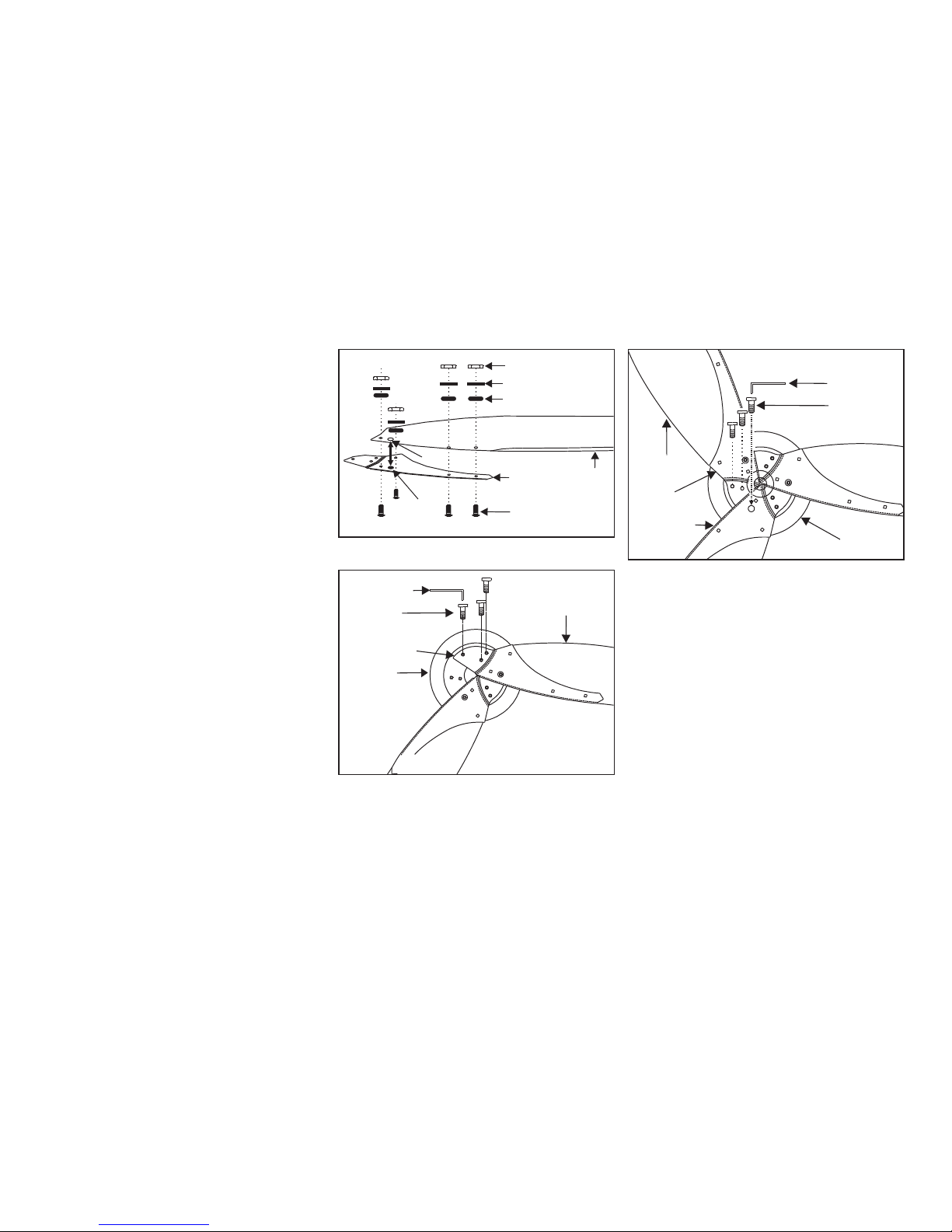

Attaching the Fan Blades
For first and second blade assemblies: Remove
the screws from the motor, attach the first and
second blade assemblies to the motor using 3
screws provided, secured with Allen wrench.
(Figure 14)
For third blade assembly: Remove the screws
from the motor, attach the third blade assembly
to the motor by securing 2 of 3 screws provided
at first, secured with Allen wrench. Then attach
the third screw to the motor by going through
the holes on the first blade bracket and third
blade bracket, see Figure 15.
1.
2.
This fan comes with 3 blades, following the below
procedure for accurate installation:
Step 1. Attach the blades to the blade brackets
using the screws, nuts, metal washers and rubber
washers provided as shown in Figure 13, be sure
the jut on the blade bracket to be positioned on the
hole located on the blades before screw installa-
tion. Starting a screw into the bracket and blade,
repeat for the other 3 screws, DO NOT tighten too
much as the blades may crack.
Step 2. Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
Step 3. Fasten the blade assemblies to the motor
following the below procedure for accurate
installation.
Figure 13
Rubber washers
Blade Arm
Nut
Metal washers
Blade
Screws
Jut
Hole
Figure 15
Screws
Allen Wrench
Motor
First Blade
Blade Arm
Third Blade
Screws
Motor
Figure 14
Blade
Allen Wrench
Blade Arm

9
Blade Balancing
Check that all blade and blade bracket screws
are secure.
Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure from a point on the
center of each blade to the point on the ceiling.
Measure this distance as shown in Figure 16.
Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝.
Run the fan for 10 Minutes.
Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
1.
2.
3.
The following procedure should correct most fan
wobble. Check after each step.
Figure 16
Touching Ceiling
Restore power to ceiling fan and test for proper
operation.
The fan 4-speed control is used to set the fan speed
as follows:
0= Turns the fan off
1= High Speed
2= Medium High Speed
3= Medium Speed
4= Low Speed
Operating Your
Fan
Figure 17
FAN 4 SPEED
CONTROL
4
3
2
1
0

10
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
1.
2.
1.
2.
3.
4.
5.
6.
Fan will not start
Fan sounds noisy
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

11
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
56” 120 8.63 kgs
(19.04 lbs)
10.0 kgs
(22.06 lbs) 1.36’
Low
Medium
Medium High
High
0.17
0.24
0.39
0.48
9
14
35
54
49
69
113
150
1396
1908
3608
5136
These are approximate measures. They do not include Amps and Wattage used by the light kit.

12
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The Hampton
Bay shall not be liable for incidental, consequential, or special damages arising out of or in connection with
product use or performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the
warranty must be paid by the customer.
Hampton Bay Lifetime Limited Warranty
(lifetime warranty on motor)
IMPORTANT NOTE:
To ensure warranty service if ever
needed, please register your fan at:
www.tal-usa.com/registration
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
2919 E. Philadelphia Street
Ontario, CA 91761
U.S.A.
Attach receipt here for easy
location
