HAMPTON BAY RENWICK 656 416 User manual

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
14826
656-416
792145353072
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass parts, to be free from defects in workmanship and material at the time of shipment
from the factory for a period of one year after the date of purchase by the original purchaser.
We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned to the retailer. To obtain warranty service, you must
present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. Because of varying
climatic conditions in the United States this warranty does not cover any changes in brass
finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type
give their longest useful life when protected from varying weather conditions. A certain
amount of wobble is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty.
The retailer hereby disclaims any and all warranties, including but not limited to. Those of
merchantability and fitness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as
specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable
for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other rights
which vary from state to state. This warranty supersedes all prior warranties.
Hampton Bay Lifetime Limited Warranty
Hampton Bay Lifetime Limited Warranty

Table of Contents
Safety Rules..................................................................................................................................................................................
Unpacking Your Fan ...................................................................................................................................................................
Installing Your Fan ......................................................................................................................................................................
Installing the Light Kit.................................................................................................................................................................
Operating Your Transmitter.........................................................................................................................................................
Care of Your Fan.......................................................................................................................................................................
Troubleshooting .........................................................................................................................................................................
Specifications .............................................................................................................................................................................
1.
2.
3.
8.
9.
11.
12.
13.

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to be replaced, consult a qualified electrician if in doubt.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only CUL
Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in motion. The
fan must be turned off and the blades stopped before reversing the blades
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the equipment-
grounding conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be CUL Listed and marked suitable for use with the
model fan you are installing. Switches must be CUL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:
Unpacking Your Fan 2.
ab
13. Loose parts bag containing:
a. Electrical hardware
Screws (2 PCs.)
Lock washers (2 PCs.)
Metal washers (2 PCs.)
3 plastic wire connecting nuts (3 PCs.)
b. Blade attachment hardware
(16 screws)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
3
1
258
9
13
4
6
7
10
12
11

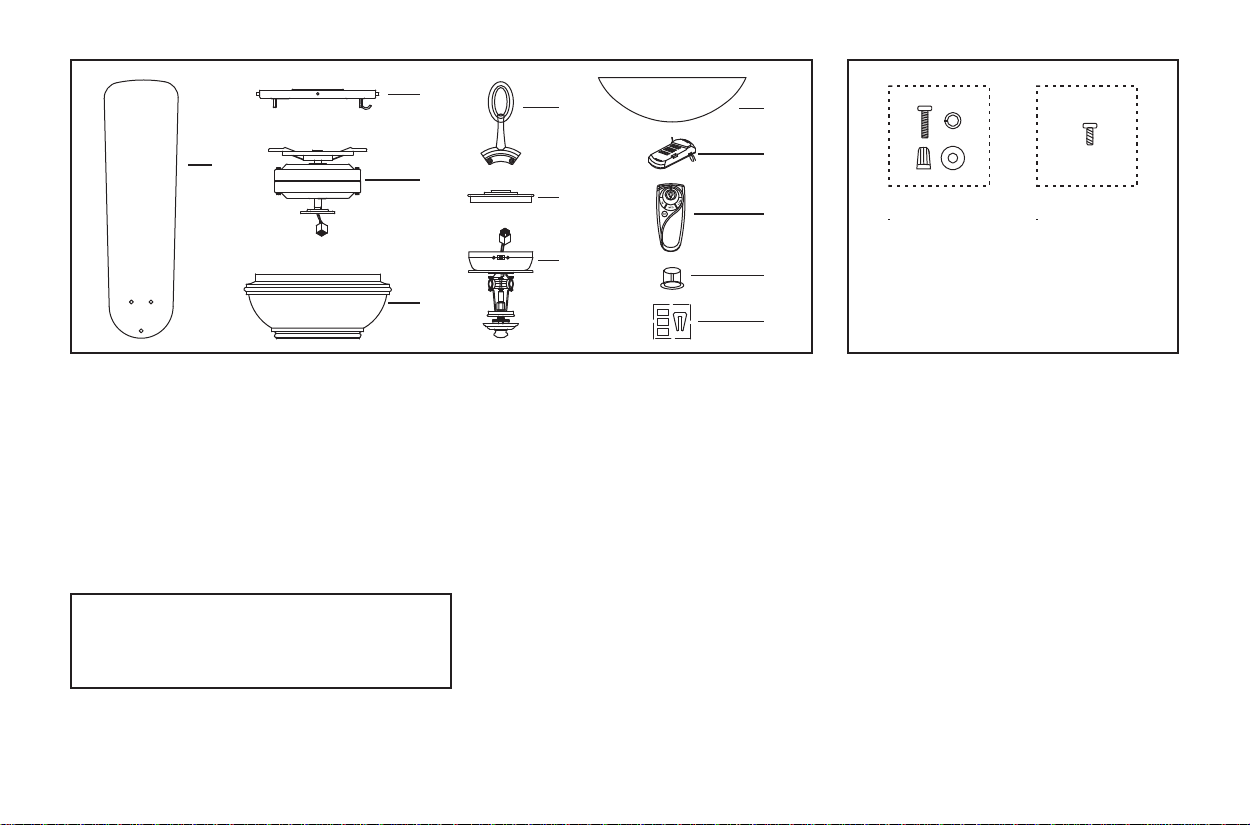

1. Set of blade (5)
2. Mounting bracket
3. Fan motor assembly
4. Motor housing
5. Set of blade bracket (5)
6. Mounting plate
7. Light kit assembly
8. Glass shade
9. Receiver with 6 wire nuts
10. Transmitter+holder+2 mounting screws
+ 2 plastic plugs
11. Extra plastic plug
12. Balancing kit

Tools Required
Phillips screwdriver, straight slot screwdriver,
adjustable wrench, step ladder, and wire cutters.
Mounting Options
If there isn't an existing CUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic outlet
boxes.

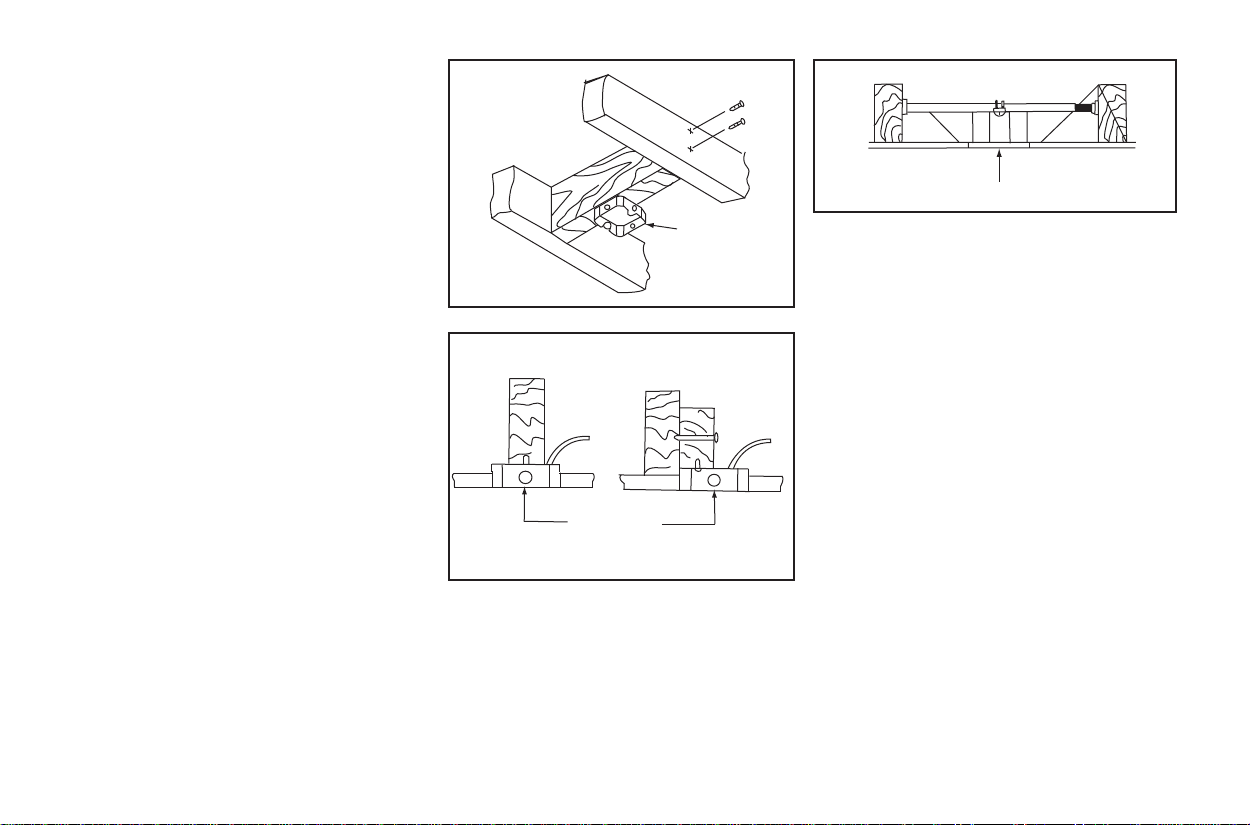

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
3. Installing Your Fan
Outlet box
Outlet box
Figure 1
Figure 2
Outlet box
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 3
(available at your Hampton Bay Retailer).
Figure 3

4.
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:

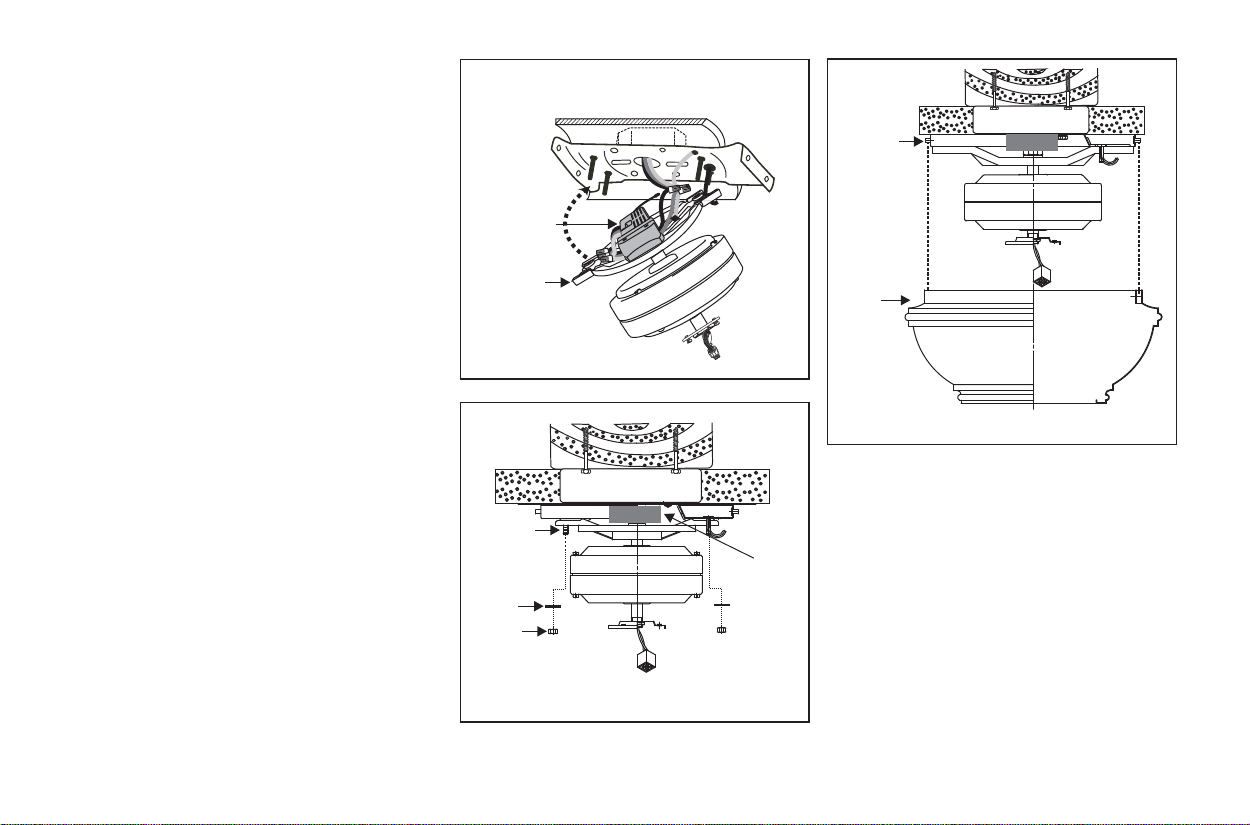

Step 1. Secure the mounting bracket to the
ceiling outlet box using screws and lock washers
included with your outlet box. (Fig. 4)
Step 2. Lift fan into position by hanging the
motor assembly onto the hook from the ceiling
mounting bracket allowing it to hang freely.
(Fig. 5)
Step 3. Make the wire connections referring to
the section titled "Make the Electrical
Connections". You may hold the receiver
between the mounting bracket and top motor
assembly by hands for easy wire connections.
Outlet box
Mounting bracket
Figure 4
Figure 6
Figure 5
Fan
Installation of Safety
Support
An additional safety support is provided to
prevent the fan from falling. Secure the safety
cable to the ceiling joist with screw and washer,
as illustrated in Figure 6.
Safety Cable

5.
Figure 8
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
mounting bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan
Make the Electrical
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure the switches on the
transmitter and the receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to the same position. (Fig. 7)
Step 1. (Fig. 8) Motor to Receiver Electrical
Connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "For Light" from the
receiver. Secure the wire connections with the
plastic wire nuts provided.
Step 2. (Fig. 8) Receiver to House Supply Wires
Electrical Connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the Receiver. Secure the
wire connections with the plastic wire nuts
provided.
Step 3. (Fig. 8) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided.
After connecting the wires spread them apart so
that the green and white wires are on one side of
the outlet box and black and blue wires are on
the other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan's receiving unit.
Figure 7
Frequency

6.
Finishing the Installation
Step 1. Place the receiver on the top motor
assembly, and tuck connections neatly on the top
motor assembly. (Fig. 9) Move the motor assembly
into position over the four studs and secure with
provided washers and nuts. (Fig. 10)
Step 2. Raise the motor housing up against the
mounting bracket, the four supports inside the
housing should be placed against the four studs on
the mounting bracket, twist the housing clockwise
until snug. (Fig. 11)
Motor
housing
Studs
Studs
Nuts
Washers
Receiver
Motor
assembly
Figure 10
Figure 9
Figure 11
Receiver

7.
Attaching the Fan Blades
Step 1 Attach blades to blade arms using three
screws and rubber washers.(Fig. 12) Start a screw
into the blade arm, do not tighten. Repeat for the 2
remaining screws and washers.
Step 2 Tighten each screw securely starting with the
center screw. Make sure the blade is straight. Repeat
steps for the remaining blades.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot in
the bottom motor housing, then tighten the two
screws and washers already installed in the blade
arms. (Fig. 13)
Figure 13
Figure 12
Motor
Blade arm
Slot
Tab
Rubber
washer
Blade
arm
Screws Blade
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
ARMS WHILE INSTALLING, BALANCING
THE BLADES, OR CLEANING THE FAN.
DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
Figure 14
Screws
Mounting plate
Mounting ring
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 14)

Installing the Light Kit 8.
NOTE: Before starting installation, disconnect the
power by turning off the circuit breaker or
removing the fuse at fuse box.
1. While holding the light kit assembly under your
fan, snap together the wire connection plugs .
2. Carefully push all wires back into the switch
housing, then install the light kit assembly onto the
mounting plate with 3 screws provided. Be sure to
tighten all screws. (Fig.15)
3. Install 3 x 40W candelabra bulbs (not included).
4. Remove the metal nut, glass cap and decorative
nut from the light kit. Raise the glass shade up
against the light kit, Place the metal nut on the top
over the stem and turn it clockwise until it locks up
against the glass shade. Do not overtighten. (Fig. 16)
5. Raise the glass cap and decorative nut against the
glass shade and secure it to the stem by turning the
decorative nut clockwise until snug. Do not
overtighten. (Fig. 16)
Connection plugs
Screws
Light kit
assembly
Figure 15
Figure 16
Glass
shade
Bulbs
Metal nut
Glass cap
Decorative nut

Restore power to the ceiling fan and test for proper
operation.
1. "HI, MED, LOW" buttons:
These three buttons are used to set the fan speed
as follows:
LOW=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turns the fan off.
3.The " " button turns the light ON or OFF and
also controls the brightness setting. Press and
release the button to turn the light ON or OFF.
Press and hold the button to set the desired
brightness. The light key has an auto-resume, it
will stay at the same brightness as the last time it
was turned off.
9. OperatingYour Transmitter
Installing the battery:
Install 12V MN21/A23 battery (not included),
to prevent damage to transmitter, remove the
battery if not used for long periods.
Figure 18
Screws
Plastic plug
Wire connection
plugs
Switch
housing
Figure 17 Figure 19
Fan without Light Kit (Optional)
1. Disassemble the switch housing from the light
kit , you can keep the light kit for future use.
2. Attach the plastic plug to the switch housing.
(Fig. 17)
3. Holding the switch housing under your fan,
snap together the wire connection plugs. (Fig. 17)
4. Install the switch housing to the mounting
plate with screws provided. (Fig. 17)

10.
Figure 20 Figure 21
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
The Reverse switch is located on the switch
housing. Slide the switch to the Left for warm
weather operation. Slide the switch to the Right
for cool weather operation.
NOTE: Wait for fan to stop before changing the
setting of the slide switch.

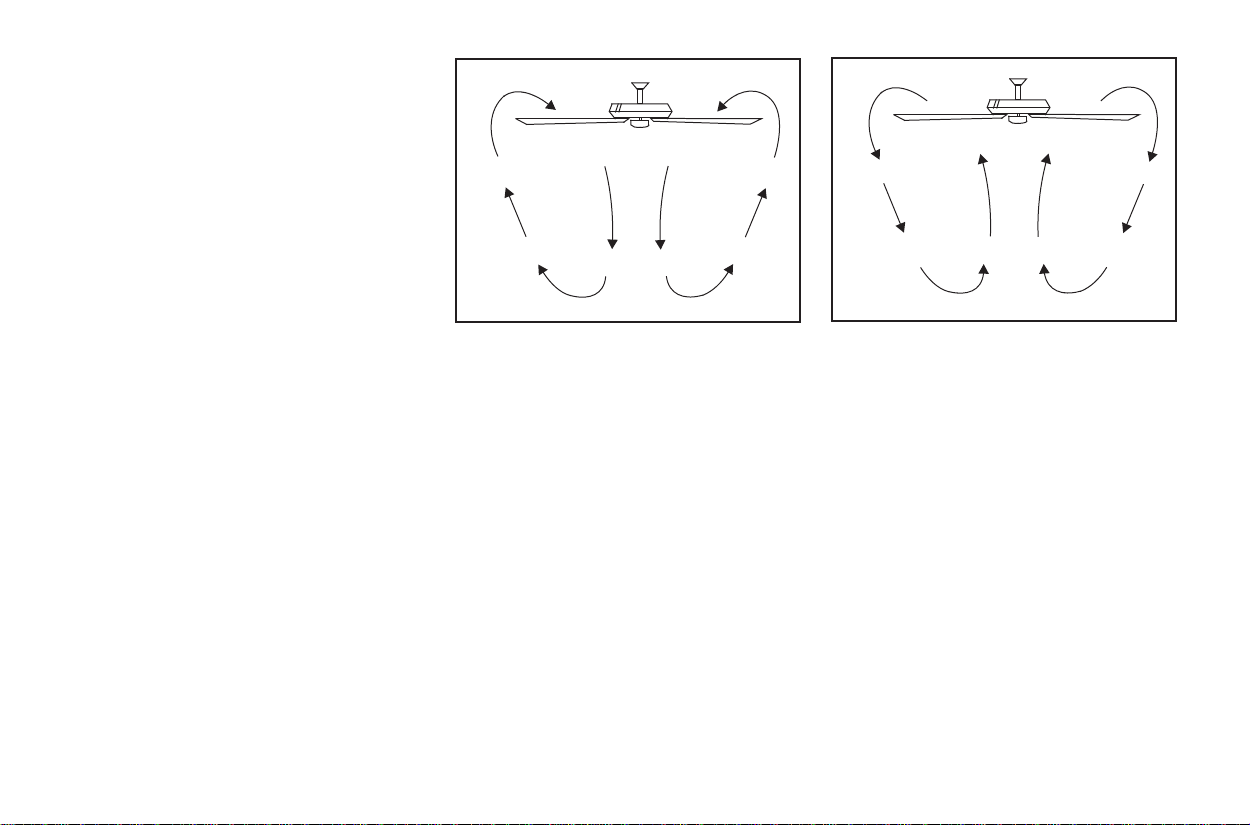

Warm weather - (Counter-Clockwise direction)
A downward airflow creates a cooling effect.
(Fig. 20) This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
21) This allows you to set your heating unit on a
lower setting without affecting your comfort.

11. Care of Your Fan
Figure 22
Touching
ceiling
Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing. Do
not use water when cleaning. This could
damage the motor, or the wood, or possibly
cause an electrical shock.
3. You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan. The motor
has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS".

Troubleshooting 12.
Problem Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb is also
secure.
6. Do not connect the fan with a wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.

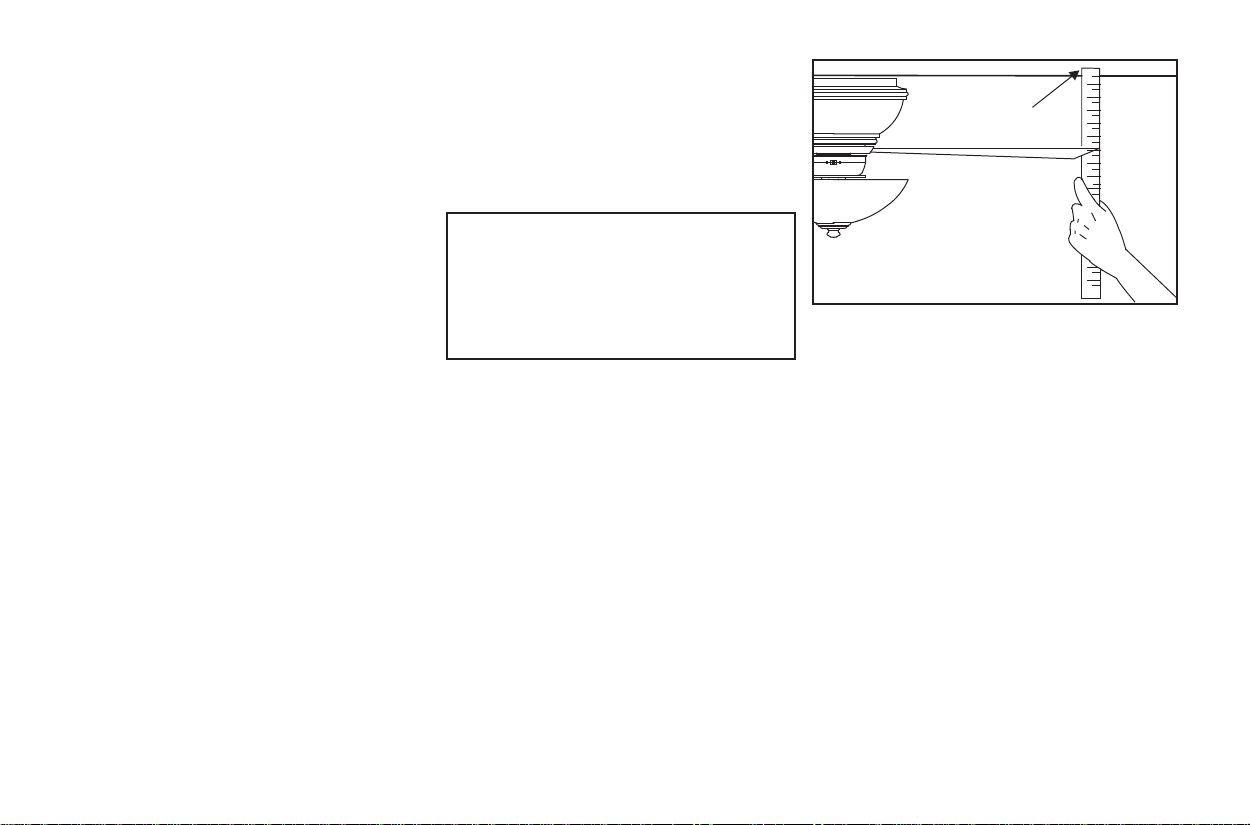

2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance.(Fig. 22) Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE
INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction:

13. Specifications
Fan Size
Speed Volts
Amps Watts RPM CFM N.W. G.W. C.F.
52"
(1.32 m)
Low
Medium
High
120
120
120
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by:
Home Depot of Canada Inc.
900-1 Concorde Gate
Toronto, Ontario
M3C 4H9
9.20 kgs
(20.26 lbs) 10.55 kgs (23.23 lbs) 2.17'
0.26
0.37
0.51
11
32
63
56
100
145
1831.12
3426.13
4849.52
