HAMPTON BAY MORESCO 14411 User manual

Item #186-051
USE AND CARE GUIDE
1-800-527-0998
HAMPTONBAY.COM
MORESCO 32 INCH CEILING FAN
Model #14411
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday

2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ...............................................................................
Tools Required ..............................................................................
Hardware Included .......................................................................
Package Contents .........................................................................
Installation .....................................................................
Assembly .......................................................................
Hanging the Fan Motor Assembly ................................................
Making the Electrical Connections ...............................................
Installing the Wall Switch ...........................................................
Finishing the Fan Motor Installation ...........................................
Attaching the Fan Blades ............................................................
Installing the Light Kit .................................................................
2
3
4
4
4
4
5
6
7
8
8
9
10
11
12
13
Operation ......................................................................
Wall Control Operating Instructions ............................................
Reverse Switch Operating Instructions ......................................
Care and Cleaning .......................................................
Troubleshooting ...........................................................
Service Parts ................................................................
14
14
15
15
16
17
Table of Contents

Safety Information
3 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges) when
installing the brackets, balancing the blades, or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to the outlet box marked
acceptable for fan support using the screws provided with the
outlet box.
□Read and save these instructions.
□To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
□All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
□The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
□The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
□Avoid placing objects in the path of the blades.
□To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
□Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
□After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
□All setscrews must be checked and retightened where
necessary before installation.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion, or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions, this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing, or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-527-0998 or visit www.hamptonbay.com.
32 in.
Low
Medium
Med. High
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
1.173 ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.16
0.24
0.28
0.34
8.61
19.06
27.77
40.82
129
224
269
307
1032.70
1663.46
2097.44
2439.58
5.25 kgs
(11.55 lbs)
5.95 kgs
(13.09 lbs)

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
AA
BB
CC
DD
EE
FF
GG
HH
II
Blade attachment hardware (3/16 in. x 12.3mm screws and fiber washers)
Plastic wire nut
Balance kit (not to scale)
Mounting bracket screws (preassembled) (3/16 in. x 1/2 in. screws and lock washers)
Wall plate screws (#6-32 x 8mm screws)
Wall switch screws (#6-32 x 22mm screws)
Plastic wire nut
Mounting ring screws (preassembled) (5/32 in. x 8mm screws)
Light kit plate screws (preassembled) (5/32 in. x 8mm screws)
Part
Part
Description
Description
10
3
1
4
2
2
4
3
3
Quantity
Quantity
5 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA EE
FF
GG
HH
II
BB
CC
DD

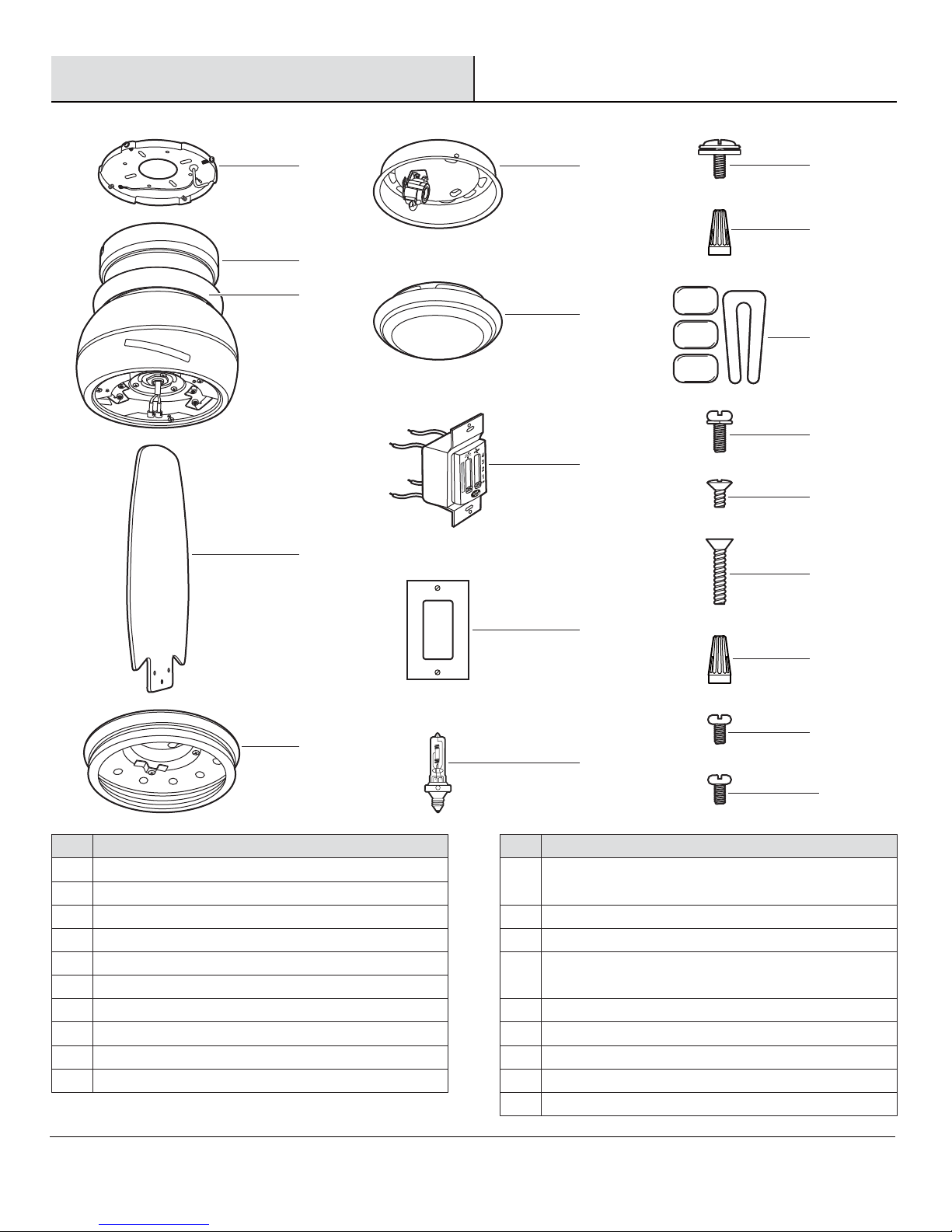

PACKAGE CONTENTS
PACKAGE CONTENTS
Part
Part
F
G
H
I
J
Description
Description
Light kit plate
Glass shade
Wall switch
Wall plate
50W halogen bulb
Pre-Installation (continued)
6
Part
Part
A
B
C
D
E
Quantity
Quantity
1
1
1
3
1
Quantity
Quantity
1
1
1
1
1
Description
Description
Mounting bracket
Fan motor assembly
Canopy ring (preassembled)
Blades
Light kit mounting plate
AF
G
H
I
J
C
B
D
E

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (KK) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (JJ) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (JJ) (not included).
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
JJ
JJ
KK
JJ
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
7 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

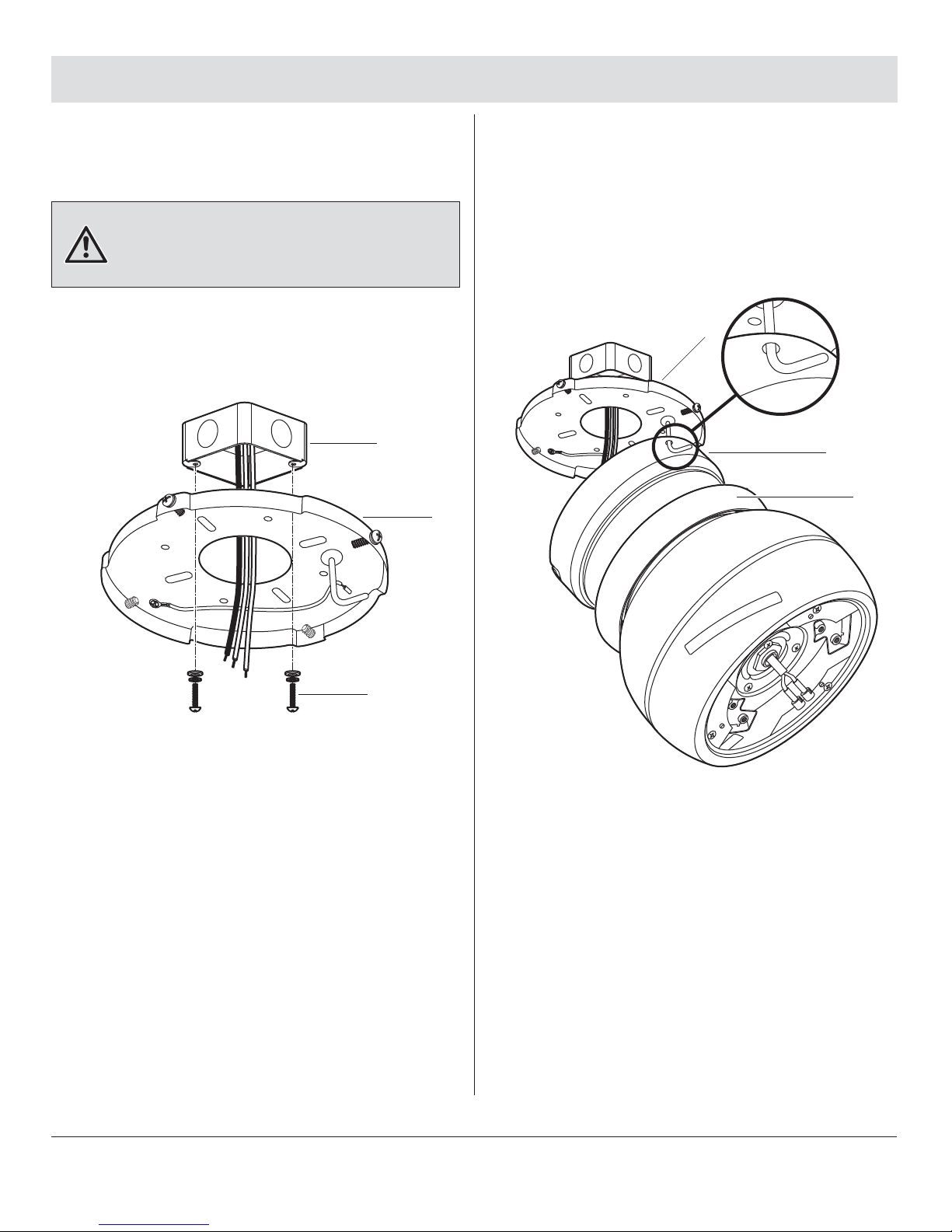

Assembly — Hanging the Fan Motor Assembly
1
□Attach the mounting bracket (A) to the ceiling outlet
box (JJ) (not included) with the two screws and
washers (WW) provided with the outlet box (JJ).
Ensure the mounting bracket (A) is tight and secured.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Lift the fan into position by hanging the fan motor
assembly (B) onto the hook from the ceiling mounting
bracket (A) allowing it to hang freely.
A
WW
JJ
A
B
C
2
8
Attaching the mounting bracket
to the electrical box
Hanging the fan motor assembly
from the mounting plate

3Making the motor and wall switch
electrical connections
Assembly — Making the Electrical Connections
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (BB) included
with your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or connections.
□Remove the existing wall plate and wall switch from
the wall junction box (JJ).
Motor to wall switch connections:
□Connect the black wire (NN) from the fan to the black
wire (QQ) from the wall switch (H).
□Connect the blue wire (OO) from the fan to the blue
wire (RR) from the wall switch (H).
Motor to house supply wires electrical connections:
□Connect the white (neutral) wire (UU) from the ceiling
to the white wire (MM) from the fan (B).
□Connect the ground wire (TT) from the ceiling to the
green wires (LL) from the fan (B).
Wall switch to house supply wires electrical connections:
□Connect the black (hot) wire (VV) from the ceiling to
the black/white wire (PP) from the wall switch (H).
□If your outlet box (JJ) has a ground wire (green or
bare copper), connect the wall switch's (H) ground
wire (SS) to it; otherwise, connect the wall switch's
(H) ground wire (SS) directly to one of the screws
from the outlet box (JJ).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 feet from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
9 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
□Secure the wall switch (H) wire connection with the
plastic wire nut (GG) provided.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (JJ) and black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (JJ).
VVUUTT
GG H
BB
B
JJ
MM
NN
OO
LL
QQ
RR
PP
SS

4Installing the wall switch
Assembly — Installing the Wall Switch
10
GG
JJ
HFF
EE
I
□Carefully tuck the wire connections inside the
junction box. Secure the wall switch (H) with the two
wall switch screws (FF) provided.
□Attach the wall plate (I) over the wall switch (H)
and secure with the two wall plate screws (EE)
provided.
WARNING: Hook up in "series only". Do not connect the
hot and neutral wires of the electric circuit to the transmitter
wall switch - damage to the switch and possible fire could
occur.
WARNING: Remember to shut the power off at the circuit
breaker or fuse box.

Assembly — Finishing the Fan Motor Installation
B
C
B
DD
DD
A
5Tightening screws and attaching
the decorative canopy
□Loosen two of the four mounting bracket screws (DD)
from the mounting bracket (A), and remove the other
two screws (DD).
□Remove the fan motor assembly (B) from the
mounting bracket (A) hook, and engage the key holes
with the two mounting bracket screws (DD)
previously loosened.
6
Attaching the fan motor assembly
to the mounting bracket
□Install the two mounting bracket screws (DD)
previously removed, and tighten all four mounting
bracket screws (DD).
□Raise up canopy ring (C) and line up the four tabs
with the four grooves on the canopy. Once lined up,
slide the canopy ring (C) and secure it to the canopy
until snug.
11 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
C

Assembly — Attaching the Fan Blades
7Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms while installing, balancing the blades
(D), or cleaning the fan. Do no insert foreign objects between
rotating fan blades (D).
AA
B
D
JJ
□Insert a blade (D) through the slots in the bottom
band.
□Align the holes from the blade (D) to the holes from
the motor, and secure the blade in place with screws
and fiber washers (AA) provided.
□Repeat this process to attach the other three blades
(D).
12

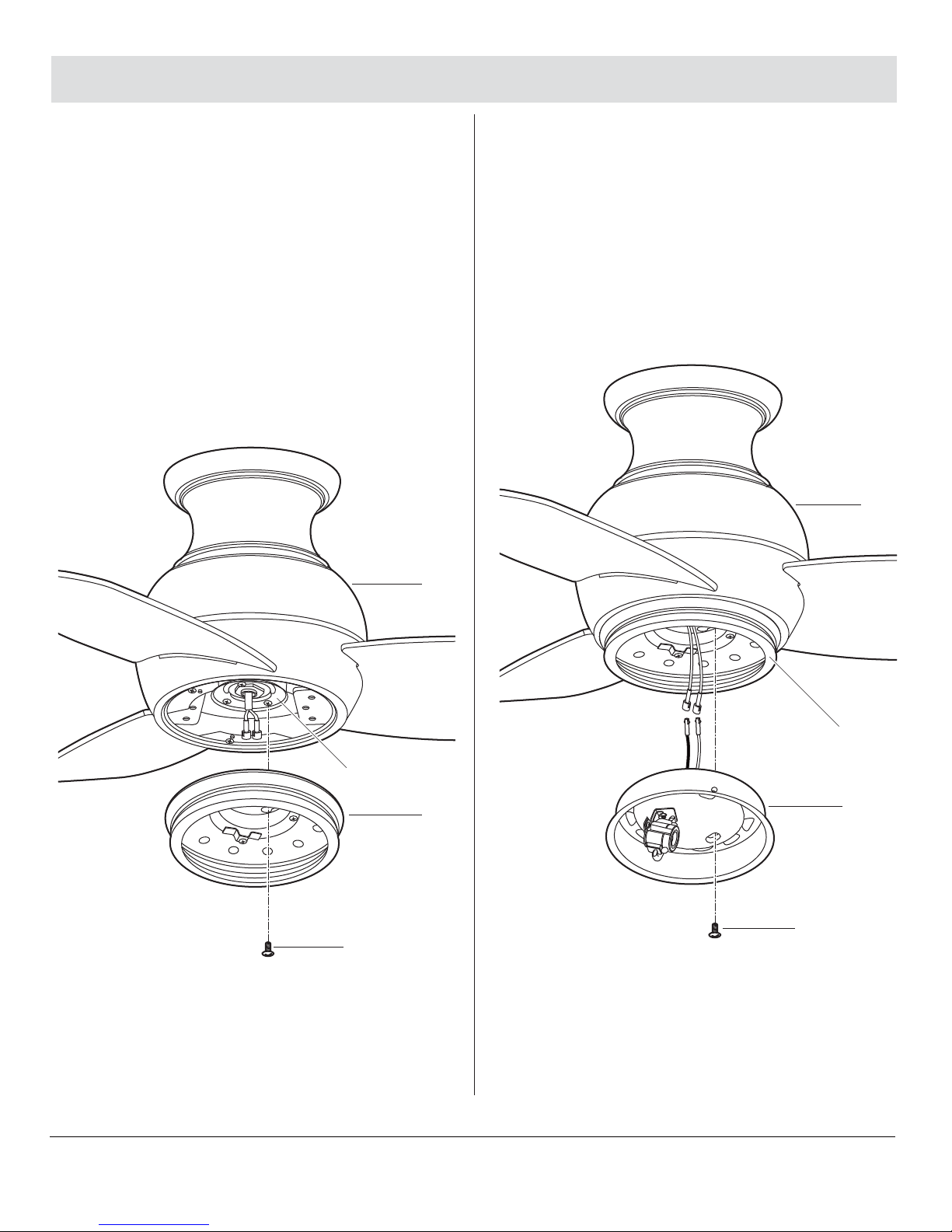

8Attaching the light kit mounting
plate to the mounting ring 9
E
HH
XX
B
II
F
E
D
B
□Remove one of three mounting ring screws (HH) from
the mounting ring (XX), and loosen the other two
screws. (Do not remove)
□Place the key holes in the light kit mounting plate (E)
over the two screws (HH) previously loosened from
the mounting ring (XX), and turn the light kit
mounting plate (E) until it locks in place at the narrow
section of the key holes.
□Secure the light kit mounting plate (E) by tightening
the two mounting ring screws (HH) previously
loosened and the one previously removed.
Attaching the light kit plate to
the light kit mounting plate
□While holding the light kit plate (F) under your fan (B),
make the polarized plug connections:
- White to white
- Black to black
□Install the light kit plate (F) onto the light kit mounting
plate (E) with four light kit plate screws (II) provided.
Be sure to tighten all screws (II).
Assembly — Installing the Light Kit
13 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

□Install the 50 Watt halogen bulb (J) (included).
□Raise the glass shade (G) up against the bottom of
the fan housing (B), and secure it to the fan by
turning the glass (G) clockwise until snug. Do not
overtighten.
□Restore the power, and your fan is ready for opera-
tion.
10 Finish the light kit assembly
and glass shades mounting
Assembly — Installing the Light Kit (continued)
14
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
G
J
F
B
E
Operation
WALL CONTROL OPERATING INSTRUCTIONS
WALL CONTROL OPERATING INSTRUCTIONS
Restore power to the ceiling fan, and test for proper operation.
“ ” buttons: The fan 4-speed control is used to set the fan speed
as follows: = Turns the fan off, 1 = High Speed, 2 = Medium
High Speed, 3 = Medium Speed, and 4 = Low Speed.
“ ” buttons: The button will turn the light on and off and will
also control the light brightness. Slide the button to set the desired
light brightness.

Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Do not use water when cleaning. Water could damage the
motor, or the wood, or possibly cause an electrical shock.
□Do not apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch left) or reverse
(switch right).
15 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.

The fan wobbles.
The remote control is
not working.
Troubleshooting
Problem
Problem
Solution
Solution
□Check main and branch circuit fuses or breakers.
□Check line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
□Do not connect the fan with wall mounted variable speed control(s).
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurement deviations should be within 1/8 in. Run the fan for 10 minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 9.
16

Part
Part
A
B
C
D
E
F
G
H
I
J
Description
Description
Mounting bracket
Fan motor assembly
Canopy ring (preassembled)
Blades
Light kit mounting plate
Light kit plate
Glass shade
Wall switch
Wall plate
50W halogen bulb
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
Description
Description
Blade attachment hardware (3/16 in. x 12.3mm screws
and fiber washers)
Plastic wire nut
Balance kit
Mounting bracket screws (3/16 in. x 1/2 in. screws
and lock washers)
Wall plate screws (#6-32 x 8mm screws)
Wall switch screws (#6-32 x 22mm screws)
Plastic wire nut
Mounting ring screws (5/32 in. x 8mm screws)
Light kit plate screws (5/32 in. x 8mm screws)
A F AA
BB
CC
DD
EE
FF
GG
HH
II
G
H
I
J
D
E
B
C
Service Parts
17 HAMPTONBAY.COM
Please contact 1-800-527-0998 for further assistance.

Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-527-0998
HAMPTONBAY.COM
Retain this manual for future use.
RM231B000001-C
