HAMPTON BAY 326-722 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does not
cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
326-722
326-946
11289
792145350651(326-946)
792145350644(326-722)

1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two steel
screws (and lock washers) provided with the outlet box for mounting to
the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be
replaced, consult a qualified electrician if in doubt.
7. Do not operate reversing switch while fan blades are in motion. Fan
must be turned off and blades stopped before reversing blade
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.

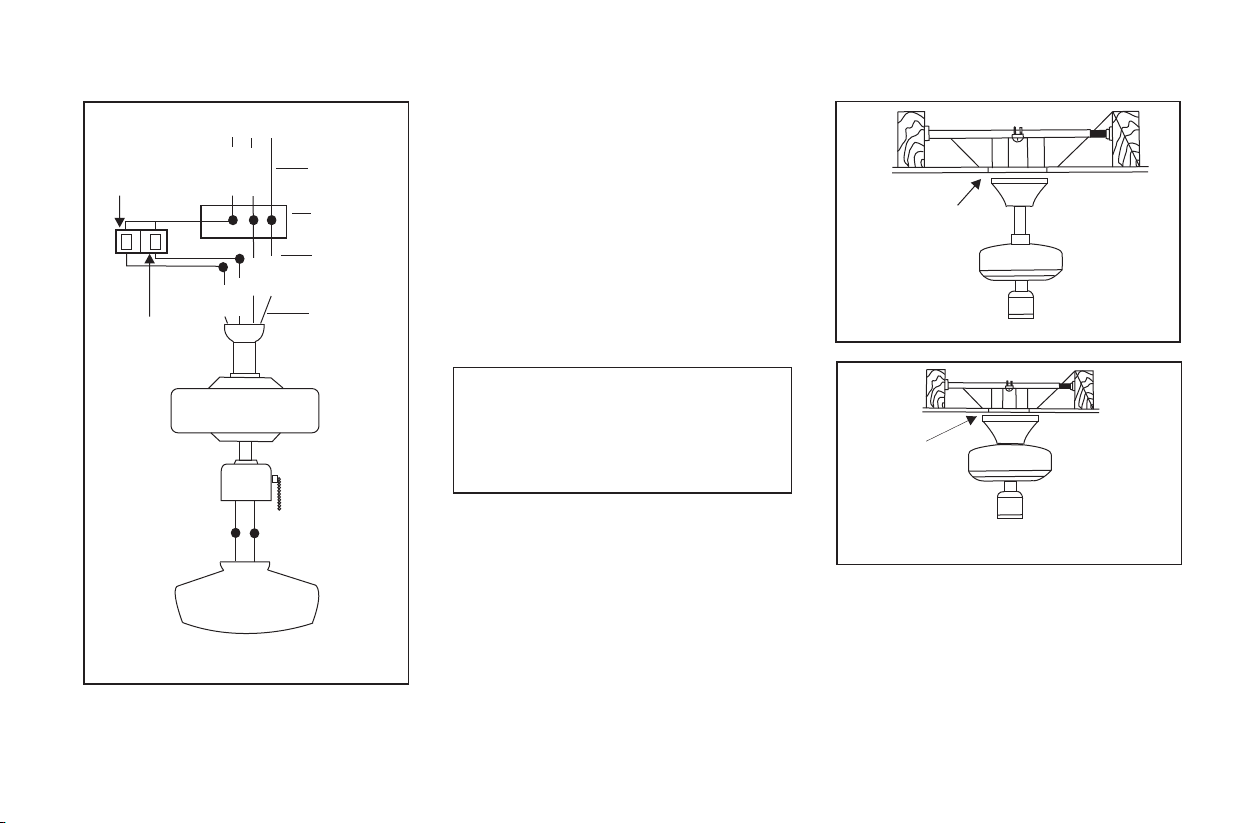

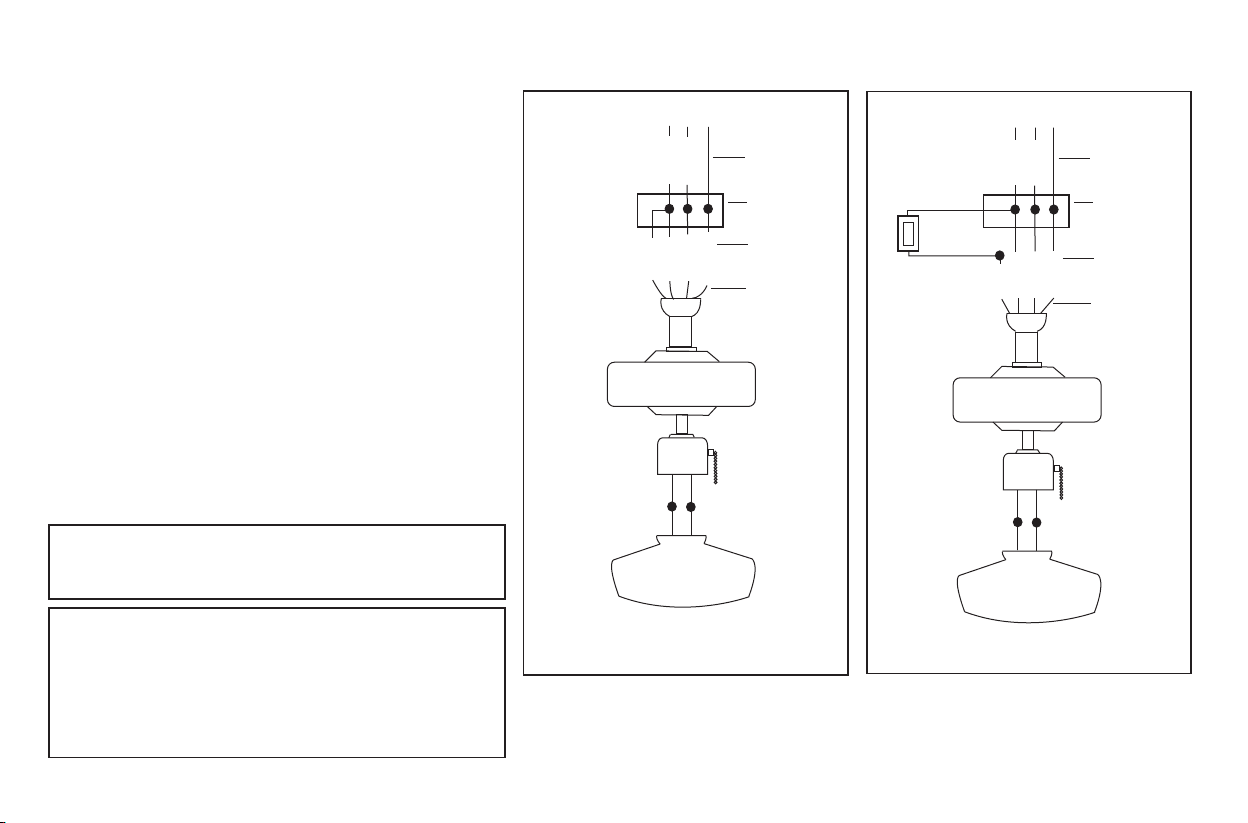

12. Electrical diagrams are reference only. Light kit that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
1. Safety Rules

Unpacking Your Fan 2.
Unpack your fan and check the contents. You should have the following items:
1.
2. Canopy assembly
3. Ball/downrod assembly
4. Collar cover
5. Fan motor assembly
6. Set of blade holders (5)
Set of blades (5) 7.
8. Glass shade (3)
9. Pull chain and fob (2)
10. 60 Watt medium base bulbs (3)
11. Balance kit
Light fixture 12. Loose parts bag containing:
a. Blade attachment hardware
(16 screws)
b. Mounting hardware
( 3 plastic wire connectors)
c. Rubber gasket
d. Light kit hardware
( 1 screw)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 877-898-1881
a
d
b
12
c
2
3
4
6
7
9
10
11
1
5
8
NOTE
FOR NON-LIGHT USE PURPOSE, THE
SWITCH HOUSING IS AVAILABLE BY
CALLING THE TOLL FREE NUMBER
877-898-1881

3. Installing Your Fan
Tools Required
P h i l l i p s s c r e w d r i v e r , s t r a i g h t s l o t
scre w d r ive r, a d j u stab l e w r e nch , st e p
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
build i n g s t r u c t ure. U se appropr i a t e
fasteners and building materials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.

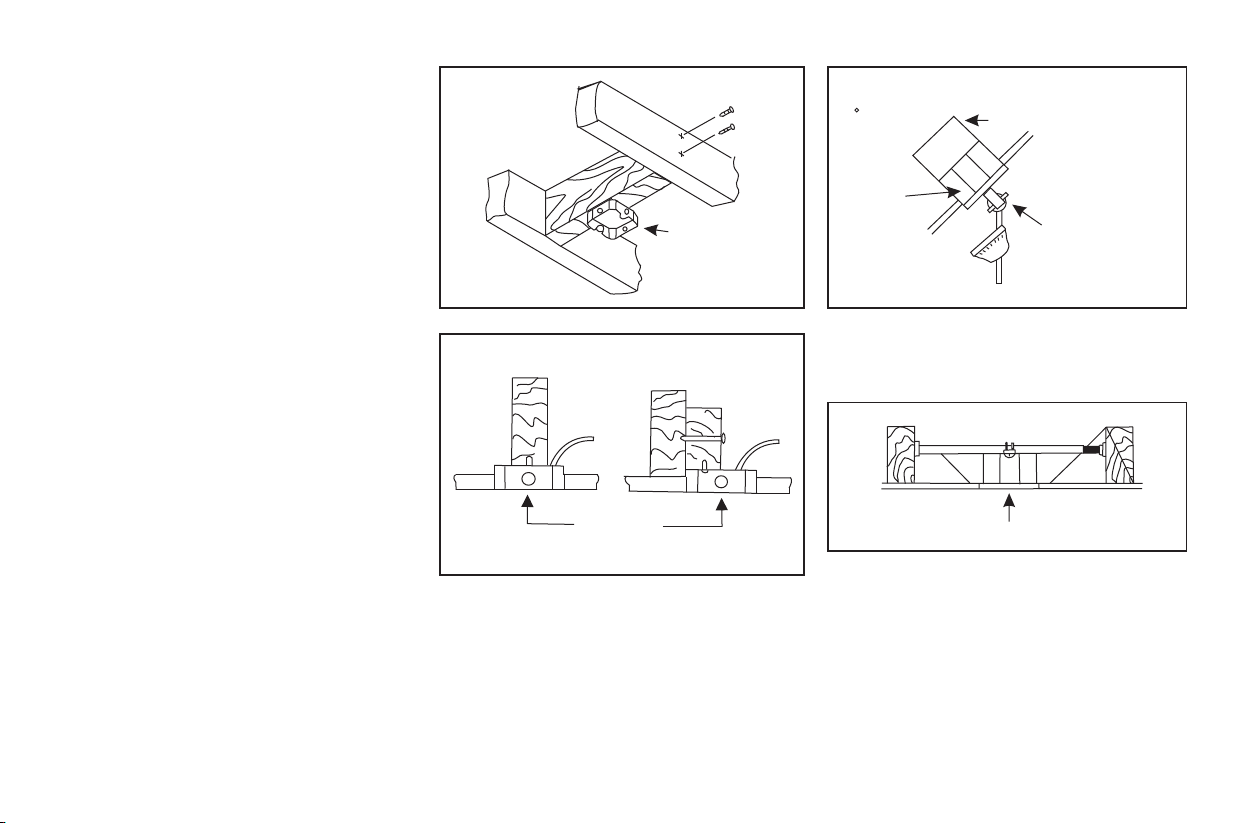

Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintai n proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
20 angle

Hanging the Fan
REMEMBER to turn off th the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard ceiling
installation using the downrod with ball and
socket mounting and the "close-to-ceiling"
installation. The "close-to-ceiling" installation
is recommended in rooms with less than 8-foot
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 4 1/2" downrod, the distance
from the ceiling to the bottom of the fan blades
will be approximately 12 1/2 inches. The "close-
to-ceiling" installation reduce this distance to 8-
inches. Once you have selected which mounting
system you will use, proceed with the following
instructions. Where necessary, each section of
the instructions will note the different
procedures to follow for the two types of
mounting.
STANDARD CEILING INSTALLATION
1. Remove the canopy ring from the canopy by
turning the ring to the right until it unlocks.
(Fig. 5)
2. Remove the hanger bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. This will
enable you to remove the hanger bracket.
(Figure 5)
4.
3. Pass the 120-volt supply wires through the center
hole in the ceiling hanger bracket as shown in
Fig.6
4. Loose the two screws on the outlet box in half
way.
5. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with the outlet box.
6.Tighten the two screws on the outlet box securely.
7. Remove the hanger pin, lock pin and set screws
from the top of the motor assembly.
8. Route wires exiting from the top of the fan motor
through the collar cover and canopy ring. Make
sure the slot openings of the canopy ring are on
top. Route the wires through the canopy and then
through the ball/downrod assembly (Figure 6A).

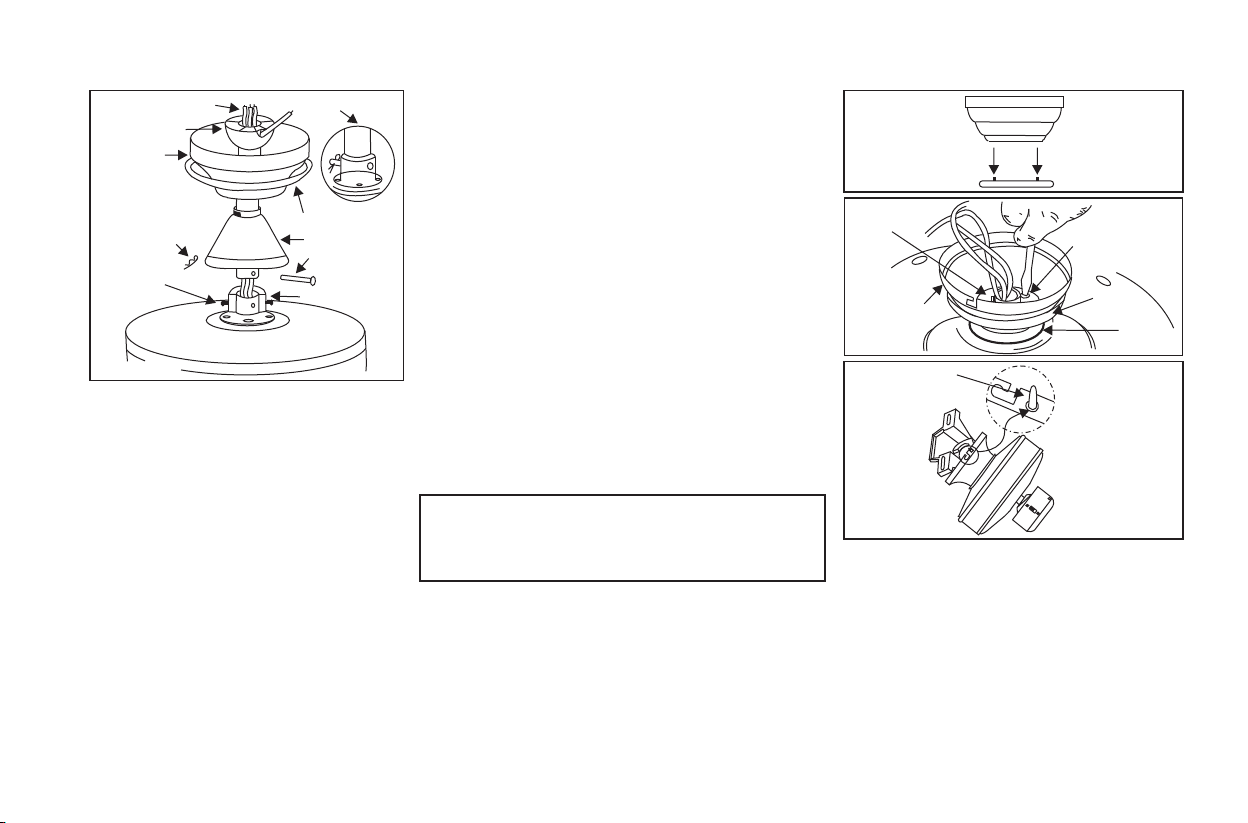

9. Align the holes at the bottom of the downrod with
the holes in the collar on top of the motor housing
(Figure 6A). Carefully insert the hanger pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring inside
the downrod. Insert the locking pin through the
hole ins locked position, as note din the circle
inset of Figure 6A
WARNING
FAILURE TO PROPERLY INSTALL LOCKING
PIN AS NOTED IN STEP 9 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
10. Tighten two set screws on top of the fan motor
firmly. (Figure 6A)
11. Place the downrod ball into the hanger bracket
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Screws
Canopy
ring
Mounting
screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
UL Listed
electrial
box
Slide mounting
bracket over
screw heads
Figure 6 120V Wires

5.
4. Pass the 120-volt supply wires through the center
hole in the ceiling hanger bracket as shown in Fig.
6.
5. Loose the two screws on the outlet box halfway.
6. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws provided
with the outlet box.
7. Tighten the two screws on the outlet box securely.
8. Remove three of the six screws and lock washers
(every other one) from the collar of top motor
(Figure. 7)
9. Place the rubber gasket over the remaining three
screws, route the wires exiting the top of the fan
motor through the canopy ring (make sure the slot
openings of the ring are on top). then proceed to
place the ceiling canopy over the collar at the top
of the motor. Align the mounting holes with the
holes in the motor and fasten using the screws and
lock washers provided (Fig. 7).
10.Tighten the mounting screws securely. (Fig. 7)
11.Hang the fan on the tab of the hanger bracket. Be
certain that the canopy is fully locked into tab as
shown in Fig. 8. This will allow you to make the
electrical connections.
Pin in
locked
position
Canopy ring
Hanger pin
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Locking pin
Tighten
screws
firmly
Figure 6A
Collar cover
Figure 8
Tab
Figure 7A
Canopy
Bottom
Cover
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Canopy
Ring
Collar
Rubber
gasket
CLOSE-TO-CEILING INSTALLATION
1. Remove the canopy ring from the
canopy by turning the ring to the right
until it unlocks. (Fig. 5)
2. Remove the hanger bracket from the
canopy by loosening the four screws
on the top of the canopy. Remove the
two non-slotted screws and loosen the
slotted screws. This will enable you to
remove the hanger bracket. (Figure 5)
3. Remove the decorative canopy bottom
cover from the canopy by depressing
the three studs (Fig. 7A)
WARNING
FAILURE TO COMPLETELY TIGHTEN
THE THREE SCREWS IN STEP 9 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.

Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your household wiring.
Use the wire connecting nuts supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
strands or connections.
Step 1 Connect the fan supply (black) wire and light supply (blue)
wire to the black household supply wire as shown in Figure 9.
Step 2. Connect the neutral fan (white) wire to the white neutral
household wire.
Step 3 Connect the fan ground wire (green) to the household ground
wire.
Step 4 After connecting the wires, spread them apart so that the
green and white wires are on one side of the outlet box and the black
and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and push the wiring into the
outlet box.
Figure 10 and 11 illustrate the wiring connections for optional
wall control (available at your Hampton Bay Retailer, the wire
color out of wall control may vary, see wall control's
installation manual for correct wire connections.)
NOTE
LIGHT KITS ARE AVAILABLE AT YOU
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY ON AN OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE. 6.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 9
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE

Finishing the
Installation
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 12 l e a ving a 1/8" clearance
between the canopy and the ceiling. Make
sure you place the wires safely into outlet
box. Secure the canopy to the hanger
bracket with the four screws with your fan.
Slide the canopy ring over the canopy and
tighten by turning the ring.
WARNING
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS HANGER PROPERLY SEATED IN
GROOVE OF HANGER BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD
CAUSE DAMAGE TO ELECTRICAL WIRING
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the tab on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Figure 13 with four
screws included with your fan. Slide the
canopy ring over the canopy and tighten
by turning the ring.
7.
Figure 13
Figure 12
Allow 1/8"
Clearance
Allow 1/8"
Clearance
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
Remove the blade attachment screws from
the fan motor assembly. Attach and adjust
fan blades according to the instructions in
the following section.

8.
Attaching the Fan
Blades

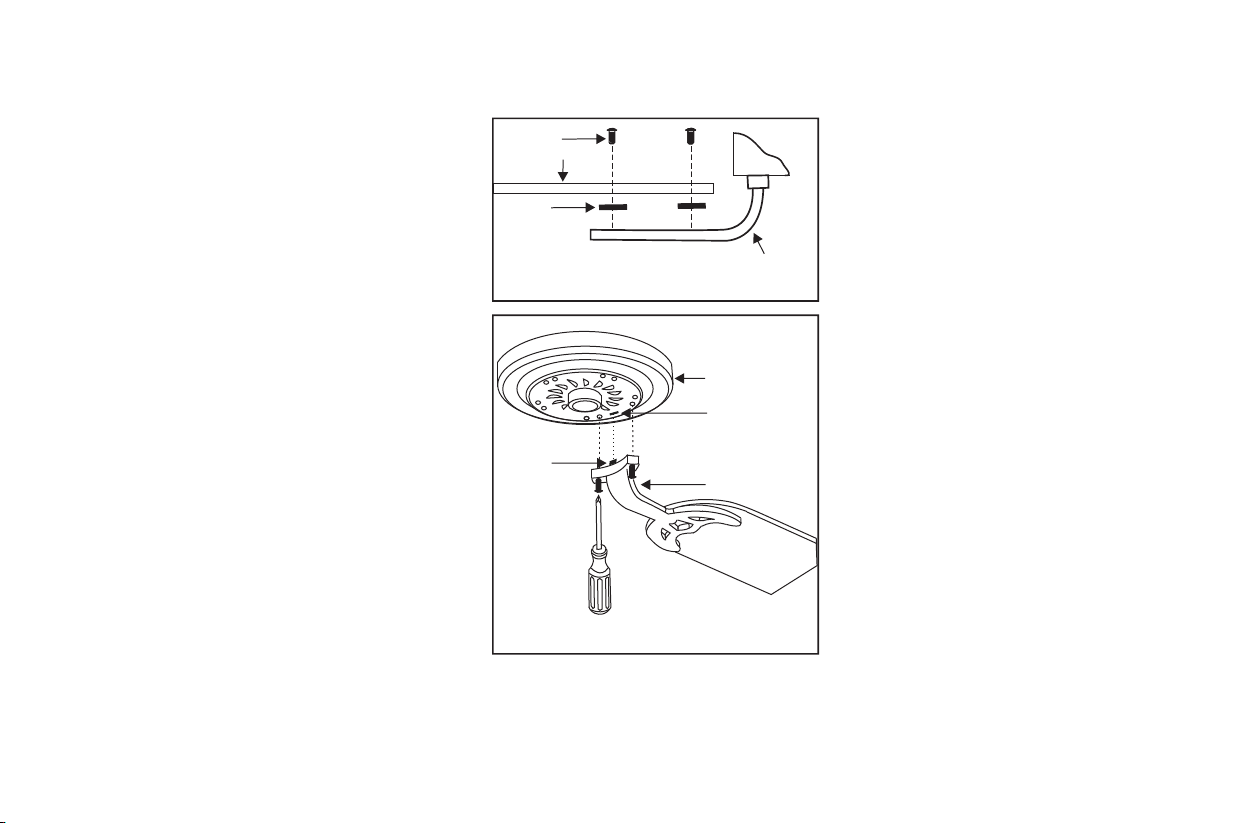

Step 1 Attach the blades to the blade brackets
using the screws and rubber washers provided
as shown in Figure 14. Start a screw into the
bracket, but do not tighten. Repeat for the other
2 screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3 Fasten the blade assemblies to the motor
by insert the tab from the blade brackets to the
slot in the bottom motor housing, then tighten
the two screws and washers already installed in
the blade brackets (Figure 15).
Step 4 Install an optional light kit if you wish.
Follow the instructions included with the kit.
Rubber
washers
Blade
bracket
Figure 14
Motor
Blade Bracket
Slot
Tab
Figure 15
Screws
Blade

3. Use the enclosed Blade Balancing Kit if
the blade wobble is still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
Touching
ceiling
Figure 16
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade and blade bracket screws
are secure.
2. Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure this distance as
shown in Figure 16. Rotate the fan until the next
blade is positioned for measurement. Repeat for
each blade. The distance should be equal within
1/8".
9.

Installing the Light Kit 10.
REMEMBER to disconnect the power.
The fan blades must already be attached to
the fan
Your fan and light fixture, though pre-
wired, have been disassembled at the
factory to ease in shipping. Please follow
these steps to complete the installation of
your fan.

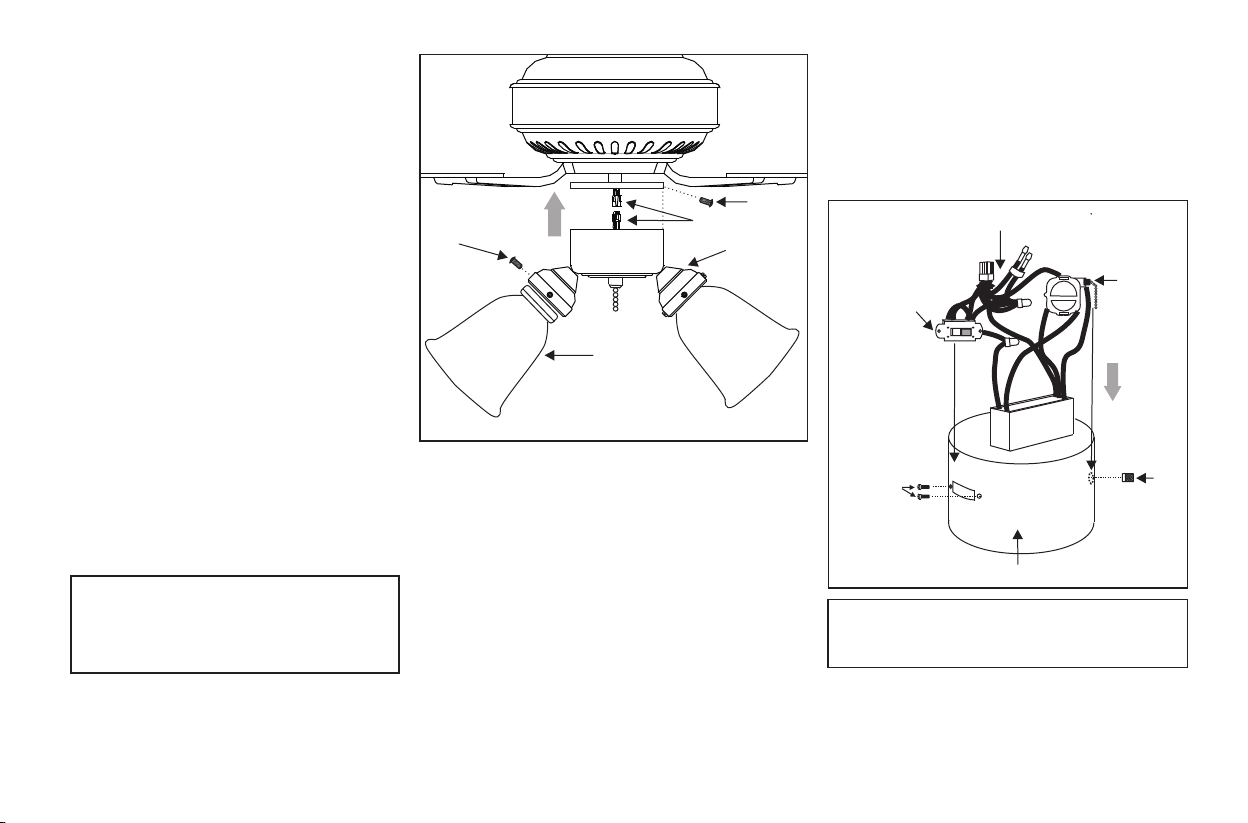

1. While holding the light fixture under
your fan, s nap toge ther the wire
connection plug. (Figure 17)
2. Remove screws from mounting ring
under the fan motor. Raise the light
fixture body to the mounting ring until
the holes in fixture and ring line up.
Reinsert screws to secure in place.
(Figure 17)
3. Mount the glass shades to the light
fixture by unscrewing partway the
thumbscrews on the glass holders,
i n s e r t i n g t h e g l a s s , t h e n g e n t l y
tightening the thumbscrews by hand
evenly to the glass. DO NOT OVER
TIGHTEN. (Figure 17)
4. Install 60 watt bulbs (max.). ( )
5. Restore power and your light kit is
ready for operation.
included
Thumb screws
Screws
Glass shade
Light fixture
Connection
plug
Figure 17
NOTE: Light bulbs have no warranty,
can be purchased at local light bulb
specialty store or from our service
center.
NOTE
FOR NON-LIGHT USE PURPOSE, THE SWITCH
BOX IS AVAILABLE BY CALLING THE TOLL
FREE NUMBER 877-898-1881
3. Tuck the wire harness into the switch box.
4. Remove the screws from the mounting ring
under the fan motor. Raise the switch box to
the mounting ring until the holes in switch
box and mounting ring line up. Reinsert the
screws to secure in place.
Fan Without Light Kit
1. Disassemble the wire harness from the light
fixture, you can keep the light fixture for
future use.
2. Install the wire harness into the empty switch
box by placing the pull chain switch and
reversing switch into the holes located in the
empty switch box (see illustration), secure the
pull chain switch and reversing switch with
original nut and screws.(Fig. 18)
(Optional)
Figure 18
Nut
Pull chain
switch
Screw
Empty switch box
Wiring harness
Reversing switch

NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Turn on the power and check the operation of
your fan. The pull chain controls the fan speed
as follows: 1 pulls- High, 2 pulls-Medium, 3
pulls- Low, and 4 pulls-Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
The slide switch controls directions: forward
(switch left) or reverse (switch right)
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown
in Figure 19. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Figure 20. This allows
you to set your heating unit on a lower
setting without affecting your comfort.
11.Operating Your Fan
Figure 19
Figure 20

Here are some suggestions to help you
maintain your fan
1 . B e c a u s e o f t h e f a n ' s n a t u r a l
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Care of Your Fan 12.

Troubleshooting 13.
Problem
Fan will not start.
Fan sounds noisy.
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is
also secure.
6.Some fan motors are sensitive to signals from solid-state variable speed controls.
If you have installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
42"
120 1.86'8.8
kgs
9.2
kgs
9
30
65
0.22
0.39
0.56
75
150
220
1500
3600
5700
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Specifications 14.
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2005 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
