Milton
52 in Ceiling Fan
Owner’s Manual
Milton
Ventilador de Techo de 1,32 m
Manual del Propietario
458 412

Milton by Hampton Bay
®

52” Milton
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
The finish of this fan is weather resistant, but over time will
naturally weather and fade.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . . 11
Operating Your Transmitter . . . . . . . . . . . 12
Care of Your Fan . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . 15
Warranty Information . . . . . . . . . . . . 16
458-412
792145354246
219032

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds, Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
WARNING: Use only with light kit marked "Suitable for Use in Wet
Locations".
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.
WARNING
ATTENTION
FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE
DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS
PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT.
PLEASE USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W
REGULATION.

2

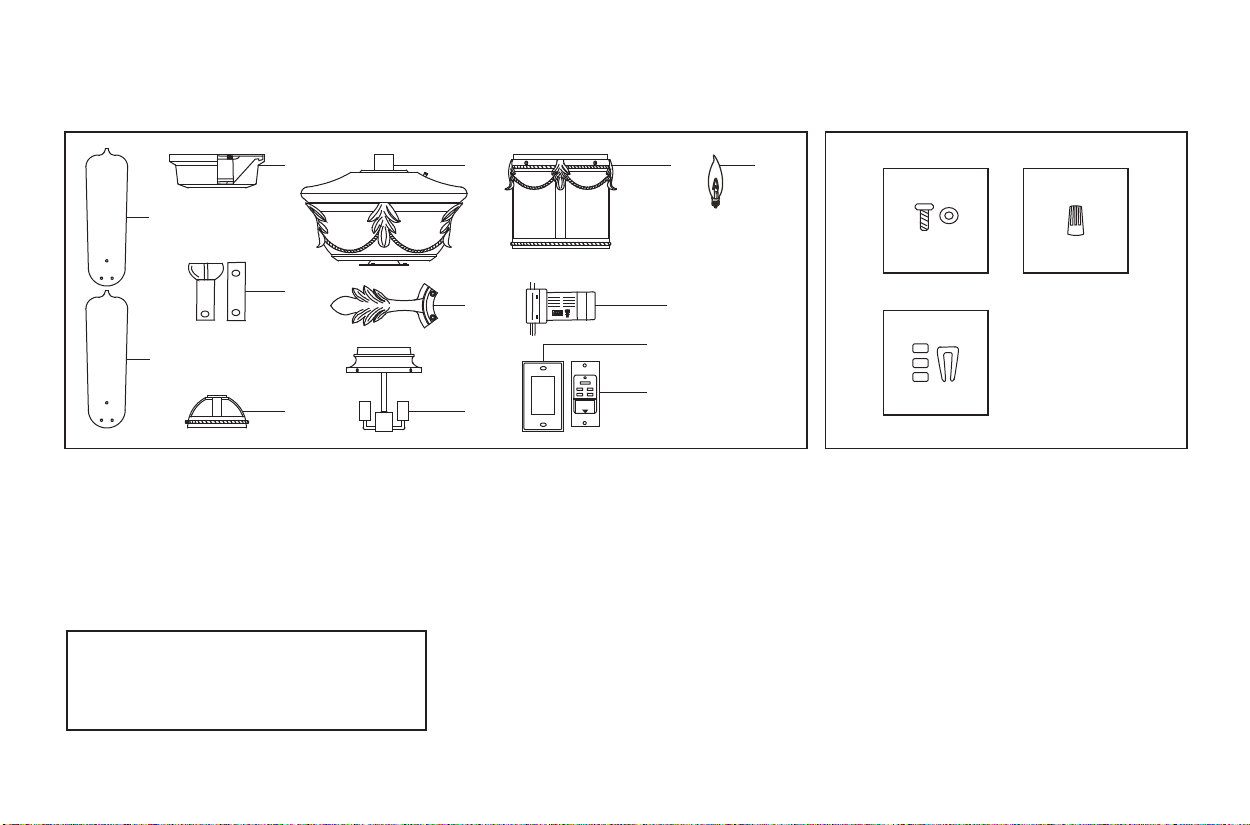

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
AB
C
Set of blades (5) (wood blades)
Set of blades (5) (Plastic blades)
Canopy assembly
Ball/downrod assembly (1)
& extra downrod (1)
Coupling cover
1A.
1B.
2.
3.
4.
Fan motor assembly
Set of blade bracket (5)
Light kit
Glass shade assembly
Receiver+6 wire nuts
Mounting plate with 2 mounting screws
Transmitter with 2 mounting screws
40 Watt candelabra bulbs (3)
5.
6.
7.
8.
9.
10a.
10b.
11.
Blade Attachment Hardware
(16 Screws, 16 Rubber Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Balance Kits (2)
A.
B.
C.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
LIGHT
HI
MED
OFF
LOW
9V BAT.
1A
1B
2
3
4
5
6 9
8 11
10b
10a
7

3
Installing Your Fan
Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 20°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 5)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the bottom
of the mounting bracket and loosening the
other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the mounting bracket from the
canopy. (Figure 5)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 6)
Route wires exiting from the top of the fan
motor through the coupling cover, canopy
cover, canopy and then through the ball/
downrod. (Figure 6)
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing. (Figure 6) Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
1.
2.
3.
4.
5.
WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Tighten two set screws at top of the fan motor
collar firmly and evenly. (Fig. 6)
6.
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover
Figure 5
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
Figure 6
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Canopy Bottom
Cover
Pin in Locked
Positioon
Motor Collar
Coupling
Cover
Tighten Screw
Firmly
Cotter Pin
Clevis Pin

5
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Installing Fan to
the Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 7.
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box. (Figure 7)
Security tighten the two mounting screws.
Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated
in the groove in the hanger ball. (Figure 8) This
will help to balance the ceiling fan.
Changing the Downrod
(Optional)
1.
2.
3.
4.
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you have
been provided with a 6" downrod to use if desired.
If you choose to use the 6" downrod, perform the
following steps:
Remove the hanger ball from the 4" downrod
by loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
Slide the hanger ball down the downrod and
remove the support pin.
Insert the support pin in the holes at the top of
the 6" downrod and slide the hanger ball up the
6" downrod. Make sure the support pin is
properly seated in the grooves in the top of the
hanger ball.
Tighten the set screw firmly.
1.
2.
3.
4.

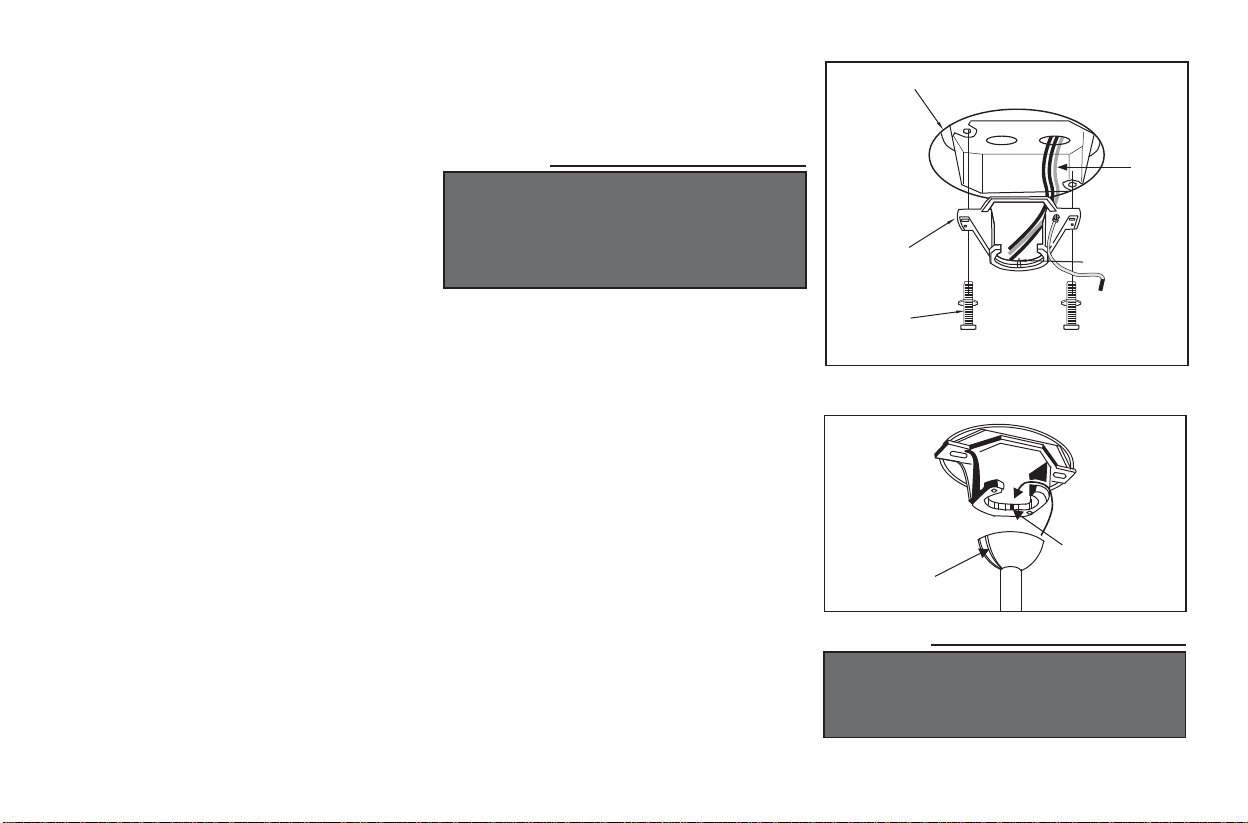

Figure 7
UL Listed Outlet Box
Ceiling Mounting
Bracket
120V
Wires
Mounting
Screws (Supplied
with Electrical Box)
Tab
Figure 8
Groove
Tab

6
Making the Electrical
Connections
WARNING
TO AVOID POSSIBLE ELECTRICAL SHOCK, BE
SURE ELECTRICITY IS TURNED OFF AT THE
MAIN FUSE BOX BEFORE WIRING.
CAUTION
THE FREQUENCY SWITCHES ON THE RECEIV-
ING UNIT ARE COVERED WITH A RUBBER
COVER, REMOVE THE RUBBER COVER AND
THEN HAVE IT REPLACED AFTER MAKING
ANY CHANGES TO THE FREQUENCY
SWITCHES.
(Fig. 11) Motor to receiver electrical connec-
tions: Connect the black wire from the fan to
black wire marked "TO MOTOR L". Connect
the white wire from the fan to the white wire
marked "TO MOTOR N" from the receiver.
Connect the blue wire from the fan to the blue
wire marked "For Light" from the receiver.
Secure the wire connections with the plastic
wire connecting nuts provided.
(Figure 11) Receiver to house supply wires
electrical connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the
white(neutral) wire from the ceiling to the
white wire marked "AC in N" from the
receiver. Secure the wire connections with the
plastic wire connecting nuts provided.
(Figure 11) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic wire
connecting nut provided. After connecting the
wires spread them apart so that the green and
white wires are on one side of the outlet box
and black and blue wires are on the other side.
Carefully tuck the wire connections up into the
outlet box.
2.
3.
4.
Insert the receiver into the mounting bracket
with the flat side of the receiver facing the
ceiling. (Figure 10)
1.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference
from or to other remote units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to make
sure the switches on the transmitter and the
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to the
same position. (Figure 9)
Figure 9
Figure 10
Receiver
Ceiling
Mounting
Bracket
Rubber
Cover
Code Switch
LIGHT
HI
MED
OFF
LOW
CAUTION
DO NOT USE WITH WALL LIGHT DIMMER
SWITCH.

7
Figure 12
Switch
Outlet Box Wall Plate
Screws
Screws
Disconnect the power and remove the existing
wall plate and switch from the wall junction
box. (Figure 12)
Set knobs on the wall control in the off position.
(Fig. 13) Carefully tuck the wire connections
inside the junction box. Secure the wall
transmitter with the two screws provided.
Attach the wall plate over the wall transmitter
and secure with the two screws provided.
1.
2.
3.
4.
Remember to shut the power off at the circuit
breaker or fuse box.
Installing the Wall
Transmtter
Screws
Screws
Wall Plate
Switch Outlet Box
Figure 13
LIGHT
HI
MED
OFF
LOW
9V
BAT.
SUPPLY CIRCUIT
Figure 11
BLACK
BLACK
BLUE
WHITE
BLACK
BLACK
BLUE
WHITE
WHITE
GREEN
WHITE
Outlet Box
Ground
Conductor
Green
Ground
Lead
Ground to
Downrod

8
Finishing the Fan
Installation
Tuck connections neatly into ceiling outlet
box.
Slide the canopy up to mounting bracket and
place the key hole on the canopy over the
screw on the mounting bracket, turn canopy
until it locks in place at the narrow section of
the key holes. (Fig. 14)
Align the circular hole on canopy with the
remaining hole on the mounting bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
1.
2.
3.
WARNING
MAKE SURE THE TAB ON THE MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Figure 14
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover

9
Attaching the Fan Blades
Attach blades to blade arm using the screws
and rubber washers provided. (Fig. 15) Start a
screw into the blade arm, do not tighten.
Repeat for the 3 remaining screws and
washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then
tighten the two screws and washers already
installed in the blade arms. (Figure 16)
1.
2.
3.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
CAUTION
REMOVE THE 5 SCREWS FROM THE MOTOR
SUPPORT PLATE, DISCARD THE 5 SCREWS
AND MOTOR SUPPORT PLATE.
Blade Arm
Tab
Slot
Screws
Figure 15
Blade Arm
Blade Screws with
Rubber Washers
Figure 16

10
Blade Balancing
Figure 17
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure from a point on the center of each blade to the point
on the ceiling. Measure this distance as shown in Figure 17. Rotate the fan
until the next blade is positioned for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝. Run the fan for 10
Minutes.
Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
1.
2.
3.
The following procedure should correct most fan wobble. Check after each
step.
Touching Ceiling

11
Installing the Light Kit
Remove the 1 of 3 screws from the mounting
ring and keep it for future use. Loosen the other
2 screws. (Do not remove)
Connect the white wire connectors from the
light kit and fan, follow the same procedure
with the black wire connectors. (Figure 18)
Tuck connections neatly into mounting ring,
place the key holes on the light plate over the
2 screws previously loosened from the
mounting ring, turn light plate until it locks in
place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed.
NOTE: When installing the light kit onto the
mounting ring, be sure the arrow markings
from the screw and key holes are aligned. (Fig.
19)
Install 3 x 40W candelabra bulbs (included).
(Figure 20)
Install the glass shade assembly to the switch
housing with 4 screws provided. (Figure 20)
1.
2.
3.
4.
5.
6. Restore power and your light kit is ready for
operations.
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
Figure 18
Figure 19
Mounting Ring
Figure 20
Screws
Bulbs
Light Kit
Glass Shade
Assembly
Screws
Light Kit
Arrow Mounting
Ring
Light Kit
Connection
Plugs

1212
Installing the Battery:
"HI, MED, LOW" buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed,
MED= Medium speed
HI=High speed
"OFF" button:
This button turns the fan off.
The "LIGHT" button turns the light ON or
OFF.
1.
2.
3.
Install 9 volt battery (not included), to prevent
damage to transmitter, remove the battery if not
used for long periods. (Figure 21)
Restore power to the ceiling fan and test for
proper operation.
Figure 21
Operating Your Transmitter
Figure 22
LIGHT
HI
MED
OFF
LOW
9V BAT.
LIGHT
9V BAT.
HI
MED
OFF
LOW

13
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
The Reverse switch is located on the top of motor
housing. Slide the switch to the Left for warm
weather operation. Slide the switch to the Right for
cool weather operation.
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect.
(Fig. 23) This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
24) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 23
Figure 24

14
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
This unit is equipped with a wattage limiting device. Lamping in excess
of 190 watts will disable your ceiling fan's light kit. To reset your light
kit you must turn the power off and relamp, keeping the wattage under
190 watts. Restore power to your ceiling fan and continue normal
operation.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
1.
2.
Fan will not start
Fan sounds noisy
Lights shut off and
will not come back
on.
Remote control
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

15
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
52” 120 14.35 kgs
(31.57 lbs)
16.39 kgs
(36.06 lbs) 2.59’
LOW
MED.
HIGH
0.36
0.48
0.56
17
36
63
75
120
170
1200
3850
6500
These are approximate measures. They do not include Amps and Wattage used by the light kit.

16
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Hampton Bay Lifetime Limited Warranty
(lifetime warranty on motor)
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
2919 E. Philadelphia Street
Ontario, Ca 91761
Attach receipt here for easy
location
