HAMPTON BAY Springview User manual

by ®
Hampton Bay
Springview

52 Springview
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
ETL Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Y our Fan . . . . . . . . . . . . . . 2
Installing Y our Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . . 8
Care of Y our Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
445993
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
750 809
718212149225
Y our Fan . . . . . . . . . . . . . . . . 9
Operating

Safety Rules - Read and Save These Instructions
WARNING
WARNING
ATTENTION
To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
WARNING: To reduce the risk of electrical shock or fire, do not
use this fan with any solid-state fan speed control device. It will
permanently damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the
screws provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only
UL Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded conductor on the other side of the outlet box.
All set screws must be checked and retightened where necessary
before installation.
10.
11.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE
DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS
PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT. PLEASE
USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W
REGULATION.
1

3
1
2
6
4
7
9
13
B
A
5
10
8
11
12
9. Flywheel (1)
10. Light kit (1)
11. 40 Watt E12 bulb (3)
12. Glass shade (1)
1.
2. Hanger bracket (1)
3. Canopy (1)
4. Canopy cover (1)
5. Ball/downrod assembly (1)
6. Coupling cover (1)
7. Fan motor assembly ( 1 )
8. Set of blades brackets (5)
Set of blades (5)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-800-527-0998
Unpack your fan and check the contents. You should have the following items:
2
DEF
Loose parts bag containing:
A. Mounting hardware
Plastic wire connectors (3pcs)
B . Blade attachment hardware
3/16″6mm Screw(16pcs)
×
Fiber washer (16pcs)
C. Blade bracket hardware
1/4*9.5mm screws (10pcs)
Flywheel hardware
1/4*9.5mm screws (6pcs)
D. Extra plug with nut (1)
E.
F.
Pull chain fob (2pcs)
Balancing kit (1)
(2pcs)
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
C

Installing Your Fan
WARNING
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Tools Required
Mounting Options
Phillips screwdriver, straight slot
screwdriver, step ladder and wire cutters.
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 35 lbs). Do
not use plastic outlet boxes.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FA N SU P P O RT A N D US E T H E
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figures 1~3 are examples of different ways to
mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. The
maximum angle allowable is 18°. If the
canopy touches downrod, remove the
decorative canopy bottom cover and turn the
canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at any Home Depot store).
3

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Figure 5)
2.
3. Remove hanger ball from downrod assembly
by loosening set screw, removing the cross pin,
and sliding ball off rod. (Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto tod being sure that
cross pin is in correct position, set screws are
tighten and wires are not twisted.
Remove the hitch pin and lock pin from
the downrod assembly. Loosen the two set
screws from the motor assembly. (Figure
6)
6. Now lift motor assembly into position and place
hanger ball into hanger bracket. Rotate until the
check groove drops into the registration slot and
seats firmly. (Figure 10) Downrod should not rotate
if this is done correctly.
Figure 6
Downrod
Supply
wires
Figure 8 Figure 10
Registration
slot
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Hanger bracket
Hitch
pin Lock
pin
Set
screws
Figure 9
Split Pin
Collar Cover
Pivot Pin
Motor Collar
Lead Wires
Ball/Downrod
Assembly
Canopy
4

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 11
Diagram indicates optional light kit wiring.
Making the Electrical
Connections
Remember
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
to shut off the power.
1. Connect the fan supply (black) wire and
light supply (blue) wire to the black
household supply wire. (Figure 11)
2. Connect the neutral fan (white) wire t ot he
white neutral household wire. (Figure 11)
3. Connect the fan ground wire (green) to
the household ground wire. (Figure 11)
4. After connecting the wires, spread them
apart so that the green and white wires are
on one side of the outlet box and the black
and the blue wires are on the other side.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR OTHER PERSONAL INJURY. MOUNT FAN ONLY ON
AN OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY SOLID-
STATE SPEED CONTROL DEVICE.
LIGHT KITS ARE AVAILABLE AT YOU HAMPTON
BAY RETAILER. THE FAN IS ALREADY WIRED TO
SUPPORT THE LIGHT KIT OPTION.
5. Turn the connecting nuts upward and push the wiring
into the outlet box. Figures 12 and Figures 13 illustrate the
wiring connections for optional wall control (available at
your Hampton Bay Retailer, the wire color out of wall
control may vary, see wall control's installation manual for
correct wire connections)
5
NOTE
WARNING

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 13
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 12
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER
BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
Figure 14
Outlet box
Mounting
bracket
Canopy
Screw
Canopy
cover
Lead Wires
Ball/Downrod
Assembly
Finishing the Installation
1. Tuck connections neatly into ceiling outlet box.
2. Remove one screw from the hanger bracket and
loosen the other screw around 1/4″.
3. Align the canopy up to ceiling and over the loose
screw. Place the canopy into key hole and rotate
canopy clockwise. (Figure 14)
4. Secure the canopy by use previous removed screw.
5. Place the canopy cover to the canopy and rotate
canopy cover clockwise until it is locked into right
position.(Figure 14)
6
WARNING

Blade
holder
Screws
Fiber
Washer
Attaching the Fan Blades
1. A ttach the fan blades to the blade holders by
using three screws and fiber washers as shown
in Figure 15. Start a screw into the blade
holder, do not tighten. Repeat for the 2
remaining screws and washers.
2. Tighten each screw securely starting with
the center screw.
3. Fasten the blade assemblies to fly wheel
with the fly wheel hardware provided. (Figure
16)
Touching
ceiling
Figure 18
Figure 15
Figure 16
Screw
Fly wheel
Blade Bracket
Blade
7
Installing the fly wheel
Loose five set motor screws on the
motor, Place the slot holes of the fly
wheel over five screws previously
loosened and attach five motor screws
provided in Loose parts bag, tighten all
screws. (Figure 17)
Set Screws
Motor
Slot hole
Motor
Screw
Figure 17
Blade balancing
The following procedure should correct
most fan wobble. Check after each step.

Installing the light kit
REMEMBER to disconnect the power.
The fan blades must already be attached to
the fan.
Your fan and light kit though pre-wired
have been disassembled at the factory to
ease in shipping. Please follow these steps
to complete the installation of your fan and
light. TO REDUCE THE RISK OF FIRE
D O N O T E X C E E D M A X I M U M
WATTAGE RATING.
ATTENTION: The Energy Policy Act of
2005 requires this fan to be equipped with a
190 watt limiting device. If lamping exceeds
190 watts, the ceiling fan's light kit will shut
off automatically.
1. Remove 1 of 3 screws on the mounting
ring and loosen other 2 screws. (Do not
remove)
3. Place the key holes on the mounting
pla te o ver the 2 sc rew s p r evi ousl y
loosened from the mounting ring, turn
mounting plate until it locks in place at the
narrow section of the key holes. Secure by
tighteni n g t h e 2 s c r ews p r e v i o u s l y
loosened and the one previously removed.
(Figure 19 )
2. Remove the mounting plate from the light
kit by removing 3 screws (Keep them for
future use).
LIGHT BULB HAVE NO WARRANTY, CAN BE
P UR C H A S E D AT L O C A L L IG H T B U L B
SPECIALTY STORE OR FROM OUR SERVICE
CENTER.
4. Connect the connectors from the light
kit and fan. (Figure 19 )
5. Lift the light kit to the mounting plate,
align the key holes and tighten 3 screws
previously removed.
6. Place the 3 bulbs ( 40 Watt, included)
into the Light kits.(Figure 20)
7. Remove the two washers, metal nut,
metal cap and final from the light kit.
8. Install the glass shade, along with 2
washers previously removed, twist with
the metal nut; install the metal cap, then
twist the finial securely. (Figure 20)
9. Restore power and your ceiling fan
is ready for operations.
8
NOTE
1. Check that all blades and blade holder
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 18. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within 1/8". Run
the fan for 10 Minutes.
3. Use the enclosed Blade Balancing Kit if
the blade wobble is still noticeable.

NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 21
Figure 22
Cool weather - (Clockwise direction) An
upward airflow moves warm air off the
ceiling area. (Fig. 22) This allows you to set
your heating unit on a lower setting without
affecting your comfort.
9
Figure 19
Screws Screws
Connection Plugs
Light Kit
Mounting plate Mounting ring
Reverse switch
Figure 20
Switch housing
Glass shade
Finial
Metal Cap
Metal Nut
Rubber Washer
Metal Washer
Operating your fan
Turn on the power and check the operation of
your fan. There ar e three pull chains
available in your fan:
1. 3-speed Pull chain-it controls the fan
spe e d as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls- Low, and 4 pulls-
Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
2. Light kit pull chain-it controls the light kit
in “ON” or “OFF”.
The slide switch controls directions: forward
(switch left ) or reverse (switch right ).
Wa r m w e a t h e r - ( C o u n t e r- C l o c k w i s e
direction) A downward air flow creates a
cooling effect.(Fig. 21) This allows you to
set your air conditioner on a higher setting
without affecting your comfort.

WARNING
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
Fan will not start
Fan sounds noisy
Lights shut off and
will not come back
on.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain
its new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball
bearings.1.2.3.4.
Here are some suggestions to help you
maintain your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire
connections in the switch housing.
Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
Make sure wire nut connections are not rattling against each
other or the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated
with a new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the
canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads
are used between mounting bracket and outlet box.
This unit is equipped with a wattage limiting device. Lamping
in excess of 190 watts will disable your ceiling fan's light kit. To
reset your light kit you must turn the power off and relamp,
keeping the wattage under 190 watts. Restore power to your
ceiling fan and continue normal operation.
Do not connect the fan with a wall mounted variable speed
control(s).
Make sure the dip switches are set correctly.
Remote control 1.
2.
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
10
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
THE HAMPTON BAY FAN & LIGHTING CO.
P. O. Box 395
Norco, CA 92860
CALL TOLL FREE 1-800-527-0998

Specifications
FAN SIZE SPEED VOLT S AMPS WATT S RPM CF M N.W.G.W.C.F.
LOW
MED
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
52
(1,32 m)
11
Distributed by
Home Depot U.S.A.,Inc.
2455 Paces Ferry Rd., N.W.
Atlanta,GA 30339
0.246
0.389
0.525
13
33
63
1895
3350
5150
120
74
120
168
8.84kgs
19.45 lbs
10.08kgs
22.18 lbs
1.88

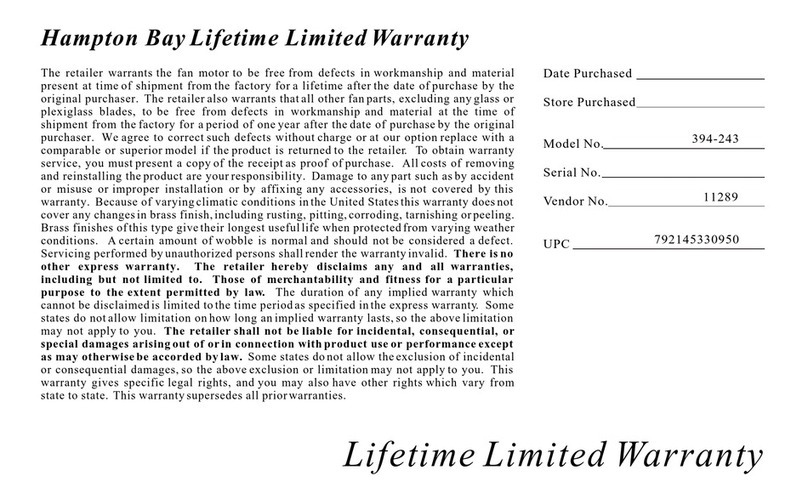

Lifetime Limited Warranty
(lifetime warranty on motor)
Attach receipt here for easy
location
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of lifetime after the date of purchase by the
original purchaser. Hampton Bay also warrants that all other fan parts, excluding any glass or
acrylic blades, to be free from defects in workmanship and material at the time of shipment from the
factory for a period of one year after the date of purchase by the original purchaser. We agree to
correct such defects without charge or at our option replace with a comparable or superior model if
the product is returned to Hampton Bay. To obtain warranty service, you must present a copy of the
receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper installation or by
affixing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass finish, including rusting, pitting, corroding,
tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not
limited to. Those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state
to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as
part of a claim on the warranty must be paid by the customer.
You must present a copy of the original
purchase receipt to obtain warranty
service.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
THE HAMPTON BAY FAN &
LIGHTING CO.
P. O. Box 395
Norco, CA 92860
12
