HAMPTON BAY LOWRY 52-LOWRY User manual

Item #1008 546 977
Model #92406
UL Model #52-LOWRY
USE AND CARE GUIDE
LOWRY 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM

2
Table of Contents ................................................................ 2
Safety Information...............................................................2
Warranty ...............................................................................3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................14
Care and Cleaning.............................................................17
Troubleshooting.................................................................17
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lb (15.9 kg). Use
only UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lb (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL Listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. AL-3L, manufactured by Dawnsun
Electronic Technology Co., LTD ZhongShan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
WARNING: To reduce the risk of re, electric shock
or injury to persons, do not use replacement
parts that have not been recommended by the
manufacturer (e.g. parts made at home using a 3D
printer).

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty

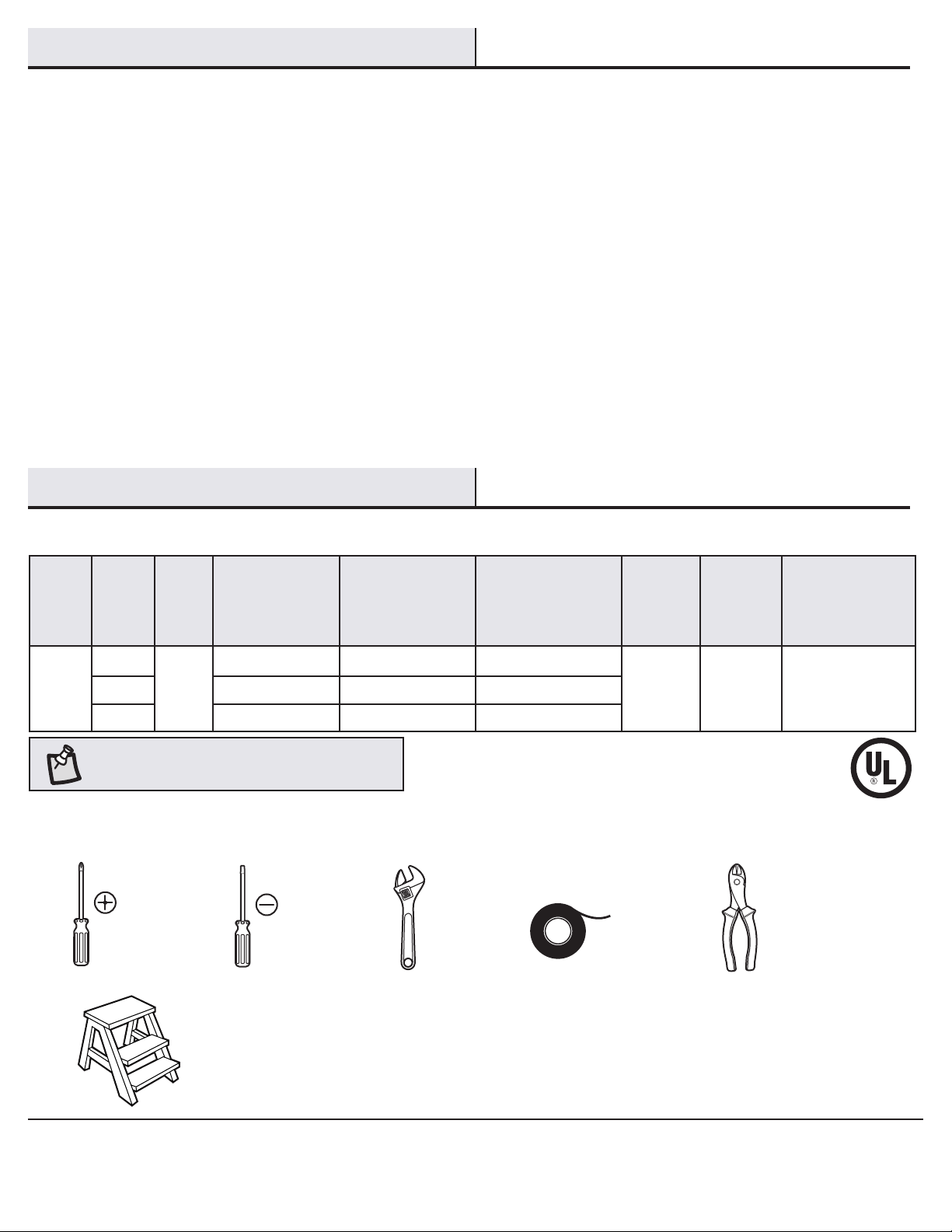

SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
11 2190 199
17.86 lb
(8.1 kg)
22.55 lb
(10.23 kg) 1.66 cu. ft.
Medium 30 3717 123
High 63 5327 84
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at
the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. The retailer hereby disclaims
any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not
allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.

4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connecting nut 3
CC Hanger pin 1
DD Locking pin 1
EE Machine screw 2
FF Short tapered screw 2
GG Long tapered screw 2
HH Extra blade arm screw 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
BB
HH
CC DD
AA
EE FF GG

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Blade 5
GBlade arm 5
Part Description Quantity
HLight kit tter pan 1
I Light kit tter assembly 1
JGlass shade 1
KReceiver 1
L Remote control 1
M Lead wire 1
NBattery 2
ORemote control cradle with toggle
switch spacer included 1
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)

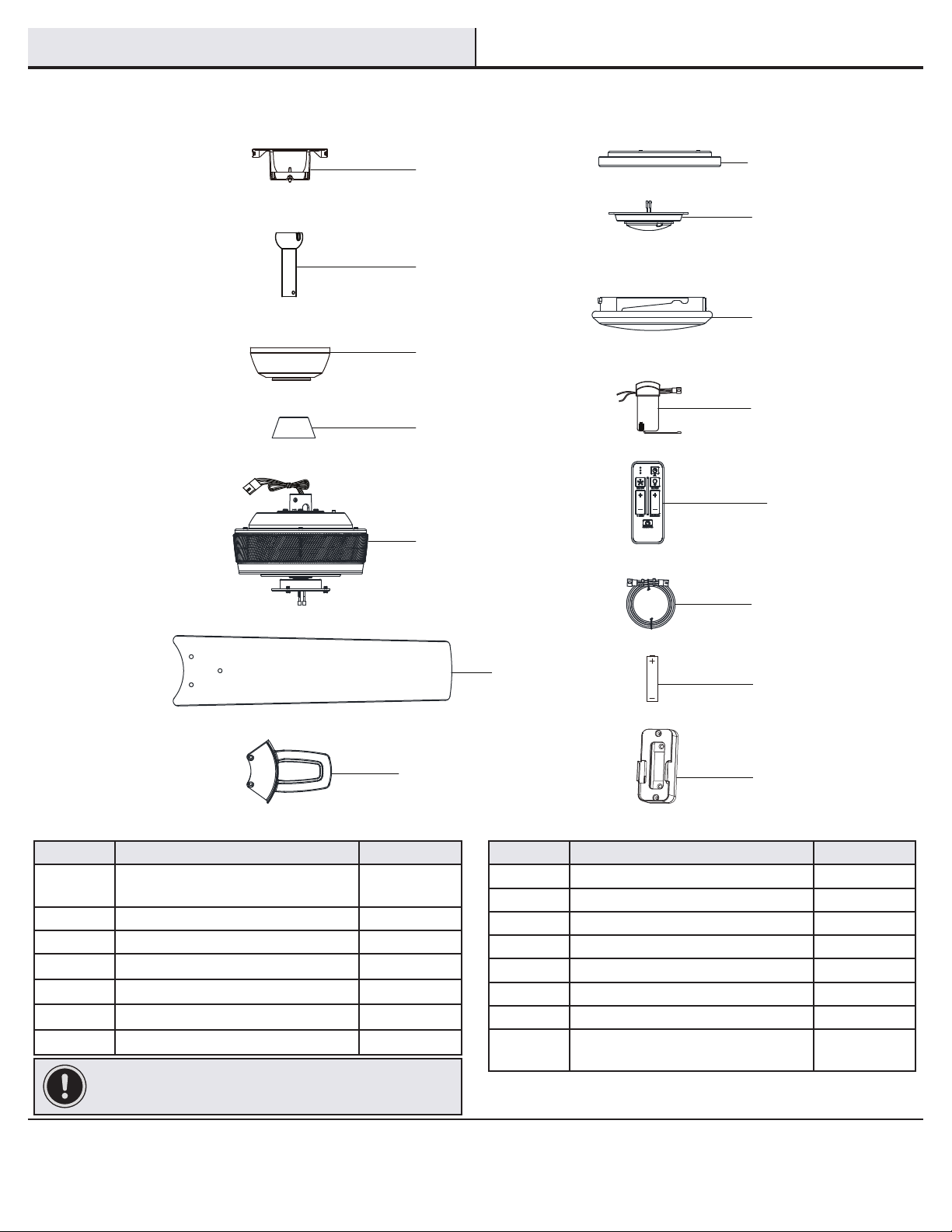

PACKAGE CONTENTS
A
B
C
D
H
G
F
E
I
J
K
L
M
N
O

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box. An outlet
box commonly used for the support of lighting xtures
may not be acceptable for fan support and may need to
be replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lb (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for fan support of
35 lb (15.9 kg) or less.” Do not use a plastic outlet box.

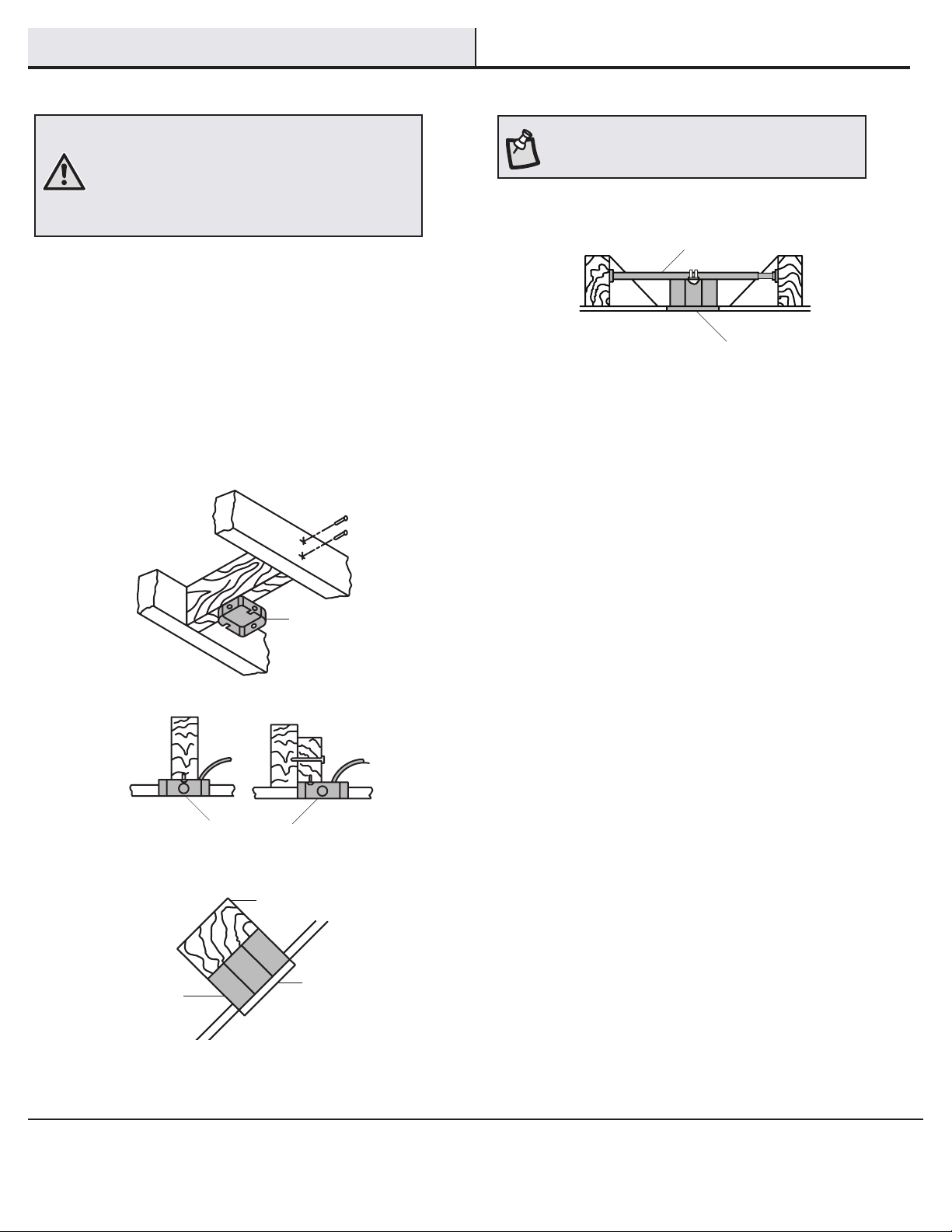

The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative motor collar cover (D), and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

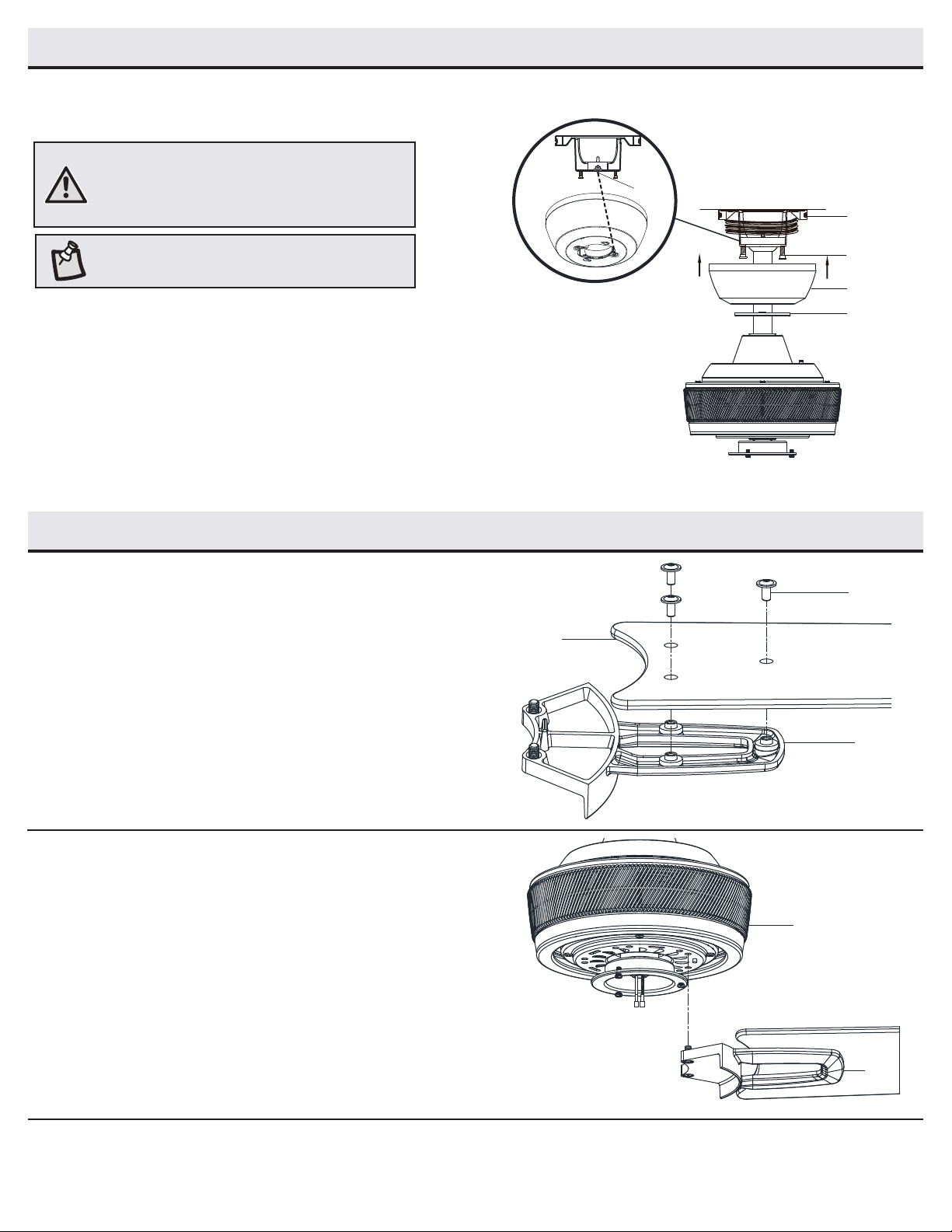

Assembly - Standard Ceiling Mount
Routing the wires
Preparing for mounting

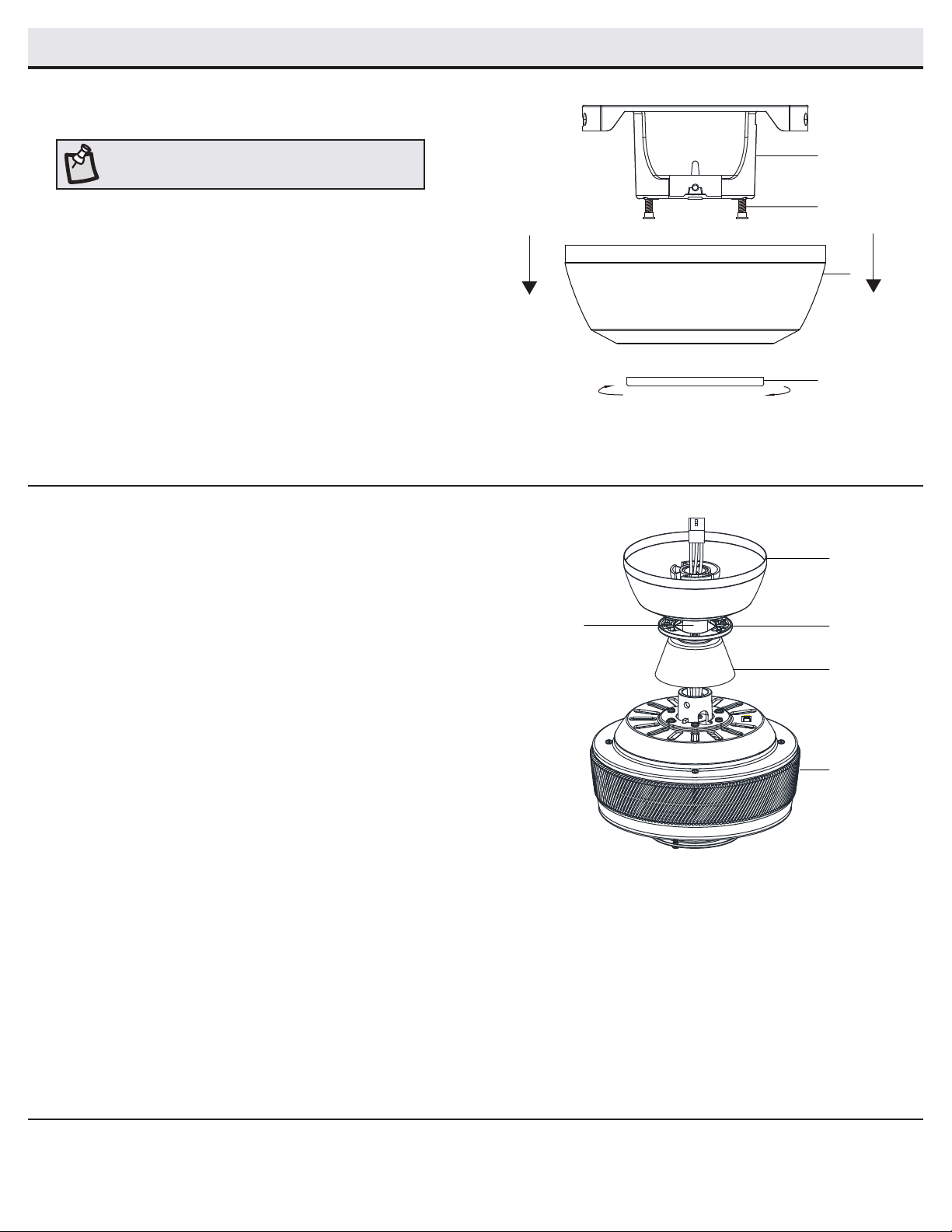

□Remove the magnetic canopy bottom cover (JJ) from the
canopy (C) by pulling it off.
□Loosen the two canopy screws (SS) located in the bottom of
the mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift it up to
remove the mounting bracket from the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the center
of the canopy bottom cover (JJ).
□Make sure the opening of canopy (C) is on top and insert the ball/
downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
2
1
NOTE: The magnet is pre-attached on the canopy
bottom cover for you to remove and install easily.
C
A
SS
JJ
C
D
E
JJ
B

8
Attaching the fan to the
electrical box

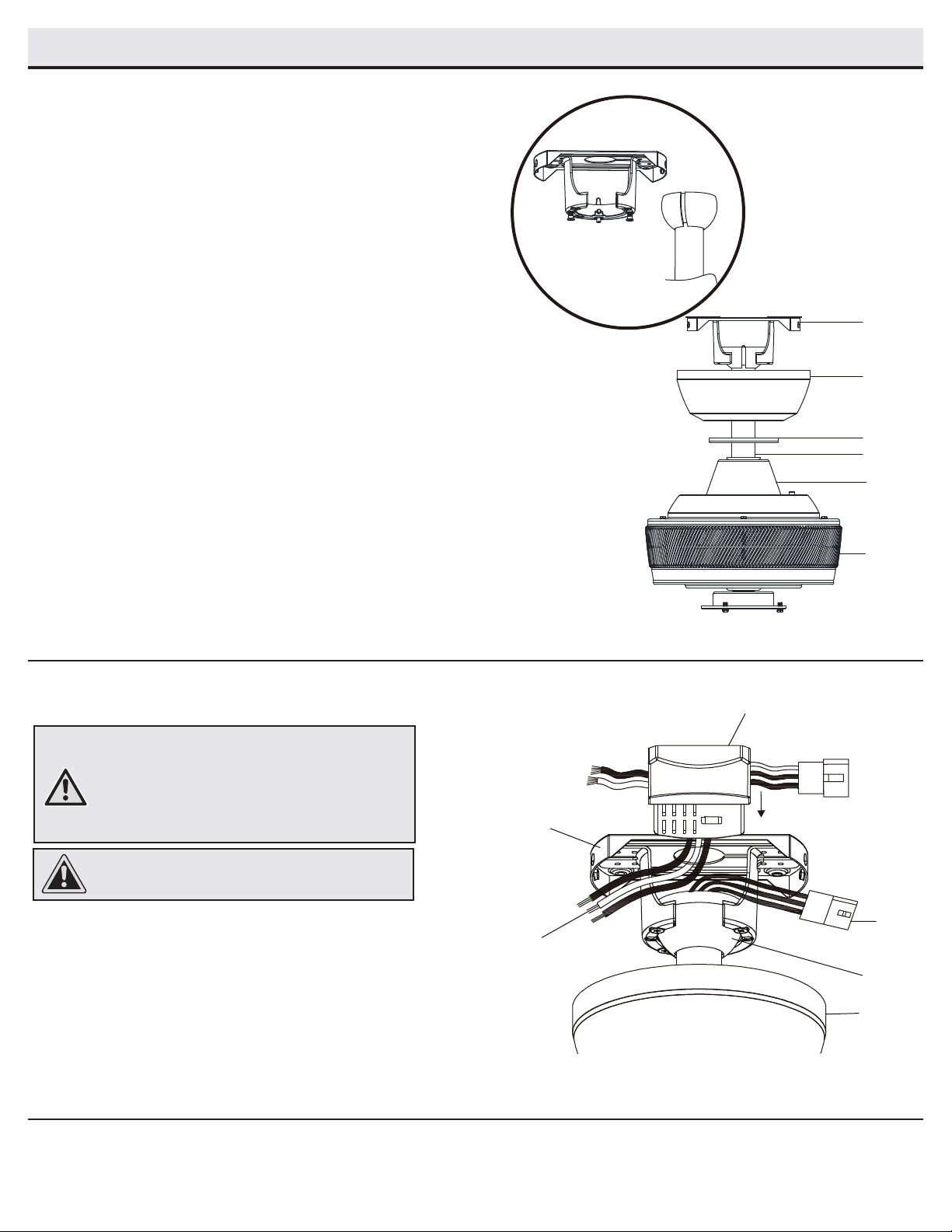

□Loosen the two mounting screws (II) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (II)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (II).
1
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide
into place on an outlet box with the outlet box screws
(II) installed.
Assembly - Standard Ceiling Mount (continued)
Assembling the fan
□Loosen, but do not remove, the setscrew (KK) on the collar (PP) on
top of the fan motor assembly (E).
□Align the holes at the bottom of the ball/downrod assembly (B)
with the holes in the collar on top of the fan-motor assembly (E).
□Carefully insert the hanger pin (CC) through the holes in the collar
and ball/downrod assembly (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the ball/downrod assembly (B).
□Insert the locking pin (DD) through the hole near the end of the
hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan
motor assembly (E).
WARNING: Failure to properly install the locking
pin (DD) could result in the fan becoming loose and
possibly falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (KK)
must be completely tightened.
3
Assembly - Hanging the Fan
C
D
E
JJ
B
CC
DD
KK
PP
A
II
II

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Hanging the fan
□Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
2

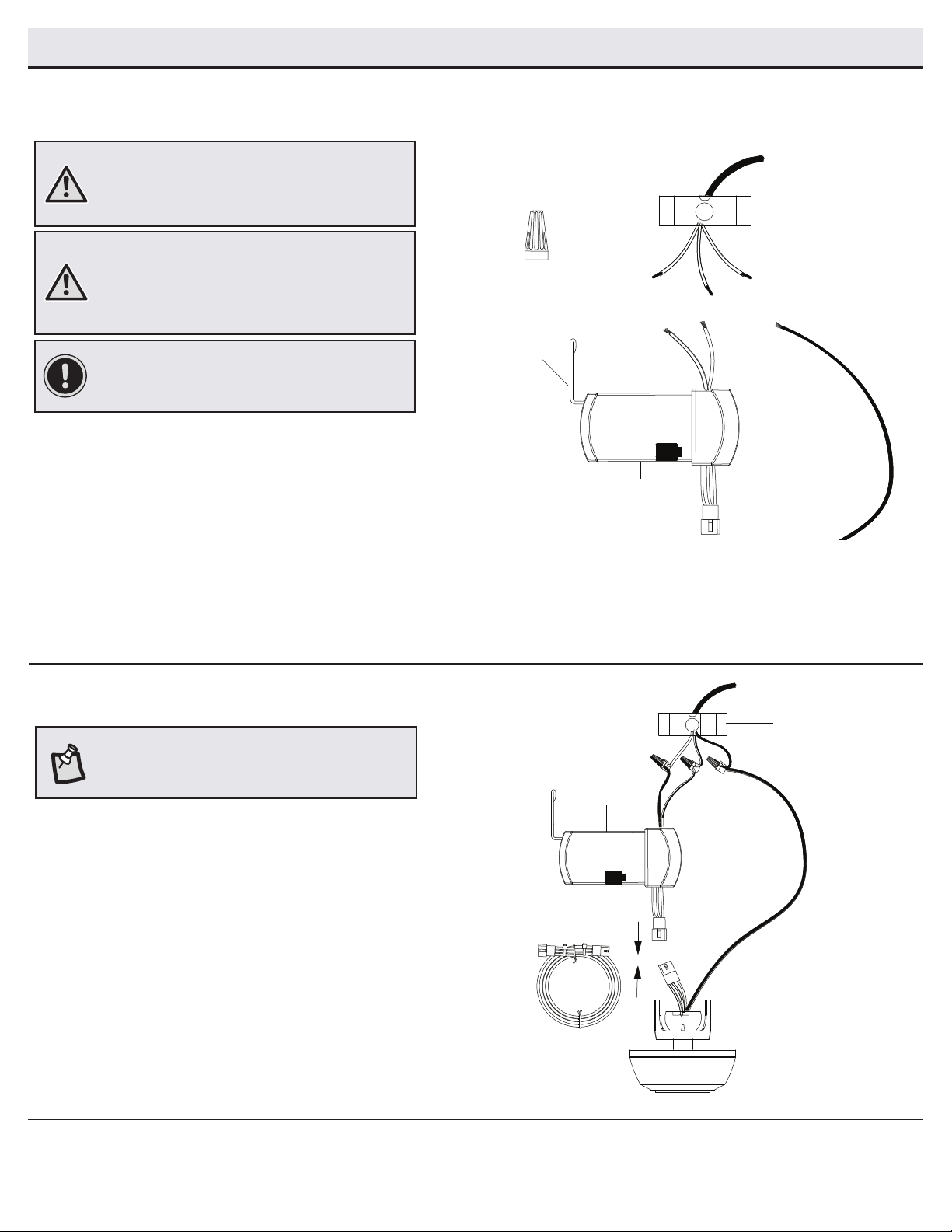

Installing the receiver
□Position the house supply wires (AAA) to one side of
the slide-on mounting bracket (A). Position the fan
wires to the opposite side.
□Insert the narrow end of the receiver (K) (as shown,
at side towards the ceiling) into the slide-on
mounting bracket (A) until it rests on top of the ball/
downrod assembly (B).
3
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring
must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
B
C
AAA
BBB
A
K
A
B
E
C
D
JJ

10
Assembly - Hanging the Fan (continued)
Wiring the fan to the receiver
5
□If using the 4.5 in. ball/downrod assembly provided, wire the
receiver to the fan wires by connecting the molded adaptor
plug from the receiver (K) with the molded adaptor of the fan
motor assembly together.
□If you wish to use a longer downrod, you can use the extension
lead wire (42 in.)(M) provided by connecting the molded
adaptor together.
Wiring the receiver to the
household wiring
4
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (K) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (K) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
NOTE: The fan comes with 8in. lead wires for use with
the provided 4.5 in. ball/downrod assembly. If you wish
to use longer downrod, you can use the extension lead
wire (42 in.) (M) provided.
Outlet box
Green
1 2 34
ONDIP
M
K
Black
Black
Green (or Bare)
Green
Outlet box
Receiver
Antenna
White
K
BB
DIP

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Mounting the fan motor assembly
(standard mount)
6
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□Align the locking slots of the canopy (C) with the two screws (SS) and
alignment post (QQ) in the mounting bracket (A).
□Push up the canopy (C) and turn it clockwise until the alignment post
(QQ) engages to the round hole and the screws (SS) engage to the
key slots.
□Firmly tighten the two mounting screws (SS).
□Align the oval shape on the canopy (C) with canopy bottom cover (JJ).
□Push up the canopy bottom cover (JJ) until the screw (SS) heads
engage to the slots on the canopy bottom cover (JJ) so that the
magnetic canopy bottom cover (JJ) can be attached to the bottom of
the canopy (C) properly.
Assembly - Attaching the Fan Blades
Attaching the fan blades to the
blade arms
1
□Attach a blade (F) to a blade arm (G) by inserting screws (AA)
into the holes in the blade and through the blade arm (G). Note
that the rubber washers are pre-attached to the blade arm (G).
□Tighten each screw securely.
□Repeat these steps for each blade (F) and blade arm (G).
QQ
A
C
JJ
SS
Attaching the blade assemblies to
the fan
2
□Attach the blade assembly to the motor assembly (E) by
aligning the screw holes on the blade arm (G) with the screw
holes on the bottom of the fan motor assembly (E).
□Tighten the pre-installed blade arm screws.
□Repeat this step for the remaining blade assemblies.
AA
G
F
E
G

12
Attaching the light kit tter assembly
2
□Remove one screw (TT) from the light kit pan (H), and loosen,
but do not remove, the other two screws.
□Connect the wires from the light kit tter assembly (I) to the
wires from the fan motor assembly by connecting the molded
adaptor plugs together. Carefully tuck all wires and splices into
the switch cup.
□Push the light kit tter assembly (I) up to the light kit pan (H)
so that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (I) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the light kit pan
1
□Remove one screw (LL) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (H) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (H) clockwise.
□Re-install the screw (LL) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Assembly - Attaching the Light Kit
Installing the glass shade
3
□Place the glass shade (J) into the light kit pan (H),aligning the
three at areas on the top of the ange of the glass shade (J)
with the three raised dimples in the light kit pan (H). Turn the
shade clockwise until it stops.
WARNING: Do not overtighten when installing the glass
shade into the light kit. Allow the glass shade to cool
completely before removing.
H
E
LL
TT
I
H
J
H

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Preparing the Remote Control
Preparing the remote control
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Return power to the fan and, within 30 seconds, press and hold the
learn button for 1-2 seconds and release.
□If pairing is successful, the blades will begin to spin and the light will
also ash.
NOTE: The remote control has already been paired to the
ceiling fan for your convenience. If the remote control does not
communicate with the fan, follow the pairing instructions below.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will damage
the remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
Pairing one remote to one ceiling fan
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Turn the power to the fan on at the breaker box or wall switch and,
within 30 seconds, press and hold the “Learn” button for 10 seconds
and release. Once pairing is successful, the blades will begin to spin
and the light will also ash.
□Repeat the above process for the remote controls you want to work
with this fan.
Pairing multiple remote controls to one
ceiling fan
NOTE: The fan can be controlled by up to three remote controls.
To order extra remote controls, please call Hampton Bay customer
service 1-855-HD-HAMPTON.
NOTE: The fan can only be controlled by 3 remote controls
maximum at the same time after “Learning”. If you pair a fourth
remote control to the fan, the rst remote control will be erased
from the receiver memory.

14
YY

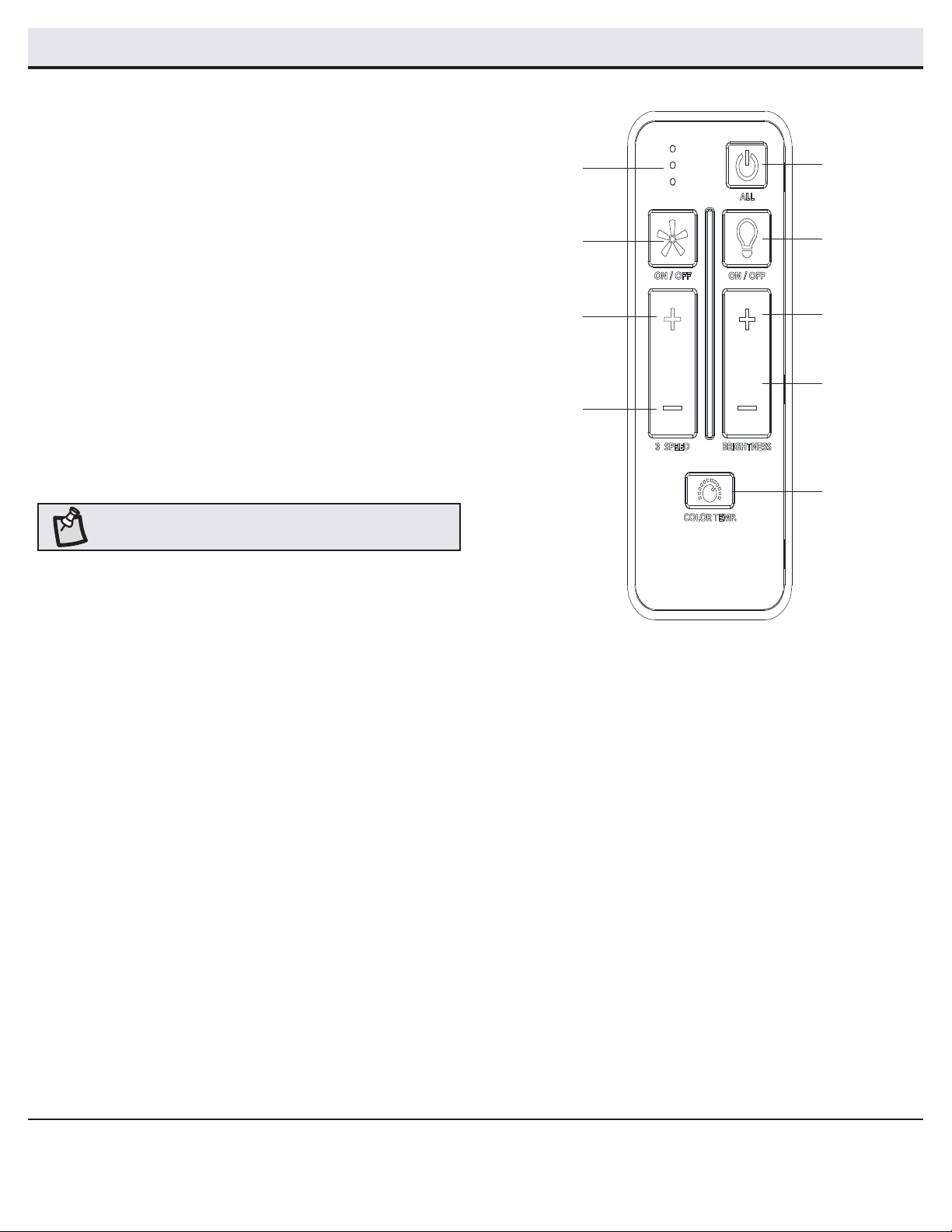

Operating Your Fan and Remote Control
Warm weather
Cool weather
Remote Control
Your fan is equipped with a remote control to operate the speed and
lights of your new ceiling fan. Speed setting for warm or cool weather
depends on factors such as the room size, ceiling height, number of fans
and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the opposite
direction, turn your fan off and wait for the blades to stop turning, then
slide the reversing switch (located on top of the motor housing) to the
opposite position, and turn t he fan on again. The fan blades will turn in
the opposite direction and reverse airow.
Warm weather - (Forward)
A downward airow creates a cooling effect. This allows you to set your
air conditioner on a higher setting without affecting your comfort.
Cool weather - (Reverse)
An upward airow moves warm air off of the ceiling. This allows you to
set your heating unit on a lower setting without affecting your comfort.

15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
ALL ON/OFF
Press and release the ALL button to turn the fan and light on or off.
LIGHT ON/OFF
Press and release the button to turn the light on or off.
DIMMING
Press and hold the (+) button to brighten light to the desired level.
Press and hold the (-) button to dim light to the desired level.
COLOR TEMPERATURE ADJUSTMENT
Push and release the button to cycle through the six color temperature
options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000/4100K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
NOTE: The default temperature of the ceiling fan light is 3000k
(Soft White).
Operating Your Fan and Remote Control (continued)
Color
temperature
adjustment
Fan On/Off
Increases fan
speed
Decreases fan
speed
All On/Off
Light On/Off
Increases light
level (dimmer)
Decreases light
level (dimmer)
LED speed
indicator
FAN SPEED
Press and release the + button to increase the fan speed.
Press and release the - button to decrease the fan speed.
FAN ON/OFF
Press and release the fan button to turn the fan on or off.
LED SPEED INDICATOR
LEDs will illuminate to the corresponding speed:
1 Light - Low
2 Lights - Medium
3 Lights - High

16
Assembly - Mounting the remote wall cradle
1a. Attaching over a standard toggle switch
□Remove the two screws from the toggle switch face plate.
□Place the toggle switch spacer over the toggle switch face
plate and align the two large holes of the toggle switch spacer
with the holes in the face plate. Secure the toggle switch
spacer to the face plate using the two included machine
screws (EE).
□Attach the remote control cradle (O) to the toggle switch
spacer using the included two short tapered screws (FF).
Screw a short tapered screw (FF) into the top hole and bottom
hole of the wall cradle and into the toggle switch spacer until
tight.
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
1b. Attaching over a paddle switch
□Remove the two screws from the paddle switch face plate.
□Place the remote control cradle (O) over the paddle switch and
align the two holes of the remote control cradle (O) with the
holes in the face plate. Secure the remote control cradle (O) to
the face plate using the two included machine screws (EE).
1c. Attaching to the wall
□Position the remote control cradle (O) in the desired position
and attach to the wall using the included two long tapered
screws (GG).
NOTE: The remote wall cradle is designed to allow you to
access an existing switch. The remote wall cradle can be
mounted on the wall or to the face plate of a standard toggle
switch or a paddle switch. Follow the instructions below for the
option that best suits your needs.
GG
GG
O
Toggle switch spacer
Toggle switch face plate
FF
EE
O
EE
O
Paddle switch face plate

17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the
motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8 inch. Run the fan for ten minutes.
If the fan continues to wobble please contact customer service and a balancing kit will be sent to you at no charge.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: King of Fans, Inc 1951 NW 22nd Street, Fort Lauderdale, FL 33311, [phone]
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.

Artículo núm. 1008 546 977
Modelo núm. 92406
Modelo aprobado por UL núm. 52-LOWRY
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO LOWRY, DE 1.3 M
Para ver un video instructivo sobre cómo instalar este producto:
1. Visita www.homedepot.com e ingresa en el campo de búsqueda el número del modelo o
artículo, que aparece en la esquina superior derecha de la portada de este manual de
instrucciones.
2. Haz clic sobre tu producto en la lista de resultados de la búsqueda y sobre el enlace de video
en la sección “Product Overview” [Información general del producto].
GRACIAS POR TU COMPRA
Apreciamos la plena conanza que has depositado en Hampton Bay al comprar este ventilador de techo. Nos esforzamos en crear continuamente
productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles a n de
satisfacer tus necesidades de mejoras del hogar.
¡Gracias por elegir Hampton Bay!
¿Preguntas, problemas, piezas faltantes? Antes de devolver a la tienda, llama al servicio al
cliente de Hampton Bay entre 8 a.m. y 7 p.m. (Este), de lunes a viernes,
o los sábados de 9 a.m. a 6 p.m. (Este).
1-855-HD-HAMPTON
HAMPTONBAY.COM

2
Tabla de contenido..............................................................2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................ 6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................14
Mantenimiento y limpieza.................................................17
Solución de problemas ..................................................... 17
1. Para disminuir el riesgo de descarga eléctrica, asegura cortar la
electricidad en el cortacircuitos o la caja de fusibles antes de comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional de Electricidad
ANSI/NFPA 70 y con los códigos eléctricos locales. La instalación
eléctrica debe hacerse por un electricista certicado y calicado.
3. La caja eléctrica y la estructura de soporte tienen que montarse de
forma segura para poder sostener con conanza y como mínimo 35 lb
(15.9 kg). Usa solo cajas eléctricas aprobadas por UL y marcadas como
“Apropiada para sostener ventiladores de 35 lb (15.9 kg) o menos”.
4. El ventilador tiene que montarse con un mínimo de 7 pies (2.1 m) de
espacio libre desde el borde posterior de las aspas hasta el piso.
5. No coloques objetos en la trayectoria de las aspas.
6. Para evitar lesiones personales o daños al ventilador y a otros objetos,
ten cuidado al limpiarlo o al trabajar cerca de él.
7. Después de concluir las conexiones eléctricas, debes voltear los
conductores empalmados hacia arriba y meterlos con cuidado en la
caja eléctrica. Los cables deben estar separados con el cable a tierra y
el conductor a tierra del equipo a un lado de la caja eléctrica.
8. Antes de la instalación, todos los tornillos de fijación tienen que
comprobarse y reajustarse donde sea necesario.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante ni después de
la instalación. No coloques objetos en la trayectoria
de las aspas.
ADVERTENCIA: Los diagramas eléctricos son solo
para referencia. Si usas un kit de luces, consulta el
manual de instrucciones del kit de luces para hacer las
conexiones eléctricas.
Cualquier juego de luces opcional debe estar aprobado
por UL y marcado como adecuado para usar con este
ventilador.
ADVERTENCIA: Para evitar posible descarga eléctrica,
desconecta la electricidad en la caja principal de
fusibles antes de cablear. En caso de no tener
suciente conocimiento o experiencia sobre cableado
eléctrico, contacta a un electricista certicado.
Información de seguridad
Tabla de contenido
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 35 lb (15.9 kg) o menos” y usa
los tornillos que vienen con ella.
LEE Y GUARDA ESTAS INSTRUCCIONES.
ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica, este ventilador solo debe usarse
con el control de velocidad del ventilador con número
de pieza AL-3L, fabricado por Dawnsun Electronic
Technology Co., Ltd. ZhongShan.
ADVERTENCIA: A n de reducir el riesgo de descargas
eléctricas, este ventilador tiene que instalarse con un
interruptor de pared con aislamiento.
ADVERTENCIA: Para disminuir los riesgos de
incendio, descarga eléctrica o lesiones personales,
no uses repuestos que no sean recomendados por
el fabricante (p. ej., piezas hechas en casa con una
impresora 3D).
