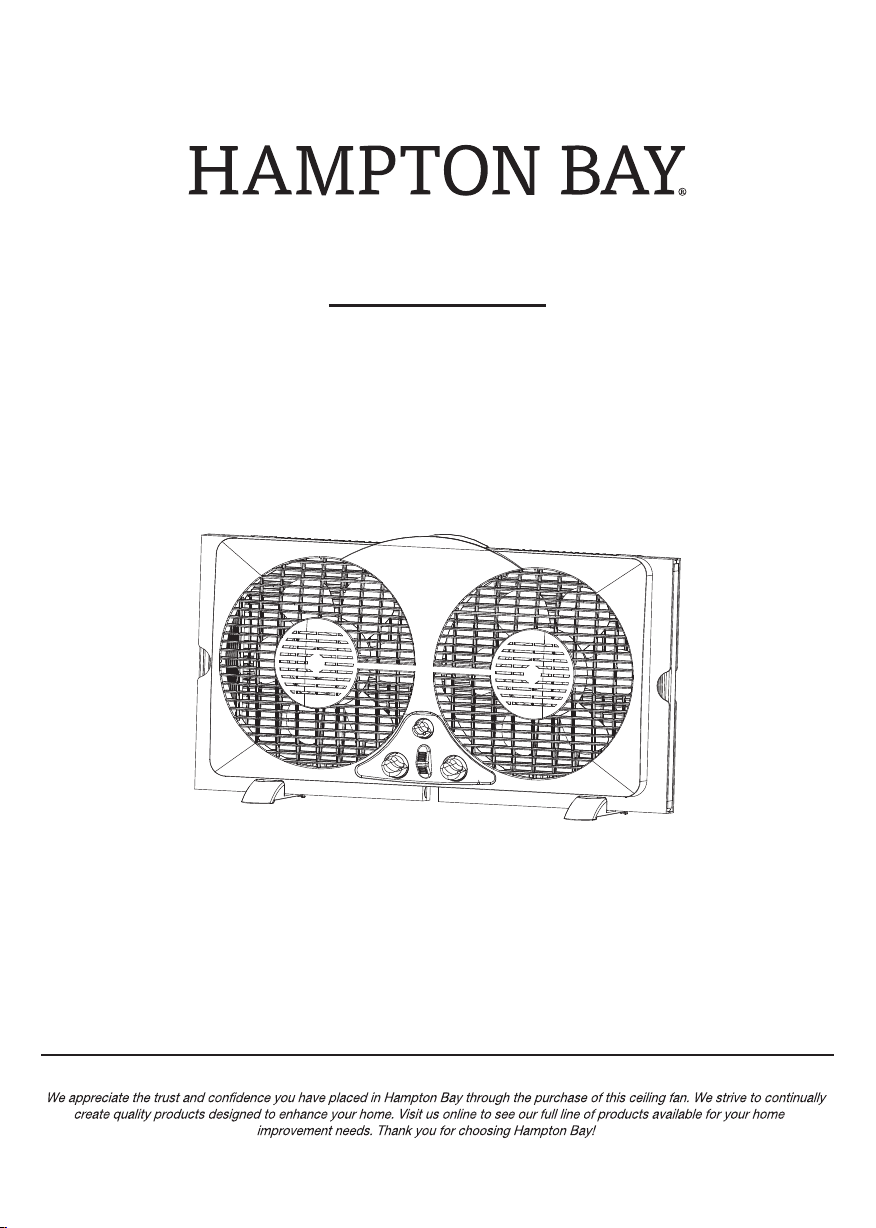

HAMPTON BAY WDF9-2 User manual

9 INCH WINDOW FAN
USE AND CARE GUIDE
Item #1002 774 783
Model #WDF9-2
THANK YOU
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service

2
One-year Limited Warranty
7
7
8
8
Preparation
Assembly Instructions
Operating Instructions
Care And Maintenance
9
Table of Contents 2
Package Contents 3
Safety Information 4
5
Polarized Plug
Plug And Power Cord Instructions
5
Power Cord Safety Tips
5
READ AND SAVE THESE INSTRUCTIONS
Table of Contents

AG
BEF
DC
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

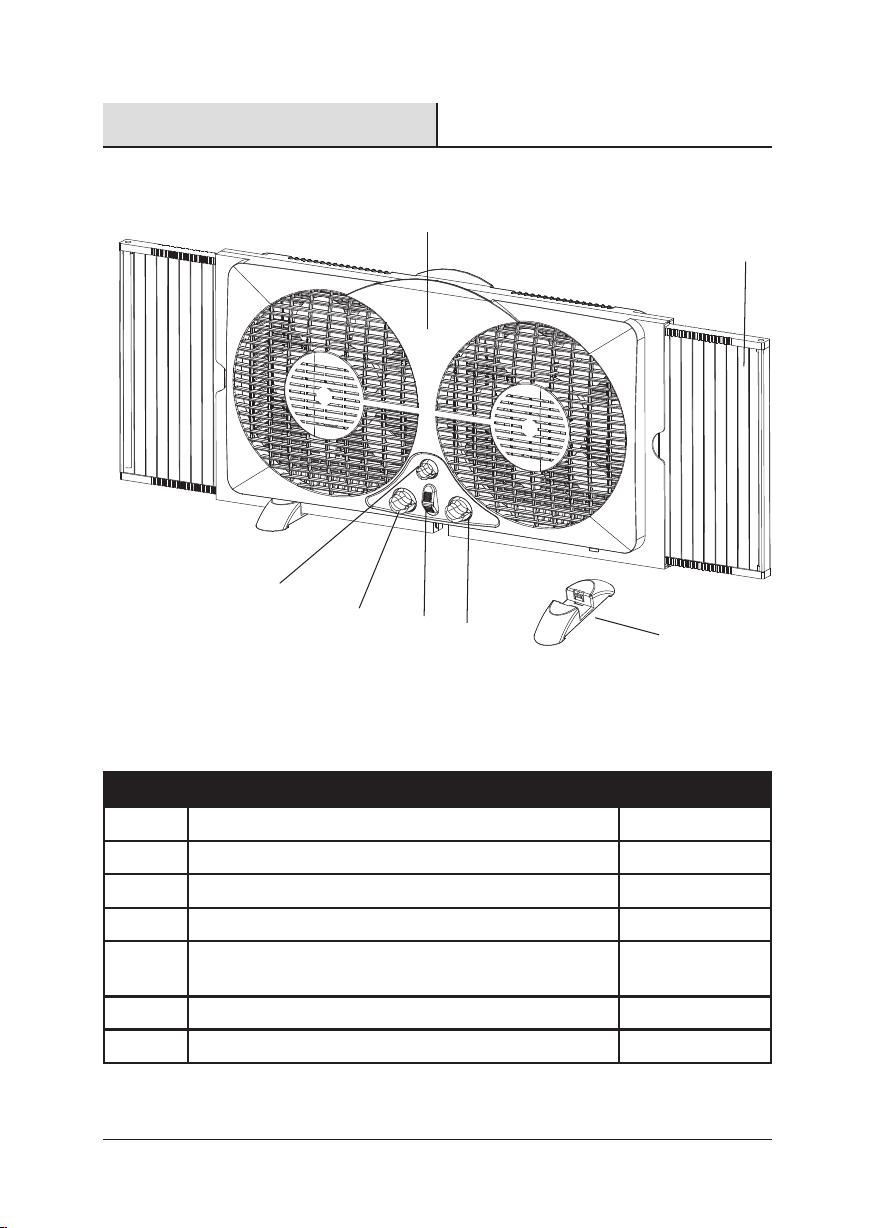

Fan Body
Left Fan Speed Control
Right Fan Speed Control
Thermostat Control
Feet
Expandable Panels
Right and Left Intake/Exhaust/Exchange Control Lever
PART DESCRIPTION QUANTITY
A
B
C
D
E
F
G
1
1
1
1
1
2
2
3
Package Contents

Please read and understand this entire manual before attempting to assemble, operate
or install the product.
When using electrical appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons,including the following:
1. Do not operate any fan with a damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
2. Do not run cord under carpeting. Do not cover with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be trip over.
3. Never insert fingers, pencils, or any other object through the grille when fan is
running.
4 Disconnect fan when moving from one location to another, before putting on or
taking off parts.
5. Disconnect fan when removing grilles for cleaning.
6. Do not operate in the presence of explosive and/or flammable fumes.
7. Do not place fan or any parts near an open flame, cooking or other heating
appliance.
8. Always use on a dry, level surface, do not use outdoors.
9. Do not let the cord hang over the edge of a table, counter, or come in contact with
hot surfaces.
10. To disconnect grip plug and pull from wall outlet. Never yank on cord.
PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
.
Safety Information
4

Polarized Plug
NOTE: This appliance has a polarized plug (one
blade is wider than the other). The polarized plug
is not intended to be used in non-polarized outlets
(having both slots the same size). To reduce the
risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install the proper
outlet. Do not attempt to modify this plug or override this
safety feature in any way.
Power Cord Safety Tips
1. Never pull or yank on the cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.
3. To disconnect appliance, grasp plug and remove it from outlet
4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are
found, this indicates that the appliance should be serviced and the line cord
replaced. Please return it to an authorized service representative.
5. Never wrap the cord tightly around the appliance, as this could place undue stress
on the cord where it enters the appliance and cause it to fray and break.
Plug And Power Cord Instructions
This product employs overload protection (fuse). A blown fuse indicates an overload or
short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the
fuse as per the user servicing instructions (follow product marking for proper fuse
rating) and check the product. If the replacement fuse blows, a short circuit may be
present and the product should be discarded or returned to an authorized service facility
for examination and/or repair.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
5

REPLACEABLE FUSE
User Servicing Instructions
1 Unplug your fan. Grasp plug and remove from the receptacle or other outlet device.
Do not unplug by pulling on cord.
2 Open fuse cover, located on the top of the plug, by using your thumb or a flathead
screwdriver (not included) to slide the cover down toward the prongs.
NOTE: Ensure that fuse cover is
completely open before attempting to
remove fuse.

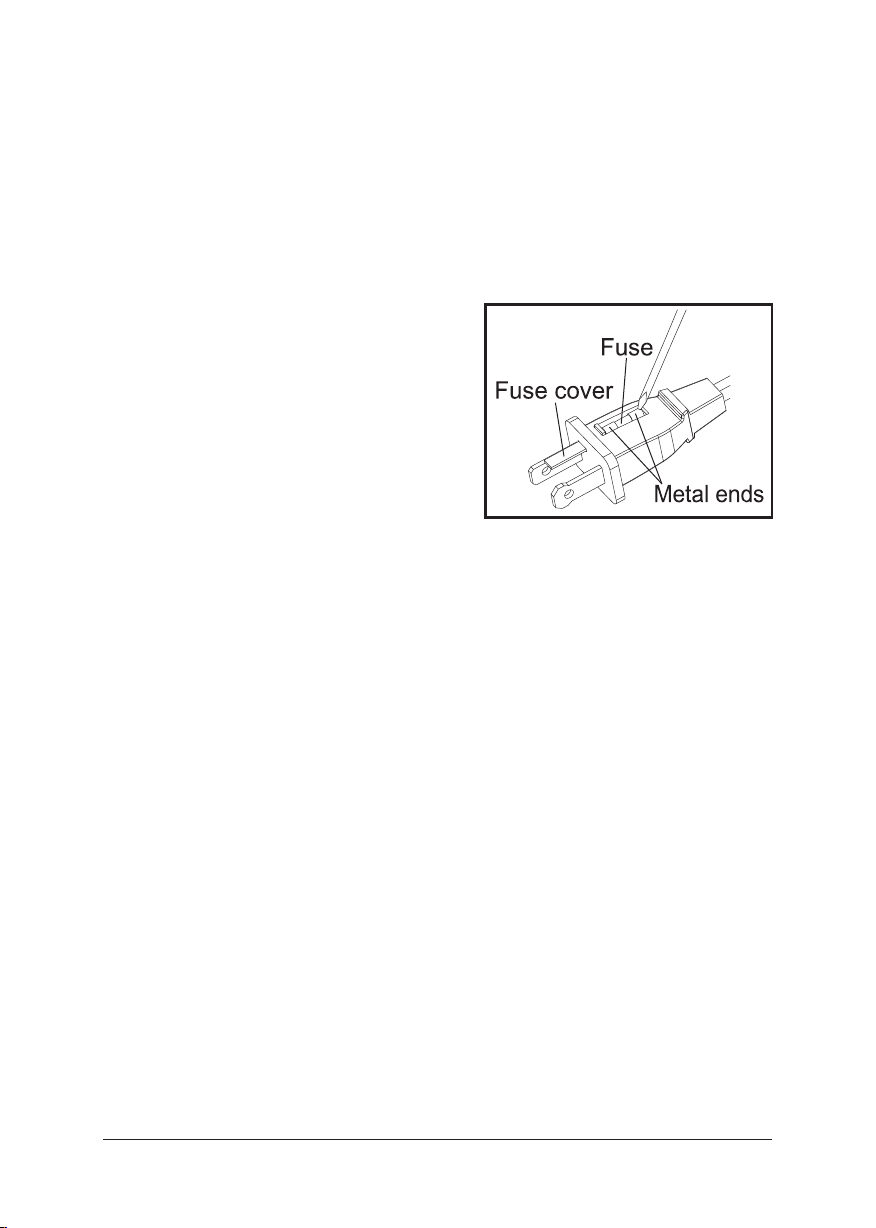

3. Remove fuse carefully by using a small
screwdriver to pry the fuse out of the
compartment by the metal ends of the fuse.
4. Place plug on a solid, flat surface. Insert
new 2.5 Amp, 125 volt fuse into fuse
compartment and use a small screwdriver
to secure the metal ends of the fuse into the
compartment.
CAUTION: Risk of fire. Replace fuse only with 2.5 Amp, 125 volt fuse.
5. Slide fuse cover closed. If fuse cover is difficult to close, make sure fuse is secured
in place by pressing down on metal ends of the fuse.
6. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that
should not be removed. Discard product if the attachment plug is damaged.
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY
DAMAGE OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS
WORKING ENTIRELY.
IMPORTANT: During the first few minutes of initial use, you may notice a slight odor.
This is normal and will quickly disappear.
.
.
6

Assembly Instructions
Before beginning assembly of product, make sure all parts are present. Compare parts
with package contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5-10 minutes
No Tools Required for Assembly.
A
GFig. 3

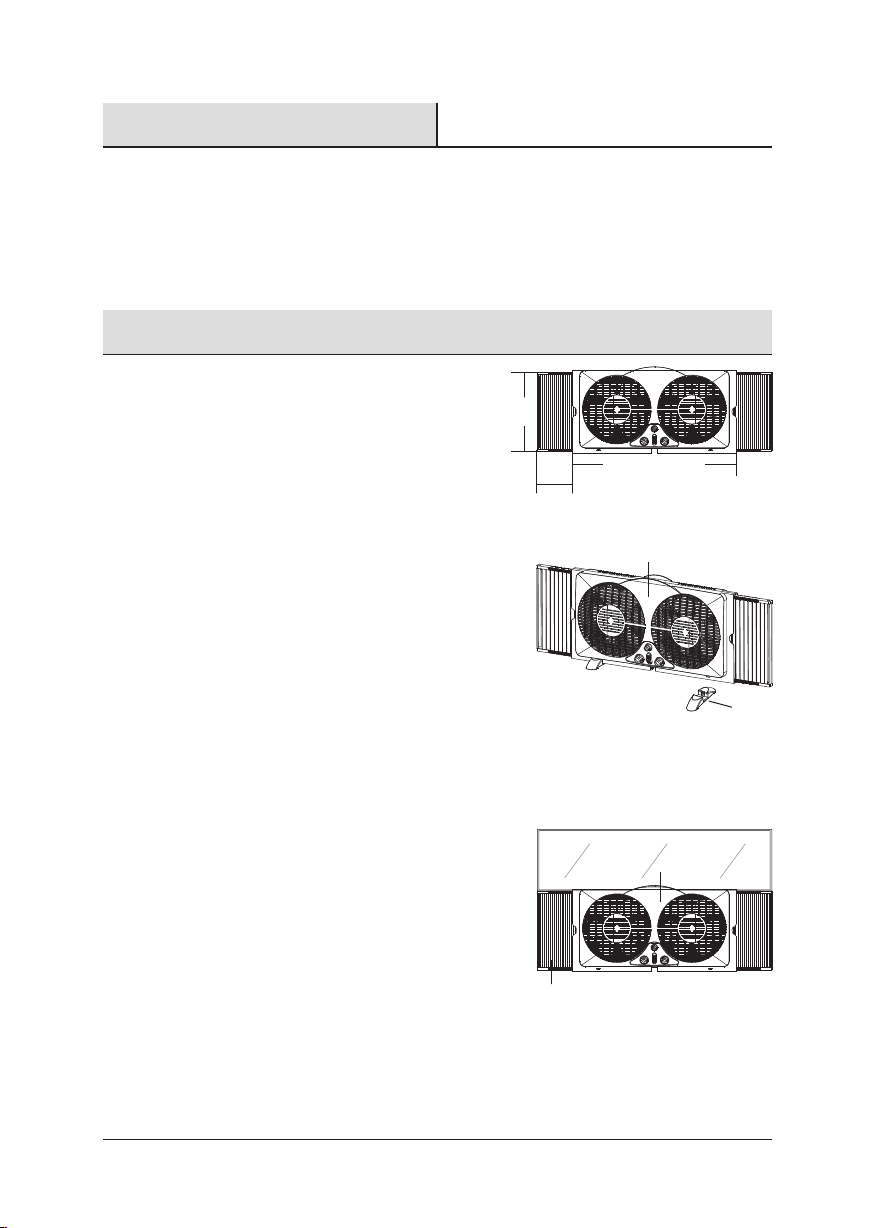

1. This window fan has been designed to
fit double-hung, slider ad casement
windows with minimum openings of
24.4 in. wide and 13 in. high. ( Fig. 1 ).
No feet required when using in the
window. This fan is designed and
recommended for use with your window
screen in place.
2. This fan can also be used on the floor.
Push the feet (F) into the fan body (A)
and snap together. (Fig. 2)
FOR DOUBLE-HUNG TYPE WINDOWS ( Fig. 3 )
1. With the window fully open, set the fan in
the window with front (A) of fan facing the
INSIDE.
2. Hold fan with one hand while adjusting panels
(G) with the other.
3. Close the window on top of the fan with the
bottom edge of the window behind the lip of
fan housing.
4. If the fan still does not fit properly in the window, readjust the expandable panel on
right/left side of fan to fill in remaining space between panel and window frame
until a secure fit is achieved.
Preparation
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
7
12.3 in.
23.8 in.
Pulls out up to 5.5 in.
Fig. 1
A
F
Fig. 2

1. Make sure rotary switches are in the OFF position.
2. Plug into 120V AC electric outlet.
3. Set the individual fan motors on either In ( intake ), Out ( exhaust ) or Exch
(exchange) using the control lever.
4. Turn the Thermostat Control to its highest setting (full clockwise).
5. To start the unit turn the rotary switches to desired speed: 0=Off, 3=High,
2=Medium, 1=Low.
6. While the window fan is on, turn the Thermostat Control counter-clockwise towards
the smaller dots until the fan stops (Away from Cooler). This is the selected comfort
level.
7. If the fan is stopped and you want to turn it back on, turn the Thermostat Control
clockwise until the fan starts, towards the larger dots (Towards Cooler).
Care And Maintenance
TO CLEAN: Always disconnect the power cord from the electrical outlet when
cleaning your fan. Light accumulated dust can be removed by using a soft cloth to wipe
away the dust at the back grille of the fan. Wipe the exterior surfaces of the fan
occasionally with a damp cloth (not dripping wet) and dry thoroughly with a soft dry cloth
before operating the fan. Do not use harsh cleaners or materials to clean this unit, doing
so will cause damages to it
CAUTION: DO NOT ALLOW WATER TO RUN INTO THE INTERIOR OF THE FAN AS THIS
COULD CREATE A FIRE OR ELECTRIC SHOCK HAZARD. THE FAN MOTOR IS FACTORY
LUBRICATED FOR LIFE AND WILL REQUIRE NO FURTHER LUBRICATION NO OTHER USER
MAINTENANCE IS REQUIRED OR RECOMMENDED. IF SERVICE IS REQUIRED, SEND YOUR
FAN TO THE AUTHORIZED SERVICE FACILITY.
TO STORE: Make sure to disassemble and clean the fan before storing. Retain the
original packaging for the purpose of storing your fan. Always store fan in a dry place.
Never store it while it is still plugged in. Never wrap the cord tightly around the fan, and
do not put any stress on the cord where it enters the fan, as it could cause the cord to fray
and break.
Operating Instructions
8

The manufacturer warrants to the original purchaser that each new product and service
part is free from defects in material and workmanship and agrees to repair or replace
under this warranty any defective product or part as follows from the original date of
purchase for a period of one (1) year.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER:
1. Products sold damaged or incomplete, sold "as is", sold reconditioned or used as
rental equipment.
2. Delivery, installation or normal adjustments explained in the owner's manual.
3. Damage or liability caused by shipping, improper handling, improper installation,
incorrect voltage or improper wiring, improper maintenance, improper
modification, or the use of accessories and/or attachments not specifically
recommended by the manufacturer.
4. Repairs necessary because of operator abuse or negligence, or the failure to install,
operate, maintain and store the product according to the instructions in the owner's
manual.
5. Damage caused by cold, heat, rain, excessive humidity, corrosive environments and
materials, or other contaminants.
6. Expendable items that become worn during normal use.
7. Freight costs from customer to vendor.
8. Repair and transportation costs of products or parts determined not to be defective.
9. Any incidental, indirect or consequential loss, damage, or expense that may result
from any defect, failure or malfunction of the product. Some states do not allow the
exclusion or limitation of consequential damages so the above exclusions or
limitations may not apply to you.Some states do not allow the exclusion or
limitations on how long an implied warranty lasts, so the above limitations may not
apply to you. You may have other rights which vary from state to state.
One-year Limited Warranty
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
9
