HAMPTON BAY Glendale 52 User manual

Glendale
52" Ceiling Fan
Owner’s Manual
Glendale
Ventilador de Techo de 52"
Manual del Propietario
Hampton Bay®
Transitional Collection

423-597
442-272
431-552
11289
792145352136 (423-597)
792145352150 (431-552)
792145352143 (442-272)
15-Year Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of fifteen years after the date of
purchase by the original purchaser. The retailer also warrants that all other fan parts,
excluding any glass or plexiglass blades, to be free from defects in workmanship and
material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at
our option replace with a comparable or superior model if the product is returned to the
retailer. To obtain warranty service, you must present a copy of the receipt as proof of
purchase. All costs of removing and reinstalling the product are your responsibility.
Damage to any part such as by accident or misuse or improper installation or by affixing any
accessories, is not covered by this warranty. Because of varying climatic conditions in the
United States this warranty does not cover any changes in brass finish, including rusting,
pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of wobble is normal
and should not be considered a defect. Servicing performed by unauthorized persons shall
render the warranty invalid. There is no other express warranty. The retailer hereby
disclaims any and all warranties, including but not limited to. Those of merchantability
and fitness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specified in
the express warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion or limitation
may not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
15-Year Limited Warranty
Date Purchased
Store Purchased
Model Number
Serial No.
Vendor No.
UPC

Safety Rules.....................................................................................................................................
Unpacking Your Fan ...........................................................................................................................
Installing Your Fan ............................................................................................................................
Installing the Light Kit........................................................................................................................
............................................................................................................................
Care of Your Fan ...............................................................................................................................
Troubleshooting ...............................................................................................................................
Specifications ..................................................................................................................................
Operating Your Fan
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK ORPERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7.Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Fan motor assembly
5. Blade arms (5)
Ball/downrod assembly
6. Light kit
7. Glass shades
8.
9. Balancing kit
(3)
Pull chain and fobs (2)
1
2
3
46
79
8
5
10. Loose parts bag containing:
a. Blade attachment hardware
()
b. Mounting hardware
( 3 plastic wire connectors)
c
16 screws
. Light kit hardware
(1 screw)
ab
10
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-898-1881
Unpacking Your Fan 2.
c

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic
outlet boxes.

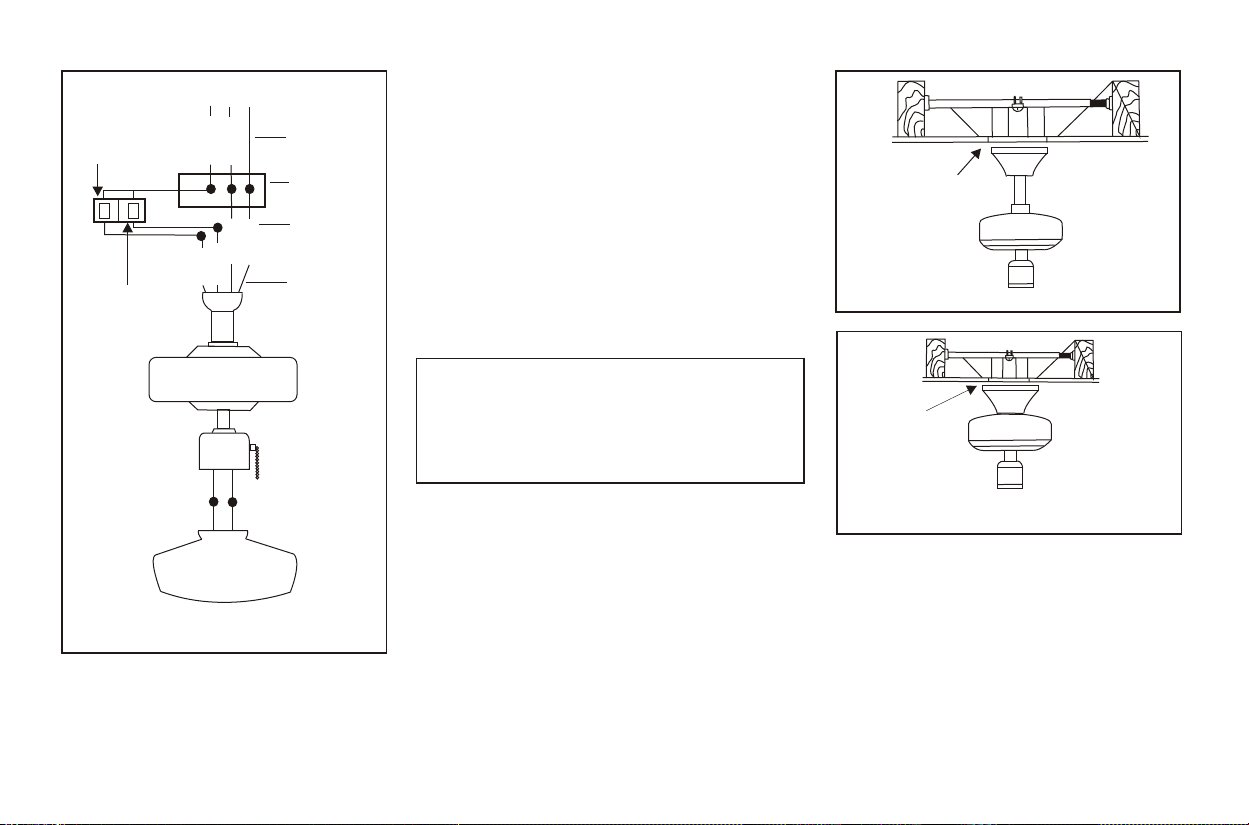

Figures 1,2 and 3 are examples of
different ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar.(Fig.4)
(available at any Home Depot store).
Outlet box
Outlet box
Outletbox
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
18 angle

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with
two types of hanging assemblies; the
standard ceiling installation using the
downrod with ball and socket mounting
and the "close-to-ceiling" installation. The
"close-to-ceiling"installation is
recommended in rooms with less than 8-
foot ceilings or in areas where additional
space is desired from the floor to the fan
blades. When using the standard 4 1/2"
downrod, the distance from the ceiling to
the bottom of the fan blades will be
approximately 12 inches. Once you
have selected which mounting system you
will use, proceed with the following
instructions. Where necessary, each
section of the instructions will note the
different procedures to follow for the two
types of mounting.
1/2
3. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket.
4. Loosen the two screws on the outlet box
in half way.
5. Attach the hanger bracket on the outlet
box by sliding the hanger bracket over
the screws provided with the outlet box.
6. Tighten the two screws on the outlet box
securely.
7. Remove the hanger pin, lock pin and set
screws from the top of the motor
assembly.
8. Route wires exiting from the top of the
fan motor through the canopy ring. Make
sure the slot openings of the canopy ring
are on top. Route the wires through the
canopy and then through the
ball/downrod assembly. (Fig. 6A)
(Fig. 6)
9. Align the holes at the bottom of the
downrod with the holes in the collar on
top of the motor housing (Fig.6A).
Carefully insert the hanger pin through
the holes In the collar and downrod be
careful not to Jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole in locked
position. (Fig. 6A)
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 9
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
10. Tighten two set screws on top of the
fan motor firmly. (Fig. 6A)
11. Place the downrod ball into the hanger
bracket socket.
Figure 5
Ceiling
hanger
bracket
Ceiling
canopy
Screws
Canopy ring
STANDARD CEILING INSTALLATION
1.Remove the canopy ring from the
canopy by turning the ring clockwise
until it unlocks. (Fig. 5)
2. Remove the hanger bracket from the
canopy by loosening the four screws on
the top of the canopy. Remove the two
non-slotted screws and loosen the
slotted screws. This will enable you to
remove the hanger bracket. (Fig. 5)

5.
CLOSE-TO-CEILING INSTALLATION
1. Remove the canopy ring from the canopy by
turning the ring until it unlocks. (Fig.5)
2. Remove the hanger bracket from the canopy by
loosening the four screws on the top of the
canopy. Remove the two non-slotted screws and
loosen the slotted screws. This will enable you
to remove the hangerbracket. (Fig. 5)
4. Pass the 120-volt supply wires through the
center hole in theceiling hanger bracket.
5. Loosen the two screws on theoutlet box halfway.
6. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with the outletbox.
7. Tighten the two screws on theoutlet box securely.
8. Remove three of the six screws and lock washers
(every other one) from the collar of top motor
(Fig. 7)
9. Route the wires exiting the top of the fan motor
through the canopy ring (make sure the slot
openings of the ring are on top). then proceed to
place the ceiling canopy over the collar at the top
of the motor. Align the mounting holes with the
holes in the motor and fasten using the screws
and lock washers provided (Fig. 7).
10.Tighten the mounting screwssecurely.(Fig. 7)
3. Remove the decorativecanopy bottom cover from
the canopy by depressingthe three studs (Fig.7A)

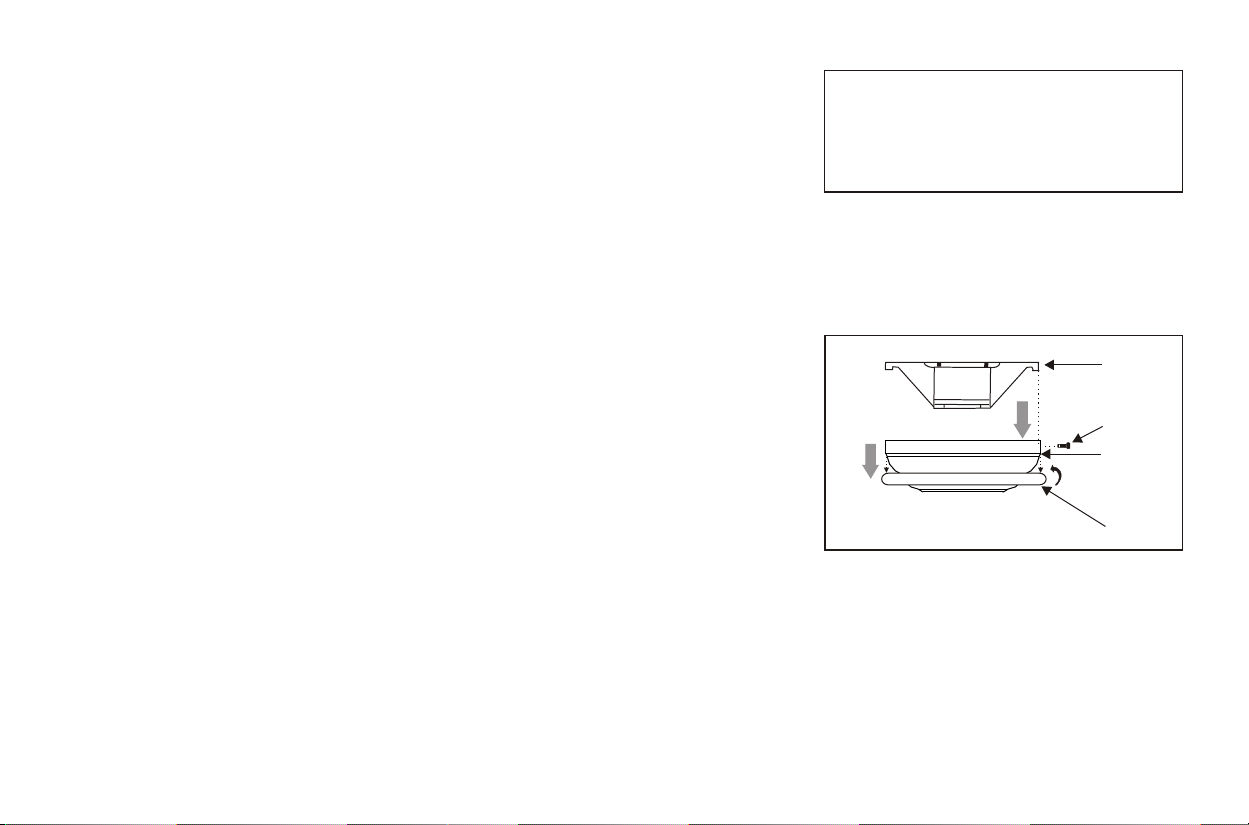

(Fig. 6)
Mounting
screws
(supplied with
electrical box)
Tab
Ceiling
hanger
bracket
UL Listed
electrical
box
Slide mounting
bracket over
screw heads
Figure 6 120V Wires
Figure 6A
WARNING
FAILURE TO COMPLETELY TIGHTEN
THE THREE SCREWS IN STEP 9 COULD
RESULT IN FAN LOOSENING AND
POSSIBLY FALLING
11.Hang the fan on the tab of the
hanger bracket. Be certain that the
canopy is fully locked into tab as
shown in Fig. 8. This will allow you to
make the electrical connections.
the
Figure 8
Ta b
Figure 7A
Canopy
bottom cover
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Canopy
Ring
Collar
Motor wires
Ball/downrod
assembly
Hanger pin Locking
pin
Downrod
Canopy
Canopy cover
Set screws

6.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your household
wiring. Use the wire connecting nuts supplied with your fan.
Secure the connectors with electrical tape. Make sure there
are no loose strands or connections.
Step 1 Connect the fan supply (black) wire and light supply
(blue) wire to the black household supply wire as shown in
Figure 9.
Step 2. Connect the neutral fan (white) wire to the white
neutral household wire.
Step 3 Connect the fan ground wire (green) to the household
ground wire.
Step 4 After connecting the wires, spread them apart so that
the green and white wires are on one side of the outlet box
and the black and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and push the wiring
into the outlet box.
Figures 10 and 11 illustrate the wiring connections for the
optional wall control (available at your Hampton Bay Retailer,
the wire color out of the wall control may vary, see wall
control's installation manual for correct wire connections.)
NOTE
LIGHT KITS ARE AVAILABLE AT YOUR
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER
PERSONAL INJURY. MOUNT FAN ONLY ON AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE
THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

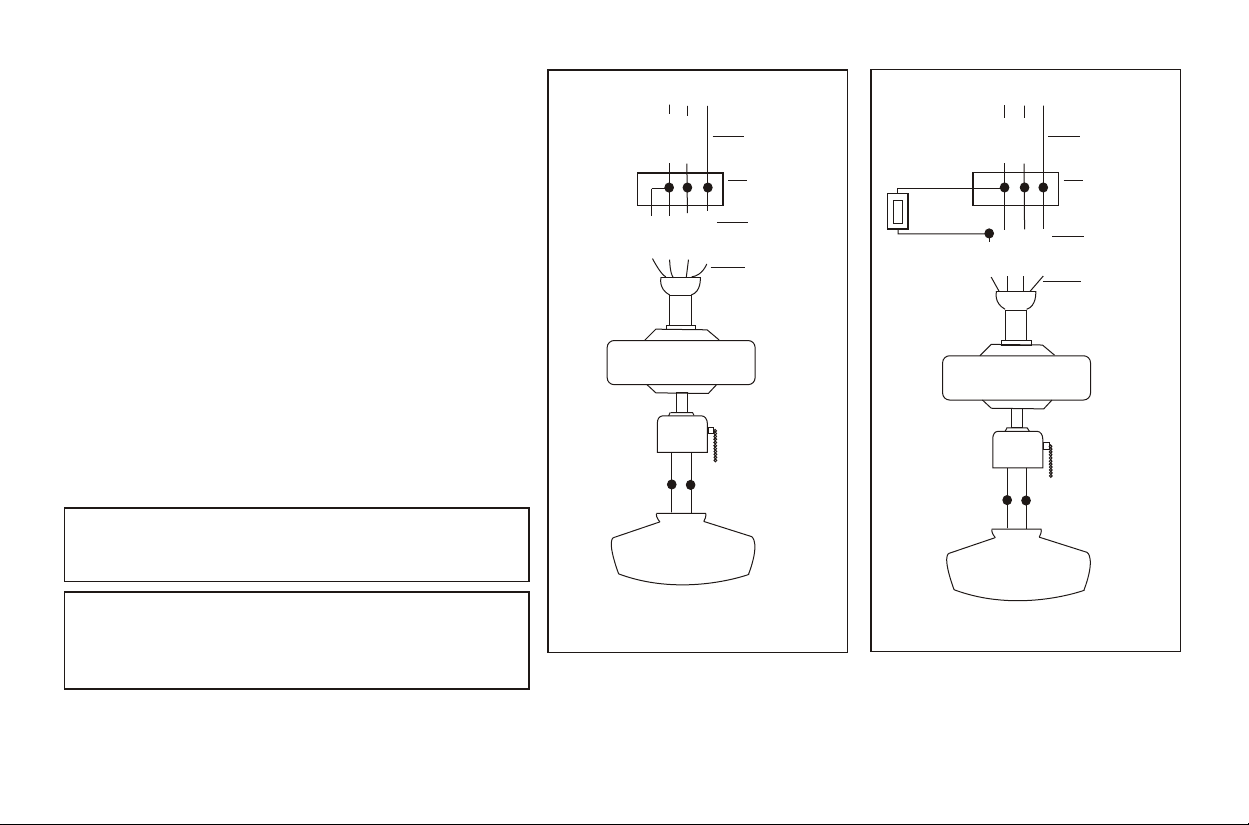

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 9
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
7.
Finishing the
Installation
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Fig. 12 leaving a 1/8" clearance between the
canopy and the ceiling. Make sure you place
the wires safely into outlet box. Secure
the canopy to the hanger bracket with the four
screws with your fan. Slide the canopy ring
over the canopy and tighten by turning the
ring.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the tab on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Fig. 13 with four screws
included with your fan. Slide the canopy ring
over the canopy and tighten by turning the
ring.
the
the
WARNING
Make sure the notch on the hanging bracket
properly sits in the groove in the hanger ball
before attaching the canopy to the bracket by
turning the housing until it drops into place.
Figure 12
Figure 13
Allow 1/8"
Clearance
Allow 1/8"
Clearance

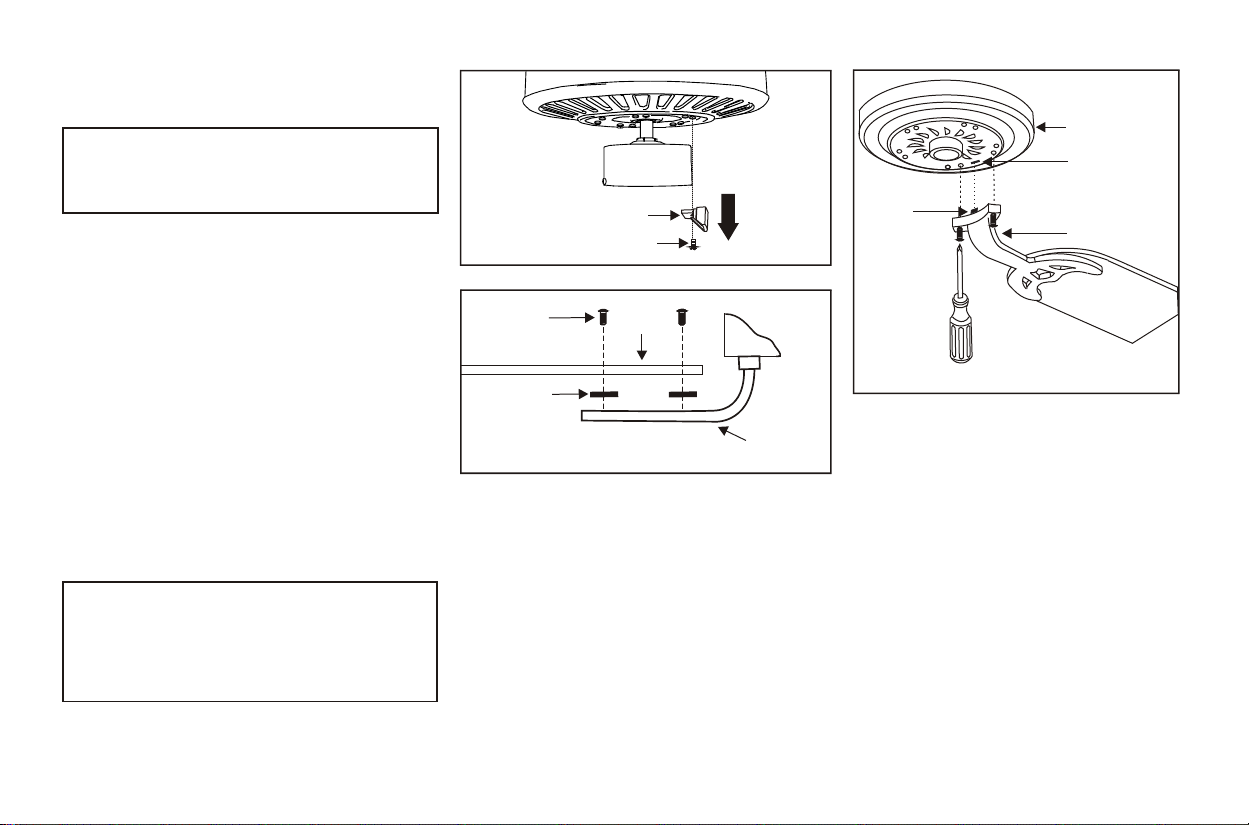

Remove the blade attachment screws
from the fan motor assembly. Attach and
adjust fan blades according to the
instructions in the following section.

8.
Attaching the Fan Blades
Step 1 Attach blades to blade arms using
three screws and rubber washers.
Start a screw into the arm, do not
tighten. Repeat for the 2 remaining screws
and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
(Fig. 15)
blade
Repeat steps for the remaining
blades.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the
slot in the bottom motor housing, then tighten
the two screws and washers already installed
in the blade arms. (Fig. 16)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Rubber packing
mounts
Screws
Rubber
washer
Blade
arm
Figure 15
Figure 14
Blade
Screws
Figure 16
Motor
Blade arm
Slot
Tab
CAUTION: Remove 5 rubber packing
mounts from fan motor assembly and
discard before installation. (Fig. 14)

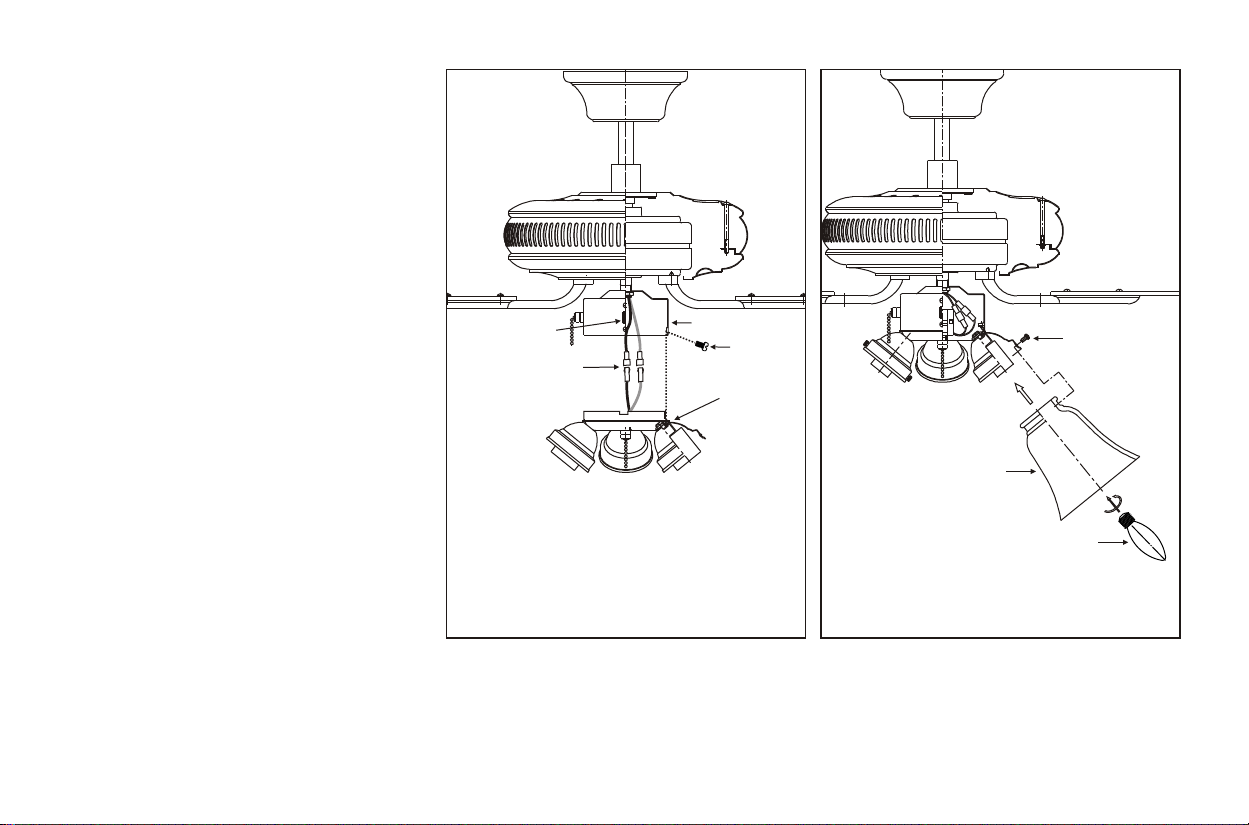

9. Installing the Light Kit
Screws
Light kit
Reverse
switch
Switch housing
Wire
connector
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is not
sufficient to prevent electric shock.
1.
ocate two single white and blue wires in
the switch housing labeled "FOR LIGHT".
Make the polarized plug connections:
- White to white
- Blue to black
2.Carefully push all wires back into the
switch housing. Attach the light kit fitter by
aligning its keyhole slots with the three
screw holes and the reverse switch on the
side of the switch housing. Tighten the
three screws securely to prevent the light
kit from vibrating loose. (Fig. 17)
3.
nsert the glass, then
gently tighten the thumbscrews by hand
evenly to the glass. DO NOT OVER
TIGHTEN. (Fig. 18)
4.Install 3 x 40W bulbs (not
included).
5.Restore power and your light kit is ready
for operation.
While holding the light kit under your fan,
l
Mount the glass shades to the light fixture
by unscrewing partway the thumbscrews
on the glass holders, i
candelabra
Figure 17
Bulbs
Glass shade
Thumb screws
Figure 18

Turn on the power and check the operation
of your fan. There are two pull chains
available in your fan:
1. 3-speed pull chain- it controls the fan
speed as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls- Low,and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
2. Light kit pull chain- it controls the light
kit in "ON" or "OFF".
The slide switch controls directions: forward
(switch down ) or reverse (switch up ).
Warm weather - (Counter-Clockwise
direction) A downward air flow creates a
cooling effect.(Fig. 19) This allows you to set
your air conditioner on a higher setting
without affecting your comfort.
Cool weather- (Clockwise direction) An
upward airflow moveswarm air off the ceiling
area. (Fig. 20) This allows you to set your
heating unit on a lower setting without
affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Operating Your Fan 10.
Figure 19
Figure 20

11. Care of Your Fan
Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan
from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades
for additional protection and
enhanced beauty. Cover small
scratches with a light application of
shoe polish.
4. There is no need to oil your fan.
The motor has permanently
lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION
"MAKING ELECTRICAL
CONNECTIONS"
Figure 21
Touching
ceiling

Troubleshooting 12.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the
light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have
installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting
a point on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 21) Rotate the
fan until the next blade is positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING
THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN BLADES.

13. Specifications
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 1.68'8.26
kgs
9.02
kgs
0.25
0.40
0.53
12
35
63
60
110
160
1800
3700
5450
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W.
Atlanta, Georgia 30339
