HAMPTON BAY Tahiti Breeze User manual

792145350668
344-476
Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does
not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express
warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
11289

Safety Rules...................................................................................................................................
Unpacking Your Fan .........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit.....................................................................................................................
.........................................................................................................................
Care of Your Fan .............................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................
Operating Your Fan
1.
2.
3.
10.
11.
12.
13.
14.
Table of Contents

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7.Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THEPATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpacking Your Fan 2.
Unpack your fan and check the contents. You should have the following items:
1.
2. Canopy assembly
3.
4.
5.
Set of blades (5)
Ball/downrod assembly
Collar cover
Fan motor assembly
6. Set of blade arms (5)
7. Switch housing
8. Light kit
9. Glass shade
10. Pull chain and fob (2)
11. 60 Watt medium base bulbs (2)
12. Extra switch housing cover
13. Balancing kit
14. Loose parts bag containing:
a. Blade attachment hardware
(16 screws)
b. Mounting hardware
(3 plastic wire connectors)
c. Rubber gasket
ab
c
14
7
3
1
2
5
6
8
9
10
11
13
12
4
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-898-1881

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic
outlet boxes.
Figures 1,2 and 3 are examples of
different ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4 (available at your Hampton Bay
Retailer).
Outlet box
Outlet box
Outletbox
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
20 angle

Hanging the Fan
REMEMBER to turn off th the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the "close-to-
ceiling" installation. The "close-to-ceiling"
installation is recommended in rooms with
less than 8-feet ceilings or in areas where
additional space is desired from the floor to
the fan blades. When using the standard 4
1/2" downrod, the distance from the ceiling
to the bottom of the fan blades will be
approximately 12 inches. The "close-to-
ceiling" installation reduce this distance to 8-
inches. Once you have selected which
mounting system you will use, proceed with
the following instructions. Where necessary,
each section of the instructions will note the
different procedures to follow for the two
types of mounting.
1/2
STANDARDCEILING INSTALLATION
1. Remove the canopyring from the canopyby
turning the ring to the right until it unlocks.
(Fig. 5)
4.
2. Remove the hanger bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. This will
enable you to remove the hanger bracket.
(Figure 5)
9. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Figure 6A). Carefully insert the
hanger pin through the holes in the collar and
downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole ins locked
position, as note din the circle inset of Figure
3. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig.6
4. Loose the two screws on the outlet box in half
way.
5. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with the outletbox.
6. Tighten the two screws on the outlet box
securely.
7. Remove the hanger pin, lock pin and set
screws from the topof the motor assembly.
8. Route wires exiting from the top of the fan
motor through the collar cover and canopy
ring. Make sure the slot openings of the
canopy ring are on top. Route the wires
through the canopy and then through the
ball/downrod assembly (Figure 6A).
Figure 5
Ceiling
hanger
bracket
Ceiling
hanger
bracket
Ceiling
canopy
Screws
Canopy
ring
Mounting
screws
(supplied with
electrical box)
Tab
UL Listed
electrial
box
Slide mounting
bracket over
screw heads
Figure 6 120V Wires
CAUTION
REMOVE 5 RUBBER PACKING MOUNTS
AND DISCARD BEFORE INSTALLATION.
10. Tighten two set screws on top of the fan
motor firmly.(Figure 6A)
11. Place the downrod ball into the hanger
bracket socket.
WARNING
FAILURE TOPROPERLY INSTALL LOCKING
PIN AS NOTED IN STEP9 COULD RESULT IN
FAN LOOSENINGAND POSSIBLY FALLING.

5.
4. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
5. Loose the two screws on the outlet box halfway.
6. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with the outlet box.
7. Tighten the two screws on the outlet box securely.
8. Remove three of the six screws and lock washers
(every other one) from the collar of top motor
(Figure. 7)
9. Place the rubber gasket over the remaining three
screws, route the wires exiting the top of the fan
motor through the canopy ring (make sure the
slot openings of the ring are on top). then
proceed to place the ceiling canopy over the
collar at the top of the motor. Align the mounting
holes with the holes in the motor and fasten
using the screws and lock washers provided (Fig.
7).
10.Tighten the mounting screws securely. (Fig. 7)
Pin in
locked
position
Canopy ring
Hanger pin
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Locking pin
Tighten
screws
firmly
Figure 6A
Collar cover
Figure 8
Tab
Figure 7A
Canopy
Bottom
Cover
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Canopy
Ring
Collar
Rubber
gasket
CLOSE-TO-CEILING INSTALLATION
1. Remove the canopy ring from the
canopy by turning the ring to the
right until it unlocks.(Fig. 5)
2. Remove the hanger bracket from the
canopy by loosening the four screws
on the top of the canopy. Remove
the two non-slotted screws and
loosen the slotted screws. This will
enable you to remove the hanger
bracket. (Figure 5)
3. Remove the decorative canopy
bottom cover from the canopy by
depressing the three studs(Fig. 7A)
WARNING
FAILURE TOCOMPLETELY TIGHTEN
THE THREE SCREWS INSTEP 9 COULD RESULT IN
FAN LOOSENINGAND POSSIBLY FALLING.

6.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to your household
wiring. Use the wire connecting nuts supplied with your fan.
Secure the connectors with electrical tape. Make sure there
are no loose strands or connections.
Step 1 Connect the fan supply (black) wire and light supply
(blue) wire to the black household supply wire as shown in
Figure 9.
Step 2. Connect the neutral fan (white) wire to the white
netura household wire.
Step 3 Connect the fan ground wire (green) to the household
ground wire.
Step 4 After connecting the wires, spread them apart so that
the green and white wires are on one side of the outlet box
and the black and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and push the wiring
into the outlet box.
Figures 10 and 11 illustrate the wiring connections for the
optional wall control (available at your Hampton Bay Retailer,
the wire color out of the wall control may vary, see wall
control's installation manual for correct wire connections.)
NOTE
LIGHT KITS ARE AVAILABLE AT YOUR
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER
PERSONAL INJURY. MOUNT FAN ONLY ON AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE
THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 9
Diagram indicates optional light kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE

Finishing the Installation
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 12 leaving a 1/8" clearance between
the canopy and the ceiling. Make sure you
place the wires safely into outlet box. Secure
the canopy to the hanger bracket with the four
screws with your fan. Slide the canopy ring
over the canopy and tighten by turning the
ring counter-clockwise.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the tab on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Figure 13 with four
screws included with your fan. Slide the
canopy ring over the canopy and tighten by
turning the ring .
WARNING
Make sure the notch on the hanging bracket
properly sits in the groove in the hanger ball
before attaching the canopy to the bracket by
turning the housing until it drops into place.
counter-clockwise
7.
Figure 12
Allow 1/8"
Clearance
Allow 1/8"
Clearance
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
Remove the blade attachment screws
from the fan motor assembly. Attach and
adjust fan blades according to the
instructions in the following section.
Figure 13

Attaching the Fan
Blades

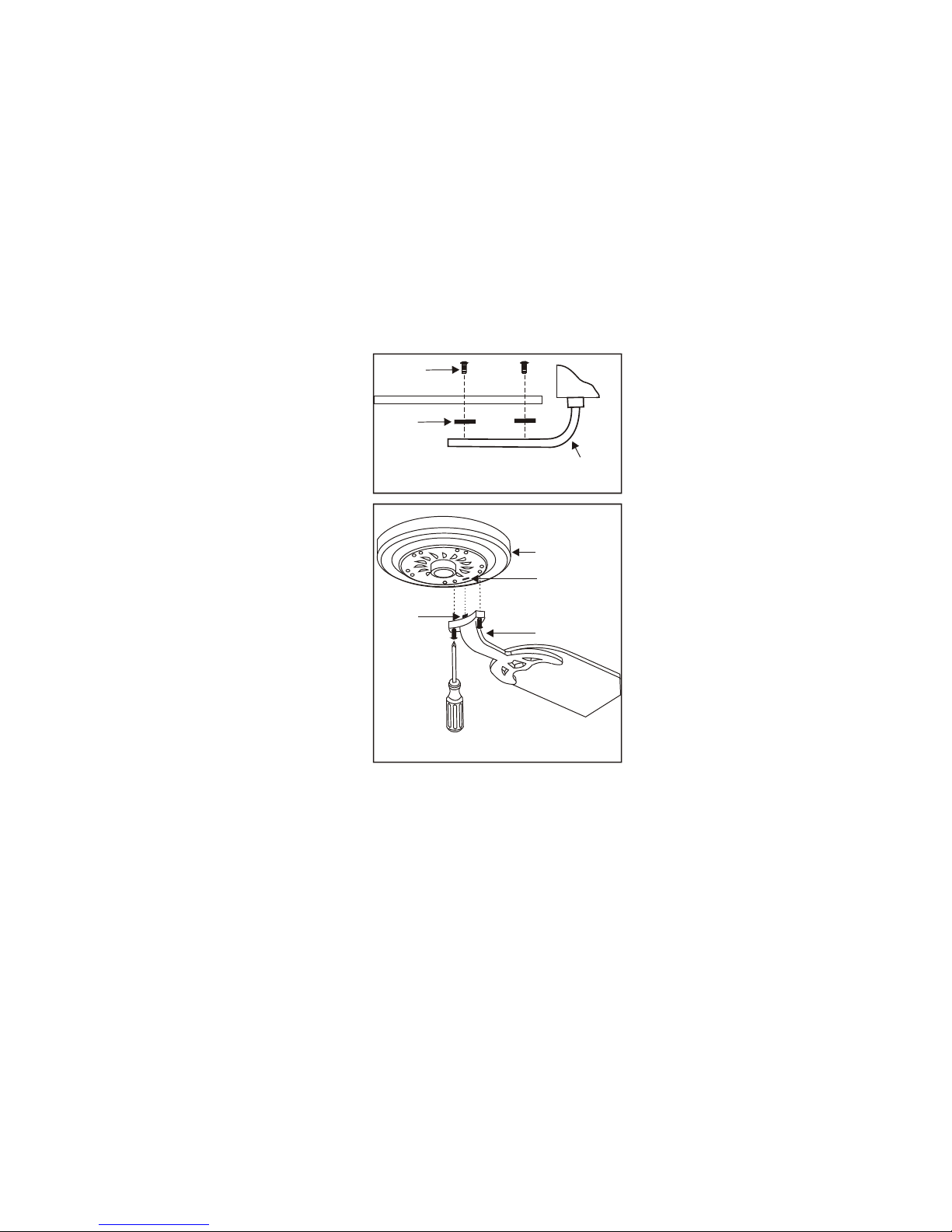

Step 1 Attach the blades to the blade arms
using the screws and rubber washers
provided as shown in Figure 14. Start a
screw into the , but do not tighten.
Repeat for the other 2 screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade
is
straight.
Step 3Fasten the blade assemblies to the
motor by insert the tab from the blade s
to the slot in the bottom motor housing, then
tighten the two screws and washers already
installed in the blade s (Figure 15).
Step 4 Install an optional light kit if you wish.
Follow the instructions included with the kit.
arm
arm
arm
8.
Rubber
washer
Blade
arm
Figure 14
Motor
Blade arm
Slot
Tab
Figure 15
Screws

Touching
ceiling
Figure 16
9.
3. Use the enclosed Blade Balancing Kit if
the blade wobble is still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING
FAN BLADES.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade arm
screws are secure.
2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 16. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within
1/8".
deviation

Installing the Light Kit 10.
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is not
sufficient to prevent electric shock.

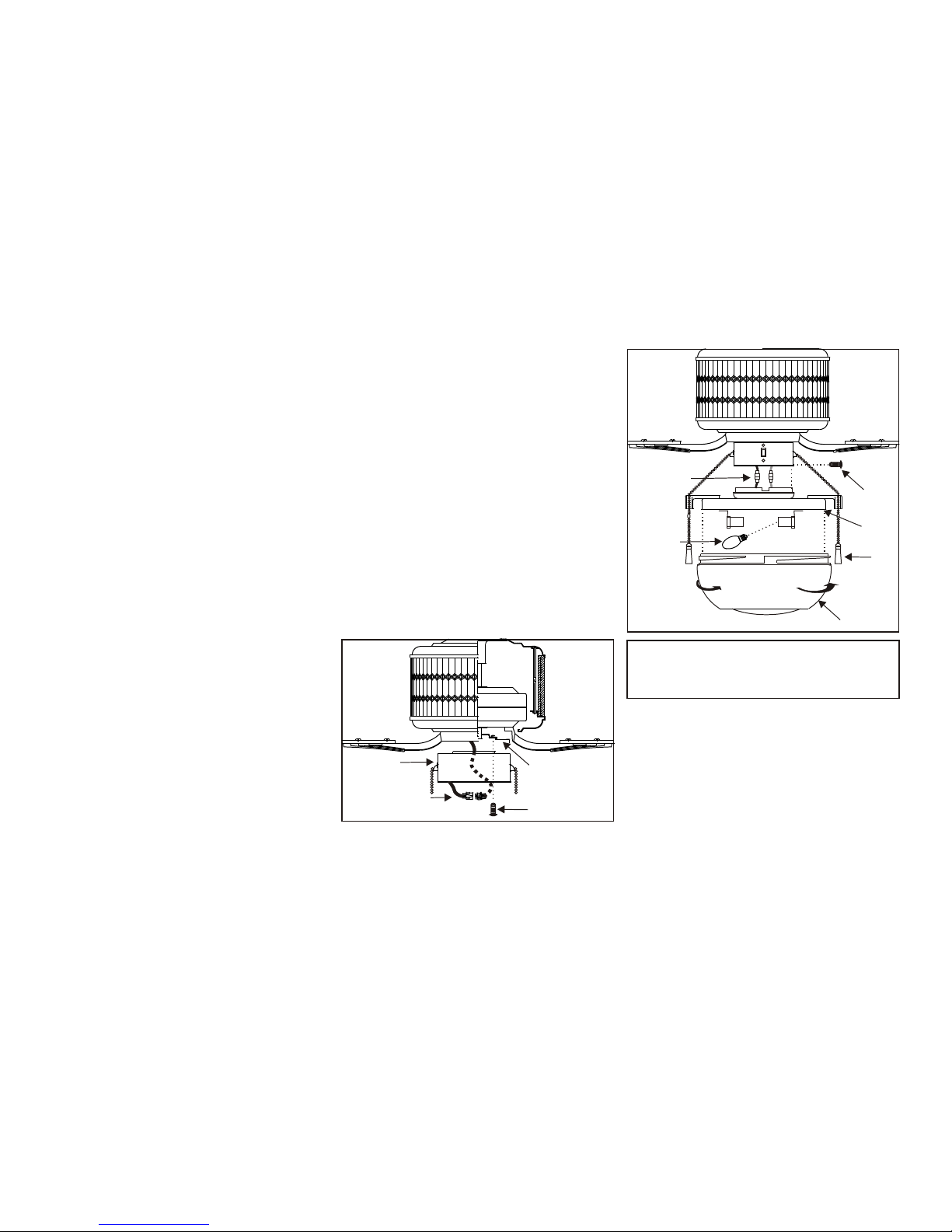

1. Remove the 1 of 3 screws from the
switch housing plate and keep it for
future use. Loosen the other 2 screws
(Do not remove)
2. Install the switch housing to the switch
housing plate by feeding the wires from
fan through the hole of switch housing,
then place the switch housing key holes
over the 2 screws previously loosened
from the switch housing plate, turn
switch housing until it locks in place at
the narrow section of the key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed.(Figure 17)
3. Make wire connections: Connect the 9-
pin plug from the fan to the 9-pin plug
from the switch housing.
4. Locate two single white and blue wires
in the switch housing labeled FOR
LIGHT.
5. Make the polarized plug connections:
-White to white
-Blue to black
Figure 17A
Bulbs
Glass shade
Screws
Connection
plugs
Light kit
Figure 17
Switch
housing
Screws
9-Pin plugs
Switch housing
plate
6. Carefully push all wires back into the
switch housing. Attach the light kit
fitter by aligning its keyhole slots with
the three screw holes and reversing
switch on the side of switch housing.
Tighten the three screws securely to
prevent the light kit from vibrating
loose.
7. Pass the two pull chains on the switch
housing through the chain holders
located on the light fitter, install the
fobs to the pull chains.
8. Install two 60 watt (max.) Bulbs (
Included) and glass shade by turning
clockwise until snug. DO NOT OVER
TIGHTEN (Figure 17A)
9. Restore power and your light kit is
ready for operation.
Fob
Fan without Light Kit
(Optional)
Your fan is designed with light kit, we also
prepare a empty switch box cover for your
choice in case you intend to install the fan
without light kit. Proceed the followings for
switch box assembly:
NOTE: Light bulbs have no warranty, can
be purchased at local light bulb specialty
store or from our service center.

NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Turn on the power and check the operation of
your fan. The pull chain controls the fan
speed as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls- Low, and 4 pulls-Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.

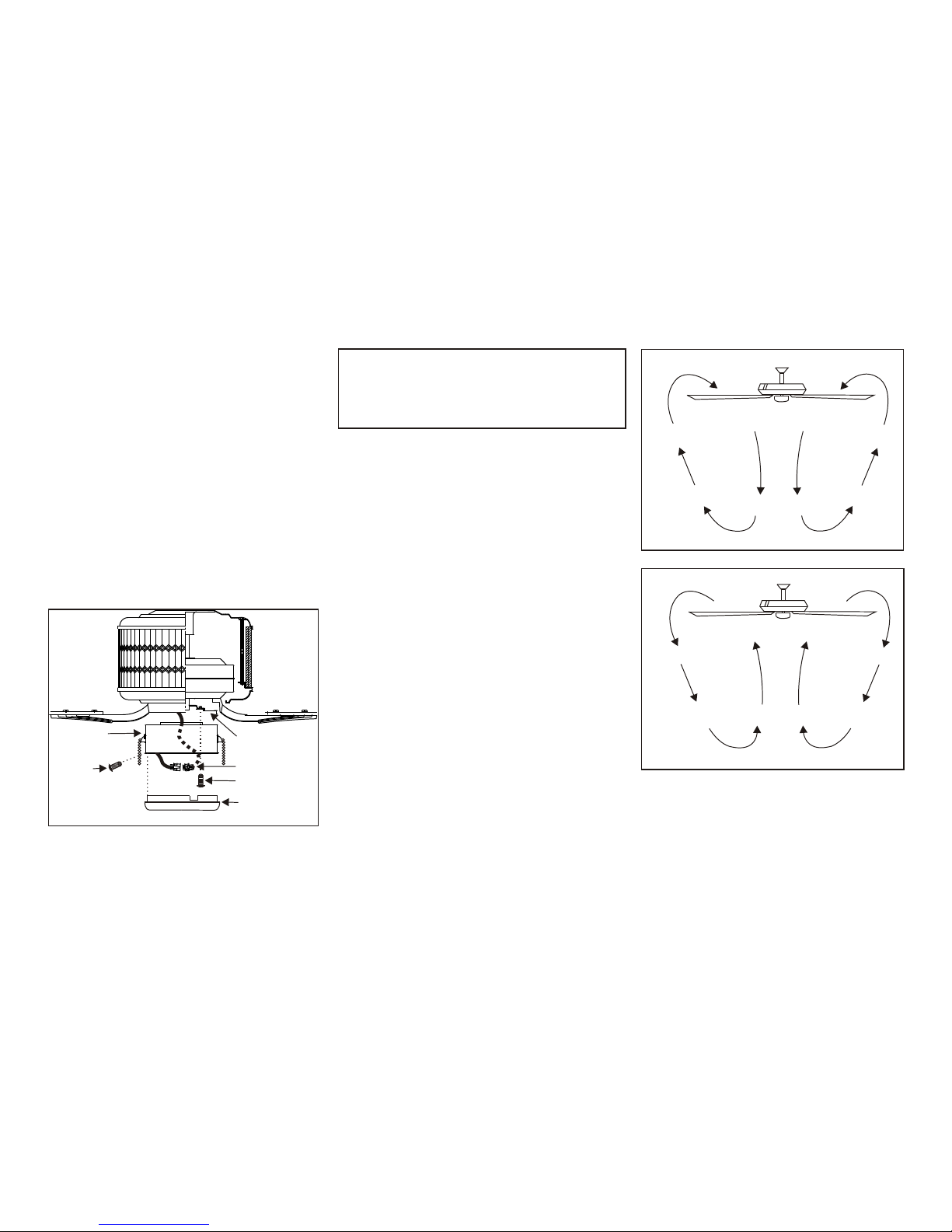

The slide switch controls directions: forward
(switch down) or reverse (switch up)
Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
Figure 19. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 20. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
11. Operating Your Fan
Figure 19
Figure 20
Switch
housing
Screws
Screws Connection plugs
Switch housing
plate
Switch housing
cover
Figure 18
1. Remove the 1 of 3 screws from the
switch housing plate and keep it for
future use. Loose the other 2 screws (Do
not remove).(Figure 18)
2. Install the switch housing to the switch
housing plate by feeding the wires from
fan through the hole of switch housing,
then place the switch housing key holes
over the 2 screws previously loosened
from the switch housing plate, turn
switch housing until it locks in place at
the narrow section of the key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 18)
3. Make wire connections: Connect the 9-
pin plug from the fan to the 9-pin plug
from the switch housing.
4. Attach the switch housing cover to the
switch housing with screws provided.

Here are some suggestions to help
you maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make
sure they are secure. (It is not
necessary to remove fan from
ceiling.)
2. Clean your fan periodically to
help maintain its new appearance
over the years. Use only a soft
brush or lint-free cloth to avoid
scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing. Do not
use water when cleaning. This
could damage the motor, or the
wood, or possibly cause an
electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades
for additional protection and
enhanced beauty. Cover small
scratches with a light application of
shoe polish.
4. There is no need to oil your fan.
The motor has permanently
lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
Care of Your Fan 12.

Troubleshooting13.
Problem
Fan will not start.
Fan sounds noisy.
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light
bulb is also secure.
6.Some fan motors are sensitive to signals from solid-state variable speed controls.
If you have installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

Specifications 14.
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 xxx'Xx
kgs
Xxx
kgs
Xxx Xx Xx Xx
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2005 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
