HAMPTON BAY Fulton 140201 User manual

52” Fulton
Ceiling Fan by Hampton Bay
(1) 30 Watt Circline Fluorescent
Bulb Included

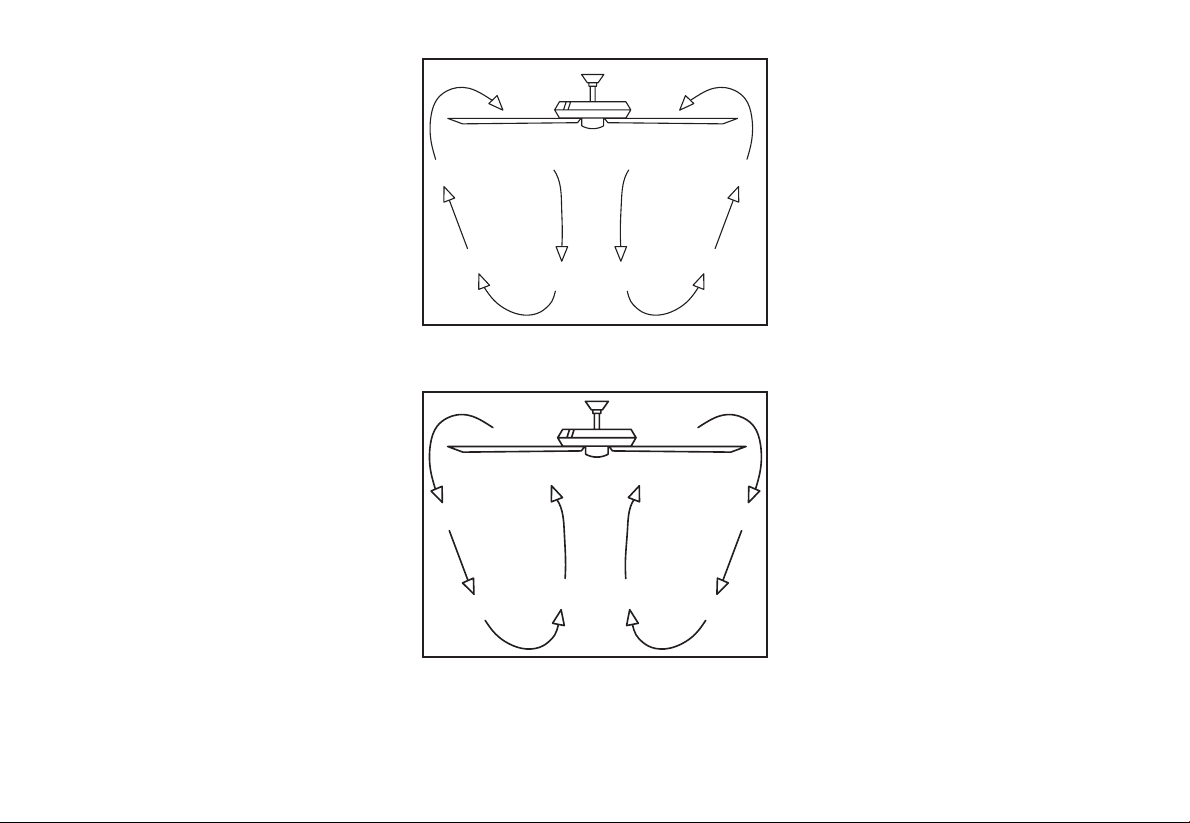

3-Speed Reverse Function for
Year-Round Comfort and Savings
ENERGY STAR Certied
Full Standard Handheld
Remote Control Included
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call our
Customer Service Team at 1-877-527-0313 or visit www.homedepot.com.
Please reference your SKU (140 201 brushed nickel)
or UPC (082392 235093 brushed nickel).
Thank you for purchasing this Hampton Bay ceiling
fan. This product has been manufactured with the
highest standards of safety and quality. The nish
of this fan is weather resistant, but over time will
naturally weather and fade.
Safety Rules ...................................... 1
Unpacking Your Fan........................ 2
Installing Your Fan .......................... 3
Operating Your Fan ......................... 9
Operating Your Remote Control .... 10
Care of Your Fan.............................. 11
Troubleshooting................................ 11
Specications .................................... 12
Warranty Information..................... 13
Table of Contents
UL Model No. 52-GY

Safety Rules ...................................... 1
Unpacking Your Fan........................ 2
Installing Your Fan .......................... 3
Operating Your Fan ......................... 9
Operating Your Remote Control .... 10
Care of Your Fan.............................. 11
Troubleshooting................................ 11
Specications .................................... 12
Warranty Information..................... 13
1. To reduce the risk of electric shock, insure electricity
has been turned off at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70-1999 and local electrical
codes. Electrical installation should be performed by a
qualied licensed electrician.
3. WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part no.
UC7067RK, manufactured by Rhine Electronic Co., Ltd.
4. CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
5. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
35 pounds. Use only UL Listed outlet boxes marked “FOR
FAN SUPPORT.”
6. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the oor.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the outlet box.
11. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL Listed and marked suit-
able for use with the model fan you are installing. Switches
must be UL General Use Switches. Refer to the instructions
packaged with the light kits and switches for proper assembly.
12. All set screws must be checked and retightened where neces-
sary before installation.
Suitable for use with solid-state speed controls.
Safety Rules 1.
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX. MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT
OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRI-
CIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS “FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION WALL CONTROL/SWITCH.

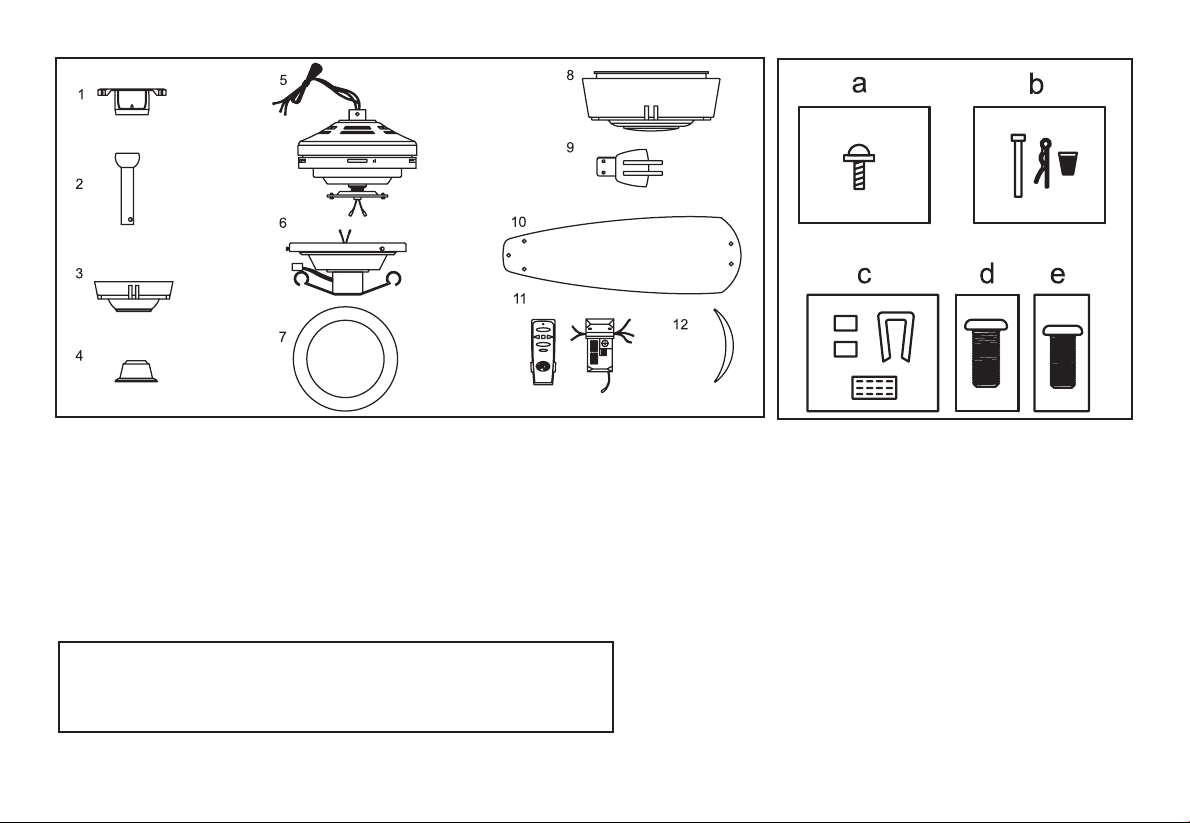

a. Blade attachment hardware
(15 screws)
b. Mounting & Electrical Hardware
(1 hanger pin, 1 locking pin, 3 plastic
wire connectors)
c. Blade Balancing Kit
d. Blade Bracket Hardware
(10 screws and lockwashers)
e. Blade Accent Hardware
(10 screws)
7. Circline Lamp (1)
8. Glass
9. Blade Bracket Set (5)
10. Blades (5)
11. Hand Unit / Receiver
12. Blade Accent (5)
1. Mounting Plate (inside Canopy)
2. Downrod and Ball Assembly
3. Canopy
4. Decorative Motor Collar Cover
5. Fan Motor Assembly
6. Light Kit Assembly
2. Unpacking Your Fan
IMPORTANT: THIS PRODUCT AND/OR COMPONENTS ARE COVERED
BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,947,436;
5,988,580; 5,971,573; 6,010,306; 6,039,541; 6,046,416 AND OTHER
PATENTS PENDING.
Unpack your fan and check the contents. You should have the following items:

Installing Your Fan 3.

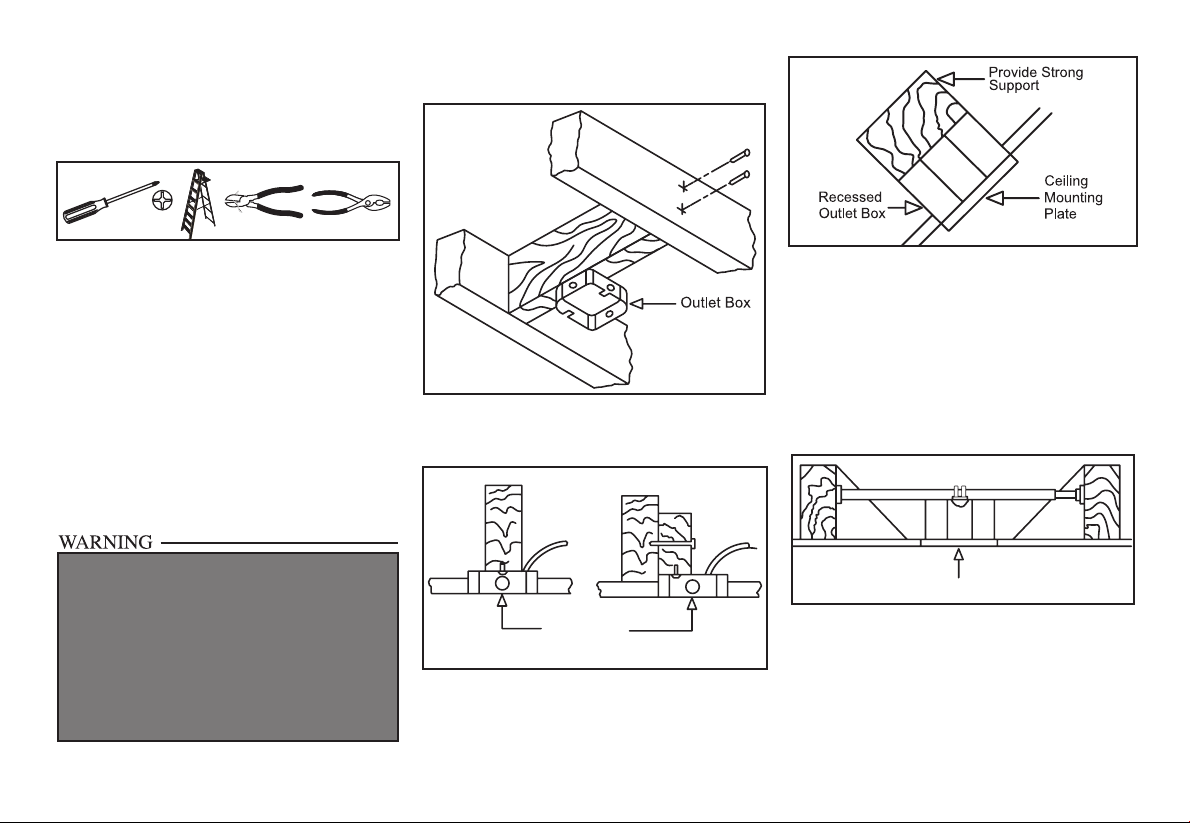

Tools Required
Phillips screw driver, straight slot screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing outlet box, then read
the following instructions. Disconnect the
power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 35 lbs.)
Do not use plastic outlet boxes.
Figures 1, 2, and 3 are examples of different
ways to mount the outlet box.
Outlet Box
Note: You may need a longer downrod to
maintain proper blade clearance when install-
ing on a steep, sloped ceiling. The maximum
angle allowable is 30˚. If the canopy touches
downrod, remove the decorative canopy
bottom cover and turn the canopy 180˚ before
attaching the canopy to the mounting plate.
Outlet Box
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay retailer).
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN ONLY TO AN OUTLET BOX MARKED
ACCEPTABLE FOR FAN SUPPORT AND
USE THE MOUNTING SCREWS PROVIDED
WITH THE OUTLET BOX. OUTLET BOXES
COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES MAY NOT BE ACCEPT-
ABLE FOR FAN SUPPORT AND MAY NEED TO
BE REPLACED. CONSULT A QUALIFIED ELEC-
TRICIAN IF IN DOUBT.
Figure 1
Figure 2
Figure 4
Figure 3

4.
2. Remove the mounting plate from the cano-
py by loosening the four screws on the top
of the canopy. Remove the two non-slotted
screws and loosen the slotted screws. This
will enable you to remove the mounting
plate (Figure 6).
Hanging the Fan
REMEMBER to turn off the pow-
er. Follow the steps below to hang your
fan properly.
NOTE: This fan is recommended for the
standard ceiling mounting using the downrod
provided with this fan. When using standard
ceiling installation with the 6 inch downrod
provided, the distance from the ceiling to the
bottom of the fan blades will be approximate-
ly 11 inches.
IF YOU FEEL THAT YOU DO NOT
HAVE ENOUGH ELECTRICAL WIRING
KNOWLEDGE OR EXPERIENCE, HAVE
YOUR FAN INSTALLED BY A LICENSED
ELECTRICIAN.
Standard Ceiling Mounting
1. Remove the canopy ring from the canopy
by turning the ring to the left until it un-
locks (Figure 5).
Figure 5
Figure 6

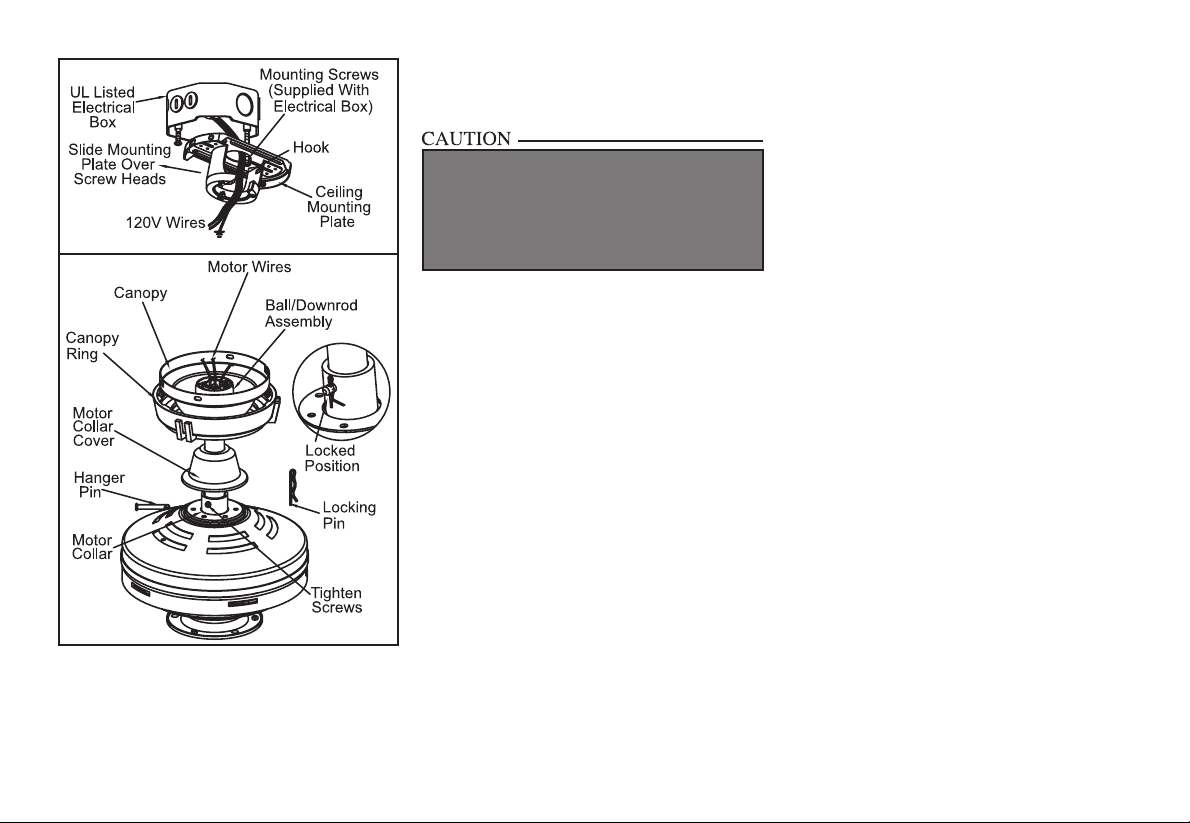

3. Route the wires exiting the top of the fan
motor through the decorative motor collar
cover then the canopy ring. Make sure the
slot openings are on top. Route the wires
through the canopy and then through the
ball/downrod assembly (Figure 7).
4. Loosen, but do not remove, the set screws
on the collar on the top of the motor
housing.
5. Align the holes at the bottom of the down-
rod with holes in the collar on top of the
motor housing (Figure 7). Carefully insert
the hanger pin through the holes in the col-
lar and downrod. Be careful not to jam the
pin against the wiring inside the downrod.
Insert the locking pin through the hole near
the end of hanger pin until it snaps into its
locked position as noted in the circle inset
of Figure 7.
6. Retighten the set screws on the collar on top
of the motor housing.
7. Make sure the grommet is properly installed
in the collar cover, then slide the collar
cover on the downrod until it rests on the
motor housing. Be sure that the canopy and
the collar cover are both oriented correctly.
8. Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL THE LOCK-
ING PIN AS NOTED IN STEP 5 COULD RESULT
IN FAN LOOSENING AND POSSIBLY FALLING.
THE FAN MUST BE MOUNTED WITH A MINIMUM
OF 7 FEET CLEARANCE FROM THE TRAILING
EDGE OF THE BLADES TO THE FLOOR.

5.
Figure 7
Installing Fan to
the Outlet Box
WHEN MOUNTING THE FAN ON A SLOPED
CEILING, THE STANDARD BALL/DOWNROD
MOUNTING METHOD MUST BE USED. THE
MOUNTING PLATE MUST BE MOUNTED SO
THAT THE SLOT OPENINGS ARE ON THE
LOWER SIDE BY SLIDING THE MOUNTING
PLATE FROM THE TOP DOWN.
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting plate as
shown in Figure 7.
2. Install the ceiling mounting plate on the out-
let box by sliding the mounting plate over
the two screws provided with the outlet box
(Figure 7). If necessary, use leveling wash-
ers (not included) between the mounting
plate and the outlet box. Note that the at
side of the mounting plate is toward the out-
let box (Figure 7).
3. Securely tighten the two mounting screws.
4. Carefully lift the assembly up to the ceiling
mounting plate. Make sure the tab on the
mounting plate socket is properly seated in
the groove in the hanger ball.
Making the Electrical
Connections
REMEMBER to disconnect the power. If
you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE: See Operating Your Remote Control on
page 10 for details, or follow the instructions
packed with the receiver.

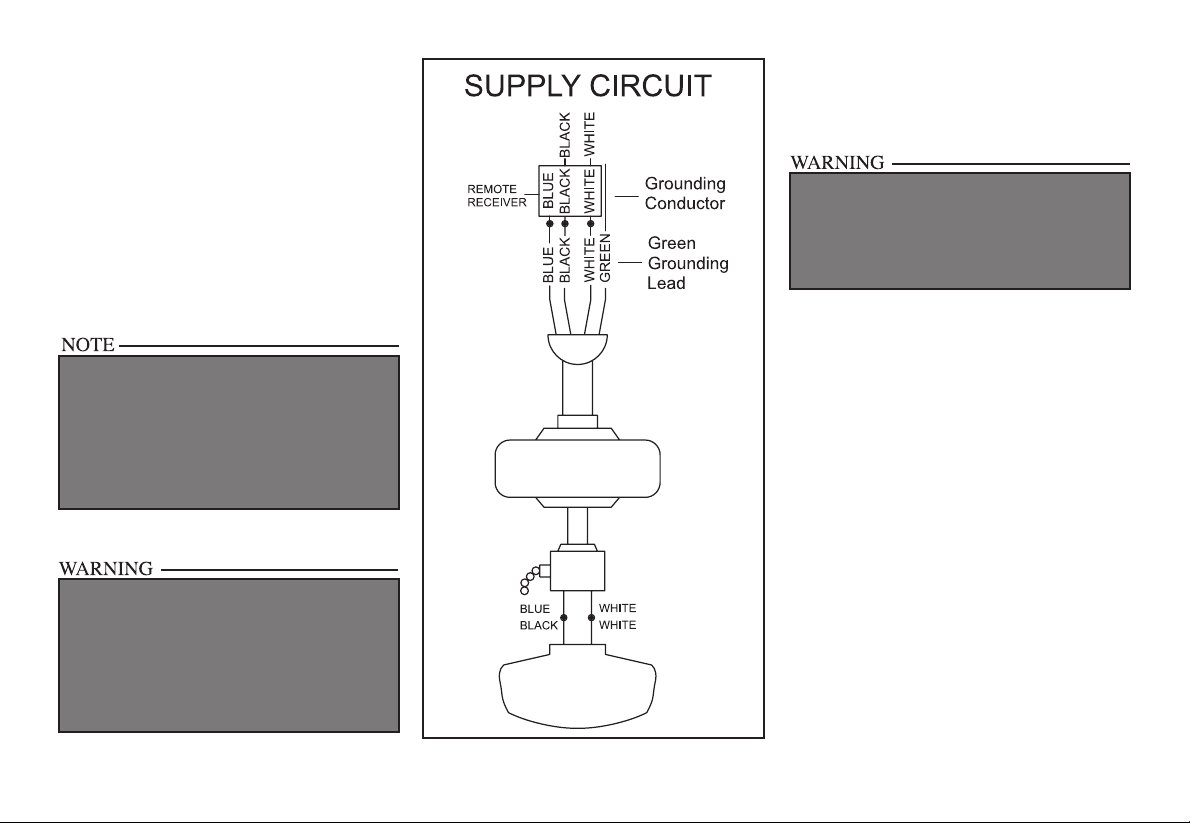

Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan. Se-
cure the connectors with electrical tape.
Make sure there are no loose strands or
connections (Figure 8).
1. Connect both green wires from the down-
rod and mounting plate to the bare copper
(Ground) from the outlet box
2. Connect the black wire (AC IN L) from
the receiver unit to the black wire from the
outlet box.
3. Connect the white wire (AC IN N) from
the receiver unit to the white wire from the
outlet box.
4. Connect the white wire (To Motor N) from
the receiver unit to the white wire from the
fan assembly.

6.
EACH WIRE NUT (WIRE CONNECTOR) SUP-
PLIED WITH THIS FAN IS DESIGNED TO ACCEPT
UP TO ONE 12 GAUGE HOUSE WIRE AND TWO
WIRES FROM THE FAN. IF YOU HAVE LARGER
THAN 12 GAUGE HOUSE WIRING OR MORE
THAN ONE HOUSE WIRE TO CONNECT TO THE
FAN WIRING, CONSULT AN ELECTRICIAN FOR
THE PROPER SIZE WIRE NUTS TO USE.
Figure 8
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling canopy
with the two screws in the mounting plate.
Push up to engage the slots and turn clock-
wise to lock in place. Immediately tighten
the two mounting screws rmly.
2. Install the remaining two mounting
screws into the holes in the canopy and
tighten rmly.
3. Install the decorative canopy ring by
aligning the ring’s slots with the screws in
the canopy. Rotate the ring clockwise to
lock in place.
4. You may now proceed to attaching the
fan blades.
WHEN USING THE STANDARD BALL/DOWN-
ROD MOUNTING, THE TAB IN THE RING AT
THE BOTTOM OF THE MOUNTING PLATE MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
5. Connect the black wire (To Motor L) from
the receiver unit to the black wire from the
fan assembly.
6. Connect the blue wire (For Light) from the
receiver unit to the blue wire from the fan.
After wires are connected, carefully tuck them
into the outlet box. Insert the receiver unit into
the mounting plate; make sure the black antenna
wire sits on top of the receiver unit.
THE FREQUENCIES ON YOUR RECEIVER AND
TRANSMITTER HAVE BEEN PRESET AT THE
FACTORY. BEFORE INSTALLING THE RECEIV-
ER, MAKE SURE THE DIP SWITCHES ON THE
RECEIVER AND TRANSMITTER ARE SET TO
THE SAME FREQUENCY. THE DIP SWITCHES
ON THE TRANSMITTER ARE LOCATED INSIDE
THE BATTERY COMPARTMENT.

7.
Attaching the
Fan Blades
NOTE: Your fan blades are reversible. Select
the blade side nish that best accentuates your
decor.
1. Attach the blade accent to the blade tip by
using the screws provided (Figure 9).
2. Attach blade to blade bracket using the
washer head screws provided (Figure 9).
Please note that the rubber washers are pre-
attached to the blade bracket. Start a screw
into the bracket. Repeat for the two remain-
ing screws.
3. Tighten each screw securely.
4. Insert the blade assembly through the slot
cut-out in the center ywheel of the fan mo-
tor assembly. Align the two screw holes in
the blade bracket with the screw holes in the
Rubber Washers
Blade
Screws
Blade Accent
Screws
Blade Bracket

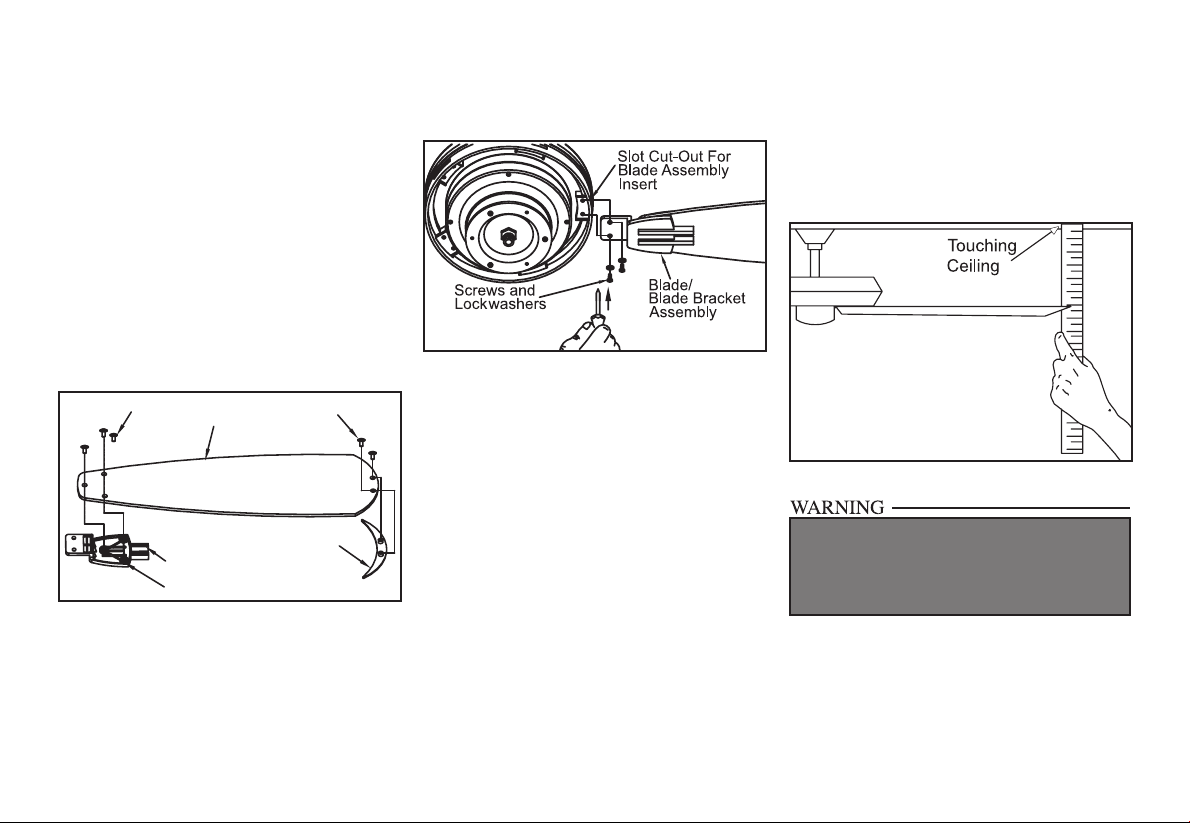

Figure 9
Figure 10
ywheel and secure with screws and lock-
washers provided (Figure 10).
5. Repeat steps 1-4 for the remaining blades.
BLADE BALANCING
All blades are grouped by weight. Because nat-
ural woods vary in density, the fan may wobble
even though the blades are weight matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade and blade brackets are
secure.
2. Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip
of one of the blades. Measure from a point
on the center of each blade to the point on
the ceiling. Measure this distance as shown
in Figure 11. Rotate the fan until the next
Figure 11
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING BLADES.
blade is positioned for measurement. Re-
peat for each blade. Measurement devia-
tions should be within 1/8”. Run the fan for
10 minutes.
3. Use the enclosed Bladed Balancing Kit if
the blade wobble is still noticeable.

8.
2. Connect the blue wire from the fan motor
to the black wire from the light kit assem-
bly by connecting the molded adaptor plug;
connect the white wire from the fan motor
to the white wire from the light kit assembly
by connecting the molded adaptor plug.
3. Secure the light kit assembly to the black
bracket using the three screws and lock-
washers that were removed in step 1.
4. Remove the three mounting screws on the
side of the light kit assembly (Figure 13).
Installing the Light Kit
and Glass Bowl
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing light kit.
1. Remove the three mounting screws and
lockwashers on the black bracket below the
fan motor (Figure 12).

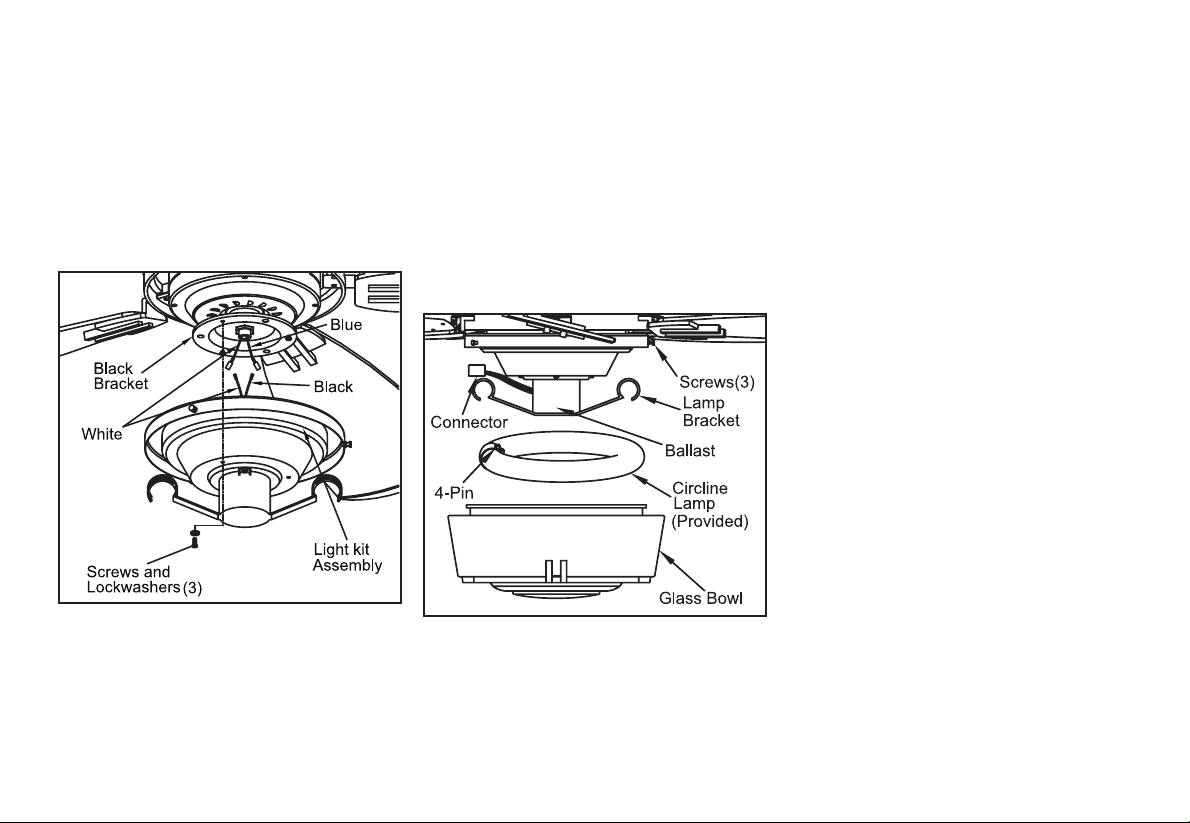

Figure 12 Figure 13
5. With power off, install the circline lamp
(Max. 30W, provided) to the lamp bracket
pre-assembled in the light kit assembly and
engage the connector from the ballast of the
light kit assembly with the 4-pins on the
circline lamp, make sure they are engaged
properly (Figure 13).
6. Install the glass bowl to the light kit assem-
bly and nger tighten with the three mount-
ing screws that were removed in step 4.
NOTE: PERIODICALLY CHECK THE
MOUNTING SCREWS HOLDING THE
GLASS ARE FIRMLY TIGHTENED AND
THE GLASS IS SECURE.

Operating Your Fan 9.
The hand unit controls directions
(forward or reverse).
Speed settings for warm or cool weather
depend on factors such as room size, ceil-
ing height, number of fans, and so on.
Warm weather - (Forward) A downward
air ow creates a cooling effect as shown
in Figure 14. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward air
ow moves warm air off the ceiling are as
shown in Figure 15. This allows you to set
your heating unit on a lower setting with-
out affecting your comfort.
Figure 14
Figure 15

10. Operating Your Remote Control
Setting the Code
This unit has 16 different code combinations. To
set the code, perform the following steps:
A. Setting the code on the transmitter:
a. Remove the battery cover. Press rmly
below arrow and slide battery cover off.
b. Slide code switches to your choice of up
or down position. (Factory setting is all up).
B. Setting the code on the receiver.
a. Slide code switches to the same position
as set on your transmitter.
b. Replace battery cover on transmitter.
CAUTION:
Ceiling angle shall not exceed 30 degrees.
Remote Control Model: UC7067RK Transmitter Operation
NOTE: This remote is equipped with 16 code combinations. To prevent possible interference
from or to other remote units such as garage door openers, car alarm or security system, simply
change the combination code but be sure that the code on both the hand held transmitter and
receiver in the fan are matched.
Install a 9 volt battery (not included).
Operating the Fan:
Hi Key - High Speed Med Key - Medium Speed Low Key - Low Speed
Off Key - Power Off Light Key - Light On/Off Reverse Key - Fan Reversing Function
Installing Receiver
A. Wire Connection:
Fan Green Wire ............................................................... Bare Supply Wire
Black Receiver Wire (AC IN L) ..................................... Black Supply Wire
White Receiver Wire (AC IN N)..................................... White Supply Wire
White Receiver Wire (TO MOTOR N)........................... White Fan Wire
Black Receiver Wire (TO MOTOR L)............................ Black Fan Wire
Blue Receiver Wire (FOR LIGHT)................................. Blue Light Wire
NOTE: If other fan wires are a different color, have this unit installed by a licensed electrician.
B. Lay the black antenna wire on top of the receiver, and slide the receiver into the mounting
bracket.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, REMEMBER TO DISCONNECT THE
POWER. DO NOT USE WITH SOLID STATE FANS.
THE ELECTRICAL WIRE MUST MEET ALL LOCAL
AND NATIONAL ELECTRICAL CODE REQUIRE-
MENTS. ELECTRICAL SOURCE AND FANS MUST
BE 115/120 VOLT, 60 HZ . MAXIMUM FAN MOTOR
AMPS: 1.0. MAXIMUM TUNGSTEN 300 WATTS, OR
MAXIMUM BALLAST 300VA.

Care of Your Fan & Troubleshooting 11.
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do not
use water when cleaning, this could damage
the motor, or the wood or possibly cause
an electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You can apply a light coat of furniture pol-
ish to the wood for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BE-
FORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check battery in the transmitter. Does the liquid crystal display (LCD)
activate and is the low battery light lit? Are you standing close enough
to the fan? (Normal range is 10-20 feet.) Are the dip switch settings the
same on the transmitter (hand unit) and receiver? REMEMBER TO
TURN OFF POWER SUPPLY BEFORE CHECKING THE DIP
SWITCH SETTINGS IN RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing. CAUTION: Make sure power
is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. If using the Ceiling Fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your outlet box is secure and rubber isolator pads were used
between the mounting bracket and outlet box.
Troubleshooting
Problem Solution

12. Specications
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Imported by
Your Other Warehouse LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
Vendor number: 219030
FAN SIZE SPEED VOLTS AIRFLOW
CFM
FAN POWER
CONSUMPTION
(WITHOUT
LIGHTS) WATT
AIRFLOW EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
52”
Low 120 1747 10 174
27.1
Lbs
31.1
Lbs 2.2Med 120 3951 30 132
High 120 6900 76 91

Hampton Bay Lifetime Limited Warranty
Lifetime Warranty on Motor
Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at
time of shipment from the factory for a lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of two
years after the date of purchase by the original purchaser. We agree to correct such defects without
charge or at our option replace with a comparable or superior model if the product is returned to
Hampton Bay. To obtain warranty service, you must present a copy of the receipt as proof of purchase.
All costs of removing and reinstalling the product are your responsibility. Damage to any part such
as by accident or misuse or improper installation or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions, this warranty does not cover any changes in
plated nishes, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type
give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized
persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby
disclaims any and all warranties, including but not limited to, those of merchantability and tness
for a particular purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimed is limited to the time period as specied in the express warranty. Some states
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply
to you. Hampton Bay shall not be liable for incidental, consequential, or special damages arising
out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may
also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the
customer.
IMPORTANT NOTE:
To ensure warranty service, if ever
necessary, please register your fan at:
gpwarranty.com
You must present a copy of the original
purchase receipt to obtain warranty service.
G.P. WARRANTY SERVICE CENTER, INC.
WARRANTY SECTION
1951 N.W. 22nd STREET
FORT LAUDERDALE, FLORIDA 33311
Attach receipt here for
easy location.
Warranty Information 13.

Fulton de 52"
Ventilador de techo de Hampton Bay
Incluye (1) bombilla uorescente circular
de 30 Vatios
Función de reversa de 3 velocidades para
confort y ahorro durante todo el año
Clasicado ENERGY STAR
Incluye control remoto
portátil estándar integral
¿PREGUNTAS, PROBLEMAS O PIEZAS FALTANTES?
Antes de volver a tu tienda local de The Home Depot, llama a nuestro
Equipo de Servicio al Cliente al 1-877-527-0313 o visita www.homedepot.com.
Por favor usa como referencia el Nº de SKU (140 201 níquel cepillado)
o UPC (082392 235093 níquel cepillado).
Gracias por comprar este ventilador de techo de
Hampton Bay. Este producto se ha fabricado con las
normas de seguridad y calidad más altas. El acabado
de este ventilador es resistente a la intemperie, pero
con el tiempo, exhibirá un desgaste y decoloración
naturales.
Normas de seguridad....................... 1
Cómo desempacar el ventilador...... 2
Cómo instalar el ventilador............. 3
Cómo operar el ventilador .............. 9
Cómo manejar el control remoto.... 10
Cuidado del ventilador .................... 11
Solución de problemas..................... 11
Especicaciones................................ 12
Información de la garantía.............. 13
Índice
Modelo de UL Nº 52-GY

1. Para disminuir el riesgo de descarga eléctrica, asegúrate de que
la electricidad ha sido apagada en el cortacircuitos o la caja de
fusibles antes de comenzar la instalación.
2. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales
de electricidad. La instalación eléctrica debe ser hecha por un
electricista certicado y calicado.
3. ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica este ventilador sólo debe ser usado con un
control de velocidad con el N.o de pieza UC7067RK, fabricado
por Rhine Electronic Co., Ltd.
4. PRECAUCIÓN: Para reducir el riesgo de lesiones físicas, usa
sólo los tornillos provistos con la caja eléctrica.
5. La caja eléctrica y estructura de soporte deben montarse
de forma segura y tener capacidad para sostener de manera
conable un mínimo de 35 libras. Usa solamente cajas eléctricas
aprobadas por UL marcadas como “PARA SOPORTE DE
VENTILADOR”.
6. El ventilador debe ir montado con un mínimo de 7 pies de
separación entre el borde trasero de las aspas y el piso.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones, o daños al ventilador y otros objetos; ten
cuidado al trabajar cerca del ventilador o al limpiarlo.
9. No usar agua o detergentes para limpiar el ventilador o las
aspas. En general a la hora de limpiar, bastará con usar un paño
seco o ligeramente humedecido.
10. Después de concluir con las conexiones eléctricas, debes
voltear los conductores empalmados hacia arriba y empujarlos
con cuidado hacia dentro de la caja eléctrica. Los cables deben
estar separados, con el cable a tierra y el conductor a tierra del
equipo hacia uno de los lados de la caja eléctrica.
11. Los diagramas eléctricos son sólo una referencia. Los kits de
luces no empaquetados con el ventilador deben estar aprobados
por UL y marcados como apropiados para ser usados con el
modelo de ventilador a instalar. Los interruptores deberán
estar clasicados por el UL como de Uso General. Consulta
las instrucciones adjuntas a los kits de luces e interruptores
para obtener información sobre el ensamblaje adecuado.
12. Todos los tornillos colocados se deben vericar y ajustar donde
sea necesario antes de la instalación
Puedes usarlo con un dispositivo de control de velocidad de
estado sólido.
1. Normas de seguridad
LEE LAS INSTRUCCIONES Y GUÁRDALAS
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA O LESIONES
PERSONALES, MONTA EL VENTILADOR SOBRE UNA CAJA ELÉCTRICA MARCADA
COMO “APROBADA COMO SOPORTE DE VENTILADOR” Y USA TORNILLOS DE
MONTAJE QUE VIENEN CON LA MISMA. LAS CAJAS ELÉCTRICAS UTILIZADAS
COMÚNMENTE PARA EL SOPORTE DE ARTÍCULOS DE ILUMINACIÓN PUEDEN NO
SERVIR COMO SOPORTE DE VENTILADOR, Y TAL VEZ DEBAN REEMPLAZARSE. EN
CASO DE DUDA, CONSULTA A UN ELECTRICISTA CALIFICADO.
PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLAR LOS BRAZOS
DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”) DURANTE O DESPUÉS DE LA
INSTALACIÓN. EVITA COLOCAR OBJETOS EN LA TRAYECTORIA DE LAS ASPAS.
PARA EVITAR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE VENTILADOR DEBE SER
INSTALADO CON UN CONTROL/INTERRUPTOR DE AISLAMIENTO DE MONTAJE EN
PARED.

a. Herrajes de montaje de aspas
(15 tornillos)
b. Herrajes de montaje y electricidad
(1 pasador de soporte, 1 pasador de
cierre, 3 conectores plásticos de cable)
c. Kit de compensación de aspas
d. Herrajes de soporte del aspa
(10 tornillos y arandelas de seguridad)
e. Herrajes de adornos de aspas
(10 tornillos)
7. Bombilla uorescente circular (1)
8. Vidrio
9. Juego de soportes del aspa (5)
10. Aspas (5)
11. Unidad de mano/receptor
12. Adornos del aspa (5)
1. Placa de montaje (dentro de la cubierta)
2. Ensamblado de tubo bajante y bola
3. Cubierta
4. Cubierta decorativa del collarín del motor
5. Ensamblado del motor del ventilador
6. Ensamblado del kit de luces
Cómo desempacar el ventilador 2.
IMPORTANTE: ESTE PRODUCTO Y/O SUS COMPONENTES ESTÁN
PROTEGIDOS POR UNA O MÁS DE LAS SIGUIENTES PATENTES DE EE.UU.:
5,947,436; 5,988,580; 5,971,573; 6,010,306; 6,039,541; 6,046,416 y OTRAS
PATENTES PENDIENTES.
Desempaca tu ventilador y revisa el contenido. Deberá tener las siguientes piezas:

3. Cómo instalar el ventilador

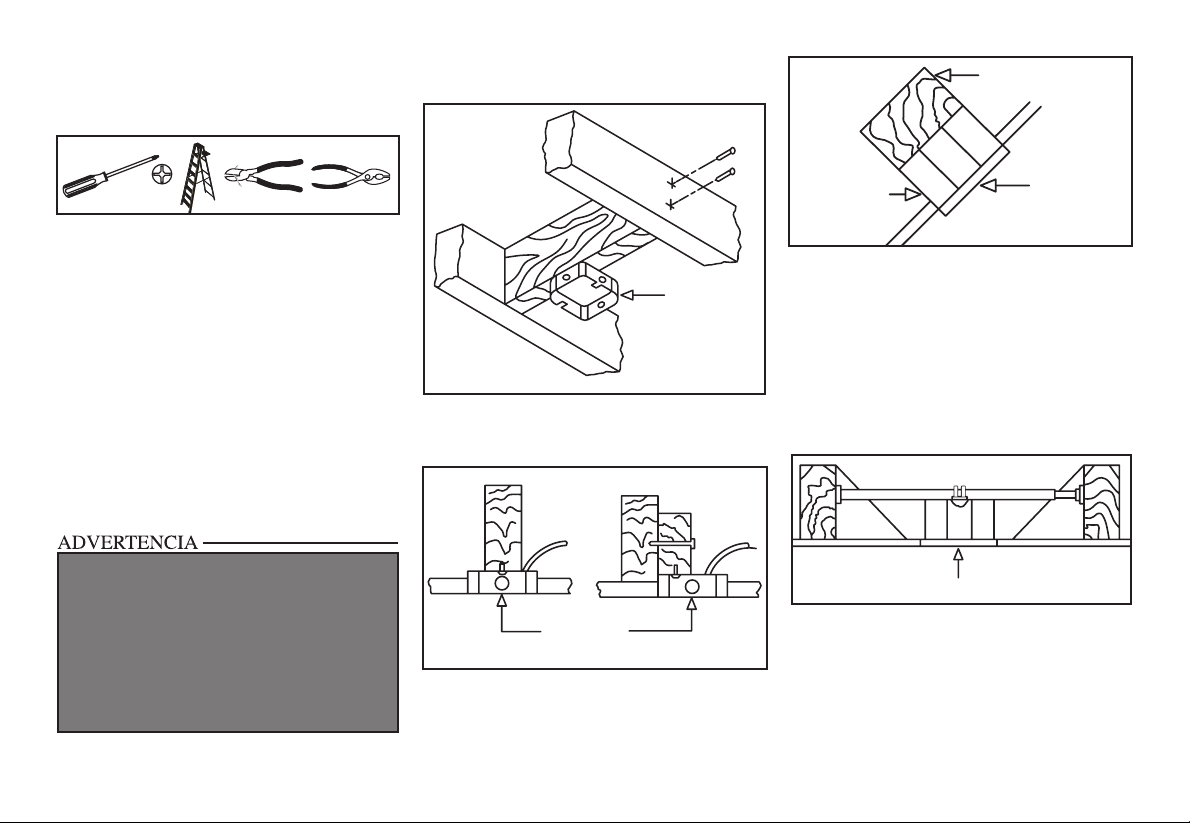

Herramientas necesarias
Destornillador Phillips, destornillador plano,
llave ajustable, escalera de tijera y cortacables.
Opciones de montaje
Si no hay una caja eléctrica existente, entonces
lee las siguientes instrucciones. Desconecta la
energía retirando los fusibles o apagando los
cortacircuitos.
Asegura la caja eléctrica directamente a la
estructura del edicio. Usa sujetadores y
materiales de construcción apropiados. La
caja eléctrica y su soporte deben sostener
completamente el peso en movimiento
del ventilador (al menos 35 libras).
No uses cajas eléctricas de plástico.
Las guras 1, 2 y 3 son ejemplos de diferentes
formas de montar la caja eléctrica.
Caja eléctrica
Caja eléctrica
Soporte fuerte
Placa de
montaje
en el techo
Caja
eléctrica
empotrada
Nota: Tal vez necesites un tubo bajante más
largo para mantener la altura mínima adecuada
de las aspas al instalar el ventilador en un techo
inclinado. El ángulo máximo permitido es
de 30º. Si la cubierta toca el tubo bajante,
retira la cubierta inferior decorativa y gira
la cubierta 180º antes de jar la cubierta a la
placa de montaje.
Caja eléctrica
Para colgar tu ventilador donde haya una lámpara
pero ninguna viga de techo, tal vez necesites
una barra colgante de instalación como se
muestra en la Figura 4 (disponible en la tienda
minorista local de Hampton Bay).
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA
ELÉCTRICA O LESIONES PERSONALES, MONTA EL
VENTILADOR SÓLO SOBRE UNA CAJA ELÉCTRICA
MARCADA COMO “APROBADA COMO SOPORTE DE
VENTILADOR” Y USA LOS TORNILLOS DE MONTAJE
QUE VIENEN CON LA MISMA. LAS CAJAS ELÉCTRICAS
UTILIZADAS COMÚNMENTE PARA EL SOPORTE DE
ARTÍCULOS DE ILUMINACIÓN PUEDEN NO SERVIR
COMO SOPORTE DE VENTILADOR, Y TAL VEZ DEBAN
REEMPLAZARSE. EN CASO DE DUDA, CONSULTA A UN
ELECTRICISTA CALIFICADO.
Figura 1
Figura 2
Figura 4
Figura 3

4.
3. Inserta los cables que salen por la parte
superior del motor del ventilador, primero, a
través de la cubierta decorativa del collarín
del motor y luego, por el aro de la cubierta.
Asegúrate de que las aberturas en forma de
ranura estén en la parte superior. Inserta los
cables a través de la cubierta y luego a través
del ensamblado del tubo bajante y la bola
(Figura 7).
Cómo colgar el
ventilador
RECUERDA desconectar la corriente.
Sigue estos pasos para colgar correctamente tu
ventilador.
NOTA: Se recomienda instalar este ventilador
en un techo estándar usando el tubo bajante
suministrado con el ventilador. Cuando uses
una instalación de techo estándar con el tubo
bajante de 6 pulgadas suministrado, la distancia
desde el techo a la parte inferior de las aspas
será de 11 pulgadas aproximadamente.
SI CREES QUE NO TIENES SUFICIENTE
EXPERIENCIA O CONOCIMIENTOS EN
CABLEADO ELÉCTRICO, CONTRATA A
UN ELECTRICISTA CON LICENCIA PARA
QUE INSTALE EL VENTILADOR.
Montaje de techo estándar
1. Retira el aro en la cubierta, girando el aro
a la izquierda hasta destrabarlo (Figura 5).
2. Retira la placa de montaje de la cubierta
aojando los cuatro tornillos de la parte
superior de la misma. Quita los dos tornillos
sin ranura y aoja los tornillos ranurados.
Esto te permitirá retirar la placa de montaje
(Figura 6).
Quitar
Aflojar pero no retirar
Gira el aro en la cubierta para quitarla
Figura 5
Figura 6
4. Aoja, sin quitarlos, los tornillos en el
collarín ubicado en la parte superior de la
carcasa de motor.
5. Alinea los oricios en la parte inferior del
tubo bajante con los oricios en el collarín
de la parte superior de la carcasa de motor
(Figura 7). Inserta con cuidado el pasador
de soporte a través de los oricios del
collarín y del tubo bajante. Ten cuidado de
no apretarlo contra el cableado dentro del
tubo bajante. Inserta el pasador de cierre en
el oricio cercano al extremo del pasador
de soporte hasta que quede encajado en su
posición como se muestra en el círculo de
la Figura 7.
6. Vuelve a ajustar los tornillos del collarín en
la parte superior de la carcasa del motor
7. Asegúrate de que el ojal esté instalado
correctamente en la cubierta del collarín,
luego desliza la cubierta del collarín por el
tubo bajante hasta que quede en la carcasa
del motor. Asegúrate de que la cubierta y la
cubierta del collarín tengan la orientación
apropiada.
8. Sigue con la sección "Cómo instalar el
ventilador".
ESTE VENTILADOR DEBE IR MONTADO CON UN MÍNIMO
DE 7 PIES DE SEPARACIÓN ENTRE EL BORDE TRASERO
DE LAS ASPAS Y EL PISO. SI NO INSTALAS CORRECTAMENTE EL PASADOR DE
CIERRE SEGÚN LO INDICADO EN EL PASO 5 SE PUEDE
AFLOJAR Y POSIBLEMENTE SE CAIGA EL VENTILADOR.
