Hans Grohe Ecomax 14243000 Manual

EN Instructions for use / assembly instructions 2
DE Gebrauchsanleitung / Montageanleitung 4
Ecomax
14243000

Maintenance (see page 8)
• To guarantee the smooth running of the
thermostat, it is necessary from time to
time to turn the thermostat from total hot
to total cold.
• The mixer is equipped with non return
valves.
The non return valves must be checked
regularly according to DIN EN 1717 in
accordance with national or regional
regulations (at least once a year).
At this time, please also check the filter
(A) situated on the BTC-thermoelement
(96633000). After assembling the BTC-
thermoelement, it is necessary to check
the water temperature at the take off
point as described under the headline
„adjustment“. Before the adjustment,
please check, if the warm water supply is
activated and the maximum temperature
of the warm water is available at the take
off point.

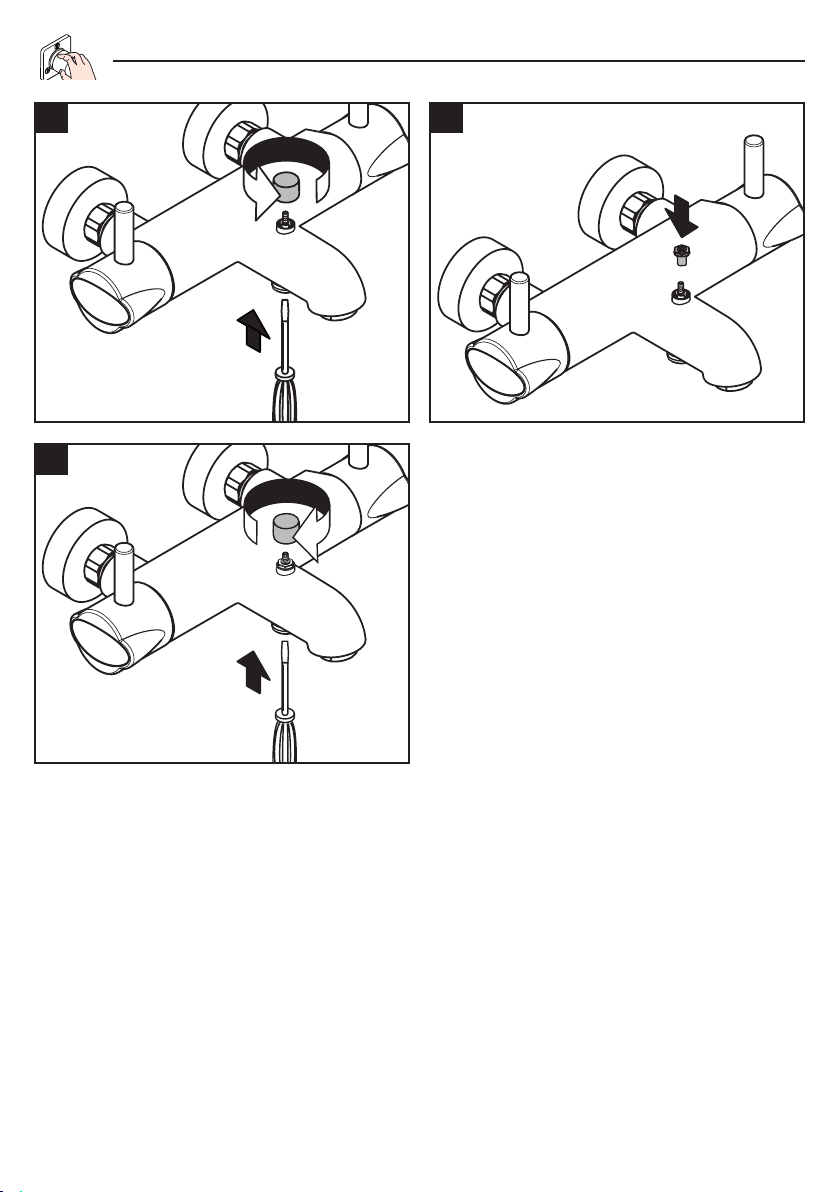

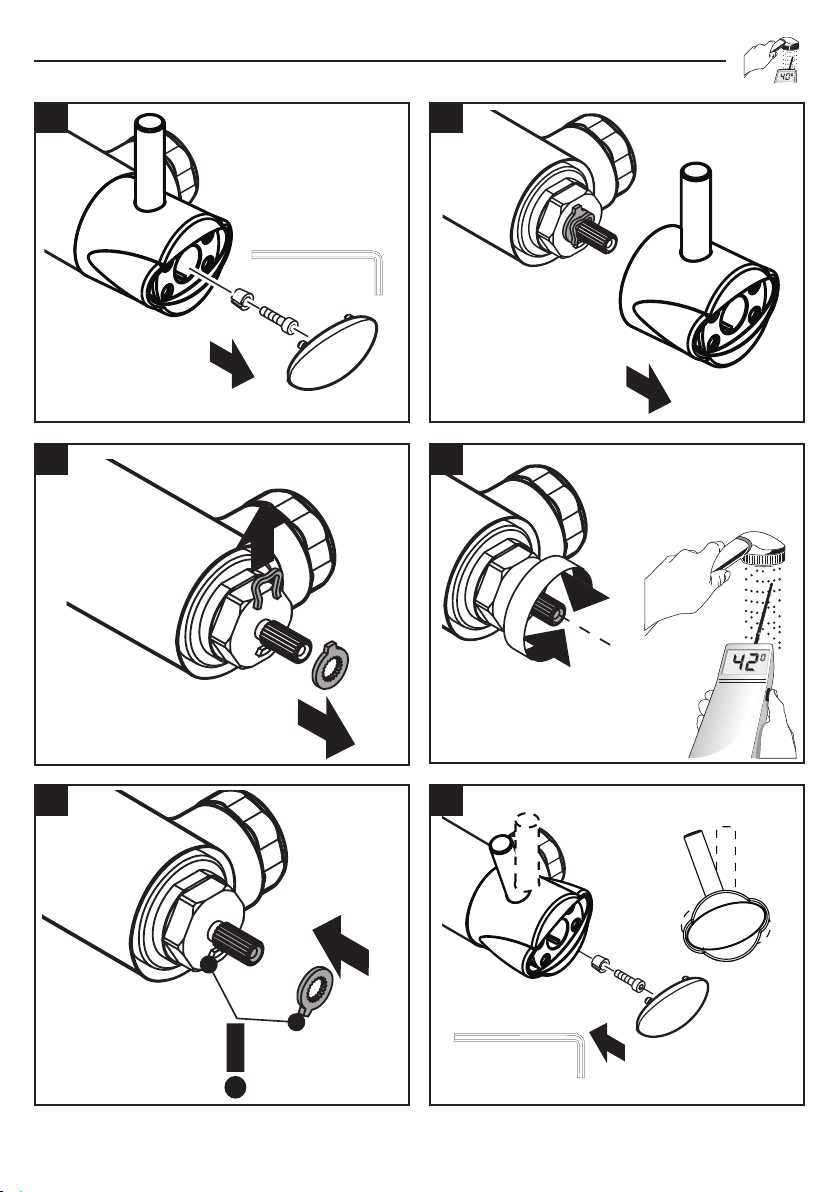

Adjustment (see page 7)
After the installation, the output tempera-
ture of the thermostat must be checked. A
correction is necessary if the temperature
measured at the output differs from the
temperature set on the thermostat.
Do not use silicone containing acetic acid!
Symbol description
• Anti-pollution function
• The product is exclusively designed for drinking water!
 Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower system may only be used for bathing,
hygienic and body cleansing purposes.
Children as well as adults with physical, mental and/
or sensoric impairments must not use this shower
system without proper supervision. Persons under
the influence of alcohol or drugs are prohibited from
using this shower system.
The hot and cold supplies must be of equal pres-
sures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages.
After it has been installed, no transport or surface
damage will be honoured.
• The fitting must be installed, flushed and tested after
the valid norms!
• The plumbing codes applicable in the respective
countries must be oberserved.
• The product is not designed to be used with steam
baths!
Thermostatic mixer in conjunction with
combination boilers
• If fitting a hand shower remove the water limiter from
the shower.
• If the continuous water heater causes any problems,
or you have different water pressures you must
install a water limiter to the cold supply, (ordered
separately,article number 97510000).
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max.70°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
Rate of flow Bath Spout: 58 l/min 0,3 MPa
Rate of flow Shower outlet: 18 l/min 0,3 MPa
English
2

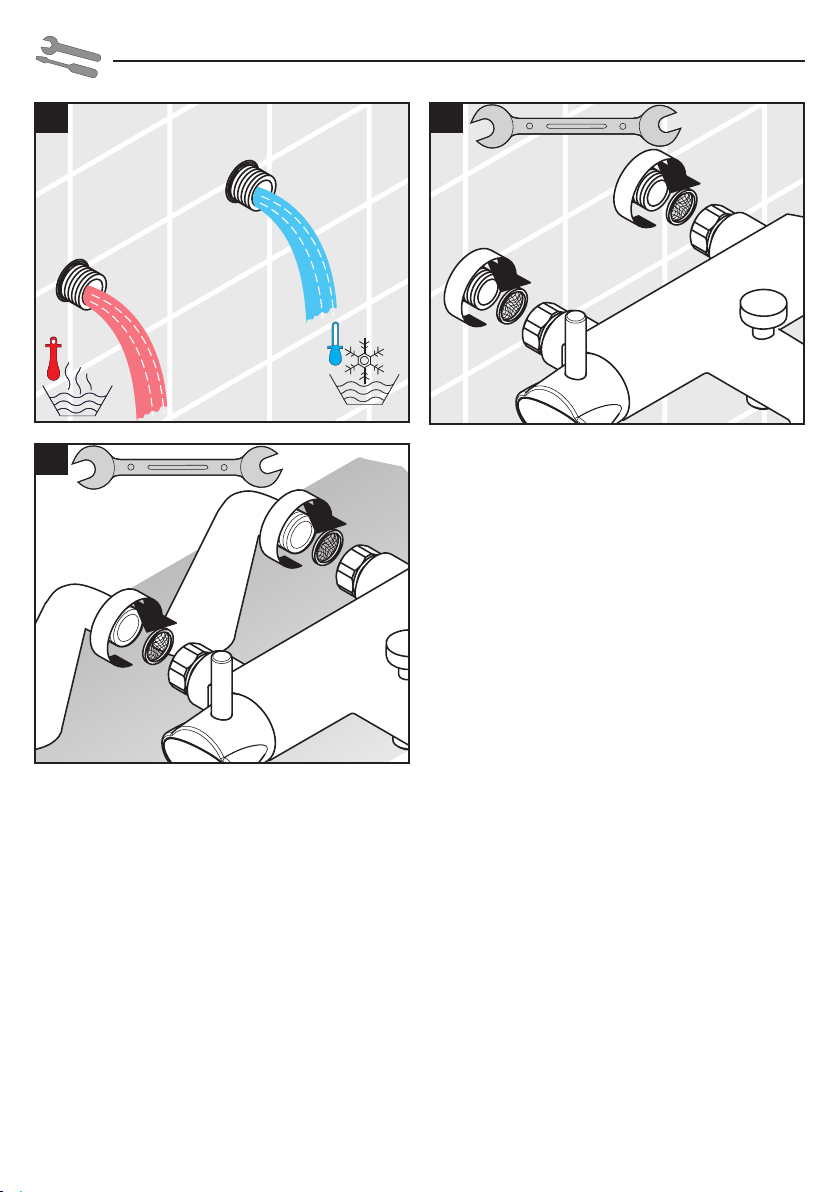

Assembly see page 6
Fault Cause Remedy
Insufficient water - Supply pressure inadequate - Check water pressure (If a pump
has been installed check to see if
the pump is working).
- Filters are dirty (96922000) - Clean filter in front of the mixer
and on the BTC-thermo cartridge
(96922000)
- Shower filter seal dirty - Clean filter seal between shower
and hose
- Backflow preventers dirty or leak-
ing
- Clean backflow preventers, ex-
change if necessary
Crossflow, hot water being forced
into cold water pipe, or vice versa,
when mixer is closed
- Backflow preventers dirty or leak-
ing
- Clean backflow preventers, ex-
change if necessary
Spout temperature does not cor-
respond with temperature set
- Thermostat has not been adjusted
Hot water temperature too low
- Adjust thermostat
Increase hot water temperature to
42 ºC to 65 ºC
Temperature regulation not possible - thermo cartridge calcified - Exchange thermo cartridge
Shower or spout dripping - Dirt or sedimentation on valve seat,
shut-off unit damaged
- Clean or exchange shut-off unit
Instantaneous heater didn't work
with thermostat
- Flow limiter in handshower isn’t
removed
- Remove flow limiter
- Filters are dirty - Clean the filter / exchange filter
- Non return valve hasn't moved
back
- Exchange non return valves
Test certificate (see page 12)
Cleaning (see page 13)
Spare parts (see page 12)
Dimensions (see page 11)
Operation (see page 9)
English
Special information for UK (see page 14)
3

Wartung (siehe Seite 8)
• Um die Leichtgängigkeit der Regeleinheit
zu gewährleisten, sollte der Thermostat
von Zeit zu Zeit auf ganz warm und ganz
kalt gestellt werden.
• Der Thermostat ist mit Rückflussverhinder-
ern ausgestattet.
Rückflussverhinderer müssen gemäß DIN
EN 1717 regelmäßig in Übereinstimmung
mit nationalen oder regionalen Bestim-
mungen (mindestens einmal jährlich) auf
ihre Funktion geprüft werden.
Überprüfen Sie bei dieser Gelegenheit
auch die Schmutzfänger, welche sich
auf der BTC-Regeleinheit (A) befinden.
Nach Montage der BTC-Regeleinheit
(96633000) unbedingt die Auslauf-
temperatur überprüfen, wie unter Punkt
“Einjustieren” beschrieben. Überprüfen
Sie unbedingt zuvor, ob die Warmwasser-
versorgung eingeschaltet ist und die max.
Warmwassertemperatur an der Zapfstelle
anliegt.
Justierung (siehe Seite 7)
Nach erfolgter Montage muss die Auslauf-
temperatur des Thermostaten überprüft wer-
den. Eine Korrektur ist erforderlich wenn die
an der Entnahmestelle gemessene Tempera-
tur von der am Thermostaten eingestellten
Temperatur abweicht.
Kein essigsäurehaltiges Silikon verwenden!
Symbolerklärung
Thermische Desinfektion: max. 70°C / 4 min
Durchflussleistung Wanneneinlauf: 58 l/min 0,3 MPa
Durchflussleistung Abgang Brause: 18 l/min 0,3 MPa
• Eigensicher gegen Rückfließen
• Das Produkt ist ausschließlich für Trinkwasser konzi-
piert!
 Sicherheitshinweise
Bei der Montage müssen zur Vermeidung von
Quetsch- und Schnittverletzungen Handschuhe
getragen werden.
Das Produkt darf nur zu Bade-, Hygiene- und Körper-
reinigungszwecken eingesetzt werden.
Kinder, sowie Erwachsene mit körperlichen, gei-
stigen und / oder sensorischen Einschränkungen
dürfen das Produkt nicht unbeaufsichtigt benutzen.
Personen, die unter Alkohol- oder Drogeneinfluss
stehen, dürfen das Produkt nicht benutzen.
Große Druckunterschiede zwischen den Kalt- und
Warmwasseranschlüssen müssen ausgeglichen
werden.
Montagehinweise
• Vor der Montage muss das Produkt auf Transportschä-
den untersucht werden.
Nach dem Einbau werden keine Transport- oder
Oberflächenschäden anerkannt.
• Die Armatur muss nach den gültigen Normen montiert,
gespült und geprüft werden!
• Die in den Ländern jeweils gültigen Installationsrichtli-
nien sind einzuhalten.
• Das Produkt ist nicht für die Verwendung in Verbin-
dung mit einem Dampfbad vorgesehen!
Thermostat in Verbindung mit Durch-
lauferhitzern
• Wird eine Handbrause angeschlossen, so muss aus
dieser eine eventuell vorhandene Drossel ausgebaut
werden.
• Bei Problemen mit dem Durchlauferhitzer oder großen
Druckunterschieden muss eine optional erhältliche
Drossel (Artikelnummer 97510000) in den Kaltwasser-
zulauf eingesetzt werden.
Technische Daten
Betriebsdruck: max. 1 MPa
Empfohlener Betriebsdruck: 0,1 – 0,5 MPa
Prüfdruck: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Heißwassertemperatur: max.70°C
Empfohlene Heißwassertemperatur: 65°C
Deutsch
4

Montage siehe Seite 6
Störung Ursache Abhilfe
Wenig Wasser - Versorgungsdruck nicht ausrei-
chend
- Leitungsdruck prüfen
- Schmutzfangsiebe verschmutzt
(96922000)
- Schmutzfangsiebe vor dem Ther-
mostat und auf der Regeleinheit
reinigen (96922000)
- Siebdichtung der Brause ver-
schmutzt
- Siebdichtung zwischen Brause und
Schlauch reinigen
- Rückflussverhinderer verschmutzt
/ defekt
- Rückflussverhinderer reinigen ggf.
austauschen
Kreuzfluss, warmes Wasser wird
bei geschlossener Armatur in die
Kaltwasserleitung gedrückt oder
umgekehrt
- Rückflussverhinderer verschmutzt
/ defekt
- Rückflussverhinderer reinigen ggf.
austauschen
Auslauftemperatur stimmt nicht mit
der eingestellten Temperatur überein
- Thermostat wurde nicht justiert
Zu niedrige Warmwassertempe-
ratur
- Thermostat justieren
Warmwassertemperatur erhöhen
auf 42 ºC bis 65 ºC
Temperaturregelung nicht möglich - Regeleinheit verkalkt - Regeleinheit austauschen
Brause oder Auslauf tropft - Schmutz oder Ablagerungen auf
dem Dichtsitz, Absperroberteil
beschädigt
- Absperroberteil reinigen bzw. aus-
tauschen
Durchlauferhitzer schaltet bei Ther-
mostatbetrieb nicht ein
- Drossel in der Handbrause nicht
ausgebaut
- Drossel aus der Handbrause ent-
fernen
- Schmutzfangsiebe verschmutzt - Schmutzfangsiebe reinigen / aus-
tauschen
- Rückflussverhinderer sitzt fest - Rückflussverhinderer austauschen
Prüfzeichen (siehe Seite 12)
Reinigung (siehe Seite 13)
Serviceteile (siehe Seite 12)
Maße (siehe Seite 11)
Bedienung (siehe Seite 9)
Deutsch
5

6
SW 30 mm
(17 Nm)
SW 30 mm
(17 Nm)
2b
1 2a

7
SW 3 mm
(2 Nm)
SW 3 mm
42° 40°
1 2
3 4
5 6

8
1 2
3

9
close / schließen
90°
open /öffnen
1.
2.
cold / kalt
> 40°C
hot / warm
90°

10
SW 30 mm SW 12 mm
2.
1 2
3 4
1.

11
Ecomax
14243000

12
96922000
97210000
97163000
97164000
98870000
95589000
92929000
96488000
97211000
98163000
(15x2)
98194000
(28x2)
96644000
A
96633000
Ecomax
14243000
PA-IX DVGW SVGW ACS WRAS ETA KIWA
14243000 X

13
ww
w.hansgr
ohe.com/
cleaning-r
ecommendation
ww
w.hansgr
ohe.com/
cleaning-recommendation
ww
w.hansgr
ohe.com/
cleaning-r
ecommendation
ww
w.hansgr
ohe.com/
cleaning-r
ecommendation
EN Cleaning recommendation / Warranty / Contact
DE Reinigungsempfehlung / Garantie / Kontakt
Reinigung

14
Safety and Important Information
Hansgrohe products are safe provided they are installed,
used and maintained in accordance with these instructions
and recornrnendations.
Please read these instructions thoroughly and retain for
future use.

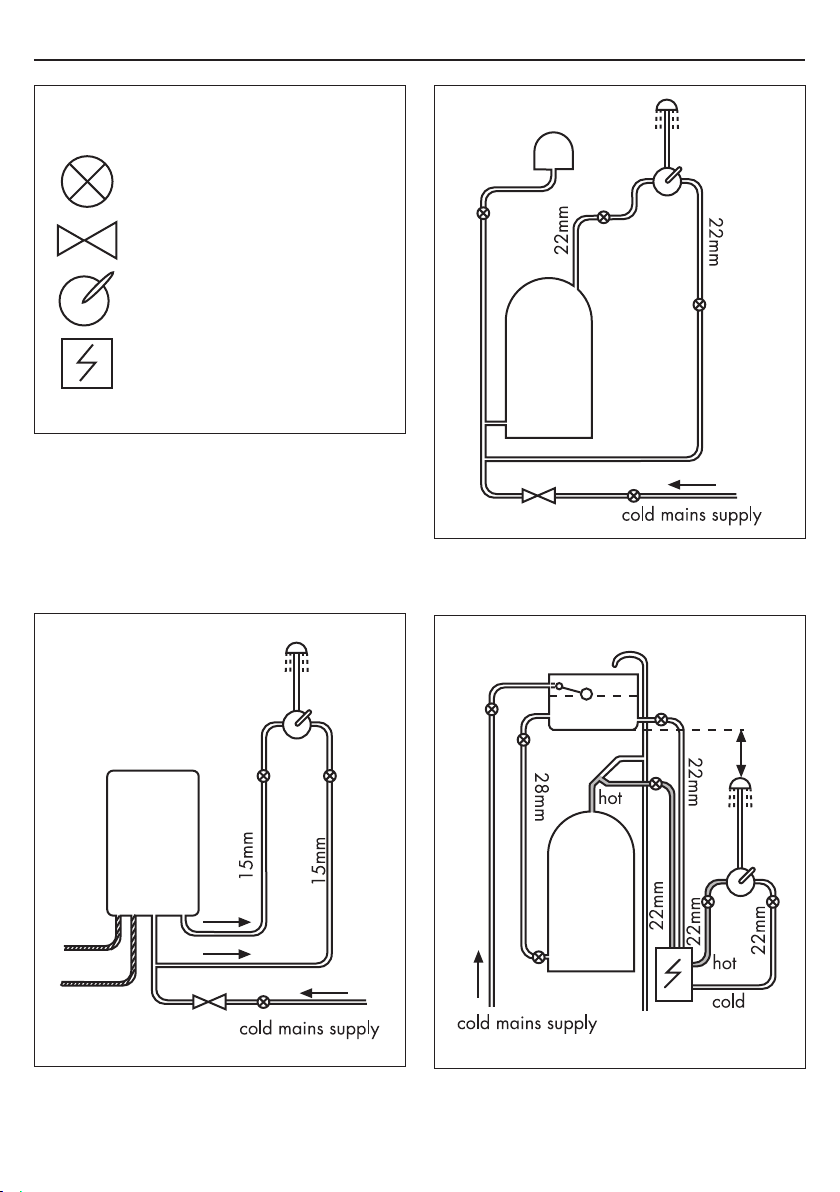

The plumbing installation of this thermostat mixing
valvemust comply with the requirements of UK
Water Regulations/Bylaws (Scotland), Building Regulati-
ons or any other regulations specified by the local Water
Authority and supplier.
The installation of thermostatic mixing valves must comply
with the requirements of the Water Supply (Water Fittings)
Regulations 1999.
We strongly recommend that you use a plumber registered
with or a member of an Association:
Chartered Institute of Plumbing and Heating Engineering
(CIPHE)
Water Industry Approved Plumber Scheme (WIAPS)
Dispose of plastic bags carefully
Keep children well away from the work area.
Check for hidden pipes and cables in the wall before
drilling holes.
The unit must be mounted on a finished waterproofed wall
surface (usually tiles).
If you are using power tools (e.g. to drill holes) wear sa-
fety glasses and always disconnect tools from the power
supply after use.
Do not operate the shower unit if the hand shower or spray
hose has been damaged or is blocked.
Do not block the flow of water from the hand shower, by
placing it on your hand or any other part of your body
or foreign object.
The thermostatic unit should be serviced annually by a
qualified person to ensure maximum safety during use.
The thermostatic mixing valve will be installed in such a
position that maintenance of the TMV and its valves and the
commissioning and testing of the TMV can be undertaken.
The mixer is fitted with check valves (page 67 pos.
94074000). There are filters on the thermostatic element
too (page 67 pos. 94282000).
The fitting of isolation valves is required (preferred location
page 71 Installation Requirements)
On the following pages 14 - 19 you
can find important information only for
the installation in UK
Technical Hotline for UK only 01372465655
E-mail for UK only T[email protected]
(Diese Servicehotline ist nur für das Vereinigte König-
reich Großbritannien, nicht z. B. für Deutschland)

15
Technical Data
This thermostatic valve will suit supplies of:
HIGH PRESSURE (HP-S)
Operating pressure: max. 10 bar
Recommended operating pressure: 1 - 5 bar
Test pressure: 16 bar
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Rate of flow: 36 l/min. @ 3 bar
Maximum outlet temperature: 43°C +/-*
Safety check: 40°C
Hot water connection: Left hand
Cold water connection: Right hand
Minimum difference between hot
water and mixed water temperature: 6 K
Hot and cold supply pressure should be balanced
Mixed water temperature
Application Mixed water temperature
(at point of discharge).
Shower 41°C max.
Washbasin 41°C max.
Bath (44°C fill) 44°C max.
Bath (46°C fill) 46°C max.
* For preset outlet temperature adjustment – See page 62.
NB. If a water supply is fed by gravity then the supply
pressure should be verified to ensure the conditions of use
are appropriate for the valve. Valves operating outside of
these supply conditions cannot be guaranteed to operate
as a TMV2 or TMV3 valve.
Recommended outlet temperatures
The BuildCert TMV scheme recommends the following
set maximum mixed water outlet temperatures for use in
all premises:
44°C for bath fill but see notes below;
41°C for showers;
41°C for washbasins.
The mixed water temperatures must never exceed 46°C.
The maximum mixed water temperature can be 2°C above
the recommended maximum set outlet temperatures.
Note: 46°C is the maximum mixed water temperature
from the bath tap. The maximum temperature takes account
of the allowable temperature tolerances inherent in thermo-
static mixing valves and temperature losses in metal baths.
It is not a safe bathing temperature for adults or children.
The British Burns Association recommends 37 to 37.5°C
as a comfortable bathing temperature for children. In
premises covered by the Care Standards Act 2000, the
maximum mixed water outlet temperature is 43°C
Installation Requirements
This thermostatic mixer valve must be installed in comp-
liance with current Water Regulations. If you have any
doubts about the Water Regulation requirements contact
your local water services provider or use the services of
a professional plumber.
This mixer valve is suitable for use with the following water
supply systems:
Gas Combination Boiler (multi-point) 1.0 - 10 bar*
Unvented System (pressure balanced) 1.0 - 10 bar
Pumped System 1.0 - 10 bar
IMPORTANT: If you install this mixer with a gravity fed
system, there must be a minimum head (vertical distance)
from the underside of tlie cold water storage tank to the
showerhead position of at least 5 metre.
Before connecting the mixer, water should be flushed
through the system to remove all debris that might otherwise
damage the valve.
* If pressure is in excess of 3.5 bar, a pressure-reducing
valve should be fitted.
Supply Conditions TMV2
Operating pressure range High pressure
Maximum static pressure - bar 10
Flow pressure, hot and cold - bar 0.5 to 5
Hot supply temperature - °C 55 to 65
Cold supply temperature - °C 5 to 25
Operating pressure range High pressure
Maximum static pressure - bar 10
Flow pressure, hot and cold - bar 1 to 5
Hot supply temperature - °C 52 to 65
Cold supply temperature - °C 5 to 20
Supply Conditions TMV3

16
KEY
Isolating valve
Reducing valve
Mixer Valve
Pump
Gas Combination Boiler (multi-point)
Unvented System (pressure balanced)
Pumped System

17
Table A: Guide to maximum stabilised tem-
peratures recorded during site tests
Application Mixed water
temperature
Shower 43°C
Washbasin 43°C
Bath (44°C fill) 46°C
Bath (46°C fill) 48°C
The mixed water temperature at terminal fitting should
never exceed 46ºC.
If there is a residual flow during the commissioning or
the annual verification (cold water supply isolation test),
then this is acceptable providing the temperature of the
water seeping from the valve is no more than 2°C above
the designated maximum mixed water outlet temperature
setting of the valve.
Temperature readings should be taken at the normal flow
rate after allowing for the system to stabilise.
The sensing part of the thermometer probe must be fully
submerged in the water that is to be tested.
Any TMV that has been adjusted or serviced must be
re-commissioned and re-tested in accordance with the
manufacturers' instructions.
Commissioning and in-service
tests
Commissioning
Purpose
Since the installed supply conditions are likely to be diffe-
rent from those applied in the laboratory tests it is appro-
priate, at commissioning, to carry out some simple checks
and tests on each mixing valve to provide a performance
reference point for future in-service tests.
Procedure
1. Check that:
a) the designation of the thermostatic mixing valve
matches the intended application
b) the supply pressures are within the range of ope-
rating pressures for the designation of the valve
c) the supply temperatures are within the range per-
mitted for the valve and by guidance information
on the prevention of legionella etc.
2. Adjust the temperature of the mixed water in accor-
dance with the manufacturer’s instructions (page 62)
and the requirement of the application and then carry
out the following sequence:
a) record the temperature of the hot and cold water
supplies
b) record the temperature of the mixed water at the
largest draw-off flow rate
c) record the temperature of the mixed water at a
smaller draw-off flow rate, which shall be measu-
red
d) isolate the cold water supply to the mixing valve
and monitor the mixed water temperature
e) record the maximum temperature achieved as a
result of (d) and the final stabilised temperature
NOTE: The final stabilised mixed water temperature
should not exceed the values in Table A.
f) record the equipment, thermometer etc. used for
the measurements

18
In-service tests
Purpose
The purpose of in-service tests is to regularly monitor and
record the performance of the thermostatic mixing valve.
Deterioration in performance can indicate the need for
service work on the valve and/ or the water supplies.
Procedure
1. Carry out the procedure 2. (a) to (e) on page 72
using the same measuring equipment, or equipment
to the same specifications.
2. If the mixed water temperature has changed signi-
ficantly from the previous test results (e.g. > 1 K),
record the change and before re-adjusting the mixed
water temperature check:
a) that any in-line or integral strainers are clean
b) any in-line or integral check valves or other
anti-backsiphonage devices are in good working
order
c) any isolating valves are fully open
3. With an acceptable mixed water temperature, com-
plete the procedure 2. (a) to (e) on page 72.
4. If at step 2. (e) on page 72 the final mixed water tem-
perature is greater than the values in Table A and / or
the maximum temperature exceeds the corresponding
value from the previous test results by more than about
2 K, the need for service work is indicated.
NOTE: In-service tests should be carried out with a
frequency which identifies a need for service work
before an unsafe water temperature can result. In
the absence of any other instruction or guidance, the
procedure described in „Frequency of in-service tests“
may be used.
Frequency of in-service tests
TMV3*
General
In the absence of any other instruction or guidance on
the means of determining the appropriate frequency of
in-service testing, the following procedure may be used:
1. 6 to 8 weeks after commissioning carry out the tests
given in 2. on page 72.
2. 12 to 15 weeks after commissioning carry out the tests
given in 2. on page 72.
3. Depending on the results of 1. and 4. several possi-
bilities exist:
a) If no significant changes (e.g. < 1 K) in mixed
water temperatures are recorded between com-
missioning and 1., or between commissioning and
4. the next in-service test can be deferred to 24
to 28 weeks after commissioning.
b) If small changes (e.g. 1 to 2 K) in mixed water
temperatures are recorded in only one of these pe-
riods, necessitating adjustment of the mixed water
temperature, then the next in-service test can be
deferred to 24 to 28 weeks after commissioning.
c) If small changes (e.g. 1 to 2 K) in mixed water
temperatures are recorded in both of these peri-
ods, necessitating adjustment of the mixed water
temperature, then the next in-service test should be
carried out at 18 to 21 weeks after commissioning.
d) If significant changes (e.g. > 2 K) in mixed water
temperatures are recorded in either of these
periods, necessitating service work, then the next
in-service test should be carried out at 18 to 21
weeks after commissioning.
4. The general principle to be observed after the first 2 or
3 in-service tests is that the intervals of future tests should
be set to those which previous tests have shown can be
achieved with no more than a small change in mixed
water temperature.
*TMV2: The frequency of performing the in-
service tests is 1 year maximum.

19
Thermostatic Adjustment
Temperature Limitation
The temperature is limited by the safety stop to 40°C. If
a higher temperature is required, it is possible to over ride
the safety stop by depressing the safety button.
NB. It is recommended that for private domestic
use the maximum mixed water temperature be set at the
following factory set values:
Shower Mixer 43°C
Bath/Shower 43°C
Temperatures can be set by following the procedures on
page 62. This ensures that after correct installation the
outlet temperature of the water can never exceed 43°C.
To guarantee a smooth running of the thermostatic element,
it is necessary from time to time to turn the thermostat from
total hot to total cold. The thermostatic mixer valve should
be checked annually by a qualified person to ensure
correct operation.
The mixer is fitted with check valves (page 67 pos.
94074000) and filters (page 67 pos 94282000). If the
water flow drops the filters need to be cleaned. For that
purpose please follow the steps 1 - 11 on page 64.
Calibrating Thermostat
If the temperature reading is different to the showering
temperature, follow the steps 1 - 3 on page 62.

20 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon [phone] · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com 08/2018 9.04410.04
