Hardi MEGA 230 User manual

MEGA 230/350 CENTRIFUGAL
OPERATOR’S MANUAL
10545903 (3/96)

1
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
Part No. 105459 3/96
MEGA 230 /350 CENTRIFUGAL
OPERATORS MANUAL
HARDI reserves the right to make changes in design,
material, or specification without notice thereof.

2HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
TABLE OF CONTENTS
1.0 INTRODUCTION 7
2.0 SAFETY INFORMATION 8
2.1 Follow Safety Instructions 9
2.2 Operating the Sprayer Safely 9
2.3 Handling Chemical Products Safely 11
2.4 Local Poison Information Center 12
3.0 GLOSSARY OF TERMS 13
4.0 ASSEMBLING THE MEGA SPRAYER 14

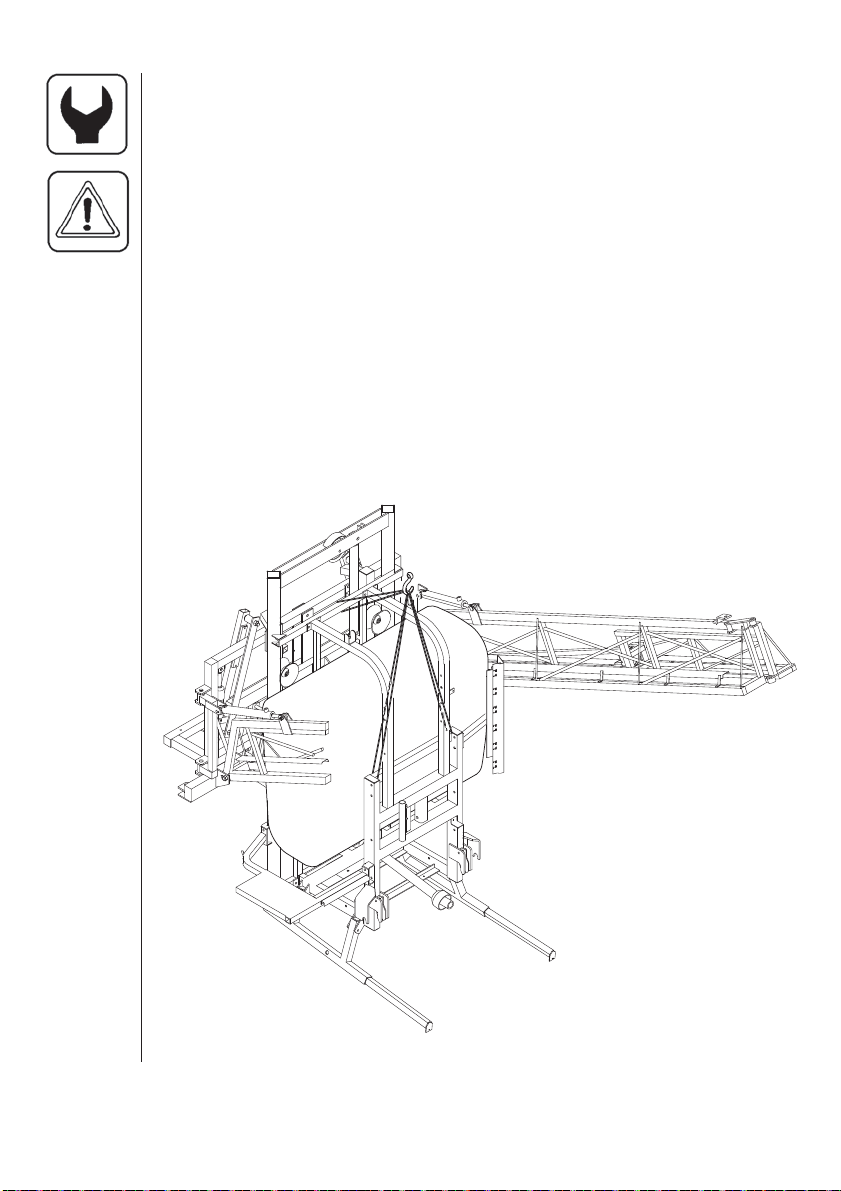

4.1 Lifting points 14
4.2 Preparing Wings for Installation 15
4.3 Installing Boom Wings 15
4.4 Mounting Hydraulic Hoses 16
4.5 Installing Center Frame Spray Tube Assembly 18
4.6 Adjusting Center Cables 19
4.7 Attaching Feed Hoses - Three Valve System 20
4.8 Performing Final Inspection 21
5.0 MOUNTING THE MEGA SPRAYER 22
5.1 Dismounting the Mega Sprayer 23
5.2 P.T.O. Shaft Operator Safety 24
5.3 Installation of P.T.O. Shaft 24
5.4 Hydraulic Requirements with Eagle Boom 27
5.5 Hydraulic Hook-Up 27
5.6 HZ Hydraulics 28
5.7 Installation of Handle 28
5.8 Electric Hook-Up of Handle 28
5.9 Control Box for E.S.C. Controls 29
6.0 OPERATING INSTRUCTIONS 30
6.1 Filling the Main Tank 30
6.2 Filling the Flush Tanks 30
6.3 Standard Sprayer Plumbing Diagram 30
6.4 Operating The Mega Boom 31
6.5 Unfolding & Folding the Boom (HY Hydraulics) 31
6.6 Unfolding & Folding the Boom (HZ Hydraulics) 32
6.7 Tilting the Boom (HZ Models Only) 32

3
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
TABLE OF CONTENTS: Continued
6.0 OPERATING INSTRUCTIONS (cont'd)
6.8 Operation of the ESC Controls 33
6.9 Agitation Adjustment 35
6.10 Manifold System 36
6.11 Manifold System Operating Instructions 38
6.12 Agitation Bypass Valve Operation (Optional) 39
6.13 Operation of the Tank Drain Valve 39
6.14 Nozzle Selection 41
6.15 Calibration 44
7.0 MAINTENANCE 48
7.1 Cleaning the Sprayer 48
7.2 Filters 50
7.3 Lubrication 51
7.4 Greasing the H-Frame & Center Frame 52
7.5 Greasing the Boom 53
7.6 Lubrication of Chain & Sprocket 54
7.7 Greasing the Breakaway Clutch 54
7.8 Maintenance of Triplets 55
8.0 ADJUSTMENTS 56
8.1 Adjustment & Maintenance Intervals 56
8.2 Checking and Adjusting Sprocket Timing 57
8.3 Aligning Wing Assemblies 57
8.4 Aligning Intermediate and Outer Boom Sections 58
8.5 Adjusting Front Fold Cables 59
8.6 Adjusting Breakaway Clutch Tension 60
8.7 Adjusting Boom Wing to be Level 61
8.8 Adjusting Floating Frame Pivots 63
8.9 Adjusting Boom Transport Postion 64
8.10 Adjusting Rear Cable 64
9.0 WINTER STORAGE 65
10.0 OPERATIONAL PROBLEMS 66
10.1 Nozzle Tubes and Fittings 67
10.2 Checking the Valve Cone in Distributor Valves 67

4HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
TABLE OF CONTENTS: Continued
10.0 OPERATIONAL PROBLEMS (cont'd)
10.3 Emergency Operation of E.S.C. Control 68
10.4 Level Indicator 68
11.0 TROUBLESHOOTING 69
11.1 General Spray Systems 69
11.2 Foam Marker 71
11.3 Flush & RinseTM 72
11.4 Chemical Filler 72
11.5 Hydraulics 73
11.6 HY Hydraulics - Schematic 74
11.7 HZ Hydraulics - Schematic 75
12.0 ACCESSORIES 76
12.1 Chemical Filler 76
12.2 Chemical Filler Rinse Kit 76
12.3 Flush System 77
12.4 Tank Rinse System 78
12.5 Foam Marker System 79
12.6 Nurse Tank Quick Fill 80
12.7 Front Tank 80
12.8 Suction Filter 81
12.9 Agitation Shut-Off Valve 81
13.0 WARRANTY POLICY AND CONDITIONS 82

5
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
Dear Owner,
Thank you for purchasing a HARDI product and welcome to the ever-
increasing family of HARDI sprayer owners.
Our sprayers and accessories are rapidly becoming a familiar sight on
North American farms. We believe that this results from growers
becoming increasingly conscious of crop protection input costs and the
vital need for cost effective spray application equipment.
Please take the time to thoroughly read the Operator’s Manual before
using your equipment. You will find many helpful hints as well as
important safety and operation information.
Some of the features on your HARDI sprayer were suggested by
growers. There is no substitute for “on farm” experience and we invite
your comments and suggestions.
Please address your correspondence to the Service Manager at one of
these branches:
Sincerely,
Tom L. Kinzenbaw
President
HARDI MIDWEST HARDI GREAT LAKES
1500 West 76th St. 290 Sovereign Rd.
Davenport, Iowa 52806 London, Ontario N6M 1B3
Phone: [phone] Phone: [phone]

6HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
Fig. 1
MEGA 350 W/ 60' EAGLE BOOM
Fig. 2
MEGA 350 W/ 60' EAGLE BOOM

7
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
1.0 INTRODUCTION
The HARDI MEGA models consist of a pump, frame with a tank that has
either 230 or 350 gallon capacities, ESC-Controls (Electric Control),
Manifold system, P.T.O. shaft and a 60' hydraulic folding Eagle series
spray boom. The 230 gallon model will mount directly to a category II & III
3-point hitch as well as to a category II and category III quick hitch. The
350 gallon model will mount directly to a category III 3-point hitch and
category III & category IIIN quick hitch. A pin kit is available for mounting
the 350 gallon to category II 3-point link arms.
The tank, made of impact-proof and chemical resistant polyethylene, has
a purposeful design with no sharp corners, for easy cleaning. A large,
easy to read tank contents indicator is placed in front of the tank. A step
and platform is placed at the right hand side of the sprayer for easy
access to the tank filling hole.
The ESC (electric control) unit consists of: on/off control valve, pressure
regulating valve, pressure gauge and distribution valves with pressure
equalization feature.
The "Manifold System" features color coded three way valves on suction
and pressure sides of the liquid control system. It allows for safe and
simple use of the sprayer and accessories from one position.
The Self-Cleaning Filter screens out impurities from the spray solution
which are recirculated back to the main tank while clean solution is
constantly being supplied to the boom.
The Eagle hydraulic series boom is available with either 3(HY model) or 5
(HZ model) hydraulic cylinders. The base version being the HY model,
includes boom height adjustment and fold/unfold features all controlled
from the tractor. The HZ model has all the same features as the HY
model but also includes individual wing tilt and fold as added features.
Both versions require single and double acting hydraulic outlets on the
tractor as well as a 12V connection for the HZ model.

8HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
ALWAYS WATCH FOR THIS SYMBOL TO POINT OUT
IMPORTANT SAFETY PRECAUTIONS
IT MEANS ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
WARNING
WARNING
ALWAYS READ OPERATORS MANUAL BEFORE
USING EQUIPMENT
DO NOT REMOVE ANY SAFETY DEVICES OR
SHIELDS. NEVER SERVICE, CLEAN OR REPAIR A
MACHINE WHILE IT IS OPERATING
2.0 SAFETY INFORMATION

9
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
RECOGNIZE SAFETY INFORMATION
This is the Safety-alert symbol. When you see
this symbol on your machine or in this manual,
be alert to the potential for personal injury.
Follow recommended precautions and safe
operating practices.
2.1 Follow Safety Instructions
- Carefully read all the safety messages in this manual and the safety
labels fitted to the machine. Keep safety labels in good condition.
Replace missing or damaged safety labels. Be sure that new
equipment components include any current safety labels. Replacement
safety labels are available from your authorized HARDI dealer.
- Learn how to operate the sprayer and how to use the controls prop
erly. Do not let anyone operate the sprayer without proper
instructions.
- Keep your sprayer in proper working condition. Unauthorized
modifications or use may impair the function and/or safety and affect
the machines life.
- If you do not understand any part of this manual and need assistance,
please contact your authorized HARDI dealer.
2.2 Operating The Sprayer Safely
1.Read the complete manual carefully and become familiar with the
operation of the equipment before initial operation in each spraying
season. Failure to do so may result in possible over or under
application of spray solution which may drastically affect crop
production and/or lead to personal injury.
2. Before starting the engine on the tractor unit, be sure all operating
controls are in the off or neutral position, including but not limited to the
P.T.O. shaft and/or spray controls. Be sure the tractor power train is
disengaged.
3.Operate spray and boom functions only when seated in the Operator’s
seat.

10 HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
2.2 Operating The Sprayer Safely (cont'd)
4. One of the most frequent causes of personal injury or death results
from persons falling off or being run over. Do not permit others to
ride on or in. Only one person - the operator - should be in the
tractor when in operation.
5. Before leaving the tractor seat, stop the engine, put all controls in
neutral, and put the transmission control lever in the park position or
neutral with the brakes locked. Read the tractor operations manual for
added safety precautions.
6. PTO driven equipment can cause serious injury. Before working on or
near the P.T.O. shaft, servicing or cleaning the equipment, put PTO
lever in the DISENGAGE position and stop the engine.
7. Do not fold or unfold boom near overhead wires. Serious injury or
death could result if contact is made with electric wires.
8. Keep hands, feet & clothing away from moving parts.
9. Wear relatively tight and belted clothing to prevent from being caught
on some part of the machine.
10. Slow down when turning especially with boom extended.
11. Always keep children away from your sprayer and/or tractor unit.
12. Before transporting the sprayer ensure that the boom is fully folded
and fully locked into transport position. Ensure all locking
devices are fully engaged whether hydraulic or mechanical.
13. Slow moving tractors and spray equipment can create a hazard when
on public roads. Avoid personal injury or death resulting from any
accidents by using flashing lights. Local regulations may require
installation of flashing warning lights.
14. Avoid injuries from high pressure fluids penetrating the skin by
relieving system pressure before disconnecting hydraulics or other
lines. Ensure all fittings are tight before applying pressure to the
system.

11
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
2.2 Operating The Sprayer Safely (cont'd)
15. Understand service procedures before undertaking any
maintenance. Never lubricate, service, or adjust the machine while
its moving. Securely support any components before working on
them.
16. Keep all parts in good condition and properly installed. Fix damaged
parts immediately. Replace worn or broken parts. Remove excessive
buildup of grease, oil, or debri.
2.3 Handling Chemical Products Safely
1. Direct exposure to hazardous chemicals can cause serious injury.
These chemicals can include lubricants, coolants, paints, adhesives
and agricultural chemicals. Material safety data sheets (M.S.D.S.) are
available for all hazardous chemicals which inform the user of specific
details including, physical and health hazards, safety procedures, and
emergency response techniques.
2. Protective clothing such as rubber gloves, goggles, coveralls and
respirator must be worn while handling chemicals. All protective
clothing should be kept in excellent condition and cleaned regularly or
discarded.
3. If chemicals come in contact with any exposed skin areas, wash
immediately with clean water and detergent. Never place nozzle tips
or any other components that have been exposed to chemicals to lips
to blow out obstructions. Use a soft brush to clean spray nozzles.
4. Dedicate an area to fill, flush, calibrate and decontaminate sprayer
where chemicals will not drift or run off to contaminate people,
animals, vegetation, water supply, etc. Locate this area where there is
virtually no chance of children being in contact with this residue.
5. Decontaminate equipment used in mixing, transferring, and applying
chemicals after use. Follow the instructions on the chemical label for
the correct procedure required. Wash spray residue from outside of
the sprayer to prevent corrosion.

12 HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
2.3 Handling Chemical Products Safely (cont'd)
6. Extreme care should be taken in measuring spray products. Powders
should be used in suitable sized packages or weighed accurately.
Liquids should be poured into a suitable graduated container. Keep
chemical containers low when pouring. Wear a filtered respirator and
let the wind blow away from you to avoid dust and/or splashes
contacting the skin or hair.
7. Store chemicals in a separate, plainly marked locked building. Keep
the chemical in its original container with the label intact.
8. Dispose all empty containers after rinsing in accordance with local
regulations & by-laws. Dispose of all unused chemicals and left over
fertilizer in an approved manner
9. Keep a first aid kit and fire extinguisher available at all times when
handling chemicals.
2.4 Local Poison Information Center
PHONE NO. ____ - ____ - _____
Find the phone number for the poison control center in your phone
book and write it in the space above.
Keep a list, in the space provided below, of all the chemicals that you
have in use.
1. ______________
2. ______________
3. ______________
4. ______________
5. ______________
6. ______________
7. ______________
8. ______________
9. ______________
10. _____________

13
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
3.0 GLOSSARY
RIGHT HAND and Are determined by facing the forward
LEFT HAND SIDES direction of travel.
FOLDED BOOM Refers to the boom in transport position.
UNFOLDED BOOM Refers to the boom in spray position.
WING Refers to the folding portion of the boom
CENTER Refers to the portion of the boom that
the wings attach to. The wings move up
and down with the center.
INNER WING Refers to the inner portion of the boom.
OUTER WING Refers to the outer portion of the boom.
BREAKAWAY Refers to the device between the inner
wing and the outer wing that allows the
outer wing to swing backward if an
obstacle is encountered.

14 HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
4.0 ASSEMBLING THE MEGA SPRAYER
USE PROPER LIFTING EQUIPMENT
LIFTING HEAVY EQUIPMENT INCORRECTLY CAN CAUSE
PERSONAL INJURY OR MACHINE DAMAGE.
FOLLOW ALL RECOMMENDED PROCEDURES FOR REMOVAL
AND INSTALLATION OF COMPONENTS IN THE MANUAL.
4.1 Lifting Points
When loading or unloading the sprayer from a truck or trailer use the
lifting points as shown.
The Mega Sprayer is shipped in 4 parts for ease of transportation:
1. Tank & frame assembly
2. Wing assembly RH
3. Wing assembly LH
4. Boom mount kit
Fig. 3
WARNING: NOTE CORRECT
LOCATION OF SUPPORT LEG
EXTENSIONS.
The Mega tank and frame is
delivered from the factory
with the leg extensions
facing the rear. To move
the extensions to the front of the
sprayer (fig.3), remove them
swap the right-hand side with the
left-hand side and refit.

15
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
4.2 Preparing Wings For Installation
CAUTION: For safe handling, tie inner & outer boom sections
together to prevent accidental unfold during installation.
1. Tie outer boom sections to inner section.
2. Attach lifting chain at lift point (A) on inner boom section. Position
chain between vertical and angled boom members so chain does not
move from this point when boom is lifted.
Fig. 4
4.3 Installing Boom Wings
CAUTION! Before installing wings, ensure that the stands are
lowered and that the leg extensions on Mega frame are extended
forward.
1a. HY BOOM - Fit nut (qty. 1), washers
(qty. 2), to the threaded end of the tie
rod. Fit the rod under tab on mount
plates on center frame. Fit remaining
washers and lock nut to the rods.
1b. HZ BOOM - Attach tilt cylinders to center frame using pins and
cotter pins. Remove plugs from cylinder ports and manually extend
cylinders to their full extension. Install o-ring washers and
restrictor fittings in both ports on hydraulic cylinders. The restrictor
with the small hole is fitted to the fixed (base) end of the hydraulic
cylinder. (Refer to fig. 5)
RESTRICTOR
Fig.5

16 HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
4.4 Mounting Hydraulic Hoses
BE SURE TO HOOK UP HYDRAULIC LINES PROPERLY!
ENSURE HYDRAULIC LINES HAVE NOT BEEN DAMAGED DURING
SHIPMENT.
ESCAPING HYDRAULIC FLUID UNDER PRESSURE CAN
PENETRATE THE SKIN CAUSING SERIOUS INJURY. AVOID THIS
HAZARD BY RELIEVING PRESSURE BEFORE DISCONNECTING
HYDRAULIC LINES.
ENSURE ALL CONNECTIONS ARE TIGHT BEFORE APPLYING
PRESSURE, SEARCH FOR LEAKS WITH A PIECE OF CARDBOARD
NOT YOUR HANDS!
A/ FOLD CYLINDERS
1. Route hydraulic hoses to fold cylinders through the hose support
bracket A(Fig. 6). (Refer to section 11 for hydraulic schematics)
2. Attach hydraulic hoses from right hand side of hydraulic block on
center section to port on the hinge base end of hydraulic fold
cylinders.(Hy Hydraulics Only)
3. Attach hydraulic hoses from left hand side of hydraulic block on
center section to the other port on the hydraulic fold cylinders.(Hy
Hydraulics Only)
4.3 Installing Boom Wings (cont'd)
2. Position boom hinge on center frame with folded boom sections to
the front.
3. Attach tie rod/tilt cylinder to hinge using pin and cotter pins.
4. Line up lower hinge pin holes and insert pin. Insert threaded pin from
the front through the center frame and hinge and retain with lock nut.
5. Attach safety chain from center section to extended pin on upper
end of hydraulic cylinder - Fit locking ring to pin. This will prevent
boom sections from accidently unfolding during installation. (Refer to
fig. 6)
6. Repeat steps 3-6 for other wing.
7. Attach equalizer cables to inner boom sections using M12x50mm
bolts and lock nuts.
8. Install o-ring washers and restrictor fittings in both ports of hydraulic
fold cylinders. Restrictor with the small hole goes in the fixed (base)
end of the hydraulic cylinder. (Fig. 5)

17
HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL

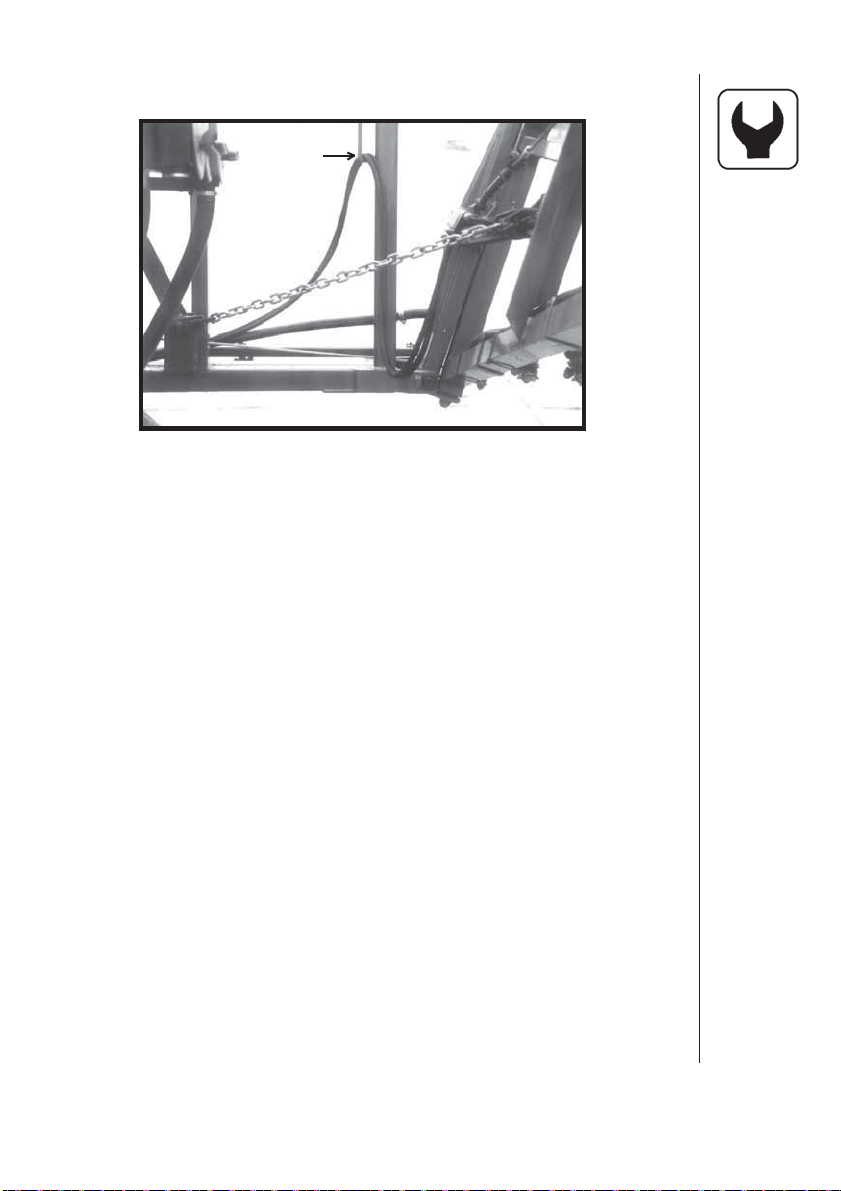

Fig.6
A
4.4 Mounting Hydraulic Hoses (cont'd)
4. Disconnect fold cylinder rod (adjustable eye end) from wing section.
5. Ensure cylinder is free of obstruction for retraction and extension.
6. Connect hydraulic hoses to double acting outlet on tractor. (Refer to
section 11 for hydraulic schematics)
7. Start tractor engine and cycle fold cylinders by actuating double
acting outlet 10 times to bleed air from hydraulic system.
8. Stop tractor engine, check hydraulic reservoir oil level and fill as
necessary.
9. Attach fold cylinder rods to boom sections, using previously re-
moved pins and cotter pins.
B/ TILT CYLINDERS
1. If hydraulic tilt cylinders are fitted to the spray boom, air should be
bled from these lines before spraying.
2. Disconnect tilt cylinder rod eyes from wing section.

18 HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
4.4 Mounting Hydraulic Hoses (cont'd)
Fig. 7
CAUTION! Wing section must be supported before removal of
hydraulic cylinder rod eyes.
3. Ensure cylinder is free of obstruction for retraction and extension.
4. Start tractor engine and cycle tilt cylinder by actuating double acting
outlet 10 times to bleed air from hydraulic cylinders.
5. Stop tractor engine, check hydraulic reservoir oil level and fill as
necessary.
6. Reattach tilt cylinder rods to boom sections.
4.5 Installing Center Frame Spray Tube Assembly
1. Attach brackets to center frame using M6x30mm cap screws and lock
nuts.
NOTE: To gain access to mounting holes on the nozzle track,
remove plastic nozzle retaining nuts closest to mount holes
and remove tube as necessary to install cap screws from
the bottom.
2. Attach spray tube assembly using M6x20mm cap screws with lock
nuts on top. The 4 nozzle tube is to be on the right-hand side.
