Norac UC4.5 User manual

SUMMERS
Pull-Type with Proxy Switch Sense
Installation Manual
SM2

Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-SM2-INST Rev C (SUMMERS Pull-Type with Proxy Switch Sense)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents
1Introduction................................................................................................................ 1
2General UC4.5 System Layout................................................................................. 2
3Kit Parts ...................................................................................................................... 3
4Pre-Install Checklist................................................................................................... 7
5Ultrasonic Sensor Installation .................................................................................. 8
6Roll Sensor Installation............................................................................................ 12
7Electrical Installation ............................................................................................... 15
8Hydraulic Installation .............................................................................................. 18
9Completing the Installation .................................................................................... 21
10Cable Drawings ........................................................................................................ 22

1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.

2

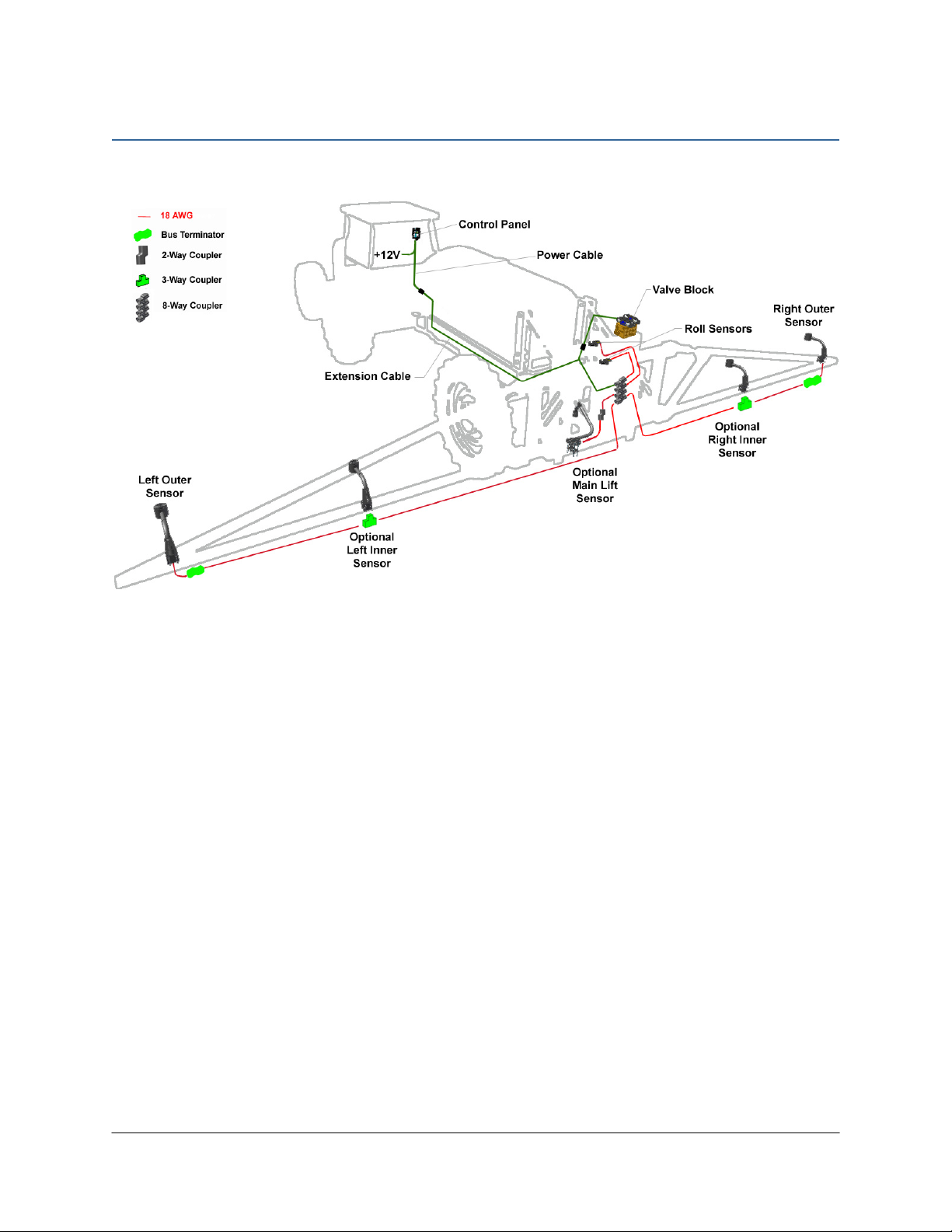

2General UC4.5 System Layout
Figure 1 illustrates the general layout of the UC4.5 system components:
Figure 1: General UC4.5 System Layout

3
3Kit Parts
3.1 Kit Overview

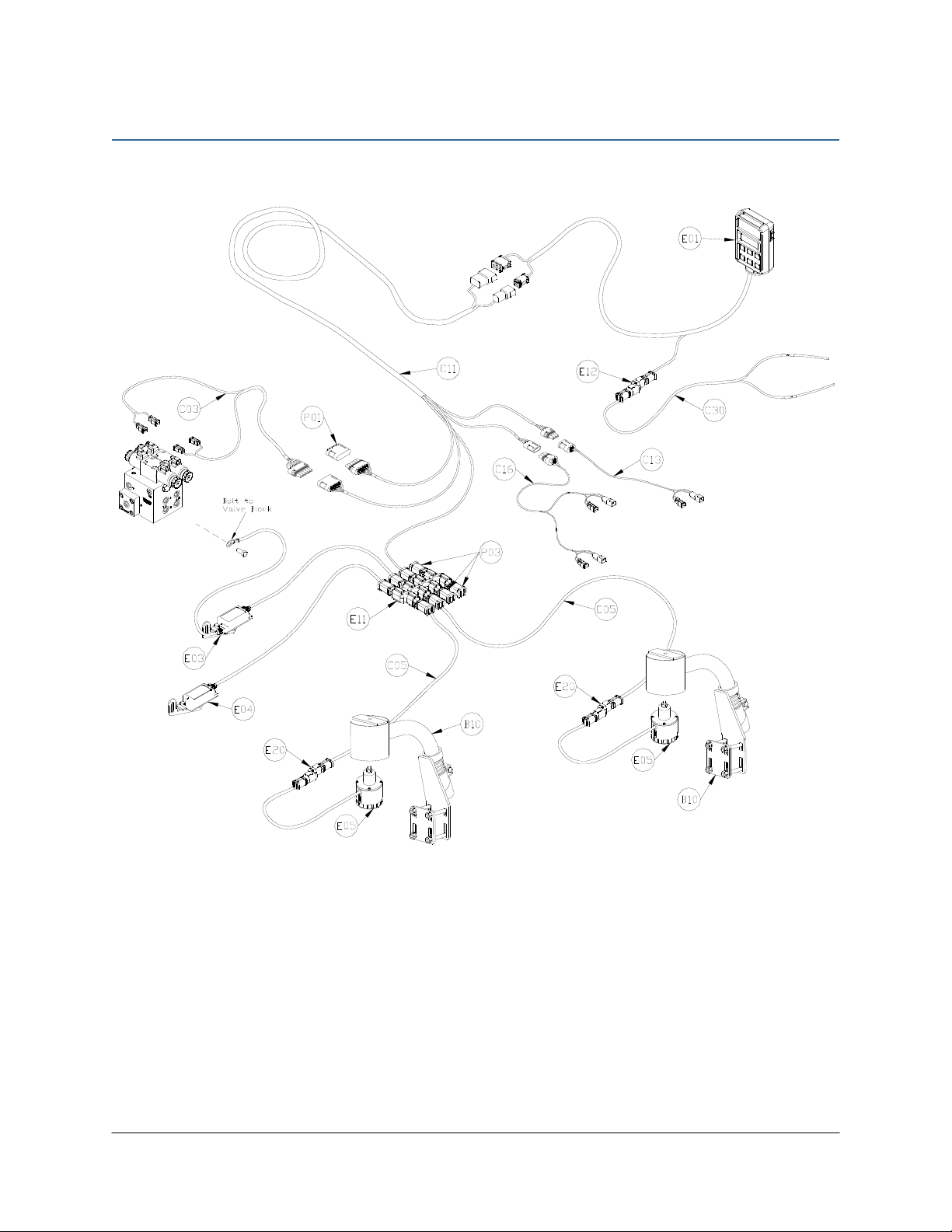

Figure 2: SM2 System Parts

4

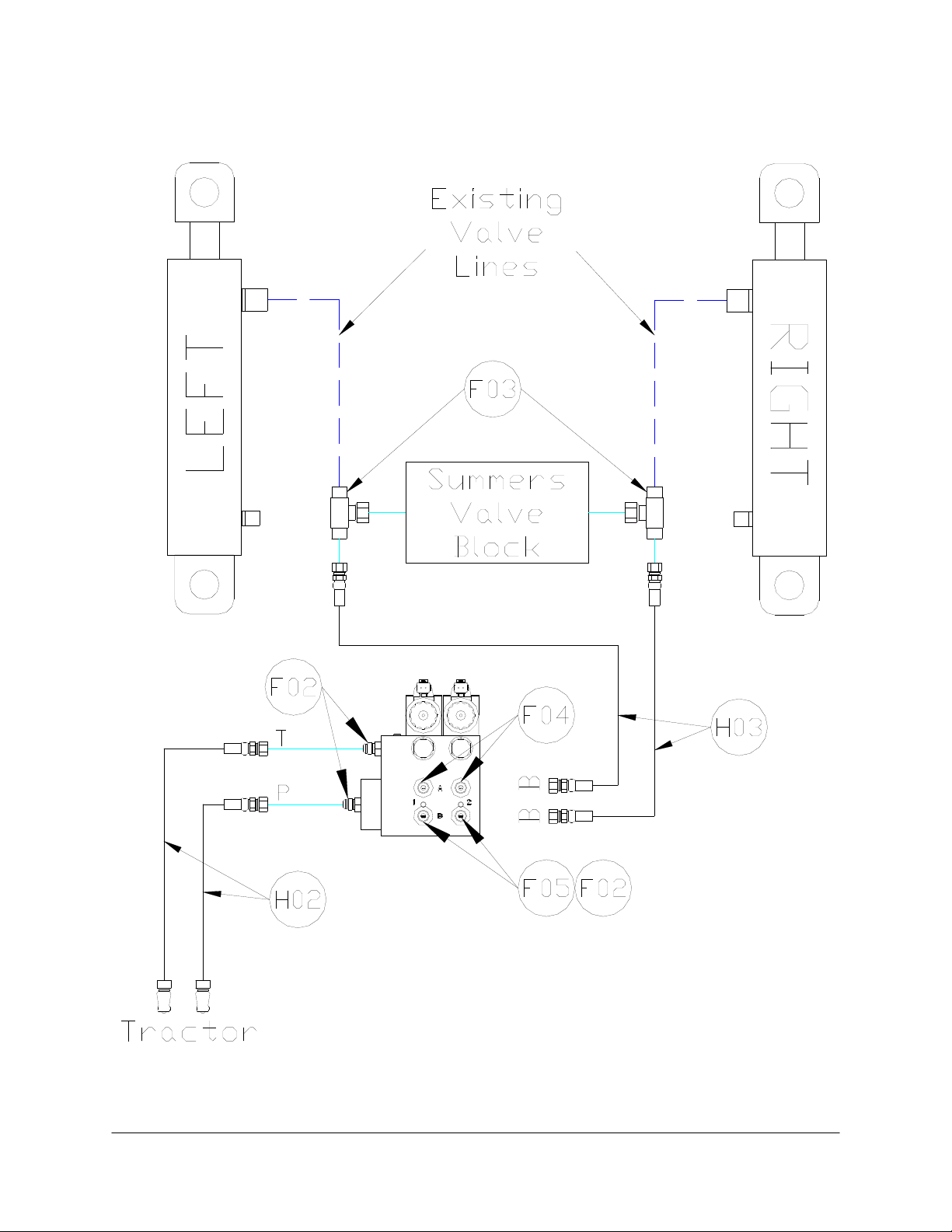

3.2 Hydraulic Plumbing
Figure 3: SM2 Hydraulic Plumbing

5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C10 44650-51 CABLE UC4.5 POWER GENERIC PULL-TYPE 1
C11 44651-50 CABLE UC4.5 EXTENSION VALVE GENERIC 1
C13 44658-70 CABLE UC4 INTERFACE REMOTE MANUAL DT 1
C16 44658-69 CABLE UC4 INTERFACE ROLL DT 1
C30 43250-06 CABLE UC5 BATTERY PIGTAIL FUSED 1
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1
E04 43741 UC5 ROLL SENSOR VER. 2 1
E05 43750 UC5 ULTRASONIC SENSOR 2
E11 43765 UC5 NETWORK COUPLER 8-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 1
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
H02 44863-30 HOSE ASSEMBLY 122R2-06 372 IN L 8MB 6FJX WITH QUICK COUPLER 2
H03 44863-01 HOSE ASSEMBLY 122R2-06 36 IN L 6FJX 6FJX 2
H10 44865-30 HYDRAULICS FITTING KIT - SM1 1
M01 UC4.5-BC-MANUAL-
OPERATOR OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-SM2-INST MANUAL INSTALLATION UC4.5 SUMMERS PULL-TYPE WITH PROXY SWITCH SENSE 1
M02 100659 BOLT HEX NC 5/16X4 18.8SS 2
P01 44689 CONN GP SHROUD PLUG 6 WAY 1
P03 105882 UC5 NETWORK 6 PIN PLUG 3
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
3.4 Optional Main Lift Kit
An optional main lift sensor kit is available for purchase from NORAC.
Part Number Name
UC4.5-SM3 UC4.5 SUMMERS ENHANCED STABILITY AND PROP MAIN LIFT OPTION

6

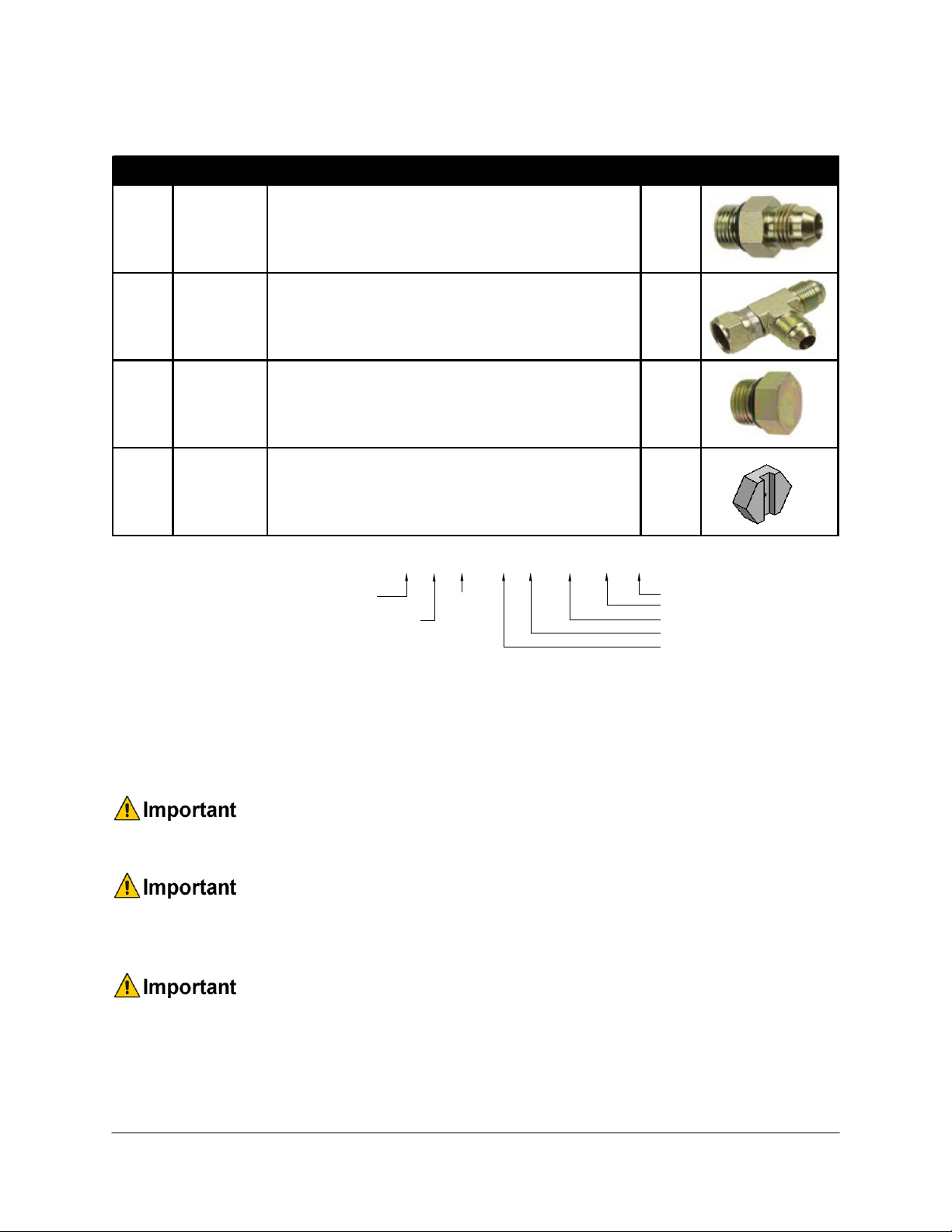

3.5 Hydraulic Fitting Kit Details (P/N: 44865-30)
Item Part Number Name Quantity Picture
F02 103312 MALE ADAPTER - 6MB 6MJ 4
F03 103839 TEE ADAPTER - 6FJXR 6MJT 2
F04 104369 PLUG - 6MBP 2
F05 44928 ORIFICE INSERT .047 IN ONE WAY 2
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.

7

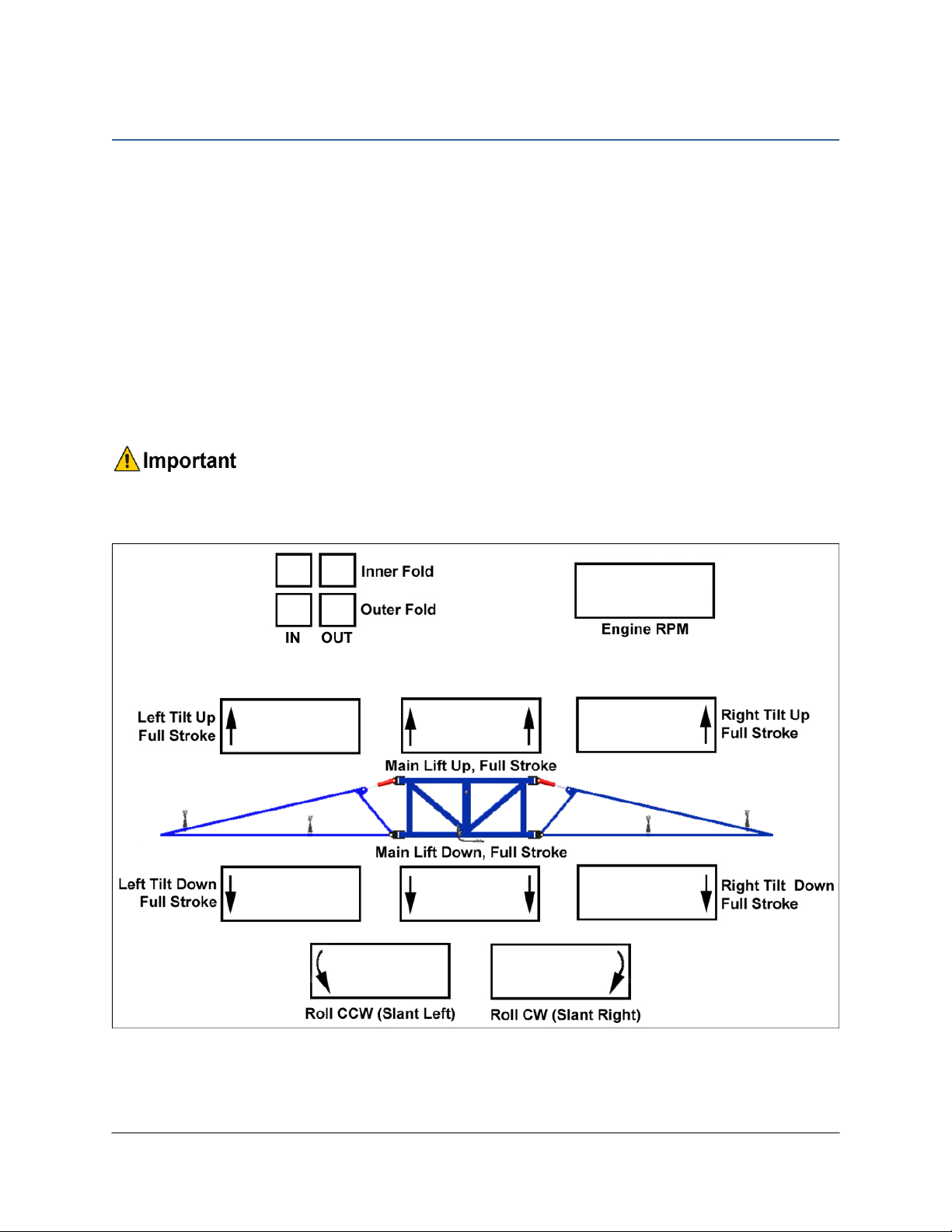

4Pre-Install Checklist
The pre-install checklist is necessary to check the existing sprayer functionality before the
installation.
1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).
2. Ensure all boom-fold operations are functional (place a check mark in boxes below).
3. Bring engine to field-operational RPM and record below.
4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure
repeatable measurements, take the average of 3 trials.
5. Not all sprayers will have the functions listed below in Figure 4.
Ensure the boom has sufficient travel so it does not contact the ground during
these tests.
Figure 4: Pre-Install Boom Speeds

8
5Ultrasonic Sensor Installation
5.1 Bracket Assembly
Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions
below.
Figure 5: Breakaway Bracket Assembly
1. Compress the spring and insert it together with the collar into the base.
2. Slide the tube through the assembled part.
3. Using the bolt and nut, tighten the collar to the tube with the sensor tube centered.
4. Apply a small amount of grease to the rotating surfaces of the bracket.

9

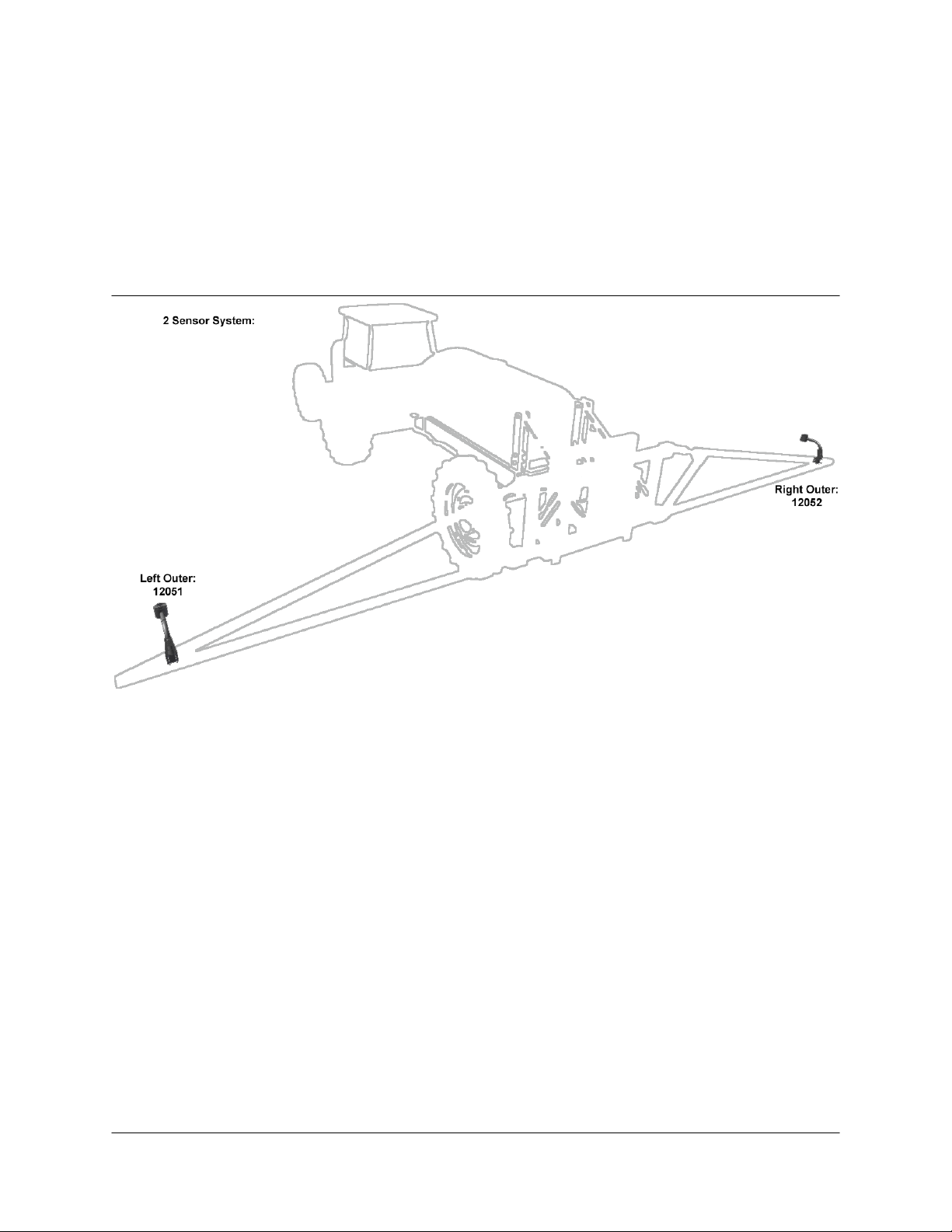

5.2 Ultrasonic Sensor Serial Number Arrangement
When installing the sensors, start with the smallest serial number on the left-hand side, and
proceed to the largest serial number on the right hand side. Each sensor has a serial number
stamped on the sensor housing.
Apply a light coating of the supplied Permatex Anti-seize grease to all threaded
parts upon installation.
Figure 6: Sensor Serial Number Arrangement

10
5.3 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent sensor
measurement error. These rules should be followed for both the wing sensors and the main
lift (middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A).
2. The centerline of the acoustic cone should be approximately vertical at normal operating
heights (A).
3. The bottom of the sensor must be at least 9 inches in front of the spray nozzles and boom
structure (B). (This does not apply for the main lift sensor)
4. The bottom of the sensor must be at least 9 inches above the spray nozzles (C).
5. Ensure there are no other obstructions with a 12 inch (23 cm) diameter circle projected
directly below the sensor (D).
Figure 7: Sensor Mounting Guidelines

11
5.4 Wing Sensor Installation
1. The sensor bracket should be oriented forward (ahead of the boom).
2. Typically the best mounting location for the wing sensor brackets will be near the end of
the boom tips, approximately two feet (60cm) from the end.
3. Depending on the boom design, some breakaway sections will lift upwards as they break
back. If the sensor is mounted to this portion of the boom, the system will force the boom
downwards towards the ground as the boom folds backwards.
4. Mount the NORAC ultrasonic sensor into the sensor bracket.

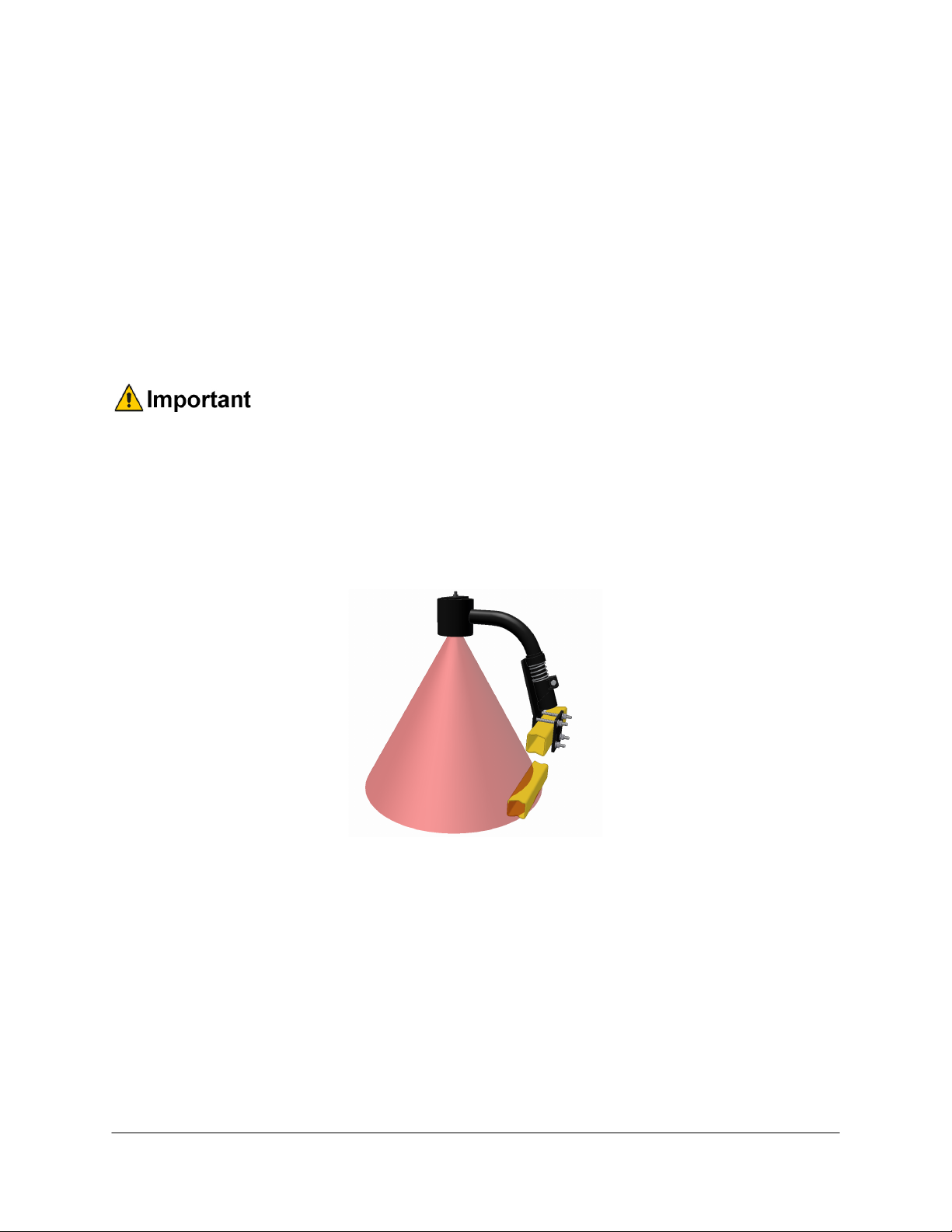

A problem can arise if a sensor is not mounted correctly. It is possible for the
sensor to read off of the boom instead of the ground. This may only become
apparent once the control system is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the
boom when the boom is folded to transport position. If possible, mount the sensor
brackets while the booms are folded to ensure they will not cause interference.
Figure 8: Sensor Reading Off Boom

12
6Roll Sensor Installation
6.1 Bracket Assembly
1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine
screws. Tighten screws to 10 in-lbs (1.1 Nm).
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CANbus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).
Figure 9: Mounting Roll Sensor to Bracket
Figure 10: Roll Sensor Orientation - Connector Facing Right Wing

13

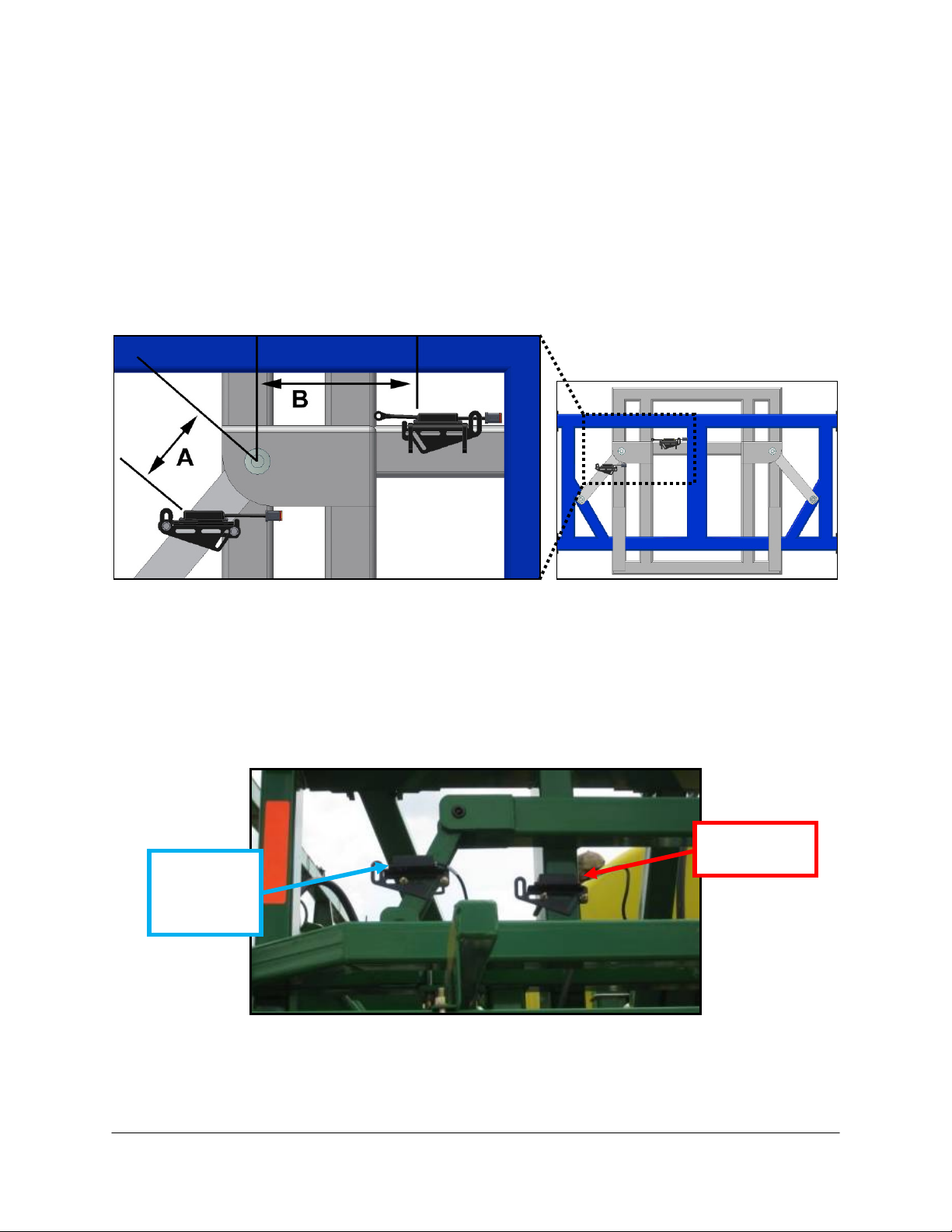

6.2 Roll Sensor Mounting Guidelines: Trapeze-Suspended Booms
1. When mounting the roll sensors, mount the roll sensor without the temperature probe on
the trapeze link (boom frame) and the roll sensor with the temperature probe on the
trapeze support (chassis). For optimal performance, minimize the distance from the boom
frame roll sensor to the pivot point (A) and minimize the vertical distance between the
chassis roll sensor and the pivot point (B).
2. There are two additional bolts included in the kit (part #100659) to mount the boom frame
roll sensor to the trapeze link.
Figure 11: Roll Sensor Mounting on a Trapeze Suspended Boom
3. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
4. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
5. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
Figure 12: Roll Sensors Mounted on a Summers Sprayer
Chassis Roll
Senso
r
Boom
Frame Roll
Sensor

14
6.3 Temperature Probe
Once the block is mounted, fasten the temperature probe from E03 to the NORAC valve
block using the included 3/8x1/2” bolt as illustrated in Figure 13.
Figure 13: NORAC Valve Block with Temperature Probe Installed

15
7Electrical Installation
1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it
will be clearly visible and within easy reach of the operator.
A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the
Roll Over Protection Bar. Four pilot holes for the screws provided need to be drilled to
facilitate the control panel mounting.
Another option is to purchase an adapter for the flexible panel mount that has a 3/8" NC
threaded stud on the end to bolt through an existing mount. These can be found at your
local outdoor store as a RAM mount part number RAM-B-236. (See http://www.ram-
mount.com/)

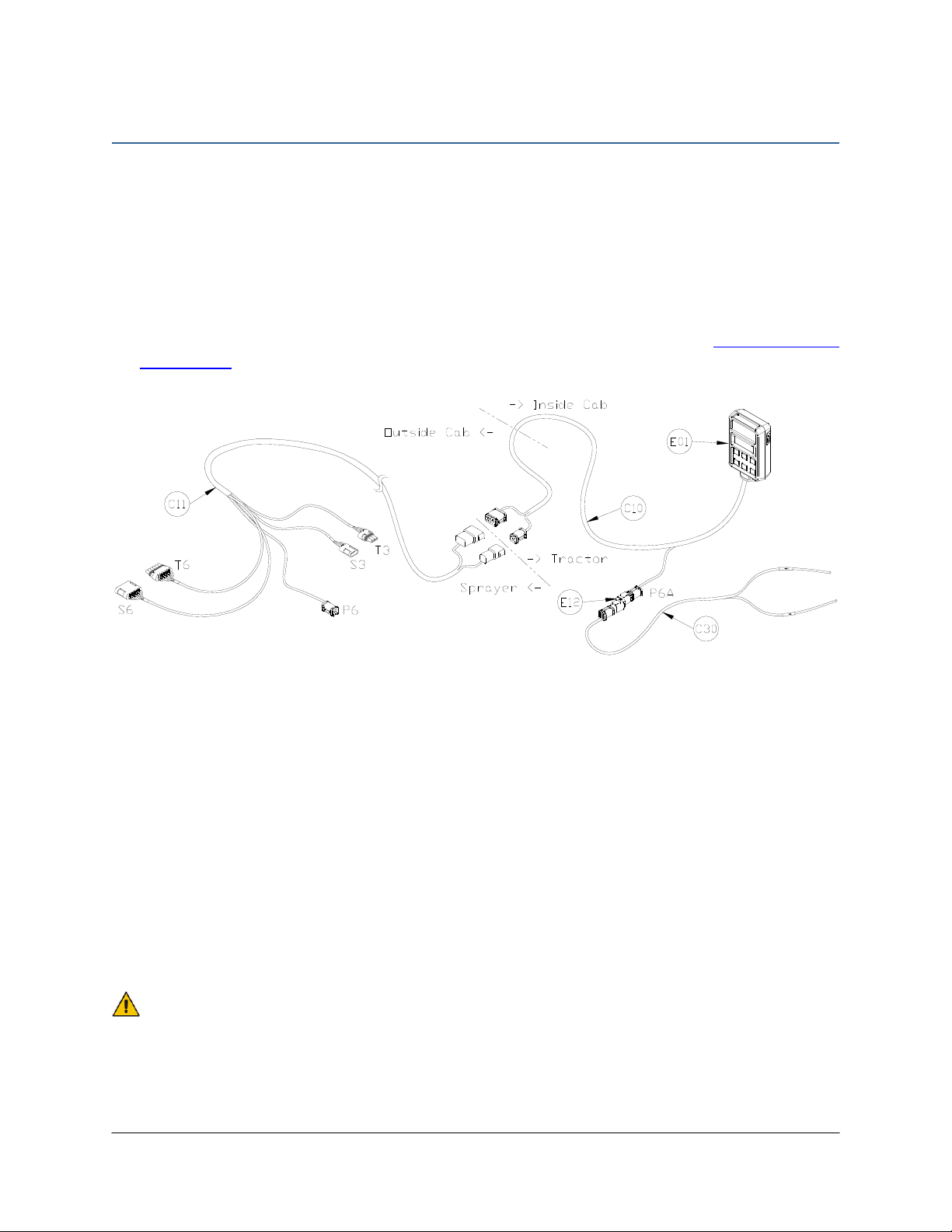

Figure 14: Cable Configurations: C10, C11 and C30
2. Connect the UC4.5 power cable (C10) to the UC4.5 control panel in the sprayer cab.
Ensure both plugs (P16 and P4) are connected to the panel. Cable tie C10 to the RAM
mount to help provide strain relief.
3. Connect the power cable connector (P6A) to C30 using a 2-way coupler (E12). Connect
C30 to an appropriate power supply.
4. Route the P12/P6B of C10 out of the cab.
5. Connect the P12/P6B from C10 to R12/R6 of C11 at the hitch. This connection is the hitch
disconnect.
6. Route C11 to the vicinity of the valve block at the rear of the sprayer.
Ensure the UC4.5 Control Panel’s power is OFF for the remaining installation.
(Bottom of switch pressed IN).

16
Figure 15: Cable Configurations: C03, C11, C13 and C16
7. Connect C16 to the 3-pin shroud on cable C11. Route the DT connectors on C16 to the
Summers valve block.
8. Disconnect the Left tip lift DT connector from the Summers valve block and plug it into the
connector marked “ROLL CW” on cable C16. Connect the DT plug labeled “ROLL CW”
on cable C16 into the Left Up connector on the Summers valve block.
9. Disconnect the Right tip lift DT connector from the Summers valve block and plug it into
the connector marked “Roll CCW” on cable C16. Connect the DT plug labeled “ROLL
CCW” on cable C16 into the Right Up connector on the Summers valve block.
10. Connect C13 to the 3-pin tower on cable C11. Route the DT connectors on cable C13 to
the Summers valve block.
11. Remove the connector from solenoid “H” on the Summers valve and connect the DT plug
on cable C13 to the valve. Connect the plug that was disconnected from solenoid “H” to
the receptacle on cable C13.
12. Connect the plug (P01) to the 6-pin tower on cable C11.
13. Connect the 6-pin tower on C03 to the 6-pin shroud on C11. Connect the 2-pin
connectors on C03 to the NORAC valve block, as shown in Figure 16.
14. The connectors on the valve cable (C03) are marked RIGHT UP, LEFT UP, RIGHT
DOWN and LEFT DOWN. Cables labeled with UP go on the same side as the
hydraulic hoses.

17
Figure 16: Valve Cable Connections
15. Fasten the 8-way coupler to the boom with cable ties. Connect P6 on C11 to the 8-way
coupler.
16. Connect both roll sensors to the 8-way coupler.
17. Connect two cables (C05) to the 8-way coupler and route along the booms to the wing
sensors. Follow existing cables and hoses to be sure the cable will not be pinched or
stretched.
18. At the sensor brackets, attach a 2-way coupler with terminator (E20) to the sprayer boom.
The 2-way coupler with terminator is the white two way coupler. Plug the sensor and the
CANbus cable into the 2-way coupler.
IMPORTANT:
Provide enough slack in all cables to account for the movement of the main
section, parallel lift, and FOLDING boom movement.
