H1362,H1372,&H1382AUGERASSEMBLYMANUAL
Read&understandallinstructionspertainingtothisaugerpriortouse!






Revised10/3/2014 

HarvestInternationalH13XXAssemblyManual  Page2of35

Safety Alert
Watch for this ALERT Symbol. It identifies potential hazards to Personal SAFETY and
your HEALTH. It points out Safety precautions.
This SAFETY symbol means:
ATTENTION:
BE ALERT
Why is SAFETY important to you?
THREE BIG REASONS:
*ACCIDENTS DISABLE AND KILL
*ACCIDENTS COST
*ACCIDENTS CAN BE AVOIDED
Failure to read this Auger manual before operation of the Auger is a misuse of the
equipment and a needless risk to your HEALTH and SAFETY. Your life and limbs are
worth keeping. Use this equipment with care.
Symbol
Signal Words:
DANGER, WARNING, CAUTION
The appropriate signal word for each message has been selected using the following
guidelines below the Alert Symbol.
BE ALERT!
D
D
DA
A
AN
N
NG
G
GE
E
ER
R
R–Indicates an imminently hazardous situation that, if not avoided, will result
in death or serious injury. This signal word is to be limited to the most extreme situations,
typically for machine components that, for functional purposes, cannot be guarded.
W
W
WA
A
AR
R
RN
N
NI
I
IN
N
NG
G
G–Indicates a potentially hazardous situation that, if not avoided, could result
in death or serious injury, and includes hazards that are exposed when guards are
removed. It may also be used to alert against unsafe practices.
C
C
CA
A
AU
U
UT
T
TI
I
IO
O
ON
N
N–Indicates a potentially hazardous situation that, if not avoided, may result
in minor or moderate injury. It may also be used to alert against unsafe practices.

HarvestInternationalH13XXAssemblyManual  Page3of35

TABLE OF CONTENTS
Tube Identification ……………………………………………….. 4
Step 1
Tube & Flighting Assembly ……………………………………………….. 5
Steps 2-6
Discharge Head Assembly ……………………………………………….. 7
Step 7
Cable Mount & Truss Assembly ……………………………………………….. 7
Steps 8-10
Infeed Housing Assembly ……………………………………………….. 9
Steps 11-20
Transport Arm Assembly ……………………………………………….. 15
Steps 21 & 22
Truss Cable Assembly ……………………………………………….. 17
Steps 23-26
Hydraulic Hose Assembly ……………………………………………….. 20
Step 27
Carriage Assembly (Identification) ……………………………………………….. 21
Step 28-43
Hydraulic Hose Assembly (cont’d) ……………………………………………….. 30
Steps 44 & 45
Swing Tube & Hopper Assembly ……………………………………………….. 31
Steps 46-51
Parts Book Drawings ……………………………………………….. 36

HarvestInternationalH13XXAssemblyManual  Page4of35

Step 1
Tube Identification

1st Tube H1362, H1372, & H1382
2nd Tube H1362, H1372, & H1382
3rd Tube, Discharge H1362
3rd Tube, H1372 & H1382
4th Tube, Discharge H1372
4th Tube, Discharge H1382

HarvestInternationalH13XXAssemblyManual  Page5of35

Step 2(Tube & Flighting Assembly)

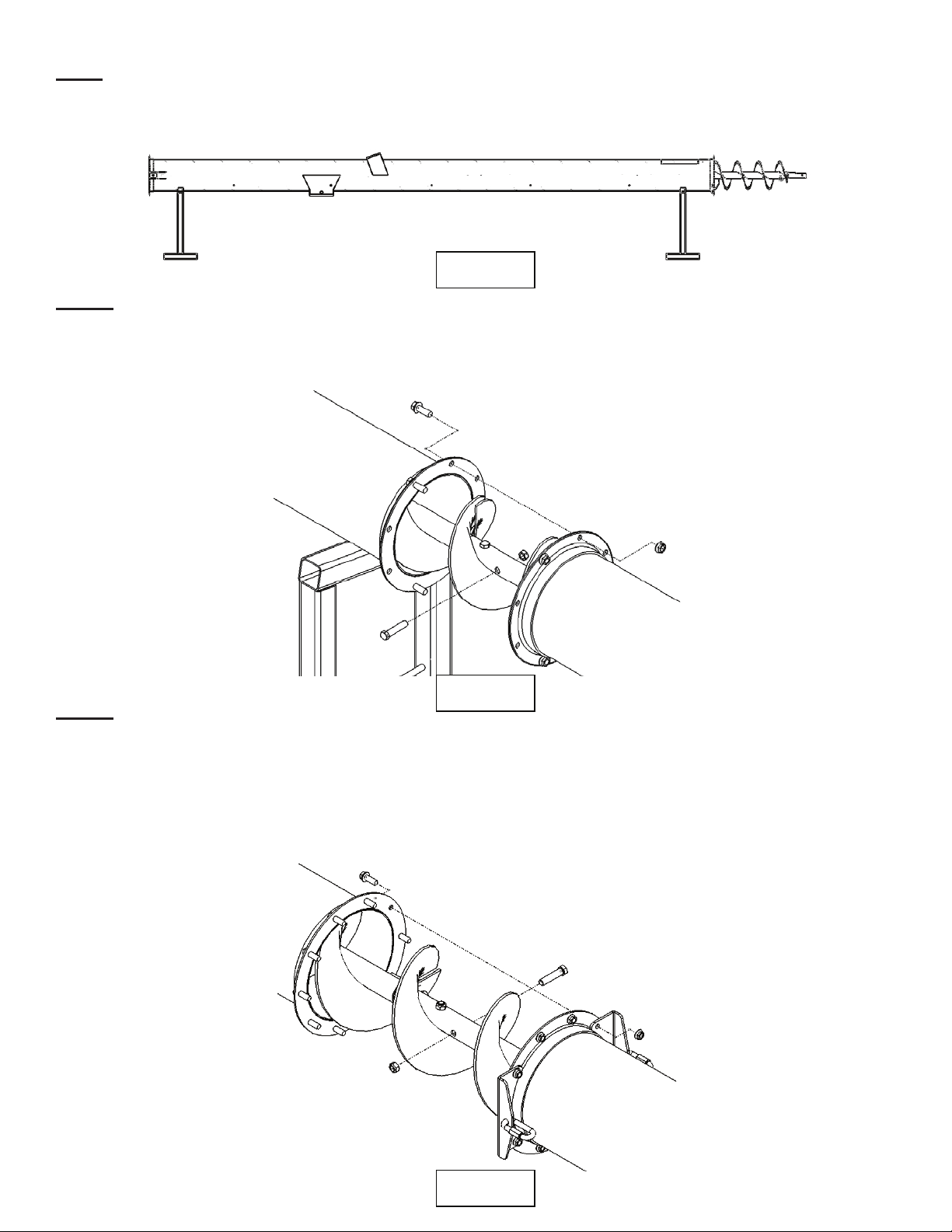

Place tubes on assembly stands as shown. Place stands 12” or less from the end of the tube. Placing stands
further than 12” from end of the tube may cause damage to the tubes.
Step 3

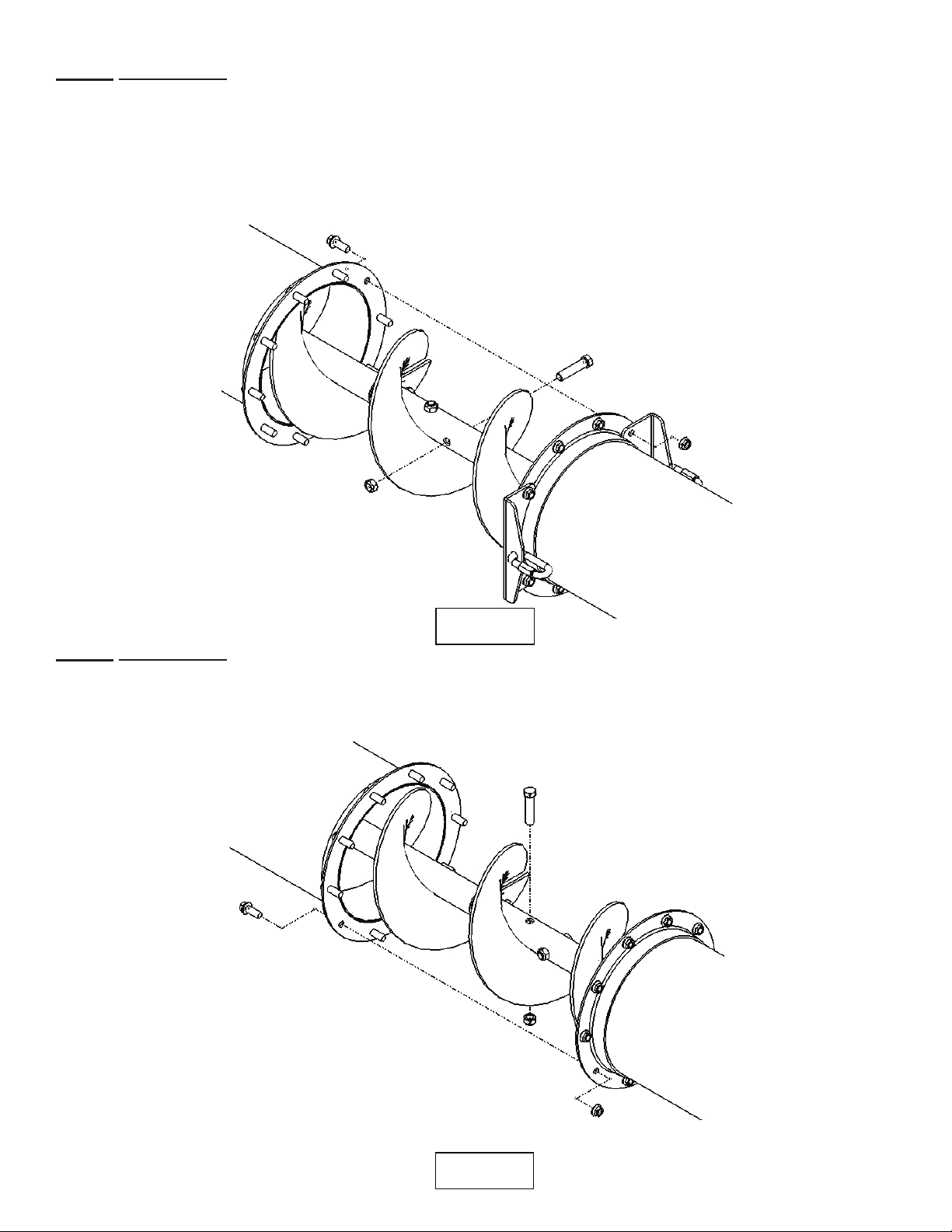

Slide the flighting together from the 1st & 2nd tube. Connect the flighting using (3) 5/8" x 3” hex bolts and top
lock nuts. Align flighting as shown to make continuous. After connecting the flighting, slide the 1st & 2nd tube
together connecting with (10) 1/2" x 1-1/2” flange bolts & nuts.
Step 4
Next, place the 3rd tube on stands and connect the flighting to the 2nd tube flighting. Connect the flighting using
(3) 5/8” x 3” hex bolts & top lock nuts. After connecting the flighting, slide the 2nd & 3rd tube together &
connect the tubes in the top & bottom 2 holes using (4) 1/2" x 1-1/2” flange bolts & nuts. Next place 2 cable
truss mount brackets (10680) on the left & right side of the 2nd tube flange and fasten tube & brackets using
(6) 1/2” x 1-1/2” flange bolts & nuts. Next, attach a 3/8’’ quick link to each bracket as shown in fig. 4.1.
(If assembling an H1362 skip to Step 7)
Fig. 2.1
Fig. 3.1
Fig. 4.1

HarvestInternationalH13XXAssemblyManual  Page6of35

Step 5 (H1372 Only)
Next, place the 4th tube on stands and connect the flighting to the 3nd tube flighting. Connect the flighting using
(3) 5/8” x 3” hex bolts & top lock nuts. After connecting the flighting, slide the 3rd & 4th tube together &
connect the tubes in the top & bottom 2 holes using (4) 1/2" x 1-1/2” flange bolts & nuts. Next place 2 cable
truss mount brackets (10680) on the left & right side of the 2nd tube flange and fasten tube & brackets using
(6) 1/2” x 1-1/2” flange bolts & nuts. Next, attach a 3/8’’ quick link to each bracket as shown in fig. 4.1.
(After completing this step skip to Step 7)
Step 6 (H1382 Only)
Next, place the 4th tube on stands and connect the flighting to the 3nd tube flighting. Connect the flighting using
(3) 5/8” x 3” hex bolts & top lock nuts. After connecting the flighting, slide the 3rd & 4th tube together &
connect the tubes using (10) 1/2" x 1-1/2” flange bolts & nuts.
Fig. 5.1
Fig. 6.1

HarvestInternationalH13XXAssemblyManual  Page7of35

Step 7 (Discharge Head Assembly)
All tubes & flighting should now be assembled together. Now the discharge head should be attached. First
align the 6 studs on the flighting with the 6 holes in the discharge head. Fasten the discharge head to the
flighting using (6) 1/2" lock washers & (6) 1/2" lug nuts. Thread lug nuts on flat side against the lock washers.
Tighten the 6 lug nuts. Now fasten the head to the tube using (10) 1/2" x 1-1/2” flange bolts & nuts. If
assembling an H1062 & H1082, place the cable truss mount brackets (10680) on the left & right side of the
flange & secure with the flange bolts & nuts. These brackets are not used on the H1072.
Step 8 (Cable Mount & Truss Assembly)

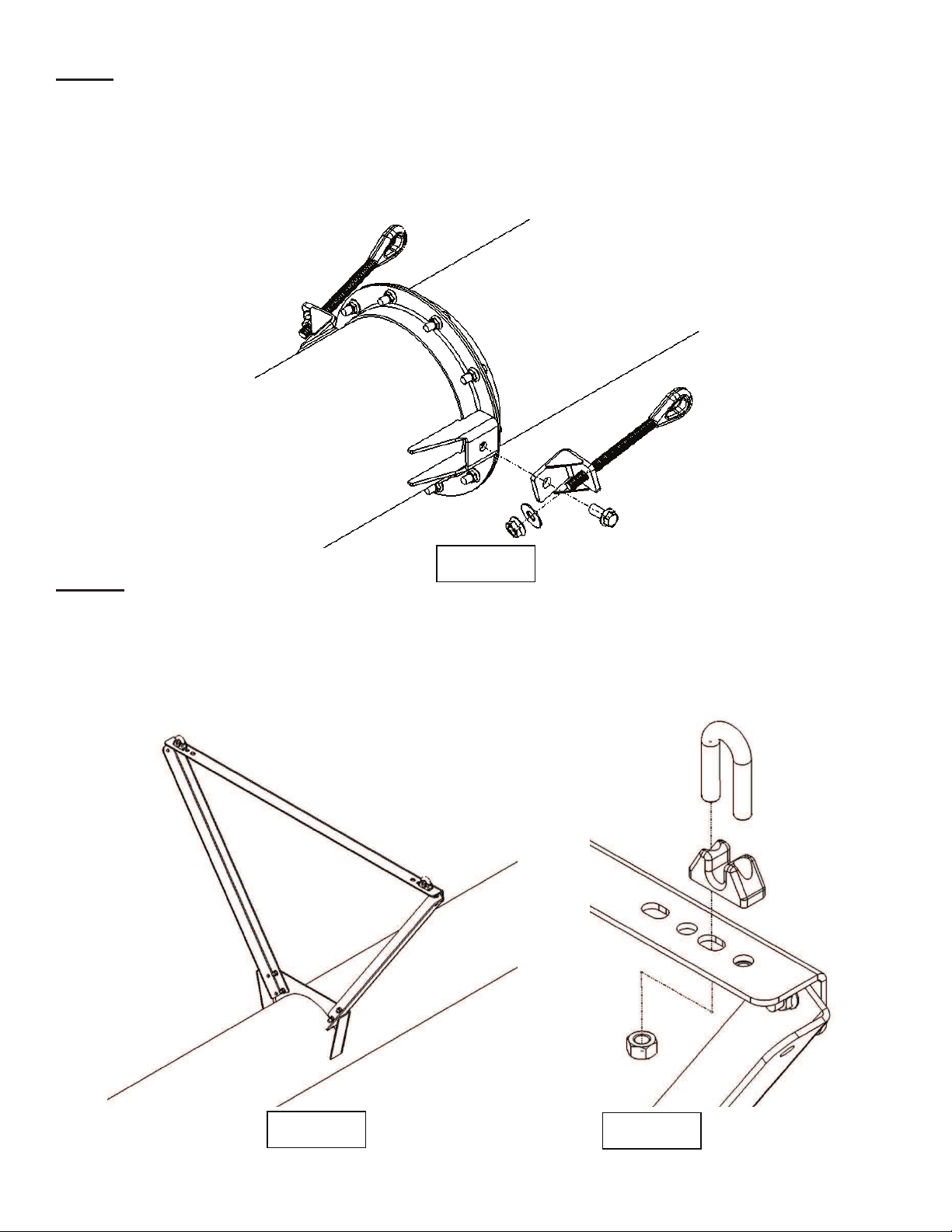

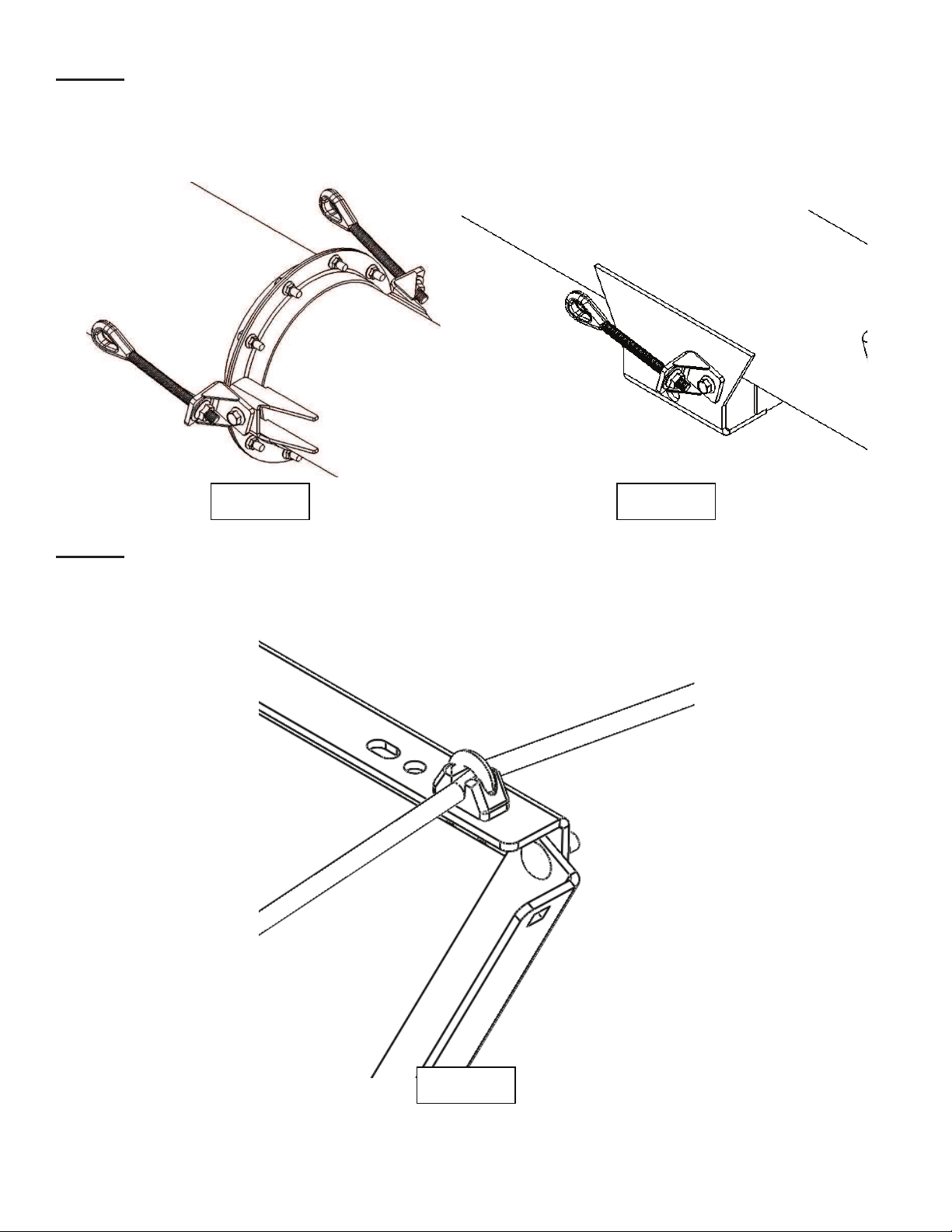

In Step 8 the lower cable mount brackets will be installed. On the 1st tube bolt cable mount brackets (30420) to
the left & right side of the carriage bracket as shown in fig.8.1. These will be fastened using (2) 5/8” x 1-1/2”
flange bolts & nuts. Be sure to angle the cable mount bracket slightly upwards as shown in figure 8.1.
Assemble (2) 3/4" eyebolts onto brackets using (2) 3/4" flat washer & (2) 3/4" flange nuts.
Fig. 7.1
Fig. 8.1

HarvestInternationalH13XXAssemblyManual  Page8of35

Step 9

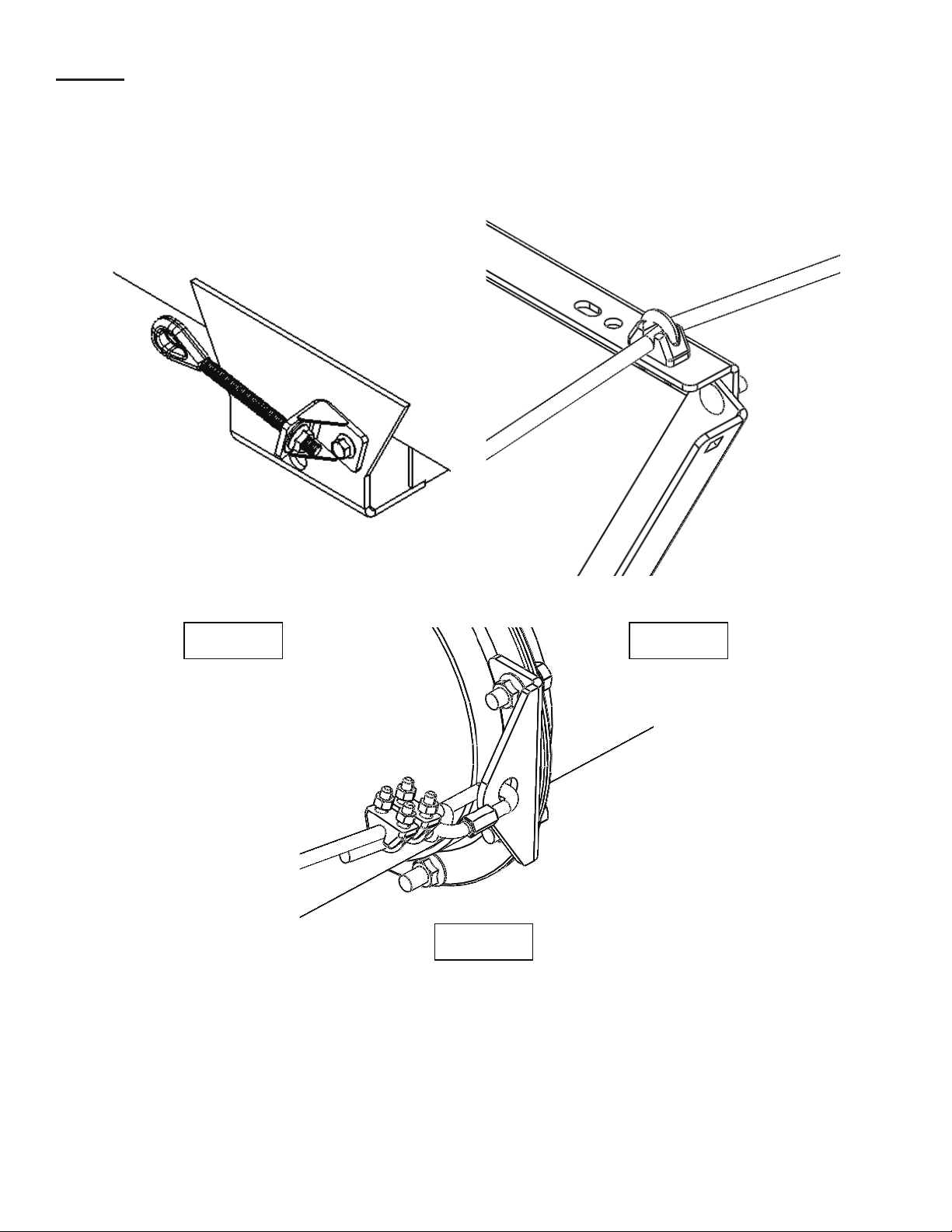

On the upper flange of the 1st tube bolt cable mount brackets (30420) to the left & right side as shown in
fig.9.1. These will be fastened using (2) 5/8” x 1-1/2” flange bolts & nuts. Be sure to angle the cable mount
bracket slightly upwards as shown in figure 9.1. Assemble (2) 3/4" eyebolts onto brackets using (2) 3/4" flat
washer & (2) 3/4" flange nuts.
Step 10

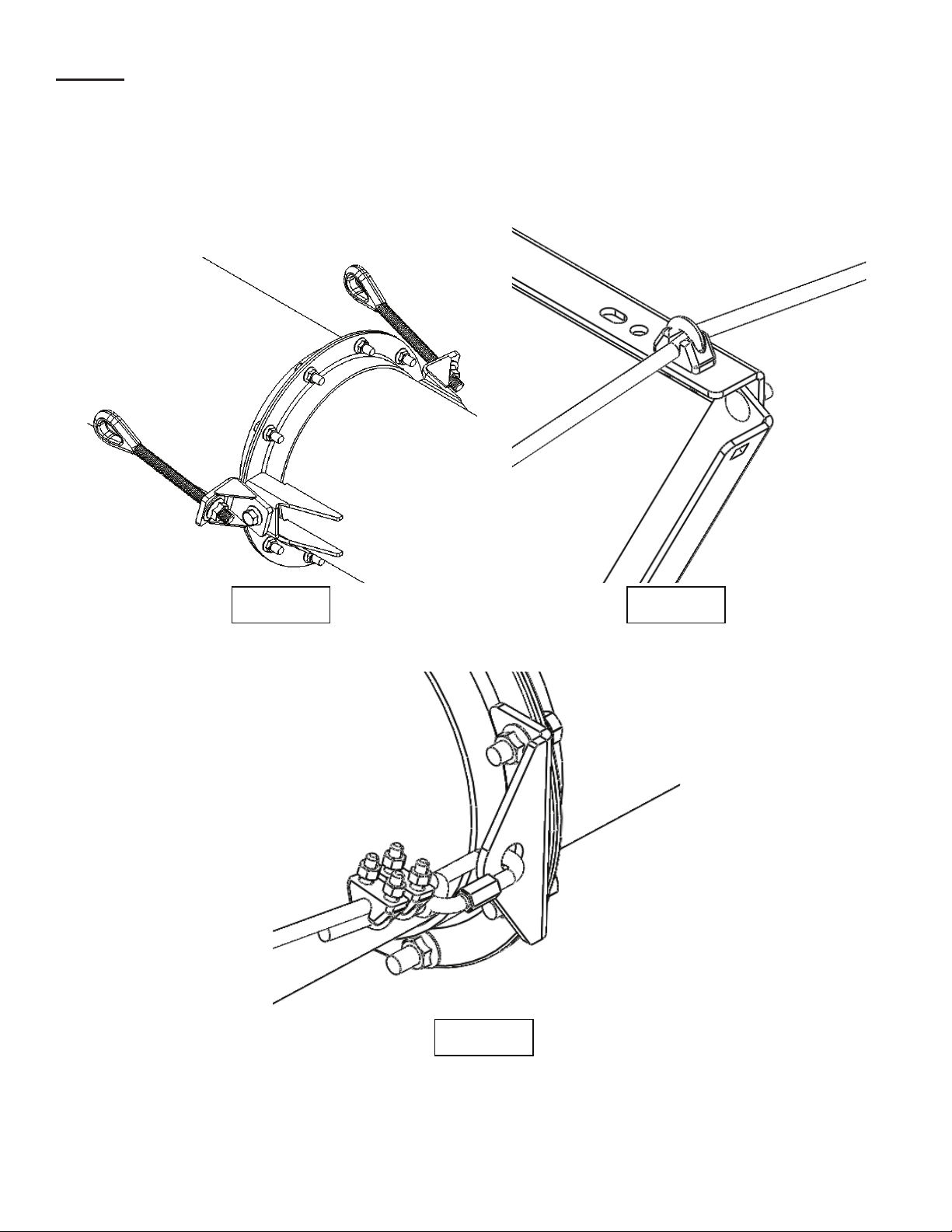

Next the cable truss uprights and cross brackets will be assembled on the 2nd & 3rd tubes. Start by placing the 2
upright truss brackets (10468D) on the tube and fastening with a total of (12) 3/8” x 1-1/2” flange bolts & nuts.
Leave these a little loose for ease of assembling the cross member. Assemble the cross member (10469A) using
a total of (6) 3/8” x 1-1/2” flange bolts & nuts as shown. After all carriage bolts are tigtenen, place the 1/2”
cable clamps on the out side of the trusses as shown. Thread nuts on by hand but do not tighten.
Fig. 9.1
Fig. 10.1 Fig. 10.2

HarvestInternationalH13XXAssemblyManual  Page9of35

Step 11 (Infeed Housing Assembly)

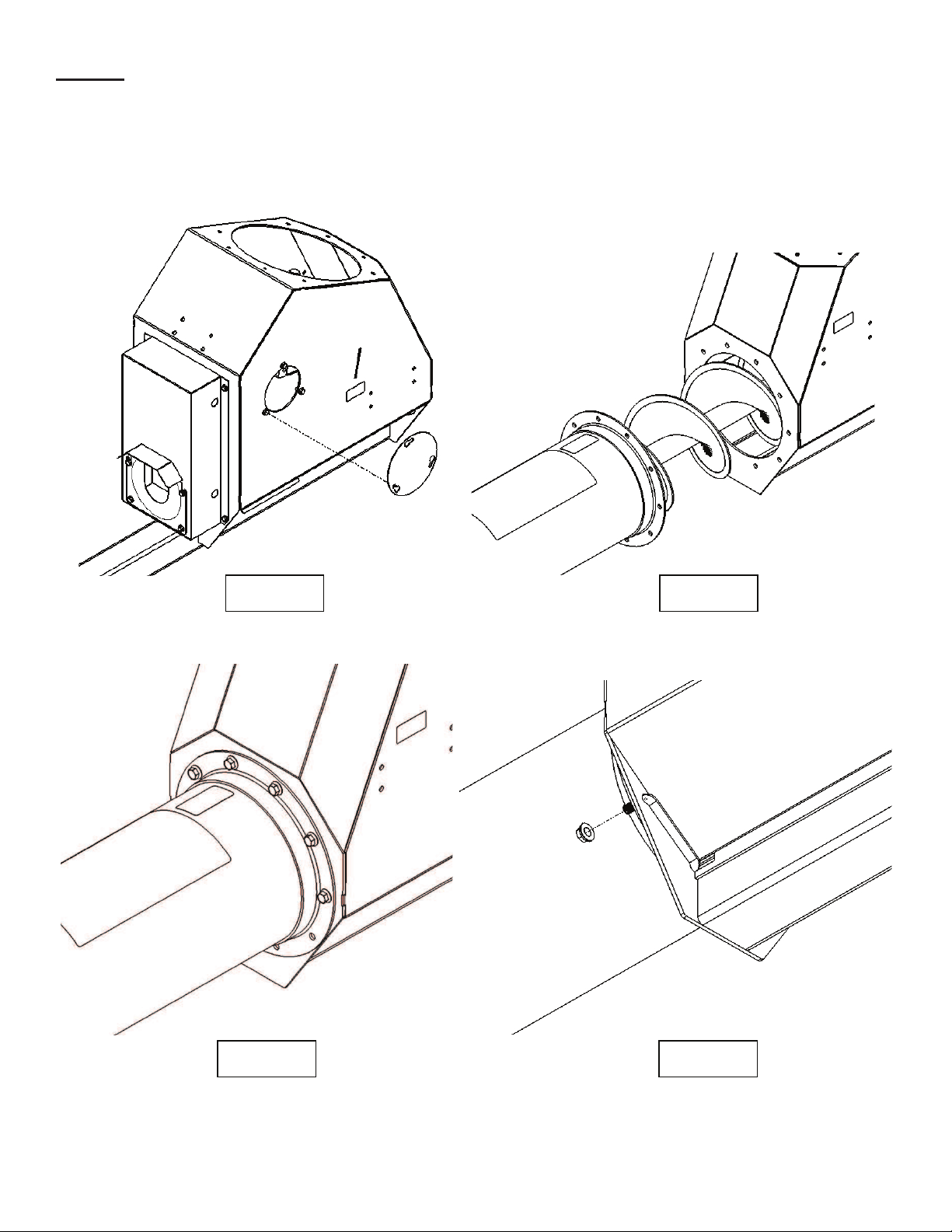

Loosen bolts and remove both access panels. Using a lifting strap, lift and slide the infeed housing over the
bottom flighting on the 1st tube. Secure the infeed housing to the first tube using (6) 1/2" x 1-1/2” flange bolts
and nuts in the top 6 holes. (See Fig. 11.3) Secure the bottom of the infeed housing to the tube by using 2
U-Bolts (11022) and (4) 1/2" flange nuts as shown in Fig. 11.4.

Fig. 11.1 Fig. 11.2
Fig. 11.3 Fig. 11.4

HarvestInternationalH13XXAssemblyManual  Page10of35

Step 12

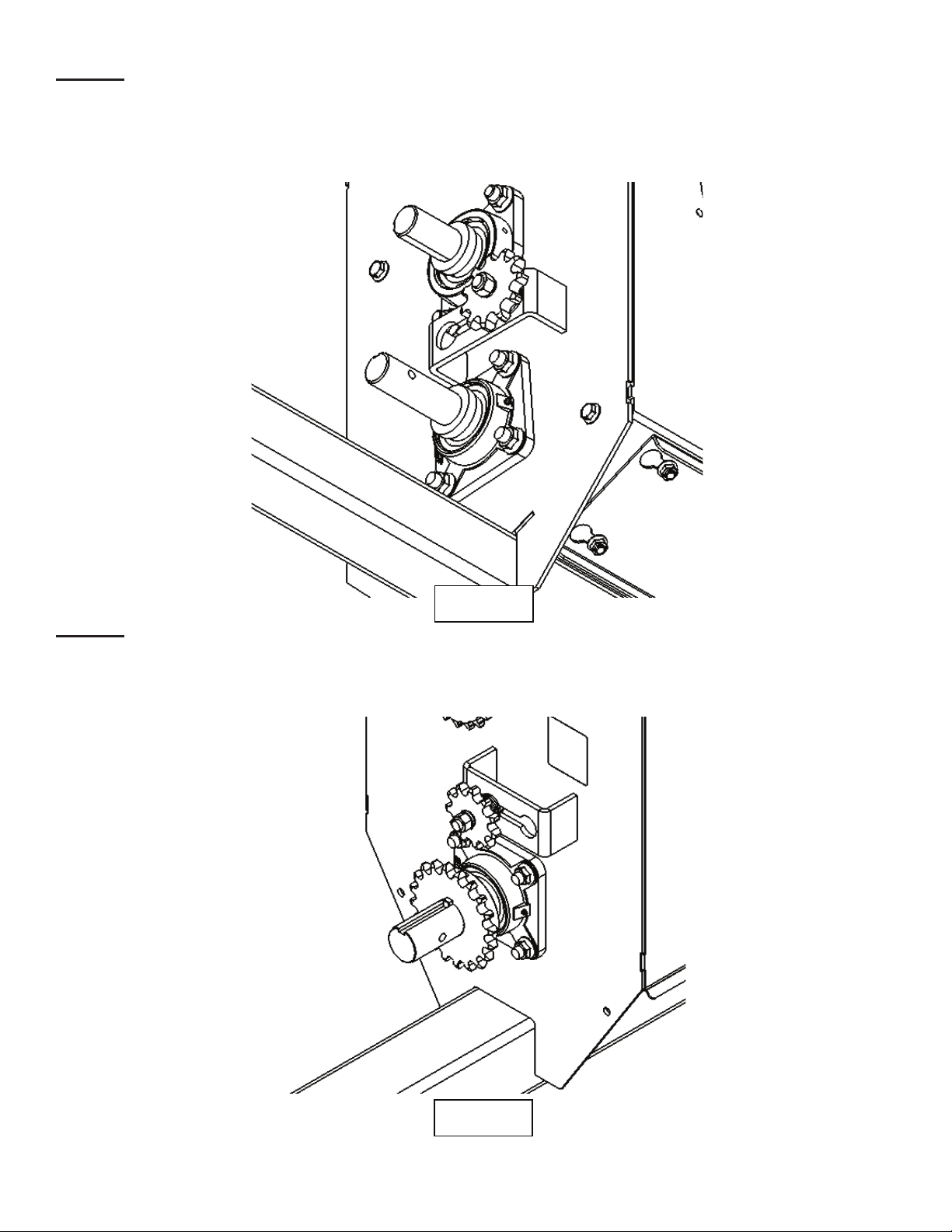

Next, slide the 4 bolt 1-3/4” cast flange bearing over the shaft making sure the grease zerk is located on the
same side as the idler sprocket. (If the shaft has surface rust, clean first with an emry cloth) Secure the 4 bolt
bearing to the infeed housing using (4) 1/2" x 1-1/2” carriage bolts & flange nuts as shown. When completed
use a punch to rotate the shaft so the keyway is in an easy to access position.
Step 13
Next, insert a 3/8" x 1-1/2” square key into the bottom shaft. Slide the 20 tooth sprocket onto the bottom shaft
as shown in Fig. 13.1. Use a measuring tape, measure the distance from the center of the top & bottom sprocket
to the infeed housing. Once sprockets are aligned, apply lock-tite to set screws & tighten.
Fig. 12.1
Fig. 13.1

HarvestInternationalH13XXAssemblyManual  Page11of35

Step 14

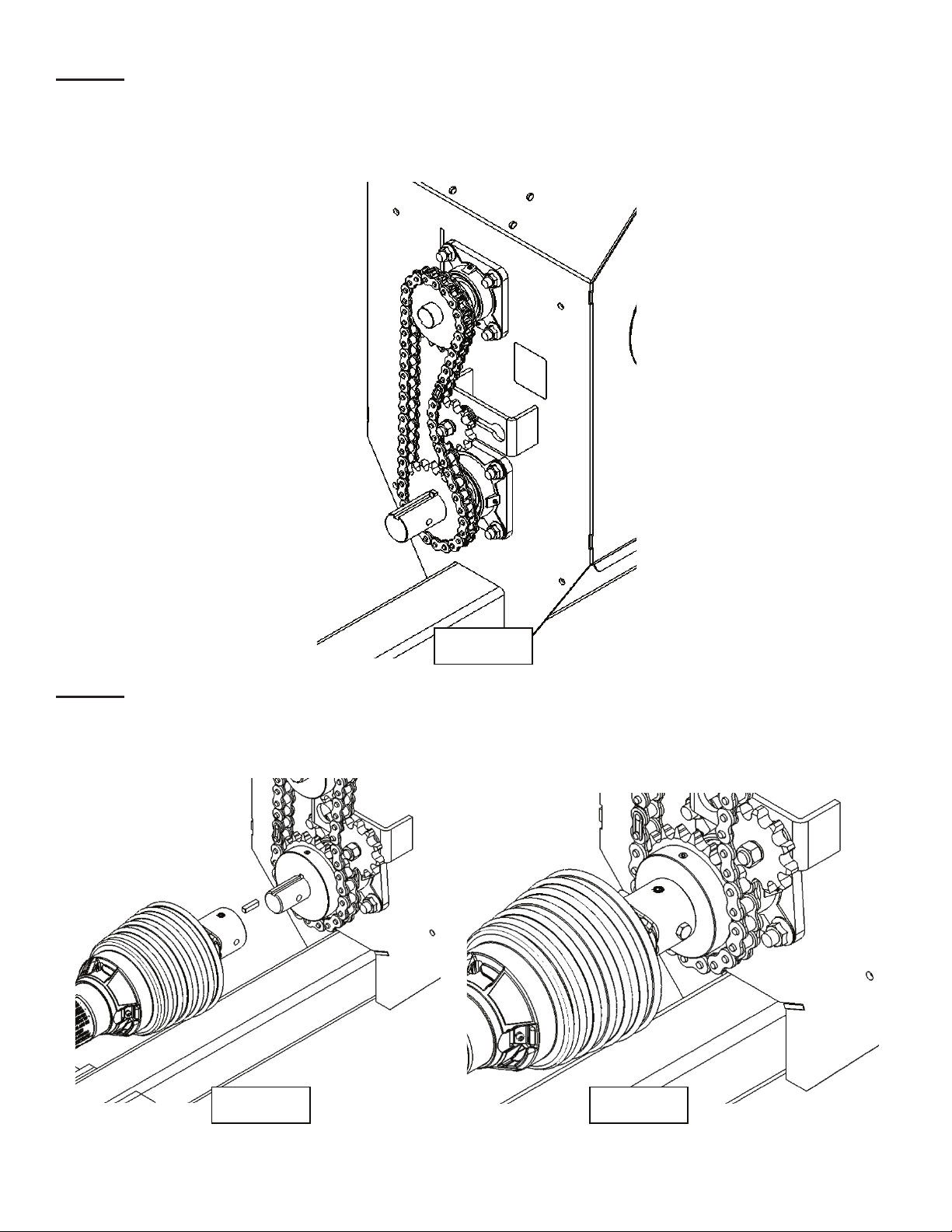

Locate the #60 chain & the #60 connector link. Place the chain around the sprockets as shown in Fig. 15.1.
Secure chain with connector link. When connector link is installed & the loop has been completed, push the
idler sprocket in the chain to achieve good tension. When proper tension is achieved tighten the idler sprocket.
Now grease top & bottom bearings with multi-lith grease.
Step 15 (PTO Shaft Assembly)
Next, insert a 3/8" x 1-1/2” square key into the bottom shaft. Slide PTO shaft onto lower drive shaft. Align
holes in PTO shaft with hole in drive shaft. Using a punch will help in this application. Secure using a 3/8” x
3-1/2” hex bolt & top lock nut. Tighten set screw on PTO shaft.
Fig. 14.1
Fig. 15.1 Fig. 15.2

HarvestInternationalH13XXAssemblyManual  Page12of35

Step 16

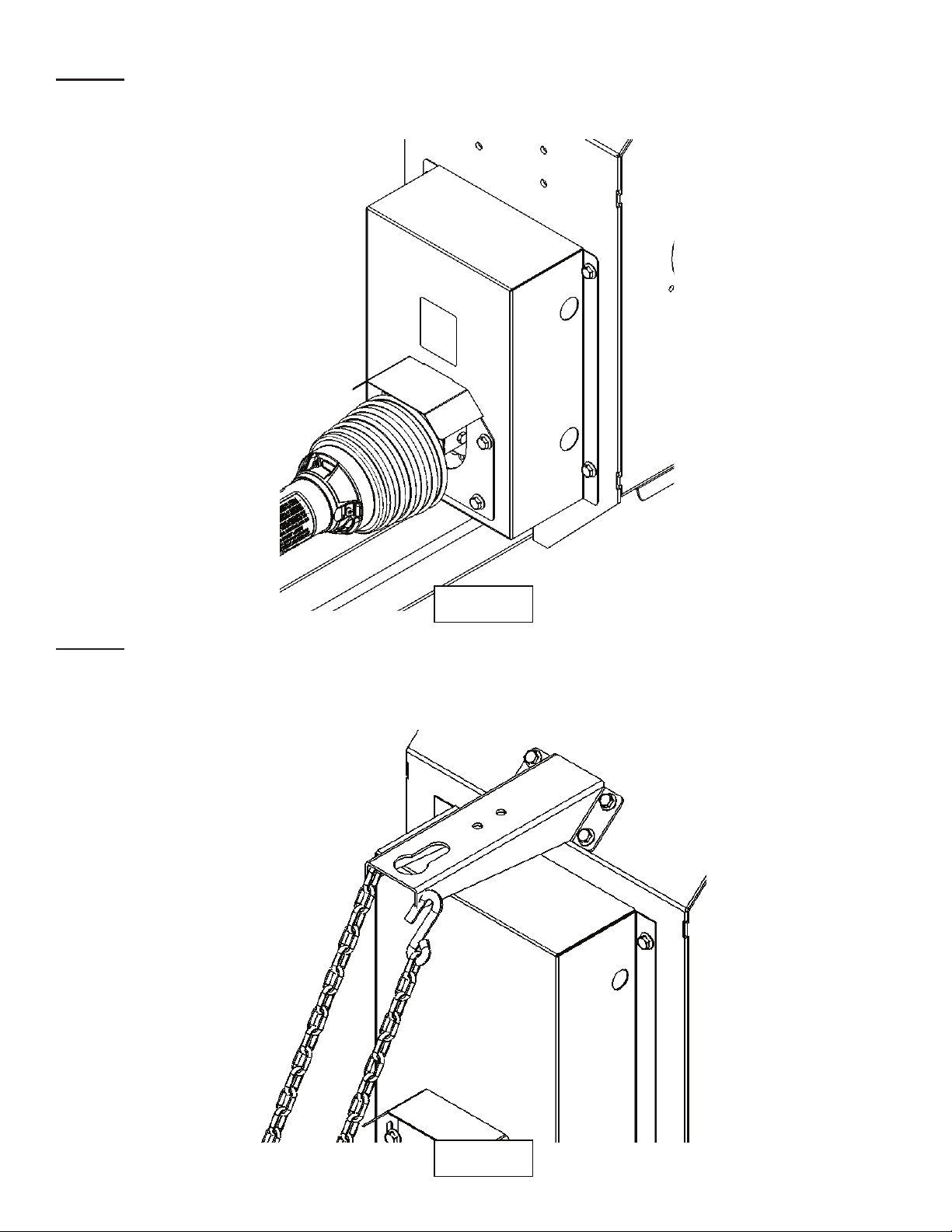

Next slide the chain guard over the PTO shaft and secure to the infeed housing (4) 3/8” x 3/4" flange bolts.
Then place lower “U” shaped guard place onto guard and secure with (4) 3/8” x 3/4" flange bolts.
Step 17
Locate the PTO support bracket & mount it to the infeed housing as shown in fig. 17.1 using (4) 3/8” x 3/4"
flange bolts & flange nuts. Attach the PTO support chain to the bracket as shown using a 3/8” x 1” flange bolt
& flange nut.
Fig. 16.1
Fig. 17.1

HarvestInternationalH13XXAssemblyManual  Page13of35

Step 18

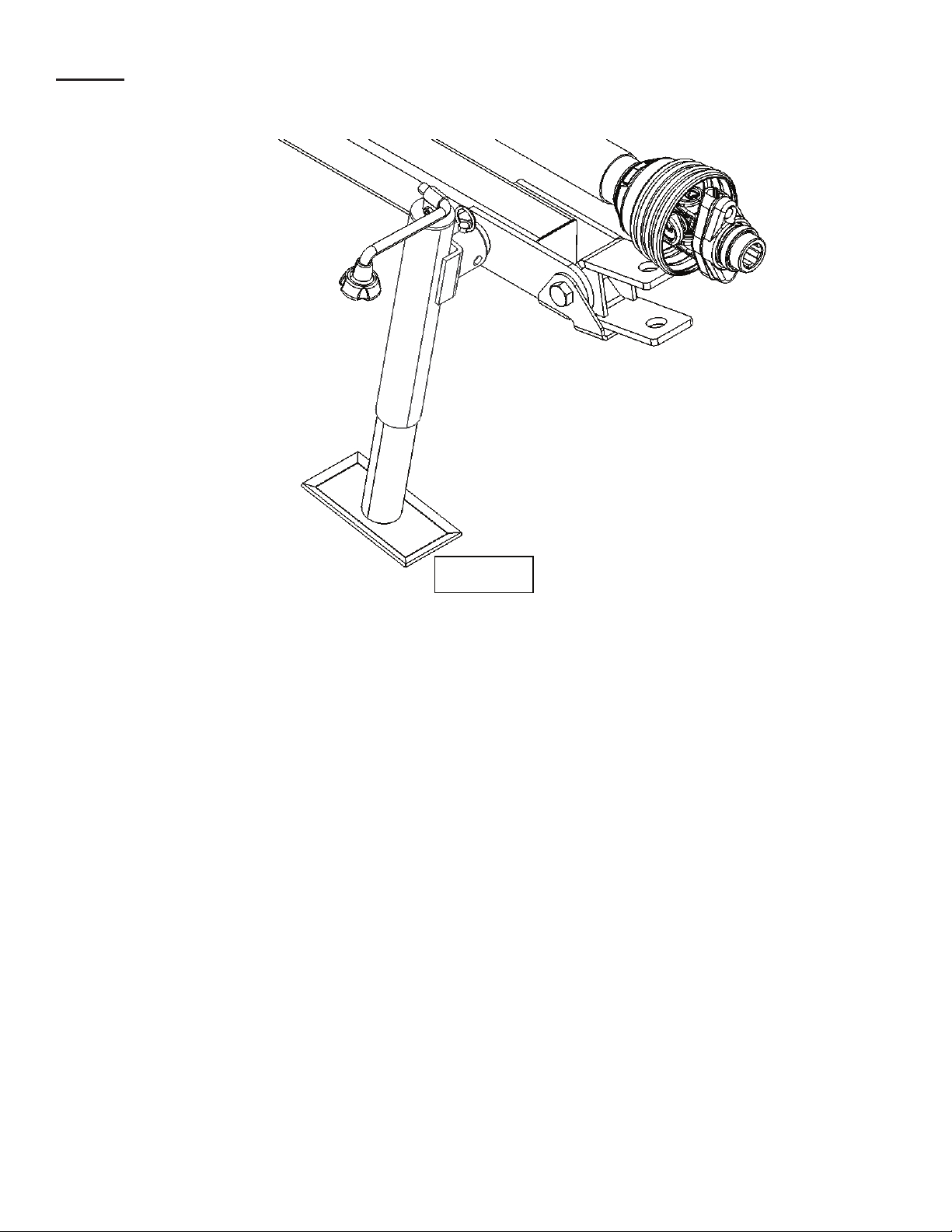

Locate the jack and slide it onto the jack mount tube located on the side of the tongue. Secure jack with pin.
Fig. 18.1

HarvestInternationalH13XXAssemblyManual  Page14of35

Step 19

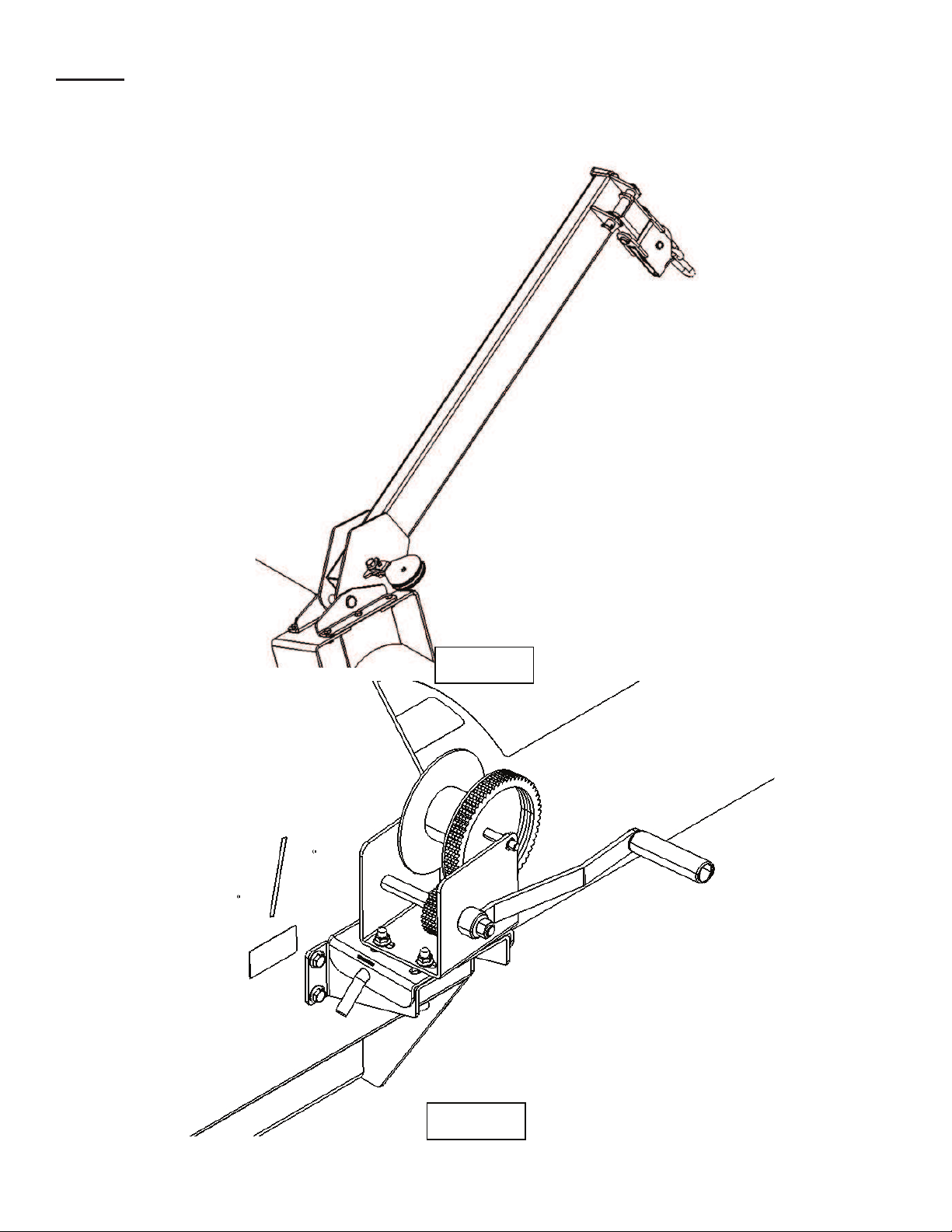

Next the hopper winch will be mounted. On the side of the infeed housing bolt the winch mount bracket on
using (4) 3/8” x 1” hex flange bolts & flange nuts. (See Fig. 20.1) Next attach the winch bracket to winch using
(3) 3/8” x 1” carriage bolts & flange nuts as shown in fig. 20.2. Tighten bolts by hand only for now. Slide the
winch handle onto winch with spring & nut. Tighten nut to secure handle. Place winch on top of winch mount
bracket and secure with a 1/2" bent pin. Angle the winch so it is centered with the top bracket (hopper arm
bracket) on the 1st tube as shown in figure 20.3. Tighten the (3) 3/8” x 1” carriage bolts.
Fig. 19.1 Fig. 19.2
Fig. 19.3

HarvestInternationalH13XXAssemblyManual  Page15of35

Step 20

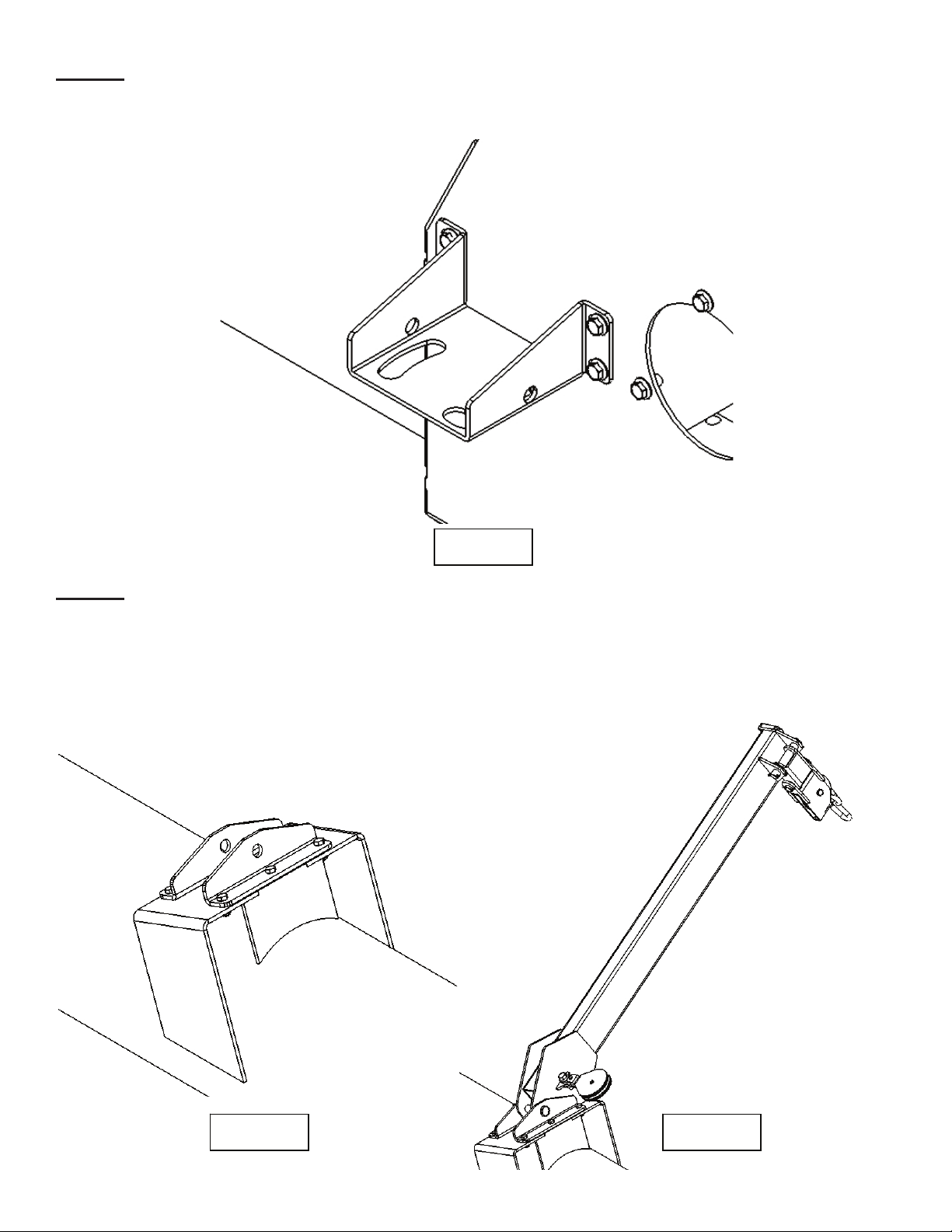

Next mount the left hand winch bracket (10131B) to the left side of the infeed housing. Attatch the bracket
using (4) 3/8” x 1” flange bolts & flange nuts.
Step 21 (Transport Arm Assembly)
Next, place the 2 hopper transport arm mount brackets on the 1st tube & secure with a total of (6) 3/8” x 1” hex
bolts & nuts. Next, place the assembled transport arm between the tube brackets & sure with a 3/4" x 3-1/2”
clevis pin & hair pin.
Fig. 20.1
Fig. 21.1 Fig. 21.2

HarvestInternationalH13XXAssemblyManual  Page16of35

Step 22
Next the hopper lift cable will be assembled. Insert cable through the upper then the lower pulley on the hopper
transport arm. Pull cable back to the winch. Insert cable through hole on the side of the winch drum. Fasten to
winch using the winch cable clamp & nut profided with winch.
Fig. 22.1
Fig. 22.2

HarvestInternationalH13XXAssemblyManual  Page17of35

Step 23 (Truss Cable Assembly)
Take 1 short 29’ cable & attach it to the eyebolt located in the middle of the first tube. Secure using (2) 1/2”
cable clamps. Pull cable to first truss and through the cable clamp located on the truss. When the cable is
through the cable clamp, continue pulling the cable to the quicklink located on the joint between the 2nd & 3rd
tube. Secure using (2) 1/2” cable clamps as shown if figure 23.3. Repeat on opposite side of the auger. Always
have saddles of the cable clamps on the “live” end of the cable.
Fig. 23.1 Fig. 23.2
Fig. 23.3

HarvestInternationalH13XXAssemblyManual  Page18of35

Step 24
Locate the longer cables. (41’ on a H1362 & H1372; 61’ on a H1382) Attach cable to eyebolts on the left &
right side of the 1st tube. Attach using the same process specified in step 23. Pull cable past the first truss
keeping the cable on the outside of the truss. Put the cable through the cable clamps located on the 2nd & 3rd
truss. When the cable is through both cable clamps, continue pulling the cable to the quick link located on the
joint on the end of the 3rd tube (4th tube on a H1382). Secure using (2) 1/2” cable clamps as shown if fig. 24.3.
Repeat on opposite side of the auger. On an H1362 & H1382 this will be the discharge head joint.
Fig. 24.1 Fig. 24.2
Fig. 24.3

HarvestInternationalH13XXAssemblyManual  Page19of35

Step 25
To tighten the cables, lifting the discharge end of the tubes is required. Place a lifting strap 2 feet from the end
of the auger and lift the tubes approximately 3 feet. This will cause the tubes to curve upwards. Place a punch
or pry bar into the eye of the eyebolt to hold it straight. Tighten the nut on the eyebolt about 3” or until the
cable feels stiff. Do this for all the cables.
Step 26
When all the eyebolts are tightened it is now time to tighten the truss cable clamps. Tighten each cable clamp
that is mounted to each truss evenly. After the clamps are tightened, stabilize the auger and lower the discharge
end of the auger. Once lowered, the auger should have a bow of 3” to 4” off of the assembly stand.
Fig. 25.1 Fig. 25.2
Fig. 26.1

HarvestInternationalH13XXAssemblyManual  Page20of35

Step 27 (Hydraulic Hose Assembly)

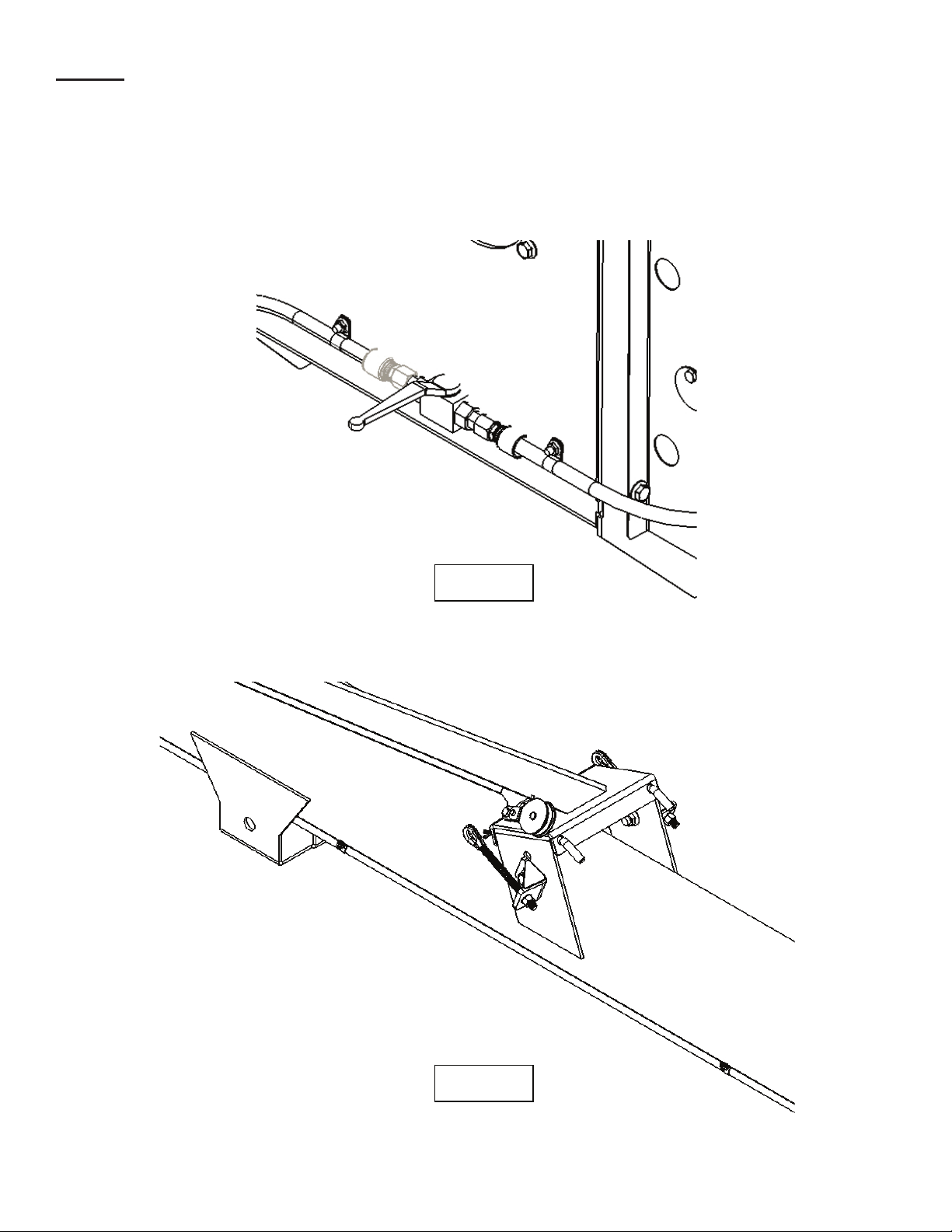

Locate the hydraulic kit and the quarter turn shut off valve. Attach the hoses and shut off valve to the left side
of the infeed housing using (2) 1/2" hose “P” clamps & (2) 1/4" x 3/4" flange bolts & nuts as shown in figure
27.1. Run hose up left hand side auger tube attaching it the weld on studs using 1/2" hose “P” clamps & 1/4"
flange nuts. Leave a little slack between each stud. Run the house on the inside of the carriage mount bracket
as shown in figure 28.2.
Fig. 27.1
Fig. 27.2
