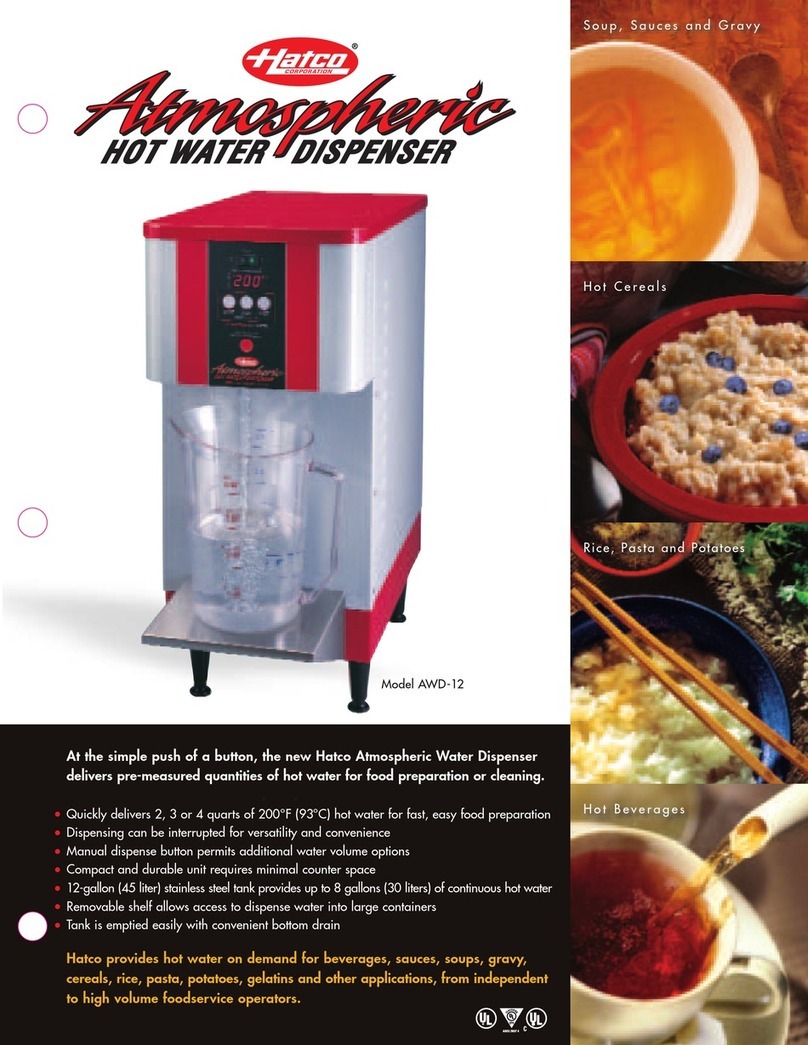

ATMOSPHERIC HOT WATER DISPENSER
Model AWD-12
At the simple push of a button, the
Hatco Atmospheric Water Dispenser
delivers pre-measured quantities of hot
water for food preparation or cleaning.
FLEXIBILITY
The Atmospheric Hot Water Dispenser
quickly provides 2, 3, or 4 quarts
(1.9, 2.8, or 3.8 liters) of hot water,
up to 200°F (93°C), for fast, easy food
preparation like hot beverages, sauces,
soups, gravy, hot cereals, rice, pasta,
potatoes, gelatins, and other applications.
The program can be interrupted for
versatility and convenience. A manual
dispense button permits additional water
volume options. The 12-gallon (45 liter)
stainless steel tank provides up to
8 gallons (30 liters) of continuous hot
water and the removable stainless steel
shelf allows access to dispense water
into large containers.
Compact and durable, this dispenser
requires minimal counter space. The
tank can be emptied easily with
convenient bottom drain.
QUALITY
The following features assure the finest
performance for years to come:
• Quickly delivers 2, 3, or 4 quarts
(1.9, 2.8, or 3.8 liters) of hot water
with touch of a button for fast, easy
food preparation.
• Program can be interrupted for
versatility and convenience.
• Manual dispense button permits
additional water volume options.
• Compact and durable unit requires
minimal counter space.
• 12-gallon (45 liter) stainless steel tank
provides up to 8 gallons (30 liters) of
continuous hot water.
• Removable shelf allows access to
dispense water into large containers.
• Tank is emptied easily with convenient
bottom drain.
• Setpoint temperature can be adjusted
from 75°F up to 200°F (24°-93°C),
with the factory default setting at
195°F (91°C).
ANSI/NSF 4
WATER QUALITY REQUIREMENTS
Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of
hardness per liter) must be treated and softened before being supplied to booster
heater(s). Water containing over 3.0 GPG (.75 GPL) will decrease the efficiency
and reduce the operating life of the unit.
Note: Product failure caused by liming or sediment buildup is not covered
under warranty.
Model AWD-12

ITEM#
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [email protected]
Form No. AWD-1006(S) Printed in U.S.A.
ATMOSPHERIC HOT WATER DISPENSER
Model AWD-12
SPECIFICATIONS
OPTIONS (NOT FOR RETROFIT)
❑NEMA L6-30P Locking Cap in lieu of NEMA 6-30P
Model Volts Watts Amps Shipping Weight
AWD-12 208 5000 24.0 80 lbs. (36 kg)
240 5000 20.8 80 lbs. (36 kg)
DIMENSIONS
133/8"W x 271/2"D x 281/8"H (340 x 699 x 714 mm)
with 4" (102 mm) legs.
VOLTAGE
208 or 240 volts, 50/60 Hz, single phase (use NEMA 6-30P).
CORD LOCATION
Lower left side.
PLUG CONFIGURATIONS
NEMA L6-30PNEMA 6-30P
FRONT VIEW
SIDE VIEW
231⁄2" (597 mm)
8"
(203 mm)
4"
(102 mm)
Water Inlet
(1⁄4" Male Flare
Connection)
Outlet for Manual Drain
(Standard 3⁄4" Hose Connection)
117⁄8"
(302 mm)
11⁄2"
(38 mm)
4"
(102 mm)
Cord Location
271⁄2" (699 mm)
Cord Location
Manual
Drain Lever
241⁄8"
(613 mm)
281⁄8"
(714 mm)
113⁄4"
(298 mm)
81⁄8"
(206 mm)
ACCESSORIES
❑3' (914 mm) Rubber Drain Hose with 10' (3048 mm)
1/4" Inlet Tubing
❑Phosphate Injection System
❑Plumbing Kit for Phosphate Injection
PRODUCT SPECS
Water Dispenser
The Atmospheric Water Dispenser to supply water ranging from
75º–200ºF(24º–93ºC) shall be a Hatco Model ....as
manufactured for commercial use by the Hatco Corporation,
Milwaukee, WI 53234 U.S.A.
The Water Dispenser shall have the capacity to heat 12 gph
(45 lph) from 35º to 200ºF (2º to 93ºC) and it shall be rated
at ....volts, ....watts.
The dispenser shall be complete with a stainless steel tank and
all internal plumbing, including a 1/4" male flare connection on
the inlet and a 3/4" hose connection on the drain. All controls
shall be built-in, including contactor.
WATER TEMPERATURE RECOVERY
Dispensing Temperature of 200ºF (93ºC)
12 gph (45 lph) with 35ºF (2ºC) incoming water
33 gph (125 lph) with 140ºF (60ºC) incoming water
gph = (kW x 400)/(ºF Temperature Rise)
lph = (kW x 841)/(ºC Temperature Rise)
The heater shall be equipped with an electronic temperature
controller, an on-off switch, a digital temperature display, and
preset dispensing push-buttons including manual dispense.
Electric heating elements shall be metal sheathed, controlled by
a submersed thermistor. The Water Dispenser shall be protected
with high-temperature limit and low-water cut-off. The unit may
be emptied easily by a convenient bottom drain.
The dispenser shall consist of a stainless steel tank, front cover,
front control housing, and a painted white granite body with
standard 4" (102 mm) legs and 6' (1829 mm) cord and plug.
