Hatco FLAV-R-FRESH FDW-1 User manual

HOT FOOD MERCHANDISING SOLUTIONS

Emphasize Your Products Safely and
Humidified model
GRCDH-3PD with
optional Designer color
and accessory food pans
2
Humidified model
GRCDH-1P with
optional Designer
color and accessory
food pans

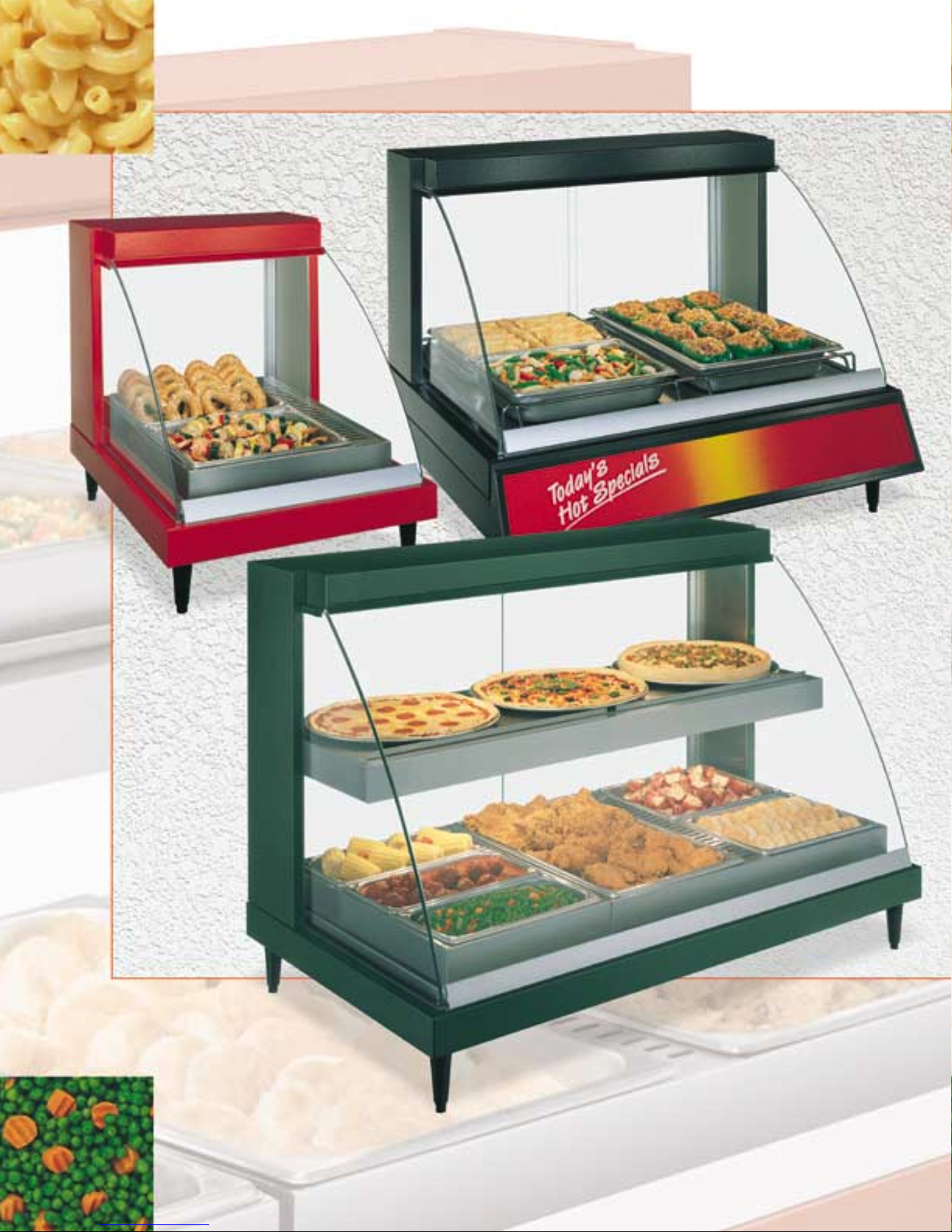

Model GRCD-2P with
optional Designer color
and backlit base sign
holder (graphics not
included) and
accessory
food pans

Effectively with Designer Displays!
Focus on your hot food to enhance its appeal while serving safely to your customers. Creating
impulse sales and minimizing the risk of food-borne illness is simplified with Hatco’s Designer
Merchandising Warmers. Combining state-of-the-art design with performance, these Display
Warmers are the solution when adding food safety to “show and sell”areas in any operation.
Hatco foodwarmers hold hot food safely at peak serving temperatures and come in a variety
of shapes, sizes, colors and options to fit your needs.
Glo-Ray®Designer Heated Display Cases
For hot meals-to-go, the curved tempered glass styling
and incandescent lighting accentuates your product.
Glo-Ray’s exclusive heat pattern, combined with the
heated base, keeps all food at that “just made”taste
and temperature longer. Available in one-, two- and
three-pan models, dual or single shelves, with or
without humidity, in stainless steel exterior finish or
six powder-coated Designer colors.
Glo-Ray®Designer Merchandising Warmers
Provide self-serve convenience while holding hot wrapped or boxed foods
at optimum serving temperatures without affecting the quality. With the
efficiency of kitchen-to-server holding, Hatco Warmers have prefocused
infrared top heat and a thermostatically controlled hardcoated heated base to
extend holding times of most foods. Available in single or dual shelf models
with slant or horizontal shelves. Designer powder-coated inset panels coordinate
these units with the décor while providing a durable, easy-to-clean surface.
Glo-Ray®Designer Buffet Warmers & Heated Shelves
Designed to keep all food at optimum serving temperature, the modern design is perfect for
front of the house use. Featuring prefocused overhead infrared heat and thermostatically
controlled hardcoated heated base, the Buffet Warmers also include sturdy acrylic breath
protectors that provide a safe environment when serving food.
For holding hot food in kitchen work areas, waitress pick-up stations or customer serving
points, the rectangular or round heated shelves can be used for wrapped product or behind
a sneeze guard with unwrapped food such as pizza, appetizers, biscuits, cornbread, muffins
and cookies. All models are available in six Designer colors.
navy
blue
white
granite
hunter
green
gray
granite
black
warm
red
Model GR2BW-30 with
Designer color inset panels
and accessory food pans
Model GRSR-19
with Designer color
and accessory food pan
Designer Colors
3
Model GR2S-30
with Designer
color inset
panel and
accessory pizza pans
Model GR2SDH-30 with
Designer color inset panels
Model GR2SDS-30D with
Designer color inset panels

From hot hors d’oeuvres to elegant entrees...fast food to bountiful buffets, Hatco Display Warmers
take the risk out of holding hot food and keep the flavor in! Hatco Glo-Ray®Foodwarmers help you
heat up more sales by keeping hot foods at optimum serving temperatures until you’re ready to serve.
For meals-to-go, the Heated Display Cases use a combination of infrared top heat, directing heat to
the outer edges where heat loss is the greatest, and a thermostatically controlled heated base to keep
food at the peak of perfection. Constructed of stainless steel and aluminum, they feature an exclusive
cool-to-the-touch construction, full view tempered glass sides and rollerless sliding doors.
Soft illumination created by shatter-resistant incandescent lights
adds even more “eye”appeal. Available in two-,
three- and four-pan models, single or dual
shelves, with or without humidity.
Merchandise hot fast food with Hatco Glo-Ray
Merchandising Display Warmers. Designed
specifically for holding hot wrapped or boxed
product, this Warmer holds hot food safely
at proper serving temperatures.

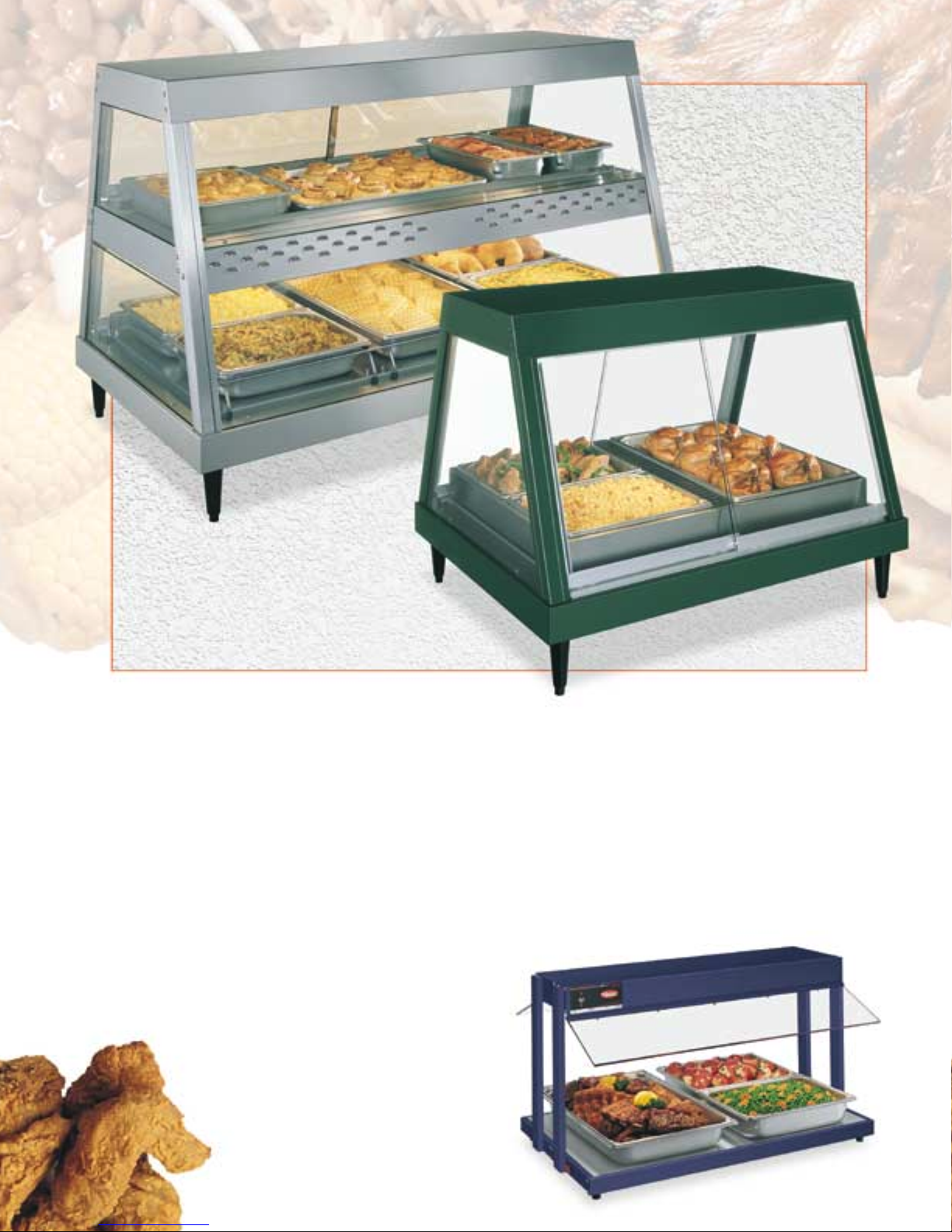

Model GRHD-3PD
with optional mirrored
glass doors and accessory
food pans
4
Humidified model GRHDH-2P with
optional Designer color and double-side
opening and accessory food pans
Generate Greater Impulse Sales!
Model GRBW-30 with optional
Designer color and accessory food pans

5

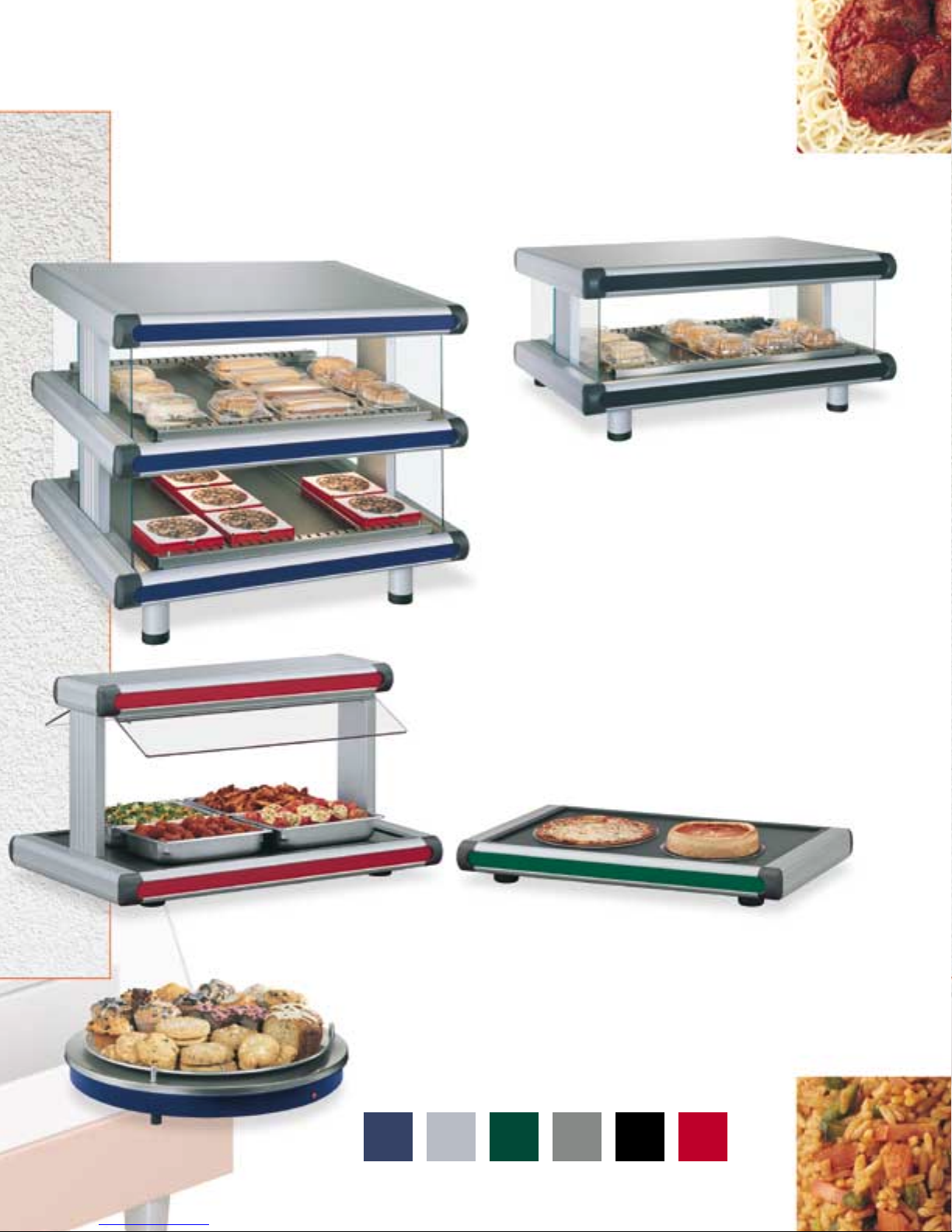

Model GRSDH-30
Model GRPWS-4824T
Model GRSDS/H-36D
with slanted base and
horizontal top shelf
Offering the convenience of self-serve and the efficiency of kitchen-
to-server holding, these warmers have prefocused infrared top heat
and thermostatically controlled hardcoated heated bases to extend
the holding times of most food. Available in single or dual shelf
models with slant or horizontal shelves. Perfect for holding boxed
or bagged pizzas, the Glo-Ray Pizza Warmer series allows the
operator to keep pizza hot and fresh for convenient self-serve
or quick-serve areas. With base heat only, these warmers come
in dual, triple or quadruple shelf models with two depths.
As an alternative to “canned heat”or bulbs, Glo-Ray Hors d’oeuvre
and Buffet Warmers keep foods hot longer without drying up profits.
Ideal for holding hot food on buffet lines or at temporary serving areas, these
warmers feature a combination of top and bottom heat, as well as sturdy acrylic
breath protectors that provide a safe food-serving
environment. The Glo-Ray Heated Shelf
features a blanket-type foil element for
uniform heat distribution. Available as a
countertop model or as a built-in unit with
indented top surface or flush top, in a variety
of widths and depths.
Model GRS-30-I
with accessory pan rail
and food pans

Hot food sales are on the rise today. Customers demand a variety of flavorful,
ready-to-eat choices. And Hatco Flav-R-Savor®and Flav-R-Fresh®Holding and
Display Cabinets can help you cash in on the impulse sales of profitable hot
food. They keep food hot, delicious and at proper holding temperatures for
more hours of holding power.
Food can be prepared ahead of time, which reduces the labor required during
peak serving times. Hatco Flav-R-Savor and Flav-R-Fresh Cabinets keep
product fresh tasting for hours using a precise combination of heat and
humidity, which is uniformly distributed from the top of the cabinet to the
bottom, eliminating “hot spots.”Even after the door is opened and closed,
the quick recovery heating system maintains consistent inside temperatures.
Tempered glass door and side panels provide maximum heat retention while
allowing for full cabinet display. Showcase lighting illuminates the cabinet,
accenting your product. The “operator friendly”control panel contains
separate heat and humidity controls to regulate temperature and moisture,
providing optimum food holding times. A temperature indicator monitors
the cabinet heat, and a front-fill reservoir cup makes it easy to add water.
Hatco Holding and Display Cabinets are designed for maximum performance
with low energy use, saving on operating costs. All models operate on 120
voltage with no special wiring required.
A complete range of cabinet sizes, door options, rack types, merchandising
signage, food graphics and other options allows for perfect marketing and
customizing of all food serving operations. Flav-R-Savor models are available
in six Designer powder-coated colors to match decors and provide a durable,
easy-to-clean surface.
6
Secure a Better Hold on
Profitable Hot Food with
Extended Holding Times!
navy
blue
white
granite
hunter
green
gray
granite
black
warm
red
Designer Colors

Model FSDT-1
with optional Designer color
and accessory pizza pans
and decals
Model FSDT-2X
with accessory food pans
and decals
7
Model FDW-1
with accessory pizza pans
and decals

MINI-MERCHANDISERS –
Safe and convenient, Hatco Mini-Merchandisers create impulse sales while
ensuring food safety. Place fresh hot products in front of your customers
without losing valuable counter space. These warmers come in a variety
of shapes, sizes and six Designer colors, all holding hot food at peak serving
temperatures. Ideal for convenience stores, supermarkets, delis, concession
stands, snack bars, kiosks and pizzerias.
When offering your customers hot samples, the Glo-Ray®model
GRHW-.5P provides base heat and incandescent lighting to showcase your
product. A backlit sign holder with blank translucent sign panel and sturdy
acrylic breath protector are standard.
When counter space is at a premium, the GRFFL with sign holder is ideal
for creating impulse sales of wrapped product. This unit has top heat,
incandescent lights and a sign holder.
The GRKW-1 is designed to hold a variety of broiled or fried meat, poultry
and fish products with heat from above and below the product. Acrylic
doors provide a safe food environment. Incandescent lighting illuminates
your product and attracts your customers to today’s hot menu selections.
Model GRHW-.5P
with blank translucent
sign and backlit panel
(graphic not included)
Model GRFFL
with optional Designer
color and sign holder
and accessory food pan
(sign not included)
Model GRKW-1
with accessory
plastic pans
8

MAXIMUM PERFORMERS!
Perfect for generating hot food sales, the GRHW-1SG holds wrapped
product any time of day. This merchandiser features top and bottom heat,
a large sign holder, incandescent lighting and breath protector.
The portable Lamp Warmer LW- 2 features a specially designed powder-
coated stand that keeps food holding pans above the countertop, providing
an effective insulation to prolong serving times. This Warmer features an
adjustable stand, vented powder-coated lampshades with heavy-duty sockets
and an in-line on/off switch.
Top infrared heat and thermostatically controlled base heat in the GRBW-30
offer the flexibility to display and hold a variety of product for breakfast,
lunch and dinner. The acrylic enclosure provides a safe environment for the
products you serve. Ideal for showcasing pastries, sandwiches and pizza.
Model GRHW-1SG
with hardcoat bins and sign
holder (sign not included)
Model LW-2 with
optional powder-coated
Designer color and
accessory food pans
Model GRBW-30
with accessory acrylic
enclosures and sign holder
(sign not included)
navy
blue
white
granite
hunter
green
gray
granite
black
warm
red
Designer Colors
9

205⁄8"
(524 mm)
FRONT VIEW
24"
(610 mm)
RIGHT SIDE
26" (660 mm)
25"
(635 mm)
Model Volts* Watts Amps Ship. Wt.
GRCDH-1P 120 660 5.5 97 lbs. (44 kg)
Model Volts* Watts Amps Ship. Wt.
GRCD-2P 120 780 6.5 120 lbs. (55 kg)
Model Volts* Watts Amps Ship. Wt.
GRCDH-3PD 120 1960 16.3 222 lbs. (101 kg)
DESIGNER DISPLAY WARMER SPECIFICATIONS
GRCDH-1P
321⁄2" (826 mm)
FRONT VIEW
24"
(610 mm)
RIGHT SIDE
26" (660 mm)
25"
(635 mm)
GRCD-2P
451/2" (1156 mm)
FRONT VIEW
313⁄4"
(806 mm)
RIGHT SIDE
26" (660 mm)
25"
(635 mm)
151/4"
(387 mm)
GRCDH-3PD
361⁄8" (918 mm)
293⁄8" (746 mm)
293⁄8" (746 mm)
333/8"
(848 mm)
22" (559 mm)
22" (559 mm)
265/8" (676 mm)
FRONT VIEW RIGHT SIDE
8"
(203 mm)
Model Volts* Watts Amps Ship. Wt.
GR2SDS-30D 120 1640 13.7 174 lbs. (79 kg)
Model Volts* Watts Amps Ship. Wt.
GR2SDH-30 120 845 7.0 120 lbs. (55 kg)
Model Volts* Watts Amps Ship. Wt.
GR2BW-30 120 1230 10.3 85 lbs. (39 kg)
GR2SDS-30D
293⁄8" (746 mm)
361⁄8" (918 mm)
18"
(457 mm)
8"
(203 mm)
22" (559 mm)
27" (686 mm)
FRONT VIEW RIGHT SIDE
GR2SDH-30
331/2" (851 mm)
361⁄8" (918 mm)
293⁄8" (746 mm) 19"
(483 mm)
213/4" (552 mm)
1115/16"
(303 mm)
27" (686 mm)
FRONT VIEW RIGHT SIDE
GR2BW-30
361⁄8" (918 mm)
297⁄8" (759 mm) 213⁄4" (552 mm)
4" (102 mm)
27" (686 mm)
FRONT VIEW RIGHT SIDE
Model Volts* Watts Amps Ship. Wt.
GR2S-30 120 450 3.8 39 lbs. (18 kg)
Model Volts* Watts Amps Ship. Wt.
GRSR-19 120 420 3.5 21 lbs. (10 kg)
GR2S-30
SIDE VIEW TOP VIEW
313⁄16"
(97 mm)
203⁄4"
(527 mm)
Diameter
GRSR-19
* Other voltages available, consult factory.
NEMA 5-15P
CEE 7/7 Schuko BS-1363
NEMA 5-20P
Model Volts* Watts Amps Ship. Wt.
GRS-30-I 120 450 3.8 25 lbs. (11 kg)
30" (762 mm)
FRONT VIEW
191⁄2"
(495 mm)
21⁄4"
(57 mm)
RIGHT SIDE
GRS-30-I
STANDARD PLUG CONFIGURATIONS
Model 120 Volt 60 Hz 220 Volt 50 Hz 240 Volt 50 Hz
GRCDH-1P NEMA 5-15P CEE 7/7 Schuko BS-1363
GRCD-2P NEMA 5-15P CEE 7/7 Schuko BS-1363
GRCDH-3PD NEMA 5-20P CEE 7/7 Schuko BS-1363
GR2SDS-30D NEMA 5-15P•CEE 7/7 Schuko BS-1363
GR2SDH-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
GR2BW-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
GR2S-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRSR-19 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRS-30-I NEMA 5-15P CEE 7/7 Schuko BS-1363
•NEMA 5-20P for Canada
Colored areas indicate plugs for Export use only.
See product specification sheets for additional models.
10

* Other voltages available, consult factory.
FRONT VIEW
321⁄2" (826 mm)
25"
(635 mm)
161⁄2"
(419 mm)
26" (660 mm)
RIGHT SIDE
21"
(533 mm)
Model Volts* Watts Amps Ship. Wt.
GRHDH-2P 120 1190 9.9 120 lbs. (54 kg)
Model Volts* Watts Amps Ship. Wt.
GRBW-30 120 1230 10.3 52 lbs. (24 kg)
DISPLAY WARMER SPECIFICATIONS
GRHDH-2P
173⁄4"
(451 mm)
27" (686 mm)
311⁄8" (791 mm)
30" (762 mm)
191⁄2"
(495 mm)
Cord
Location
FRONT VIEW RIGHT SIDE
133⁄4"
(349 mm)
GRBW-30
30" (762 mm)
FRONT VIEW
121⁄16"
(306 mm) 71⁄8"
(181 mm)
191⁄2"
(495 mm)
RIGHT SIDE
Model Volts* Watts Amps Ship. Wt.
GRSDH-30 120 970 8.1 58 lbs. (26 kg)
Model Volts* Watts Amps Ship. Wt.
GRPWS-4824T 120/208 2574 14.3 227 lbs. (103 kg)
GRSDH-30
FRONT VIEW
303⁄4"
(781 mm)
48" (1219 mm) 24" (610 mm)
RIGHT SIDE
51⁄2"
(140 mm)
51⁄2"
(140 mm)
51⁄2"
(140 mm)
GRPWS-4824T
227⁄16"
(570 mm) 251⁄16"
(637 mm)
321⁄2"
(826 mm)
RIGHT SIDE
OPERATOR SIDE
Model Volts* Watts Amps Ship. Wt.
FSDT-2X 120 1470 12.3 120 lbs. (54 kg)
Model Volts* Watts Amps Ship. Wt.
FDW-1 120 1470 12.3 80 lbs. (36 kg)
FSDT-2X
191⁄2"
(495 mm)
RIGHT SIDE
271⁄2"
(699 mm)
OPERATOR SIDE
18"
(457 mm)
FDW-1
NEMA 5-15P CEE 7/7 Schuko
BS-1363
NEMA 14-20P
NEMA 5-20P
Model Volts* Watts Amps Ship. Wt.
FSDT-1 120 1470 12.3 120 lbs. (54 kg)
227⁄16"
(570 mm) 2315⁄16"
(608 mm)
321⁄2"
(826 mm)
RIGHT SIDE
OPERATOR SIDE
FSDT-1
Model Volts* Watts Amps Ship. Wt.
GRSDS/H-36D 120 1810 15.1 158 lbs. (72 kg)
36" (914 mm)
FRONT VIEW
321⁄2"
(826 mm)
12"
(305 mm)
103⁄8"
(264 mm)
24" (610 mm)
RIGHT SIDE
GRSDS/H-36D
Model Volts* Watts Amps Ship. Wt.
GRHD-3PD 120 1755 14.6 200 lbs. (91 kg)
FRONT VIEW RIGHT SIDE
451⁄2" (1156 mm)
303⁄8"
(772 mm)
83⁄4"
(222 mm)
83⁄4"
(222 mm)
26" (660 mm)
21"
(533 mm)
161⁄2"
(419 mm)
GRHD-3PD
STANDARD PLUG CONFIGURATIONS
Model 120 Volt 60 Hz 220 Volt 50 Hz 240 Volt 50 Hz
GRHD-3PD NEMA 5-20P CEE 7/7 Schuko BS-1363
GRHDH-2P NEMA 5-15P CEE 7/7 Schuko BS-1363
GRBW-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRSDS/H-36D NEMA 5-20P CEE 7/7 Schuko BS-1363
GRSDH-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRPWS-4824T NEMA 14-20P CEE 7/7 Schuko BS-1363
FSDT-1 NEMA 5-15P•CEE 7/7 Schuko BS-1363
FSDT-2X NEMA 5-15P•CEE 7/7 Schuko BS-1363
FDW-1 NEMA 5-15P•CEE 7/7 Schuko BS-1363
•NEMA 5-20P for Canada
Colored areas indicate plugs for Export use only.
See product specification sheets for additional models.
11

P.O. Box 340500
Milwaukee, WI 53234-0500 U.S.A.
[phone] •[phone]
Fax: [phone] •Int’l. Fax: [phone]
www.hatcocorp.com
E-mail: [email protected]
Printed in U.S.A. Form No. MWB-2099-3
Revised August 2003
RIGHT SIDEFRONT VIEW
91⁄16"
(230 mm)
187⁄8"
(479 mm)
123⁄8"
(314 mm)
9"
(229 mm)
221⁄4" (565 mm)
24" (610 mm)
Model Volts* Watts Amps Ship. Wt.
GRFFL✝120 620 5.2 18 lbs. (8 kg)
Model Volts* Watts Amps Ship. Wt.
GRKW-1 120 545 4.5 37 lbs. (17 kg)
MINI-MERCHANDISER SPECIFICATIONS
GRFFL & SIGN HOLDER KIT NO. HS2-2999✝
133⁄8"
(340 mm)
RIGHT SIDE
145⁄8"
(371 mm)
OPERATOR SIDE
223⁄4" (578 mm)
GRKW-1
123⁄8"
(314 mm)
RIGHT SIDE
24" to 30"
(610-762 mm) 101/2" to 161/2" (267-419 mm)
FRONT VIEW
203⁄4" (527 mm)
22" (559 mm)
Model Volts* Watts Amps Ship. Wt.
LW-2 120 500 4.2 13 lbs. (6 kg)
Model Volts* Watts Amps Ship. Wt.
GRBW-30 120 1230 10.3 52 lbs. (24 kg)
LW-2
OPERATOR SIDE RIGHT SIDE
211⁄4"
(540 mm)
20" (508 mm)
323⁄16" (818 mm)
GRBW-30 w/Enclosures
NEMA 5-15P CEE 7/7 Schuko
BS-1363
✝Add Sign Holder Kit No. HS2-2999 when ordering.
Colored areas indicate plugs for Export use only.
* Other voltages available, consult factory.
✝Add Sign Holder Kit No. HS2-2999 when ordering.
Sign Size: 9"W x 51/2"H (584 x 356 mm)
Sign Size: 297/8"W x 6"H (1930 x 381 mm)
Model Volts* Watts Amps Ship. Wt.
GRHW-1SG 120 820 6.8 37 lbs. (17 kg)
FRONT VIEW
RIGHT SIDE
243⁄4"
(629 mm)
133⁄4"
(349 mm)
191⁄8" (486 mm)
221⁄4" (565 mm)
GRHW-1SG
STANDARD PLUG CONFIGURATIONS
Sign Size: 21"W x 91/2"H (1346 x 610 mm)
Model Volts* Watts Amps Ship. Wt.
GRHW-.5P 120 155 1.3 12 lbs. (5 kg)
131⁄8" (333 mm)
FRONT VIEW
RIGHT SIDE
121⁄4"
(311 mm)
21⁄2"
(64 mm)
115⁄32"
(37 mm)
51⁄8" (130 mm)
73⁄4"
(197 mm)
915⁄32"
(241 mm)
GRHW-.5P
Sign Size: 117/8"W x 21/2"H (762 x 152 mm)
Model 120 Volt 60 Hz 220 Volt 50 Hz 240 Volt 50 Hz
GRHW-.5P NEMA 5-15P CEE 7/7 Schuko BS-1363
GRFFL✝NEMA 5-15P CEE 7/7 Schuko BS-1363
GRKW-1 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRHW-1SG NEMA 5-15P CEE 7/7 Schuko BS-1363
LW-2 NEMA 5-15P CEE 7/7 Schuko BS-1363
GRBW-30 NEMA 5-15P CEE 7/7 Schuko BS-1363
See product specification sheets for additional models.
ANSI/NSF 4
