CENTER STAGE 59-IN.
PRO SERIES FOOSBALL TABLE
ASSEMBLY INSTRUCTIONS

2
THANK YOU!
Thank you for purchasing this product. We work around the clock and around the globe to ensure
that our products maintain the highest possible quality. However, in the rare case of issues during
assembly or use of this product, please contact our Consumer Hotline at 800-759-0977for immediate
assistance before contacting your retailer. Please read the warranty information at the back of these
assembly instructions for further details.
CARE AND USE
ASSEMBLY TIPS
1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults
work together to assemble this game. You may want to carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your work surface.
2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts
List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.
3. Some figures or drawings may not look exactly like product.
4. When installing parts that have more than one screw orbolt, hand tighten all screws orbolts
in place before final tightening with screwdriver orwrench.
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use
extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the
electric screwdriver’s torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS ITEM MAYCONTAIN SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
1. This product is intended for INDOOR use ONLY.
2. Do NOT sit on table, or drag table when moving, as this will damage the legs. Do NOT lift table by rods.
4. Keep table covered when not in use. Remove dust on play surface and cabinet with vacuum or wipe
with a clean, soft cloth.
5. Occasionally wipe the rods with a clean, soft cloth and make sure the players are tight.
6. Do NOT spin rods too aggressively, as this may cause damage. We recommend the use of 100%
silicon to periodically lubricate the bushings, but from the outside of the table so you don’t drip on playfield.

X2 X2 X12
X2
X2
X2 X2 X2
X8
X2 X2
X2
X2 X2 X1 X2 X2
X16
X4
X2 X4 X2 X2 X8
X4 X12
3
CENTER STAGE 59-IN. PRO SERIES FOOSBALL TABLE

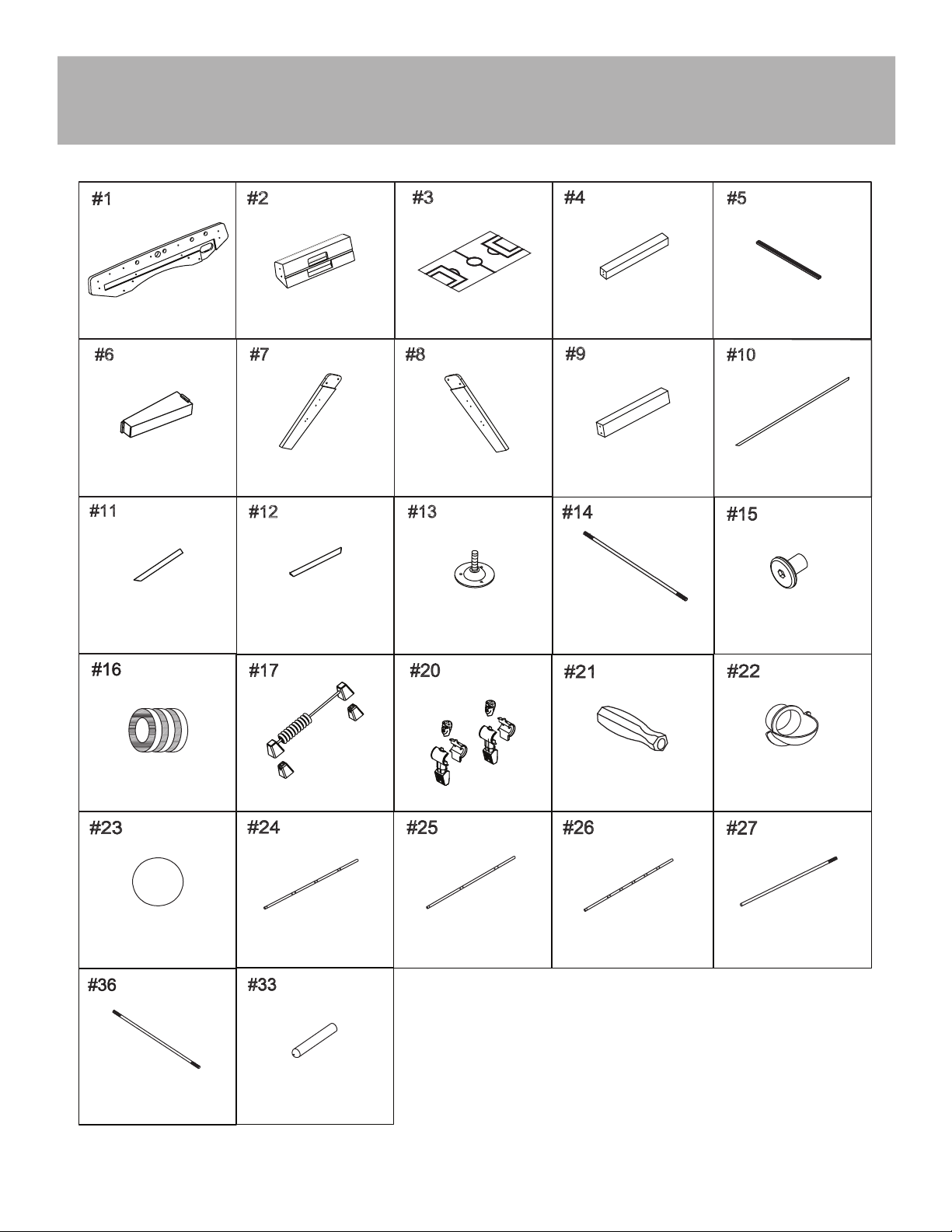

BG50382 Parts List
Illustrations Not to Scale
NGP7929 NGP7930 NGP7931 NGP7933
NGP7934
PLAYFIELD
NGP7935 NGP7936
NGP7941
HANDLE
NGP7942
NGP7944 NGP7947
SIDE PANEL END PANEL
1/4” FLANG NUT
2-PIECE BALL
LAUNCHER
SUPPORT BRACE B
LEG LEVELER
ROD BUMPER SLIDE SCORER
LEFT LEG
SUPPORT ROD
(1/4” X 790mm)
RIGHT LEG
5 PLAYER ROD
SOCCER BALL
NGP7948
NGP7946B
PLAYERS
8/20 For replacement parts please call 800-759-0977.
NGP7937 NGP7938
NGP7939 NGP7940
GOAL BOX
3 PLAYER ROD 2 PLAYER ROD
NGP7946W
NGP7945
NGP7950
NGP7932
LEG SUPPORT A
SOLID PLAYER ROD
X13
each
WOOD DOWEL
(Ø6 X 30mm)
PLAYFIELD BORDER
STRIP - LONG
LEG SUPPORT B
PLAYFIELD BORDER
STRIP - SHORT A
PLAYFIELD BORDER
STRIP - SHORT B
SUPPORT ROD
(1/4” X 745mm)
Black
White
NGP7943
NGP5102 NGP7951 NGP7952 NGP7949
NGP7953 NGP7954

4
WRENCH
X1
CENTER STAGE 59-IN. PRO SERIES FOOSBALL TABLE
BG50382 Parts List
Illustrations Not to Scale

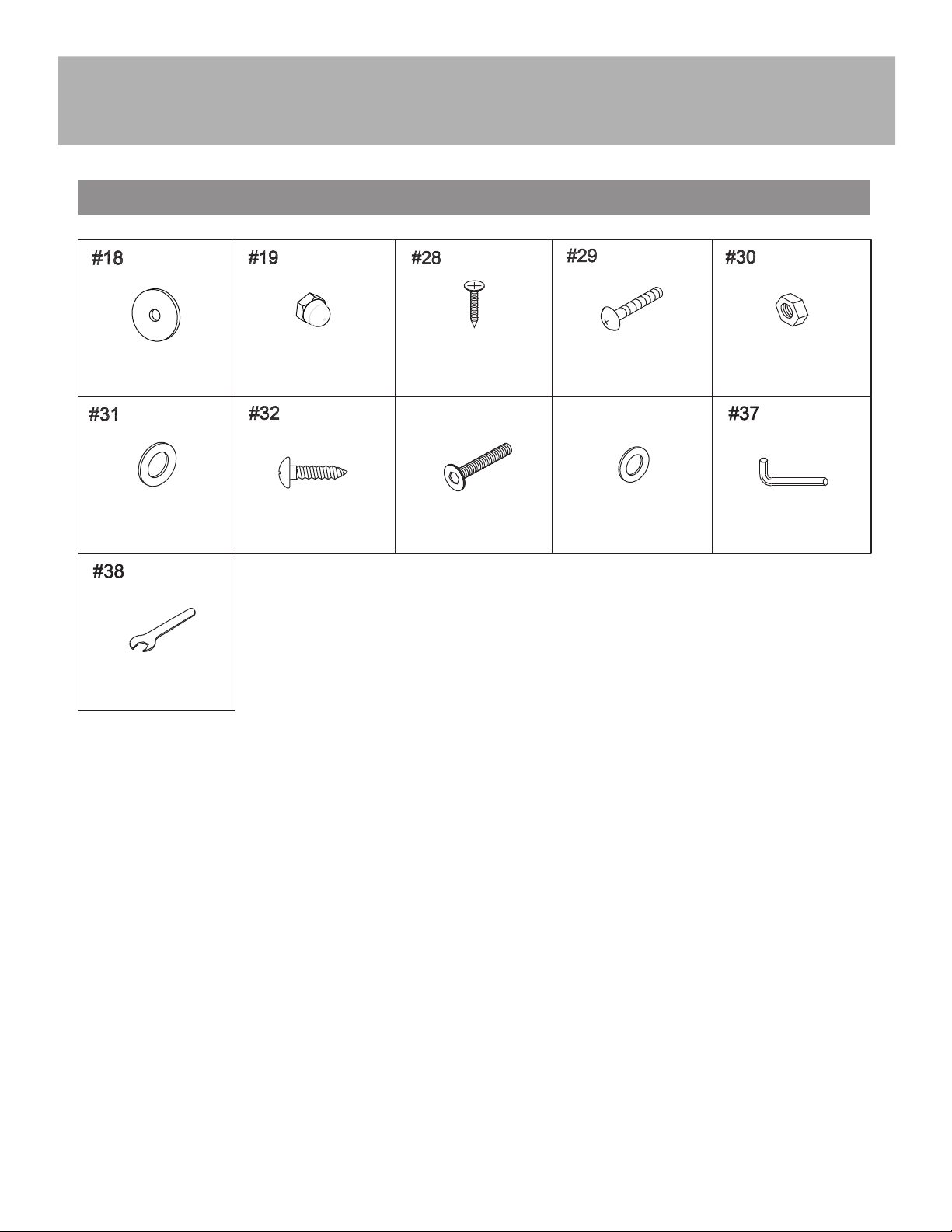

HARDWARE PACK - NGP7955
BOLT
(3/8” x 2-3/4”)
FENDER WASHER 3/8” HEX NUT
3/8” WASHER
X8 X4 X8
X16 X8
ALLEN WRENCH
FLAT HEAD SCREW
(3.0 x 19mm)
ROUND HEAD SCREW
(3.5 x 30 mm)
CAP NUT
X10 X2X4
X8
8/20 For replacement parts please call 800-759-0977.
BOLT
(1/4” x 2-1/4”)
X4
#34 #35
1/4” WASHER

5

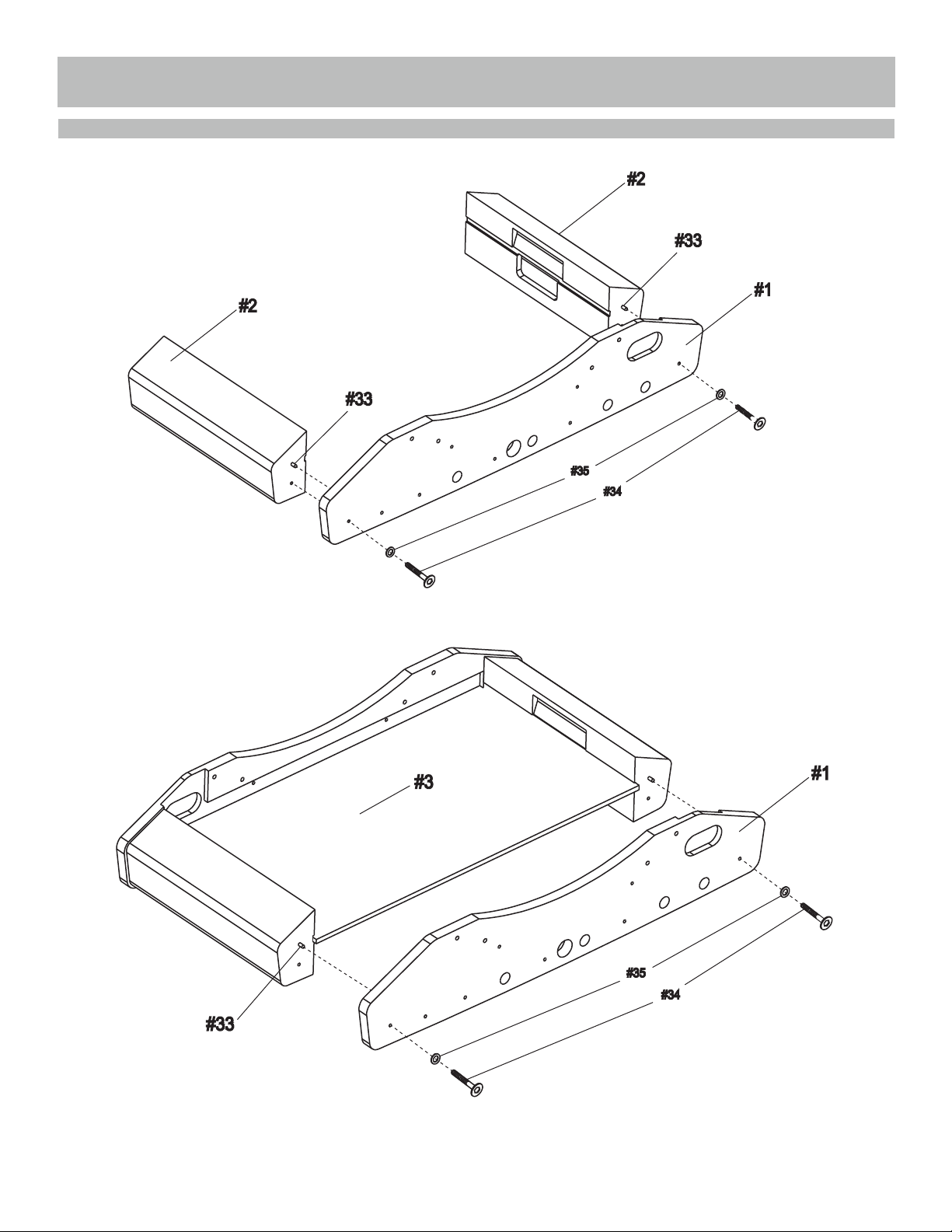

ASSEMBLY INSTRUCTIONS

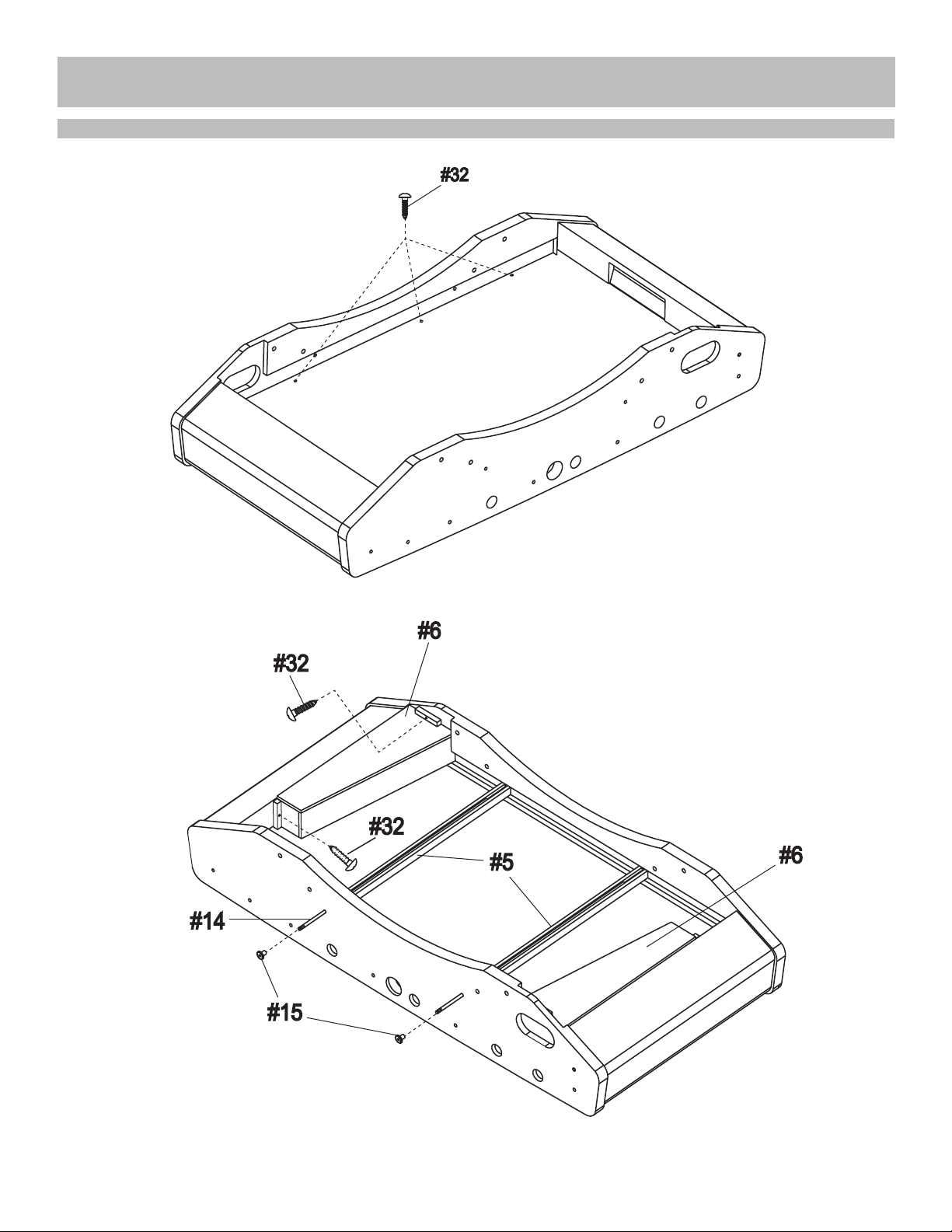

Bottom
1.
2.

6
ASSEMBLY INSTRUCTIONS (CONT.)
3.
4.

7
ASSEMBLY INSTRUCTIONS (CONT.)
5.
6.
Openings face this direction

8
ASSEMBLY INSTRUCTIONS (CONT.)

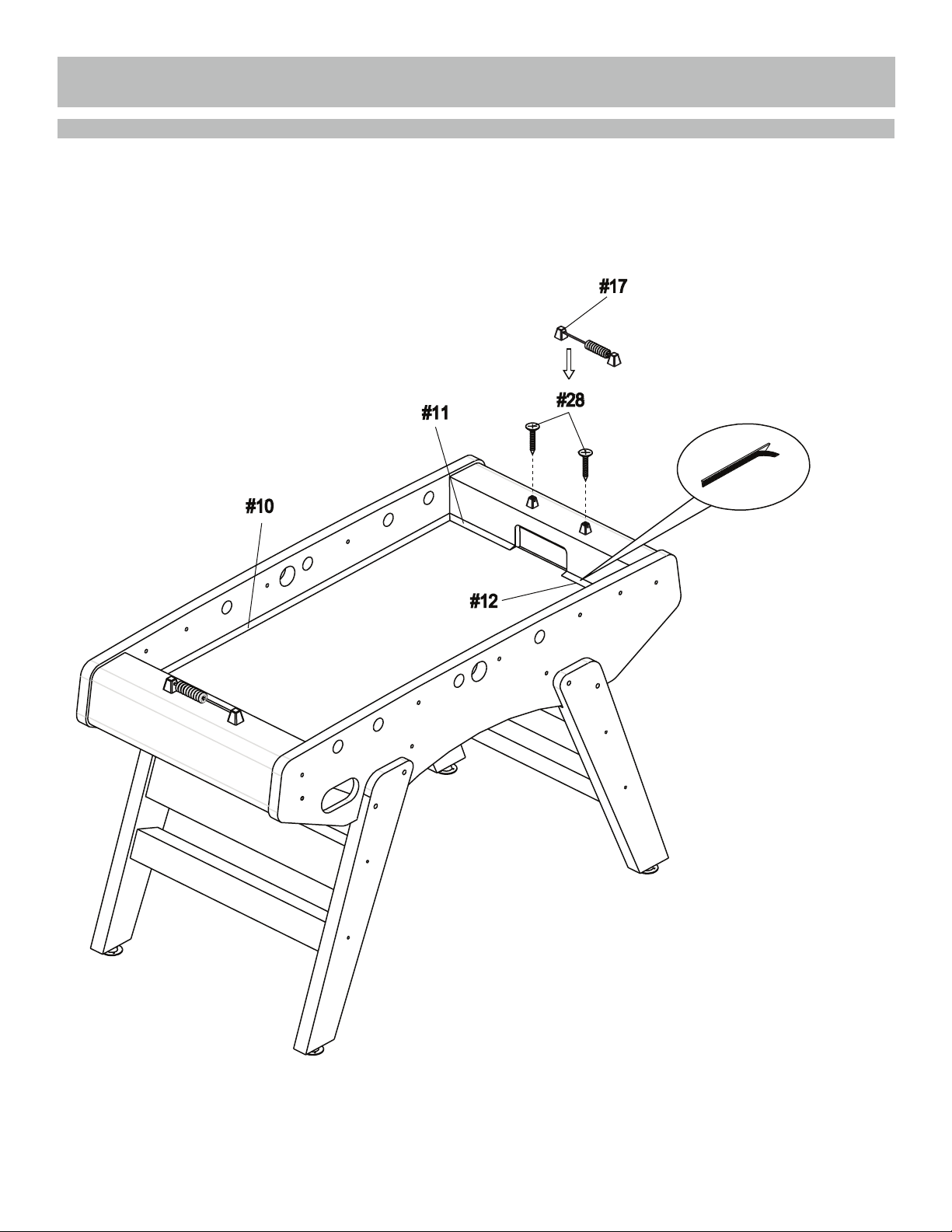

7.
NOTE: Two adults are required to turn table upright. Turn over using main table body only, NOT legs,
and place on all four feet on ground at same time.
NOTE: Peel the paper off the
adhesive strip on the back of
the Playfield Border Strips and
stick onto playing surface
keeping side edge tight against
the Side and End Panels.

9

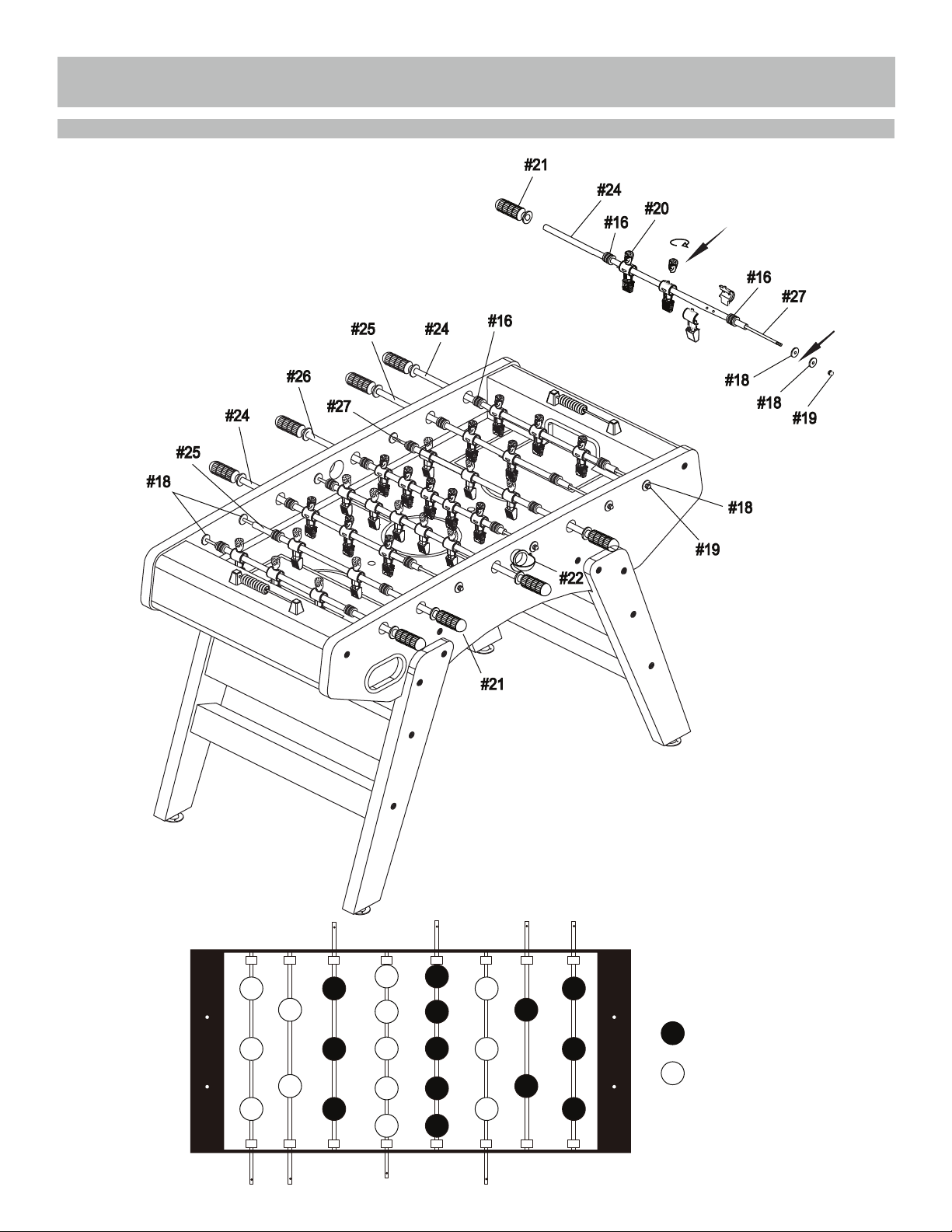

NOTE: Each team should face the opposite
goal and all be the same color. See diagram
below for rod and player positions.
NOTE: Once table is completely assembled and placed
in desired location, use level (not included) to adjust leg
levelers so table is level in both directions.
ASSEMBLY INSTRUCTIONS (CONT.)
HOME PLAYER
VISITOR PLAYER
Tool free player
8.
Step 1
Step 2
Step 3
Side Panel
#24 #25 #26
#24
#25
#26
#24
#24

10
