New Product Release!
Vehicle Specific Console for
Ford E-Series Van
New Consolidator® 18” Vehicle Specific Console for
’04-08 Ford Econoline Van Model E-250/E-350 by Havis-Shields
The Ford Econoline Vehicle Specific Console (C-VS-1800-ECO) is designed to replace the OEM engine cover
console for a custom fit and appearance. This customized design also makes control heads easy to see &
reach.
Replaces OEM engine cover console for custom fit and appearance
Requires no permanent modification
Removes easily for fast engine service
Includes up to 4 pairs of C-EB equipment mounting brackets and up to 4 filler plates to enclose the top of
the console
Optional accessories include: mobile data computer mounts, video system for secure prisoner transport,
map light, and switch panels
•
•
•
•
•
C-VS-1800-ECO shown with optional video system
(PT-Video-4) for prisoner compartments.
Constructed from
rugged 14 gauge
steel housing and
finished with black
powder coat for
durability.
Makes controls easy
to see & reach.
Other Vehicle Specific Console models available:
Ford Pickups
C-VS-0309-F250
Expedition
C-VS-1200-EXPD-1
Explorer
C-VS-1200-EXPL
F-150
C-VS-1100-F150
GM Models
C-VS-1200-GM
More details on back!
Manufactured by:
18” 17.505”

18” Vehicle Specific Console for ‘04-’08 Ford Econoline
Van Model E-250/E-350
Fits 2004-2008 Ford E-250/E-350 Econoline Van
Easy to install
No permanent modification required
Designed to mount to vehicle floor surface
No vehicle mounting kit required
14 gauge formed steel housing with extruded aluminum top frame.
Includes up to (4) pairs of C-EB equipment brackets and up to (4)
C-FP filler plates to enclose top of console (18” max)
See pgs C24 – C33 for control head equipment brackets
Measurements
Height = 19”
Width at Engine Cover = 17”
Width at Face (controls) = 13.5”
Depth for controls top = 9” middle = 12” bottom = 4”
Console Top Platform = 8.5” x 13.5” wide (tapers out to 17”)
Extends out from Engine cover at floor = 20”
55° angle
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
C-VS-1800-ECO
18” 28 lbs.
C-VS-1800-ECO-NPR-9-06 rev 10-07
New Product Release!
Vehicle Specific Console for
Ford E-Series Van
Manufactured by:
Part Number Description
C-VS-700-DUR 7” Console Adapts To OEM Console ‘04-08 Durango

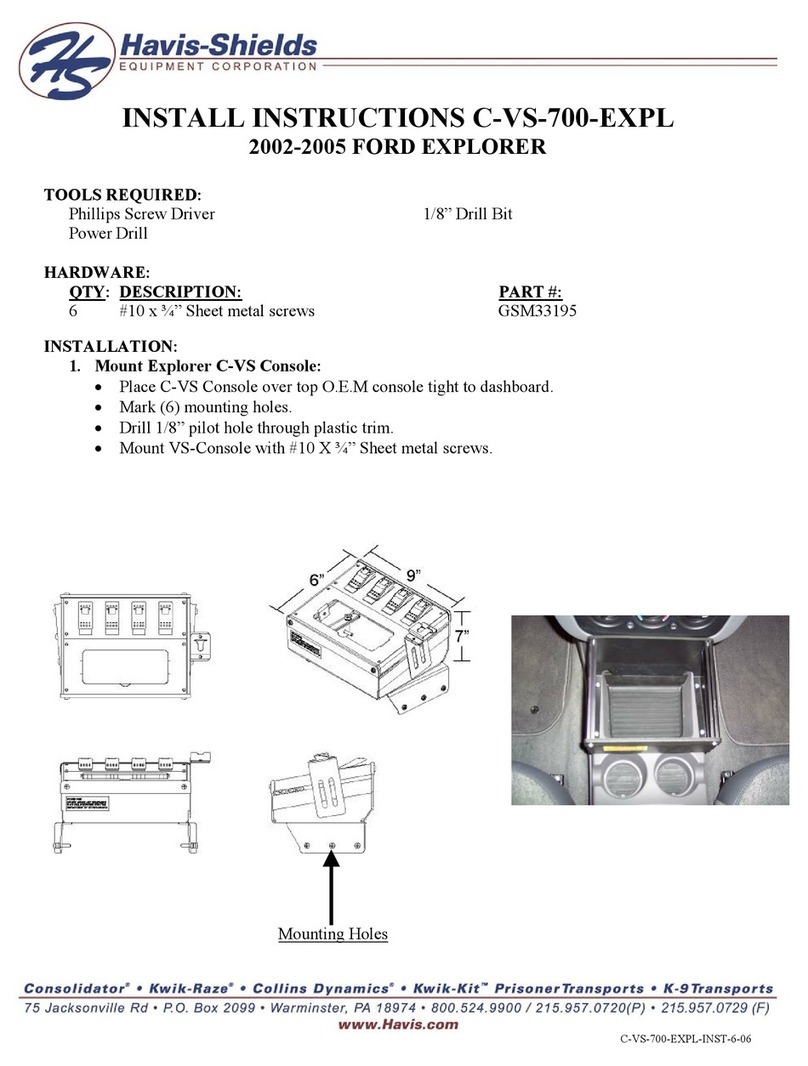

C-VS-700-EXPL 7” Console Adapts To OEM Console ‘02-05 Explorer
C-VS-800-CV 8” Console Mounts Under-dash ‘97-08 Crown Vic
C-VS-1000-IMP-1 10” Console Mounts Under Dash ‘06-08 Impala
C-VS-1000-IMP-1-TM 10” Under Dash Console with 30” Trak Mount ‘06-08 Impala
C-VS-1000-TAH 10” Console Adapts To OEM Console ‘07-08 Yukon/Tahoe, Suburban & Silverado New Body Style
C-VS-1100-F150 11” Console Adapts To OEM Console ‘04-06 Ford F-150 Series Pickup With Optional Bucket Seats Only
C-VS-1200-DUR 12” Console Adapts To OEM Console ‘04-08 Durango
C-VS-1200-EXPD 12” Console Adapts To OEM Console ‘03-06 Expedition
C-VS-1200-EXPD-1 12” Console Adapts To OEM Console ‘07-08 Expedition
C-VS-1200-EXPL 12” Console Adapts To OEM Console ‘02-05 Explorer
C-VS-1200-F250-1 12” Console Mounts under dash 2008 Ford F-250, F350, F-450 & F-550
C-VS-1200-GM 12” Console Adapts To OEM Console ‘03-07 Chevy Silverado, Pickup, Tahoe, Tahoe XL & Suburban
C-VS-1300-TBZ 13” Console Replaces OEM Console ‘02-08 Chevy Trailblazer
C-VS-1600-EXPL 16” Console Adapts to OEM Console ‘06-08 Explorer & ‘07-08 Sport Trac
C-VS-1800-ECO 18” Console Adapts To OEM Console ‘04-07 Ford Econoline Van
C-VS-1800-SAV 18” Console Adapts To OEM Console ‘02-07 Chevy Savanna Van
C-VS-2400-CHGR 24” Console Replaces OEM Console ‘06-08 Dodge Charger & ‘05-08 Magnum
C-VS-0309-F250 12” Console Mounts under dash ‘99-07 Ford F-250, F350, F-450 & F-550
C-VS-0812-CHGR 20” Console Replaces OEM Console ‘06-08 Dodge Charger & ‘05-08 Magnum
C-VS-3011-DUR 30” Console 10” High with 13” Storage Box and Armrest Mount ‘04-08 Durango
C-VS-WP-DUR Wiring Cover Panel for ‘04-08 Durango C-VS-3011-DUR & C-TM-DUR
