Havis-Shields Kwik-Kit KK-100-05 Configuration guide

INSTALL INSTRUCTIONS KK-100-05 & KK-120-05
KWIK-KIT PRISONER TRANSPORT INSERT
FORD and CHEVY VAN PRISONER TRANSPORT
TOOLS REQUIRED:
¼” & 3/8” Ratcheting Wrenches
¼” & 3/8”Air Ratchets (recommended)
3/8” Impact Guns (recommended)
¼” & 3/8” Standard Socket Sets
Powered Drill
Powered Screwdriver (recommended)
Drill Bit Set
Tape Measure
Screwdriver Set
Awe or Scribe
Pry-bar
Wire Crimping tool
Wire Stripping tool
Wire Cutter
Table/Circular Saw (if necessary)
Utility knife
Caulking gun
HARDWARE - 60” or 80” COMPARTMENT: Some hardware not used in all application:
QTY DESCRIPTION PART # USED FOR:
80 ¼” Serrated nut GSM30023
60 ¼” x ¾” Carriage bolt GSM32000
50 #10 x 1” Phillips pan head sheet metal screw GSM33196 Floor/wall to ceiling
8 #8 x 3/8” Phillips flat head screw GSM33179 Vent plates/dome lights
32 ¼” x ¾” Phillips flat head machine screw GSM33078 Wall/Bench extension
25 ¼” x ¾” Hex head bolt GSM33001 3rd divider, 3rd ceiling
25 ¼” Flat washer GSM31005 3rd divider, 3rd ceiling
15 ½” Flat washer GSM31009 Grab straps/seat belts
15 ½” Lock washer GSM31030 Grab straps/seat belts
15 ½” x 1 ¼” Socket button head bolt GSM33310 Grab straps/seat belts
4 3/8” x 2” Hex head bolt GSM33032-1 Bulkheads
4 3/8” Hex nut GSM30008 Bulkheads
4 3/8” Lock washer GSM31028 Bulkheads
4 3/8” x 2” Fender washer GSM31022 Bulkheads
2 White Silicone tube PRM97343 Seams & Gaps
4 Lock key PRM97660-1 Doors
4 Vent block off plate KKM0403-004 Ceiling (vent adapter kit)
2 A/C vent plate KKM0403-001 Ceiling (vent adapter kit)
2 Dome light KK-DOME-2 Ceiling
HARDWARE - 40” COMPARTMENT:
QTY DESCRIPTION PART # USED FOR:
90 ¼” x ¾” Carriage bolt GSM32000
90 ¼” Serrated nut GSM30023

KK-XXX-05_INST_8-07
2
40” COMPARTMENT (cont):
QTY DESCRIPTION PART # USED FOR:
40 #10 x 1” Phillips pan head sheet metal screw GSM33196 Floor, wall to ceiling
25 #8 x 3/8” Phillips flat head screw GSM33179 Vent plates/dome lights
5 ½” Flat washer GSM31009 Grab straps/seat belts
5 ½” Lock washer GSM31030 Grab straps/seat belts
5 ½” x 1 ¼” Socket button head bolt GSM33310 Grab straps/seat belts
5 3/8” x 2” Hex head bolt GSM33032-1 Bulkheads
5 3/8” Hex nut GSM30008 Bulkheads
5 3/8” Lock washer GSM31028 Bulkheads
5 3/8” x 2” Fender washer GSM31022 Bulkheads
2 A/C Vent plate KKM0403-001 Ceiling (vent adapter kit)
1 Dome light KK-DOME-2 Ceiling
HARDWARE – DIVIDER:
QTY DESCRIPTION PART # USED FOR:
28 ¼” x 1 ½” Hex head lag bolt GSM33062 Divider to floor
14 ¼” x 5/8” Stainless socket button head bolt GSM33308 Divider
7 ¼” x ¾” Stainless socket button head bolt GSM33309 Divider
14 ¼” Stainless flat washer GSM31048 Divider
10 #10 x ½” Phillips flat head machine screw GSM33072 Door frame to divider
10 #10 Thin nylock nut GSM330015-1 Door frame to divider
Always!
¾Read all instructions before installing any Havis-Shields Equipment Corp products.
¾Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
¾Use hardware provided with install kit
¾For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html, email [email protected] or call
1-800-524-9900.
¾If this is your first time installing a Havis Shields Equipment Corp Prisoner Transport,
please contact the factory for tips and suggestions that will ease the installation.
VEHICLE PREPERATION:
1. STEPS, HVAC, VAK, OPTIONS, ETC:
•Refer to the specific install instructions. Installing the steps prior to installing the
kwik kit will ease installation and must be done on Chevy side step.
•Installing options may be necessary prior to installing the kit.
2. SOUND DEADENING & FLOORING:
•OPTION #1: KK-RFM A self-adhesive rubber sound deadening floor mat is sold
separately and will help deaden road noise.
•Install optional rubber flooring onto van floor. Rubber floor mat should go under
OEM floor mat in drivers compartment to cover sheet metal floor.
•Excess material can be placed onto walls of the van, around the wheel wells, inside
door panels, etc. This will also help deaden the echo in the vehicle.
•OPTION #2: 3/8” to ½” plywood can also be used as an alternative solution. Cover
the entire cargo floor of the van. (1 ½) – 48” x 96” sheets of plywood are needed.
Havis Shields Equipment Corp does not supply plywood floor kit. Draw a line on the
rubber/wood floor from rear doorframe as shown on the following page. This will be
the starting point of the kit.

Rear OEM Trim modifications
1997-2007 Chevrolet G-Series Van
Installation of Kwik Kit is very
similar in Ford and Chevy Vans.
All kits start with a
measurement at the rear floor.
The rear plastic floor trim on
Chevy vans must be cut straight
across as shown in photo.
Measure seven inches ( 7” )
straight line full width.
(Jig saw works well for this
ste
from rear center of trim and cut
p)

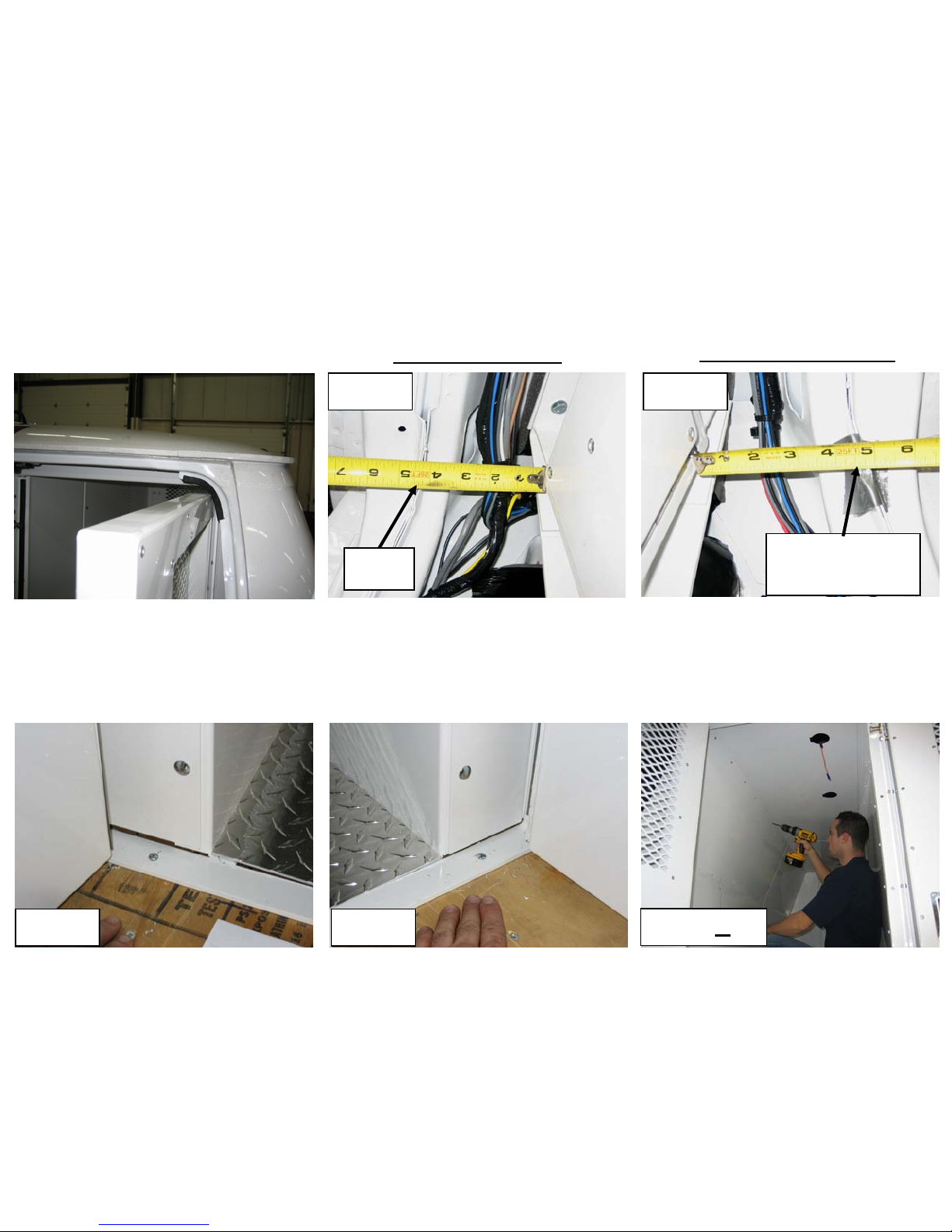

After plastic trim is cut and back
in it’s original location, you must
measure 7” inches forward on
both sides from newly cut trim to
place rear Kwik Kit bulkhead.
This is the starting position so
parts fit into the correct locations.
Note: With OEM rear AC/Heat,
The kit will be shifted to
passenger side.
.*** Ford Van does NOT require
rear trim modification***
KK-XXX-05_INST_8-07
3

KK-XXX-05_INST_8-07
4
Ford Van Driver-Side rear Ford Van Passenger-Side rear
PASSENGER WINDOW VAN PREPARATIONS:
1. Remove all rear bench seats from the vehicle.
2. Modify / remove interior parts as needed.
3. Remove floor mat/carpet and replace with ½” plywood or sound deadening material.
(Recommended).
4. If installing KK-F-VAK, (OEM air conditioning adapter) cut or remove all plastic
trim around the rear OEM system.
8”inches to rear body flange. Note: The OEM rear Black
plastic trim will remain. Photos show without Trim.
8” to 8 ½” Note: Exact position may not be
square to Driver side if van has OEM rear Air
conditioning
Note: Photos above show a Chevrolet Van. Photos are intended to show rubber floor mat option only.
***Kwik kits are designed for cargo vans with no rear OEM trim, however they can be
installed into passenger window vans. Some rear trim removal or modification is required.
D
o not remove a
l
l rear trim and headliner as this will aid in sound deadenin
g
& insulation
UNPACKING AND INSTALLATION:
***Refer to exploded view drawing on page 16 to identify parts ***

KK-XXX-05_INST_8-07
5
1. Remove clear shrink-
wrap covering the
prisoner transport
assembly.
2. This is the rear 40/60/or
80 section of the kit.
3. Remove all black
hardware, wood panels
and brackets holding
wood panels.
4. Remove bolts
holding the kit to the
wood pallet.
5. With all hardware
removed the remaining
sections should match
the sub-assemblies on
the following pages
1. Remove clear shrink-wrap covering from
prisoner transport assembly.
2. This is the 3rd compartment, 40 section
3. Remove all black hardware, wood fillers,
and brackets holding assemblies.
4. Remove bolts holding the kit to the wood
pallet.
5. With all hardware removed the remaining
sections should match the sub-assemblies on
the following pages

KK-XXX-05_INST_8-07
6

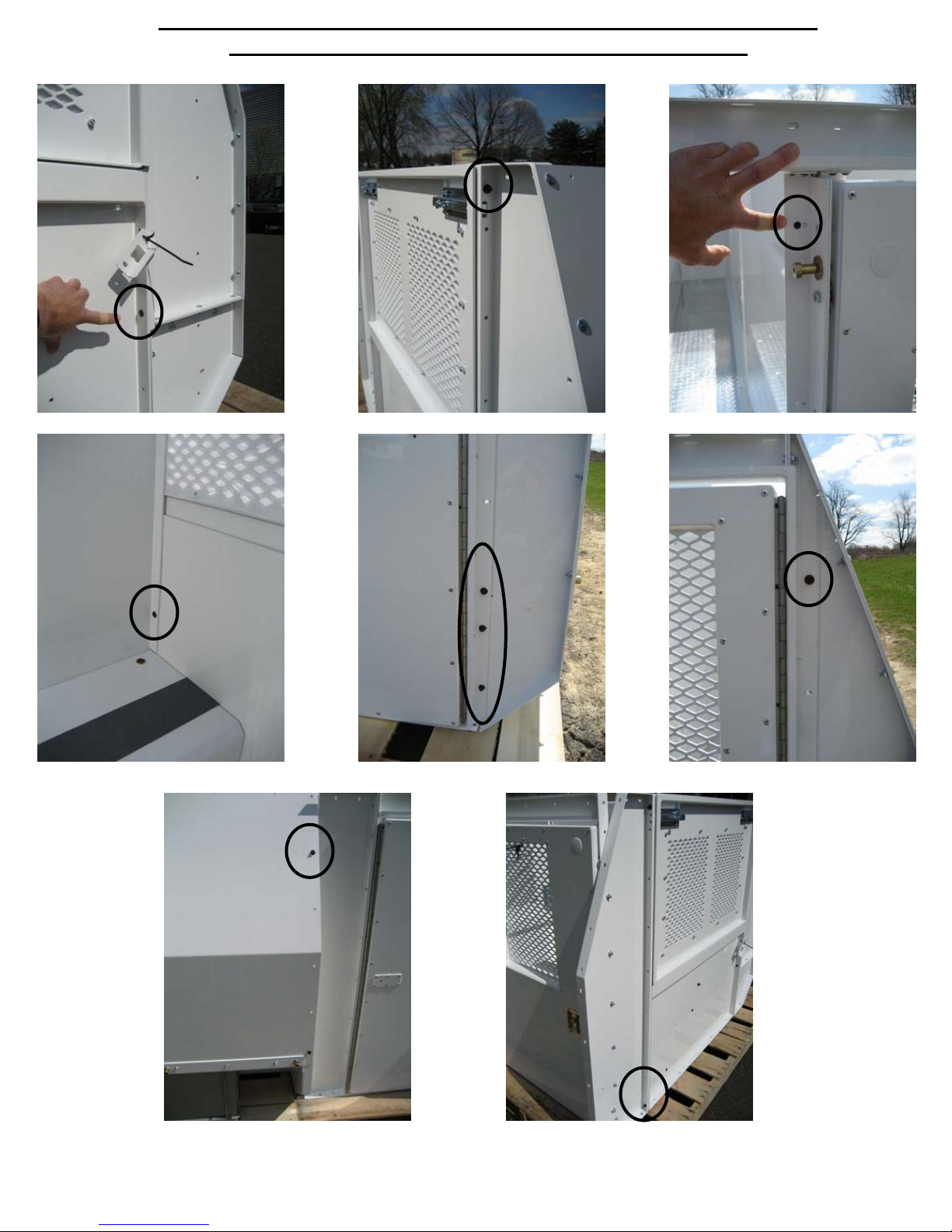

Remove all black hardware from assembled unit. This will give you the
subassemblies as they are shown on the following pages.

KK-XXX-05_INST_8-07
7

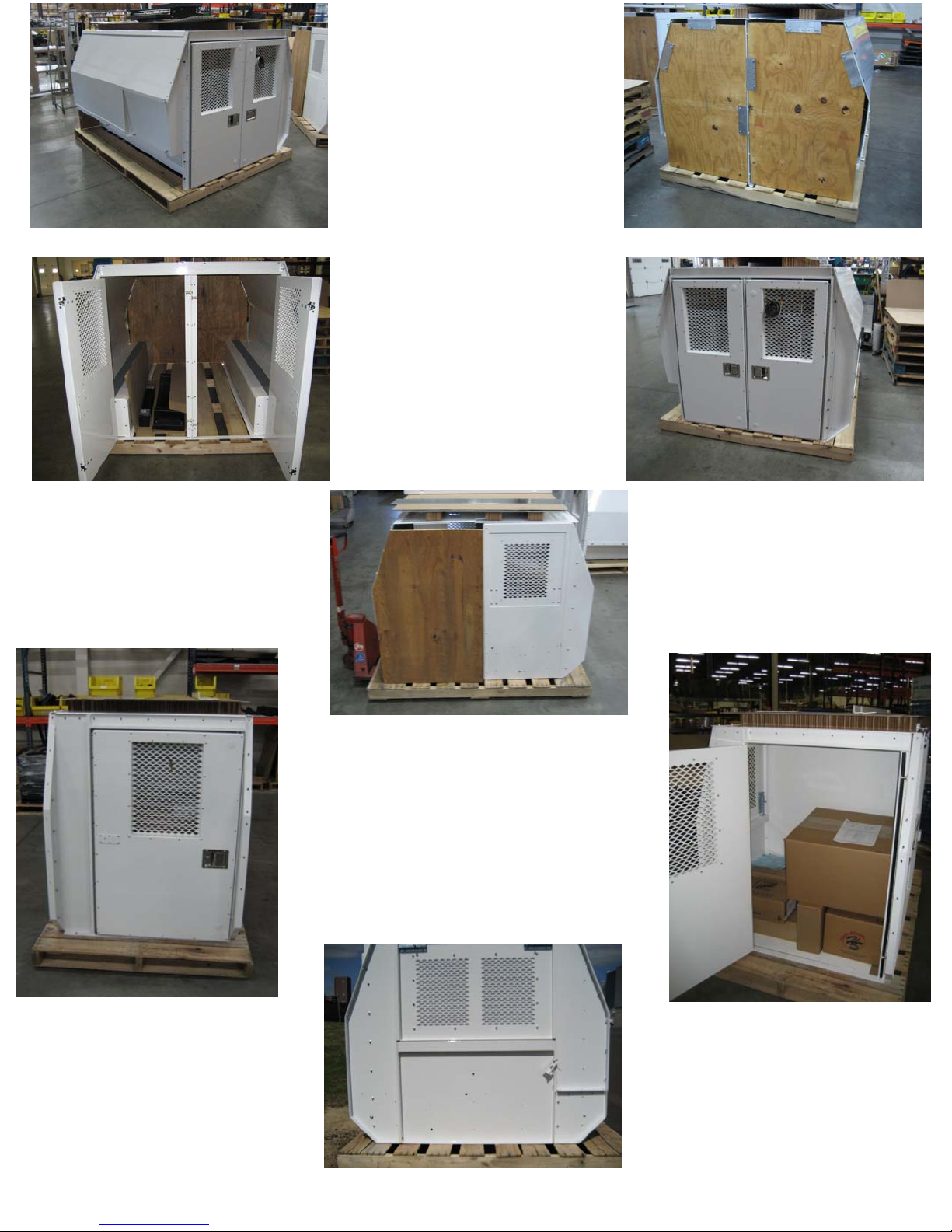

The following photos are the main subassemblies as they are shipped from the factory.
Remove drawing on final page and reference the item #’s as you install this kit.
Driver Side Bench/Wall/
Front bulkhead wing section
Item #1
Center Divider
Item #5
(2) - Diamond plate floor
Item #4 &13
Passenger Side Rear Bench/Wall/
3rd Compartment Bulkhead
Item #2
Wing section
Item #3
Front Bulkhead minus driver-side
Wing section
Item #7
Driver-side ceiling
Item #8 Item #9 Item #10
3rd compartment bulkheadPassenger-side rear ceiling 3r
d
Compartment bench w/ optional
storage door

KK-XXX-05_INST_8-07
8
Item #12
Rear bulkhead/door assembly
Item #6
3r
d
Compartment
Bulkhead/door assembly
Item #11
3rd Compartment ceiling
KWIK KIT LAYOUT
Diamond plate floor and ceiling sections are not shown for detail purposes.

KK-XXX-05_INST_8-07
9

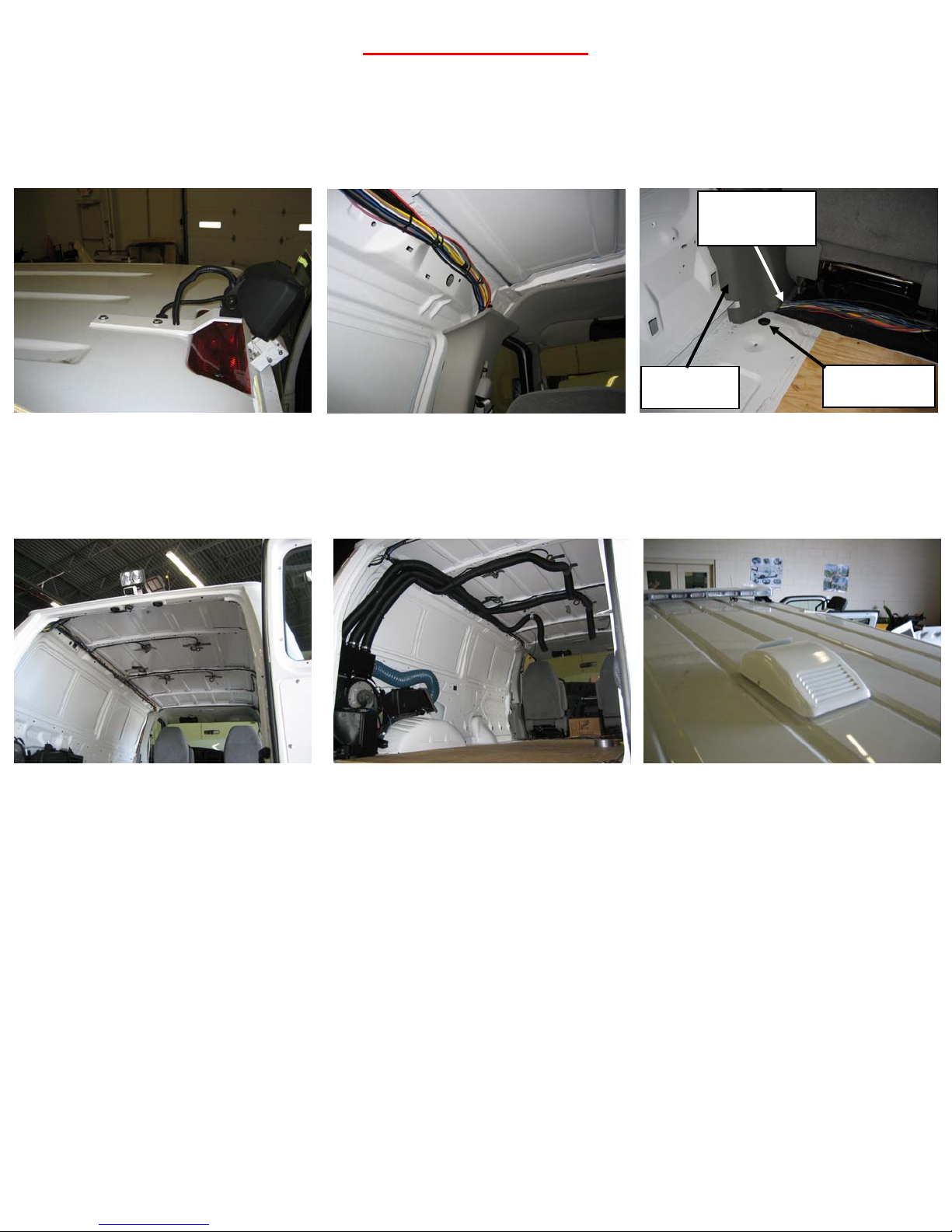

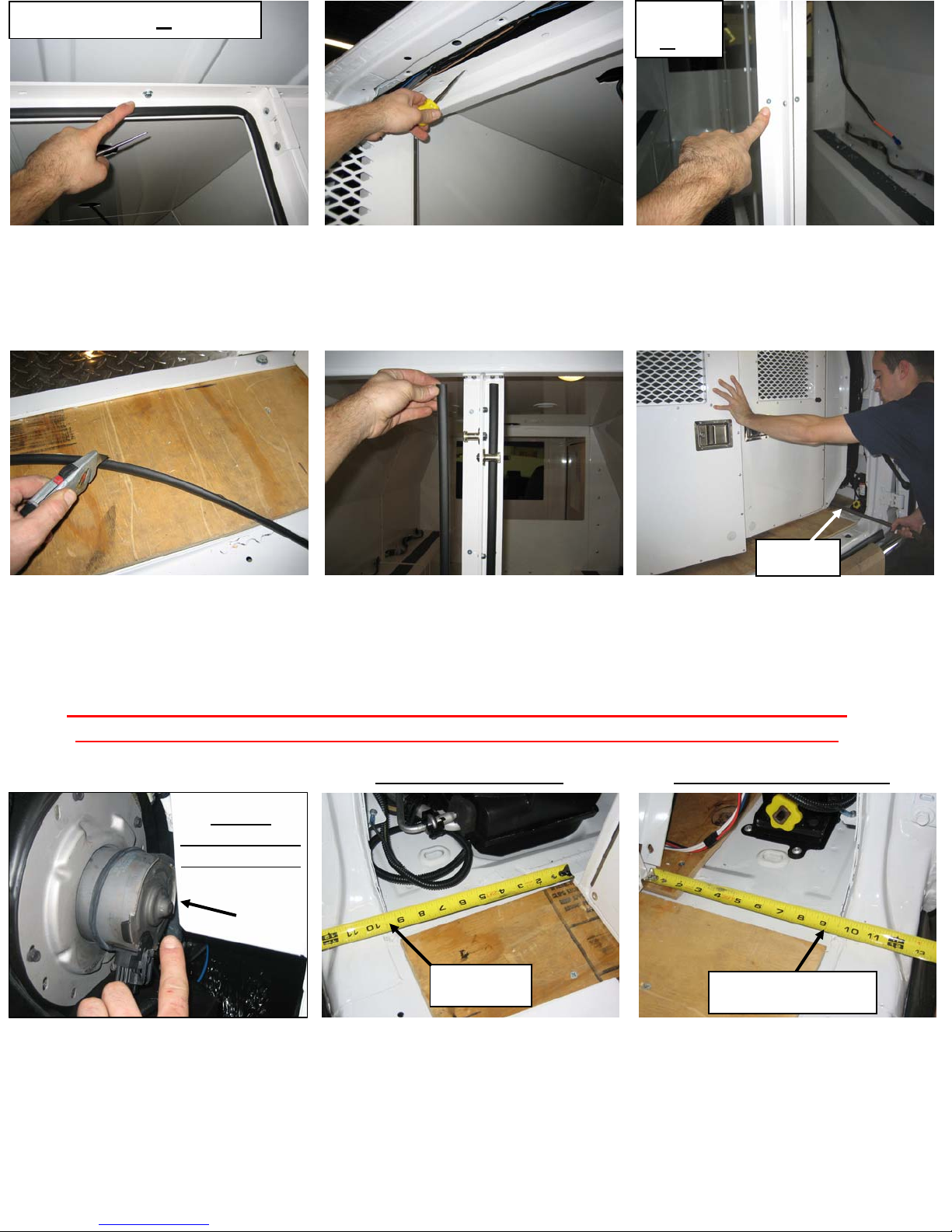

VERY IMPORTANT:
Be sure that all Auxiliary lighting, video systems, Kwik kit options, and
wiring are complete. Access is severely limited after kit is installed.
For neatness of wiring, route all
cables down driver-side “B” pillar.
If going under hood for power to
console, drill hole at location above.
1 ½” Hole
“B” Pillar
If optional Power Vent(s)
Notch trim
for wirin
g
(KK-PVENT) was ordered, see
those instructions at this time for
necessary prep work that must be
done
p
rior to installin
g
Kwik Kit
If optional rear load light(s)
(KK-RLL) was ordered, install at
this time.
See KK-RLL install instructions
Run all wiring for dome lights, power
vents, video system, HVAC, etc. at
this time. Tie to existing OEM harness
At this time go to the KK- (x)-VAK
install instructions. This must be
installed prior to Kwik Kit.
Be sure to tape harnesses to roof in
approximate locations that
accessories are being installed in
Kwik kit. This will vary between
the different model kits.

KK-XXX-05_INST_8-07
10

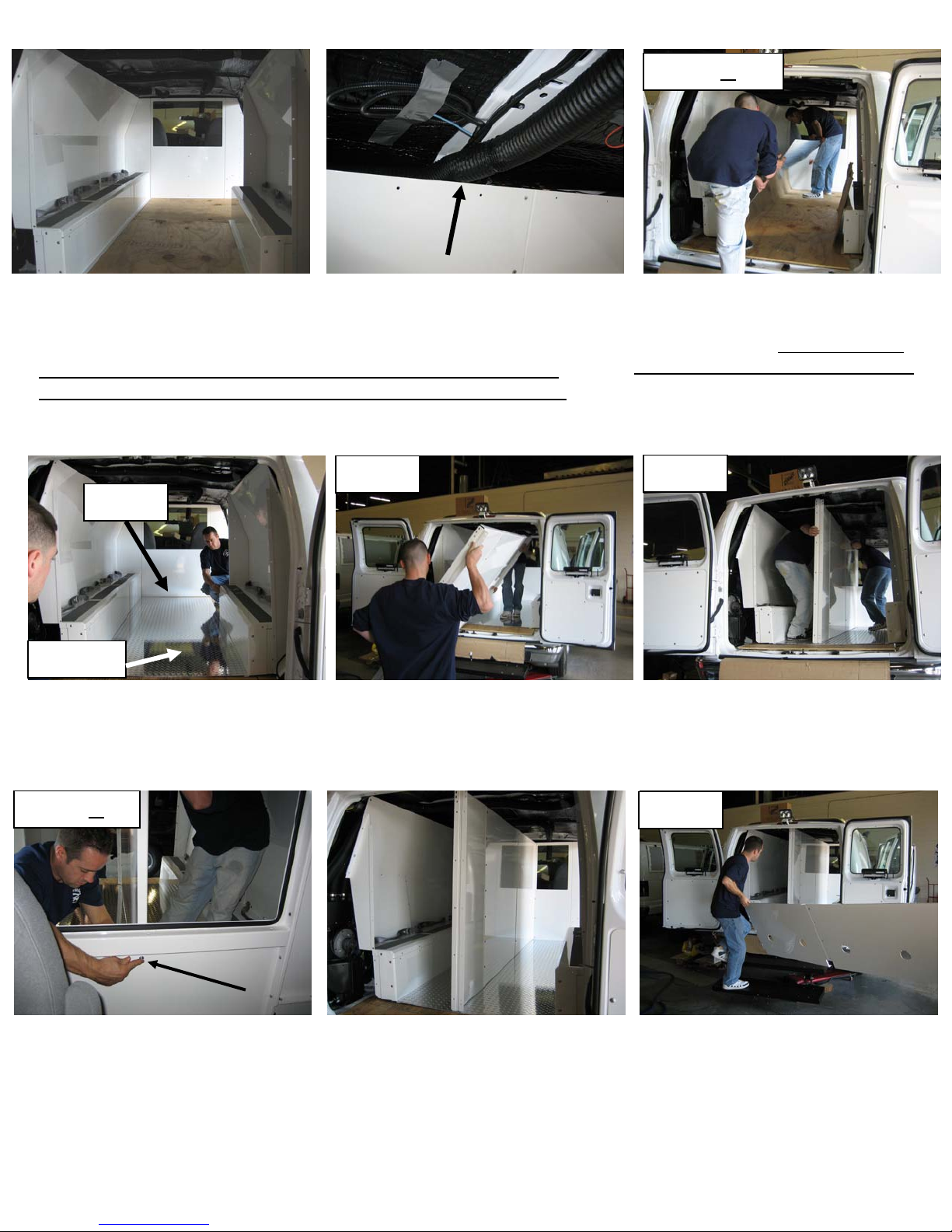

Place Driver-side Bench/Wall
assembly into van so bench rests
on wheel well
Item #1
Remove steel support bracket for
Emergency Exit Hatch pin. Re-install
when attaching Front Bulkhead to
Bench/Wall assemblies
Item #3
Place Passenger-side
Bench/Wall assembly into van so
bench rests on wheel well
Item #2
Remove Emergency Exit Hatch
from Front Bulkhead to ease
installation
Item #3
View of Emergency Exit Hatch
support bracket assembled.
Attach Front Bulkhead to
Driver-side Bench/Wall
assembly
Item #3
Place Front Bulkhead into
vehicle
Item #3 Item #3

Item #4 &#13
Place (2) Diamond Plate Floors
between Bench/Wall assemblies and
Front bulkhead. Place cardboard
along side of bench while positioning
Be careful that exposed wires are not touching metal and optional KK-
x-VAK hoses are not completely crushed
Note: Vent hose will be tight in spots. If hose are crushed to an oval
shape the airflow will still be good. Avoid completely crushing hoses. the
f
loor to avoid scratchin
g
the bench.
KK-XXX-05_INST_8-07
11
Current view of installation
Place Center Divider into
vehicle.
Item #5
Item #4
Item #3
Approximate center
Item #5
Carefully place Driver-side
Ceiling section into vehicle.
Item #7
Loosely bolt Center Divider to
Front Bulkhead
Item #5 to #3
The floor(s) will square the benches
and bulkheads to the kit.

KK-XXX-05_INST_8-07
12
Remove screws holding the center
divider together where 3rd
Compartment Bulkhead will be
mounted.
Item #5
Position 3rd Compartment
Ceiling into vehicle.
Item #12
Current view of installation
Slide the ceiling sections out of the way in order to access A/C hoses, wires, etc.
Note: These components will be hard to access once ceiling is mounted.
Remove all slack from hoses to maximize airflow.
Item #7 &#8
Item #7 &#8
Route dome light wires, HVAC
hoses, video cables, etc to their
respective locations
Item #8
Place Passenger-side Ceiling section
into vehicle
Do not attach any hardware at this time
Item #8
Remove 3rd Compartment
Bulkhead Emergency Exit
Hatch to ease installation.
Item #9
Position 3rd Compartment
Bulkhead as shown above.
Item #9

Re-install screws removed in step
above and loosely attach aligning
all three materials.
Note: An awe or scribe is
recommended to help align holes
Item #9 to #5
Place 3rd compartment bench
Photo shows optional storage door
Note: Be careful not to scratch bulkheads.
Item #10
Bolt 3rd Compartment Bench to 3rd
Compartment Divider using ¼” x ¾”
carriage bolts and serrated nuts. Nuts should
be on the inside of the bench
Item #10 to #9
Position 3r
d
compartment ceiling and loosely attach a few
¼” x ¾” hex head bolts and washers where 3rd
compartment divider and ceiling meet with rear passenger-
side ceiling. This is the most difficult section to install due
to aligning all 3 materials. Be sure to do this step prior to
attaching any part of ceilings or 3rd compartment divider.
VERY IMPORTANT!!! Items #9, #8, & #12 all bolt together
Items #9, #8, #12
Item #9 to #2
Item #9 to #2
Loosely bolt Passenger-side Bench/Wall assembly to 3rd
Compartment Bulkhead using ¼” x ¾” Carriage bolts and
serrated nuts
Note: An awe or scribe is recommended to help align holes.
Bolt 3rd Compartment Divider to
Passenger side Wall using ¼” x ¾”
carriage bolts, washers and nuts.
KK-XXX-05_INST_8-07
13

KK-XXX-05_INST_8-07
14

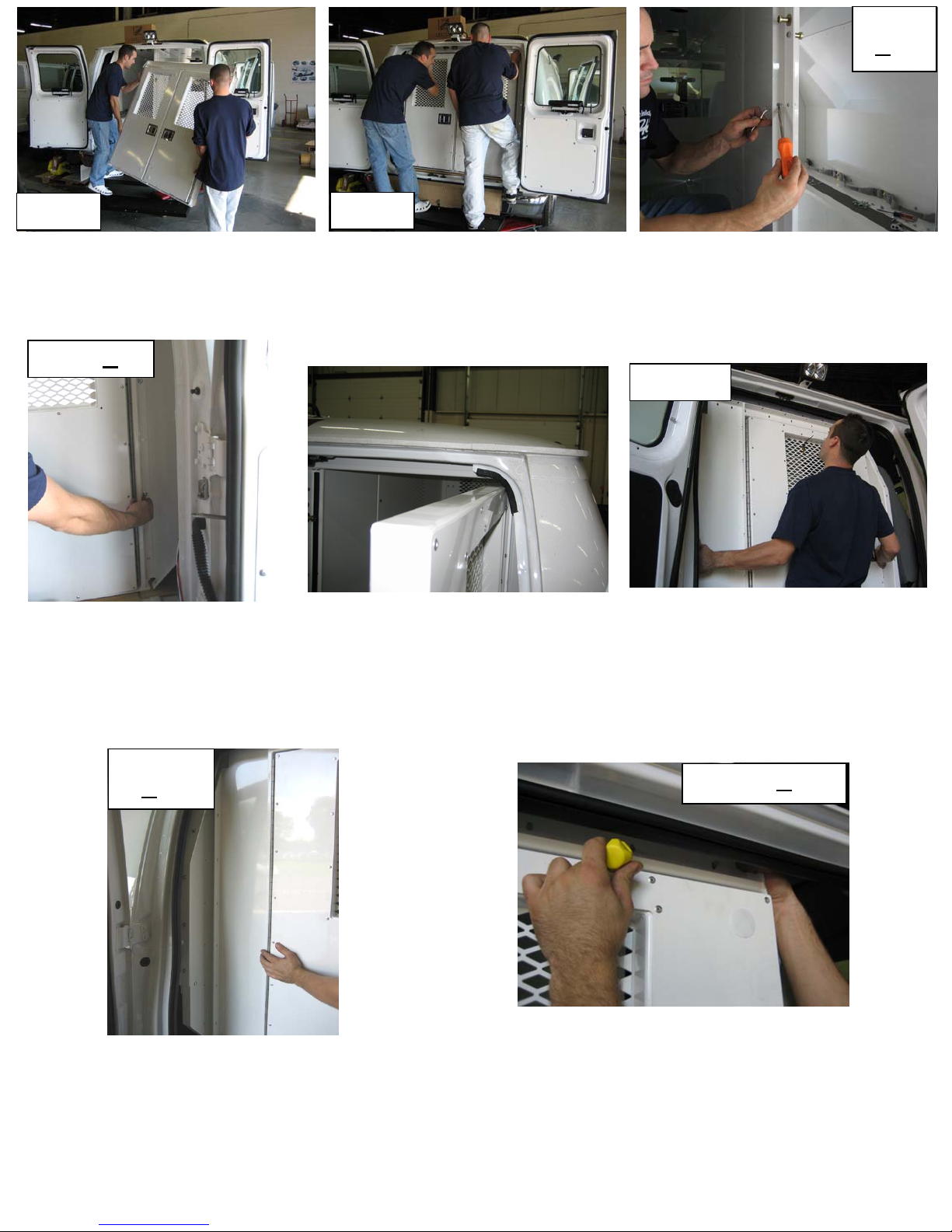

Loosely bolt Rear Bulkhead
Doorframe (at the door hinge) to
Bench/Wall assemblies using ¼”
x ¾” carriage bolts, washers and
serrated nuts
Item #6 to #2
Place the 3rd Compartment
Doorframe assembly.
Item #11
Loosely attach Doorframe to Center
divider using #10 x 3/8” flat head
machine screws and nylock nuts
Item #6
to #5
Position between Driver and
Passenger-side Bench/Wall
assemblies
Note: It is recommended to put
edge molding on the OEM door
opening on the passenger side to
avoid damaging the Kwik kit
door.
Item #6
Place Rear Bulkhead
Doorframe into vehicle
Item #6
Press doorframe to align with holes in
Passenger-side Bench/Wall
assembly.
Item #11
to #9 Item #12 to #11
Align 3rd Compartment Doorframe to
3rd Compartment Ceiling and loosely
attach ¼” x ¾” hex head bolts, washers
and serrated nuts.

KK-XXX-05_INST_8-07
15
An awe or scribe will help
align the holes
THE FOLLOWING STEPS ARE EXTREMLY CRITICAL FOR A SUCCESFULL
INSTALLATION! PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY.
Item #1
Rear driver-side
doorframe wing
Position of driver-side Rear
Doorframe when installing with
factory rear air There should be at
least ¼” of space between the
A/C blower motor and wing
8”inches
Lower Driver-Side rear
Measurement from driver-side
Rear Doorframe to vehicle
doorframe shown above
8” to 8 1/2” inches
Lower Passenger-Side rear
Measurement from passenger-side
Rear Doorframe to vehicle
doorframe shown above
Cut door gasket with utility knife. Cut gasket to the length
of door acceptor frame. Attach as shown above. Position the entire unit according to the
measurements on the following page.
Note: Maneuver the kit into position.
Tighten screws holding Rear
Doorframe to Center Divider
Continue around the entire kit bolting
pieces to Bulkheads and
using ¼ x ¾” carriage
bolts, washers, and serrated nuts
Item #6
to
Item #7, #8, #12 to #3, & #6 #5
all Ceiling
Doorframes
¼”
Pry bar

KK-XXX-05_INST_8-07
16
Top Passenger-Side rear
Top Driver-Side rear
3”
Item #6
With unit positioned according to measurements on previous page, pre-
drill and attach a #10 x 1” sheet metal screw to hold the rear Bulkhead in
place while assembling the remainder of the unit.
Item #6 Item #6
Item #6
3” to 3 1/2”
Item #7 to #1
Position Driver-side Ceiling section to
mate with Bench/Wall assembly. Pre-
drill 5/32” holes into Ceiling, using
Bench/Wall assembly holes as a guide.

Begin to tighten ALL loose hardware on the remainder of the unit,
being sure to align edges and bends of materials being tightened. This
will square the unit to itself.
Pre-drill through Ceiling sections, (using
Divider as a template), with 3/16” drill
bit and attach using ¼” x 1 ½” hex head
lag bolts
Item #5 through #8 into #7
Attach remainder of Diamond plate floor. Pre-drill
diamond floor (only) w/ 3/16” hole and 1/8” hole through
floor of vehicle
Item #4 through #1 into van floor Item 4 through #1 into van floor
Attach to wood floor or rubber
floor mat using #10 x 1” Phillips
pan head sheet metal screws
Through Item #4, #1, & van floor
Be Sure Floor Is Square To Benches & Bulkheads.
Attach Divider to vehicle. Pre-drill through floor(s)
using 3/16” drill bit and attach using ¼” x 1 ½” hex
head lag bolts
Item #5 &#4 to van floor
Note: Ceiling is behind wall
Be careful when pre-
drilling not to hit
hoses, wires, etc…
Pre-drill ceiling with 5/32” drill bit and attach #10 x
1” Phillips pan head sheet metal screws to hold
Ceiling to Bench/Wall assembly. Repeat these steps
on the Passenger-side Ceiling section
Item #8 to #2
KK-XXX-05_INST_8-07
17

KK-XXX-05_INST_8-07
18
3/8” x 2” Hex head
bolt, washers, and nut
On the Rear doorframe, remove the
sheet metal screws installed earlier. Drill
3/8” holes through the doorframe, floor,
and vehicle. Attach using 3/8” x 2” hex
head bolts, washers, fender washers, lock
washers, and hex nuts.
Item #6 to van floor
On 3rd Compartment Doorframe repeat the same steps done on Rear Doorframe. Only one bolt
is used and must be located just to the left of the doors hinge as shown above.
Item #11 to van floor
Item #11 to van floor
Attach the doorframe to the
vehicle using #10 x 1” Phillips
pan head sheet metal screws
Item #11
Secure the Front Bulkhead. Drill (2-
one per-side) 3/8” holes through the
frame, ½” plywood, and floor of vehicle
Attach using 3/8” x 2” hex head bolt,
flat washer, fender washer, and nut.
3/8” x 2” hex head bolt, flat washer,
fender washer, lock washer, and nut
Item #3 to van floor
Place 3rd Compartment Floor
Pre-drill diamond plate floor
(only) and attach using #10 x 1”
Phillips pan head sheet metal
screws. (Approx. 10)
Item #13

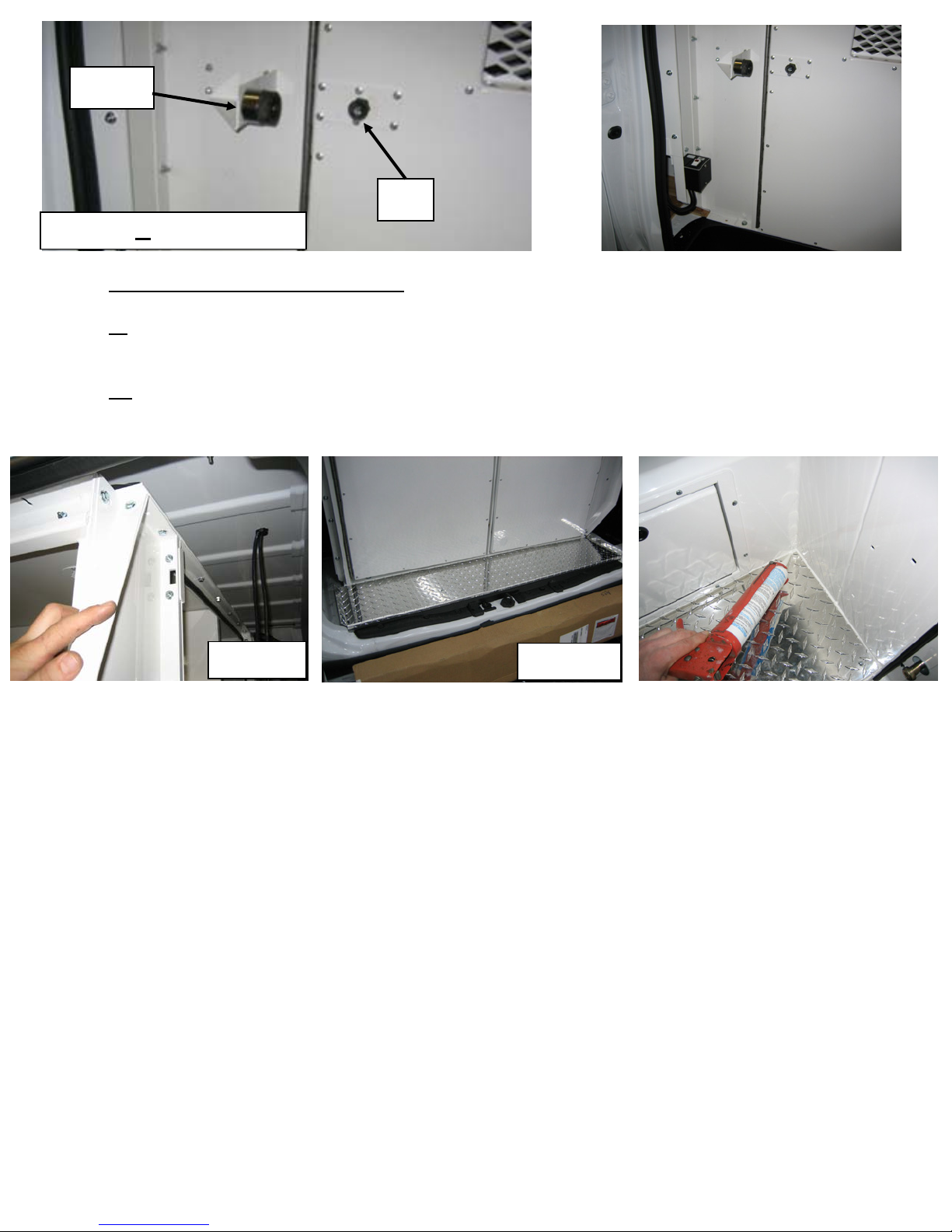

Socket
Ball
Item #14 to doors and frames
Attach Ball & Socket Style Doorstop.
1st Attach “Ball” portion of assembly. Attach to threaded hole on the door using a ¼” x 1” Hex
head bolt.
nd
2Attach the “Socket” and bracket portion. Attach to doorframe using #8 x ¾” Phillips machine
screws and keps nuts.
Silicone all seems and joints.
This will allow the unit to be
hosed out.
In the upper corner of each side
of the 3rd Compartment
Doorframe are small filler
panels that need to be installed.
Attach using ¼” x ¾” carriage
bolts, washers, and serrated
Item #11
Place trim panels as shown above
Pre-drill through trim panel (only)
with 3/16”. Pre-drill the vehicle
w/ 1/8” hole and attach panels
using #10 x 1” sheet metal screws
Item #15
KK-XXX-05_INST_8-07
19

KK-XXX-05_INST_8-07
20
Optional Storage Compartment
(Sold Seperatley)
FINAL INSTALLATION PHOTOS
Optional Storage Compartment
(Sold Separately)
