Hawking CS154F User manual

With the Hawking CS154F, there is no better way to save time and money. The 4-port KVM Switch is an ideal SOHO
solution for controlling four computers with a single Keyboard, Monitor and Mouse. By allowing a single console to
manage all the attached PCs, the 4-port KVM Switch eliminates the expense of purchasing a separate keyboard,
monitor and mouse for each PC, and saves all the extra space as well. It also eliminates the inconvenience and
unnecessary effort involved in constantly moving around from one PC to another.
Setup is fast and easy; all that is required is for the user to plug the cables into the appropriate ports and there is no software to
configure. Furthermore, the CS154F provides two convenient methods to access any PC connected to the system: (1) using the
push button port selection switch located on top of the unit's panel; (2) entering HotKey combinations from the keyboard. In
addition, a powerful Quick View Scan feature allows you to auto scan and monitor the activities of all operating PCs on the
installation one by one.
Features
·Control Up to 4 PCs From a Single Console
·No Software Required - PC Selection via "Select" button on the Switch, HotKey combinations
·Quick View Scan Feature for Monitoring Selected PCs
·PS/2 and Serial Mouse Emulation Provided For System Bootup
·Console's PS/2 Mouse Controls All Connected PCs
·PS/2 Compatible Mouse Support - Microsoft Intellimouse Pro, Logitech FirstMouse, FirstMouse+, Support*
·SVGA, VGA and Multisync Monitor Support
·Superior Video Quality; 1920 x 1440
·LED Display For Easy Status Monitoring
·Includes 2 High Quality KVM Connector Cables
·Hot Pluggable - Add or Remove PCs for Maintenance Without Powering Down the Switch
1. PS/2 compatible mouse support is for three button (wheel) mice.
2. The Logitech Mouse Ware program's Change Device procedure does not work on Microsoft NT systems.
System Requirements:
CS154F
Control 4 PCs with a Single Keyboard,
Monitor, and Mouse
Plug and Play
Two Year Warranty
PACKAGE CONTENTS:
One CS154F KVM Switch
Two Sets of Premium KVM Cables
One User's Manual
Get Connected with Hawking
CAREFREE NETWORKING
CONNECT WHEREVER YOU WANT•WHENEVER YOU WANT
4-Port KVM Switch
Console Side
· VGA, SVGA, or Multisync Monitor
· PS/2 Mouse Port
· PS/2 Keyboard Port
Computer Side
· VGA, SVGA, or Multisync Card
· PS/2 Keyboard Port
· PS/2 Mouse Port

CS154F
Control 4 PCs with a Single Keyboard,
Monitor, and Mouse
Plug and Play
Two Year Warranty
HAWKING TECHNOLOGIES, INC
USA: Irvine, California Europe: Rotterdam, The Netherlands
Website: www.hawkingtech.com Website: www.hawkingeurope.com
Email: [e-mail] Email: [e-mail]
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
HAWKING PRODUCT INFORMATION:

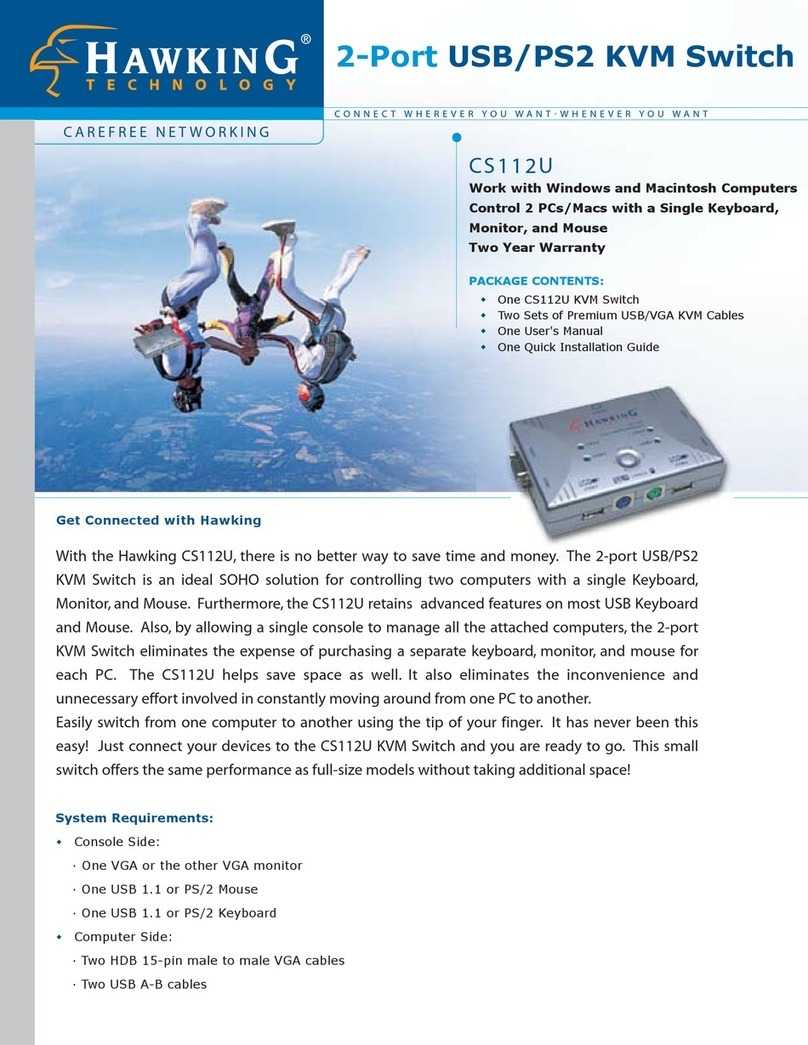

CS112U 2-Port USB/PS2 KVM Switch
CS152 2-Port KVM Switch
CS154 4-Port KVM Switch
CS164 4-Port KVM Switch with 19" Rack Mount
CS168 8-Port KVM Switch with 19" Rack Mount
HKS102 2-Port KVM Switch with Built-in 1.5M Cables
HKS104 4-Port KVM Switch with 3-in-1 Integrated Cables
WIRED NETWORK DIAGRAM:
READY, NETWORK & GO!
It's easy to install, it's easy to use!
Step 1 - Plug in the Keyboard, Mouse, and Monitor
Plug the Keyboard, Mouse, and Monitor into the console port connectors of the 4-
Port KVM Switch.
Step 2 - Plug in the PCs
To connect the PCs, plug one end of the PS2/VGA KVM cable into the CS154F and
the other end into the PC's PS2/VGA port.
Step 3 - Get Started
Power on the PCs and you're ready to go!
CA REFR EE NETW ORKING
CONNECT W HEREV ER YOU W ANT•W HENEVER Y OU W A NT
4-Port KVM Switch
Copyright © Hawking Technologies, Inc. 2003. All rights reserved. All trademarks herein are the property of their respective
owners. Product specification subjects to change without notice.
SPECIFICATIONS:
Computer Connections
·Four
Port Selection
· Push Button and Hot Keys
LEDs
· 4-Port Status LEDs
PC Port Connectors (all female)
· Keyboard & Mouse - Four 6 pin mini Din (PS/2 style)
· VGA - Four 15 pin HDB Type
Console Port Connectors (all female)
· Keyboard & Mouse - One 6 pin mini Din (PS/2 style)
· VGA - One 15 pin HDB Type
VGA Max Resolution
· Up to 1920 x 1440 pixels
Auto Scan Interval
· 8 seconds
Operating Systems
· DOS, Win 3.X, Win95/98/2000/ME/XP
Power Consumption (optional)
· DC 9V 500mA (max.)
Operating Temperature
· 5° ~ 40° C
Storage Temperature
· -20° ~ 60° C
Humidity
· 0 ~ 80% RH, Non-condensing
Housing
· Plastic
Weight
· 9 oz (720 grams)
Dimensions (L x W x H)
· 7.16" x 2.95" x 1.34" (182 x 75 x 34 mm)
Cable Length
· 45 inches or 1.14 meters
EMI Conformance
· FCC part 15 Class B and CE Mark
