Hawkins AUTO PRO 50 12V User manual

1. DETAILED SPECIFICATIONS:
Specifications may change without notice in the interests of product improvement

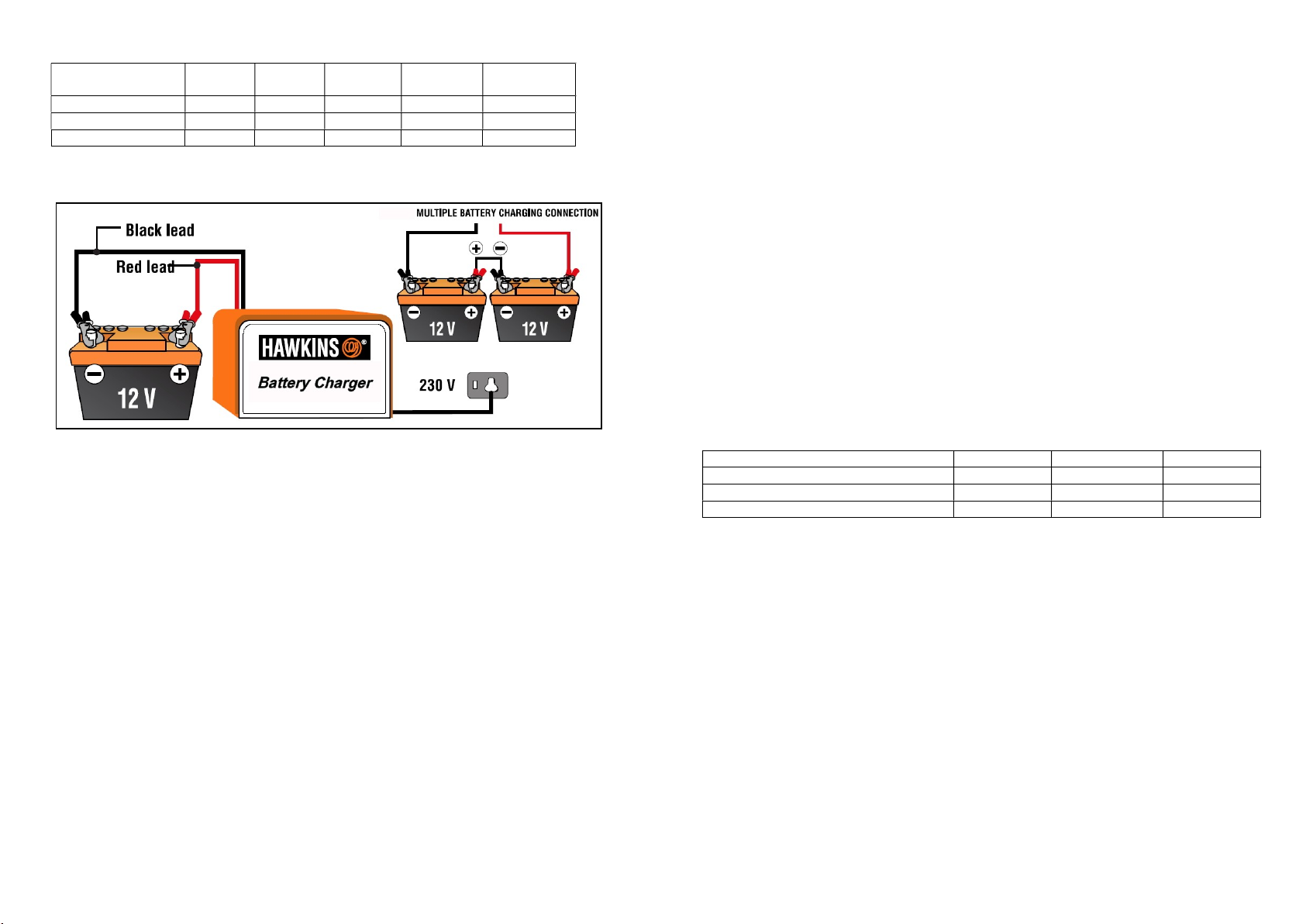

2. CONNECTION DIAGRAM:
3. IMPORTANT SAFETY INSTRUCTIONS:
WARNING – Risk of explosive gases. Working in the vicinity of a battery is dangerous. Batteries
generate explosive gasses during charging. Keep the battery and charger away from open flames and
sparks.
CAUTION – Charge only rechargeable vented / flooded, maintenance free, low – maintenance, deep
cycle or leisure, sealed gel and / or recombination batteries.
Never recharge dry cell or non-rechargeable or defective batteries. These may explode and cause
personal injury and property damage. If you are uncertain as to the type of battery you are attempting
to charge, or the correct procedure for checking the battery’s rate of charge, contact your battery
supplier or battery manufacturer. Always follow the battery manufacturer’s instructions.
Battery chargers contain switches and circuit breakers that produce arcs or sparks. Use the charger in a
well ventilated room only.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the us of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
4. INSTRUCTIONS:
 Connect and disconnect battery leads only when AC supply cord is disconnected.
 Charge batteries in a dry well ventilated area only.
 Do not obstruct the flow of air through the charger cabinet.
 Never place the charger on a heated surface
 If the supply cord is damaged, it must be replaced. Do not operate the charger with a damaged cord
or plug. Have the damaged cord or plug replaced immediately.
 The charger must not be exposed to liquids in any form. Use indoors only.
Charger Input
Voltage
Input
Current
Current
Selector
Output
Voltage
Output
Current
AutoPro 50 12V 230Vac 6,2A - 12Vdc 50Adc
AutoPro 50 24V 230Vac 10,5A - 24Vdc 50Adc
AutoPro 100 12V 230Vac 10.5A - 12Vdc 100Adc
5. PERSONAL PRECAUTIONS:
 Wear complete eye protection, clothing protection and wear rubber soled shoes. When the ground is
very wet or covered in snow, wear rubber boots. Avoid touching the eyes while working with
batteries.
 Battery acid is corrosive. If battery acid contacts skin or clothing, wash immediately with soap and
water or a solution of Bicarbonate of Soda and water. If acid enters the eye, immediately flush eye
with running cold water for at least 10 minutes and then consult a doctor.
 NEVER smoke or allow a spark or flame in the vicinity of a battery or engine.
 Be careful not to drop a metal tool onto the battery. It might spark or short circuit the battery or other
electrical part that may cause an explosion.
 Before working with any battery, remove any jewellery. A battery can produce a short-circuit
current high enough to weld such items causing severe burns.
 NEVER charge a frozen battery – thaw it out first. Charging will then be safer and more efficient.
6. CHARGING AUTOMOBILE BATTERIES:
 Ensure that the mains supply to the charger is disconnected before connecting any battery terminals.
 Connect the RED clamp to the positive terminal of the battery and the BLACK clamp to the negative
terminal of the battery.
 Connect the charger to the mains supply and switch ON.
 After charging, disconnect charger from mains supply first before disconnecting any battery charger
clamps.
7. AUTOMATIC CHARGERS FUNCTIONAL INDICATORS:
Hawkins Automatic Chargers has 3 LED lights that continuously monitor and displays the state of
charge of the battery.
OPERATING MODE RED YELLOW GREEN
Power on ON OFF OFF
Bulk Charge Phase ON ON OFF
Battery Full - Float Phase ON OFF ON
During the Bulk Charge Phase, the majority of the energy is replaced until a pre-set voltage level has
been reached. The charger then enters the Absorption Charge Phase where it holds the voltage constant
while reducing the output current. This phase is set to run until the current drops to 6A. After the
Absorption phase is complete, the charger then enters the Float Charge Phase.
This charger will not start charging unless the battery has at least 10V on it for a 12V battery and
20V for a 24V battery.
WARNINIG! – A sign of overcharging is a battery that is hot to the touch.. This is an indication of a
problem battery and/or an incorrect match between the battery and charger. A hot and/or a bubbling
battery must not be left unattended. If the condition persists, disconnect the charger and have the
battery checked at your local automotive service centre.
Hawkins Automatic Chargers may be left connected to a battery.

8. MAINTENANCE
Locate and operate your charger as specified in these instructions. Always keep cabinet exterior, leads
and clips clean and free of corrosion. Protect from adverse weather and environment at all times.
Never disassemble your charger. If it requires repair, take it to a qualified serviceman.
This charger should not be used with damaged cords!
9. BEFORE RETURNING FOR REPAIR
Check battery fuse.
When a charging problem arises, make certain the battery is capable of accepting a normal charge – use
a good battery to double check charger. Check all connections, the AC outlet for voltage, charger clips
for correct polarity, and the quality of connections from cable to clips and clips to battery system.
CLIPS MUST BE CLEAN.
When a battery is very cold, partially charged or sulphated, it will not draw full rated current from the
charger. This is a safety factor. It can be both dangerous and damaging to a battery to force a higher
amperage into it than it can effectively use in recharging.
When the charger requires repair take it to a qualified serviceman. If the unit is still under warranty
then take unit and purchase receipt together with warranty slip to your retailer.
Any automatic charger requires a minimum voltage to be present on the battery before the charger will
start charging and for a 12V battery it is 10V.
10. WARRANTY / REPAIRS
We warrant that this HAWKINS BATTERY CHARGER is free from defective materials and
workmanship, and agree to remedy any such defect or to furnish new parts should this unit fail within
two years from date of purchase. No charge will be made for parts or labour involved, subject to the
following conditions. This warranty is only valid upon presentation of the purchase invoice, date of
purchase clearly indicated, together with this warranty.
 Hawkins product support policy is that a standard repair charge per product line will apply,
regardless what the fault is.
 Shipping costs related to any repair to and from Hawkins is for your own account.
 If it is a warranty claim, shipping the product to Hawkins is for your account, while Hawkins will
pay the shipping costs returning the product to you.
PLEASE NOTE:
 Hawkins reserves the right to refuse repairing any product that has been modified, tampered with or
in a poor condition due to misuse, damage, mishandling or operating it outside of specification.
Ensuring that the product is in a condition worth repairing may save you unnecessary shipping costs.
 Products not collected within 60 days of notification will be sold to defray any expenses.
File = AutoPro 100 Charger Instructions - Rev 01.PDF
OPERATING
INSTRUCTIONS
MODELS:
AUTO PRO 50 12 & 24V
AUTO PRO 100 12V
