Iluminarc Logic 16 x 36 User manual

LΩGIC 16X36
Quick Reference Guide

LΩGIC 16X36 QRG
2
About this
Guide
The LΩGIC 16X36 Quick Reference Guide (QRG) only contains the
product’s connection and mounting information, as well as the menu
options and the DMX values.
Disclaimer
This QRG does not replace the product’s User Manual. You must
download the corresponding User Manual from the ILUMINARC Web
site (www.iluminarc.com) to learn about the disclaimers, safety notes,
programming modes, and technical information.
Safety Notes
•
DO NOT open this product unless instructed. It contains no user
serviceable parts.
•DO NOT look at the light source when the LΩGIC products are
on.
•DO NOT touch the LΩGIC controller or products while operating
because they may be hot.
•DO NOT cover the ventilation slots when this product is operating
to avoid internal overheating.
•DO NOT leave any flammable material within 50 cm from the
LΩGIC controller or products while connected to the power outlet
to minimize the risk of fire.
•DO NOT mount this product overhead without using a safety
cable.
•DO NOT operate this product or any LΩGIC product in any
location where dust, excessive heat, water, or humidity may affect
them.
•DO NOT operate this product or any LΩGIC product if you see
damage on the housing, lenses, or cables. In such case, have the
damaged parts replaced by an authorized technician at once.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
What Is
Included
•
One LΩGIC 16X36
•One RJ-45 to 3-pin DMX male adapter (input)
•One RJ-45 to 3-pin DMX female adapter (output)
•Sixteen (16) RJ-45 couplers
•One Warranty Card
• One Quick Reference Guide

LΩGIC 16X36 QRG
3
Features
1, 2, 3, 4, 6, 9, or 48-channel DMX control
Operating modes:
1-channel: RGB, dimmer (no individual RGB adjustments)
3-channel: RGB control (individual RGB adjustments)
4-channel: RGB control, dimmer
6-channel: RGB control, dimmer, color macro, strobe
9-
channel: RGB control, dimmer, color macro, strobe, auto
+ custom, auto speed, zone selection
48-channel: RGB control, line control
•16 output lines
•RGB color mixing with or without DMX control
•Automated and customizable programs
•Recall auto and custom programs via master/slave or DMX
Additional Features
•Master/Slave (RJ-45)
•Static Playing
•RGB and white color calibration
•Schedule playback with time clock functions
•LCD display with password protection
•

LΩGIC 16X36 QRG
4
AC Power
The LΩGIC 16X36 has an auto-ranging power supply that can work
with an input voltage range of 100~240 VAC, 50/60 Hz.
Make sure that you are connecting this product to the proper voltage, as
per the specifications in this guide, the product’s User Manual,
or on the
product’s sticker.
AC Plug
The LΩGIC 16X36 comes with a power input cord that enters through a
strain relief boot that is then hardwired to the inside of the unit. The
other end of the power cord is bare-ended. Please use the table below to
wire the new plug.
Connection Wire (US) Screw Color
(US)
Wire
(Europe)
AC Live
Black
Yellow or
Brass
Brown
AC Neutral
White
Silver or Gray
Blue
AC Ground
Green/Yellow
Green
Green/Yellow
Fuse
Replacement
1) Disconnect the product from the power outlet.
2) With a Phillips #2 head screwdriver, unscrew the fuse holder cap from
its housing.
3) Remove the blown fuse and replace it with a good fuse of the same type
and rating (F 10 A, 250 V).
4) Screw the fuse holder cap back in its place and reconnect power.

LΩGIC 16X36 QRG
5
Mounting
Before mounting this product, read the safety notes at the beginning of
the LΩGIC 16X36 User Manual and follow the mounting procedures
indicated in it.

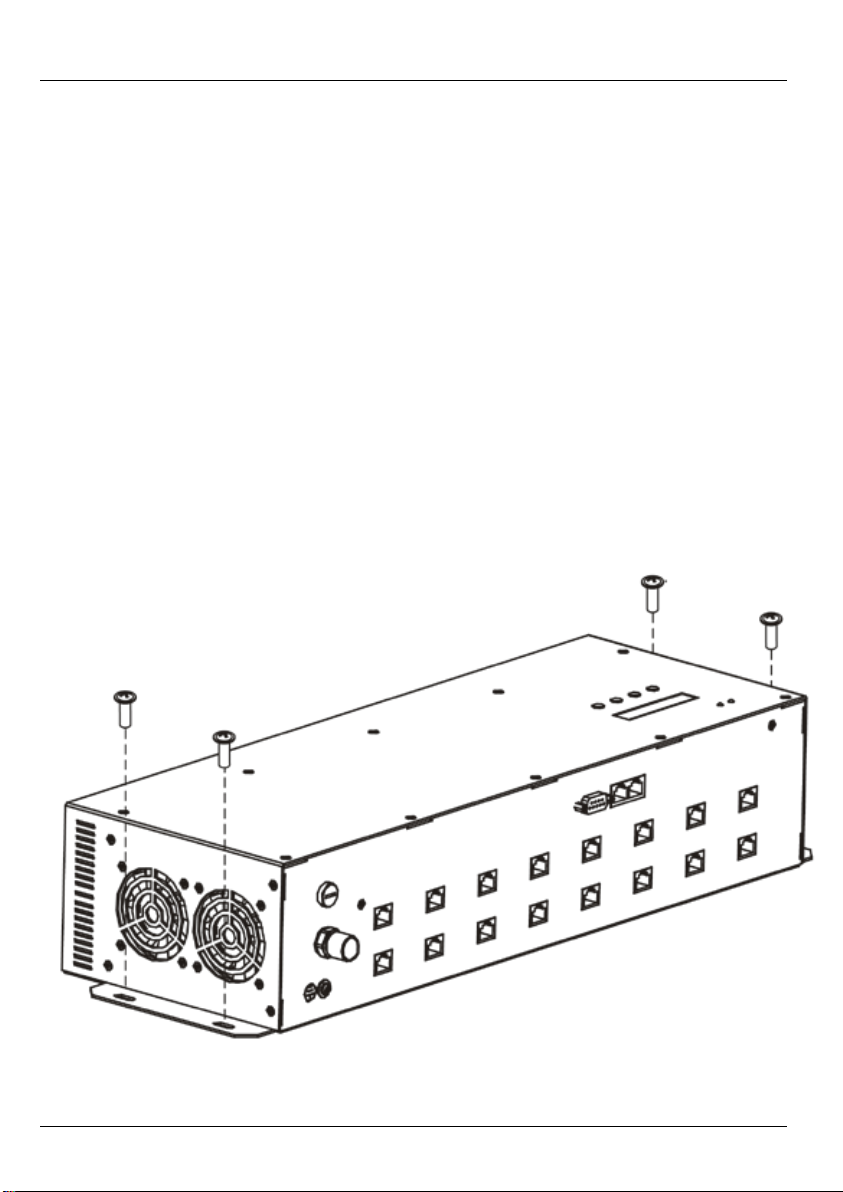

The LΩGIC 16X36 consists of a single unit with 4 mounting point
s.
ILUMINARC
recommends following the general guidelines below when
mounting the LΩGIC 16X36.
When selecting an installation location, consider ease of access to the
unit for operation, programming adjustments, and routine
maintenance.
Never mount the unit in places where rain, high humidity, extreme
temperature changes, or restricted ventilation may affect it.
Make sure that the location where you are mounting the unit can support
its weight. Please see the Technical Specifications section of the
User Manual for the weight requirement of this unit.
Use four screws to attach the unit to a flat, dry surface. Make sure that
you can access the unit for maintenance and programming.

LΩGIC 16X36 QRG
6
CAT5 Linking
The LΩGIC 16X36 controller uses a signal patch implemented with a
CAT5/6 cable to link to other LΩGIC 16X36 controllers (see Cable
Connections).
To use this product in Master/Slave mode,
you must connect the master
and slave LΩGIC 16X36 controller using the CAT5 link.
DMX Linking
Each LΩGIC 16X36 controller comes with a pair of RJ-45 to XLR 3
adapters for connection to a DMX universe (DMX controller and other
DMX products linked with a DMX connection). See Cable Connections
for a detailed pin out diagram.
LΩGIC Fixture
Connectivity
Each LΩGIC product comes with a CAT5 cable to link it to the LΩGIC
16X36 controller. You can connect the product directly to any of the 16
output lines of the LΩGIC 16X36 controller, or you could make an
extension to install the LΩGIC product at a farther location.
In this case, you can use an RJ-45 coupler or an RJ-45 splitter to
connect the LΩGIC product to the extension cable. See Fixture
Connection Diagram for more details.
Splitter
Each LΩGIC product comes with an RJ-45 splitter to allow the
connection of two products to a single LED output port of the LΩGIC
16X36 controller. You can use more than one splitter on a single LED
output as long as you respect the maximum load of 36 LEDs (12 LEDs
per color). See Maximum Output Line Loading for more details.
RJ-45
Terminator
To make an RJ-45 terminator, connect 120 ohms, ¼ W resistor between
pins 6 (green/white) and 7 (white/brown) of an RJ-45 plug.
Insert the terminator into the DMX Out RJ-45 jack of the last LΩGIC
16X36 controller, as shown in Product Connection Diagram.

LΩGIC 16X36 QRG
7
Cable
Connections
RJ-45 Plug
3-pin XLR Male
5-pin XLR Male
Pin 1: Not Used
Pin 2: Not Used
Pin 3: Not Used
Pin 4: Not Used
Pin 4: Not Used
Pin 5: +5 V
Pin 5: Not Used
Pin 6: Data +
Pin 3: Data +
Pin 3: Data +
Pin 7: Data -
Pin 2: Data -
Pin 2: Data -
Pin 8: GND
Pin 1: GND
Pin 1: GND
RJ-45 Plug
RJ-45 Plug
Pin 1: Not Used
Pin 1: Not Used
Pin 2: Not Used
Pin 2: Not Used
Pin 3: Not Used
Pin 3: Not Used
Pin 4: Not Used
Pin 4: Not Used
Pin 5: +5 V
Pin 5: +5 V
Pin 6: Data +
Pin 6: Data +
Pin 7: Data -
Pin 7: Data -
Pin 8: GND
Pin 8: GND
Pin #
Wire Color
Function
1
White/Orange
Red LED +
2
Orange/White
Green LED +
3
White/Green
Blue LED +
4
Blue/White
Not Used
5
White/Blue
Red LED -
6
Green/White
Green LED -
7
White/Brown
Blue LED -
8
Brown/White
Not Used
DMX to RJ-45 adapter: Used to link a DMX controller to the LΩGIC 16X36
RJ-45 Plug Pin Assignment
View facing pins
XLR (male)
3-pin
Signal Patch cable: Used for linking two LΩGIC 16X36 controllers
LED Patch Cable: Used to link the LΩGIC 16X36 controller to its products.
RJ-45 Plug
DMX XLR (male)
XLR (male)
5-pin

LΩGIC 16X36 QRG
8
Product
Connection
Diagram

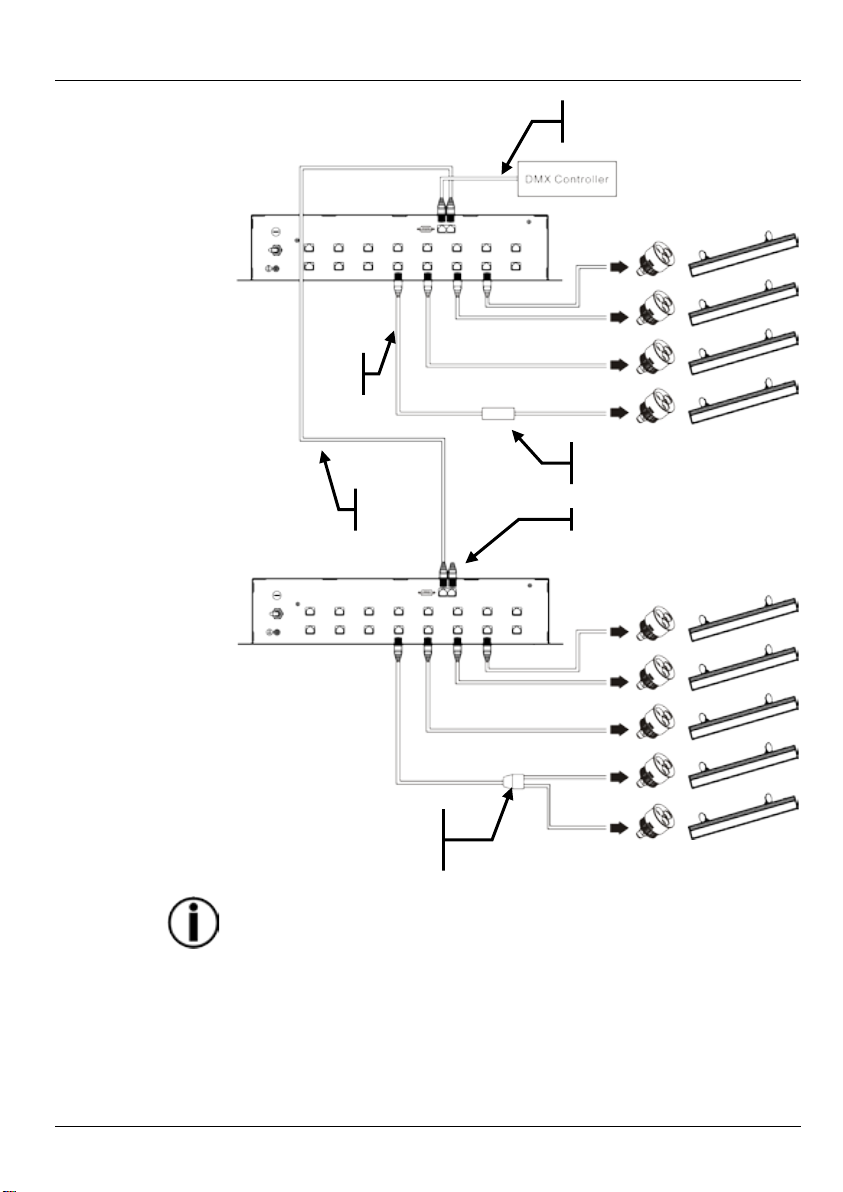

Connect the DMX
controller to the first
LΩGIC 16
X36 using a
DMX to RJ-45 ad
apter
cable.
Link each LΩGIC
16X36 with a RJ-
45
signal patch cable, as
shown.
You can use a
RJ-45 coupler
to link
the LED patch and the
product’s CAT5 cable.
You should use an RJ-
45 terminator
on the
DMX output of the last
LΩGIC 16X36.
Once done
, connect
your lights (loads)
directly to the
corresponding line
outputs.
Alternatively, you can
use the line splitter
connector(s), as seen
in
the diagram
.
Do not use the splitter as a cou
pler. All cables must be terminated to a
product.
RJ-45 Coupler
(Included with controller)
RJ-45 to DMX adapter
(Included with controller)
RJ-45 Terminator
RJ-45 Splitter
(Included with
product)
Signal
patch
LED
patch

LΩGIC 16X36 QRG
9
Fixture
Internals
To understand the maximum load allowed per output line, it is
important to know how the internal components are wired inside the
LΩGIC products.
LEDs and Dies
Single color LEDs have a single die (the part of the LED that generates
light). Tri-color LEDs have three dies (one for each color) on a single
package.
LEDs and
Clusters
Inside the LΩGIC products, the LEDs are grouped in clusters of three
LED dies each.
•In a product with single color LEDs, three individual LEDs compose the
cluster.
•In a product with tri-color LEDs, a single tri-color LED makes up the
cluster.
LEDs Wiring
In an LED cluster, each LED die connects to an individual output
channel from the LΩGIC controller. When a product has more than one
cluster, all the LED dies
of a particular color connect to the same output
channel.
Maximum
Output Line
Loading
The LΩGIC 16X36 controller has 16 output lines. You can select each
output line individually or you can select all output lines (Zone
Selection).
Each output line has three channels: Red, Green, and Blue.
Each of the three output channels can support up to 12 LED dies.
Therefore, the maximum number of LED dies supported per output line
is 36.
When connecting LΩGIC products to the LΩGIC 16
X36 controller, do not
exceed the maximum of 12 LED dies per output channel (36 LEDs dies
per output line).
The table below shows the maximum number of LΩGIC products that
can be loaded onto an output line per product model.
Model Name
Total
LEDs
Total LED
Dies
Max. Fixtures
per Output
Ilumiline LΩGIC 24 RGB
24
24
1
Ilumiline LΩGIC 24 Optic RGB
24
24
1
Ilumiline LΩGIC 12 Optic RGB
12
12
3
Ilumipod LΩGIC 12 Optic RGB
12
12
3
Ilumipod LΩGIC 6 Optic RGB
6
6
6
Ilumipod LΩGIC 3 Optic RGB
3
3
12
Ilumipod LΩGIC Tri-1 RGB
1
3
12
Ilumipod LΩGIC Tri-4 RGB
4
12
3

LΩGIC 16X36 QRG
10
RGB Mode Menu Options
Main
Programming Steps
Instructions
1. Play auto
RGB 1~10
SPEED 1~255 Choose from 20 automatic
programs
RGBL 1~10
2. Play custom CUSTOM 1~10
Choose from 10 user-defined
programs
3. Play static STATIC
PLAYING
LALL
L-1~16
(Output Line)
RED
0~255
Configure and/or play a single step
program per output line
GREEN
BLUE
DIMMER
STROBE
0~20
4. Play schedule
SCHEDULE PLAYING!
Play scheduled program
5. DMX address
001~512
Sets DMX starting address
6. Personality
EFFECT
9-channel mode
RGB
3-channel mode
RGB+D
4-channel mode
RGB+DMS
6-channel mode
RGB+LINE
48-channel mode
RGB+LINE+DMS
51-channel mode
SOLID
1-channel mode
7. Edit custom C-1~10
(Custom) S-1~20 (Scene)
R
G
B
0~255 Combine Red, Green, and Blue to
generate a custom color
S
0~20
Set the strobe frequency
T
0~255
Set the on time
F
Set the fading time
8. Settings
PASSWORD ON/OFF
Turn password protection on after
30 seconds of being idle
ALLOW EDIT
YES/NO
Enable/disable Custom program
editing
RESET ALL
Default all settings
RESET CUSTOM
Erase the custom programs
RESET SCHEDULE
Erase the schedule
UPLOAD PASSWORD? [Enter Password]
Transfer custom programs from
master to slave units
CLOCK
TIME NOW
View the current DOW, date, and
time.
EDIT TIME
DOW
SU~SA
Edit the DOW, date, and time
DAY
01~31
MONTH
01~12
YEAR
00~99
HOUR
00~23
MIN
00~59
SEC
Continues on the next page

LΩGIC 16X36 QRG
11
Continued from previous page
Main
Programming Steps
Instructions
8. Settings
(Cont.)
CALIBRATION WHITE 1~9 R
G
B0~255
Modify the White macros (RGB
mode)
RGB TO WHITE
Configure RGB to WHITE
values
RGB TO WHITE YES/NO
[Yes] RGB TO WHITE defines
output color when RGB faders are
at “255”
[No] Max. intensity when RGB
faders are at “255”
9. Operation
DMX
Work with a DMX controller
SLAVE
Slave mode
EASY PLAY
Optional remote
10. Schedule
SUNDAY~SATURDAY
(Different schedules for
each DOW)
No. [1~10]
RGB
RGBL
CUSTOM
1~10 After selecting DOW, schedule #,
and program, enter starting and
ending time [00:00~23:59]
EVERYDAY
(Same schedule for
every DOW)
STATIC
PLAY NONE
11. Patch PATCH 1~6
RGB
RGBL
CUSTOM
1~10 Used with optional controller

LΩGIC 16X36 QRG
12
RGB Mode DMX Values
EFFECT
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0~100%
Step Time
When CUS. 01-10 in CH. 7 is activated
2
Green
000 ó255
0~100%
Step Time
When CUS. 01-10 in CH. 7 is activated
3
Blue
000 ó255
0~100%
4
Dimmer
000
ó
255
0~100%
5 Color Macro +
White Balance
000
ó
010
011 ó035
036 ó060
061 ó085
086 ó110
111 ó135
136 ó160
161 ó185
186 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No Function
R: 100%
G: Up B: 0%
R: Down
G: 100% B: 0%
R: 0%
G: 100% B: Up
R: 0%
G: Down B: 100%
R: Up
G: 0% B: 100%
R: 100%
G: 0% B: Down
R: 100%
G: Up B: Up
R: Down
G: Down B: 100%
White 1:
3,200 K
White
2: 3,400 K
White 3:
4,200 K
White 4:
4,900 K
White 5:
5,600 K
White 6:
5,900 K
White 7:
6,500 K
White 8:
7,200 K
White 9: 8,500 K
6 Strobe
000 ó004
005 ó255
No Function
0~20 Hz
7 Auto + Custom
Programs
000 ó020
021 ó030
031 ó040
041 ó050
051 ó060
061 ó070
071 ó080
081 ó090
091 ó100
101 ó110
111 ó120
121 ó130
131 ó140
141 ó150
151 ó160
161 ó170
171 ó180
181 ó190
191 ó200
201 ó210
211 ó220
221 ó255
No function
Auto RGB 1
Auto RGB 2
Auto RGB 3
Auto RGB 4
Auto RGB 5
Auto RGBL 1
Aut
o RGBL 2
Auto RGBL 3
Auto RGBL 4
Auto RGBL 5
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
No function
8
Auto Programs
Speed
000 ó255
Slow~fast
Continues on the next page

LΩGIC 16X36 QRG
13
Continued from previous page
DMX Mode
(Cont.)
Channel
Function
Value
Percent/Setting
9 Zone Selection
000 ó009
010 ó029
030 ó049
050 ó069
070 ó089
090 ó109
110 ó129
130 ó149
150 ó169
170 ó189
190 ó199
200 ó209
210 ó219
220 ó229
230 ó239
240 ó249
250 ó255
All Lines
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line 8
Line 9
Line 10
Line 11
Line 12
Line 13
Line 14
Line 15
Line 16
RGB
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0~100%
2
Green
000
ó
255
0~100%
3
Blue
000 ó255
0~100%
RGB+D
Channel
Function
Value
Percent/Setting
1
Red
000
ó
255
0~100%
2
Green
000 ó255
0~100%
3
Blue
000 ó255
0~100%
4
Dimmer
000 ó255
0~100%
RGB+DMS
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0~100%
2
Green
000
ó
255
0~100%
3
Blue
000 ó255
0~100%
4
Dimmer
000 ó255
0~100%
5 Color Macro +
White Balance
000 ó010
011 ó035
036 ó060
061 ó085
086 ó110
111 ó135
136 ó160
161 ó185
186 ó210
No Function
R: 100% G: Up B: 0%
R: Down G: 100% B: 0%
R: 0% G: 100% B: Up
R: 0% G: Down B: 100%
R: Up G: 0% B: 100%
R: 100% G: 0% B: Down
R: 100% G: Up B: Up
R: Down G: Down B: 100%
Continues on the next page

LΩGIC 16X36 QRG
14
Continued from previous page
RGB+DMS
(Cont.)
Channel
Function
Value
Percent/Setting
5 Color Macro +
White Balance
(Cont.)
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
White 1: 3,200 K
White 2: 3,400 K
White 3: 4,200 K
White 4: 4,900 K
White 5: 5,600 K
White 6: 5,900 K
White 7: 6,500 K
White 8: 7,200 K
White 9: 8,500 K
6 Strobe
000 ó004
005 ó255
No Function
0~20 Hz
RGB+LINE
Channel Function Value Percent/Setting
1
Red #1
000 ó255
0~100%
2
Green #1
000 ó255
0~100%
3
Blue #1
000 ó255
0~100%
46
Red #16
000
ó
255
0~100%
47
Green #16
000 ó255
0~100%
48
Blue #16
000 ó255
0~100%
SOLID
Channel Function Value Percent/Setting
1
Master Dimmer
000 ó255
0~100%
Continues on the next page

LΩGIC 16X36 QRG
15
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases
the numeric value when in a function
Programming
Notes
1. Press <MENU> repeatedly until WELCOME appears on the top line
of the display. This is the top of the menu map.
2. Press <MENU> repeatedly until finding the desired Main level option
for the current mode.
3. Press <ENTER> to access the Main level function currently displayed.
What appears on the bottom line of the display is one of the choices for
the current option.
1. Use <UP> and <DOWN>
to navigate the menu map and menu options.
2. Press <ENTER> to access the menu option currently displayed or to
enable a select value.
3. To return to the previous option or menu without changing the value,
press <MENU>.
For details on how to program the LΩGIC 16X36
controller, download the
corresponding User Manual from www.iluminarc.com.

LΩGIC 16X36 QRG
16
Contact Us
General Information
Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Toll free: [phone]
Voice: [phone]
Email: [e-mail]
Website:
www.iluminarc.com
Chauvet Europe Ltd
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.co.uk
Chauvet Europe BVBA
Address: Stokstraat 18
9770 Kruishoutem
Belgium
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet Germany
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Germany
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet Mexico
Address: Av. de las Partidas 34-3B
(Entrance by Calle 2)
Zona Industrial Lerma
Lerma, Mexico C.P. 52000
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvet.com.mx
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact
the dealer of record. Follow the instructions to request support or to return a
product. Visit our website for contact details
LΩGIC 16X36 QRG – Rev. 5
© Copyright 2018 ILUMINARC
All rights reserved.
Printed in the P. R. C.
