HEALTH RIDER Crosstrainer 1050 T Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Model No. HREVEL6985.0
Serial No.
Serial
Number
Decal
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
or damaged parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: [email protected]
08457 089 009

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO OPERATE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
HealthRider is a registered trademark of ICON IP,Inc.

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual and all
warnings on the elliptical crosstrainer
before using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.
3. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or insti-
tutional setting.
4. Keep the elliptical crosstrainer indoors,
away from moisture and dust. Place the
elliptical crosstrainer on a level surface, with
amat beneath it to protect the floor or car-
pet. Make sure that there is enough clear-
ance around the elliptical crosstrainer to
mount, dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.
7. The elliptical crosstrainer should not be used
by persons weighing more than 115 kg (250
lbs.).
8. Wear appropriate exercise clothes whilst
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection whilst
exercising.
9. Hold the handlebars whilst mounting, dis-
mounting, or using the elliptical crosstrainer.
10. The pulse sensors are not medical devices.
Various factors may affect the accuracy of
heart rate readings. The pulse sensors are
intended only as exercise aids in determin-
ing heart rate trends in general.
11. Keep your back straight whilst using the
elliptical crosstrainer; do not arch your
back.
12. If you feel pain or dizziness at any time
whilst exercising, stop immediately and cool
down.
13. When you stop exercising, allow the pedals
to slowly come to a complete stop. The ellip-
tical crosstrainer does not have a free
wheel; the pedals will continue to move until
the flywheel stops.
14.Always unplug the power cord immediately
after use and before cleaning the elliptical
crosstrainer.
15.The warning decal shown on page 4 has
been placed on the elliptical crosstrainer.If
the decal is missing or illegible, call the tele-
phone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Congratulations for selecting the new HealthRider®
CROSS TRAINER 1050T. The HealthRider CROSS
TRAINER 1050T is an incredibly smooth exerciser
that moves your feet in a natural elliptical path, min-
imising the impact on your knees and ankles. And the
unique CROSS TRAINER 1050T features adjustable
resistance and a state-of-the-art console to help you
get the most from your exercise. Welcome to a whole
new world of natural, elliptical-motion exercise from
HealthRider.
For your benefit, read this manual carefully before
you use the elliptical crosstrainer. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, please
note the product model number and serial number
before contacting us. The model number is
HREVEL6985.0. The serial number can be found on a
decal attached to the elliptical crosstrainer (see the
front cover of this manual for the location of the decal).
Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
Handgrip Pulse Sensor
Handlebar
FRONT
BACK
LEFT SIDE
Pedal Spring
Pedal Disk
*No water bottle is included
Wheel
Pedal
Console
CD Holder
CD Player
Water Bottle Holder*
Fan
Levelling Foot

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver , adjustable spanner ,
and rubber mallet .
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts needed for assem-
bly. The number in parentheses below each drawing is the key number of the part, from the PART LIST on page
26. The number following the parentheses is the quantity needed for assembly. Note: Some parts may have
been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 112mm Carriage Bolt (34)–4
Adjustment Bolt (20)–2
M10 x 88mm Button Bolt (63)–2
M10 x 78mm Button Bolt (27)–2
M4 x 16mm
Screw (66)–4
M10
Washer (38)–6
M10 Split
Washer (70)–4
M10 Nylon
Locknut (29)–6
Frame Spacer (83)–2
M8 x 45mm Button Bolt (50)–4
M8 Nylon
Locknut (46)–4
Wave Washer
(94)–2 M8.5
Washer (53)–2
M8 x 25mm Patch
Screw (22)–2
M6 x 16mm Tapered
Button Screw (71)–8
M4 x 12mm Tap
Screw (84)–2

6
1. Identify the Front Stabiliser (3), which has Wheels (32)
attached to it. Whilst another person lifts the front of
the Frame (1), attach the Front Stabiliser to the Frame
with two M10 x 112mm Carriage Bolts (34) and two
M10 Nylon Locknuts (29). Make sure that the Front
Stabiliser is turned so the Wheels are not touching
the floor.
3
29
32
32
34
1
1
2. Whilst another person lifts the back of the Frame (1),
attach the Rear Stabiliser (4) to the Frame with two
M10 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (29).
34
4
1
3
2
86
87
1
63
83
83
70
70
3. Whilst another person holds the Upright (2) in the
position shown, connect the Upper Wire Harness (86)
to the Lower Wire Harness (87). Next, carefully pull
the upper end of the Upper Wire Harness to
remove any slack. Whilst holding the upper end of
the Upper Wire Harness, insert the Upright into the
Frame (1). Be careful to avoid pinching the Wire
Harnesses.
Slide an M10 Split Washer (70) and a Frame Spacer
(83) onto each of the two M10 x 88mm Button Bolts
(63). Make sure that the Frame Spacers are orient-
ed so the curved ends are facing away from the
Split Washers. Next, insert the Button Bolts into the
Frame (1), and finger tighten the Button Bolts into the
Upright (2). Do not tighten the Button Bolts yet.
2
29
29
Make sure the
Wire Harnesses
(86, 87) do not
get pinched and
damaged during
this step.

7
4
5. Attach the CD Holder (81) to the Console (5) with two
M4 x 12mm Tap Screws (84) as shown.
6. See step 7. Remove the three indicated M4 x 16mm
Screws (66) and the Left Inner Handlebar Cover (102)
from the Console (5). Remove the Right Inner
Handlebar Cover (103) in the same way.
Whilst another person holds the Console (5) in the
position shown, connect the wire harnesses on the
Console to the Upper Wire Harness (86) and the Pulse
Extension Wire (104). Insert the excess wire harness
down into the Upright (2).
Attach the Console (5) to the Upright (2) with four M4 x
16mm Screws (66). Be careful to avoid pinching the
wire harnesses.
4. Attach the Left Inner Handlebar (100) to the Upright (2)
with four M6 x 16mm Tapered Button Screws (71). Do
not tighten the Tapered Button Screws yet.
Attach the Right Inner Handlebar (101) to the Upright
(2) in the same way.
5
6
2
101
100
71
71
84
66
2
86
104
Console
Wires
5
5
81

8
8. Identify the Left Handlebar (9), which is marked with a
sticker.Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side.Attach the Left Handlebar with two M8
x45mm Button Bolts (50) and two M8 Nylon Locknuts
(46). Make sure that the Nylon Locknuts are inside
of the hexagonal holes. Do not tighten the Button
Bolts yet.
Apply a generous amount of the included grease to the
Pivot Axle (92) and to the two M8.5 Washers (53). Next,
insert the Pivot Axle into the Upright (2) and centre it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (25) onto the short tube on
the Left Handlebar (9), and rotate the Handlebar Spacer
so the small arrow is pointing toward the floor.Next,
slide the Left Handlebar onto the left end of the Pivot
Axle (92). Finger tighten an M8 x 25mm Patch Screw
(22) with an M8.5 Washer (53) and a Wave Washer (94)
into the end of the Pivot Axle. Then, press the small tabs
on a Handlebar Cap (23) into the Handlebar Spacer.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
Tighten both M8 x 25mm Patch Screws (22) at the same
time. Make sure that the Wave Washers (94) are on the
ends of the Pivot Axle (92).
8
25
92
23
22 53
50
46
Hexagonal
Holes
79
94
92
Grease
Arrow
Tube
7. Attach the Left Handlebar Cover (102) to the Console
(5) with three M4 x 16mm Screws (66). Attach the
Right Handlebar Cover (103) in the same way.
See step 4. Tighten the eight M6 x 16mm Tapered
Screws (71).
5
102
103
66
2
7

9
12.Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some extra hardware
may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under
the elliptical crosstrainer.
10 20
15
38
14
13
70
10.Identify the Left Pedal (13). Attach the Left Pedal to the
left Pedal Spring (14) with an Adjustment Bolt (20), an
M10 Washer (38), an M10 Split Washer (70), and an
Adjustment Knob (15) as shown. Note: The Left Pedal
can be attached in any of five positions (see HOW TO
ADJUST THE PEDALS on page 12).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
11. Plug one end of the Power Cord (74) into the jack at
the rear of the elliptical crosstrainer.Plug the other end
of the Power Cord into an appropriate outlet that is
properly installed in accordance with all local codes and
ordinances.
Note: The Console (5) can be operated with batteries
instead of the Power Cord (74) if desired. Toinstall bat-
teries, follow the instructions below.
See the inset drawing. Press the indicated tab on the
battery drawer and open the battery drawer. Press four
1.5V “D” batteries into the battery clips; make sure that
the batteries are oriented as shown by the mark-
ings inside of the battery clips. Then, close the bat-
tery drawer. Note: Alkaline batteries are recommended.
9. Hold the lower end of the left Handlebar Leg (79) inside
of the left Front Spring Bracket (17). Apply a generous
amount of grease to an M10 x 78mm Button Bolt (27).
Attach the left Handlebar Leg to the left Front Spring
Bracket with the Button Bolt, two M10 Washers (38),
and an M10 Nylon Locknut (29). Do not overtighten
the Nylon Locknut; the left Handlebar Leg must
pivot freely.
Attach the right Handlebar Leg (79) to the right Front
Spring Bracket (17) in the same way.
See step 8. Tighten the M8 x 45mm Button Bolts (50)
in the Handlebar Legs (79). See step 3. Tighten the two
M10 x 88mm Button Bolts (63).
17
17
27 38
38
29
Grease
9
79
79
11
74
Jack
Batteries
Battery
Drawer
5
Tab

10
HOW TO USE THE CHEST PULSE SENSOR
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit. Follow the steps
below to put on the chest pulse sensor.
See the inset drawing above. Insert the tab on
one end of the chest strap through the hole in one
end of the sensor unit. Press the end of the sen-
sor unit under the buckle on the chest strap.
Wrap the
chest pulse
sensor
around
your chest.
Attach the
free end of
the chest
strap to the
sensor unit as described above. Adjust the length
of the chest strap, if necessary. The chest pulse
sensor should be under your clothes, against
your skin, and as high under the pectoral mus-
cles or breasts as is comfortable. Make sure that
the logo is right-side-up and facing forward.
Pull the
sensor unit
away from
your body
afew inch-
es and
locate the
two elec-
trode areas on the inner side. Using a saline
solution such as saliva or contact lens solution,
wet both electrode areas. Return the sensor unit
to a position against your chest.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function proper-
ly, or if the displayed heart rate is excessively high
or low, try the troubleshooting steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. If the chest pulse sensor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• Each time you use the chest pulse sensor, use
saline solution such as saliva or contact lens solu-
tion to wet the two electrode areas on the sensor
unit (see the drawing below). If heart rate readings
do not appear until you begin perspiring, re-wet the
electrode areas.
•Make sure that you are within arm’slength of the
console. For the console to display heart rate
readings, the user must be within arm’slength of
the console.
•The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
magnetic interference may be causing a problem,
try relocating your exercise equipment.
• If the chest pulse sensor still does not function prop-
erly, test the chest pulse sensor in the following way:
Hold the chest
pulse sensor
and place your
thumbs over
the electrode
areas as
shown. Next,
hold the chest
pulse sensor near the console. Whilst holding one
thumb stationary,begin tapping the other thumb
against the electrode area at a rate of about one tap
per second. Check the heart rate reading on the
console.
3
2
1
Chest Strap
Sensor Unit
Tab
Buckle
Electrode Areas
Sensor
Unit
Electrode Areas
Logo

11
•If the chest pulse sensor does not function properly
after you have followed all of the above instructions,
the battery should be replaced in the following way:
Locate the battery
cover on the back of
the sensor unit.
Insert a coin into the
slot in the cover,
turn the cover coun-
terclockwise, and
remove the cover.
Remove the old
battery and insert a
new CR 2032 bat-
tery. Make sure
that the battery is
turned so the writ-
ing is on top.
Replace the battery
cover and turn it
clockwise to close it.
CHEST PULSE SENSOR CARE
•Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
•Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
•Do not expose the chest pulse sensor to direct
sunlight for extended periods of time. Do not expose
the chest pulse sensor to temperatures above 50° C
(122° F) or below -10° C (14° F).
•Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
•Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
CR 2032
Battery

12
HOW TO OPERATE THE ELLIPTICAL CROSSTRAINER
HOW TO ADJUST THE PEDALS
The motion of the
pedals is deter-
mined by their
position on the
pedal springs. To
adjust the pedals,
first remove the
pedal knob
beneath each
pedal. Slide each
pedal forward or
backward, and
then reattach it using one of the five positions in the
pedal. Make sure that both pedals are in the same
position.
HOW TOEXERCISE ON THE ELLIPTICAL
CROSSTRAINER
To mount the elliptical crosstrainer, hold the handlebars
and step onto the pedal that is in the lowest position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedal disks can turn in either direction. It is
recommended that you turn the pedal disks in the
direction shown by the arrow below; however, for
variety,you may turn the pedal disks in the oppo-
site direction.
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the ped-
als will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
CAUTION:Before using the ellipti-
cal crosstrainer, read the following precautions.
• Always hold the handlebars when mounting,
dismounting, or using the elliptical cross-
trainer.
• When you stop exercising, allow the pedals to
slowly come to a stop.
• The pulse sensors are not medical devices.
Various factors may affect the accuracy of
heart rate readings. The pulse sensors are
intended only as an exercise aid in determin-
ing heart rate trends in general.
Pedal
Pedal
Pedal Disk
Handlebar
Knob Pedal
Spring
Pedal

13
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you work out, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor or the chest pulse sensor.
The console also offers six resistance/pace programs.
Each program automatically changes the resistance of
the pedals and prompts you to increase or decrease
your pace as it guides you through an effective workout.
In addition, the console features two heart rate pro-
grams that change the resistance of the pedals and
prompt you to vary your pace to keep your heart rate
near a target heart rate as you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the built-in CD player,
you can play special iFIT.com CD programs. iFIT.com
CD programs automatically control the resistance of
the pedals and prompt you to vary your pace whilst a
personal trainer coaches you through every step of
your workout. High-energy music provides added moti-
vation. Topurchase iFIT.com CDs, visit our Web
site at www.iconeurope.com.
Using the included audio cable, you can also connect
the elliptical crosstrainer to your VCR and TV and play
iFIT.com video programs. iFIT.com video programs
offer the same benefits as iFIT.com CD programs, and
allow you to enjoy breathtaking scenery whilst you
exercise. To purchase iFIT.com videocassettes,
visit our Web site at www.iconeurope.com.
You can even connect the elliptical crosstrainer to your
home computer, go to our Web site at www.iFIT.com,
and access programs directly from our Web site.
Explore www.iFIT.com for more information.

14
To use the manual mode of the console, see the
instructions below. To use a resistance/pace pro-
gram, see page 16. Touse a heart rate program,
see page 17. To use an iFIT.com CD program, see
page 18. Touse an iFIT.com video program, see
page 21. To use a program directly from our Web
site, see page 22.
HOW TO USE THE MANUAL MODE
Turn on the console.
Make sure that the power supply is plugged in or
that batteries are installed in the console (see
assembly step 11 on page 9).
To turn on the console, press the On/Reset button
or begin pedalling. (The On/Reset button is the
button just above the large display.)
Select the manual mode.
Each time the console is
turned on, the manual
mode will be selected. If a
program has been select-
ed, reselect the manual
mode by pressing the
Program (PGM) button
repeatedly until the letters
“RPM” appear in the small display.
Begin pedalling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped-
als by pressing the Resistance + and – buttons.
There are ten resistance levels; level 10 is the
most challenging. Note: After the buttons are
pressed, it will take a few seconds for the resis-
tance to reach the selected level.
Follow your progress with the large display and
the small display.
The upper sec-
tion of the large
display will
show the dis-
tance you have
pedalled and the
numbers of
calories and fat calories you have
burned (see FAT BURNING on page 24). The dis-
play will change from one number to the next
every few seconds. When you use the handgrip
pulse sensor or the chest pulse sensor, the dis-
play will also show your heart rate (see step 5 on
page 15).
The centre of the
large display will
show the elapsed
time and your
pedalling pace (in
minutes per mile).
The display will change from one number to the
other every few seconds. Note: When a program
is selected (except for heart rate program 8), the
display will show the time remaining in the pro-
gram instead of the elapsed time.
The lower sec-
tion of the large
display will show
your pedalling
speed, your ped-
alling pace (in
revolutions per minute), and the resistance level.
The display will change from one number to the
next every few seconds.
Note: The con-
sole can show
speed and dis-
tance in either
miles or kilome-
tres. The letters
“MPH” or “KM/H” will appear in the lower section of
the large display to show which unit of measure-
ment is selected. Tochange the unit of measure-
ment, first hold down the Program (PGM) button
for a few seconds. An “E” (for English) or an “M”
(for metric) will appear in the lower section of the
large display. Press the Resistance + button to
change the unit of measurement. Then, press the
On/Reset button. Note: When the batteries are
replaced, it may be necessary to reselect the
desired unit of measurement.
The small display will
show your pedalling pace
(in revolutions per minute).
The indicator bar in the
small display will increase
or decrease in length as
you increase or decrease
your pedalling pace. Note:
When you use a heart rate program, the small
display will show your heart rate instead of your
pedalling pace.
4
3
2
1
Indicator Bar

15
To reset the displays, press the On/Reset button.
Measure your heart rate if desired.
You can measure your heart rate using the hand-
grip pulse sensor or the chest pulse sensor. To
use the handgrip pulse sensor, follow the instruc-
tions below. Note: If you wear the chest pulse
sensor and hold the handgrip pulse sensor at
the same time, the console will not display
your heart rate accurately.
If there are
sheets of clear
plastic on the
metal contacts
on the hand-
grips, peel off
the plastic. To
use the hand-
grip pulse sen-
sor, hold the
handgrips with
your palms
resting against
the metal contacts. Avoid moving your hands
or squeezing the handgrips too tightly; exces-
sive movement or pressure may interfere with
heart rate readings. When your pulse is detect-
ed, the heart-shaped indicator in the large display
will flash each time your heart beats, and your
heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds. Note:
When you first hold the handgrips, the large dis-
play will show your heart rate continuously for 30
seconds. The display will then show your heart
rate along with other feedback modes.
Turn on the fan if desired.
To turn on the fan at low speed, press the fan but-
ton. To turn on the fan at high speed, press the
fan button a second time. To turn off the fan,
press the fan button a third time. Note: If the fan is
turned on but the pedals are not moved for thirty
seconds, the fan will automatically turn off.
Rotate the thumb
wheel on the
right side of the
fan to pivot the
fan to the
desired angle.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds,
the displays will pause and the time will flash in
the large display. If the pedals are not moved and
the console buttons are not pressed for a few
minutes, the console will turn offto conserve the
batteries.
7
6
5
Thumb Wheel
Metal
Contacts

16
Each resistance/pace program will automatically change
the resistance of the pedals and prompt you to increase
or decrease your pace as it guides you through an
effective workout.
Follow the steps below to use a resistance/pace pro-
gram.
Turn on the console.
See step 1 on page 14.
Select one of the resistance/pace programs.
To select a resistance/
pace program, press the
Program (PGM) button
repeatedly until the num-
ber 1, 2, 3, 4, 5, or 6
appears in the small dis-
play.
Begin pedalling to start the program.
Each resistance/pace program consists of either
20 or 30 one-minute periods. One resistance level
and one target pace are programmed for each
period. Note: The same resistance level and/or
target pace may be programmed for two or more
consecutive periods.
When you begin pedalling, the resistance of the
pedals will automatically change to the resistance
level programmed for the first period. Note: If the
resistance level is too high or too low, you can
change it by pressing the Resistance buttons.
The target pace for the first period will appear in
the small display for a few seconds, and the
arrows in the small display will help you to pedal
at the target pace—simply increase or decrease
your pace until one segment of the indicator bar
appears at the tip of each arrow (see the drawing
at the right). Note:
When the word
“TARGET” does
not appear in the
small display, your
actual pedalling
pace will be
shown.
Important: The target pace is intended only to
provide a goal. Your actual pace may be slow-
er than the target pace, especially during the
first few months of your exercise program.
Make sure to pedal at a pace that is comfort-
able for you.
During the last three seconds of each period, a
series of tones will sound and the time will flash in
the large display. The resistance of the pedals will
then change if a different resistance level is pro-
grammed for the next period. In addition, the
number of arrows in the small display will change
if a different target pace is programmed for the
next period.
During the program, the centre of the large dis-
play will show the time remaining in the program.
If you stop pedalling for a few seconds, the dis-
plays will pause and the time will flash. To restart
the program, resume pedalling.
Follow your progress with the large display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 15.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
7
6
5
4
3
2
1
HOW TO USE A RESISTANCE/PACE PROGRAM
Arrows
Indicator
Bar

17

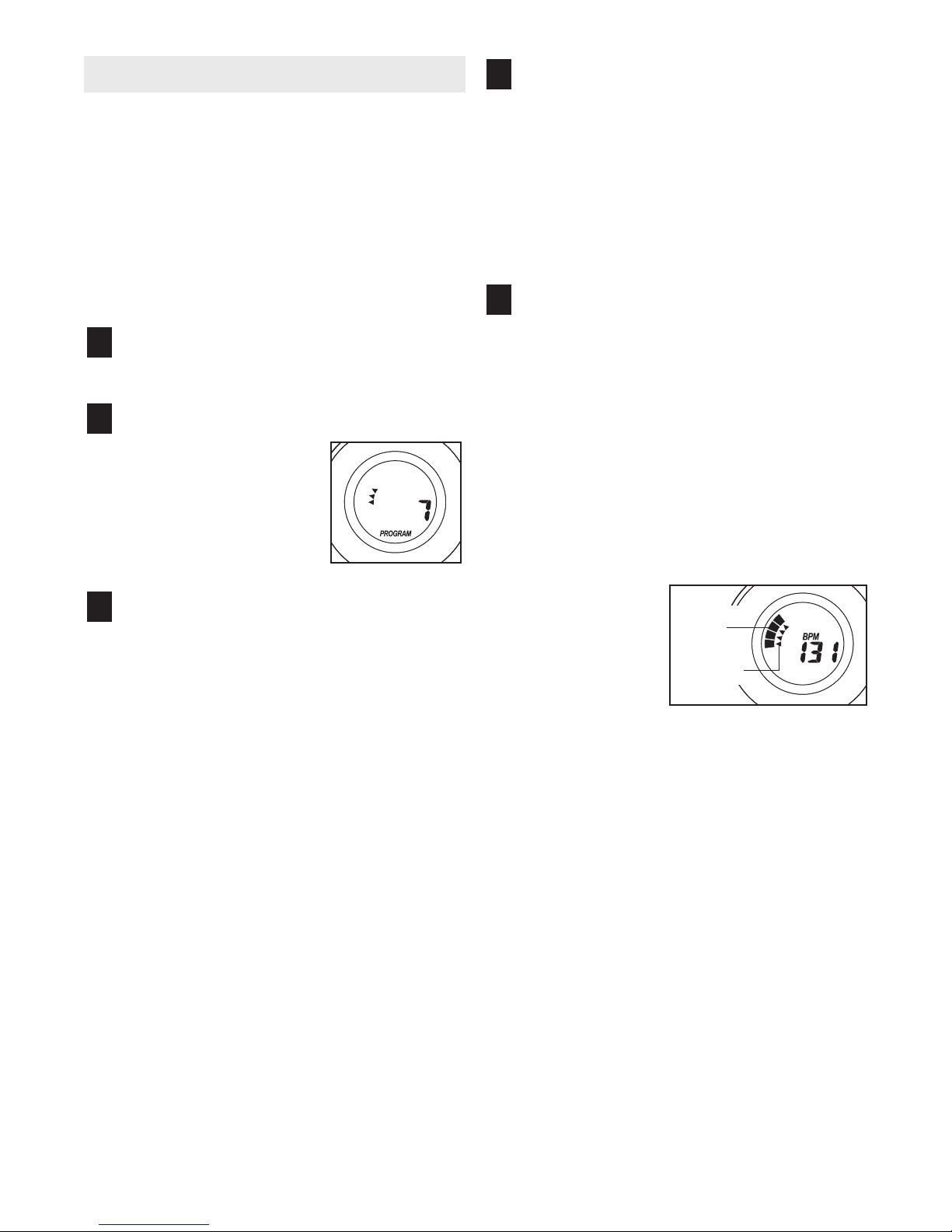

Heart rate program 7 is designed to keep your heart
rate between 65% and 85% of your maximum heart
rate
during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 25 years old, your maximum heart
rate is 195 beats per minute.) Heart rate program 8 is
designed to keep your heart rate near a target heart
rate that you select.
Follow the steps below to use a heart rate program.
Turn on the console.
See step 1 on page 14.
Select one of the heart rate programs.
To select a heart rate pro-
gram, press the Program
(PGM) button repeatedly
until the number 7 or 8
appears in the small dis-
play.
Enter your age or a target heart rate.
If program 7 is selected, the word “AGE” and
the current age setting will appear in the large dis-
play. If you have already entered your age, press
the button with the heart symbol. If you have not
entered your age, press the small + and – buttons
to enter your age, and then press the button with
the heart symbol. Once you have entered your
age, it will be saved in memory until the batteries
are replaced.
If program 8 is selected, the letters “PLS” and
the current target heart rate will appear in the
large display. If you do not wish to change the tar-
get heart rate, press the button with the heart
symbol. If you wish to change the target heart
rate, press the small + and – buttons, and then
press the button with the heart symbol. The target
heart rate can be from 70 to 170 beats per
minute.
Hold the handgrip pulse sensor.
To use a heart rate program, you must use the
handgrip pulse sensor or wear the chest pulse
sensor. If you use the handgrip pulse sensor, it is
not necessary to hold the handgrips continuously
during the program; however, you must hold the
handgrips frequently for the program to operate
properly. Each time you hold the handgrips, keep
your hands on the metal contacts for at least 30
seconds.
Begin pedalling to start the program.
Heart rate program 7 consists of 20 one-minute
periods. One resistance level and one target heart
rate are programmed for each period. (Note: The
same resistance level and/or target heart rate
may be programmed for two or more consecutive
periods.) Heart rate program 8 is sixty minutes
long (you may choose to use only part of the pro-
gram). The same resistance level and target heart
rate are programmed for the entire program.
When you begin pedalling, the resistance of the
pedals will automatically change to the resistance
level programmed for the first period.
As you pedal, the
arrows in the
small display will
help you to keep
your heart rate
near the current
target heart rate.
When you hold
the handgrip pulse sensor or wear the chest pulse
sensor,the console will compare your heart rate
to the current target heart rate. If your heart rate
is too far above or below the target heart rate, the
number of arrows in the small display will change
to prompt you to increase or decrease your pace.
When the number of arrows changes, change
your pace until one segment of the indicator bar
appears at the tip of each arrow. Important: The
target pace is intended only to provide a goal.
Your actual pace may be slower than the tar-
get pace, especially during the first few
months of your exercise program. Make sure
to pedal at a pace that is comfortable for you.
5
4
3
2
1
HOW TO USE A HEART RATE PROGRAM
Arrows
Indicator
Bar

18
During the last three seconds of each period, a
series of tones will sound and the time will flash in
the large display. The resistance of the pedals will
then change if a different resistance level is pro-
grammed for the next period. Note: If the resis-
tance level is too high or too low, you can adjust it
by pressing the Resistance buttons. However,
when the next period begins, the resistance will
automatically change if a different resistance level
is programmed for the next period.
The program will continue in this way until the
large display shows that no time remains in the
program. Note: If you stop pedalling for a few sec-
onds, the program will end. To use the program
again, reselect it and start it at the beginning.
Follow your progress with the large display.
See step 4 on page 14.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
HOW TO USE IFIT.COM CD PROGRAMS
When you use an iFIT.com CD program, a certified
personal trainer will guide you through your workout
whilst the program interactively controls the resistance
of the pedals and prompts you to increase or decrease
your pace. Note: To purchase iFIT.com CDs, visit
our Web site at www.iconeurope.com.
Follow the steps below to use an iFIT.com CD program.
Turn on the console.
See step 1 on page 14.
Select the iFIT.com mode.
To use an iFIT.com CD, first
press the iFIT button. The
indicator beside the button
will light and the letters “IF”
will appear in the small dis-
play.
Insert an iFIT.com CD into the CD player.
To open the CD
player,slide the
centre button on
the CD player
upward. Carefully
insert an iFIT.com
CD into the CD
player and then
close the lid.
Press the Play/Pause button to start the
program.
Tostart the CD
program, press
the play/pause
button on the CD
player.Amoment
after the button is
pressed, your personal trainer will begin guiding
you through your workout. Simply follow your per-
sonal trainer’s instructions.
4
3
2
1
8
7
6

19
The CD program will function in almost the same
way as a resistance/pace program (see step 3 on
page 16). However, an electronic “chirping” sound
will alert you when the resistance level and/or the
target pace is about to change. Note: If the resis-
tance level and/or the target pace does not
change when a “chirp” is heard, make sure
that the indicator beside the iFIT button is lit.
In addition, adjust the volume (see step 5
below). If the volume is too high or too low, the
console may not detect the program signals.
To stop the pro-
gram at any
time, press the
play/pause but-
ton and stop
pedalling. To
restart the program, press the play/pause button
and begin pedalling.
Note: To select a
different pro-
gram on the CD,
press the
skip/search but-
tons on the CD
player.
Adjust the volume if desired.
To adjust the
volume, press
the Volume –
and + buttons on
the CD player.
Follow your progress with the large display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 15.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
Note: Always remove iFIT.com CDs from the
CD player when you are finished using them.
HOW TO PLAY MUSIC CDS
If desired, you can play your own music CDs in the CD
player. Before playing music CDs, select the manual
mode of the console (see HOW TOUSE THE MANUAL
MODE on page 14).
9
8
7
6
5

20
HOW TO CONNECT TO YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adapter. Plug the adapter into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adaptor.Plug the
Y-adaptor into the AUDIO OUT jack on your VCR.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT
jack, see instruction A. If your computer has only
aPHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your com-
puter.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio
cable into the splitter. Plug the splitter into the
PHONES jack on your computer. Plug your head-
phones or speakers into the other side of the splitter.
LINE OUT
Audio
Cable
A
PHONES
Audio Cable
B
Splitter
Headphones/Speakers
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
C
Audio Cable
Adaptor
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
A
Audio Cable Adaptor
B
Wire removed from
AUDIO OUT jack
RCA Y-Adaptor
HOW TO CONNECT THE ELLIPTICAL
CROSSTRAINER TO YOUR VCR OR COMPUTER
