HEALTH RIDER H300 HREL3226.0 User manual

Model No. HREL3226.0
Serial No.
Serial
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-922-4222
Mon.-Fri., 6 a.m.-6 p.m. MST
ON THE WEB:
www.health riderservice.com
CAUTION
Read all precautions and
instructions inthis manual
before using this equipment.
Keep this manual for future
reference.
USER'S MANUAL
www.healthrider.com
new products, prizes,
fitness tips, and much more!

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE ELLIPTICAL EXERCISER ................................................... 9
MAINTENANCE AND TROUBLESHOOTING ................................................... 14

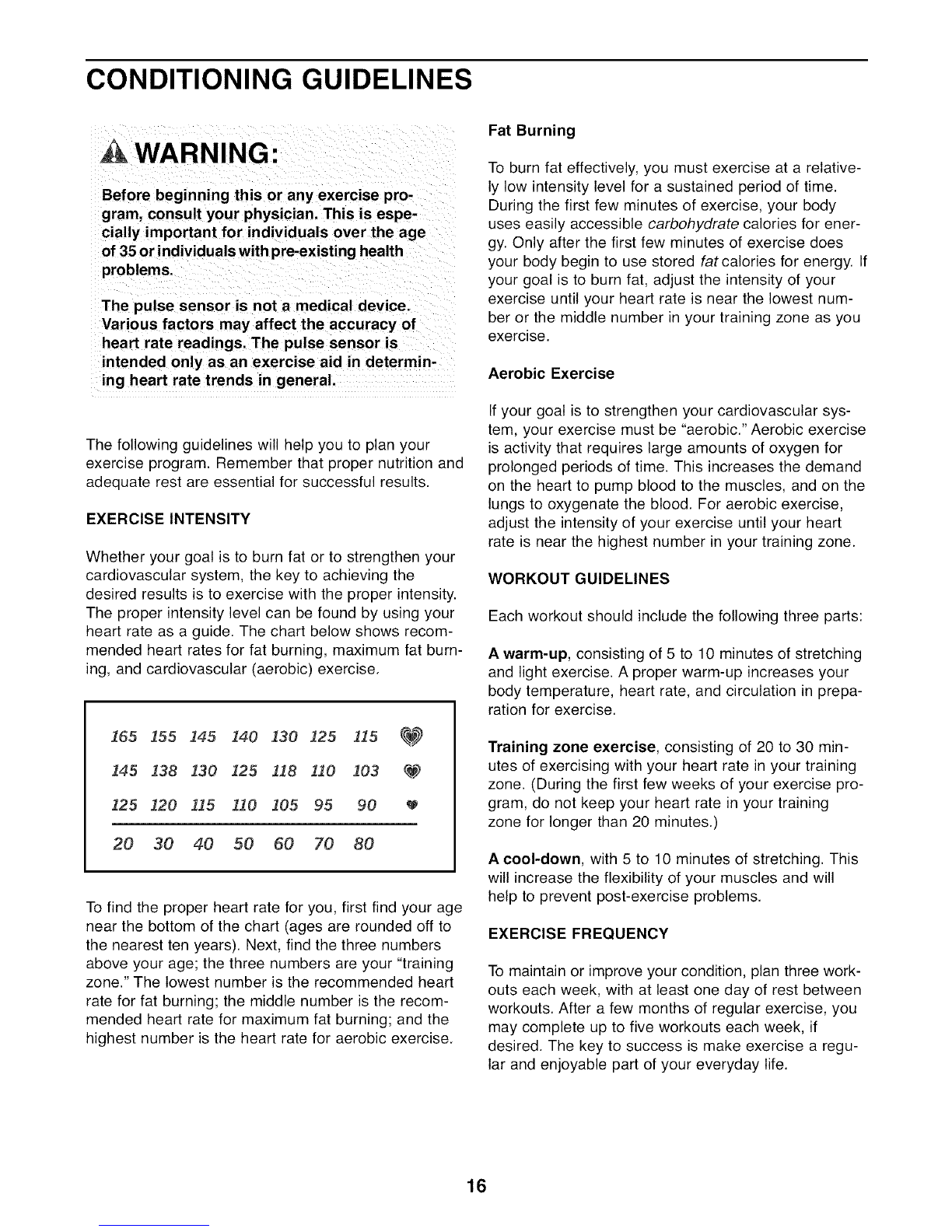

CONDITIONING GUIDELINES ............................................................... 15

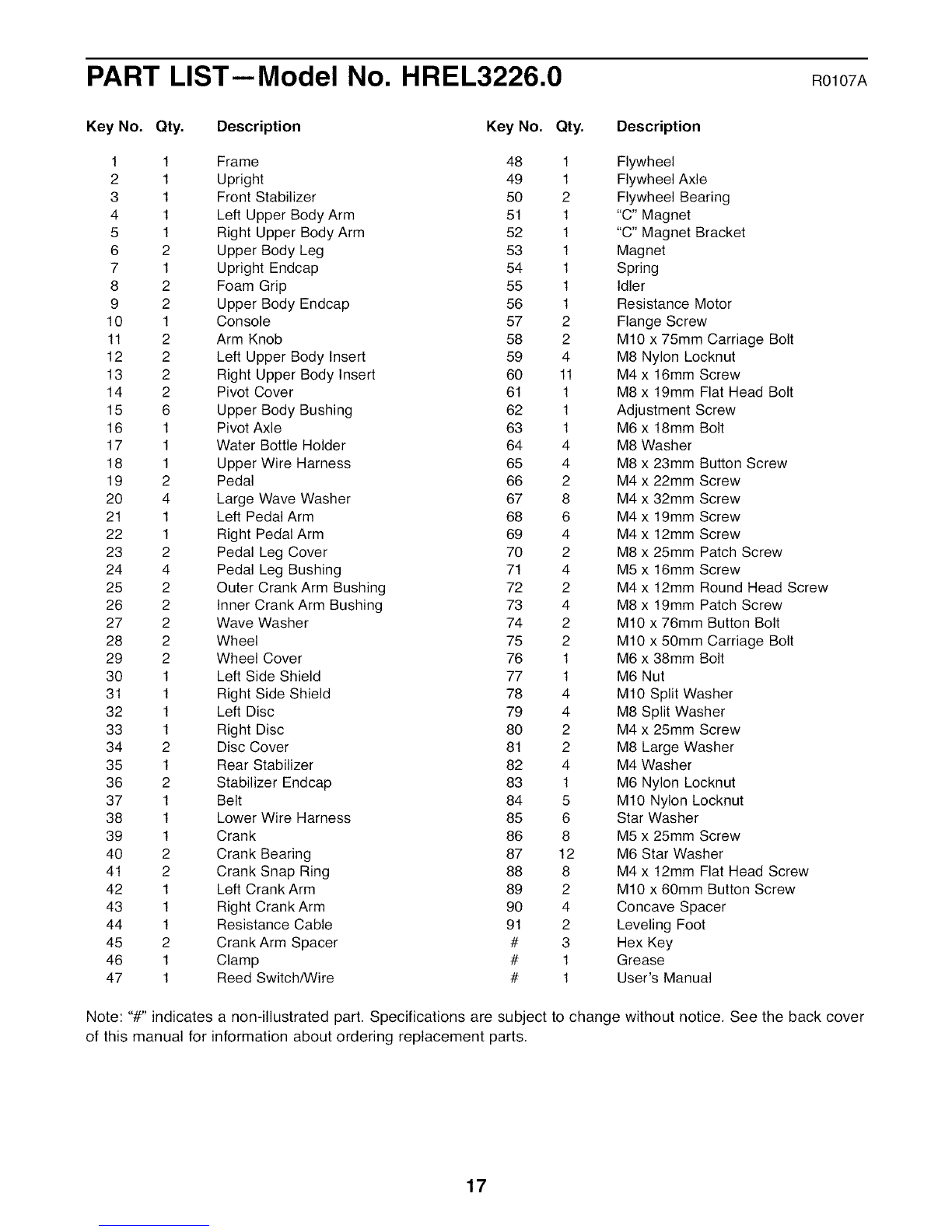

PART LIST .............................................................................. 17
EXPLODED DRAWING .................................................................... 18
HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
HEALTHRtDER is a registered trademark of ICON liD,Inc.
2

IMPORTANT PRECAUTIONS
_WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and cool
down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
4. Keep the elliptical exerciser indoors, away 14. The decal shown below has been placed on
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
the elliptical exerciser. If the decal is miss-
ing or illegible, call the toll-free telephone
number on the front cover of this manual
and order a free replacement decal. Apply
the decal in the location shown.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Wear athletic
shoes for foot protection while exercising.
9. When mounting and dismounting the ellipti-
cal exerciser, always hold the upper body
arms and step onto and off the pedal that is
in the lowest position.
10. Keep your back straight while using the ellip-
tical exerciser; do not arch your back.
_WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

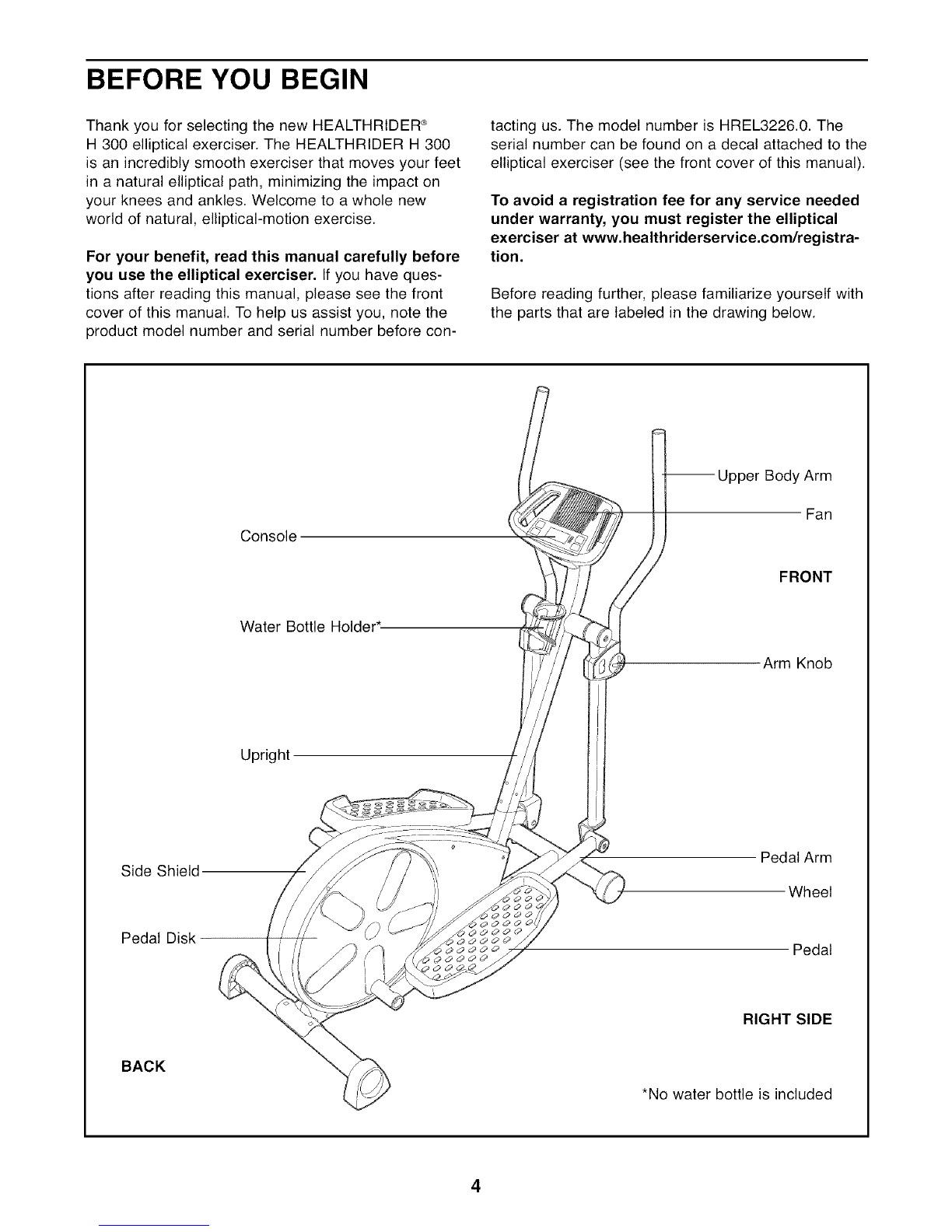

BEFORE YOU BEGIN
Thank you for selecting the new HEALTHRIDER ®
H 300 elliptical exerciser. The HEALTHRIDER H 300
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. Welcome to a whole new
world of natural, elliptical-motion exercise.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number is HREL3226.0. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.healthriderservice.com/registra-
tion.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
pper Body Arm
Fan
FRONT
Water Bottle Holder*
Arm Knob
Upright
Side Shield Pedal Arm
Wheel
Pedal Disk _> Pedal
RIGHT SIDE
BACK
*No water bottle is included

ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove
all packing materials, Do not dispose of the packing materials until assembly is completed.
your -_ , rubberAssembly requires own phillips screwdriver C_-_, adjustable wrench _ and
mallet,s7-_ ]"
See the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 17. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part
is not found in the parts bag, check to see if it has been preassembled.
M8 Split M8 Washer M8 Large M10 Split Wave Washer Large Wave
Washer (79)-4 (64)-4 Washer (81)-2 Washer (78)-4 (27)-2 Washer (20)-4
Star Washer M4 x 12mm Flat M4 x 16mm M4 x 19mm M4 x 22mm M4 x 32mm
(85)-6 Head Screw (88)-8 Screw (60)-4 Screw (68)-6 Screw (66)-2 Screw (67)-8
M8 Nylon M10 Nylon M8 x 19mm Patch M8 x 23mm Button M8 x 25mm Patch
Locknut (59)-2 Locknut (84)-4 Screw (73)-4 Screw (65)-4 Screw (70)-2
MIO x 60mm Button Screw (89)-2 MIO x 76mm Button Bolt (74)-2
M10 x 50mm Carriage Bolt (75)-2 M10 x 75mm Carriage Bolt (58)-2

1. To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.
Attach the Rear Stabilizer (35) to the Frame (1) with
two M10 x 75mm Carriage Bolts (58) and two M10
Nylon Locknuts (84).
Press the Stabilizer Endcaps (36) onto the Rear
Stabilizer (35) as shown.
36
35\
84
58 36
Attach the Front Stabilizer (3) to the Frame (1) with
two M10 x 76mm Button Bolts (74), two M10 Split
Washers (78), two Concave Spacers (90), and two
M10 Nylon Locknuts (84). Do not tighten the
Nylon Locknuts yet.
Thread two M10 x 60mm Button Screws (89) with
two M10 Split Washers (78) and two Concave
Spacers (90) through the Front Stabilizer (3) and
into the Frame (1). Tighten the two M10 Nylon
Locknuts (84), and then tighten the Button
Screws.
Orient a Wheel (28) so the four posts (see the inset
drawing) are facing away from the Front Stabilizer
(3). Attach the Wheel to the Front Stabilizer with an
M8 Nylon Locknut (59). Next, press a Wheel Cover
(29) onto the posts on the Wheel. Attach the other
Wheel (not shown) in the same way. 59 28
78
74
78
.While another person holds the Upright (2) near the
Frame (1), connect the Upper Wire Harness (18) to
the Lower Wire Harness (38).
Carefully slide the Upright (2) onto the Frame (1).
Be careful to avoid pinching the Wire Harnesses
(18, 38). Attach the Upright with four M8 x 19mm
Patch Screws (73) and four M8 Split Washers (79).
Do not tighten the Patch Screws yet.
79
18
79
73

4. 4
IdentifytheLeftPedalArm(21),whichismarkedwith
asticker.AttachaPedal(19)totheLeftPedalArm
withthreeM4x 19mmScrews(68)andthreeStar
Washers(85).
Attach the other Pedal (not shown) to the Right
Pedal Arm (not shown) in the same way.
21
.Apply a generous amount of grease to the Pivot Axle
(16). Then, apply a small amount of grease to two
Wave Washers (27).
While another person aligns the Upper Body Legs (6)
with the Upright (2) as shown, insert the Pivot Axle
(16) into the Upper Body Legs and the Upright. Be
careful not to damage the Upper Wire Harness
(18) with the Pivot Axle.
Place a Wave Washer (27) on each end of the Pivot
Axle (16). Then, tighten an M8 x 23mm Button
Screw (65), an M8 Washer (64), and a Pivot Cover
(14) into each end of the Pivot Axle.
Grease
27
14
5
Grease
\\
I\\
\
\
\
65
64
27
.Apply a generous amount of grease to the axle on
the left Upper Body Leg (6). Then, apply grease to a
Large Wave Washer (20) and slide it onto the axle.
Apply a generous amount of grease to the Left
Crank Arm (42). Then, slide a Crank Arm Spacer
(45) onto the Left Crank Arm.
Slide the Left Pedal Arm (21) onto the left Upper
Body Leg (6) and onto the Left Crank Arm (42).
Repeat this step for the other side of the elliptical
exerciser.
\ / \/
/\/\/\//\/// \/////
Grease
7

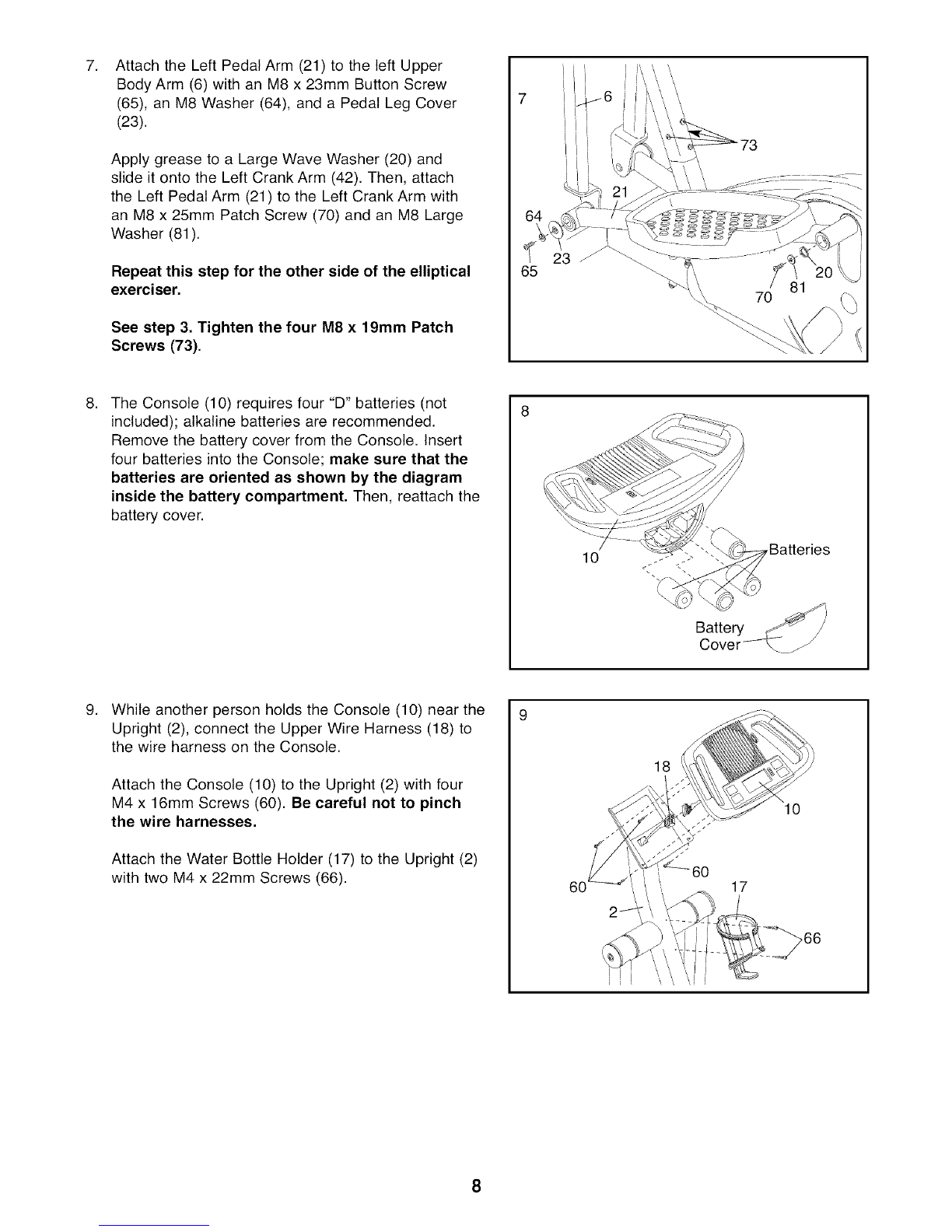

7. Attach the Left Pedal Arm (21) to the left Upper
Body Arm (6) with an M8 x 23mm Button Screw
(65), an M8 Washer (64), and a Pedal Leg Cover
(23).
Apply grease to a Large Wave Washer (20) and
slide it onto the Left Crank Arm (42). Then, attach
the Left Pedal Arm (21) to the Left Crank Arm with
an M8 x 25mm Patch Screw (70) and an M8 Large
Washer (81).
Repeat this step for the other side of the elliptical
exerciser.
See step 3, Tighten the four M8 x 19mm Patch
Screws (73).
23
65
i
i
i
I
The Console (10) requires four "D" batteries (not
included); alkaline batteries are recommended.
Remove the battery cover from the Console. Insert
four batteries into the Console; make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment, Then, reattach the
battery cover.
10
.While another person holds the Console (10) near the
Upright (2), connect the Upper Wire Harness (18) to
the wire harness on the Console.
Attach the Console (10) to the Upright (2) with four
M4 x 16mm Screws (60). Be careful not to pinch
the wire harnesses.
Attach the Water Bottle Holder (17) to the Upright (2)
with two M4 x 22mm Screws (66).
18
17
10

10.OrientaLeftUpperBodyInsert(12)andaRightUpper
BodyInsert(13)asshown,andpressthemtogether
aroundtheleftUpperBodyLeg(6).Next,slidetheLeft
UpperBodyArm(4)ontotheUpperBodyInserts.
WhileanotherpersonholdstheLeftUpperBodyArm
(4)andtheUpperBodyInserts(12,13),insertan
MIOx50mmCarriageBolt(75)throughallthreeparts
fromtheinsideasshown.Next,tightenfourM4x
32mmScrews(67)andfourM4x12mmFlatHead
Screws(88)throughtheLeftUpperBodyArmandinto
theUpperBodyInserts.Then,tightenanArmKnob
(11)ontotheCarriageBolt.
Attach the Right Upper Body Arm (not shown) to
the right Upper Body Leg (6) in the same way.
10
\
11
4
88
88
67
\\ /\
11. Make sure that all parts of the elliptical exerciser are properly tightened. Place a mat under the elliptical
exerciser to protect the floor or carpet from damage.
9

HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO MOVE AND LEVEL THE ELLIPTICAL
EXERCISER
To move the elliptical exerciser, stand in front of it,
place one foot against one of the wheels, and firmly
hold the upper end of the upright. Pull the upright until
you can move the elliptical exerciser on the wheels.
Carefully move the elliptical exerciser to the desired
location and then lower it. To decrease the risk of
injury, do not attempt to move the elliptical exer-
ciser over an uneven surface.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, firmly hold the upper
body arms and carefully step onto the pedal that is in
the lowest position. Next, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The pedal disks can turn in
either direction. It is recommended that you turn
the pedal disks in the direction shown below;
however, for variety, you can turn the pedal disks
in the opposite direction.
Wheel
Leveling Foot
If the elliptical exerciser rocks slightly on your floor,
turn one or both of the leveling feet under the front
stabilizer until the rocking motion is eliminated.
HOW TO ADJUST THE POSITION OF THE
HANDLEBARS
The upper body arms
can be adjusted to the
height that is the most
comfortable for you. To
adjust each upper body
arm, first loosen the arm
knob. Next, slide the
upper body arm to the
desired position, and
then firmly retighten the
arm knob. Make sure that
both upper body arms
are at the same height.
I
Body
Arm
Knob
Upper
Bod_
Pedal
Pedal
Disk
To dismount the elliptical exerciser, allow the pedals
to come to a complete stop. The elliptical exerciser
does not have a freewheel; the pedals will contin-
ue to move until the flywheel stops. When the ped-
als are stationary, step off the highest pedal first.
Then, step off the lower pedal.
10

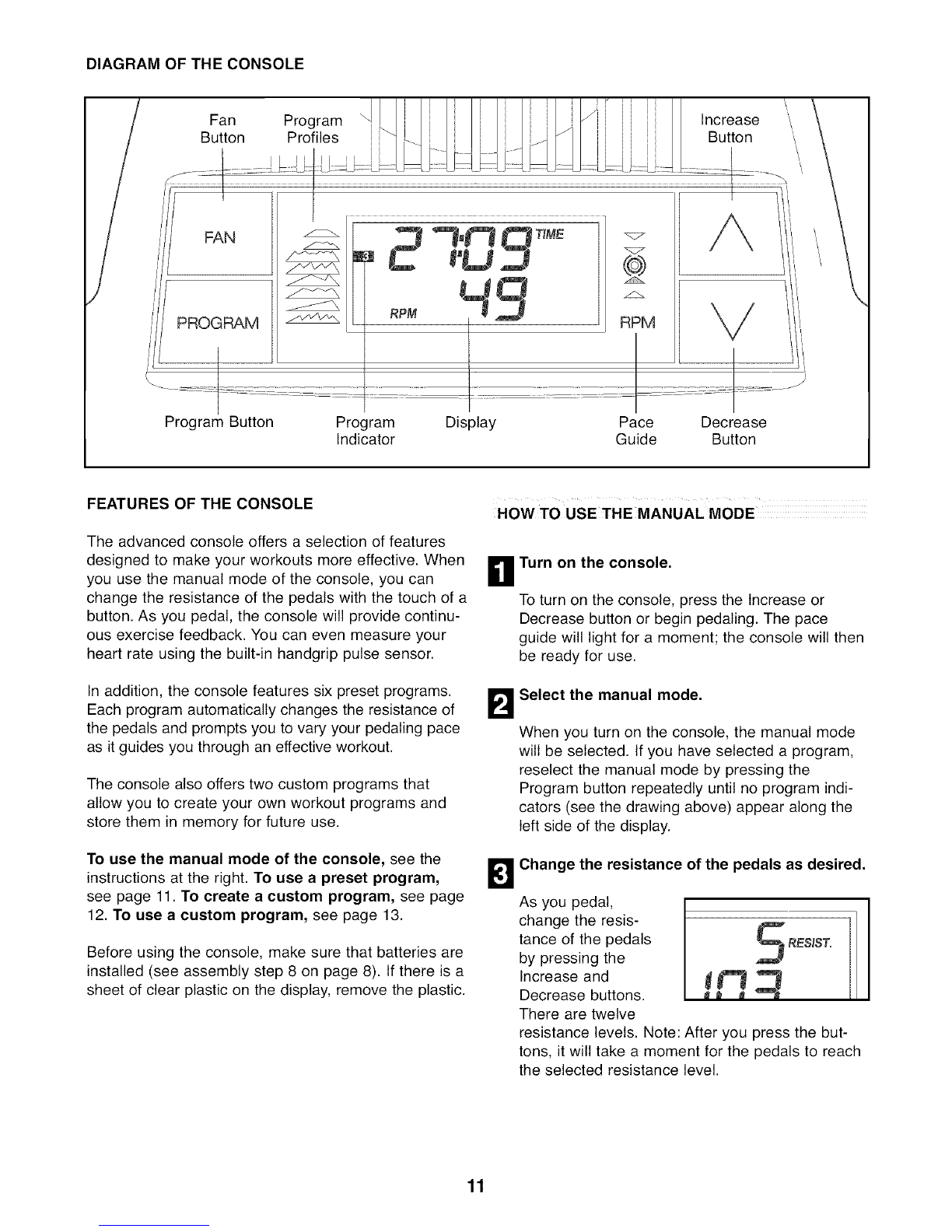

DIAGRAM OF THE CONSOLE
Fan Program Increase
Button Profiles Button
/,
I_ _ BJ m Jml J J rY-,,-, - " I/
7
i=.=7 RPM
/
/
Program Button Program Display
Indicator Pace Decrease Guide Button
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective. When
you use the manual mode of the console, you can
change the resistance of the pedals with the touch of a
button. As you pedal, the console will provide continu-
ous exercise feedback. You can even measure your
heart rate using the built-in handgrip pulse sensor.
In addition, the console features six preset programs.
Each program automatically changes the resistance of
the pedals and prompts you to vary your pedaling pace
as it guides you through an effective workout.
The console also offers two custom programs that
allow you to create your own workout programs and
store them in memory for future use.
To use the manual mode of the console, see the
instructions at the right. To use a preset program,
see page 11. To create acustom program, see page
12. To use a custom program, see page 13.
Before using the console, make sure that batteries are
installed (see assembly step 8 on page 8). If there is a
sheet of clear plastic on the display, remove the plastic.
B Turn on the console,
To turn on the console, press the Increase or
Decrease button or begin pedaling. The pace
guide will light for a moment; the console will then
be ready for use.
B Select the manual mode,
When you turn on the console, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing the
Program button repeatedly until no program indi-
cators (see the drawing above) appear along the
left side of the display.
_Change the resistance of the pedals as desired.
As you pedal,
change the resis-
tance of the pedals
by pressing the
Increase and _ _
Decrease buttons. J • J
There are twelve
resistance levels. Note: After you press the but-
tons, it will take a moment for the pedals to reach
the selected resistance level.
11

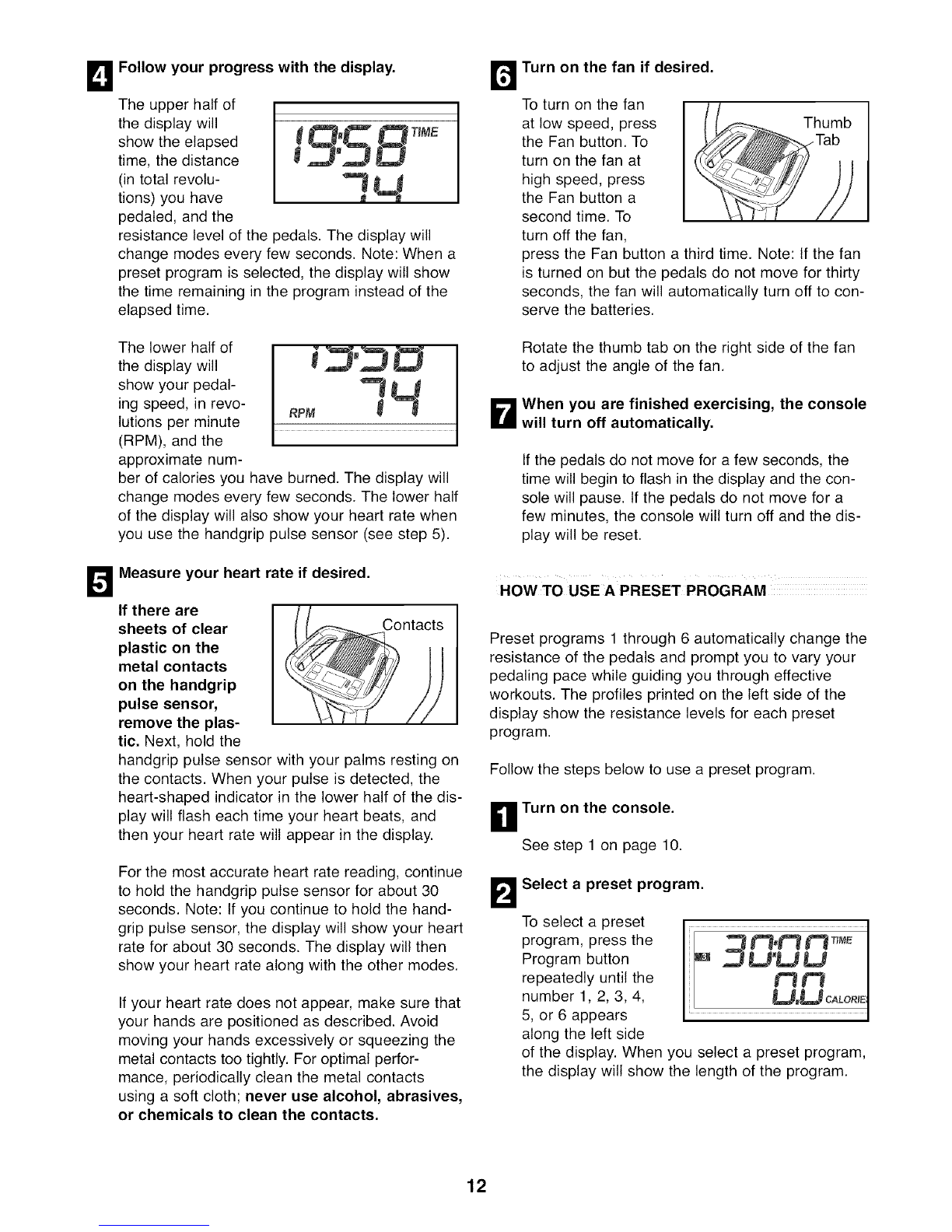

BFollow your progress with the display.
The upper half of
the display will
show the elapsed
time, the distance
(in total revolu- _ L,_
tions) you have
pedaled, and the
resistance level of the pedals. The display will
change modes every few seconds. Note: When a
preset program is selected, the display will show
the time remaining in the program instead of the
elapsed time.
The lower half of
the display will
show your pedal-
ing speed, in revo-
lutions per minute
(RPM), and the
approximate num-
ber of calories you have burned. The display will
change modes every few seconds. The lower half
of the display will also show your heart rate when
you use the handgrip pulse sensor (see step 5).
_Measure your heart rate if desired.
If there are
sheets of clear Contacts
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plas-
tic. Next, hold the
handgrip pulse sensor with your palms resting on
the contacts. When your pulse is detected, the
heart-shaped indicator in the lower half of the dis-
play will flash each time your heart beats, and
then your heart rate will appear in the display.
For the most accurate heart rate reading, continue
to hold the handgrip pulse sensor for about 30
seconds. Note: If you continue to hold the hand-
grip pulse sensor, the display will show your heart
rate for about 30 seconds. The display will then
show your heart rate along with the other modes.
If your heart rate does not appear, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal perfor-
mance, periodically clean the metal contacts
using a soft cloth; never use alcohol, abrasives,
or chemicals to clean the contacts.
11t
Turn on the fan if desired.
To turn on the fan
at low speed, press
the Fan button. To
turn on the fan at
high speed, press
the Fan button a
second time. To
turn off the fan,
press the Fan button a third time. Note: If the fan
is turned on but the pedals do not move for thirty
seconds, the fan will automatically turn off to con-
serve the batteries.
Rotate the thumb tab on the right side of the fan
to adjust the angle of the fan.
B hen you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
time will begin to flash in the display and the con-
sole will pause. If the pedals do not move for a
few minutes, the console will turn off and the dis-
play will be reset.
HOW TO USEAPRESETPROGRAM
Preset programs 1 through 6 automatically change the
resistance of the pedals and prompt you to vary your
pedaling pace while guiding you through effective
workouts. The profiles printed on the left side of the
display show the resistance levels for each preset
program.
Follow the steps below to use a preset program.
_lTurn on the console.
See step 1 on page 10.
laSelect apreset program.
To select a preset
program, press the
Program button
repeatedly until the
number 1, 2, 3, 4,
5, or 6 appears
along the left side
of the display. When you select a preset program,
the display will show the length of the program.
12

laBegin pedaling to start the program.
Each preset program consists of 20 or 30 one-
minute segments. One resistance level and one
target pace are programmed for each segment.
At the end of each segment, the resistance level
will flash in the display for a few seconds. The
resistance of the pedals will then automatically
change to the resistance level programmed for
the next segment. Note: If the resistance level is
too low or too high, you can override it by press-
ing the Increase and Decrease buttons. However,
when the current segment ends, the resistance
will automatically change to the resistance level
programmed for the next segment.
During the program, the pace guide will prompt
you to increase or decrease your pedaling pace.
When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current
pace. Important: The pace guide is intended
only to provide a goal. Make sure to pedal at a
pace that is comfortable for you,
V
RPM i
RPM
v
@
RPM
The display will show the time remaining in the
program, tf you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
B Follow your progress with the display.
See step 4 on page 11.
[_'_ Measure your heart rate if desired.
See step 5 on page 11.
r_Turn on the fan if desired.
See step 6 on page 11.
B hen you are finished exercising, the console
will turn off automatically.
See step 7 on page 11.
HOW TO CREATE A CUSTOM PROGRAM
The custom programs allow you to create your own
workout programs and store them in memory for
future use.
Follow the steps below to create a custom program.
O Turn on the console.
See step 1 on page 10.
laSelect a custom program.
To select a custom
program, press the
Program button
repeatedly until the
number 7 or 8
appears along the
left side of the dis-
play.
[_1 Begin pedaling to start the program, and pro-
gram the desired settings.
Each custom program is divided into 40 one-
minute segments. You can program one resis-
tance level and one target pace for each seg-
ment.
To program a resistance level for the first seg-
ment, simply adjust the resistance of the pedals
by pressing the Increase and Decrease buttons.
To program a target pace for the first segment,
simply pedal at the desired pace.
At the end of the first segment, the program will
store the current resistance level and your current
pace in memory. Program a resistance level and
a target pace for the second segment as
described above.
Continue exercising for up to forty minutes. Press
the Program button when you are finished with
your workout. The program you created will then
be stored in memory. Note: If your workout is less
than forty minutes long, any remaining segments in
the program will be stored with the default resis-
tance level and target pace.
B hen the program is finished, the console
will turn off automatically.
See step 7 on page 11.
13

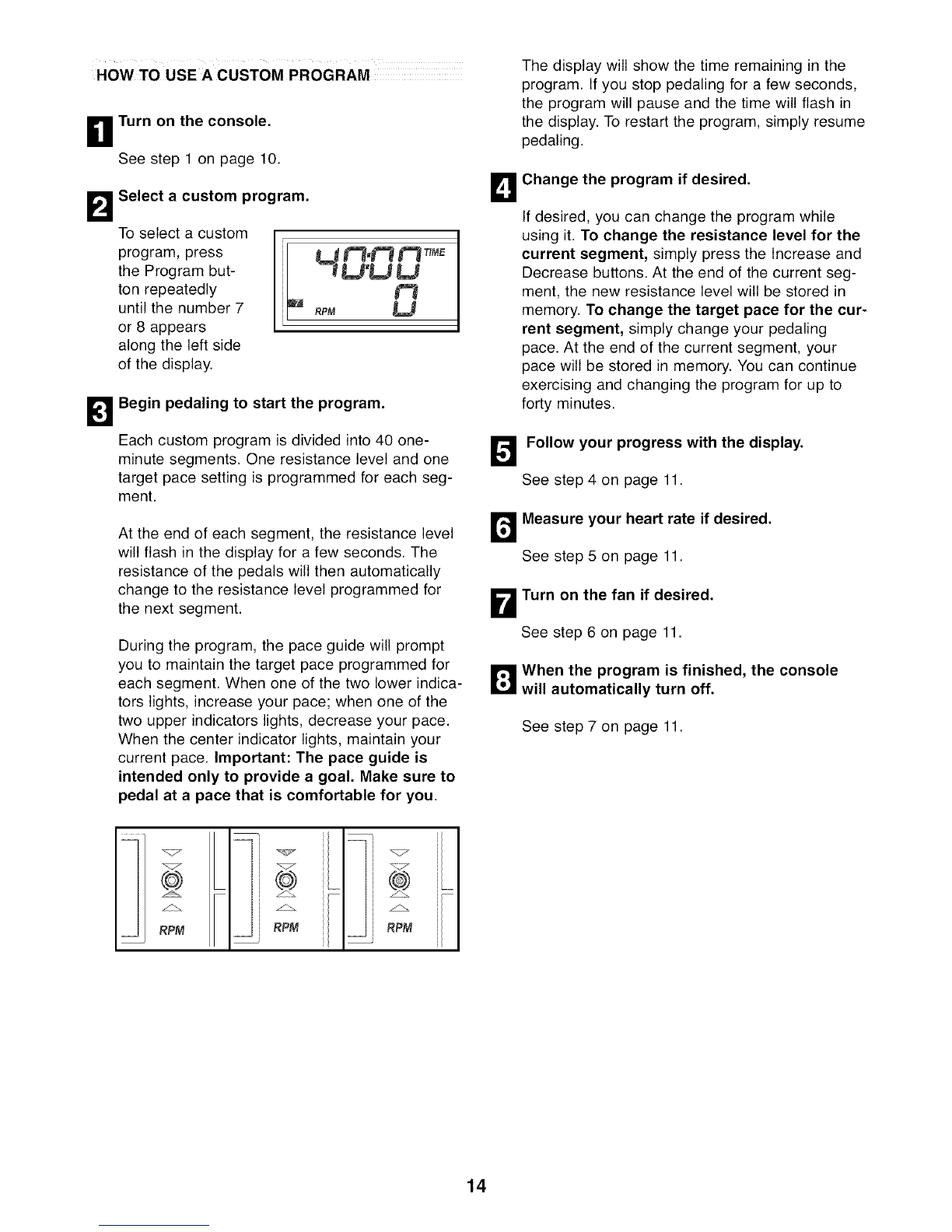

11
la
Turn on the console.
See step 1 on page 10.
Select a custom program.
To select a custom
program, press
the Program but-
ton repeatedly
until the number 7
or 8 appears
along the left side
of the display.
o
RPM L_
Begin pedaling to start the program.
Each custom program is divided into 40 one-
minute segments. One resistance level and one
target pace setting is programmed for each seg-
ment.
At the end of each segment, the resistance level
will flash in the display for a few seconds. The
resistance of the pedals will then automatically
change to the resistance level programmed for
the next segment.
During the program, the pace guide will prompt
you to maintain the target pace programmed for
each segment. When one of the two lower indica-
tors lights, increase your pace; when one of the
two upper indicators lights, decrease your pace.
When the center indicator lights, maintain your
current pace. Important: The pace guide is
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
The display will show the time remaining in the
program, tf you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
BChange the program if desired.
If desired, you can change the program while
using it. To change the resistance level for the
current segment, simply press the Increase and
Decrease buttons. At the end of the current seg-
ment, the new resistance level will be stored in
memory. To change the target pace for the cur-
rent segment, simply change your pedaling
pace. At the end of the current segment, your
pace will be stored in memory. You can continue
exercising and changing the program for up to
forty minutes.
Follow your progress with the display.
See step 4 on page 11.
r_ Measure your heart rate if desired.
See step 5 on page 11.
B Turn on the fan if desired.
See step 6 on page 11.
When the program is finished, the console
will automatically turn off.
See step 7 on page 11.
14

MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
ately. The elliptical exerciser can be cleaned with a
soft cloth and mild detergent. Do not use abrasives
or solvents. To prevent damage to the console, keep
liquids away from the console and keep the console
out of direct sunlight.
When storing the elliptical exerciser, remove the bat-
teries from the console. Keep the elliptical exerciser in
a clean, dry location, away from moisture and dust.
CONSOLE TROUBLESHOOTING
Switch. Loosen, but do not remove, the indicated
M4 x 16mm Screw (60). Slide the Reed Switch slight-
ly closer to or away from the Magnet, and then
retighten the Screw. Rock the Flywheel forward and
backward just enough that the Magnet passes the
Reed Switch repeatedly. Repeat until the console dis-
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the side shields. Note: If you
have questions regarding which screw should be in
which hole, see EXPLODED DRAWING B on page 19
and the PART LIST on page 17.
HOW TO ADJUST THE BELT
If the console does not function properly, the batteries
should be replaced. To replace the batteries, see
assembly step 8 on page 8.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper-
ly, make sure that your hands are positioned as
described in step 5 on page 11. Be careful not to
move your hands excessively or to squeeze the metal
contacts too tightly. For optimal performance, clean
the metal contacts using a soft cloth; never use alco-
hol, abrasives, or chemicals to clean the contacts.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, remove all of
the screws from both side shields; there are three
sizes of screws in the side shields--note which
size of screw you remove from each hole.
Next, locate the Reed Switch (47). Turn the Flywheel
(48) until the Magnet (53) is aligned with the Reed
If you can feel the pedals slip while you are pedaling,
even when the resistance of the pedals is at the high-
est setting, the Belt (37) may need to be adjusted.
First, remove all of the screws from both side shields;
there are three sizes of screws in the side
shields--note which size of screw you remove
from each hole.
62
Next, loosen the M8 x 19mm Flat Head Bolt (61) and
turn the Adjustment Screw (62) until the Belt (37) is
tight. Once the Belt is tight, tighten the Flat Head Bolt.
Then, reattach the side shields. Note: If you have
questions regarding which screw should be in which
hole, see EXPLODED DRAWING B on page 19 and
the PART LIST on page 17.
15

CONDITIONING GUIDELINES
,&WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for individuals over the age
of 35 or individuals with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat burn-
ing, and cardiovascular (aerobic) exercise.
165 155 145 I40 130 125 115 _
145 I38 130 125 1t8 110 !03 C_
125 120 115 I10 105 95 90
20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age; the three numbers are your "training
zone." The lowest number is the recommended heart
rate for fat burning; the middle number is the recom-
mended heart rate for maximum fat burning; and the
highest number is the heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goat is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber or the middle number in your training zone as you
exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
Acool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. The key to success is make exercise a regu-
lar and enjoyable part of your everyday life.
16

PART LIST--Model No. HREL3226.0 Ro o7A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 48 1 Flywheel
2 1 Upright 49 1 Flywheel Axle
3 1 Front Stabilizer 50 2 Flywheel Bearing
4 1 Left Upper Body Arm 51 1 "C" Magnet
5 1 Right Upper Body Arm 52 1 "C" Magnet Bracket
6 2 Upper Body Leg 53 1 Magnet
7 1 Upright Endcap 54 1 Spring
8 2 Foam Grip 55 1 Idler
9 2 Upper Body Endcap 56 1 Resistance Motor
10 1 Console 57 2 Flange Screw
11 2 Arm Knob 58 2 M10 x 75mm Carriage Bolt
12 2 Left Upper Body Insert 59 4 M8 Nylon Locknut
13 2 Right Upper Body Insert 60 11 M4 x 16mm Screw
14 2 Pivot Cover 61 1 M8 x 19mm Flat Head Bolt
15 6 Upper Body Bushing 62 1 Adjustment Screw
16 1 Pivot Axle 63 1 M6 x 18mm Bolt
17 1 Water Bottle Holder 64 4 M8 Washer
18 1 Upper Wire Harness 65 4 M8 x 23mm Button Screw
19 2 Pedal 66 2 M4 x 22mm Screw
20 4 Large Wave Washer 67 8 M4 x 32mm Screw
21 1 Left Pedal Arm 68 6 M4 x 19mm Screw
22 1 Right Pedal Arm 69 4 M4 x 12mm Screw
23 2 Pedal Leg Cover 70 2 M8 x 25mm Patch Screw
24 4 Pedal Leg Bushing 71 4 M5 x 16mm Screw
25 2 Outer Crank Arm Bushing 72 2 M4 x 12mm Round Head Screw
26 2 Inner Crank Arm Bushing 73 4 M8 x 19mm Patch Screw
27 2 Wave Washer 74 2 M10 x 76mm Button Bolt
28 2 Wheel 75 2 M10 x 50mm Carriage Bolt
29 2 Wheel Cover 76 1 M6 x 38mm Bolt
30 1 Left Side Shield 77 1 M6 Nut
31 1 Right Side Shield 78 4 M10 Split Washer
32 1 Left Disc 79 4 M8 Split Washer
33 1 Right Disc 80 2 M4 x 25mm Screw
34 2 Disc Cover 81 2 M8 Large Washer
35 1 Rear Stabilizer 82 4 M4 Washer
36 2 Stabilizer Endcap 83 1 M6 Nylon Locknut
37 1 Belt 84 5 M10 Nylon Locknut
38 1 Lower Wire Harness 85 6 Star Washer
39 1 Crank 86 8 M5 x 25mm Screw
40 2 Crank Bearing 87 12 M6 Star Washer
41 2 Crank Snap Ring 88 8 M4 x 12mm Flat Head Screw
42 1 Left Crank Arm 89 2 M10 x 60mm Button Screw
43 1 Right Crank Arm 90 4 Concave Spacer
44 1 Resistance Cable 91 2 Leveling Foot
45 2 Crank Arm Spacer # 3 Hex Key
46 1 Clamp # 1 Grease
47 1 Reed Switch/Wire # 1 User's Manual
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
17

EXPLODED DRAWING A--Model No. HREL3226.0 Rolo7A
I
i
' i
I 7
15
67 15
L il
L i ¸
! i _
li
i
24
23 .
65
64
13
19
60
15\
16
15
,66
, _ _8
/ //// //
// //
// /////
/\ /
73
79 L 64 65
23
24
24
21
14
15 27,,
\
J
J
I
J
I
I
I
I
!
!
i
! i
! i
i ! i
! J r
I
II
65
8\
/
r 88
88
12
19
%%%%_
%%
\\
25 81
11
7O
18

EXPLODED DRAWING B--Model No. HREL3226.0 Rolo7A
28 59 _,
29
84 53
5O
6O
89
// // \/
\
86
87
I
\\\\\\
6O
59
3O
60_ J_-80 31
76
54
33
43
i
i
58
36
84 37
72
80
6O
34
45
19

HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the MODEL NUMBER of the product (HREL3226.0)
• the NAME of the product (HEALTHRIDER H 300 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 17 to 19)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer's responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 245332 ROIO7A Printed in China © 2007 ICON IP, Inc.
