HEALTH RIDER HREL89070 User manual

Patent Pending
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. HREL89070
Serial No.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
please call direct to our toll-free
Customer Hot Line. The trained
technicians on our Customer Hot
Line will provide immediate
assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
USERÕS MANUAL
¨

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual before
using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure
that all users are adequately informed of all
precautions.
3. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrain-
er indoors, away from moisture and dust.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under age 12 and pets away
from the elliptical crosstrainer at all times.
6. The elliptical crosstrainer should not be used
by persons weighing more than 250 pounds.
7. Wear appropriate exercise clothing when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection.
8. Hold the handlebar when mounting or dis-
mounting the elliptical crosstrainer. Always
hold the handlebar or the upper body arms
when using the elliptical crosstrainer.
9. When you stop exercising, allow the pedals
to slowly come to a stop.
10. Keep your back straight when using the ellip-
tical crosstrainer. Do not arch your back.
11. If you feel pain or dizziness while exercis-
ing, stop immediately and begin cooling
down.
12. The elliptical crosstrainer is intended for in-
home use only. Do not use it in any commer-
cial, rental, or institutional setting.

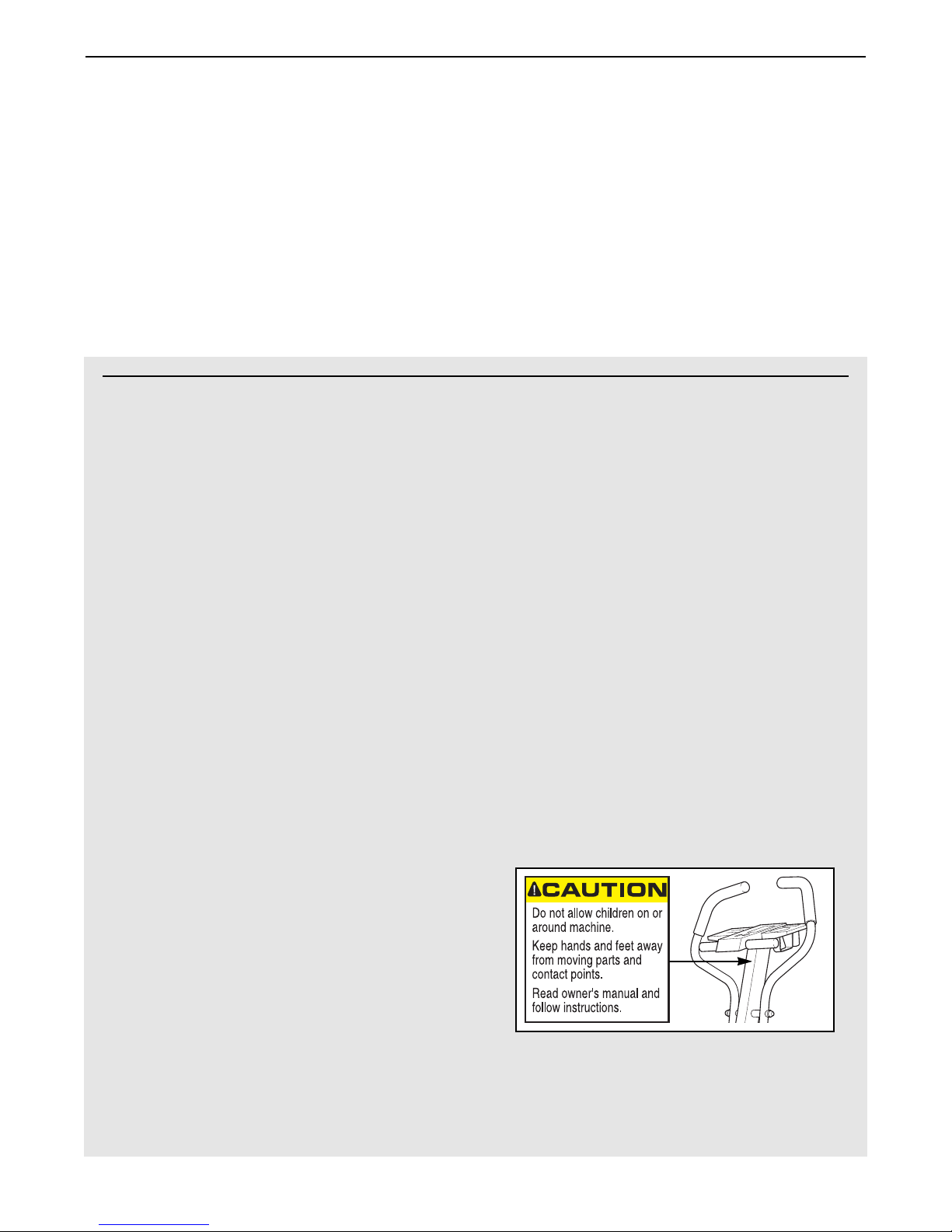

13. The decal shown below is found on the ellip-
tical crosstrainer. If the decal is missing, or
if it is not legible, call toll-free 1-800-999-
3756 to order a free replacement decal.
Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. ICON assumes no responsibility for personal injury or property dam-
age sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the elliptical crosstrainer.

3
BEFORE YOU BEGIN
Congratulations for selecting the revolutionary
HealthRider¨Elliptical Crosstrainer. The HealthRider¨
Elliptical Crosstrainer is an incredibly smooth exercis-
er that moves your feet in a natural elliptical path,
minimizing the impact on your knees and ankles. And
the unique Elliptical Crosstrainer features adjustable
resistance, two-position incline, and upper body arms
to help you get the most from your exercise. Welcome
to a whole new world of natural, elliptical-motion exer-
cise from HealthRider.
For your benefit, read this manual carefully before
you use the Elliptical Crosstrainer. If you have
additional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is HREL89070. The
serial number can be found on a decal attached to the
Elliptical Crosstrainer (see the front cover of this man-
ual for the location of the decal).

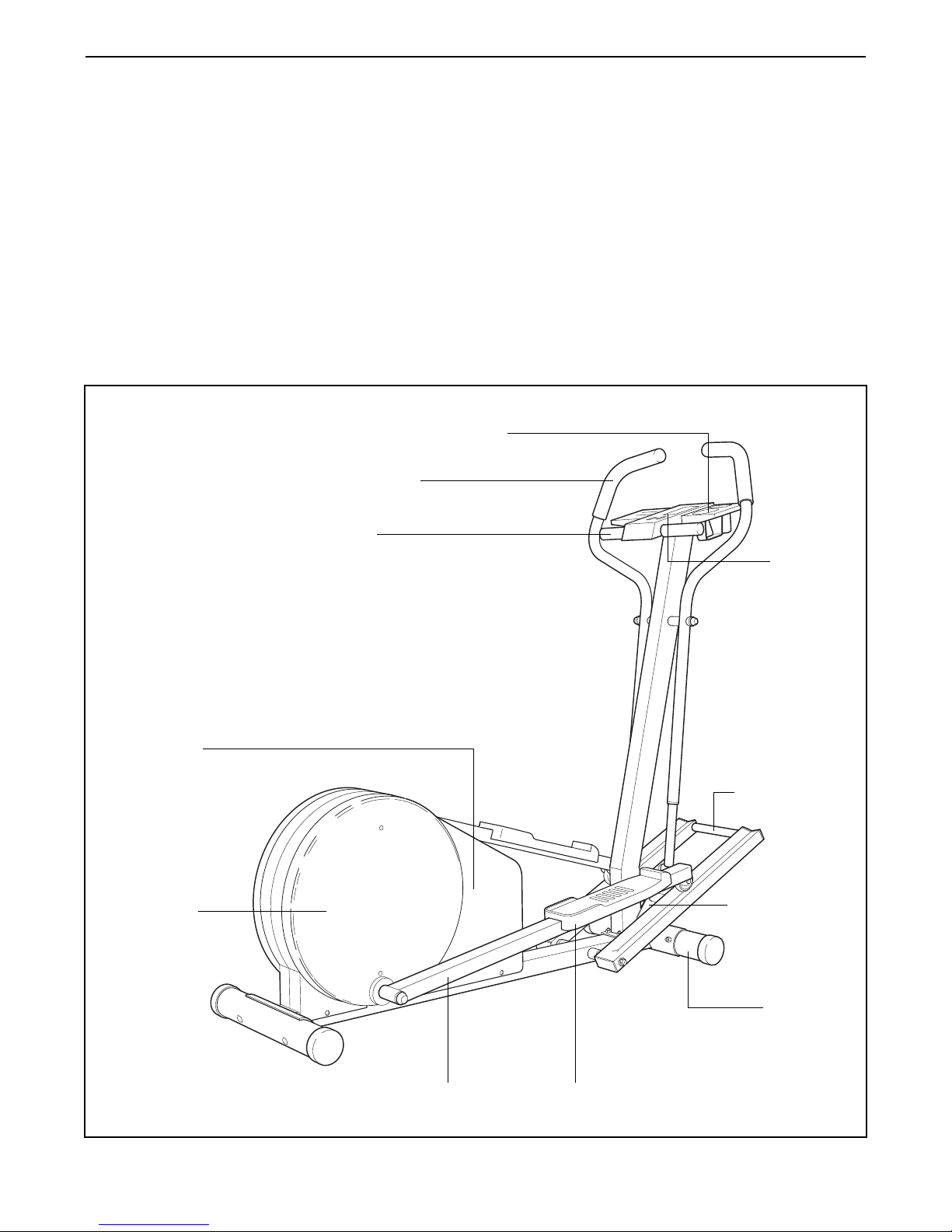

Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Handlebar
Upper Body Arm
FRONT
BACK RIGHT SIDEPedal Arm
Pedal Disk
Side Shield
Pedal
Console
Incline Bracket
Incline Frame
Stabilizer
Water Bottle Holder
(Water Bottle is not included)

4
3/8" Nylon Locknut (29)Ñ8 1/4" Nylon Jam Nut (78)Ñ2
3/8Ó Zinc Washer (52)Ñ2
3/8Ó Lock Washer (58)Ñ2
3/8" x 1Ó Screw (59)Ñ2
Plastic Spacer (56)Ñ4
1/4" x 1/2Ó Bolt (71)Ñ2
5/8Ó Axle Cap (50)Ñ2*
3/4Ó Axle Cap (43)Ñ2*
Pedal Arm Spacer (41)Ñ2
3/8" x 3 1/2Ó Carriage Bolt (28)Ñ4
#8 x 3/4Ó Black Screw (44)Ñ10
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
The following tools are required for assembly: a phillips screwdriver , two adjustable
wrenches , and a rubber mallet .
PART CHART
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part. The second number refers to the quantity used in assembly. Note:
Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check to see
if it has been pre-attached.
*Extra Axle Caps (43, 50) may be included.

5
1. Make sure that there are Stabilizer Endcaps (27) on
the ends of both Stabilizers (30).
Hold one of the Stabilizers (30) against the saddle on
the front of the Base (1). Make sure that the Stabilizer
is turned so the square holes are facing away from the
Base. Attach the Stabilizer with two 3/8Ó x 3 1/2Ó
Carriage Bolts (28) and two 3/8Ó Nylon Locknuts (29).
2. Hold the other Stabilizer (30) against the saddle on the
rear of the Base (1). Make sure that the Stabilizer is
turned so the square holes are facing away from the
Base. Attach the Stabilizer with two 3/8Ó x 3 1/2Ó
Carriage Bolts (28) and two 3/8Ó Nylon Locknuts (29).
3. Refer to the inset drawing. Feed the console wire har-
ness into the Upright (3), until the end of the console
wire harness extends from the bottom of the Upright.
While another person holds the Upright (3), connect
the console wire harness to the Main Wire Harness
(39). If the wire harnesses do not fit together easily,
turn themÑdo not force them together. After you
have connected the wire harnesses, pull any slack
in the wire harnesses up through the Upright.
Slide the Upright (3) onto the welded bolts on the Base
(1). Be careful to avoid pinching the wire harnesses.
Tighten a 3/8Ó Nylon Locknut (29) onto each welded bolt.
1
27 1
30
29
28
27
2
1
30
29
28
3
Console
Wire
Harness
29
29
3
1
39
3
Console
Wire
Harness
4. Attach the Handlebar (9) to the bracket on the
Upright (3) with two 1/4Ó x 1/2Ó Bolts (71) and two
1/4Ó Nylon Jam Nuts (78).
78
9
3
71
4

8. Slide a Pedal Arm Spacer (41), the left Pedal Arm
(12), and a Plastic Spacer (56) onto the axle on the
left Pulley Arm (34) (these parts fit tightly; it may be
helpful to use the rubber mallet). Be careful not to
confuse the left Pedal Arm with the right Pedal
Arm (not shown); look at the position of the
Chrome Extension Tube (63) to identify the left
Pedal Arm.
Tap a 3/4Ó Axle Cap (43) onto the axle on the left
Pulley Arm (34).
Repeat this step to attach the right Pedal Arm (not
shown).
6

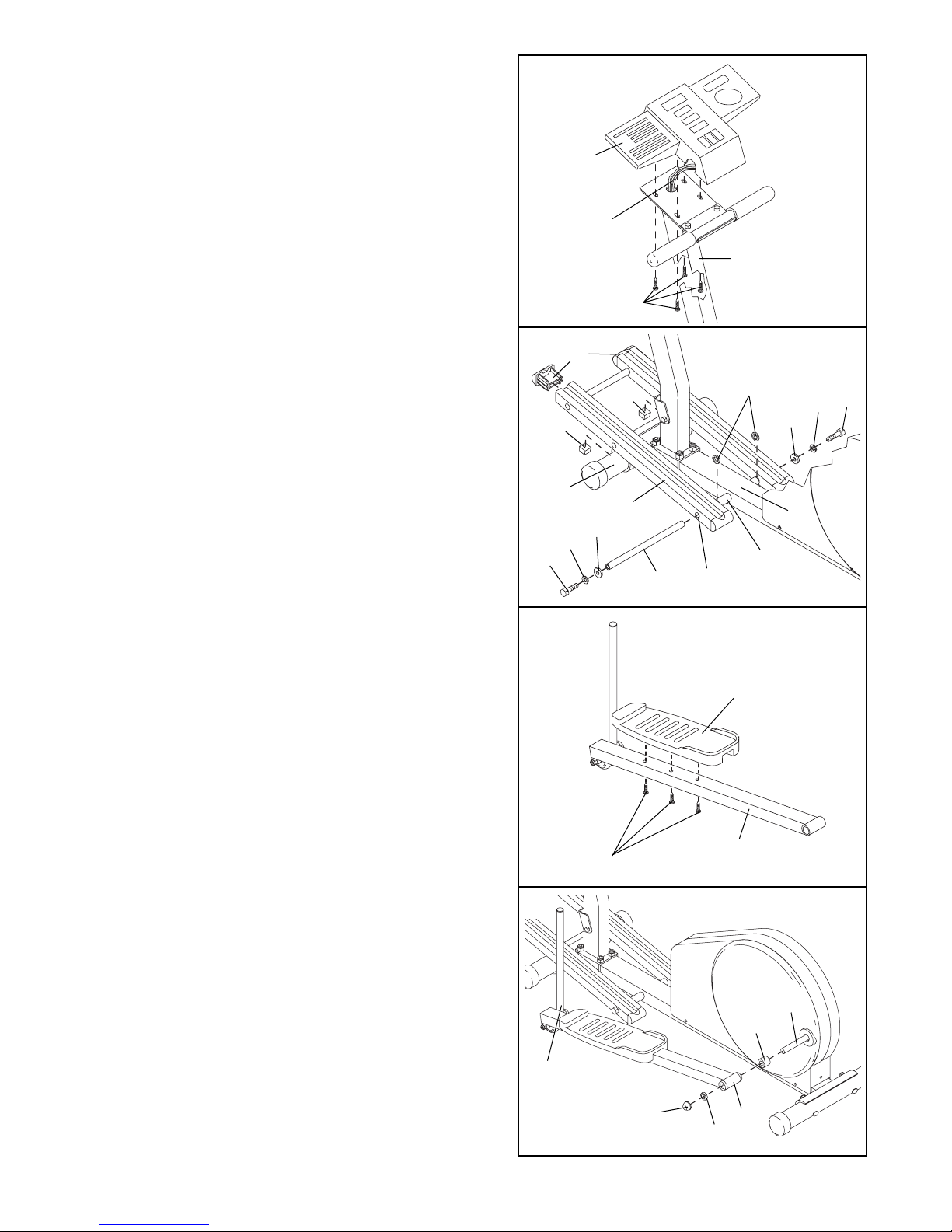

5. Feed all of the slack in the console wire harness down
into the Upright (3). Attach the Console (6) to the
Upright with four #8 x 3/4Ó Black Screws (44). Be
careful to avoid pinching the console wire har-
ness.
6. Align the indicated holes in the Incline Frame (2) with
the tube on the Base (1). Insert the Incline Axle (75)
through the left side of the Incline Frame, through a
Plastic Spacer (56), through the tube on the Base,
through another Plastic Spacer, and through the right
side of the Incline Frame. Using two adjustable
wrenches, tighten a 3/8Ó x 1Ó Screw (59), with a Lock
Washer (58) and a 3/8Ó Zinc Washer (52), into each
end of the Incline Axle.
Tap the two Incline Frame Endcaps (55) into the
Incline Frame (2). Remove the backing from the two
Bumpers (62). Press the Bumpers onto the underside
of the Incline Frame where the Incline Frame touches
the front Stabilizer (30).
44
3
Console
Wire
Harness
6
5
6
2
55
1
75
52
52 58 59
58
59
56
30
Hole
Tube
62
62
60
44
41
43
63
12
34
56
7
8
7. Attach a Pedal (60) to the left Pedal Arm (12) with
three #8 x 3/4Ó Black Screws (44).
Attach a Pedal (60) to the right Pedal Arm (not
shown).
12

7
11. Make sure that all parts of the elliptical crosstrainer are properly tightened. To protect the floor or car-
pet from damage, place a mat under the elliptical crosstrainer.

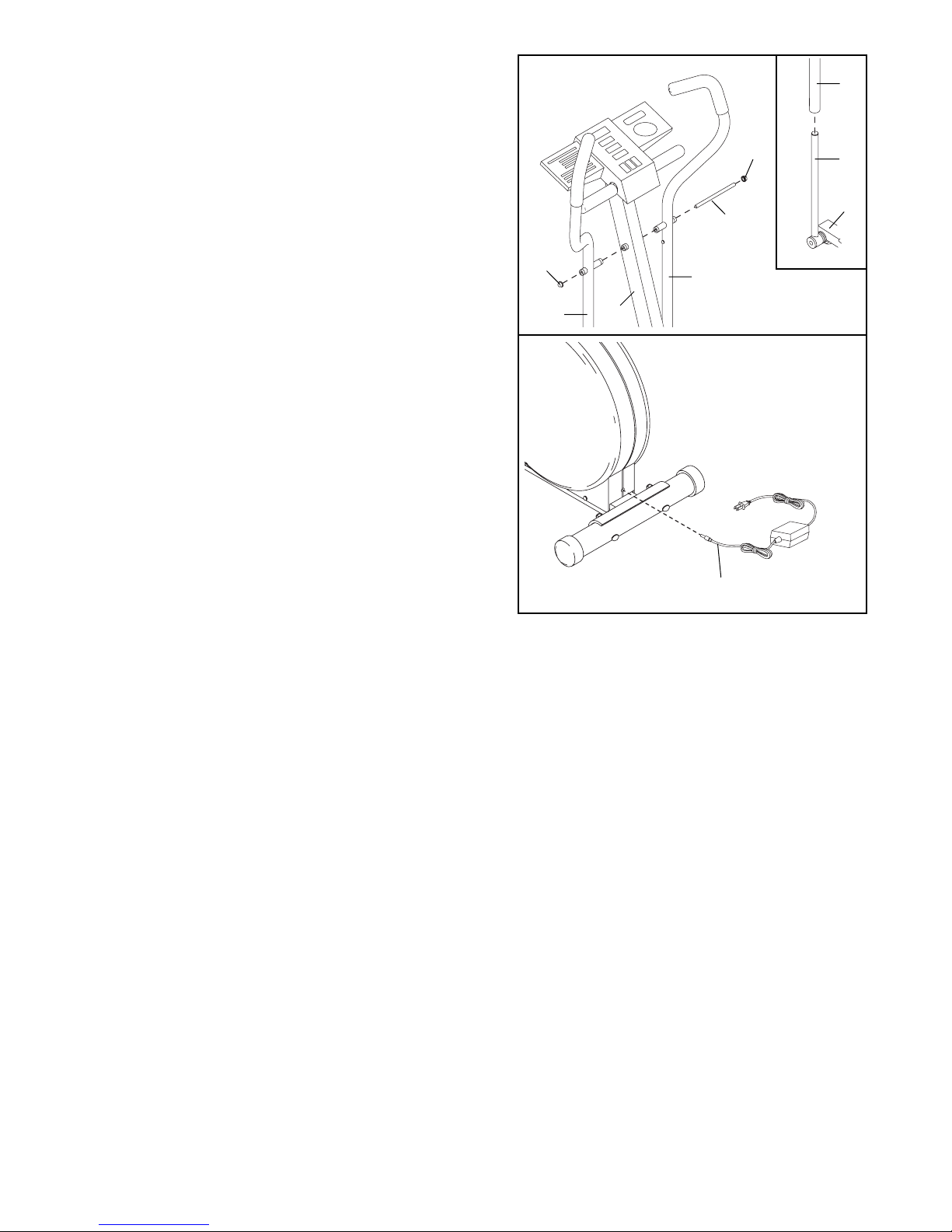

10. Plug the Power Cord (7) into the jack at the rear of
the elliptical crosstrainer. Make sure to keep the
Power Cord away from walkways and heated
surfaces.
9. Refer to the inset drawing. Apply some of the included
clear lubricant to a paper towel; rub a thin film of lubri-
cant onto the Chrome Extension Tube (63) on the
right Pedal Arm (12). Slide the Chrome Extension
Tube into the Right Upper Body Arm (11).
Assemble the Left Upper Body Arm (10) and the other
Chrome Extension Tube (63) in the same manner.
Tap a 5/8Ó Axle Cap (50) onto the Axle (8). Slide the
Right Upper Body Arm (11) onto the Axle. Insert the
Axle into the Upright (3). Slide the Left Upper Body
Arm (10) onto the Axle. Tap another 5/8Ó Axle Cap
onto the Axle.
10
7
8
3
9
63
12
11
10
11
50
50

8
HOW TO USE THE ELLIPTICAL CROSSTRAINER
PLUGGING IN THE POWER CORD
Plug the power
cord into a 120-volt
outlet. The displays
and indicators on
the console will
flash once; the dis-
plays and various
indicators will then
light and a tone will
sound. Please
read through all instructions in this section before
using the elliptical crosstrainer.
EXERCISING ON THE ELLIPTICAL CROSSTRAINER
To mount the elliptical crosstrainer, hold the handlebar
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedal disks can turn in either direction. It is
recommended that you move the pedals disks in
the direction shown below; however, to give vari-
ety to your exercise, you may choose to turn the
pedal disks in the opposite direction.
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. CAUTION: The
elliptical crosstrainer does not have a freewheel;
the pedals will continue to move until the flywheel
stops. When the pedals are stationary, step off the
highest pedal first. Then, step off the lowest pedal.
INCLINE ADJUSTMENT
The incline frame can be raised or lowered to vary the
intensity of your exercise. To raise the incline frame,
lift the end of the incline frame until the crossbar is
resting on top of the incline bracket. Make sure that
the incline frame is resting securely on top of the
incline bracket. To lower the incline frame, first lift
the incline frame slightly. Then, push the incline brack-
et toward the upright and lower the incline frame onto
the stabilizer.
USING THE UPPER BODY ARMS
The upper body arms are designed to give you a total
body workout. As you exercise, hold the upper body
arms and move your arms forward and back in order
to work your arms, back, and shoulders.
If you want to exercise only your lower body, hold the
handlebar as you exercise.
Pedal
Pedal Disk
Upper
Body
Arms
Incline Frame
Incline
Bracket Stabilizer
Crossbar
Upright
Handlebar

9
FEATURES OF THE CONSOLE
The console offers a variety of features that help you
get the most from your exercise. When the console is
in the manual mode, the resistance of the pedals can
be changed with a touch of a button. As you exercise,
four LED displays will provide continuous exercise
feedback. The console also offers six workout pro-
grams. Each workout program is designed to change
the resistance automatically as it guides you through
an effective workout.
DIAGRAM OF THE CONSOLE
1. Program ProfilesÑThese profiles show how the
resistance will change during the six workout pro-
grams. During program 5, for example, the resis-
tance will gradually increase during the first half of
the program, and then gradually decrease during
the last half.
2. Mode IndicatorsÑThese indicators show which
mode is selected (the manual mode or one of the
six workout programs).
3. TIME displayÑWhen the manual mode is selected,
this display will show the elapsed time. When a
workout program is selected, this display shows the
time remaining in the program.
4. DISTANCE displayÑThis display shows the total
distance you have completed, in miles.
5. SPEED displayÑThis display shows the number of
strides you are taking per minute, as well as your cur-
rent speed in miles per hour. The display will change
from one number to the other every seven seconds.
When the number of strides per minute is shown, the
STRIDES MIN. indicator will light; when your current
speed is shown, the MPH indicator will light.
6. CALORIES displayÑThis display shows the total
number of calories you have burned and the number
of fat calories you have burned. (See BURNING
FAT on page 12 for an explanation of fat calories.)
The display will change from one number to the
other every seven seconds. When the total number
of calories is shown, the TOTAL indicator will light;
when the number of fat calories is shown, the FAT
indicator will light.
7. MODE buttonÑThis button is used to select the
MANUAL mode and the six workout programs.
8. START/PAUSE buttonÑThis button is used to start
and pause the workout programs.
9. RESISTANCE (RESIS.) buttonÑThis button
changes the resistance of the pedals.
Note: If there is a thin sheet of clear plastic on
the face of the console, remove it before
using the console.
1
23
4
5
6
79
8

10

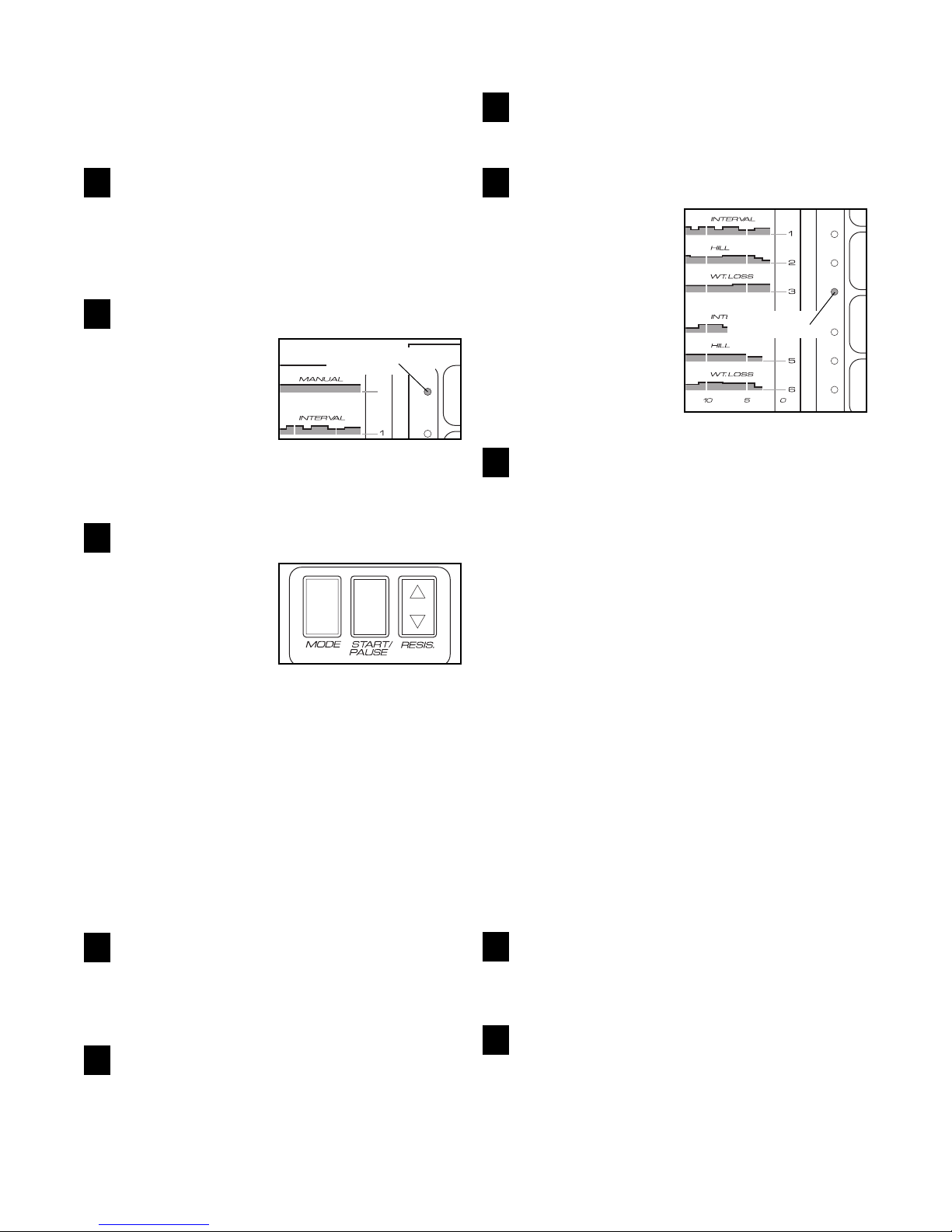

HOW TO USE THE MANUAL MODE
Make sure that the power cord is plugged into a
120-volt outlet. Follow the steps below to use the
manual mode of the console.
Turn on the power.
If you just plugged in the power cord or moved
the pedals, the power will already be on. The
power can also be turned on by pressing any
button on the console.
Select the manual mode.
When the power
is first turned on,
the manual mode
will automatically
be selected and
the manual mode
indicator will light.
If a different mode is selected, press the MODE
button repeatedly to select the manual mode.
Begin striding and adjust the resistance.
When the MANU-
AL mode is select-
ed, the resistance
of the pedals will
be at the minimum
setting. As you
exercise, adjust
the resistance as desired by pressing the RESIS.
button. Pressing the upper arrow on the button
will increase the resistance; pressing the lower
arrow will decrease the resistance.
If you stop exercising for twenty seconds or
longer, or if you press the START/PAUSE button,
a tone will sound, the console will pause, and the
TIME display will begin to flash. In addition, the
resistance of the pedals will return to the mini-
mum setting. To restart the console, press the
START/PAUSE button or simply begin striding.
Follow your progress with the four displays.
As you exercise, the four displays will provide
continuous feedback (see paragraphs 3, 4, 5, and
6 on page 9).
Turn off the power.
If the pedals are not moved and the console but-
tons are not pressed for ten minutes, the power
will turn off automatically.
HOW TO USE THE WORKOUT PROGRAMS
Turn on the power.
See step 1 at the left.
Select one of the six workout programs.
Press the MODE
button repeatedly to
select the desired
program. An indica-
tor will light to show
which program you
have selected.
Programs 1, 2, and
3 are twenty-minute
programs; programs
4, 5, and 6 are thirty-
minute programs.
Start the program.
Press the START/PAUSE button and begin strid-
ing. As you exercise, the resistance of the pedals
will periodically change as shown by the profiles
on the left side of the console. (Note: If the resis-
tance is too high or too low, it can be adjusted
with the RESIS. button. Pressing the upper arrow
on the button will increase all resistance settings
of the program; pressing the lower arrow will
decrease all resistance settings.) The program
will continue until no time remains in the TIME
display.
To pause the program before the program is com-
pleted, press the START/PAUSE button. A tone
will sound, the console will pause, and the TIME
display will begin to flash. In addition, the resis-
tance of the pedals will return to the minimum
setting. (Note: The program will also automatically
pause if the pedals are not moved for twenty sec-
onds.) To restart the program, press the START/
PAUSE button or simply begin striding. After a
moment, the resistance of the pedals will return
to the current program setting.
Follow your progress with the four displays.
During the program, the four displays will provide
continuous feedback.
Turn off the power.
If the pedals are not moved and the console but-
tons are not pressed for ten minutes, the power
will turn off automatically.
1
1
2
2
3
4
5
3
4
5
Indicator
Indicator

Inspect and tighten all parts of the elliptical crosstrain-
er regularly. Replace any worn parts immediately.
For smooth operation of the elliptical crosstrainer, the
incline frame should be kept clean. Using a soft cloth
and mild detergent, clean dust and other residue from
the incline frame where the wheels move along it.
Other parts of the elliptical crosstrainer can also be
cleaned in this manner. Never use abrasives or sol-
vents to clean the elliptical crosstrainer.
LUBRICATING THE INCLINE BRACKET
You should regularly lubricate the incline bracket and
the bolt on which it pivots. Apply a small amount of
grease from the included grease packet to the bolt
and between the bracket and the upright.
11
MAINTENANCE
Incline
Frame
Incline
Bracket
Bolt
Upright
Wheel

12
The following guidelines will help you to plan your
exercise program. Remember that a proper diet and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. For effective exercise, your heart
rate should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise. This
is known as your training zone.
You can find your training zone in the table below.
Training zones are listed according to age and physi-
cal condition.
Burning Fat
To burn fat, you must exercise at a low intensity level
for a sustained period of time. During the first few
minutes of exercise, your body uses easily accessible
carbohydrate calories for energy. Only after the first few
minutes of exercise does your body begin to use stored
fat calories for energy. If your goal is to burn fat, adjust
the intensity of your exercise until your heart rate is
near the low end of your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the middle of your training zone.

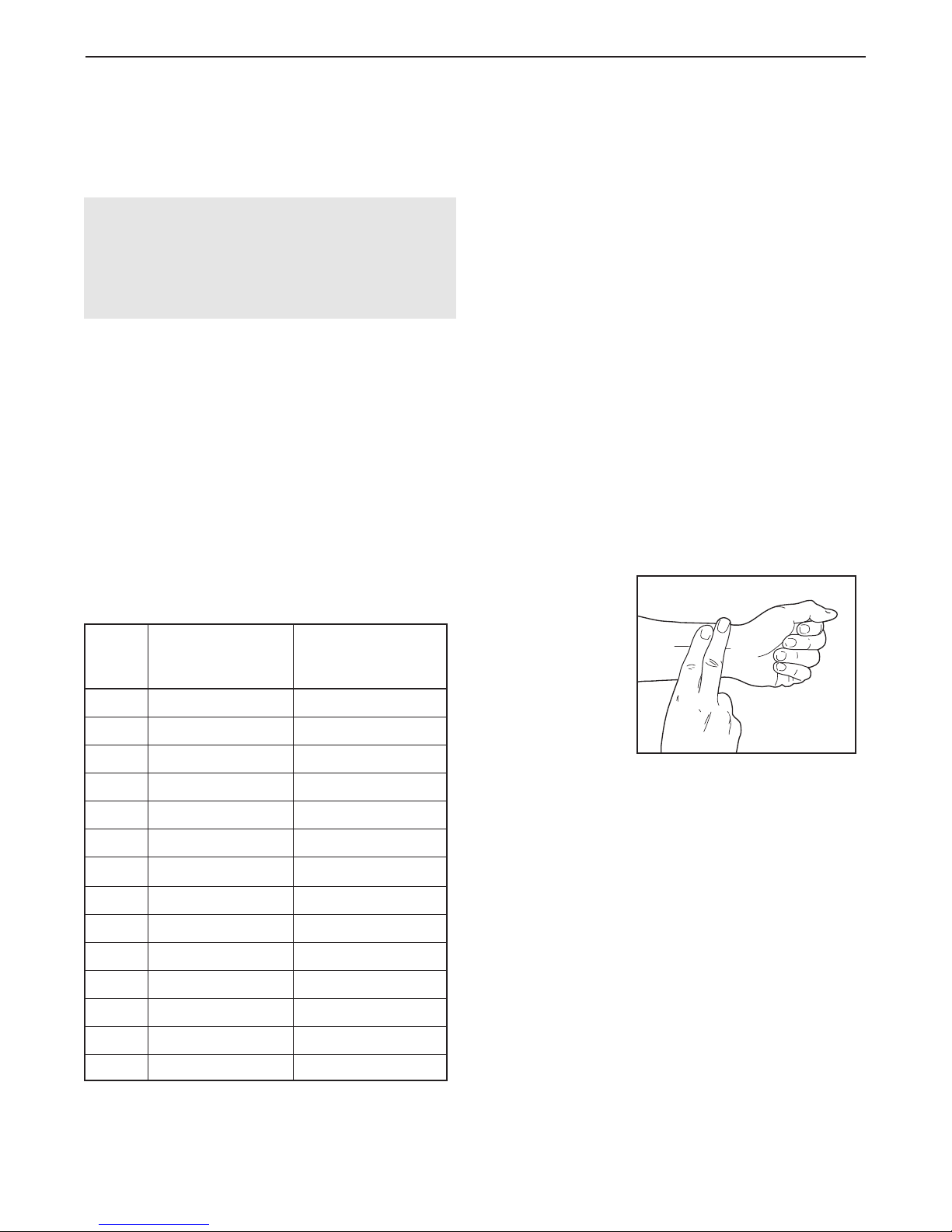

HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop
exercising and
place two fingers
on your wrist as
shown. Take a
six-second
heartbeat count,
and multiply the
result by ten to
find your heart
rate. (A six-sec-
ond count is used because your heart rate drops
quickly when you stop exercising.) If your heart rate is
too high, decrease the intensity of your exercise. If
your heart rate is too low, increase the intensity of
your exercise.
WORKOUT GUIDELINES
Each workout should include three important parts:
(1) a warm-up, (2) training zone exercise, and (3) a
cool-down.
Warming up
Warming up prepares the body for exercise by
increasing circulation, delivering more oxygen to the
muscles, and raising the body temperature. Begin
each workout with 5 to 10 minutes of stretching and
light exercise to warm up.
20 138-167 133-162
25 136-166 132-160
30 135-164 130-158
35 134-162 129-156
40 132-161 127-155
45 131-159 125-153
50 129-156 124-150
55 127-155 122-149
60 126-153 121-147
65 125-151 119-145
70 123-150 118-144
75 122-147 117-142
80 120-146 115-140
85 118-144 114-139
AGE
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
CONDITIONED
TRAINING ZONE
(BEATS/MIN)
CONDITIONING GUIDELINES
WARNING: Before beginning this or any exer-
cise program, consult your physician. This is
especially important for persons over the age
of 35 or persons with pre-existing health
problems.

13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees out-
ward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
Training Zone Exercise
After warming up, increase the intensity of your exer-
cise until your heart rate is in your training zone for 20
to 30 minutes.
Cooling Down
Finish each workout with 5 to 10 minutes of stretching.
Stretching after exercise develops flexibility and helps
prevent post-exercise problems. A proper cool-down
should leave you feeling relaxed and comfortably tired.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired.

14
PART LISTÑModel No. HREL89070 R0298A
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts.
Key No. Qty. Description
1 1 Base
2 1 Incline Frame
3 1 Upright
4 1 Right Side Shield
5 1 Left Side Shield
6 1 Console
7 1 Power Cord/Transformer
8 1 Axle
9 1 Handlebar
10 1 Left Upper Body Arm
11 1 Right Upper Body Arm
12 2 Pedal Arm
13 1 #12 x 1/2Ó Screw
14 1 Resistance Strap
15 1 Strap Buckle
16 1 #8 x 3/4Ó Screw
17 2 1/4Ó Zinc Nut
18 2 Adjustment Bracket
19 2 1/4Ó Eyebolt
20 2 3/8Ó Nylon Jam Nut
21 1 Flywheel Axle
22 2 Flywheel Bearing
23 1 Flywheel w/Magnet
24 1 Pulley Spacer
25 1 Sensor Wire/Reed Switch
26 1 Pulley Washer
27 4 3Ó Endcap
28 4 3/8Ó x 3 1/2Ó Carriage Bolt
29 9 3/8Ó Nylon Locknut
30 2 Stabilizer
31 4 1/2Ó Inner Cap
32 1 Pulley w/Axle
33 2 Large Foam Grip
34 2 Pulley Arm
35 6 Pivot Bushing
36 2 Pulley Bearing
37 2 Pedal Disk
38 18 #8 x 3/4Ó Tek Screw
39 1 Main Wire Harness
40 2 ÒLÓ Bracket
41 2 Pedal Arm Spacer
42 4 Pedal Arm Bushing
43 2* 3/4Ó Axle Cap
44 10 #8 x 3/4Ó Black Screw
45 2 5/16Ó x 4Ó Shoulder Bolt
46 4 5/16Ó Wheel Washer
47 4 Wheel Bearing
Key No. Qty. Description
48 2 5/16Ó Nylon Locknut
49 2 Wheel
50 2* 5/8Ó Axle Cap
51 2 Plastic Sleeve
52 4 3/8Ó Zinc Washer
53 1 3/8Ó x 3 1/2Ó Bolt
54 1 Incline Bracket
55 4 Incline Frame Endcap
56 4 Plastic Spacer
57 2 5/16Ó Washer
58 2 3/8Ó Lock Washer
59 2 3/8Ó x 1Ó Screw
60 2 Pedal
61 2 1 1/4Ó Endcap
62 2 Bumper
63 2 Chrome Extension Tube
64 4 Extension Bushing
65 1 Power Jack Bracket
66 2 1 1/4Ó Plastic Spacer
67 1 Belt
68 2 Extension Washer
69 2 1/2Ó Metal Spacer
70 2 Pulley Arm Extension
71 2 1/4Ó x 1/2Ó Bolt
72 2 5/16Ó x 3/4Ó Screw
73 2 #6 x 3Ó Screw
74 2 Small Foam Grip
75 1 Incline Frame Axle
76 1 Tension Spring
77 1 Tension Cord
78 2 1/4Ó Nylon Jam Nut
79 6 #10 x 3/4Ó Black Screw
80 1 Motor Assembly
81 1 Magnet
82 2 3/8Ó Black Washer
83 1 Side Shield Bracket
84 8 #8 x 1/2Ó Screw
85 2 5/16Ó Lock Washer
# 1 UserÕs Manual
# 2 Side Shield Decal
# 1 Warning Decal
# 1 Hardware Kit
# 1 Grease Packet
# 1 Clear Lubricant Packet
* Extra Axle Caps may be included.
# Indicates a non-illustrated part.

80
77
76
14
17 18
19
20
21
15
16
22
23
81
25
38
17 18
19
20
22
27
27
28
29
29
30
1
2
3
4
5
6
7
12
12
29
29
28
27
30
27
32
34
36
36
37
37 84
84
39
73
41
42
43
41
42
43
42
44
48
47
45
49
44
48
46 47
64
49
29
29
82
53
54
55
56
52 58
59
52
58
59
55
60
60
38
78
71
44
39
67
75
82
52
52
62
62
79
79
13
40
31
31
74
46
46
46
38
38
65
40 24
72
26
57
84
69
6866
64
63 64
61
63
61
64
66
68
69
45
9
35
35
51
50 35 38
35
35
50
11
10
33
34
72
57
70
70
8
83
79
56
56
85
85
EXPLODED DRAWINGÑModel No. HREL89070 R0298A
15

Part No. 145057 H00251-C R0298A Printed in USA © 1998 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
¥ The MODEL NUMBER of the product (HREL89070).
¥ The NAME of the product (HealthRider¨Elliptical Crosstrainer).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the part(s) from page 14 of this manual.
HealthRider¨is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used
for commercial or rental purposes, or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other con-
sequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
