Hearth & Home HEAT-N-GLO SL-550TRS-AUD User manual

1
MODEL:SL-550TRS-AUD
AUSTRALIAN GAS ASSOCIATION APPROVED
ApprovalNumber5666
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044 USA • 1-888-427-3973
347-980 6/03
INSTALLATION AND OPERATION
INSTRUCTIONS
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this Manual for future reference.
Copyright2003
Heat-N-Glo,abrandofHearth&HomeTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
Printed in U.S.A.
MODEL SL-550TRS-AUD
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE
HEATER.
Refer to the appliance data plates for gas
consumptionsandpressures.
Installationofthisapplianceshould only be
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions.Allrelevantcodesandregulationslaid
downby the gas piping authorities, munici-
pal building regulations, electrical wiring
regulationsandtherequirementsoftheAGA
GasInstallationCodemust be observed.
This appliance and its components are
tested and safe when installed in accor-
dancewiththis Installation Manual. Report
to your dealer any parts damaged in ship-
ment,specificallycheckglasscondition.The
gas logs and flue system components are
inseparatepackages. Readallinstructions
beforestartinginstallationandfollow these
instructions carefully during installation to
ensure maximum benefit and safety. Fail-
uretofollowthemwillvoidyourwarrantyand
maypresentafirehazard.
TheHeat-N-Glo,abrand of Hearth&Home
TechnologiesInc.warranty willbevoidedby,
andHeat-N-Glo,abrand of Hearth&Home
TechnologiesInc.disclaimsanyresponsibil-
ityforthefollowing actions:
•Installation of any damaged heater or
fluesystemcomponent
•Modification of the heater or balanced
flue system installation other than as
instructed by Heat-N-Glo, a brand of
Hearth&HomeTechnologiesInc.
•Improper positioning of the gas logs or
theglass door
•Installationand/oruseofanycomponent
part not manufactured or approved by
Heat-N-Glo, brand of Hearth & Home
TechnologiesInc.,not withstanding any
independent testinglaboratory or other
party approval of such componentpart
oraccessory.
INSTALLATIONANDOPERATION INSTRUCTIONS
PLEASEREADTHISMANUAL BEFORE INSTALLING
ANDUSINGTHISAPPLIANCE.

3
TABLE OF CONTENTS
1.0 InstallationInstructions........................................................................................ 5
1.1 Introduction.................................................................................................. 6
1.2 FlueSystemApprovalsandInstallation ........................................................ 8
1.3 ConnectingtheGasSupply........................................................................ 21
1.4 Fan ........................................................................................................... 21
1.5 Finishing ................................................................................................... 23
1.6 InstallerTesting .......................................................................................... 24
1.7 LogPlacement .......................................................................................... 25
2.0 OperatingInstructions ...................................................................................... 28
2.1 Safety andLighting Information .................................................................. 28
2.2 SafetyInformation...................................................................................... 29
2.3 LightingInstructions ................................................................................... 30
2.4 FanOperation ........................................................................................... 31
3.0 ServicingandMaintenance.............................................................................. 31
3.1 RemovalofCovers for Servicing................................................................ 32
3.2 RemovalofComponentsfor Service.......................................................... 32
3.3 PartsReplacement.................................................................................... 32
3.4 AdjustmentsandReplacementParts ......................................................... 32
3.5 Troubleshooting......................................................................................... 33
4.0 ReplacementParts .......................................................................................... 37
LimitedWarranty.............................................................................................. 39

4
FIGURE 1. Diagram of SL-550TRS-AUD
TOP STANDOFFS
FLUE COLLARS
HOOD
DATA BADGE
& LABELS
DRESS
GUARD
BOTTOM GRILLE
COVER
GAS
CONTROLS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
12-7/8
327[ ]
25-3/4
653[ ]
15-7/8
402[ ] 8-3/4
223[ ]
1/2
14[ ]
16-3/8
415[ ]
23-3/8
593[ ]
6-7/8
174[ ]
3-1/2
90[ ]
5
129[ ]
2-1/8
55[ ]
32-1/2
827[ ]
31
789
[ ]
16-1/8
408[ ]
26-3/8
671[ ]
36
913[ ]
(REAR FLUE
COLLARS
CENTER LINE)
8 (203)
6 5/8 (168)
(TOP FLUE COLLARS)
GAS
LINE
ACCESS
ELECTRICAL
ACCESS

5
NOTE: DIMENSIONS SHOWN WITH THE SIDES, BACK
AND/ORCORNERS OFTHEUNIT TOUCHINGTHE WALL.

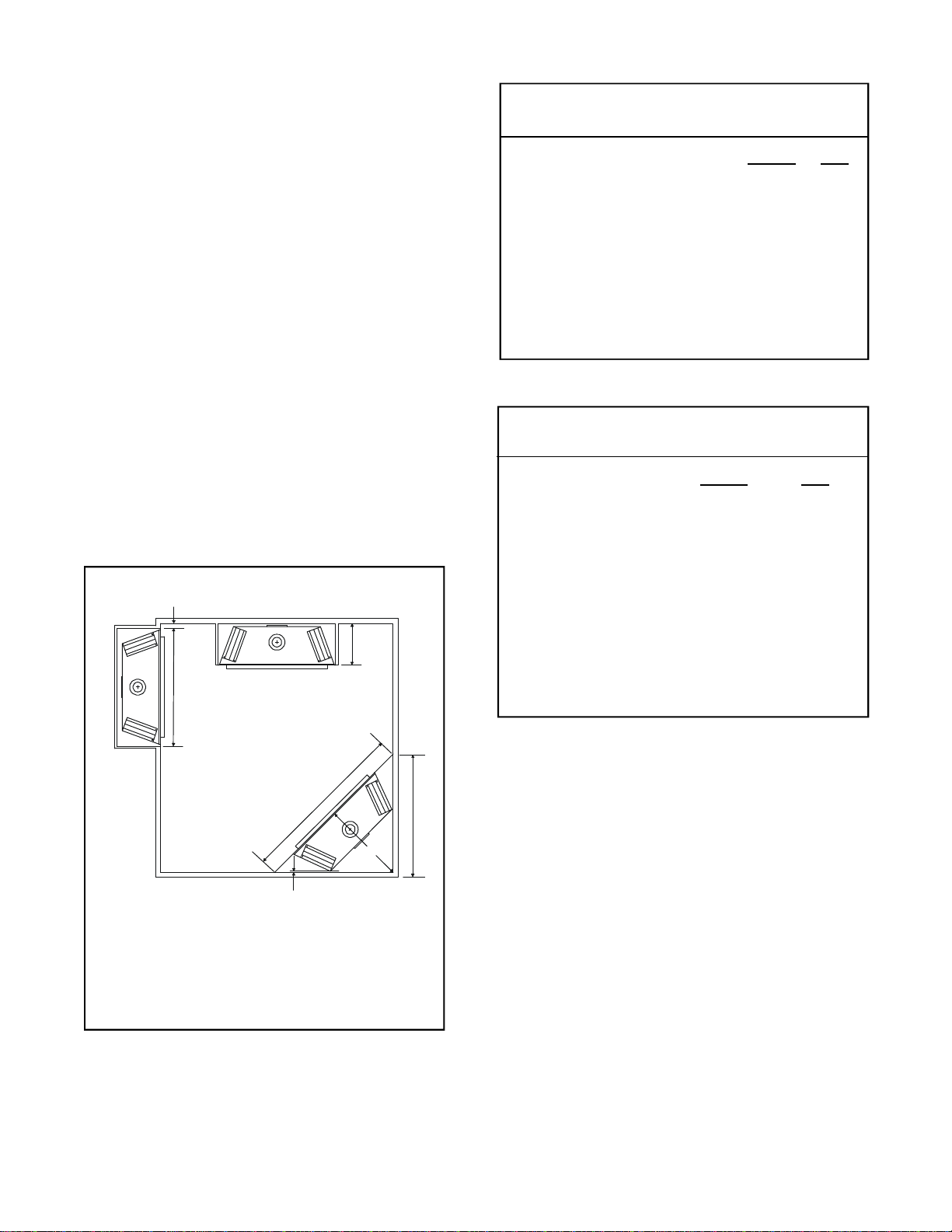

Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ......................................36 ........ 914
Floor ..................................................0........... 0
Rear ................................................. 1/2 ........ 13
Sides ............................................... 1/2 ........ 13
Top .................................................1 1/2 ....... 38
Ceiling* .............................................31 ........ 787
For minimum clearances, see the direct vent termina-
tion clearance in Figures 19 and 24.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top ......................................3................. 75
Bottom................................ 1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ......................................3................. 75
Bottom................................ 1................. 25
Sides ..................................1................. 25
*Theclearancetotheceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 27).
A B C D E
37 16 1/4 37 1/4 53 1/2 76 1/2
(940mm) (418mm) (946mm) (1359mm)(1943mm)
1.0 INSTALLATION INSTRUCTIONS
In planning the installation for the heater it is neces-
sary to determine where the unit is to be installed, the
type of flue system to be used (straight out, corner, or
elevated), and whether optional accessories (wall
switchor remote control) aredesired. Gas supply pip-
ingshould alsobe planned.Refer totheappliance data
plate on the base pan of the heater for all gas pres-
suresand input rate information.
The heater can be mounted on any of the following
surface:
1. Aflatsurface(minimum6mmbase).
2. Four (4) corner supports.
(Example: Four(4) concrete masonry blocks). These
supports must be positioned so they contact all four
(4) perimeter edges on the bottom of the unit.
Heaterframing can be builtbefore or after theheateris
set in place. Framing should be positioned to accom-
modate wall covering and heater facing material. The
heater framing should be constructed of 2" X 4" (51 x
102mm)lumberor heavier. The framing headers may
reston the heater standoffs. Refer to Figure2and Fig-
ure3 for heater and framingreference dimensions.
1/2” MIN. (13mm)
C
3” MIN. (76mm)
A
B
D
E

6
FIGURE 3. Framing Dimensions
Framing should be constructed
of 2 X 4 lumber or heavier.
The framing headers may rest on
the fireplace stand-offs.
Model A B C D E*
SL-550TRS-AUD 37" 33 1/2" 16 1/4" 36 1/2" 24 3/8"
(940mm) (851mm) (418mm) (927mm) (619mm)
*NOTE: Thecenterof
the framing hole is one
inch (254mm) above
the center of the
horizontal flue pipe.
FLUE
FRAMING
HOLE
ED
CAUTION: Measure heater dimensions, and verify
framingmethods andwall coveringdetails beforefram-
ing construction begins.
1.1 INTRODUCTION
This model is designed to operate with all combus-
tion air being siphoned from the outside of the build-
ing and all exhaust gases expelled to the outside of
the building.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
These units MUST use the flue termination described
in the flueing section of the manual.
Thecontrolsystemforthesemodelsarea millivolttype.
It consists of a gas control valve/variable regulator, a
standing pilot/thermopile/thermocouple, a piezo igni-
tor, and an ON/OFF switch. The controls are located
behindthe lowergrille.Access to the controls is gained
by rotating the grille down. See Figure 1.
Minimum inlet gas supply pressure for purpose of in-
putadjustment is 4.5 inches w.c. (1.13kPa) for natural
gas and 11 inches w.c. (2.75kPa) for propane. Mani-
fold(outlet) pressures should be set at 3.5 inches w.c.
(.8kPa) for natural gas models and 9.6 inches w.c.
(2.40kPa)forpropanemodels.
A
B
C

7
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUMCLEARANCESREQUIRED FOR BALANCEDFLUETERMINALS
ORTHE FLUE TERMINALSOF OUTDOORAPPLIANCES
FIGURE4
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
T=Flueterminal M=Gas meter Shading indicates prohibited
I=Mechanical air inlet P=Electricity meter or fuse box areas for flue terminals
a-Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances to 50 MJ/h input ................................................................................................300
Appliances over 50 MJ/h input............................................................................................500
b-From the ground or above a balcony .....................................................................................300
c-From a return wall or external corner .....................................................................................500
d-From a gas meter (M)...........................................................................................................1000
e-From an electricity meter or fuse box (P) ...............................................................................500
f-From a drain or soil pipe ........................................................................................................150
g-Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal.........................................................500
h-From any other flue terminal, cowl, or combustion air intake...............................................500
j-Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input.........................................................................................500
Appliances over 150 MJ/h input........................................................................................1500
k-From a mechanical air inlet, including a spa blower .........................................................1500
n-Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ................................. See table
sub-floor ventilation ............................................................................................................ below

8
TABLE1

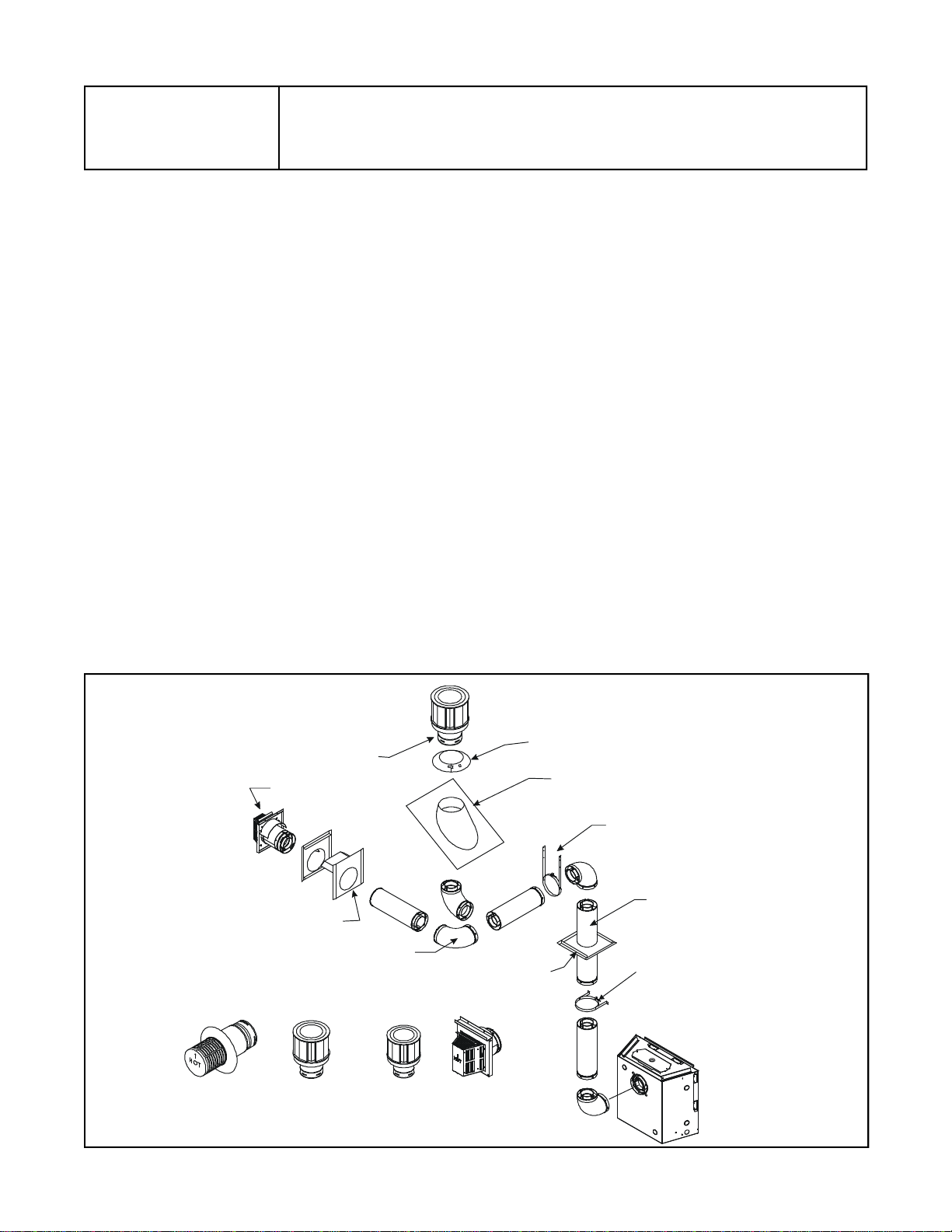

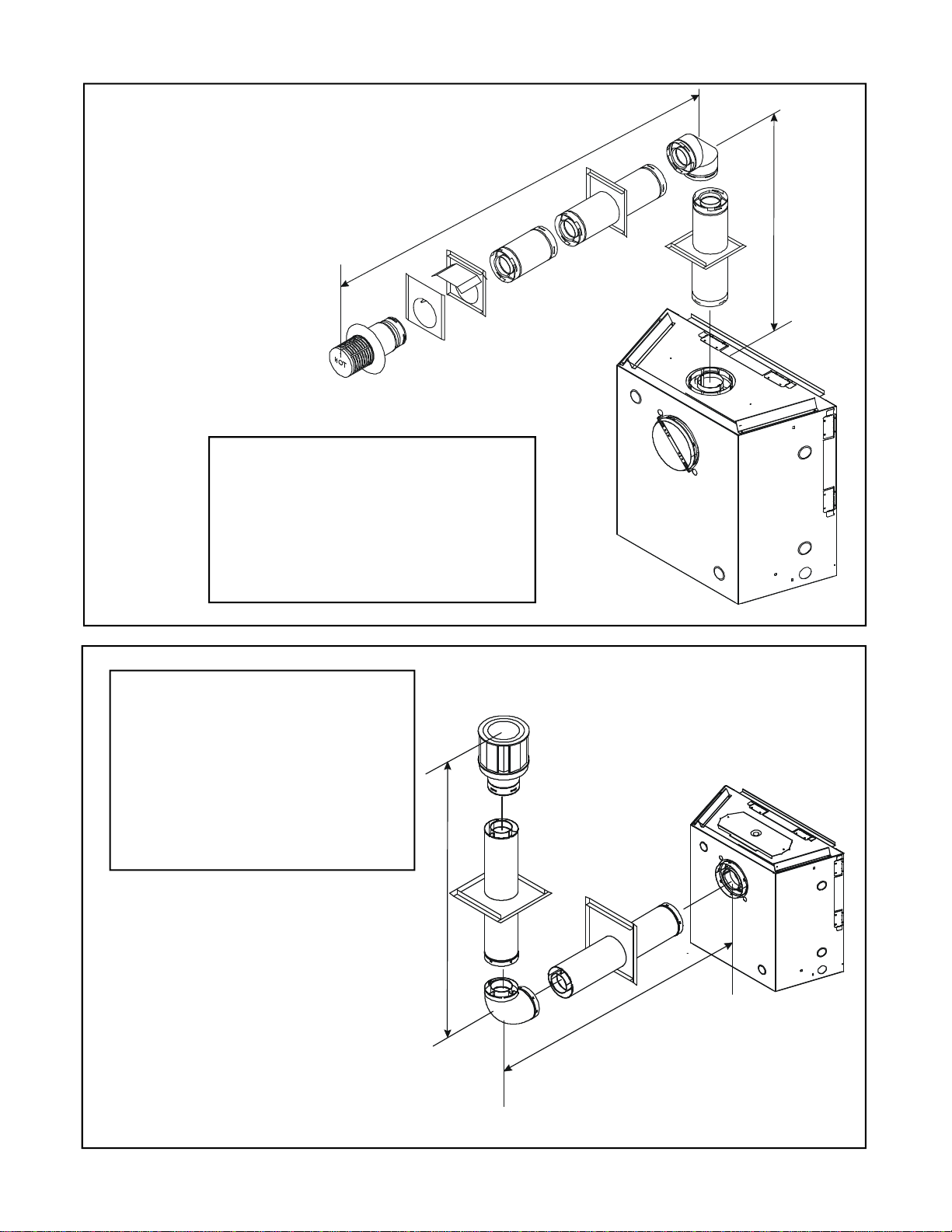

1.2 FLUE SYSTEM APPROVALS
Thesemodels have fluestarting collars onboththe top
and the back of the unit. Depending upon the installa-
tion, decide which ONE set of starting collars will be
usedtoattachthefluesystem.Thestartingcollarsealing
cap must remain on the starting collar NOT used.
Thesemodels use SL-D-series direct fluecomponents
whenusing theTOP flue collars and DVP-seriesdirect
flue components when using the REAR fluecollars.
WARNING:YOU MUST NOT MIX D-SERIES AND
SL D-SERIES COMPONENTS IN ANY FLUE
SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
andshouldbeusedinconjunctionwiththismanual.Figure
5belowshowsfluesystemcomponentsandterminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in
theflueing drawings and tables on the next fewpages.
Ifa 90° elbow is firstattachedto the unit, the maximum
horizontalrunis2feet(610mm).
WARNING:THIS GAS APPLIANCEAND FLUEAS-
SEMBLYMUST FLUE DIRECTLYTO THE OUTSIDE
AND MUST NEVER BEATTACHED TO ACHIMNEY
SERVINGASEPARATE SOLID FUEL BURNINGAP-
PLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD
COMBUSTIBLE MATERIAL BE CLOSER THAN 3
INCHES (2 1/2 INCHES (64MM) AT WALL FIRE-
STOPS) FROM THE TOP OF THE PIPE OR 1-INCH
TOTHESIDESANDTHEBOTTOMFORHORIZONTAL
SECTIONS OF THIS FLUE SYSTEM. VERTICAL
SECTIONS OF THIS SYSTEM REQUIRE A MINI-
MUM OF 1-INCH (25MM) CLEARANCE TO COM-
BUSTIBLE MATERIALS ALL AROUND THE PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 4 for required clearances to flue terminals.
Flue system termination kits
Flue system components
FIGURE 5. Flue Components and Terminations
MODEL
SL-550TRS-AUD DVP-TRAP & SLK-01DA HORIZONTALTERMINATIONCAP
DVP-TVHW & SLK-991DA VERTICALTERMINATION CAP
FLUE TERMINATIONAPPROVALS
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKETCEILING
FIRESTOP
DVP-SERIES
SLK-01DA SLK-991DA
SL D-SERIES
DVP-TRAP
DVP-TVHW

9
NOTE: PIPESOVERLAP 32mm AT EACH JOINT.
D
V
P
9
0
S
T
319mm
286mm
184mm
32mm TYP
13mm TYP
217mm
DVP36
DVP48
1219mm
610mm
914mm
102mm
152mm
DVP4
DVP6
305mm
DVP12
51mm
MIN.
DVP12A
310mm
MAX.
DVP24
251mm
45.0
O
260mm
DVP45
362mm
FIGURE 6 DVP-Series Balanced Flue Component Specifications
(127mm inner pipe / 203mm outer pipe)

10

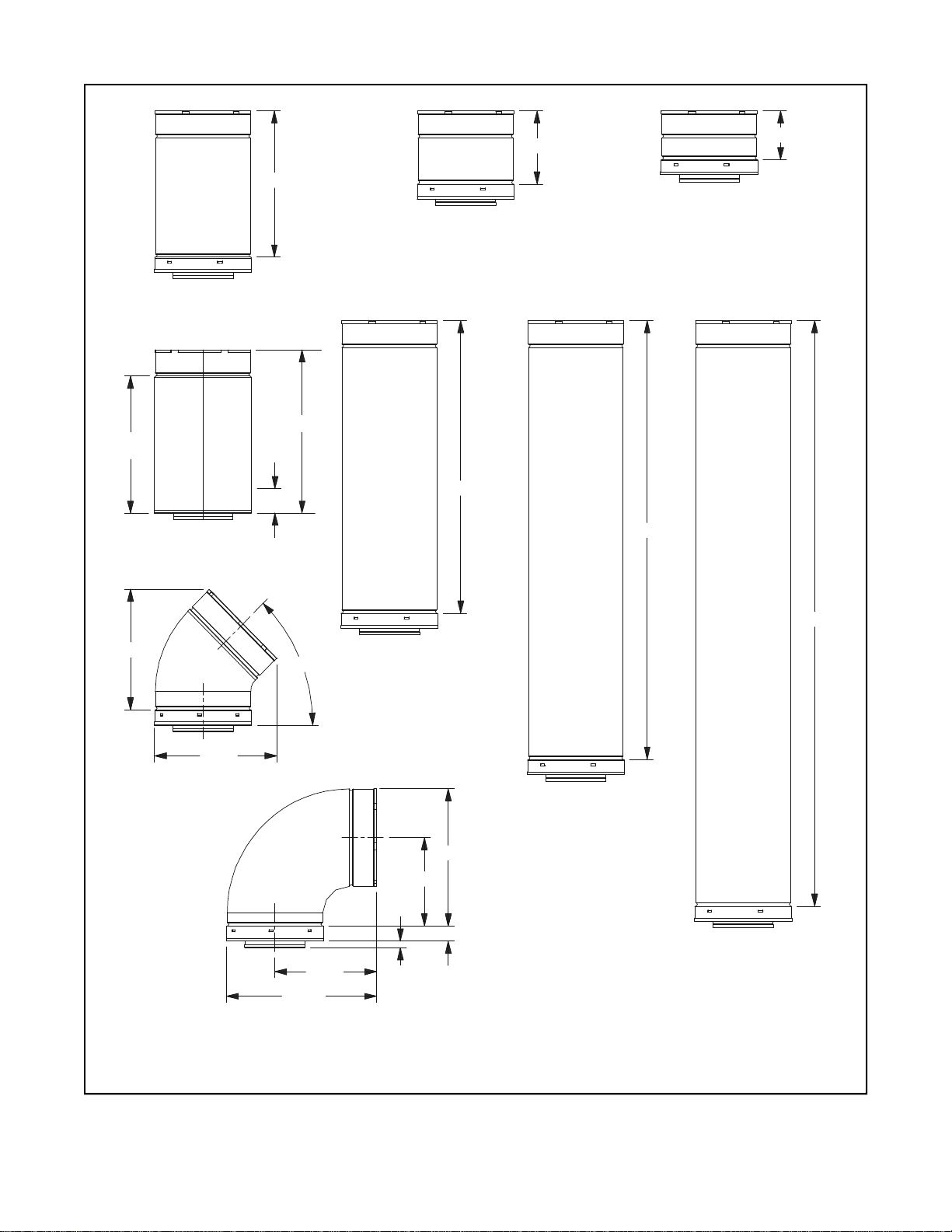

FIGURE 7 SL D-Series Balanced Flue Component Specifications
(4-inch (102mm) inner pipe / 6 5/8-inch (168mm) outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (35mm) AT EACH JOINT.
6 5/8
(168mm)
9 5/8
(244mm)
6 3/8
(162mm)
6 3/8
(162mm) 6 ½
(165mm)
9 5/8
(244mm)
SL-90D
6 ½
(165mm)
6 5/8
(168mm)
5 ¾
(146mm)
11 ¾
(298mm)
SL-06D SL-12D
SL-17/24D
17-24
(432-610mm)
SL-09D
SL-12/17D
SL-24D SL-36D SL-48D
8 ¾
(222mm)
12-17
(305-432mm)
23 ¾
(603mm)
35 ¾
(908mm)
47 ¾
(1213mm)

11
VERTICALFLUEING
V
FT. (M)
30' MAXIMUM (9.1M)
FIGURE8
USESLD-SERIES COMPONENTS ONLY.
FIGURE9
USEDVP-SERIES COMPONENTSONLY.
STRAIGHTOUTHORIZONTAL
FLUEING
H
Max. Run
24" (610mm)
V
CAP
H

12
FIGURE10
VH
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX.(1.2M)
3' MIN.(.9M) 8' MAX.(2.4M)
4' MIN.(1.2M) 10' MAX.(3M)
V + H = 30' (9.1M)
FLUEING WITH ONE (1) 90° ELBOW
USE SL D-SERIES
COMPONENTS
ONLY.
FIGURE 11
USEDVP-SERIES
COMPONENTS
ONLY.
FLUEINGWITH ONE (1) 90oELBOW
V (FT.) H (FT.)
1' MIN. (.3M) 3'MAX. (.9M)
2' MIN. (.6M) 6'MAX. (1.8M)
3' MIN. (.9M) 9'MAX. (2.7M)
4' MIN. (1.2M) 12' MAX. (3.7M)
V+H =30' MAX. (9.1M) H= 12' MAX. (3.7M)
H
V
V
H

13
FIGURE 12
V H
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX. (1.2M)
3' MIN.(.9M) 6' MAX. (1.8M)
4' MIN.(1.2M) 8' MAX. (2.4M)
5' MIN.(1.5M) 12' MAX. (3.6M)
12' MAX.(3.6M)
NOTE: V + V1MAX 30' (9.1M)

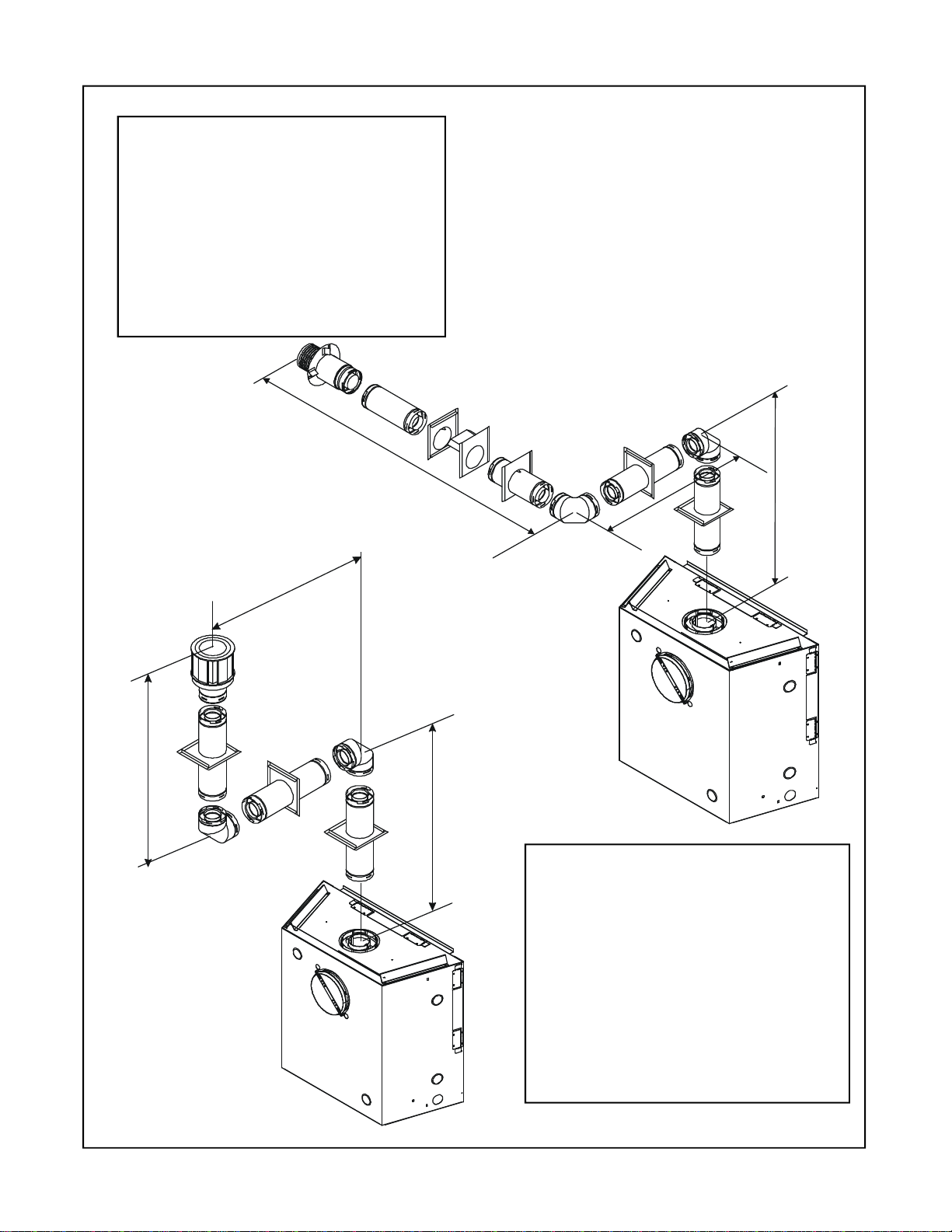

FLUEINGWITH TWO (2) 90° ELBOWS
V H + H1
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX.(1.2M)
3' MIN.(.9M) 6' MAX.(1.8M)
4' MIN.(1.2M) 8' MAX.(2.4M)
5' MIN.(1.5M) 10'MAX. (3M)
30' MAX.(9.1M) 10' MAX. (3M)
FLUEINGWITH TWO (2) 90° ELBOWS
USE SL D-SERIES COMPONENTS ONLY.
H
V
V
11
H
1
H
V

14
FIGURE 13
USEDVP-SERIES
COMPONENTSONLY.
FLUEINGWITH TWO (2) 90° ELBOWS
VHH + H1
1´ MIN. (.3M) 1´MAX. (.3M) 2´ MAX.(.6M)
2´ MIN. (.6M) 2´MAX. (.6M) 4´MAX.(1.2M)
3´ MIN. (.9M) 3´MAX. (.9M) 8´MAX.(2.4M)
4´MIN.(1.2M) 4´MAX.(1.2M) 10´MAX. (3M)
H = 8´ MAX.(2.4M) H + H
1
= 10´ MAX. (3M)
V + H + H1= 30’ (9.1M) MAX.
V (FT) H + H1(FT)
1' MIN. (305 mm) 3' MAX. (.9mm)
2' MIN. (610 mm) 5' MAX. (1.5m)
3' MIN. (914 mm) 8' MAX. (2.48m)
4' MIN. (1.22 m) 10' MAX. (3m)
H + H1= 10' MAX. (3m)
V + H + H1= 40' (12.2m) MAX.
V
H
H
1
H
1
V
H

15

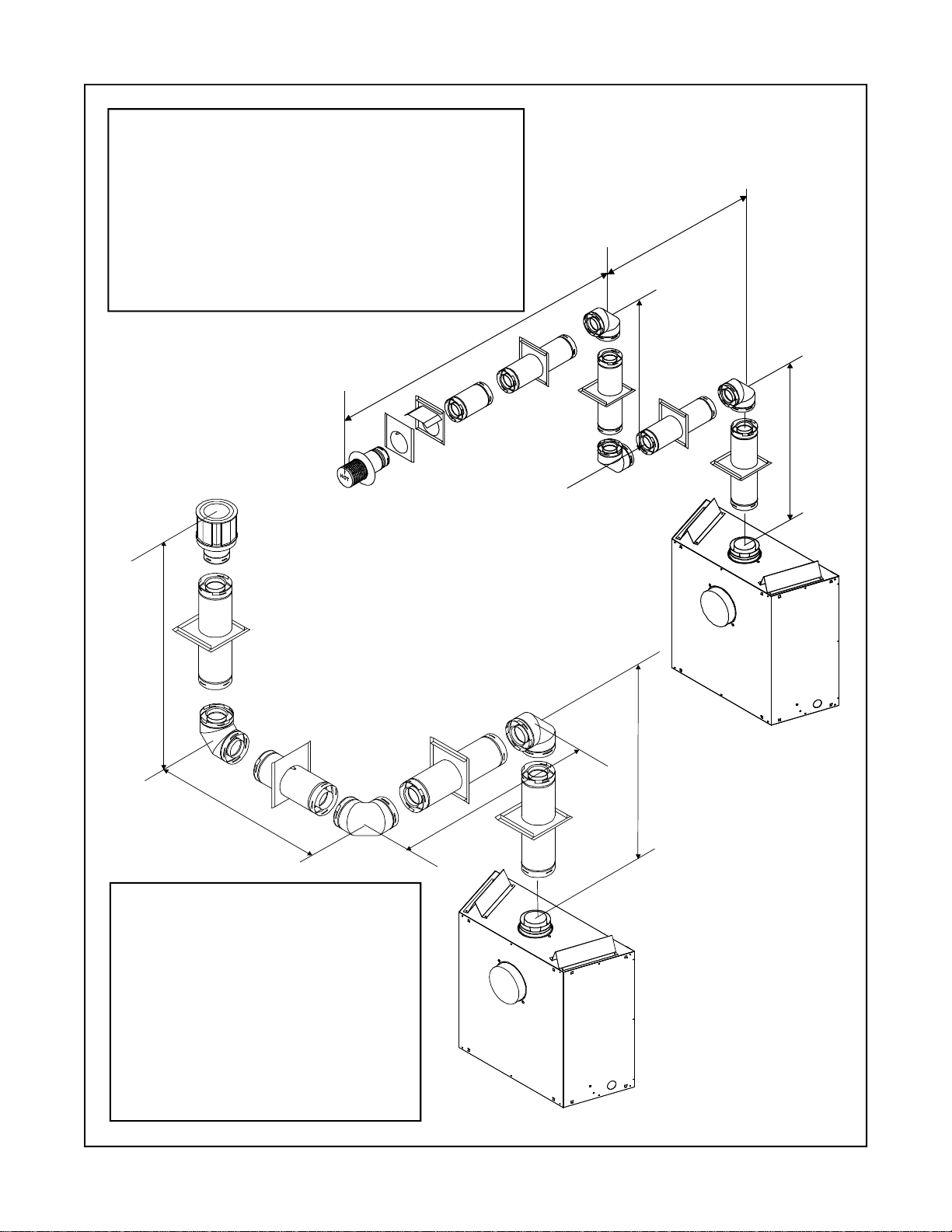

FLUEINGWITH THREE (3) 90° ELBOWS
V H H + H1
FT. (M) FT. (M) FT. (M)
2'MIN.(.6M) 2'MAX.(.6M) 4' MAX.(1.2M)
3'MIN.(.9M) 3'MAX.(.9M) 6' MAX (1.9M)
4'MIN.(1.2M) 4'MAX.(1.2M) 8' MAX.(2.4M)
V+V1 = 30' MAX (9.1M) 6' MAX (1.9M) 8' MAX.(2.4M)
FLUEINGWITH THREE (3) 90° ELBOWS
FIGURE 14
V H + H1
FT. (M) FT. (M)
1'MIN.(.3M) 2' MAX.(.6M)
2'MIN.(.6M) 4' MAX.(1.2M)
3'MIN.(.9M) 6' MAX.(1.8M)
4'MIN.(1.2M) 8' MAX.(2.5M)
5'MIN.(1.5M) 12' MAX.(3.6M)
12' MAX.(3.6M)
NOTE: V + V1MAX. 30'(9.1M)
USE SL D-SERIES COMPONENTS ONLY.
V
1
H
1
H
V
H 1
H
V
1
V

16
FIGURE15

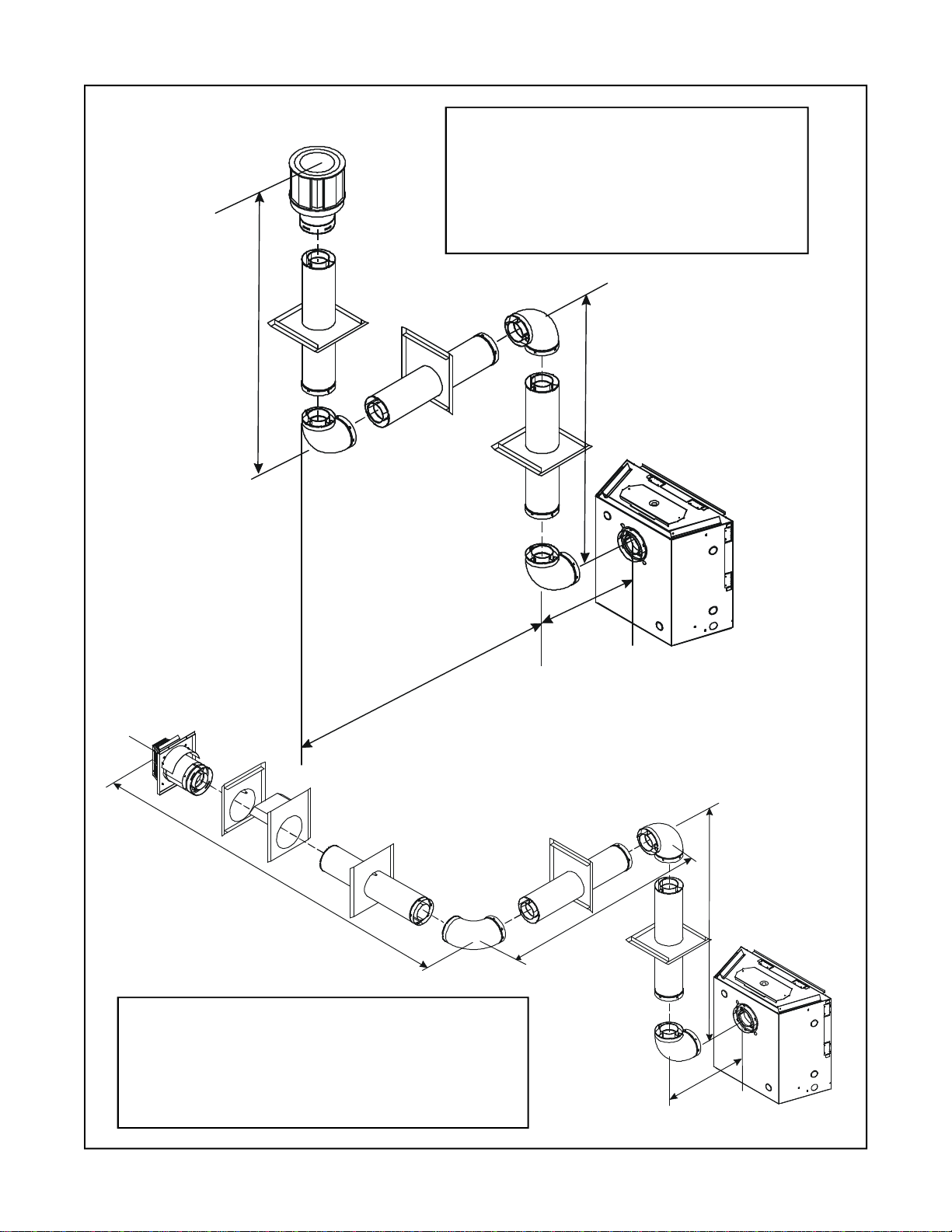

FLUEING WITH THREE (3) 90° ELBOWS
1´ MIN. (.3M) 1´ MAX. (.3M) 3´ MAX. (.9M)
2´ MIN. (.6M) 2´ MAX. (.6M) 5´MAX. (1.5M)
3´ MIN. (.9M) 4´MAX. (1.2M) 8´ MAX. (2.4M)
4´ MIN. (1.2M) 6´MAX.(1.9M) 10´ MAX. (3.0M)
H = 6´ MAX. (1.9M) H+H1= 10´ MAX. (3.0M)
NOTE: V + V, + H + H1= 30’ (9.1M) MAX.
V (FT.) H (FT.) H + H1(FT.)
V (FT.) H (FT.) H + H1+ H2 (FT.)
1´ MIN. (.3M) 1´ MAX. (.3M) 2´ MAX. (.6M)
2´ MIN. (.6M) 2´ MAX. (.6M) 4´MAX. (1.2M)
3´ MIN. (.9M) 3´ MAX. (.9M) 8´MAX. (2.4M)
4´ MIN. (1.2M) 4´ MAX. (1.2M)) 10´MAX. (3.0M)
V + H + H
1
+ H
2
= 30´ MAX. (9.1M) H = 4´ MAX. (1.2M) H + H
1
+ H
2
= 10´ MAX. (3.0M)
FLUEING WITH THREE (3) 90° ELBOWS
USEDVP-SERIES
COMPONENTSONLY.
H
V
H
2
H
1
V
1
H
V
H
1

17
Figure 16
WARNING: FAILURE TO REMOVE
INSULATION IN THE SET OF COL-
LARS YOU ARE USING COULD
CAUSE AFIRE.
WARNING: THE REAR FLUE COL-
LAR SEAL CAP MUST REMAIN AT-
TACHED TO THE REAR FLUE COL-
LARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 16.
WARNING: YOU MUST LEAVE
THE INSULATION IN PLACE IN
THE SET OF COLLARS YOU ARE
NOT USING.
FLUEING OUT REAR FLUEING OUT TOP
Vertical Flue Restrictor
If the heater installation requires a vertical flue exceeding 4.5m above the unit with no horizontal flue or
elbows a vertical flue restrictor must be installed. See instructions with the BAF-VERT kit.
Installing Flue Components
Afterdeterminingwhichsetofstartingcollarswillbe
used (top or rear), follow flueing instructions
accordingly.
Flueing Out the Rear Flue
Remove the rear collar seal cap by cutting the
strap at each end (See Figure 16).
Next, remove the insulation from the rear flue, pull
the heat shield out from outside of the heater.
WARNING: THE TOP FLUE COLLAR
SEAL CAP MUST REMAIN ATTACHED
TO THE TOP FLUE COLLAR IF THE FLUE
SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 16.
Flueing Out the Top Flue
Removethe topcollarseal capby cuttingthestrap
at each end. Remove the seal cap and both
pieces of insulation in the top collars (See Figure
16).Remove the heat shieldinside thetop collars
from the outside of the heater.
!
!
!
!
Insert screwdriver
or similar object
here to remove cap.
CUT
HERE
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
HEAT
SHIELD
INSULATION,
DISCARD
BOTH
PIECES and
HEAT SHIELD

18
Installing Flue Components
1. Attaching the First Flue Component to the
Starting Collars:
A. On the REAR of the heater
Toattach the firstflue component tothestarting collars
on the rear of the heater:
•Make sure that the heater gasket supplied with the
heater seals between the first flue component and
theouterheater wrap.
•Slide the male end of the inner flue of the pipe sec-
tion into the inner collar on the heater. At the same
time, insert the outer flue into the outer collar on
the heater. Push the flue section into the appliance
collar until all the lances (see Figure 17) have
snappedin place. Tug slightly on the fluetoconfirm
that it has completely locked into place.
•The first 90° elbow installed in the flue system of a
rearflueing heaterMUST BE ina vertical position.
B. On the TOP of the heater
Toattach the firstflue component tothestarting collars
on the top of the heater:
•Lock the flue components into place by sliding the
concentricpipesectionswithfour (4)equally spaced
interior beads into the heater collar or previously
installedcomponentendwith four(4)equallyspaced
indented sections.
•Whentheinternal beads of each outer pipe line up,
rotatethe pipe section clockwise about one quarter
(1/4) turn. The flue pipe is now locked together.
•Slidethe ceramicfiber padover thefirstflue section
and place it flush to the fireplace. Continue to add
ventcomponents.
WARNING: ENSURE THAT THE HEATER GASKET
SUPPLIED WITH THE HEATER SEALS BETWEEN
THE FIRST FLUE COMPONENT AND THE OUTER
HEATER WRAP.
2. Continue Adding Flue Components
Tocontinueaddingfluecomponents inaccordance with
thepre-planned flue system configuration:
•Ensure that each succeeding flue component is
securely fitted and locked into the preceding com-
ponent in the flue system.
NOTE: Make sure that seams are NOT aligned to
preventunintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
jointtoprevent the elbow from rotating.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supportedevery five(5) feet(1.5m)of horizontalrun by
a horizontal pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
FIGURE17.

19

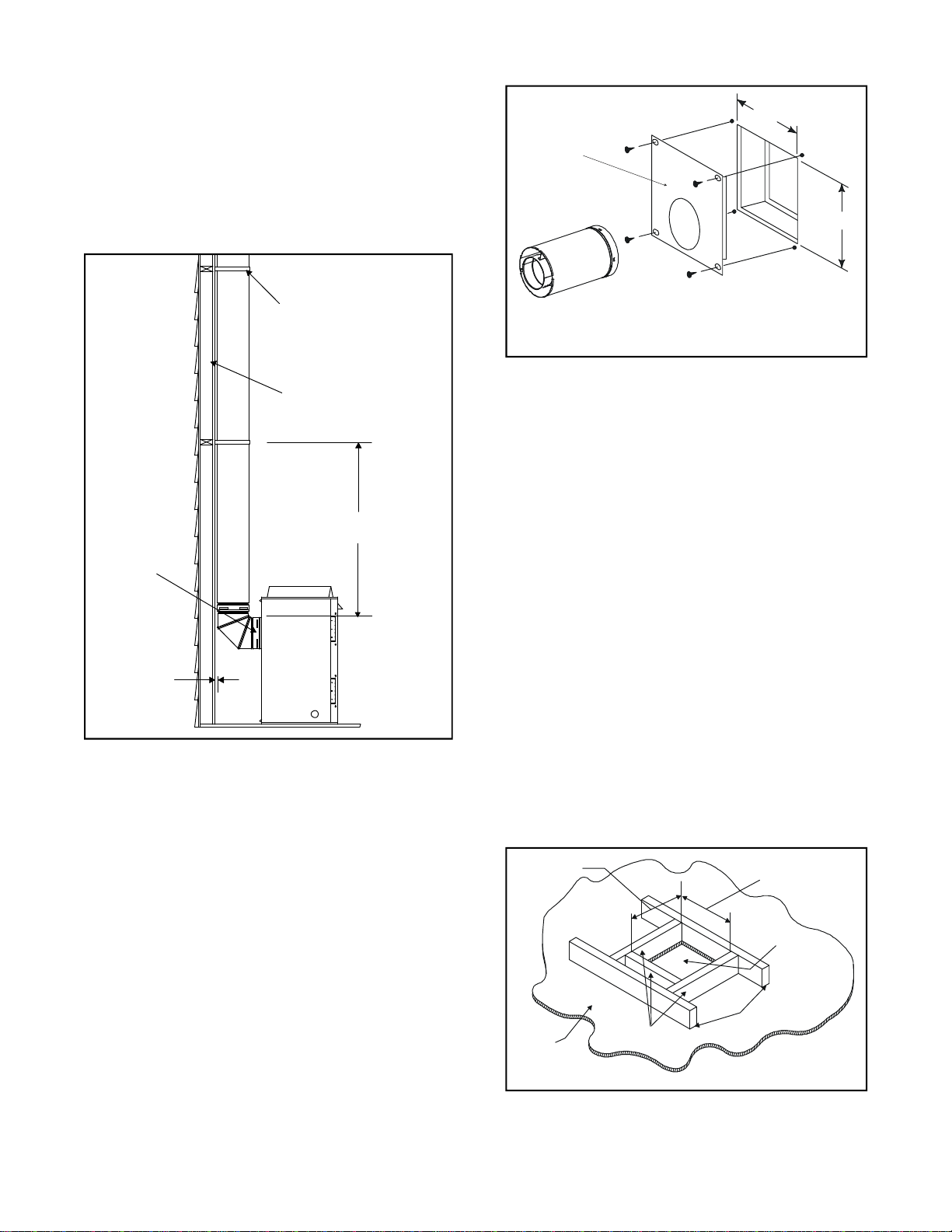

For Vertical Runs
Theflue system must be supported every eight(8)feet
(2.4 M) above the heater flue outlet by wall brackets.
To install support brackets for vertical runs:
•Attachwall brackets to the flue pipe and secure the
wall bracket to the framing members with nails or
screws.
FIGURE 18. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
bothsides of a combustible wall through whichtheflue
passes.
Toinstall firestops (heat shield) for horizontal runs that
pass through either interior or exterior walls:
•Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
through the wall.
•Positionthefirestops on both sides of the hole pre-
viously cut and secure the firestops with nails or
screws.
•ThepipeopeningofthefirestopsMUST BE placed
towards the bottom of the firestop.
•Continuetheflue run through the firestop.
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)
10"
12"
INTERIOR
WALL SHIELD
FIGURE 19. Flue Pipe & Firestop
For Vertical Runs -Onefirestopis REQUIRED at the
hole in each ceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
•Positionaplumb bob directly over the center of the
verticalflue component.
•Mark the ceiling to establish the centerpoint of the
flue.
•Drill a hole or drive a nail through this center point.
•Checkthe floor abovefor any obstructions,suchas
wiringorplumbing runs.
•Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or ob-
structions.
•Cut a 10-inch X 10-inch (254mm X 305mm) hole
throughthe ceiling, using the firestop pipe opening
as a guide.
•Frame the hole with framing lumber the same size
as the ceiling joists.
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10” (254mm)
FIGURE 20. Hole and New Framing Members

20
!
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
thepreviously cut and framed hole.
FIGURE 21. Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
securethefirestop ontopofthepreviously framedhole.
C. Flue Termination
For Horizontal Terminations using the DVP-TRAP
Toattach and secure the terminationtothe last section
ofhorizontal flue:
•Therear vent heat shield MUST be placed one inch
abovethe topof the fluebetween the wallshield and
the base of the termination cap.
•One section of the heat shield attaches to the wall
shield with two screws. The other is attached to the
cap in the same manner (see Figure 23).
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
FIGURE 24. Venting through the Wall
EXTERIOR
INTERIOR
Interior
Wall Shield
Inner Flue
Rear Vent
Heat Shield
1
1
/
2
" min.
overlap
Outer Flue 1
1
/
2
" min.
overlap
FIGURE 22. Attic Firestop
•The heat shield sections will overlap to match the
wall thickness (depth). The small leg in the shield
rests on top of the flue to properly space it from the
pipe section (see Figure 24).
•The termination kit should pass through the wall
firestops from the exterior of the building.
•Adjust the termination cap to its final exterior posi-
tion on the building and interlock the flue sections.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
•Use a high-temperature sealant gasket to seal be-
tweenthe pipe and exterior firestop.
FIGURE 23. Heat Shield
Wall Shield
Rear Vent
Heat Shield
Termination
Cap
For Horizontal Terminations using theSLK-01DA
Toattach and secure the terminationtothe last section
ofhorizontal flue:
!
•Rotate and interlock the ends as described at the
beginningof theInstalling FlueComponents section.
•The termination kit should pass through the wall
firestops from the exterior of the building.
•Adjust the termination cap to its final exterior posi-
tion on the building.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
