HeartSine samaritan SAM 450P User manual

HeartSine samaritan®PAD
SAM 450P Trainer
User Manual
model TRN-450-1

2 heartsine.com
Contents
Contents 2
Introduction 3
Preparing the HeartSine samaritan PAD 450P Trainer for use 4
Turning the HeartSine samaritan PAD 450P Trainer on and o 4
HeartSine samaritan PAD 450P Trainer 5
Managing the electrodes 6
Using the electrodes 6
Rewinding the electrodes aer use 6
The remote control 7
Pre-programmed training scenarios 8
Manual control of the HeartSine samaritan PAD 450P Trainer 10
CPR Rate Advisor™training module 11
HeartSine samaritan PAD 450P Trainer with CPR Rate Advisor, SAM 450P 11
CPR Rate Advisor training 11
Compressions 12
Maintenance 14
HeartSine samaritan PAD 450P Trainer battery management 14
Charging and recharging the HeartSine samaritan PAD 450P Trainer 14
Remote control batteries 15
HeartSine samaritan PAD 450P Trainer Conguration Tool 15
CPR Guidelines 2015 16
Disposal instructions 17
Warranty exclusion 17

HeartSine samaritan PAD 450P Trainer User Manual 3
This User Manual provides instructions on how to operate the HeartSine samaritan PAD 450P Trainer.
The HeartSine samaritan PAD 450P Trainer is a non-medical device intended to be used for the training of emergency
responders in the proper use of the HeartSine samaritan PAD 450P (SAM 450P) automated external debrillator. The
HeartSine samaritan PAD 450P Trainer has no therapeutic capabilities and must not be used in real life rescue situations.
IMPORTANT: In order to avoid confusion in the event of a real life rescue, do not store or leave the HeartSine
samaritan PAD 450P Trainer near the HeartSine samaritan PAD 450P automated external debrillator.
To allow quick and easy identication, the HeartSine samaritan PAD 450P Trainer incorporates a yellow front user interface
membrane whereas the SAM 450P automated external debrillator has a navy blue/black front membrane.
HeartSine recommends that responders who may use one of its debrillators should be trained in Cardiopulmonary
Resuscitation with debrillator use (CPR-D). The HeartSine samaritan PAD 450P Trainer is intended to be used by approved
CPR-D training providers for this purpose.
The HeartSine samaritan PAD 450P Trainer is factory congured to operate in accordance with the joint American Heart
Association/European Resuscitation Council (AHA/ERC) 2015 guidelines for CPR. The device comes with six pre-programmed
scenarios based on these guidelines.
Should the CPR guidelines change, soware will be available to upgrade the HeartSine samaritan PAD 450P Trainer to comply.
Please contact your HeartSine authorized distributor or HeartSine Technologies directly.
Once turned on the HeartSine samaritan PAD 450P Trainer will play audible voice prompts with accompanying visual
indicators. The HeartSine samaritan PAD 450P Trainer may also be controlled using the accompanying remote control
included with the device.
Please contact your HeartSine authorized distributor for a list of replacement accessories.
Introduction

4 heartsine.com
Preparing the HeartSine samaritan PAD 450P Trainer for use
1) Ensure that the HeartSine samaritan PAD 450P Trainer is fully charged (see the Maintenance section of this manual).
2) Place the HeartSine samaritan PAD 450P Trainer and the Trainer-Pak™on a at surface. Push the Trainer-Pak into the
opening of the HeartSine samaritan PAD 450P Trainer and listen for a “click” sound to ensure that it is properly inserted.
3) Place the batteries supplied with your HeartSine samaritan PAD 450P Trainer into the remote control.
Do not press any buttons while inserting the remote control batteries as this will reset the
remote control ID.
4) Press the On/O button on the HeartSine samaritan PAD 450P Trainer and listen to the voice prompts to ensure that the
unit is functioning.
If the HeartSine samaritan PAD 450P Trainer has insucient charge, it will not function correctly. When switched on, the
Status Indicator will ash red to indicate that charging is required. If the battery is fully depleted the device will not power
on at all. For full charging instructions see the Maintenance section of this manual.
Turning the HeartSine samaritan PAD 450P Trainer on and o
To turn on the HeartSine samaritan PAD 450P Trainer, press the green On/O button.
By default the HeartSine samaritan PAD 450P Trainer will function in the last scenario setting used.
To turn o the HeartSine samaritan PAD 450P Trainer, press the On/O button again.
Once the HeartSine samaritan PAD 450P Trainer has been turned on, it may be turned o using the accompanying remote
control. To turn o the HeartSine samaritan PAD 450P Trainer, press the red O button on the remote control.
When turned on, the HeartSine samaritan PAD 450P Trainer will automatically turn o aer een minutes if the device is
not being used.

HeartSine samaritan PAD 450P Trainer User Manual 5

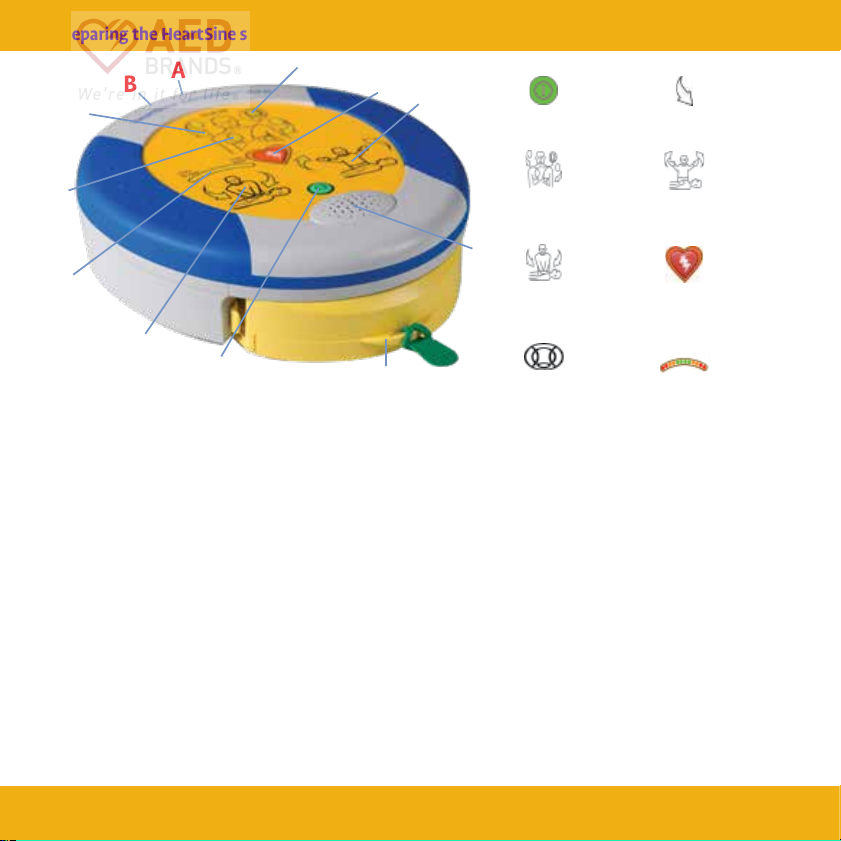

A. Data port - The data port connects the HeartSine samaritan PAD 450P Trainer to a PC via the USB data cable. When the HeartSine samaritan
PAD 450P Trainer is connected, the training provider can change settings, such as training scenarios (see page 8 for training scenarios).
B. Battery charge status LED - The battery charge status LED ashes red when the HeartSine samaritan PAD 450P Trainer needs to be charged,
becomes a steady red when charging and turns o when fully charged.
C. Status indicator -
Flashing green when in use; HeartSine samaritan PAD 450P Trainer is ready for use, Flashing red when in use; HeartSine
samaritan PAD 450P Trainer requires charging.
D. Shock button - Press this button to simulate delivery of a therapeutic shock.
E. Do not touch indicator - Do not touch the patient when the action arrows around this icon are ashing. The SAM 450P may be analyzing the
patient’s heart rhythm or preparing to deliver a shock.
F. Speaker - The speaker plays recorded voice prompts and gives instructions to the trainee.
G. Trainer-Pak cartridge - The Trainer-Pak cartridge houses the pads. Pull the green tab to access the pads.
H. On/O button - Press this button to turn the device on and o. (If pressed while a shock is advised, a warning is issued “Warning, O
button pressed”; the device will not power o unless you press the button again within three seconds.)
I. Safe to touch indicator - It is safe to touch the patient when the action arrows around this icon are ashing. You may perform CPR or check
the patient.
J. CPR Rate Advisor - This is an array of lights which provide a graduated indication of the speed of the CPR compressions. When green lights
illuminate the compressions are within the correct rate range.
K. Pads placement indicator - The action arrows around this icon will ash to instruct the user that the SAM 450P pads should be attached to
the patient as indicated.
L. Action arrows - The action arrows around an icon will ash to indicate the actions that the user should perform.
AC
D
I
F
G
H
E
K
L
J
BOn/O
button
Pads
placement
indicator
Safe to touch
indicator
Status
indicator
Preparing the HeartSine samaritan PAD 450P Trainer for use
Action
arrows
Do not
touch
indicator
Shock
button
CPR Rate
Advisor

6 heartsine.com
Managing the electrodes
Using the electrodes
The training scenarios include audible prompts to remove the electrodes from the Trainer-Pak and to position the electrode
pads as indicated. Follow the steps below when prompted to do so.
1) Pull the green tab to open the HeartSine samaritan PAD 450P Trainer Trainer-Pak cartridge and fully extend the electrode
cables.
2) Peel the electrode pads from their protective liners.
3) Position the electrode pads as indicated by the Pads Placement Indicator; sternum and apex electrode pads are clearly
identied on their respective pads.
4) Press the pads rmly to ensure that proper contact is made.
Rewinding the electrodes aer use
1) Re-attach the protective liners to the electrode pads, or replace with new pads.
2) Fold the pads together so that the liner is on the outside.
3) Let the electrodes hang from the device and use the handle in the blue coil mechanism to fully rewind the electrodes:
4) Place the pads on top of the Trainer-Pak cartridge, ensuring that the wires are beneath the pads.
5) Close the Trainer-Pak cartridge by sliding the yellow tray into place.

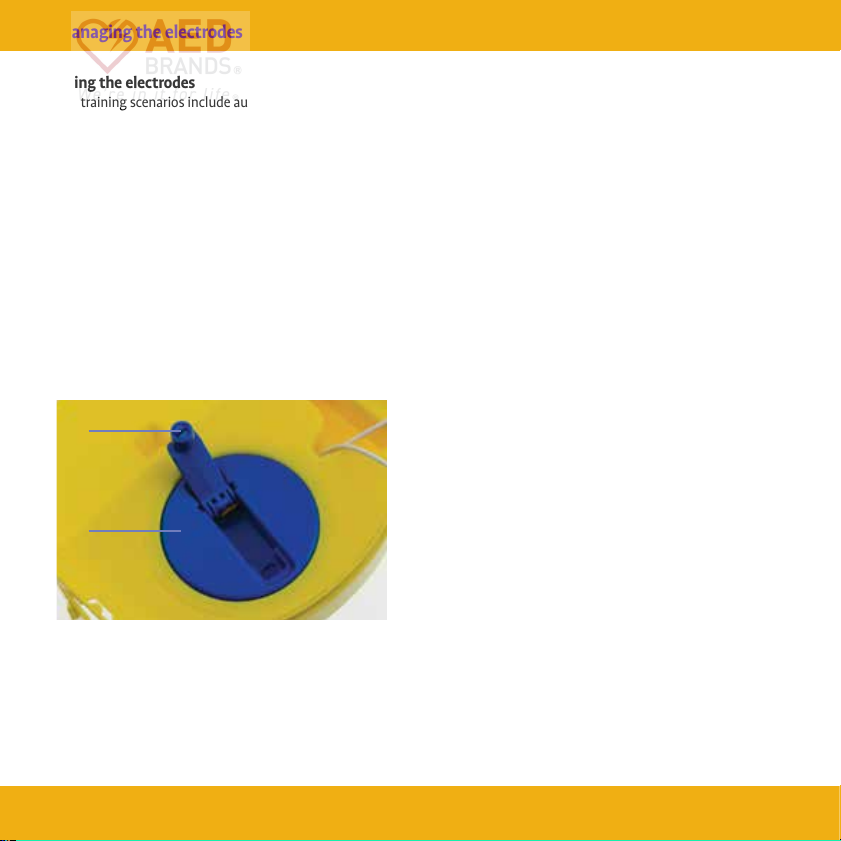

A Coil Mechanism
B Coil Handle
A
B

HeartSine samaritan PAD 450P Trainer User Manual 7

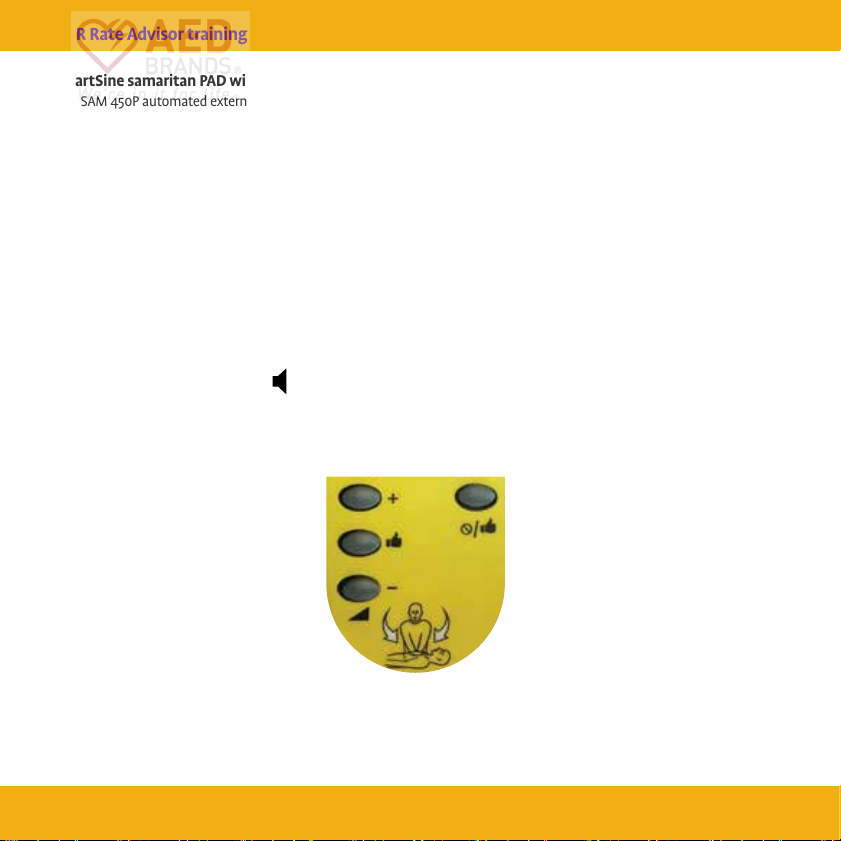

A. Turning o the HeartSine samaritan PAD 450P Trainer - The remote control can be used to turn o the HeartSine samaritan PAD 450P
Trainer. To turn o the HeartSine samaritan PAD 450P Trainer, press the red O button on the remote control.
B. Changing the volume - There are four volume settings available on the HeartSine samaritan PAD 450P Trainer. To increase the volume press
the ‘+’ button and to decrease the volume press the ‘-’ button.
C. Low battery indicator - During use of the remote control, if the battery is low on charge the low battery indicator ashes red each time a
button on the remote is pressed. This alerts the training provider to change the batteries in the remote control
.
D. Pausing the HeartSine samaritan PAD 450P Trainer - The HeartSine samaritan PAD 450P Trainer may be paused during training. To pause
the HeartSine samaritan PAD 450P Trainer press the Pause/Play button ( ||/►). The HeartSine samaritan PAD 450P Trainer will remain paused
until the Pause/Play button is pressed again, at which point it will continue to play the scenario selected.
E. ‘No shock advised’ scenario - When the ‘no shock advised’ scenario button is pressed, the HeartSine samaritan PAD 450P Trainer plays the
‘no shock advised’ voice prompt subsequently followed by the rest of the voice prompts in the programmed scenario.
F. ‘Shock required’ scenario - When the ‘shock advised’ scenario button is pressed, the HeartSine samaritan PAD 450P Trainer plays the ‘shock
advised’ voice prompt subsequently followed by the rest of the voice prompts in the programmed scenario.
G. Changing the scenario - The HeartSine samaritan PAD 450P Trainer comes with six preprogrammed training scenarios. (For details of the
scenarios see the training scenarios section of this manual.) The scenario can be changed by pressing the appropriate number button on the
remote control. For instance pressing ‘3’ will select training scenario three. Once the scenario has been changed the device will operate as
detailed in the scenarios section. The device will remain in this scenario until a new scenario is selected.
H. Attach electrode pads - The attach electrode pads button is pressed to simulate a good connection between the pads and the patient.
I. CPR Rate Advisor rate control - One of the three CPR Rate Advisor rate control buttons is pressed to simulate the prompts heard on the AED
to indicate the quality of the CPR rate: “Press faster”, “Press slower” or “ Good speed”.
The remote control
A
B
D
EF
G
H
C
I
O button
Volume control
Pause/Play button
Scenario selecion
button

8 heartsine.com
Pre-programmed training scenarios
The HeartSine samaritan PAD 450P Trainer has six preprogrammed training scenarios to choose from. All preprogrammed
scenarios are based on AHA/ERC 2015 guidelines. Details of the preprogrammed scenarios are given below.
Scenario 1
1. Setup mode Trainee to “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention Training provider presses the Attach electrode pads button to conrm electrodes placed
3. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
4. Shock advised Trainee to press the shock button
5. CPR mode Trainee to perform CPR with guidance from prompts
6. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
7. No shock advised Trainee notied that no shock is advised
8. CPR mode Trainee to perform CPR with guidance from prompts
9. Repeat Trainee to repeat Steps 6 to 8 until ‘On/O’ button is pressed
Scenario 2
1. Setup mode Trainee to “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention Training provider presses the Attach electrode pads button to conrm electrodes placed
3. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
4. No shock advised Trainee notied that no shock is advised
5. CPR mode Trainee to perform CPR with guidance from prompts
6. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
7. Shock advised Trainee to press the shock button
8. CPR mode Trainee to perform CPR with guidance from prompts
9. Repeat Trainee to repeat Steps 6 to 8 until ‘On/O’ button is pressed
Scenario 3
1. Electrodes Device assumes the electrodes are already attached
2. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
3. Check Pads Trainee to check the pad placement.
4. User intervention Training provider presses the Attach electrode pads button to conrm electrodes placed
5. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
6. Shock advised Trainee to press the shock button
7. CPR mode Trainee to perform CPR with guidance from prompts
8. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
9. No shock advised Trainee notied that no shock is advised
10. CPR mode Trainee to perform CPR with guidance from prompts
11. Repeat Trainee to repeat Steps 3 to 10 until ‘On/O’ button is pressed

HeartSine samaritan PAD 450P Trainer User Manual 9
Pre-programmed training scenarios
Scenario 4
1. Electrodes Device assumes electrodes are already attached
2. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
3. Shock advised Trainee to press the shock button
4. CPR mode Trainee to perform CPR with guidance from prompts
5. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
6. Shock advised Trainee to press the shock button
7. CPR mode Trainee to perform CPR with guidance from prompts
8. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
9. No shock advised Trainee notied that no shock is advised
10. CPR mode Trainee to perform CPR with guidance from prompts
11. Repeat Trainee to repeat Steps 5 to 10 until ‘On/O’ button is pressed
Scenario 5
Scenario 5 is the same as Scenario 1 with the addition of audible indications of when to perform rescue breaths during CPR mode.
1. Setup mode Trainee to “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention Training provider presses the Attach electrode pads button to conrm electrodes placed
3. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
4. Shock advised Trainee to press the shock button
5. CPR mode Trainee to perform CPR with guidance from prompts; this includes an audible indication of when to perform
rescue breaths. The metronome changes from a “beep” to a “tick” for the duration of ten compressions.
6. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
7. No shock advised Trainee notied that no shock is advised
8. CPR mode Trainee to perform CPR with guidance from prompts; this includes an audible indication of when to perform
rescue breaths. The metronome changes from a “beep” to a “tick” for the duration of ten compressions.
9. Repeat Trainee to repeat Steps 6 to 8 until ‘On/O’ button is pressed
Scenario 6
Scenario 6 is the same as Scenario 2 with the addition of audible indications of when to perform rescue breaths during CPR mode.
1. Setup mode Trainee to “Call for Medical assistance”, “Pull green tab”, etc
2. User intervention Training provider presses the Attach electrode pads button to conrm electrodes placed
3. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
4. No shock advised Trainee notied that no shock is advised
5. CPR mode Trainee to perform CPR with guidance from prompts; this includes an audible indication of when to perform
rescue breaths. The metronome changes from a “beep” to a “tick” for the duration of ten compressions.
6. Monitor mode Trainee hears “Assessing heart rhythm”, “Do not touch the patient”, etc
7. Shock advised Trainee to press the shock button
8. CPR mode Trainee to perform CPR with guidance from prompts; this includes an audible indication of when to perform
rescue breaths. The metronome changes from a “beep” to a “tick” for the duration of ten compressions.
9. Repeat Trainee to repeat Steps 6 to 8 until ‘On/O’ button is pressed

10 heartsine.com
Manual control of the HeartSine samaritan PAD 450P Trainer
The remote control allows training providers to control the scenario manually. When turned on, the HeartSine samaritan
PAD 450P Trainer will operate as described in the training scenarios listed. Training providers can override this by pressing the
‘Shock required’,‘No shock required’ or ‘Attach electrode pads’ button.
Shock required
Pressing the ‘Shock required’ button will cause the HeartSine samaritan PAD 450P Trainer to
override the selected training scenario and simulate a shockable rhythm. Each subsequent
analysis period will advise a shock to be delivered until either the HeartSine samaritan PAD 450P
Trainer is turned o or the ‘No shock required’ button on the remote control is pressed.
No shock required
Pressing the ‘No shock required’ button will cause the HeartSine samaritan PAD 450P Trainer to
override the selected training scenario and simulate a non-shockable rhythm. Each subsequent
analysis period will advise no shock to be delivered until either the HeartSine samaritan PAD 450P
Trainer is turned o or the ‘Shock required’ button on the remote control is pressed.
Attach electrode pads
If the ‘Attach electrode pads’ button is pressed the HeartSine samaritan PAD 450P Trainer
will play the ‘Attach electrode pads’ prompts during the analysis period of operation. The
HeartSine samaritan PAD 450P Trainer will continue to play ‘Attach electrodes pads’ prompts
until the ‘Attach electrode pads’ button is pressed again.

HeartSine samaritan PAD 450P Trainer User Manual 11
CPR Rate Advisor training module
HeartSine samaritan PAD with CPR Rate Advisor, SAM 450P
The SAM 450P automated external debrillator incorporates a CPR feedback module called ‘CPR Rate Advisor’. The SAM 450P
uses the CPR Rate Advisor function to provide simple feedback on the quality of the compression rate being provided by
rescuers. The CPR Rate Advisor analyzes the rate at which compressions are being performed, and prompts the rescuer to
push faster or slower as appropriate. If the CPR being provided is within the correct speed range, the SAM 450P will play a
‘Good speed’ prompt.
All audible prompts are accompanied by visual prompts on the CPR Rate Advisor icon.
CPR Rate Advisor training
Training providers can use the remote control to simulate the CPR Rate Advisor function on the HeartSine samaritan PAD
450P Trainer by using the remote control. Training providers should observe the CPR being provided by the trainees and
based on observations press the appropriate button.
The HeartSine samaritan PAD 450P Trainer will initially assume correct compressions are being performed and play the
audible prompt:
“Good Speed”
The CPR control buttons are located at the bottom of the remote control. The buttons to the le are used to provide feedback
on the rate at which the trainee is performing compressions, and the buttons to the right are used to toggle between the
Begin CPR prompt (if no CPR is being performed) and the Good speed prompt.
Fast Compressions
Correct Rate
Slow Compressions
Begin CPR / Good Speed
(toggle)

12 heartsine.com
Compressions
The HeartSine samaritan PAD 450P Trainer can mimic the CPR Rate Advisor function on the SAM 450P debrillator.
CPR not started
If the trainee has not started to perform CPR, press the ‘Begin CPR/good speed’ button. The
HeartSine samaritan PAD 450P Trainer will play the audible prompt:
“Begin CPR”
The CPR Rate Advisor on the HeartSine samaritan PAD 450P Trainer has a single ashing red light on
the le hand side of the display as shown. The trainee should begin CPR immediately.
Compressions Too Slow
If the trainee is performing compressions too slowly, press the ‘Slow compressions’ button.
When the button is pressed once, the two amber LEDs on the le hand side of the CPR Rate Advisor
illuminate to indicate the trainee is providing CPR compressions at a rate slower than the AHA/ERC
Guidelines. The trainee should increase the speed of their compressions.
Press the button a second time. The illuminated amber LEDs will be replaced by two red LEDs and the
voice prompt will play:
“Push faster”
Compressions Too Fast
If the trainee is performing compressions too quickly, press the ‘Fast compressions’ button.
CPR Rate Advisor training module

HeartSine samaritan PAD 450P Trainer User Manual 13
When the button is pressed once, the two amber LEDs on the right hand side of the CPR Rate
Advisor illuminate to indicate the trainee is providing CPR compressions at a rate faster than
the AHA/ERC Guidelines. The trainee should reduce the speed of their compressions.
Press the button a second time. The illuminated amber LEDs will be replaced by two red LEDs
and the voice prompt will play:
“Push slower”
Compressions Correct Rate
If the trainee is performing compressions at the correct rate, press the ‘Correct rate’ button.
The HeartSine samaritan PAD 450P Trainer will play the prompt:
“Good speed”
Four green LEDs in the center of the CPR Rate Advisor on the HeartSine samaritan PAD 450P
Trainer will illuminate. The trainee should maintain this speed for the compressions.
CPR Rate Advisor training module

14 heartsine.com
Maintenance
HeartSine samaritan PAD 450P Trainer battery management
The HeartSine samaritan PAD 450P Trainer contains a rechargeable battery. It is recommended that you ensure the HeartSine
samaritan PAD 450P Trainer is fully charged prior to commencing training activities.
When fully charged, the HeartSine samaritan PAD 450P Trainer will provide approximately seven hours of usage before it
needs to be recharged.
The HeartSine samaritan PAD 450P Trainer will monitor the capacity of the battery as it approaches depletion. A minimum of
one hour prior to the battery becoming depleted the HeartSine samaritan PAD 450P Trainer will play the following message:
“Warning. Low battery”
If this warning is heard you may continue to use your HeartSine samaritan PAD 450P Trainer for a limited period of time. If
the battery becomes completely depleted the HeartSine samaritan PAD 450P Trainer will shut itself down. At this point the
HeartSine samaritan PAD 450P Trainer should be recharged.
Charging and recharging the HeartSine samaritan PAD 450P Trainer
To safely charge or recharge the HeartSine samaritan PAD 450P Trainer follow the instructions given below.
1) Insert the charger adaptor into the socket on the side of the HeartSine samaritan PAD 450P Trainer. Ensure that the
adaptor is fully inserted.
2) Plug the charger into the mains power outlet.
3) Leave the HeartSine samaritan PAD 450P Trainer to charge. The Battery Charge Status LED (located beside the socket) will
be red when fast charging and will ash when charging is almost complete. Once charging is complete the LED will switch
o. Charging a depleted HeartSine samaritan PAD 450P Trainer will take a maximum of six hours.
4) Remove the adaptor from the HeartSine samaritan PAD 450P Trainer. Turn on the HeartSine samaritan PAD 450P Trainer to
ensure that the device is working.
If the HeartSine samaritan PAD 450P Trainer is switched on during charging, the charger should be switched o then on
again to restart fast charging.
The HeartSine samaritan PAD 450P Trainer must only be charged with the charger supplied with it. Use of any other charging
device will nullify the warranty and may result in damage to the HeartSine samaritan PAD 450P Trainer.
The HeartSine samaritan PAD 450P Trainer and charger are designed for indoor use only. Do not use in wet or damp
environments.
There are no user serviceable parts inside your HeartSine samaritan PAD 450P Trainer, HeartSine samaritan PAD 450P Trainer
Trainer-Pak or charger. Do not open these products. In the unlikely event of a malfunction, please contact your distributor
immediately.

HeartSine samaritan PAD 450P Trainer User Manual 15
Remote control batteries
The remote control contains a low battery warning indicator. If this indicator ashes red two times aer a button on the
remote control is pressed, the batteries within the remote control needs to be replaced.
The remote control uses two standard AAA batteries. The batteries can be accessed by removing the battery cover at the
back of the remote control.
Inserting the batteries into the remote control while pressing the O button will cause the remote control to enter pairing
mode and take a new transmission ID. This will be dierent to that previously stored on the HeartSine samaritan PAD
450P Trainer. If this occurs accidentally it will be necessary to complete the pairing procedure in full to pair the remote
control with the HeartSine samaritan PAD 450P Trainer again.
Normal battery replacement does not cause a problem since pairing is only initiated when the O button is also held
down.
HeartSine samaritan PAD 450P Trainer Conguration Tool
The HeartSine samaritan PAD 450P Trainer Conguration Tool is soware that can be downloaded for free from the HeartSine
website (heartsine.com). This soware allows you to upgrade your HeartSine samaritan PAD 450P Trainer. The following
options are available.
Language
The HeartSine samaritan PAD 450P Trainer can be reprogrammed to operate with audible prompts in any one of a
selection of languages. Download the current HeartSine samaritan PAD 450P Trainer Conguration Tool user manual
from the HeartSine website for instructions on how to do this.
Pairing a remote control with the HeartSine samaritan PAD 450P Trainer
Each HeartSine samaritan PAD 450P Trainer is operated with a specic remote control. This is to allow multiple devices to
be used in close vicinity without interference. In the unlikely event that your remote control no longer operates with your
HeartSine samaritan PAD 450P Trainer it may need to be paired with your HeartSine samaritan PAD 450P Trainer again.
The HeartSine samaritan PAD 450P Trainer Conguration Tool can be used to pair a remote control with your HeartSine
samaritan PAD 450P Trainer. Full instructions are contained within the accompanying user manual.
Device identications
Each HeartSine samaritan PAD 450P Trainer is given an identication number between 001 and 255 during manufacture.
The remote control for each HeartSine samaritan PAD 450P Trainer is then given the same identication number. In the
unlikely event that two devices with the same ID number are being used at the same time, use the HeartSine samaritan
PAD 450P Trainer Conguration Tool to assign new numbers to the devices. It will be necessary to pair the device with its
remote control aer assigning a new ID number.
Maintenance

16 heartsine.com
CPR Guidelines 2015
The following is a brief overview of the fundamentals of CPR for lay rescuers as advised by both the American Heart
Association (AHA) and theEuropean Resuscitation Council (ERC) in their 2015 published Guidelines for CPR and ECC. This is
intended only as a quick reference for trained CPR providers. HeartSine recommends that all potential users of the SAM 450P
are trained by a competent training organization in both the use of CPR and SAM 450P, prior to placing a SAM 450P into
service. Should the Guidelines change, soware will be available to upgrade the SAM 450P to comply. Please contact your
HeartSine authorized distributor or HeartSine Technologies directly.
If available use an AED.
Continue CPR until Emergency Services
arrive. Alternate with second person
aer one cycle or 2 minutes.
Perform CPR following the latest
AHA or ERC guidelines.
Perform CPR until an AED is available
OR arrival of emergency physician.
Engage other people to help you and
alternate CPR.
Watch, feel, listen.
Open the airway, check for
breathing.
CALL Emergency Services
(119/999/911 etc.).
Send for an AED.
Person not responsive?
Address person and shake on
shoulder. Call Emergency Services.
Continue until the patient starts to wake up, i.e.
moves, opens eyes and breathes normally.
If AED is available switch on and follow
instructions - AED assesses rhythm.
NO SHOCK
ADVISED
Continue CPR for
2 minutes.
SHOCK
ADVISED
DELIVER
SHOCK
Continue CPR for
2 minutes.

HeartSine samaritan PAD 450P Trainer User Manual 17
Disposal instructions
The HeartSine samaritan PAD 450P Trainer is a reusable device. If maintained in accordance with the instructions in this
manual it has a warranty period of two years from the date of manufacture.
If you wish to dispose of the HeartSine samaritan PAD 450P Trainer unit, it should be disposed of at an appropriate recycling
facility according to national, state and local requirements. Alternatively return the unit to your local distributor or HeartSine
Technologies for disposal.
Disposal within the European Union:
Do not dispose of the HeartSine samaritan PAD 450P Trainer unit as unsorted municipal waste: keep the HeartSine samari-
tan PAD 450P Trainer separate, to be reused or recycled in accordance with Directive 2002/96/EEC of the European Parliament
and the Council of the European Union on Waste Electronic and Electrical Equipment (WEEE), or return to your local distribu-
tor or HeartSine Technologies for disposal.
Warranty exclusion
HeartSine Technologies or its authorized distributors are not obliged to carry out service/repairs under warranty if:
a. Unauthorized modications have been made to the device.
b. Non-standard components are used.
c. The user has not used the device in accordance with the indications for use or the instructions provided in this manual.
d. The serial number of the apparatus is removed, defaced, misused or altered.
e. The device, electrodes or batteries are stored or used operationally outside of environmental specications.
f. The device has been tested using unapproved methods or inappropriate equipment (see the Maintenance section of this
manual).
Any claims made under warranty must be directed via your distributor from whom the device was originally purchased.
Before carrying out service under warranty, HeartSine Technologies requires evidence of purchase. The product must be used
in accordance with the User Manual and for the purpose for which it was intended. If you have any questions please contact
[e-mail] for assistance.
HeartSine samaritan HeartSine samaritan PAD 450P Trainer

18 heartsine.com

HeartSine samaritan PAD 450P Trainer User Manual 19

Preparing for Use
heartsine.com
EMEA/APAC
HeartSine Technologies, Ltd.
203 Airport Road West
Belfast, BT3 9ED
United Kingdom
Tel: [phone]
Fax: [phone]
© 2019 HeartSine Technologies.
All rights reserved.
Made in U.K.
H041-019-300-3 US
For further information contact us at [e-mail] or visit our website at heartsine.com.
U.S./Latin America
Customer Support
11811 Willows Road NE
Redmond, WA, 98052 U.S.A.
Toll Free: 866 478 7463
Tel: [phone]
Fax: [phone]
