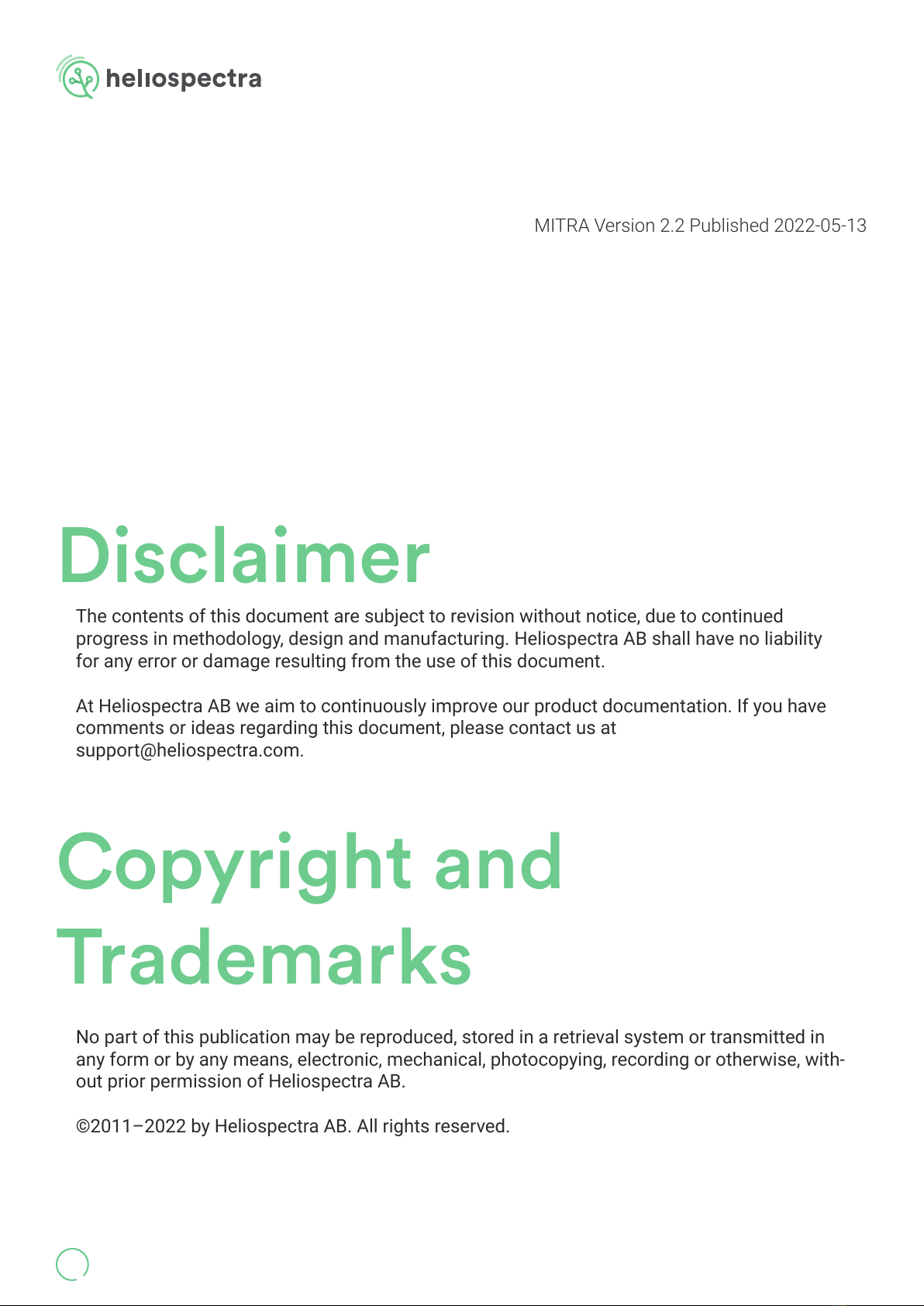

Disclaimer
Copyright and
Trademarks
The contents of this document are subject to revision without notice, due to continued
progress in methodology, design and manufacturing. Heliospectra AB shall have no liability
for any error or damage resulting from the use of this document.
At Heliospectra AB we aim to continuously improve our product documentation. If you have
comments or ideas regarding this document, please contact us at
[e-mail].
No part of this publication may be reproduced, stored in a retrieval system or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording or otherwise, with-
out prior permission of Heliospectra AB.
©2011–2022 by Heliospectra AB. All rights reserved.
MITRA Version 2.2 Published 2022-05-13
www.heliospectra.com
2

When unpacking the luminaire make sure to have a
sturdy surface to work on. Damage to the unit can occur if
dropped.
Do not immerse the xture in water or clean the xture
with a high pressure water jet or strong detergents.
Never operate the xture with the lens directly on a at
surface (e.g. table) as this may damage the lens. A
minimum distance of 0.2m/8in should be kept to other
objects.
The product is for indoor use only.
Always allow a free ow of air around the xture.
This xture may only be serviced by a trained technician.
In the case of a suspected malfunction contact your
distributor or Heliospectra directly.
The light source contained in this luminaire shall only be
replaced by the manufacturer or his service agent or a
similar qualied person.
The luminaire should be positioned so that prolonged
staring into the luminaire at a distance closer than 1 me-
ter/ 40 inches is avoided.
Do not stare into the light source. LED grow lights may
contain potentially harmful light radiation. Please use UV
blocking eye-wear when working in and around the
illuminated area.
Only connect the xture to properly grounded mains that
complies with the voltage rating on the xture (see power
label).
Only operate the xture with an undamaged power cord,
power plug and electrical outlet.
Never unplug the xture by pulling on the power cord.
For proper performance of the unit the ambient air
temperature shall be no higher than 40° C.
Quand vous déballez le luminaire assurez-vous d’avoir une
surface solide sur laquelle travailler. L’appareil peut être
endommagé si on le fait tomber.
N’immergez pas l’appareil dans l’eau et n’essayez pas de le
nettoyer avec un jet d’eau à haute pression.
Ne pas mettre en marche l’appareil avec la lentille posée à
plat sur quelconque surface (par exemple : une table), cela
pourrait l’endommager.
Le produit ne s’utilise qu’en intérieur.
Assurez-vous qu’il y ait un minimum d’air autour de
l’appareil.
Cet appareil ne peut être entretenu que par un technicien
expérimenté. Si vous avez un soupçon sur le mauvais
fonctionnement de celui-ci, contactez votre distributeur ou
Heliospectra directement.
La source de lumière contenue dans ce luminaire ne
doit-être remplacée que par le fabricant ou ses agents de
services ou une personne similaire qualiée pour le faire.
Le luminaire doit être positionné de telle sorte que le xer
longuement à une distance d’1 mètre/ 40 pouces soit
évité.
Ne pas xer la source de lumière. Les éclairages LED
pourraient potentiellement contenir des radiations
lumineuses nocives. Portez des lunettes anti-rayons UV
quand vous travaillez sous ou à proximité de l’endroit
éclairé.
Ne connectez l’appareil que sur une prise reliée à la terre et
dont le voltage correspond à celui de l’appareil.
L’appareil doit être mis en marche avec rien d’autre qu’une
prise, un cordon électrique ou une prise secteur non
endommagés.
Ne jamais déconnecter l’appareil en tirant sur le cordon
électrique.
Pour une utilisation optimale de l’appareil, la température
ambiante ne doit pas dépasser 40°C.
Precautions
Our product is an advanced and safe LED
xture. However, for proper operation and for
your safety, please read and follow the below
precautions:
Le produit est un appareil moderne et sûr.
Mais pour une bonne utilisation et pour votre
sécurité, veuillez lire les informations ci-des-
sous :
MITRA User Manual
V. 2.2
3

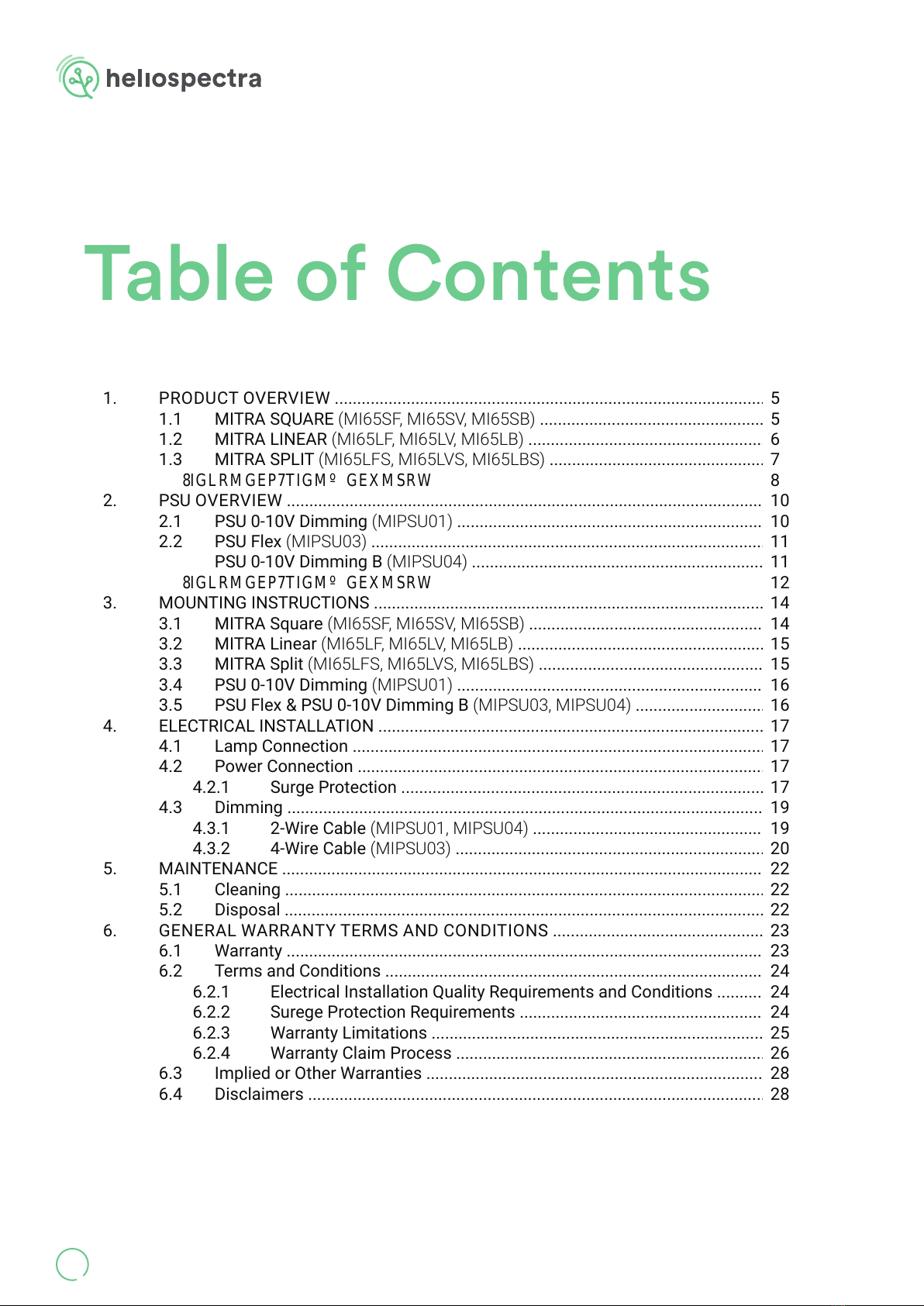

Table of Contents
1. PRODUCT OVERVIEW ....................................................................................................
1.1 MITRA SQUARE (MI65SF, MI65SV, MI65SB) ......................................................
1.2 MITRA LINEAR (MI65LF, MI65LV, MI65LB) ........................................................
1.3 MITRA SPLIT (MI65LFS, MI65LVS, MI65LBS) ...................................................
 1.4 TechnicalSpeci…cations..................................................................................
2. PSU OVERVIEW ..............................................................................................................
2.1 PSU 0-10V Dimming (MIPSU01) ........................................................................
2.2 PSU Flex (MIPSU03) ............................................................................................
PSU 0-10V Dimming B (MIPSU04) .....................................................................
 2.3 TechnicalSpeci…cations.....................................................................................
3. MOUNTING INSTRUCTIONS ...........................................................................................
3.1 MITRA Square (MI65SF, MI65SV, MI65SB) .........................................................
3.2 MITRA Linear (MI65LF, MI65LV, MI65LB) ............................................................
3.3 MITRA Split (MI65LFS, MI65LVS, MI65LBS) ........................................................
3.4 PSU 0-10V Dimming (MIPSU01) ......................................................................
3.5 PSU Flex & PSU 0-10V Dimming B (MIPSU03, MIPSU04) .................................
4. ELECTRICAL INSTALLATION .........................................................................................
4.1 Lamp Connection .............................................................................................
4.2 Power Connection ............................................................................................
4.2.1 Surge Protection .......................................................................................
4.3 Dimming .............................................................................................................
4.3.1 2-Wire Cable (MIPSU01, MIPSU04) ....................................................
4.3.2 4-Wire Cable (MIPSU03) .......................................................................
5. MAINTENANCE ..............................................................................................................
5.1 Cleaning ............................................................................................................
5.2 Disposal ............................................................................................................
6. GENERAL WARRANTY TERMS AND CONDITIONS ...................................................
6.1 Warranty .............................................................................................................
6.2 Terms and Conditions ..........................................................................................
6.2.1 Electrical Installation Quality Requirements and Conditions ................
6.2.2 Surege Protection Requirements ........................................................
6.2.3 Warranty Limitations ............................................................................
6.2.4 Warranty Claim Process ......................................................................
6.3 Implied or Other Warranties .................................................................................
6.4 Disclaimers ...........................................................................................................
5
5
6
7
8
10
10
11
11
12
14
14
15
15
16
16
17
17
17
17
19
19
20
22
22
22
23
23
24
24
24
25
26
28
28
www.heliospectra.com
4

NOTE!
When unpacking and installing your MITRA make sure to have a sturdy surface to work on.
Damage can occur to the light bar if dropped.
1. Product Overview
Heat Sink
Side Mounts
Screw Cover
Lens
0.5m
0.5m
0.5m 0.5m 0.5m 2m
0.5m
LED Light Module
Center prole
Side mount Cable T-connector
0.5m0.5m
0.5m 0.5m
1m
1.5m
Linear MITRA
Split Linear MITRA
Square MITRA
Side mount Cable T-connector
0.5m
0.5m
0.5m
0.5m
0.5m
0.5m
2m
LED Light Module
Side mount
Cable T-connector
LED Light Module
0.1m
1.8m
MITRA X
LED Light Module
PSU connector
PSU connector
PSU connector
PSU connector
1.1 MITRA Square
(MI65SF, MI65SV, MI65SB)
630 mm / 24.8 in
88 mm
3.5 in
580 mm
22.8 in
Top view Front view

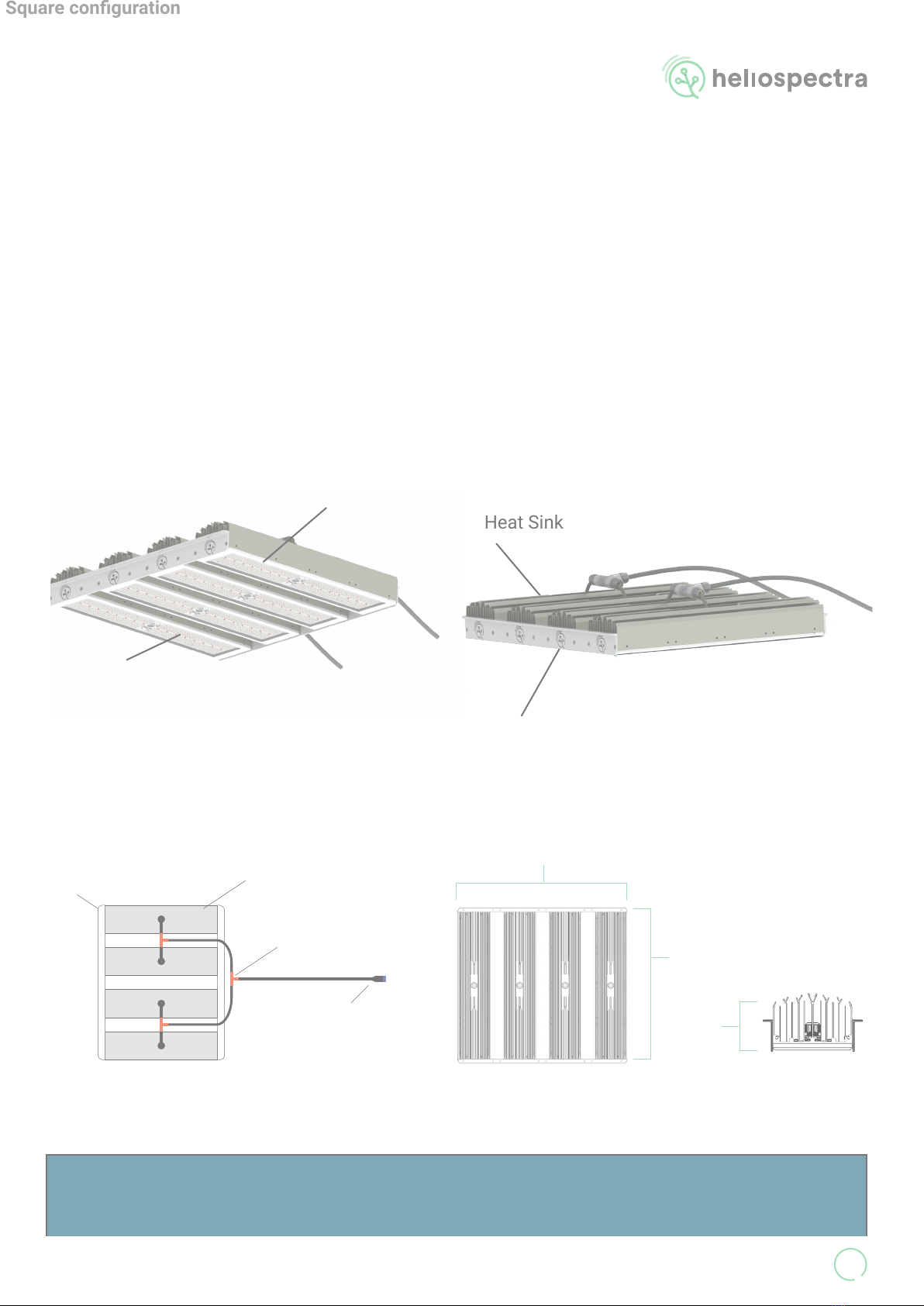

Square conguration
MITRA User Manual
V. 2.2
5
Square conguration

NOTE!
When unpacking and installing your MITRA make sure to have a sturdy surface to work on.
Damage can occur to the light bar if dropped.
0.5m
0.5m
0.5m 0.5m 0.5m 2m
0.5m
LED Light Module
Center prole
Side mount Cable T-connector
0.5m0.5m
0.5m 0.5m
1m
1.5m
Linear MITRA
Split Linear MITRA
Square MITRA
Side mount Cable T-connector
0.5m
0.5m
0.5m
0.5m
0.5m
0.5m
2m
LED Light Module
Side mount
Cable T-connector
LED Light Module
0.1m
1.8m
MITRA X
LED Light Module
PSU connector
PSU connector
PSU connector
PSU connector
1.2 MITRA Linear
(MI65LF, MI65LV, MI65LB)
C-hook
Heat Sink
Side Mounts
Lens
1100 mm / 43.3 in
88 mm
3.5 in
340 mm
13.4 in
Top view
Front view
140 mm
5.5 in
Linear conguration
www.heliospectra.com
6

NOTE!
When unpacking and installing your MITRA make sure to have a sturdy surface to work on.
Damage can occur to the light bar if dropped.

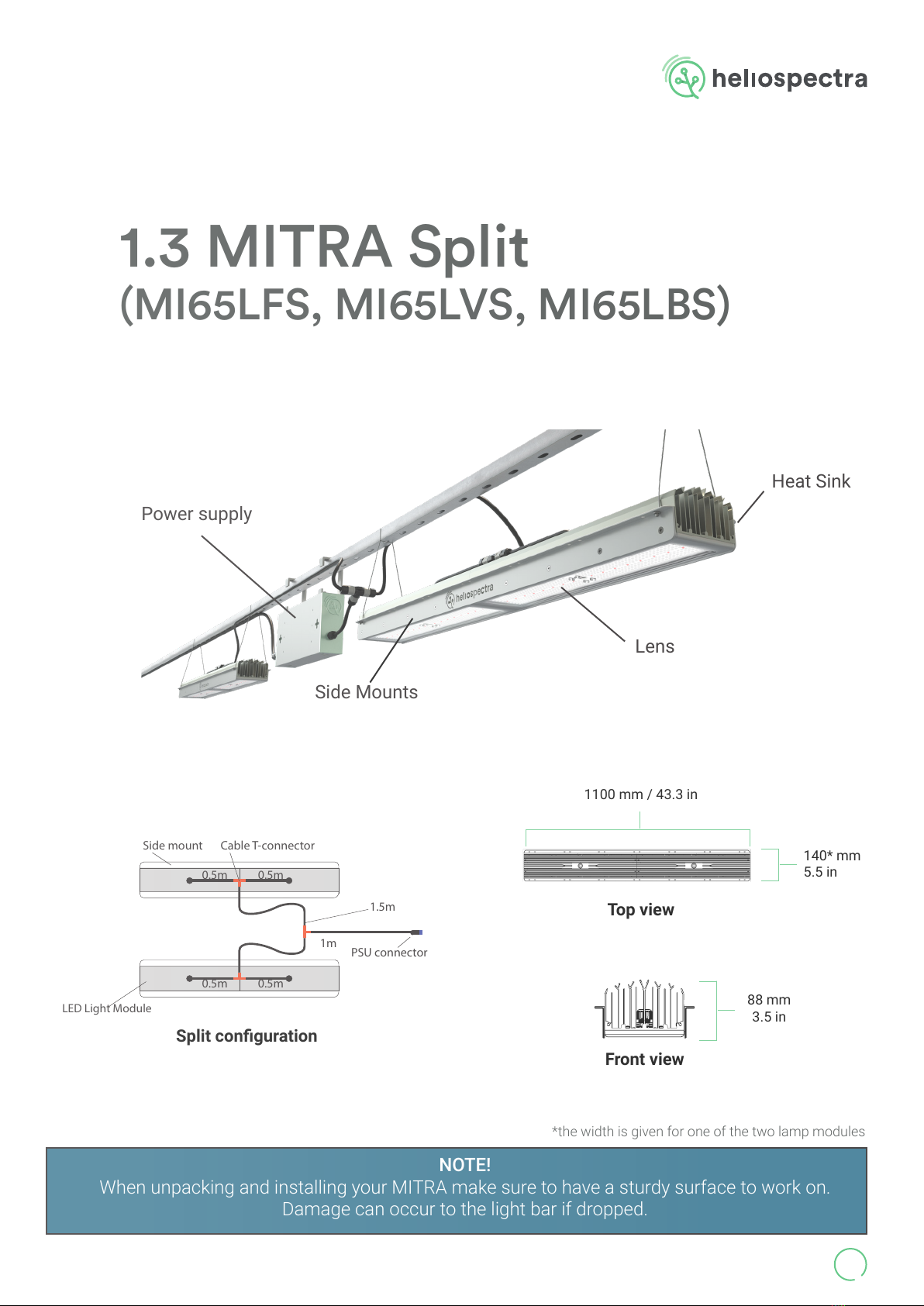

1.3 MITRA Split

(MI65LFS, MI65LVS, MI65LBS)
Heat Sink
Side Mounts
Lens
0.5m
0.5m
0.5m 0.5m 0.5m 2m
0.5m
LED Light Module
Center prole
Side mount Cable T-connector
0.5m0.5m
0.5m 0.5m
1m
1.5m
Linear MITRA
Split Linear MITRA
Square MITRA
Side mount Cable T-connector
0.5m
0.5m
0.5m
0.5m
0.5m
0.5m
2m
LED Light Module
Side mount
Cable T-connector
LED Light Module
0.1m
1.8m
MITRA X
LED Light Module
PSU connector
PSU connector
PSU connector
PSU connector
1100 mm / 43.3 in
88 mm
3.5 in
140* mm
5.5 in
Top view
Front view
*the width is given for one of the two lamp modules
Power supply
Split conguration
MITRA User Manual
V. 2.2
7

MITRA SQUARE
(MI65SF, MI65SV, MI65SB)
MITRA LINEAR
(MI65LF, MI65LV, MI65LB)
Physical
Size (LxWxH) 580 x 630 x 88 mm
(22.8 x 24.8 x 3.5 in)
1100 x 340 x 88 mm
(43.3 x 13.4 x 3.5 in)
Weight 12 kg (26.5 lbs)
excl. power supply
13,5 kg (29.8 lbs)
excl. power supply
Mounting Hole Prole C-Bracket
Electrical
PSU Compatability MIPSU01, MIPSU03, MIPSU04 MIPSU01, MIPSU03, MIPSU04
Typical Power
Consumption 0-650 W 0-650 W
General
Temperature Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Heat Value (BTU/h) Up to 2218 BTUs/h Up to 2218 BTUs/h
IP Rating IP67 IP67
Lifetime >46 000 h
(rated life to 90% of initial photon ux)
>46 000 h
(rated life to 90% of initial photon ux)
Controllable 0-10VDC, 10V PWM signal or WiFi* (depending on PSU)
Cooling Passive - Convection cooled Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic
glass
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic
glass
Compliance CE, cETLus, and Damp Location CE, cETLus, and Damp Location
1.4 Technical Specications
*Requires the Adelphi wireless connector
*the width is given for one of the two lamp modules
**Requires the Adelphi wireless connector
www.heliospectra.com
8

MITRA SPLIT
(MI65LFS, MI65LVS, MI65LBS)
Physical
Size (LxWxH)* 1100 x 140 x 88 mm
(43.3 x 5.5 x 3.5 in)
Weight 13.5 kg (29.8 lbs)
excl. power supply
Mounting Hole Prole
Electrical
PSU Compatability MIPSU01, MIPSU03, MIPSU04
Typical Power
Consumption 0-650 W
General
Temperature Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Heat Value (BTU/h) Up to 2218 BTUs/h
IP Rating IP67
Lifetime >46 000 h
(rated life to 90% of initial photon ux)
Controllable 0-10VDC, 10V PWM signal or WiFi** (de-
pending on PSU)
Cooling Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic glass
Compliance CE, cETLus, and Damp Location
*the width is given for one of the two lamp modules
**Requires the Adelphi wireless connector
MITRA User Manual
V. 2.2
9

2. PSU Overview
2.1 PSU 010V DIMMING
(MIPSU01)
A
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
N N
P P
R R
T T
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
70 mm / 2.8 in
426 mm / 16.8 in
180 mm
/ 7.1 in
Power Cable
Lamp Cable
Dimming Cable
300 mm / 11.8 in
200 mm / 7.9 in
1800 mm
/ 70.9 in
Plus hole
Side view Front view
www.heliospectra.com
10

2.2 PSU Flex (MIPSU03) & PSU
010V DIMMING B MIPSU04
380 mm / 15 in
60 mm / 2.4 in
210 mm /
8.3 in
Power Cable
1800 mm / 70.9 in
Lamp Cable
200 mm / 7.9 in (MIPSU04)
500 mm / 19.7 in (MIPSU03)
Dimming Cable
300 mm / 11.8 in
Top view
Front view
Side view
MITRA User Manual
V. 2.2
11

PSU 0-10V DIMMING
(MIPSU01)
PSU FLEX
(MIPSU03)
Physical
Size (LxWxH) 426 x 180 x 70 mm
(16.8 x 7.1 x 2.8 in)
380 x 210 x 60 mm
(15.0 x 8.3 x 2.4 in)
Weight 6 kg (13.2 lbs)
excl. power supply
4 kg (8.8 lbs)
excl. power supply
Mounting Plus holes Chain
Electrical
Voltage Range 200 - 480 VAC 200 - 480 VAC
Frequency 50/60 Hz 50/60 Hz
Typical Power
Consumption 0-650 W 0-650 W
General
Temperature Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
IP Rating IP67 IP67
Lifetime >218 000 hrs >218 000 hrs
Controllable 0-10VDC or 10V PWM signal 0-10VDC, 10V PWM signal or WiFi*
Cooling Passive - Convection cooled Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum Anodized Aluminum
Compliance CE, cETLus, and Damp Location CE, cETLus, and Damp Location
2.3 Technical Specications
*Requires the Adelphi wireless connector
www.heliospectra.com
12

PSU 0-10V DIMMING B
(MIPSU04)
Physical
Size (LxWxH) 380 x 210 x 60 mm
(15.0 x 8.3 x 2.4 in)
Weight 4 kg (8.8 lbs)
excl. power supply
Mounting Chain or C-hook*
Electrical
Voltage Range 200 - 480 VAC
Frequency 50/60 Hz
Typical Power
Consumption 0-650 W
General
Temperature Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
IP Rating IP67
Lifetime >218 000 hrs
Controllable 0-10VDC or 10V PWM signal
Cooling Passive - Convection cooled
Housing
Material Anodized Aluminum
Compliance CE, cETLus, and Damp Location
MITRA User Manual
V. 2.2
13

3.1 MITRA Square
(MI65SF, MI65SV, MI65SB)
The support structure needs to be sturdy enough to support the weight of the MITRA lamps, their
power supply and any additional equipment. None of the power cables can be used to support the
weight of the xture.
Air must be able to ow freely around the MITRA xture and power supply, they are cooled using
passive, convection cooling.
Hole Prole
MITRA Square xtures are equipped with a hole
prole from which the xture can be hung off-the-
shelf hooks and chains.
The hole diameter is 5 mm (0.19 in).
NOTE: I-hooks and chains are not included.
3. Mounting Instructions
NOTE. Heliospectras recommendation for installations using chain:
• Welded chain with a diameter of 2-3 mm (1/16 - 1/8 in)
• Working load limit: Minimum 4 times the total weight of the equipment
www.heliospectra.com
14

Hole Prole
MITRA Split xtures are equipped with a hole
prole from which the xture can be hung
with off-the-shelf chains/wires and hooks.
The hole diameter is 5 mm (0.19 in).
3.2 MITRA Linear
(MI65LF, MI65LV, MI65LB)
Pre-mounted C-brackets
MITRA Linear xtures are delivered with
pre-mounted C-brackets for mounting from
Unistrut proles or similar.
The inner width of the C-bracket is 42 mm
(1.65 in).
3.3 MITRA Split
(MI65LFS, MI65LVS, MI65LBS)
MITRA User Manual
V. 2.2
15

3.4 PSU 0-10V Dimming
(MIPSU01)
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:4.5:1 SHEET 2 OF 2
A0
WEIGHT:
MITRA manual PSU closeup
MITRA PSU
Standard
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
N N
P P
R R
T T
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Cross Hole prole
PSU 0-10V Dimming (MIPSU01) has pre-cut holes on the top and
the back to allow for tting a hanging apparatus of your choice.
Make sure to use both holes on the top or both holes at the back so
that the power supply unit is equally suspended from both ends.
Note: I-hooks are not included.
3.5 PSU Flex (MIPSU03) &
PSU Dimming B (MIPSU04)
Chain Mounting Prole
PSU Flex (MIPSU03) and PSU 0-10V Dimming
B (MIPSU04) have backplates which are pre-
pared for mounting with off-the-shelf chains.
Make sure to select a chain of such quality that
it can support four times the load from the PSU.
The maximal chain diameter is 3 mm (0.12 in).
Note: Chains are not included.
One-point chain mounting. Two-point chain mounting.
www.heliospectra.com
16

NOTE!
All electrical installation should be done by a qualied electrician.
4. Electrical Installation
The PSUs lamp cable is equipped with a larger, black quick connector which should be connected to
the lamps PSU connector.
4.1 Lamp Connection
The PSUs input power cable is open ended with three internal cables:
• Blue: Neutral / N
• Brown: Phase 1 / L
• Green and Yellow: Protective earth / ground
4.2 Power Connection
4.2.1 Surge Protection
Heliospectra AB requires that the xtures are installed with adequate surge protection according
to the local recommended practice. In North America IEEE 1100-2005 contains the recommended
practice for powering and grounding electronic equipment. In Europe the applicable standard is IEC
62305 – Protection Against Lightning. If you are outside of North America or Europe please use your
local standard.
MITRA User Manual
V. 2.2
17

All installations should utilize surge protection devices (SPDs), to provide maximum protection
regardless of the source of the surge. The three zones include:
• The rst zone is at the service entrance where the most robust SPD is placed to divert surges
coming from external sources such as lightning. SPDs installed here are listed as Type-1, SPD
devices.
• The second zone of protection is within the facility at locations identied as susceptible to surg-
es. SPDs at these locations are listed as Type-2, SPD devices and are installed on equipment such
as switchboards, panel-boards, motor-control centers.
• The third zone of protection is at the outlet or point of use. SPDs installed here are listed as
Type-3, SPD devices.
It is required that a professional engineer, experienced with surge suppression
technology, be retained to design the protection system for your facility to ensure all SPDs are
properly sized and coordinated.
Third zone
First zone
Second zone
www.heliospectra.com
18

4.3 Dimming
4.3.1 2-Wire Cable (MIPSU01, MIPSU04)
The dimming cable has a black connector which is meant to be connected
to your preferred dimming solution. This cable has two internal wires for dimming:
Blue: DIM+
White: DIM-
MITRA User Manual
V. 2.2
19

4.3.1 4-Wire Cable (MIPSU03)
The dimming cable has a black quick connector which is meant to be connected
to your preferred dimming solution. This cable has four internal wires, two for dimming and
two for an extra supply of your dimming equipment. The supply is at a 12v and is limited to 200mA
of current.
Pinout of DIM connector:
1. DIM+
2. DIM-
3. +12V AUX
4. GND AUX
www.heliospectra.com
20
