HELLER ACH1 User manual

SPLIT TYPE WALL MOUNTED
AIR-CONDITIONER
INSTRUCTIONS
Please pay attention to the following:
The installation should be carried out by licenced
electrician
In order to use it safely, correctly and efficiently,
please read the instructions carefully and keep the
instructions for reference in the future.
Thank you for you purchasing our air conditioner.
Make sure of grounding connection of the air
conditioner
Model:ACH1 / ACH25

CONTENTS
Specifications -----------------------------------------------------------1
Parts Description--------------------------------------------------------2
-------------------------------------------------------2
Usage -------------------------------------------------------------------3
--------------------------------------------3
------------------------------------------3
Items of attention-------------------------------------------------------4
Maintenance ------------------------------------------------------------6
Installation --------------------------------------------------------------10
--------------------------------------------4
--------------------------------------------------5
--------------------------------------------------10
------------------------------------------------10
---------------------------------------------------10
---------------------------------------------------------4
Outdoor Unit
Remote controller usage
Hand control operation
Checking before usage
Optimal operation
Failure type and methods of resolution
Non-air conditioner trouble
Cleaning
Maintenance
Guide of customer
Installation position
Items of attention
---------------------------6
---------------------------------------7
------------------------------------------------------------9
--------------------------------------------------------9
-------------------------------------------------3
Working condition
Safety rules

9.52 0.6
300 800 690
312 1095 205
Specifications
1
1PH 220V-240V /50Hz
Indoor
unit
Outdoor
unit
Specification and
Length of connecting
pipe (mm)
Size of shape(mm)
(thickness width heigh)
Noise dB (A)
Size of shape(mm)
(thickness width heigh)
Noise dB (A)
Liquid tube
Vapour tube
210 745 250
260 760 540
Power source (V/Hz)
Rated input
power (W)
Rated input
current (A)
Input power under worst conditions (W)
Input current under worst conditions (A)
Name of refrigerationmaterial
Cooling
Heating
Cooling
Heating
R22
Cooling capacity (W)
Circulating wind quantity
Heating capacity (W)
(m /h)
3
6.35 0.6
9.52 0.6
30 40
50
780
820
3.5
3.7
1300
6.2
2750
420
2500
ACH1 ACH25
45~50
57
2260
2310
10.2
10.4
3000
13.5
6900
1050
6500
Suitable room area (m )
2
12~20 35~47
15.88 0.75
F3.15AL(250V 3.15A)
Type of the fuse
Note:1,Specifications are standardvalues calculated based on rated operatingconditions,they
will vary indifference working condition.
2,Due to quicktechnical improvements.There will be no priornotice for anychange of
technical data.Please readthe nameplate on the air-conditioner.
3,All specification shouldbe changed without notice,there are thelatest and accurate
specifications on thenameplate of your air conditioner
4,Rated value istested under 27/19(In.) 35/24(Out.) 20/15(In.) 7/6(Out.).
1
Model No

Indoor Unit
Indoor Unit
Outdoor Unit
Installation board
Middle frame
Indication light andsignal receiver
Front panel
Horizontal airflow directionvane
Vertical airflow directionvane(inner)
Air filter
Drain pipe
Pipe and Drainpipe
Cut-off valve
Outlet cover
Note:
Figure 1 isfor illustration only.
Please refer toproduct gift box
for actual productsappearance.
11
12
Outdoor Unit
Parts Description
2
1
Fig.1
Pipe protection ring

Usage

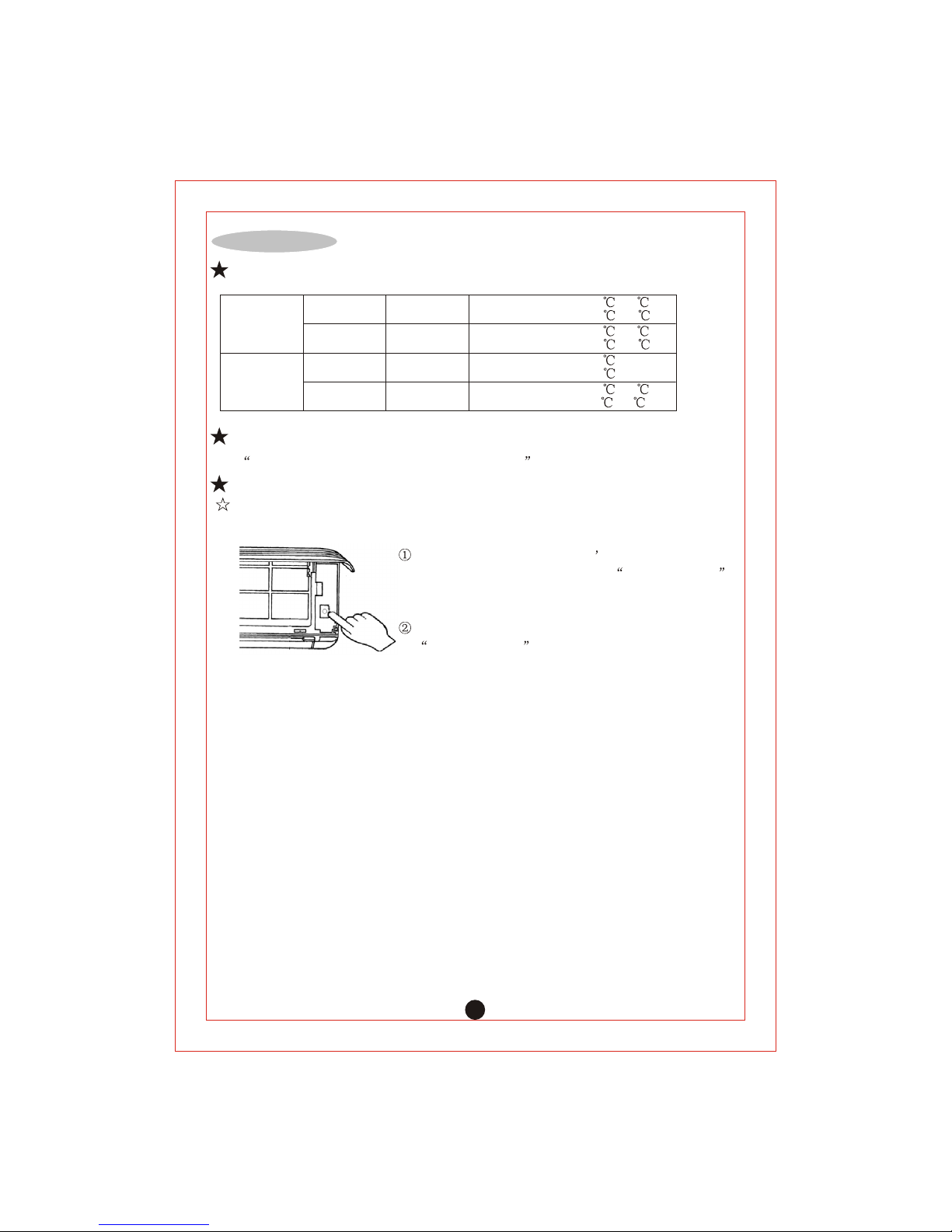

Working condition
Remote controller usage
Hand control operation
See Air-conditioner Remote Controller Instruction
Forced operation
In case the remote controller isn t available ,and the air-
conditioner is operating. Press the forced operation
button to make it stop. Press and hold the button for one
it starts to operate.second ,
In case the remote controller does not work, press the
forced operation button,which is an automatic
The airflow direction is adjusted automatically.operation.
3
Cooling
Heating
Indoor
Outdoor
Indoor
Outdoor
Maximum:
Minimum:
Maximum:
Minimum:
Maximum:
Minimum:
Maximum:
Minimum:
DB/WB
DB/WB
DB/WB
DB/WB
DB/WB
DB/WB
DB/WB
DB/WB
32 /23
43 /26
27 -
24 /18
21 /15
21 /15
20 -
-5 /-6

4
Wind directionadjusting
1.Horizontal wind directionadjusting
Use hands tomove the vaneand change the
horizontal wind direction.
Note:
Adjust the horizontalwind direction beforethe
air-conditioner starts. Don t insertyour finger
into air-out window when theair-conditioner is operating.
2.Verticalwind direction adjusting
Refer to Remote Controller Usage Instruction for how toadjust vertical winddirection
through adjusting thehorizontal airflow vaneby remote controller.
Note
Adjust the verticalwind direction byremote controller. When youadjust the horizontal
airflow vane byhand, the machinemay cause problem.
When the air-conditioner stops, the horizontal wind vanewill close the wind outlet ofair-
conditioner.
Please read thisinstruction before using theair-conditionerand follow
the instr ction. Otherwise, itmay cause damageto the air-conditioner or
to the otherperson s safetyand property.
carefully
u
Items of attention
Make sure thatair outlet and inlet are notblocked.
The earth wireis connected safely and reliably.
The filter netis properly fixed.
If the unitis not in use for along time, please clean the filternet before starting the
see Maintenance for how tooperate.air-conditioner,
Checking before usage
Set the suitabletemperature, especially when there are old people, childrenand patients
in the room.
In the casethe air-conditioner occurs closing downor gash due to the severeinterference
from outer environmentssuch as auto and mobile phoneetc.,please take off the plug and
then plug inafter several seconds to restart theair-conditioner.
Installation should alwaysbe carried out by specialist.The customers should not install
the air-conditioner by themselves, Otherwise, it maycause damage to the air-conditioneror
to the otherperson s safety and property.
In order toproperly use the air-conditioner ,pleasefollow the Working condition in the
instructions, otherwise, itmay activate the inside protection, orlead to weeping, or
decrease the cooling/heatingefficiency.
Note
Safety rules
Generally ,keep thetemperature difference between the insideand outside
within 5 .

5
Make sure that air outlet and inlet
are not blocked, or it may decrease
the efficiency of the air-conditioner,
even stops the operation of the system.
If the air filter is blocked, the cooling
or heating capacity will be affected.
Please regularly clean the air filter.
The power switch should be placed
out of the reach of child to prevent the
child from the danger of electric shock.
Warning
In lighting storm weather, please cut off the
primary power supply switch in order to
prevent the machine from damage.
If the unit is not in use for a long time, please
cut off the primary power supply switch to
avoid incident.
Liquid detergent or corrosive detergent
should not be used for cleaning the machine
and sprinkle water or other liquid onto it .
Otherwise it may result in damages on the
plastic components of the case, even electric
shock.
ÉÁ
µç
ÉÁ
µç
Set the suitable temperature for a comfortable environment. Don t make the room too cold
or too hot.
During the cooling operation, don t allow the
sunlight to come into the room, please pull
down the blinds or curtains
Close the windows and doors. Otherwise,
it will decreases its cooling or heating capacity.
Please set the scheduled operation time with the remote controller.
Pay attention to the following items so as to ensure optimal operation of the system, detailed
operation see the relevant content.
Optimal operation
Cut off the
power supply
switch

In case th t abnormal phenomenonoccurs
such as unusualnoise, smoke or electric leakage
etc.,please immediately cutoff the power supply
and then contactwith the local distributor
don t tryto repair it by yourself.
a
Keep the indoorunit and the remote
controller dry toavoid short circuit ,
even fire accident.
Don t useand store flammable gas or liquid
such as fixature,paintor gasoline close to the
air-conditioner to avoid fire hazard.
Don t touchthe swinging wind vanes,
or it mayclamp your finger and damage
the driving partsof the wind vanes.
Don t splitthe fan cover to avoid thepossible injury by the rotating fanat high speed.
Don t letthe child touch the air-conditionerto avoid the possible danger.
,
,
,
,
,
Don t putyour hand or stick-shaped objects
into the airoutlet of the indoor and outdoor
unit, otherwise, therotating fan at high speed
may cause injuryto you.
Danger
,
Danger
Do not pull out the power cord,
The damage of power cord will
cause serious electric shock.
Do not operatewith wet hands or
in damp environment.it will cause
electric shock.
Electric
shock
In case the following situation, please immediately stop the operation of the air-conditioner
and cut off the power supply, then contact distributor.
Failure
type
Maintenance
Failure type and methods ofresolution
The RUN light or other display light flashes rapidly and keep flashing after the
plug is taken off and then plugged in.
The fuse blows repeatedly or the circuit breaker is activated repeatedly.
The remote controller does not work or the switch operates unusually .
Outside object or water comes into the air-conditioner.
Other abnormal phenomenon.
6

7
In case the following situations, please deal with it according to the following methods, if
it does not work, please contact distributor and inform the detailed failure.
The wind
blowing
out,but the
cooling/
heating
effect is
bad
The wind
blowing
out,but it
does not
refrigerate
Failure
Start-up
failure
The air inlet or outlet of machine is blocked
The air inlet or outlet of machine is blocked
Compressor has three min tes protectionu
It doesn treach the settime for start up
Mistakes in temperaturesetting
The air filteris blocked bydust
The doors orwindows are open
Mistakes in temperaturesetting
The power switchis released
The battery isexhausted
Power supply failure
The fuse isburnt
Causes
,
Wait for the recoveryof power supply
Wait or eliminate theoriginal setting
Remove the obstruction,then restart it
Set a propertemperature, see the
methods of application
Close the doorsand windows
Set a propertemperature
Remove the obstruction
Switch on thepower
Replace the battery
Clean the airfilter
Replace the fuse
Wait
Methods of resolution
The normal protectionsof the air-conditioner
1.Compressor protection
The compressor willnot restart within 3 minutes afterstop operating
the heating operationjust starts frost dissolving operation
operating under lowtemperature
Cold wind prevention(heat pump type )
Non-air-conditioner trouble
In the heatingmode, the indoor unit won tsend wind oroperate in low wind ,if theheat
exchanger of indoorunit has not reached the stipulatedtemperature in thefollowing
three states, soas to prevent the cold wind.
,
Frost dissolving operation(hot pump type )
The fan of the indoorand outdoor unit will stop underfrost dissolving operation.
The time for frost dissolvingvaries in range of 4 to10 minutes accordingto the out-
door temperature andthe frost condition.
It is normalphenomenon that there may be steamcoming out fromthe outdoor unit
during the frostdissolving operation.
When the temperatureis low and humidity is highoutdoors, the heatexchanger of
outdoor unit mayfrost, which may decrease the heatingcapacity. In such case,the air-
conditioner will stopthe heating operation and convert toautomatic frost dissolving,
and then resumeheating after the frost dissolving finishes.
,

8
When the outdoortemperature falls, the heating capacity decreaseaccordingly because the
heat absorbed fromoutdoors decreases (See the figure atthe right).At the same time, the
temperature difference between indoors andoutdoors is enlarged, so thatthe heating load
increase accordingly.If the air-conditioner can not reach a satisfactoryeffect, it is
recommended that otherheating devices be used together.
2.White steam comesout from the indoor unit
During the coolingoperation ,under high relative humidity indoors,white steam may come
out due tothe high humidity and temperature difference of airinlet and outlet.
The air-conditioner convert to heatingoperation after thefrost dissolving, the moisture
(due to frostdissolving) is discharged in formof steam.
3.High noise duringoperation
4.Dust is blownout from the indoor unit
5.The peculiar smellemanates from indoor unit
6.Cooling /Heating (notfor cold wind type) operation convertsto only wind mode.
7.If you selectthe cooling operation in a relativelydamp environment (relative humidity
is higher than80%),dew may be formed over thesurface of indoor unit and drop.In such
a case, pleaseadjust the vertical wind vanes toits maximum ventilation position(i.e.,close
to the positionnormal to the horizontal direction)and choose to improve thedew
phenomenon.
high
When the air-conditioner is used the first timeafter being leftunused for a long time, the
dust inside theindoor unit will be blown out.
The s ell which absorbed from room, furniture,clothing or cigaretteemanates during the
air-conditioner is operating.
m
When the indoorunit reaches the stip lated temperature, theair-conditioner will stop the
operation of compressorand convert to only wind mode.The compressor will restart
cooling or heatingafter the room temperature rise ordrop to a certain degree.
u
When the compressoris operating or just stops operation,fizzle may be heard because of
the refrigerant flowor stop flowing.
After the air-conditioner operates or stops for awhile, crackle fromthe naturel expansion
and contraction ofthe plastic components may be heardbecause of temperature variation.
When the air-conditioner is energized for thefirst time, sound from friction maybe heard
because of therotating of wind wave.
8.Heating operation (heatpump type )
During the heatingoperation ,the heat pump of
air-conditioner operates with the principleof
absorbing heat outdoorand release heat indoor.
Heating capacity
High
Low
High Low
Outdoor temperature
11
9.The power cableshould be H05VV-F.The connecting cable should beH07RF.

9
2.Use vacuum cleanersor water to clean the airfilter, then dry it ina dark and cool place.
3.Insert the upsideof air filter into the machineuntil being entirelyfixed, close the front
panel and tightenit.
After the air-conditioner is left unused for along period ,checkthe inlet andoutlet of
indoor and outdoorunit for any possible blockage, ifany, please clean it.
Before the air-conditioner will be left unused fora long period,please make the
following preparation.
For the purposeof safety, please turnoff theair-conditioner and cut off the power supply
before cleaning.
If the airfilter is cover by dust, thecooling effect will be decreased.Please regularly
clean the airfilter.
1.Raise up thefront panel of indoor unit untilit suddenly stops;then raise up the protruded
part of airfilter and pullit out downwards.
Don t usededusting products by chemicals or placeclose to themachine.
3.The panel ofindoor machine may be taken off. Dry itafter cleaning withwet cloth.
2.If the indoorunit is very dirty, please wipe withwet cloth dippedby cold water.
Don t useharsh chemicals or abrasive cleaners onany part ofthe unit.
1.Wipe theindoor unit withdry cloth .
Cleaning the indoorunit
Cleaning air filter
Maintenance
Warning:
Cleaning
Note :
Front panel
Air filter
1.Select the circulation operation
mode,make the air-conditioner run
for a longtime
to dry.
2.when stop operation,Cut off the power
supply
4.The inner componentsof the outdoor
unit should beregularly checked and cleaned.
3.Take out the batteryin the
remote controller.

Installation
The machine mustbe installed correctly by according to thelicenced electrician
Guide of customer
Installation position
Items of attention
The customer shouldhave a qualified power supply coincidentwith the tagof the air
conditioner, itsvoltage should bein the range of 90-110%of its rated voltage.
The power supplycircuit should have leakage protector andair switch ofwhich the
capacity should bemore than 1.5 times of themaximum current.
Must use specialcircuit and efficient grounding socketmatching with the plug of air-
conditioner.
The wiring mustbe done by qualified electrician accordingto the electricalsafety
requirements.
The air-conditioner must be wellgrou ded, the switchof the main power of air-
conditioner must bereliably grounded.
n
Don t pullthe power supply wire.
Fix the machinefirmly, otherwise it will produce noise andvibration.
Install the outdoor unit where it will not disturb your neighbor.
See Installation Instruction
10
Installation Instruction .

15998003885
T01032
