HERO GLAMOUR User manual

PREFACE
Let us make this world a safer, healthier and more environment friendly place.
Thank you for selecting a Hero MotoCorp GLAMOUR. We wish you many miles of
continued riding pleasure in the years ahead.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Your motorcycle is conforming to latest (Bharat stage-III norms) regulation for emission,
safety & noise levels. We are also using non asbestos brake shoes / pads and engine
gaskets which are environment friendly in nature.
This booklet is your guide to the basic operation and maintenance of your new Hero
MotoCorp GLAMOUR. Please take time to read it carefully. As with any fine machine,
proper care and maintenance are essential for trouble-free operation and optimum
performance.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.
NOTE

FUEL GAUGE 11
12
13
13
14
14
14
16
17
17
18
19
21
23
24
25
26
27
27
29
30
31
32
33
35
35
37
39
42
43
45
46
46
47
49
50
50
51
52
55
STOPLAMP SWITCH
HEADLAMP ADJUSTMENT

MBLXXXXADYZXYYYYY
MBL
Manufacturer
Code
XXXXAD
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEJ
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEJYZXYYYYY
Model VIN Engine
AC EJ
AD EJ
Glamour (Electric Start/Disc/Cast Wheel)
Glamour (Electric Start/Drum/Cast Wheel)
MBLXXXXADYZXYYYYY
XXXXEJY
ZXYYYYY
1
Vehicle Identification Number (VIN)
VIN
VIN

129 kgs.
13.6 litres (Minimum)
1 litre (Usable)
2005 mm
1070 mm
0.95 litre
5
Saddle Height 790 mm
kW
157 ml
r/min
r/min

12 V - 3 Ah (MF Battery)
94 W
Telescopic Hydraulic Shock AbsorberFront Suspension
Rear Suspension
(Amber bulb) with clear lens -MFR*
Kick / Electric Start
Rectangular Swingarm with 5 Step
Adjustable Hydraulic Shock Absorber
3.350 67/20
3.071 43/14
2.769 36/13
1.500 30/20
1.095 23/21
0.913 21/23
20A, 15A, 10A
Alternator
Hi Beam indicator
Turn signal indicator (RH+LH)
Tail/Stop lamp
Meter Illumination
Headlamp (High/Low)
Battery
Position lamp
Turn signal lamp
Starting System
Neutral indicator
*
*

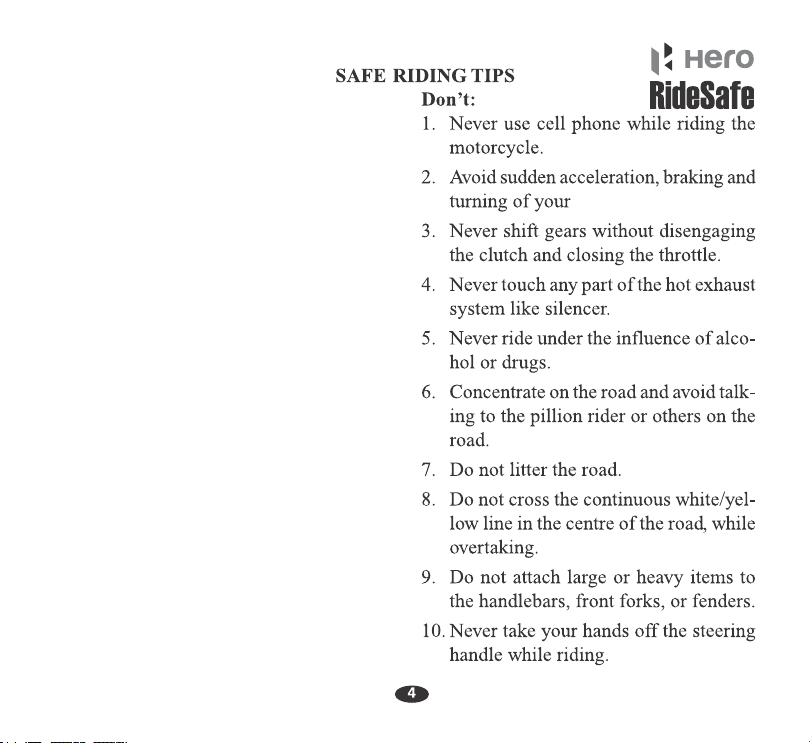

10. Take care of loose / hanging clothes
while solo / pillion riding.
1. Always conduct simple pre-ride
inspection (ref. page no 21).
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
6. Respect road signs and obey traffic
rules for your own safety and that of
others on the road (ref. page no.56-57).
7. During night time, dip headlamps of
your motorcycle for oncoming traffic,
or when following another vehicle.
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
8. Give way to others on the road and sig-
nal before you make a turn.
2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
Do's:
9. To make yourself more visible, wear
bright reflective clothing that fits well.
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp Ltd.
workshop.
motorcycle.

Regular Servicing: Get your motorcycle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
& fuel efficiency.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective silencers, excessive noise will cause headaches and discomfort.
Emission Pollution : Get emission of your motorcycle checked by Authorised
agencies atleast once every 3 months or as notified by the government from time to
time.
Fuel Saving & Reduce Pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.

1
2
(10) Speedometer
(1) Horn switch
(2) Turn signal switch
(3) Clutch lever
(4) Headlamp switch
(6) Pass lamp switch
(7) Headlamp dimmer switch
(9) Neutral indicator
(8) High beam indicator
(5) Rear view mirror
(17) Electric starter switch
(15) Front brake lever
(18) Ignition switch with steering lock
(16) Throttle grip
(19) Fuel tank lid
(12) LCD panel
(14) Master cylinder
(11) Turn signal indicator
(13) Reset button
(20) Leg guard
4
3
5
9
6 7 810 12
11 13 14
15
18
19
17
16
20

(14) Tail/Stop lamp
(18) Front number plate
(17) Front turn signal lamp
(16) Side cover left
(13) Rear number plate
(15) Rear grip
2 3 4 5 6 7 8 9
16
12
13
10 11
14
15
17
18
1
(1) Reflex reflector
(2) Fuel valve
(3) Carburetor
(4) Starter motor
(5) Gear shift pedal
(6) Rider foot rest
(7) Main stand
(8) Side stand
(9) Pillion foot rest
(10) Women pillion step
(11) Saree guard
(12) Helmet lock

1 2 43 5 6 7 8 9 10
13
(6) Brake pedal
(8) Utility box
(9) Caliper assembly
(7) Oil filler cap
(10) Front brake disc
(13) Air suction valve
(14) Rear turn signal lamp
(11) Head lamp
(12) Visor
11
12
(1) Pillion foot rest
(5) Oil level window
(2) Battery compartment (inside)
(3) Kick starter pedal
(4) Rider foot rest
14

(3) Speedometer Indicates driving speed
(4) Turn signal indicators Flashes when turn signal switch is operated
(8) Reset button To reset the tripmeter to zero before starting a new trip
(6) Tripmeter Shows the distance traveled during a trip
(5) Fuel gauge Indicates approximate quantity of fuel in the form of
digital segments. The fuel gauge segments will swing
to the maximum scale on the fuel gauge LCD panel
once when the ignition switch it turned "ON".
(2) Neutral Indicator Light glows when vehicle is in neutral
(7) Odometer Shows accumulated distance traveled
Sl. No. Description Function
(1) High beam indicator Light glows when Headlamp is in Hi Beam
1
2
3
45 6
7
8
The indicators are in the speedometer
panel above the headlamp. The functions
are as below.

1
The engine can be started, Turn
signal lamps, Horn, Tail/Stop
lamp, Fuel Gauge and Pass Lamp
will be functional
2
3
“OFF” Position/
Lock Open
“LOCK” Position
“ON” Position
“ON”
“OFF”
“LOCK”
Engine cannot be started and no
electrical system will be functional.
Steering can be locked. Key can be removed

11
FUEL GAUGE
The approximate amount of fuel quantity
available in the fuel tank is indicated by the
number of segments in the display.
If all the segments (2) are displayed it
means fuel quantity in the fuel tank is
litres.13.6
The fuel gauge (1) is of a Liquid Crystal
Display (LCD) type.
TRIPMETER
ODOMETER
The Odometer (4) shows accumulated
distance traveled.
The Tripmeter (5) shows distance traveled
per trip. The Tripmeter can be reset to zero
by pressing the RESET button (6).
If only one segment (3) is displayed and
blinks, this indicates that the fuel quantity
is low and is in reserve. The fuel tank
should be refilled as soon as possible.
2
16
4
35

6
Shift the turn signal switch sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
12
1
2
4
3
5
1. Pass lamp switch
2. Headlamp switch
3. Head lamp dimmer
4. Position lamp switch
5. Turn signal lamp switch
marked by White dot.
Position lamp
Tail lamp
Fuel indicator display
Speedometer light
Head lamp “ON”
“ON”.
IMPORTANT : To switch off the turn
signal after completing the turn, gently
push the knob inside.

1
Clutch Switch
Starter Switch
(1) Starter switch
(2) Ignition key
be started by starter switch until the
13
2
the vehicle is in neutral. If the vehicle
Steering Lock
After locking take out the key.
Steering lock is with ignition switch, put
the ignition key (2) to “OFF” position &
turn the handle bar towards left or right &
push the key downwards & turn towards
“LOCK” position.

14
Helmet Hanger
Operation : Insert the key (1) and turn it
clockwise. Pull the knob (2) downwards to
release the seat. To install, engage the lug
on the underside of the seat with the frame
and press on the top rear side of the seat
until the lock clicks.
The helmet can be hung and locked in the
helmet hanger (3) provided with the seat
lock by rotating the key.
(1) Key (2) Knob (3) Helmet hanger
1
3
2
1
FUEL VALVE
RES
OFF
ON

15
2
3
supply is 1 litre (usable).
Do not operate the motorcycle with the
fuel valve in the “RES” position after
refilling. You may run out of fuel, with
no reserve.
RES
OFF
ON
RES
OFF
ON

16
Fuel tank capacity is 13.6 litres
(minimum) including reserve supply of
1 litre (usable).
1. To unlock fuel tank lid (1), lift the key
hole cover (2), insert ignition key (3) turn
it clockwise and remove the lid.
3. To lock, position the lid back on the
opening with arrow mark (6) facing the
front and press gently. The ignition key
springs back to the normal position and
lid gets locked.
2. Do not over fill the tank. There should
be no fuel (4) in the filler neck (5).
(5) Filler Neck
(4) Fuel
3
1 2
5
6
(3) Ignition key
(1) Fuel tank lid (2) Key hole cover
(6) Arrow mark

17
UPPER
LOWER
Stop the engine & place the motorcycle
2. Savita Oil Technologies Limited.
1. Tide Water Oil Co. (India) Ltd.
Use hero genuine engine oil or
recommended grade oil.
Manufactured by :
3. Bharat Petroleum Corporation Limited.
ENGINE OIL
BRAND: Hero 4T plus
GRADE: SAE 10W 30 SL Grade
(JASO MA2).
1
2
4
3
OIL CAPACITY : 0.95 litre
Oil level should be between upper (3) and
lower (4) level marks in the oil level
window (2).
Reinstall oil filler cap & check for oil
leaks.
Oil filler cap
Add the specified oil by removing the
oil filler cap (1) and filling till the upper
level mark. Do not overfill.
