Thank you for selecting a Hero MotoCorp PLEASURE. We wish you many miles of
continued riding pleasure in the years ahead.
Let us make this world a safer, healthier and more environment friendly place.
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp PLEASURE. Please take time to read it carefully. As with any fine
machine, proper care and maintenance is essential for trouble-free operation and
optimum performance.
Your Scooter is conforming to latest (Bharat Stage-III norms) regulation for emission,
safety & noise levels. We are also using non asbestos brake shoes and engine gaskets
which are environment friendly in nature.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.

NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.
ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT.
IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS.
THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS
WITHOUT NOTICE. Hero MotoCorp ‘PLEASURE’ COMPLIES WITH THE
LATEST EMISSION NORMS.

Pg. No.
CONTENTS
Pg. No.
• FUEL 18
PRODUCT SPECIFICATION 2
• PROTECTIVE APPAREL 5
SCOOTER SAFETY 4
• STEERING LOCK 26
• ACCESSORIES AND MODIFICATIONS 9
DESCRIPTION 11
PARTS FUNCTION 14
• LOAD LIMITS AND GUIDELINES 7
SCOOTER IDENTIFICATION 1
• IMPORTANT SAFETY INFORMATION 4
TIPS FOR HEALTHY ENVIRONMENT 10
• INSTRUMENTS AND INDICATORS 14
• FUEL GAUGE 14
MAJOR COMPONENTS 15
• BRAKES (INTEGRATED BRAKING) 15
• TYRES (TUBELESS) 20
ESSENTIAL INDIVIDUAL COMPONENTS 24
• IGNITION SWITCH 24
• RIGHT HANDLE BAR CONTROLS 25
• LEFT HANDLE BAR CONTROLS 25
FEATURES 26
• SEAT LOCK 26
• CENTER COMPARTMENT 27
• LUGGAGE HOOK 28
• FRONT INNER BOX 28
• BOOT LAMP/BOOT LAMP SWITCH 29
• SIDE STAND INDICATOR/SIDE STAND
SWITCH 29
BODY PARTS REMOVAL 30
• CENTER COMPARTMENT 30
• BODY COVER 31
• CENTER COVER 32
• FRONT UPPER COVER 32
• MOBILE CHARGING SOCKET 28
• REAR VIEW MIRROR 33
• HEADLAMP CASE 33
• HEADLAMP FOCUS 34
• ENGINE OIL 53
• STORAGE 67
• REMOVAL FROM STORAGE/ AIR SUCTION VALVE 68
• IDLE SPEED / BRAKE SHOE WEAR 58
• BATTERY 59
• ENGINE OIL REPLACEMENT 54
• FUSE REPLACEMENT 61
• POLISHING 66
• CLEANING 65
• OIL STRAINER CLEANING 54
• WASHING 65
STORAGE GUIDE 67
• SIDE STAND 62
ROAD SIGNS 69
WARRANTY DETAILS
• BULB REPLACEMENT 63
• SPARK PLUG 56
• ANTI-THEFT TIPS / STEERING LOCK 44
• IMPORTANCE OF MAINTENANCE 45
• SAFETY PRECAUTIONS 47
OPERATIONS 35
• PRE-RIDE INSPECTION 35
• STARTING THE ENGINE 36
• RUNNING IN 37
• RIDING 38
• PARKING 43
TOOL KIT 44
FIRST AID KIT / MAINTENANCE 45
• MAINTENANCE SAFETY 46
• MAINTENANCE SCHEDULE 48
• AIR CLEANER 51
• SECONDARY AIR SUPPLY SYSTEM 52
• DRAIN TUBE 53

Vehicle Identification Number (VIN)
J
SCOOTER IDENTIFICATION
1
Model Code :
Model Engine
Pleasure - Sheet Metal Wheel /
Integrated Braking
VIN
EH EC
MBLXXXXEJYZXYYYYY
MBL
Manufacturer
Code
XXXXEJ
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEC
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXECYZXYYYYY
XXXXECY
ZXYYYYY
Engine No.

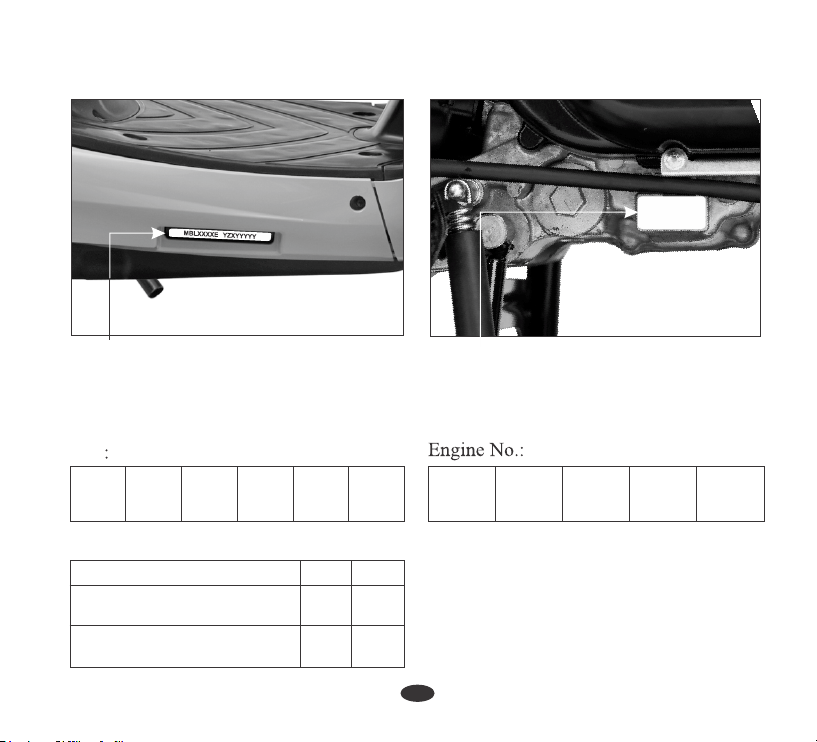

Location: Stamped on the lower side of
the left crankcase.
Location: Stamped on the lower right side
of the frame, visible from the window
provided on right floor side cover.
VIN and Engine no. may be required:
1. During registration of the Scooter.
2. For dealing with Legal & Insurance
Department.
Pleasure - Cast Wheel /
Integrated Braking
EJ EC
VIN

103 kg
1750 mm
705 mm
1115 mm
1240 mm
760 mm
125 mm
Overall Length
Overall Width
Overall Height
Wheelbase
Saddle Height
Ground Clearance
5.03 kW @ 7000 r/min
7.85 N-m @ 5000 r/min
50.0 x 52.0 mm
9.0:1
102 cc
Champion - PRZ 9 HC (Federal Mogul)
0.7 - 0.8 mm
Intake : 0.14 mm / Exhaust : 0.14 mm
1700 ± 100 r/min
0.80 litre at disassembly
0.70 litre at draining
0.12 litre at disassembly
0.10 litre at draining
5.0 litres (Min)
DIMENSIONS
WEIGHT
Kerb Weight
CAPACITIES
Engine Oil
Transmission oil
Fuel Tank
ENGINE
Maximum Power
Maximum Torque
Bore and Stroke
Compression Ratio
Displacement
Spark Plug
Spark Plug Gap
Valve Clearance (Cold)
Idle Speed
2
PRODUCT SPECIFICATION
ITEM SPECIFICATIONS

Chassis Type High Rigidity Under bone
Front Suspension Bottom Link with Spring Loaded
Hydraulic Damper
Position lamp 12V 5W x 2 nos.
Starting system Kick / Electric Start
Fuse 2A, 10A
POWER TRANSMISSION
Tyre size, rear 90 / 100 x 10 - 53 J (Tubeless Tyre)
CHASIS AND SUSPENSION
Side stand indicator 12V 1.7W
Alternator 110 W
Rear Suspension Unit Swing with Spring Loaded
Hydraulic Damper
0
Caster 27 30'
Tyre size, front 90 / 100 x 10 - 53 J (Tubeless Tyre)
Primary Reduction Variomatic (2.51 - 0.85)
(Integrated braking)
Clutch System Dry, Automatic Centrifugal Clutch
ELECTRICAL
Front / Rear brake Drum Type Internal expanding shoe type (Dia. 130 mm)
Final Reduction 50/20 x 49/13 (9.423)
Battery 12V - 4Ah **MF Battery
Tail/Stop lamp 12V 5/21 W - MFR*
Turn signal lamp 12V 10W x 4 nos.(MFR*-Clear Lens-Amber bulb)
Headlamp (High / Low) 12V 35W/35W Halogen Bulb, MFR*
Meter illumination 12V 1.7Wx2 nos.
High beam indicator 12V 1.7W
Turn signal indicator 12V 3.0Wx2 nos.
3
* MFR stands for Multifocal Reflector Type ** MF stands for Maintenance Free
ITEM SPECIFICATIONS

IMPORTANT SAFETY
INFORMATION
There is much that you can do to protect
yourself when you ride. You will find
many helpful recommendations through
out this manual. Following are a few that
we consider most important.
It is a proven fact, Helmets significantly
reduces the number and severity of head
injuries. So always wear a helmet and
make sure your pillion rider does the same.
We also recommend that you wear eye
protection, sturdy boots, gloves and other
protective gear (page 5).
SCOOTER SAFETY
Your scooter can provide many years of
service and pleasure if you take
responsibility for your own safety and
understand the challenges you can meet on
the road.
Always wear a helmet
Make yourself easily visible
Some drivers do not see scooters because
they are not looking for them. To make
yourself more visible, wear bright
reflective clothing, position yourself so To make yourself more visible, wear
bright reflective clothing that fits well.
that others can see you, signal before
turning or changing lanes, and use horn
which will help others to notice you.
Ride within your limits
Pushing the limits is another major cause
of scooter accidents. Never ride beyond
your personal abilities or faster than
conditions demand. Remember that
alcohol, drugs, fatigue and inattention can
significantly reduce your ability to make
good judgements and ride safely.
Keep your scooter in safe condition
For safe riding, its important to inspect
your scooter before every ride and
perform all recommended maintenance.
Never exceed load limits, and use
accessories that have been recommended
by Hero MotoCorp for this vehicle. See
(pages 7 & 8) for more details.
NOTE
4

PROTECTIVE APPAREL
Following are suggestions to help you
choose proper riding gear.
For your safety, we strongly recommend
that you always wear an approved helmet
(ISI marked), eye protection, boots,
gloves, long pants and a long sleeve shirt
or jacket whenever you ride. Take care of
loose / hanging clothes while solo / pillion
riding. Although complete protection is
not possible, wearing proper gear can
reduce the chance of injury when you ride.
Helmets and eye protection
Your Helmet is your most important piece
of riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and
securely. A bright coloured helmet can
make you more noticeable in traffic, as
can reflective strips.
An open-face helmet offers some
protection, but a full-face helmet offers
more. Always were face shield or goggles
to protect your eyes and help your vision.
Additional riding gear
In addition to a helmet and eye protection,
we also recommend:
Sturdy boots with non-slip soles to help
protect your feet and ankles.
Leather gloves to keep your hands
warm and help prevent blisters, cuts,
burns, and bruises.
A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help
make you more noticeable in traffic. Be
sure to avoid loose clothes that could
get caught on any part of your scooter.
5
WARNING
Be sure you and your passenger
always wear a helmet, eye protection
and other protective apparel when
you ride.
Not wearing a helmet increases the
chance of serious injury or death in a
crash.

Always wear HELMET
Wear bright or reflective
clothing
Wear a face shield or goggles
Wear gloves
Shoes should be close fitting, low heels
and offer ankle protection
PROTECTIVE APPAREL
6

LOAD LIMITS AND
GUIDELINES
However exceeding the weight limit
or carrying an unbalanced load can
seriously affect your scooter's handling,
braking and stability. Non Hero
MotoCorp accessories, modifications,
and poor maintenance can reduce your
safety margin.
The following pages give more specific
information on loading, accessories and
modifications.
Your scooter has been designed to carry
you, one pillion and limited amount of
cargo. When you add cargo or carry a
passenger, you may feel some difference
during acceleration and braking. But so
long as you keep your scooter well
maintained, with good tyres and brakes,
you can safely carry loads within the
limits and guidelines.
Loading
How much weight you put on your scooter,
and how you load it, are important to your
safety. Anytime you ride with a pillion or
cargo you should be aware of the following
information.
WARNING
Follow all load limits and other
loading guidelines in this manual.
Overloading or improper loading can
cause a crash and you can be seriously
injured.
7

Front inner box : 1.5 kg
Load limits
Following are the load limits for your
scooter:
Includes the weight of the rider, pillion, all
cargo and all accessories.
Putting too much weight in individual
storage compartments can also affect
stability and handling. So be sure to stay
within the limits given below :
Maximum weight capacity: 130 kg
Maximum weight :
Center compartment :10.0 kg
Luggage hook : 1.5 kg
(1) Center compartment (2) Front inner box
(3) Luggage Hook
To prevent loose items from creating a
hazard, make sure the center
compartment is closed and that any
other cargo is securely tide down
before you ride away.
If you wish to carry more cargo, check with
your Authorised Hero MotoCorp workshop
for advice and be sure to read the information
regarding accessories on (page 9).
Place cargo weight as close to the
center of the scooter as possible.
Your scooter is primarily intended for
transporting you and a pillion.
Balance cargo weight evenly on both
sides.
Loading guidelines
Improperly loading your scooter can affect
its stability and handling. Even if your
scooter is properly loaded, you should ride
at reduced speeds whenever carrying
cargo.
Follow these guidelines whenever you
carry a pillion or cargo:
Check that both tyres are properly
inflated.
8
2
1
3

Accessories
We strongly recommend that you use only
genuine Hero MotoCorp accessories that
have been specifically designed and tested
for your scooter. Hero MotoCorp cannot
test all other accessories, you must be
personally responsible for proper
selection, installation and use of non-Hero
MotoCorp accessories. Check with your
dealer for assistance and always follow
these guidelines:
Modifying your scooter or using non-Hero
MotoCorp accessories can make your
scooter unsafe. Before you consider
making any modifications or adding any
accessory, be sure to read the following
information.
Be sure electrical equipment does not
exceed the scooter's electrical system
capacity (page 3). A blown fuse can
cause loss of lights.
Do not pull a trailer or sidecar with
your scooter. This scooter is not
designed for these attachments, and
their use can seriously impair your
scooter handling.
Make sure the accessories does not
obstruct any lamps, reduce ground
clearance and banking angle, limit
suspension travel or steering travel,
alter your riding position or interfere
with operating any controls.
We strongly advise you not to remove any
original equipment or modify your scooter
in any way that would change its design or
operation. Such changes could seriously
impair your scooter's handling, stability
and braking, making it unsafe to ride.
Modifications
Removing or modifying your lamps,
muffler, emission control system or other
equipment can also make your scooter not
meeting the emission standards.
9
ACCESSORIES & MODIFICATIONS
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.

10
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
Emission Pollution : Get emission of your scooter checked by Authorised agencies
atleast once every 3 months or as notified by the government from time to time.

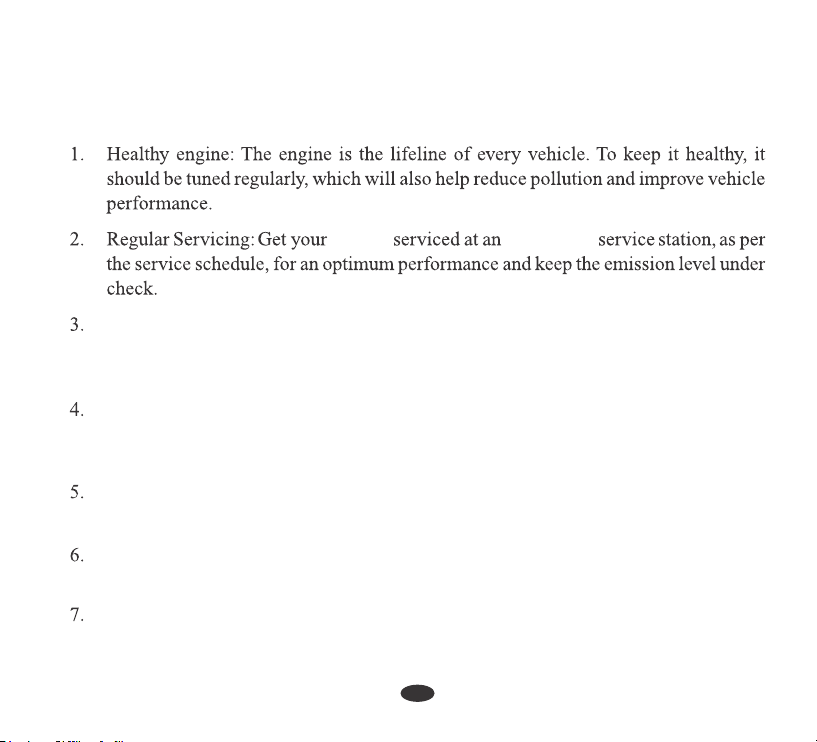

The following tips shall ensure a healthy scooter, healthy environment, and a healthy
you.
scooter Authorised
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective mufflers, excessive noise will cause headaches and discomfort.
Fuel Saving & Reduce Pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your scooter’s running
condition.
TIPS FOR HEALTHY ENVIRONMENT

(1) Choke knob
(2) Horn switch
(3) Turn signal switch
(5) Parking lever
(7) Dimmer switch
(8) Odometer
(9) Speedometer
(4) Integrated brake lever
(6) Rear view mirror
(10) Side stand indicator
(15) Front brake lever
(18) Ignition switch with steering lock
(17) Starter switch
(11) Hi-beam indicator
(12) Turn signal indicator
(13) Fuel gauge
(14) Headlamp switch
(16) Throttle grip
11
16
15
12
6
10
911
17
18
5
4
2
3
7
1
14
8
DESCRIPTION
13

(3) Main stand
(5) Kick starter pedal
(1) Side stand switch
(2) Side stand
(4) Pillion step
(10) Luggage hook
(8) Tail/ stop lamp
(7) Rear turn signal lamp
(6) Women pillion step (Optional)
(9) Rear grip
(11) Headlamp
12

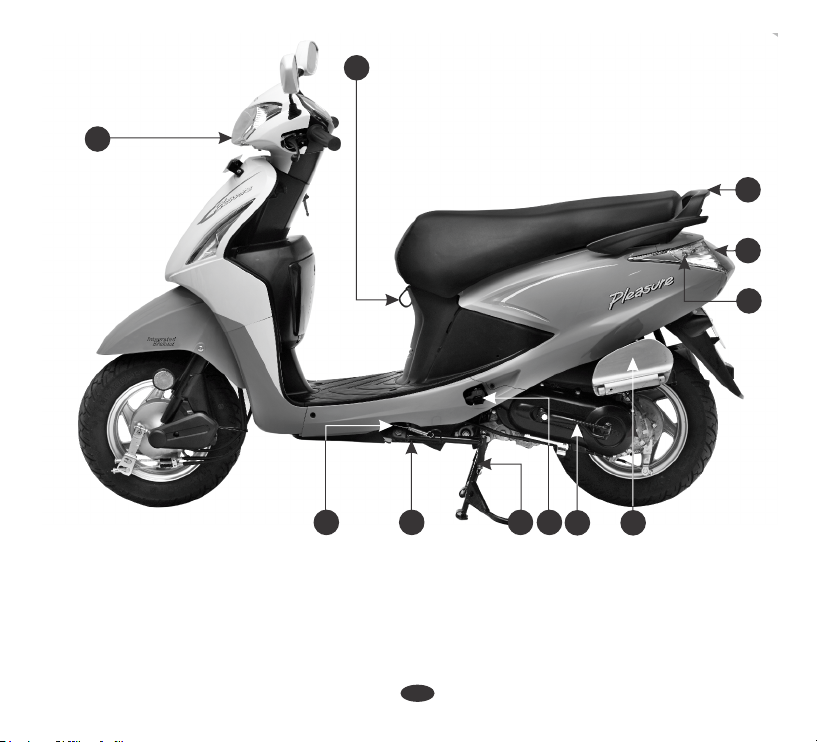

LEFT SIDE VIEW
11
8
9
2345
7
10
6
1

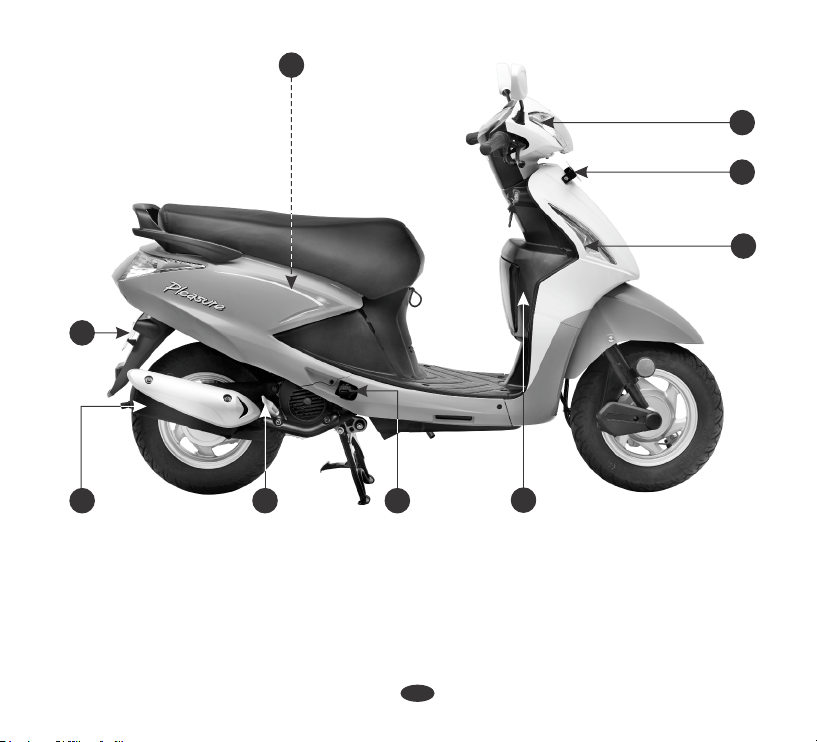

RIGHT SIDE VIEW
(3) Pillion step
(4) Front inner box
(1) Exhaust muffler
(2) Oil level dipstick
(5) Front turn signal lamp
(9) Rear number plate
(6) Front number plate
(7) Position lamp
(8) Center compartment (inside)
13
5
34
2
6
9
1
8
7

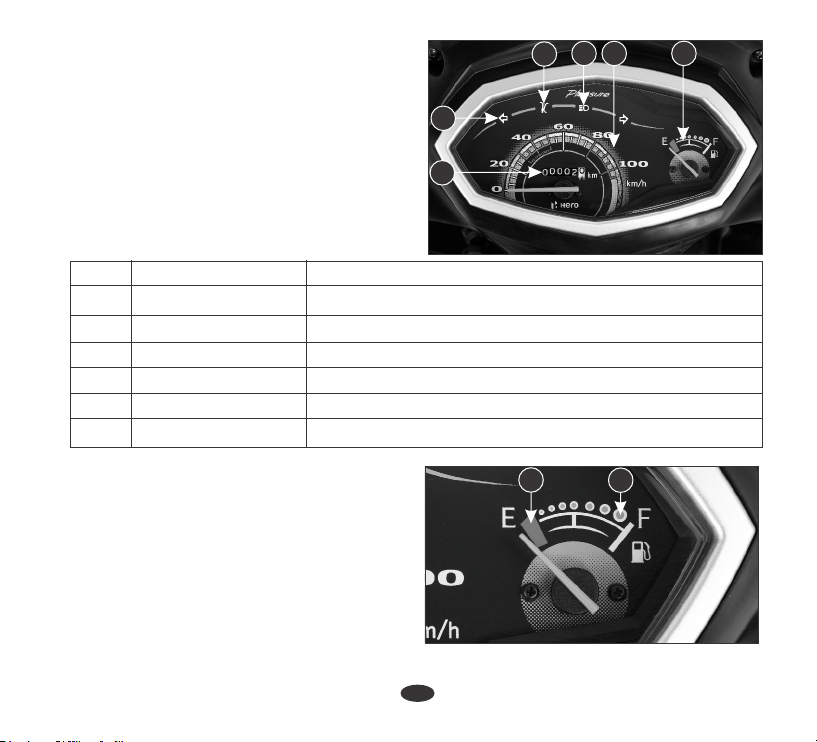

INSTRUMENTS AND INDICATORS
The indicators are in the speedometer
panel above the headlamp. The functions
are as below :
PARTS FUNCTION
Sl. No.
1
2
3
4
5
Description Function
Odometer Shows accumulated mileage
Hi beam indicator Light glows when headlamp is in Hi beam
Speedometer Indicates driving speed
Turn signal indicator Flashes when turn signal switch is operated
14
FUEL GAUGE
When the fuel gauge (1) needle enters the
red band (2), fuel will be low and you
should refill the tank as soon as possible.
The amount of fuel left in the tank when
the needle enters the red band is
approximately 1.2 Litres.
(1) Fuel gauge (2) Red band
46
3
1
2
21
5
6 Fuel gauge Indicates approximate fuel quantity
Side stand indicator Light glows when the side stand is down

15
When one applies the left lever, front &
rear brakes activate jointly.
BRAKES (Integrated braking)
Brakes are items of personal safety and
should always be maintained with proper
adjustments.
MAJOR COMPONENTS
(Information you need to operate this
scooter)

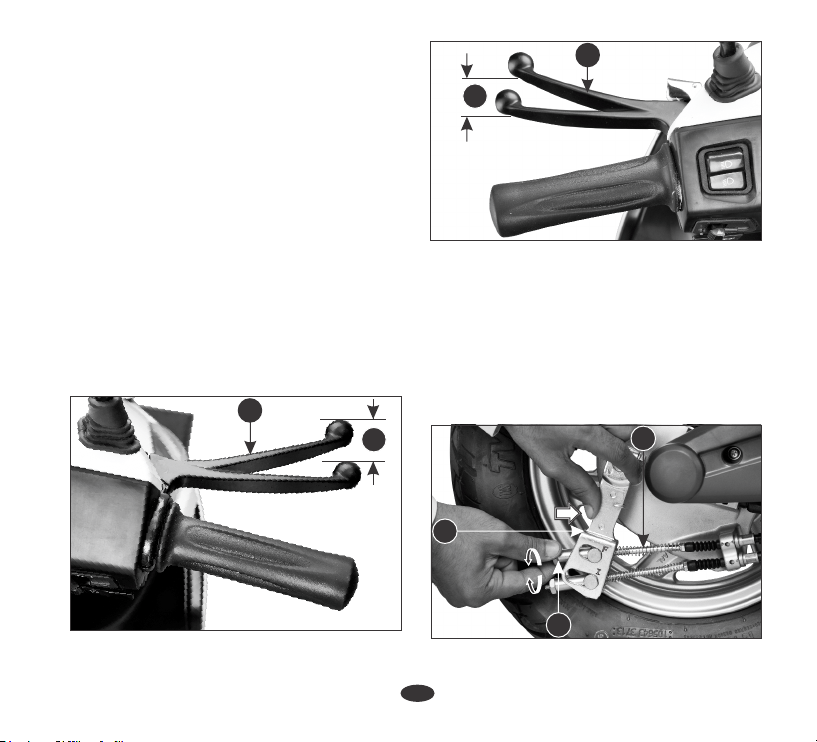

Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
The distance, the front brake lever (1) and
integrated brake lever (2) moves before
each brake starts to engage is called free
play (3).
3
(1) Front brake lever
(3) Free play 10-20 mm
3
(2) Integrated brake lever
(3) Free play 10-20 mm
2
1
2. Turn the first adjuster nut (5) till you
cannot turn it by hand.
Right hand front brake cable (A) on “F” side
Adjustment:
1. Push the integrated brake arm (4) by
hand in the direction as shown.
A
4
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
5
Cast Wheel Version

16
A
4
(4) Integrated brake arm (5) First adjuster nut
(I) Decrease free play (ii) Increase free play
(i)
(ii)
Sheet Metal Wheel Version
5
NOTE
2. Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
3. Check the free play of right lever.
Left hand front brake cable (B) on “I” side.
3. After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
“F” & “I” is marked on integrated brake arm.
FREE PLAY : 10-20 mm
4. If the free play is more than 20 mm
further turn the adjuster nut to obtain
desired free play.
1. Push the integrated brake arm (4) by
hand in the direction as shown.
(6) Second adjuster nut
6
4
Sheet Metal Wheel Version
(6) Second adjuster nut
B
6
4
Cast Wheel Version
B
(i)
(ii)
(i)
(ii)
(I) Decrease free play (ii) Increase free play
(I) Decrease free play (ii) Increase free play
7
7

17
1
2

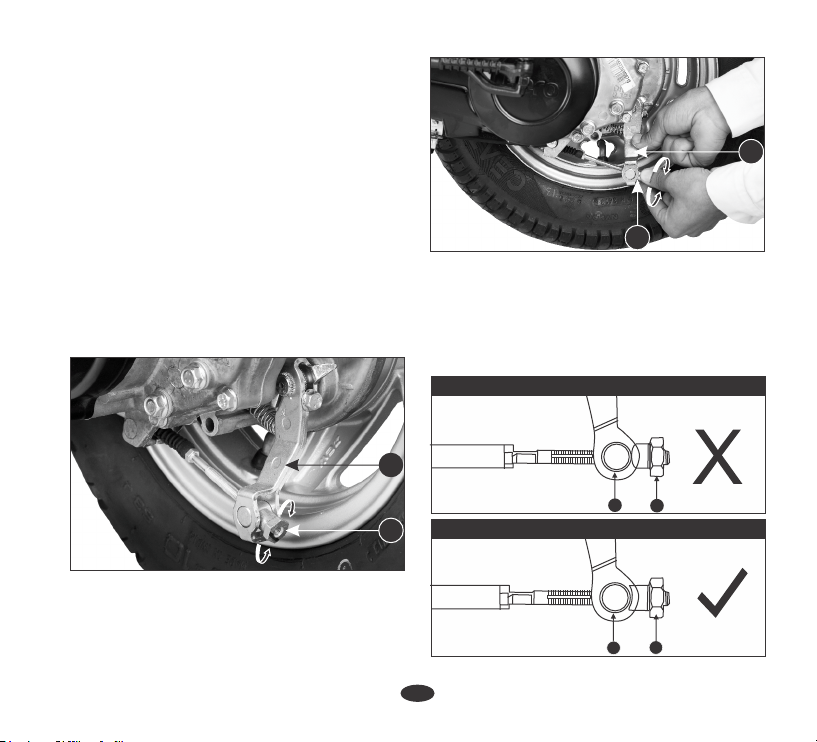

CUT-OUT NOT SEATED
(1) Adjusting nut (2) Brake joint pin
1
2
CUT-OUT SEATED
Make sure the cut-out on the adjusting nut
(1) is seated on the brake joint pin (2) after
making final freeplay adjustment.
(8) Adjuster nut (9) Brake arm
(i) Decrease free play (ii) Increase free play
9
FREE PLAY : 10-20 mm
1. Make free play adjustment by turning
the adjuster nut (8) in the brake arm
(9).
2. Check the free play of integrated brake
lever.
3. If the free play is more than 20 mm
further turn the adjuster nut to obtain
desired free play.
Rear brake
(8) Adjuster nut (9) Brake arm
(i) Decrease free play (ii) Increase free play
(ii)
(i)
8
9
(ii)
(i)
8
Cast Wheel Version
Sheet Metal Wheel Version
