HERO Splendor Plus User manual

PREFACE
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Thank you for selecting a Hero MotoCorp Splendor Plus. We wish you many miles of
continued riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.
Your motorcycle is conforming to latest (Bharat Stage-III norms) regulation for
emission, safety & noise levels. We are also using non asbestos brake shoes and engine
gaskets which are environment friendly in nature.
This booklet is your guide to the basic operation and maintenance of your new Hero
MotoCorp Splendor Plus. Please take time to read it carefully. As with any fine
machine, proper care and maintenance are essential for trouble-free operation and
optimum performance.
Let us make this world a safer, healthier and more environment friendly place.

NOTE
ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE
ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR
GUARANTEED. Hero MotoCorp Limited. RESERVES THE RIGHT TO MAKE
CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR
INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO
REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING
PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Limited.

STEERING LOCK
47
49
41
41
43
45
46
AIR SUCTION VALVE
46
CATALYTIC CONVERTER
13
14
14
15
16
18
19
20
21
UTILITY BOX 21
22
23
23
25
26
27
28
29
30
30
32
34
35
38
FUEL VALVE
40STOP LAMP SWITCH
40HEADLAMP ADJUSTMENT
HERO GENUINE PARTS

Model Code.:
Model Engine
Splendor Plus (Kick, Drum, Spoke)
Splendor Plus ((Kick, Drum, Cast)
VIN
AL
AM
EJ
EJ
MBLXXXXAMYZXYYYYY
MBL
Manufacturer
Code
XXXXAM
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
MBLXXXXAMYZXYYYYY
XXXXEJ
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEJYZXYYYYY
XXXXEJY
ZXYYYYY
Vehicle Identification Number (VIN)
VIN
VIN

109 kg
11 litres (minimum)
1 litre (usable)
1970 mm
1040 mm
720 mm
1230 mm
785 mmSaddle Height
159 mm
0.95 litres at the disassembly
0.75 litres at draining
9.0 :1
NGK - CR7HSA, BOSCH - UR4AC,
Champion-P-RZ9HC (Federal Mogul)
0.6 - 0.7 mm
IN : 0.05 mm EX : 0.05 mm
97.2
162-165 ml
5.50 kW (7.5 Ps) @ 8000 r/minMaximum power
Maximum torque 7.95 N-m @ 5000 r/min
r/min

Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with Hydraulic Shock Absorber
Trail length
2.75 x 18 - 4 PR / 42P
2.75 x 18 - 6 PR / 48P
3.722
3.071
3.181
1.705
1.238
0.958
12V - 2.5 Ah
Front Wheel
Rear Wheel
Spoke / Cast Wheel (Optional)
Spoke / Cast Wheel (Optional)
80
10
4
fuel indicator lamp 4
4
Position lamp 4
7A
Turn signal lamp
Headlamp (High/Low)
Tail/Stop lamp

2. Always wear a helmet (ISI marked)
with chinstrap securely fastened and
insist on a helmet for your pillion rider.
7. During night time, dip headlamps of
your motorcycle for oncoming traffic,
or when following another vehicle.
Do's:
3. While riding, sit in a comfortable posi-
tion with your legs close to fuel tank.
5. For stopping motorcycle, use both
brakes simultaneously, keeping throttle
in the close position.
1. Always conduct simple pre-ride
inspections (ref. page no 18).
6. Respect road signs and obey traffic
rules for your own safety and that of
others on the road (ref. page no. 49-50).
4. Ride defensively and at a steady speed
(between 40-50 km/hr).
8. Give way to others on the road and sig-
nal before you make a turn.
10. Take care of loose / hanging clothes
while solo / pillion riding.
11. Get your motorcycle serviced regularly
by the Authorised Hero MotoCorp
workshop.
9. To make yourself more visible, wear
bright reflective clothing that fits well.
motorcycle.
muffler.

Regular Servicing: Get your motorcycle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
& fuel efficiency.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from
horns or defective mufflers, excessive noise will cause headaches and discomfort.
Emission Pollution : Get emission of your motorcycle checked by Authorised
agencies atleast once every 3 months or as notified by the government from time to
time.
Fuel saving & reduce pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.

8 9
4
3
5
2
1
76 10
12
14
15
16
11
(8) Neutral indicator
(4) Headlamp switch
(5) Headlamp dimmer switch
(7) Odometer
(6) Speedometer
(2) Horn switch
(3) Turn signal switch
(1) Turn signal indicator (9) Fuel gauge
(10) High beam indicator
(12) Throttle grip
(13) Front turn signal lamp
(11) Rear view mirror
(14) Ignition switch with steering lock
(16) Leg guard
(15) Fuel tank lid
13
*Accessories and features shown may not be part of standard fitment.

11
43 6
1 2 5 7
10
8
9
12
(1) Carburetor
(4) Main stand
(2) Gear shift pedal
(3) Rider foot rest
(5) Side stand
(6) Pillion foot rest
(9) Reflex reflector
(8) Saree guard
(10) Tail /Stop lamp
(7) Women pillion step
(11) Rear carrier
(13) Air suction valve
(14) Fuel valve
(15) Clutch lever
(12) Left side cover
131415
*Accessories and features shown may not be part of standard fitment.

8
9
1112
14
13
(2) Kick start pedal
(3) Rider foot rest
(4) Oil level dipstick
(5) Rear brake pedal
(1) Pillion foot rest
(7) Front suspension
(9) Visor
(8) Headlamp
(6) Utility box
(10) Front brake lever
(12) Seat
(13) Rear turn signal lamp
(11) B attery compartment (inside)
(14) Rear suspension
10
1 2 45 6
7
3
*Accessories and features shown may not be part of standard fitment.

(6) Neutral Indicator Light glows when vehicle is in neutral
Sl. No. Description Function
(2) Gear shifting range Shows the appropriate speeds for shifting gears
(3) Odometer Shows accumulated mileage
(7) Turn signal indicators Flashes when turn signal switch is operated
(5) High beam indicator Light glows when headlamp is in Hi Beam
(1) Speedometer Indicates driving speed
(4) Fuel gauge Indicates approximate fuel quantity
6
1
7
4
5
23
headlamp.

“ON”
“OFF”
The engine can be started, Turn
signal lamps, Horn, Tail/Stop
lamp and Fuel Gauge will be
functional
Steering can be locked
“LOCK”
“ON” Position
“LOCK” Position
“OFF” Position /
Lock Open
1
2
3
Engine cannot be started and no
electrical system will be functional

Shift the turn signal switch sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
5
IMPORTANT : To switch “OFF” the turn
signal after completing the turn, gently
push the knob inside .
5
4
Following are “ON”
white
3. Position lamp switch
Select to put the position lamp to “ON”.
4
1
3
2
2Headlamp dimmer switch
turn
1. Headlamp switch
Position lamp
Tail/Stop lamp
Fuel indicator lamp
Speedometer lamp
Headlamp “ON”
Left Handlebar Controls

(1) Ignition key
1
FUEL VALVE
2
1

13
At “RES”, fuel will flow from the reserve
fuel supply to the carburetor. Use the
reserve fuel only when the main supply is
exhausted. Refill the tank as soon as
possible after switching to “RES”. The
reserve fuel supply is 1 litre usable.
motorcycle
3
(1) Fuel tank cap (2) Ignition key
(3) Lid
4. For locking, press the lid gently and turn
the key clockwise.
2. Remove the cap by turning it anti-
clockwise.
3. Do not overfill the tank. There should be
no fuel in the filler neck (4).
1. To remove the fuel tank cap (1), insert
the ignition key (2), turn it anti-
clockwise and open the lid (3) as shown
in the picture.
1
2
3
tank.
Fuel tank capacity is 11 litres (minimum)
including reserve supply of 1 litre.
Do not park the motorcycle under direct
sunlight as it causes evaporation of petrol
due to heat and deterioration of paint gloss
due to ultra violet rays.

14
5
5
Petrol is extremely flammable and is
explosive under certain conditions. Refill
in a well ventilated area with the engine
stopped. Do not smoke or allow flames or
sparks in the area where the petrol is
refilled or stored.
OIL CAPACITY : 0.95 litres
ENGINE OIL
U s e h er o g en u i n e e n g i ne o i l o r
recommended grade oil.
Manufactured by :
1. Tide Water Oil Co. (India) Ltd.
2. Savita Oil Technologies Limited.
3. Bharat Petroleum Corporation Limited.
(JASO MA2).
BRAND: Hero 4T plus
GRADE: SAE 10W 30 SL Grade
Check engine oil level each day before
operating the motorcycle.
The oil level dipstick (1) is on the right
crankcase cover for measuring oil level.
Oil level must be maintained between
the upper (2) and lower (3) level marks
on the oil level dipstick.
Do top up if oil level reaches towards the
lower level mark or every 3000 kms.
whichever is earlier.
Engine Oil Level Check
3. Lower level mark
1. Oil level dipstick 2. Upper level mark
1
2
UPPER
ENGINE OIL TOP UP PROCESS
1. Start the engine & let it idle for 3-5
minutes.
LOWER
3
2. Stop the engine & place the motorcycle
on its main stand on level ground, remove
the oil level dipstick and wipe it clean.

15
5. Reinstall the oil level dipstick, and
check for oil leaks.
4. If required, add the specified oil up to
the upper level mark. Do not overfill.
3. Reinsert the oil level dipstick without
screwing it in and check the oil level.
Drain engine oil with the engine warm and
the motorcycle on its main stand.
1. To drain the oil, remove the oil level
dipstick and drain plug (1).
oil level dipstick.
Fill the crankcase through the filler
hole with approximately 0.75 litres of
the recomme nd ed gra de oil at
draining.
7. Make sure that oil level is at the upper
level mark of the oil level dipstick with
the motorcycle parked on its main
stand on level ground, and that there
are no oil leaks.
1
2
(2) Sealing washer

16
2.00 36 psi28 psi 2.50
The recommended “Cold” tyre pressures
are :
Over inflation / under inflation will affect
the performance.
1
TYRES
2.75 48P
NOTE
The imported tyre(s) if fitted without ISI
mark; are in compliance of BIS standard
and Central Motor Vehicle Rules 1989, as
declared by the Tyre manufacturer.
To safely operate your motorcycle, the tyres
must be of recommended type and size, in good
condition with adequate tread, and correctly
inflated. The recommended tyres size is :
Properly inflated tyres provide the best
combination of handling, tread life, and
riding comfort. Generally, under inflated
tyres wear unevenly, adversely affect
handling, and are more likely to fail from
being overheated. Under inflated tyres can
also cause wheel damage in rocky terrain.
Over inflated tyres make your motorcycle
ride more harshly, are more prone to damage
from surface hazards and wear unevenly.

17
Also, if you hit a pothole or hard object,
pull to the side of the road as soon as you
safely can and carefully inspect the tyres
for damage.

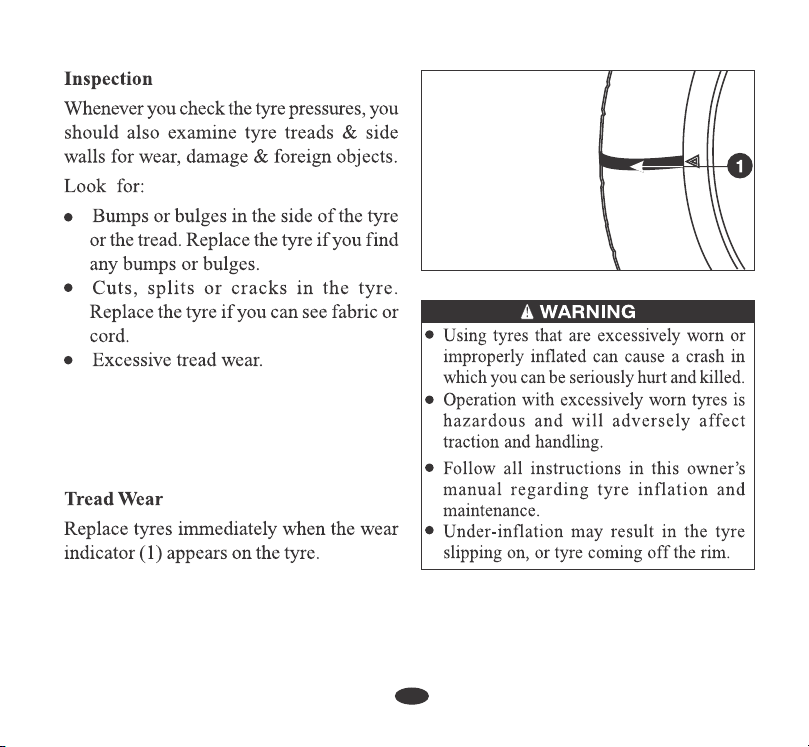

(1) Wear indicator
