HERO SPLENDOR+ User manual

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature
is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of
India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in
conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when
the engine gets ON.
Let us make this world a safer, healthier and more environment friendly place.
Thank you for selecting a . We wish you many miles of Hero MotoCorp SPLENDOR+
continued riding pleasure in the years ahead.
Your is conforming to latest (Bharat stage- norms) regulation for emission, safety & vehicle IV
noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are
environment friendly in nature.
We at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with and all applicable legislation including environment legislation
strengthen the green supply chain.
Your Authorised dealer will be glad to provide further information or Hero MotoCorp
assistance and is equipped to handle your future service needs.
This booklet is your guide to the basic operation and maintenance of your new
. Please take time to read it carefully. As with any fine Hero MotoCorp SPLENDOR+
machine, proper care and maintenance are essential for trouble-free operation and optimum
performance.
PREFACE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM Hero MotoCorp Ltd.
NOTE
ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS
OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD
LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero
MotoCorp Ltd ‘SPLENDOR+’ COMPLIES WITH THE LATEST EMISSION NORMS.

Pg. No. Pg. No.
CONTENTS
VALVE CLEARANCE ADJUSTMENT 35
WHEEL 44
STOP LAMP SWITCH 50
ENGINE OIL 29
HEADLAMP FOCUS ADJUSTMENT 51
BATTERY 48
FUSE REPLACEMENT 50
CATALYTIC CONVERTER 51
SUSPENSION 43
TUBELESS TYRES 46
NUTS, BOLTS & FASTENERS 48
BRAKES 40
EVAPORATIVE EMISSION CONTROL 52
POLISHING OF VEHICLE 52
BASIC TROUBLESHOOTING 53
ZONAL/REGIONAL/AREA OFFICES
AIR CLEANER 32
MAIN/SIDE STAND LUBRICATION 45
SPARK PLUG INSPECTION 29
CARBURETOR 34
HERO GENUINE PARTS
OIL FILTER SCREEN & CENTRIFUGAL FILTER 31
THROTTLE OPERATION 37
DRIVE CHAIN SLIDER INSPECTION 40
MAINTENANCE SCHEDULE 26
CLUTCH LEVER FREE PLAY 36
WARRANTY DETAILS
DRIVE CHAIN SLACKNESS 37
ROAD SIGNS 55
MAINTENANCE 24
SAFETY PRECAUTION 25
PARKING 23
UTILITY BOX 23
CLEANING AND WASHING OF VEHICLE 24
BRAKING 22
TOOL KIT/FIRST AID KIT 23
VEHICLE SAFETY 8
VEHICLE VIEWS 2
SAFE RIDING TIPS 10
•Ignition switch 12
VEHICLE SPECIFICATION 5
VEHICLE IDENTIFICATION 1
ACCESSORIES & MODIFICATIONS 7
ANTI-THEFT TIPS 7
•Important safety information 8
•Protective apparel 9
TIPS FOR HEALTHY ENVIRONMENT 11
PARTS FUNCTION 12
FEATURES 14
HANDLEBAR SWITCHES CONTROL 14
FUEL TANK 16
FUEL VALVE 17
•Instruments & Indicators 13
SIDE STAND INDICATOR/SWITCH 18
USB CHARGER (OPTIONAL) 19
PRE-RIDE INSPECTION 20
STARTING THE ENGINE 21
RIDING 22
i3s (IDLE STOP START SYSTEM) 15

HA10AH#
#######
1. During registration of the vehicle.
2. For dealing with legal & insurance departments.
VIN and Engine No. may be required:
Vehicle Identification Number (VIN)

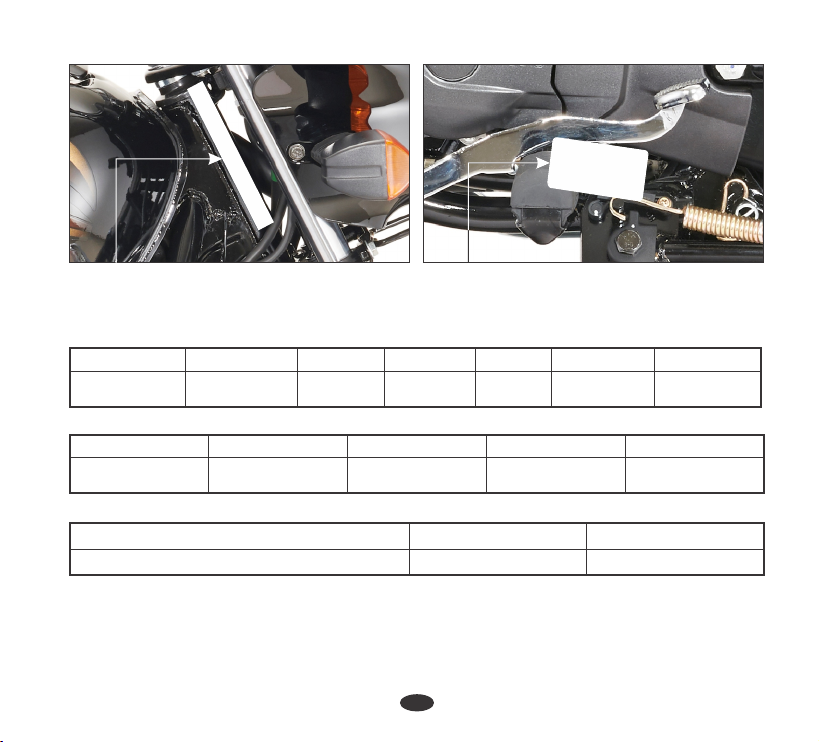

Location : Stamped on the right side of the
steering head tube.
Engine No.
Location : Stamped on the lower side of the
left crankcase.
VEHICLE IDENTIFICATION
Engine No.: HA10AH########
Model: Splendor+
VIN Engine Variants
HA10AH # # # #####
Engine
Description Year of
Manufacturing Assembly Plant Month of Manufacturing Serial Number
1
VIN: MBLHAW08#########
MBL HAW08 # # # #####
Manufacturer
code Vehicle
Description Model Year Plant
Code Month of
Manufacturing Production
Serial Number
#
Check
Digit
Electric start/Drum/Cast wheel/i3s AH
W08
MBLHAW08#########

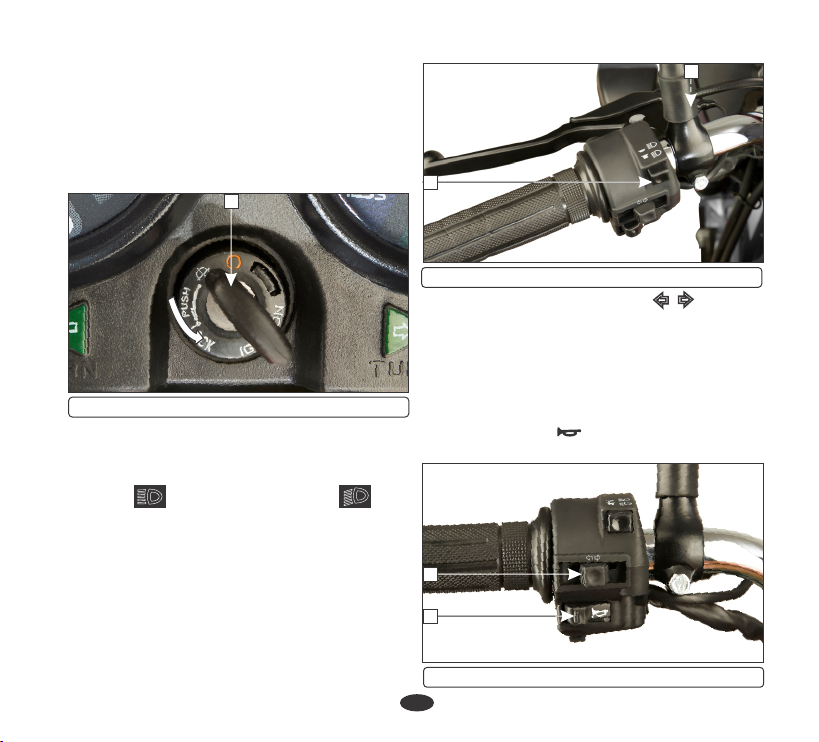

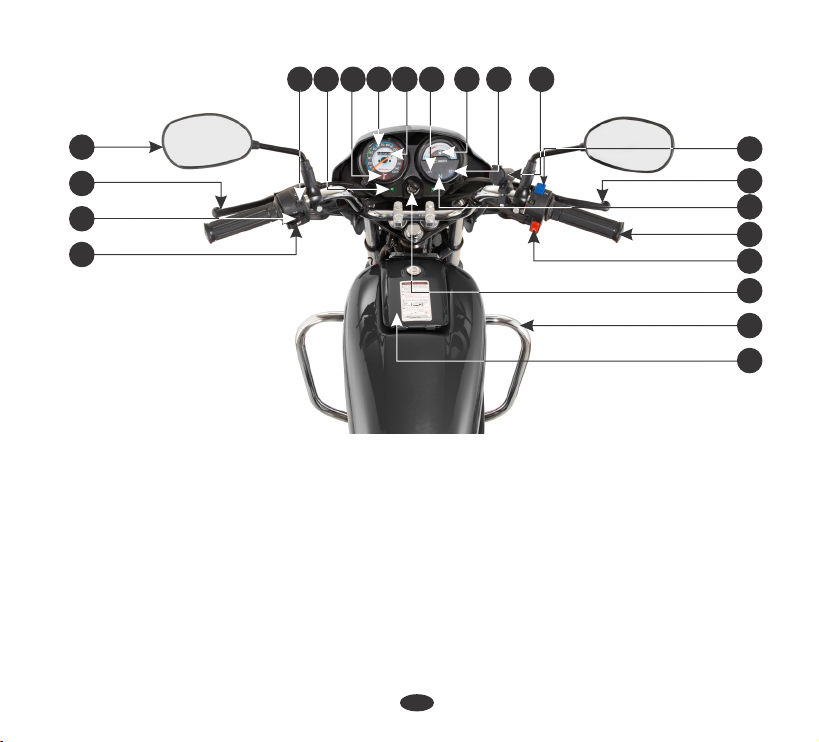

(2) Turn signal switch
(3) Clutch lever
(1) Horn switch
(4) Rear view mirror
(5) Headlamp dimmer switch
(6) Turn signal indicator
(7) Side stand indicator

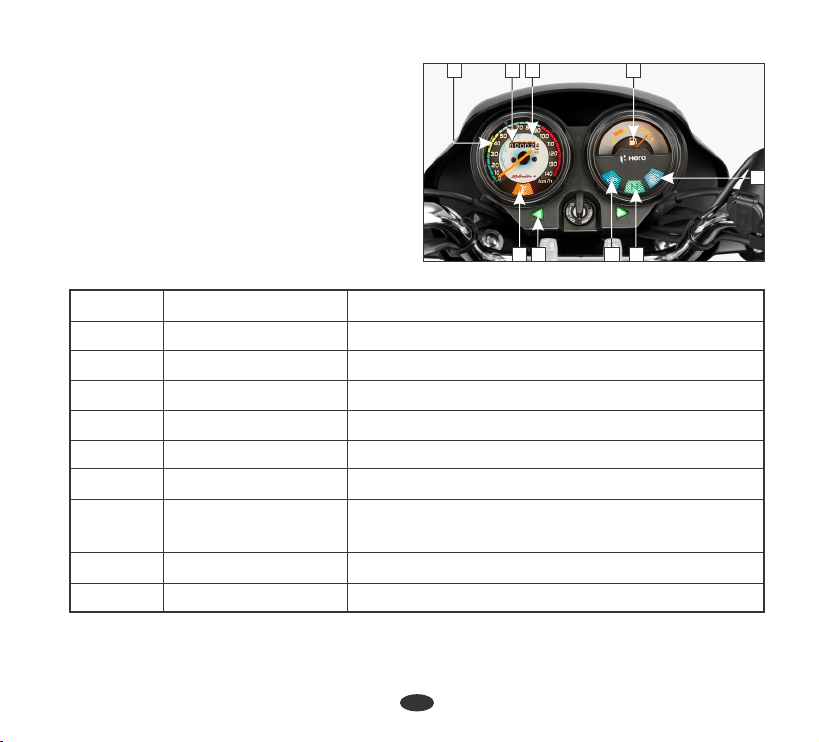

(9) Odometer
(8) Speedometer
(10) i3s indicator
(11) Fuel gauge
(14) i3s switch
(12) High beam indicator
(13) USB charger (Optional)
(15) Front brake lever
(16) Neutral indicator
(17) Throttle grip
(18) Electric starter switch
(19) Ignition switch with steering lock
(20) Leg guard
(21) Fuel tank lid
*Accessories and features shown may not be part of standard fitment.
TOP VIEW VEHICLE VIEWS
2
11
3
5
1
2
4
67 8 910 12 13
15
14
16
17
18
19
20
21

(2) Gear shift pedal
(5) Side stand
(3) Main stand
(4) Side stand switch
(6) Pillion foot rest
(1) Carburetor
(8) Saree guard
(7) Women pillion step
(10) Rear turn signal lamp
(11) Tail/Stop lamp
(9) Reflex reflector (13) Left side cover
(12) Rear carrier
(15) Front turn signal lamp
(16) Front reflex reflector
(14) Fuel valve
11
13
14
LEFT SIDE VIEW
256
*Accessories and features shown may not be part of standard fitment.
12
8
9
10
15
3
14
37
16

4

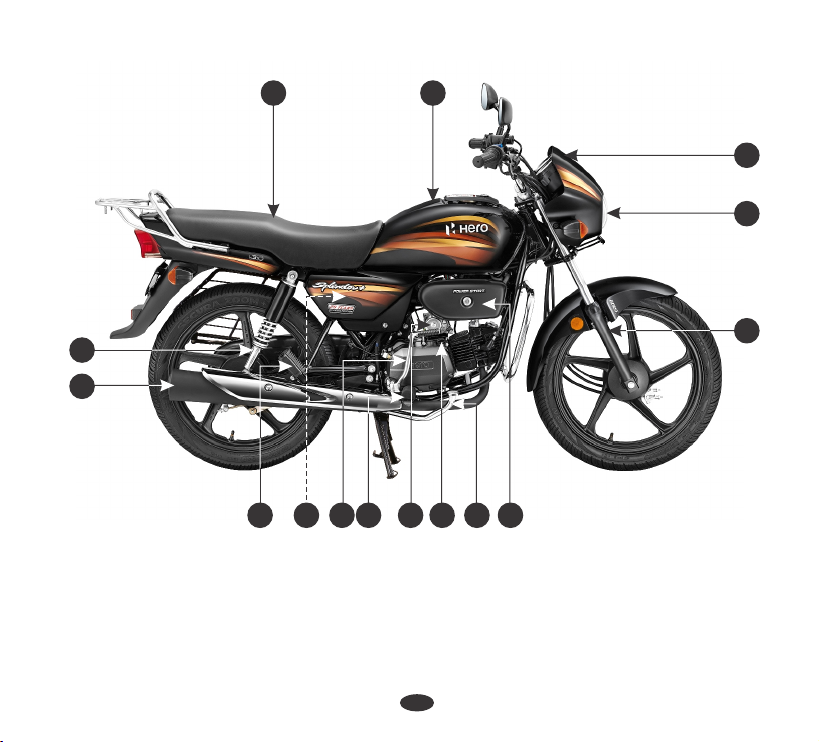

(6) Oil level dipstick
(7) Rear brake pedal
(8) Utility box
(10) Headlamp
(9) Front suspension
(11) Front visor
(12) Fuel tank
(13) Seat
(15) Exhaust muffler
(14) Rear shock absorber
RIGHT SIDE VIEW
(1) Pillion foot rest
(3) Kick starter pedal
(4) Rider foot rest
(2) Battery compartment (Inside)
(5) Starter motor
9
10
11
15
23478
*Accessories and features shown may not be part of standard fitment.
5
9
1
12
13
14

VEHICLE SPECIFICATION SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance
Engine oil
Fuel tank
Fuel reserve
Front fork oil
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
Spark plug gap
Valve clearance
Idle speed
Front suspension
Rear suspension
Caster angle
2000 mm
720 mm
1040 mm
1230 mm
785 mm
159 mm
0.95 litre at disassembly and 0.75 litre at draining
11 litres
1.1 litres (Usable reserve)
162-165 ml
6.15 8.36 Ps 0 kW ( ) @ 8 00 r/min
0. kgf-m ( N-m) @ 5 00 82 8.05 0 r/min
50.0x49.5 mm
9.9:1
97.2 cc
NGK-CR7HSA, BOSCH-UR4AC,
Federal Mogul-P-RZ9HC
0. -0. mm6 7
0. mm 10
0. mm10
1400 100 ± r/min
Telescopic hydraulic shock absorbers
Swingarm with 5 step adjustable hydraulic
shock absorbers
26°
Weight
Capacities
Engine
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug
5
Kerb weight 112.3 kg

SPECIFICATIONSITEM
Primary reduction
Final reduction
st
Gear ratio, 1
rd
3th
4
Alternator
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Turn signal lamp
Meter Illumination/Fuel indicator lamp
Neutral indicator
Turn signal indicator
Position lamp
Hi beam indicator
Fuse
3.722 (67/18)
3.143 (44/14)
3.182 (35/11)
1.706 (29/17)
1.238 (26/21)
0.958 (23/24)
115 W
Electric start
12V-35/35W Halogen bulb-**MFR
12V-5/10W MFR**
12V-10Wx4 **MFR
12V-1.7Wx2
12V-1.7W
12V-3Wx2
12V-3.4W
12V-1.7W
10A, 15 A
Transmission
Tyre size 80/100-18M/C 47P (Tubeless tyre)
80/100-18M/C 54P (Tubeless tyre)
Front
Rear
Electricals
Cast wheel
Cast wheel
Front wheel
Rear wheel
nd
2
Brakes Dia. 130 mm
Dia. 130 mm
Front (Drum type)
Rear (Drum type)
6
Battery *MF Battery,12V-3Ah/ETZ 4
* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector
i3s indicator 12V-1.7W
VEHICLE SPECIFICATION
Side stand indicator 12V-1.7W

ACCESSORIES & MODIFICATIONS
Modifying your vehicle or using non-Hero
MotoCorp accessories can make your vehicle
unsafe. Before you consider making any
modifications or adding an accessory, be sure
to read the following information.
•Enter your name, address and phone
number in this Owner's Manual and keep it
in your vehicle at all times. Many times
stolen vehicles are identified by information
in the Owner's Manuals that are still with
them.
•Never park your vehicle in an isolated area.
Park as far as possible in a designated area.
ADDRESS: _______________________________________
PHONE NO : _____________________________________
_______________________________________________________
•Be sure the registration information for your
vehicle is accurate and correct.
_______________________________________________________
_______________________________________________________
impair your vehicle's handling, stability and
braking, making it unsafe to ride. Removing or
modifying your lamps, mufflers, emission
control system or other equipment can also
make your vehicle illegal.
•Always lock the steering and never leave the
key in the ignition switch. This sounds
simple but people do forgets.
NAME: _____________________________________________
ANTI-THEFT TIPS
•Park your vehicle in a locked garage
whenever possible.
•Use an additional anti-theft device of good
quality.
Modifications
•Be sure electrical equipment does not
exceed the vehicle's electrical system
capacity (page 6). A blown fuse can cause
a loss of lights.
•Make sure that the accessory does not
obscure any lamps, reduce ground
clearance, limit suspension travel or steering
travel, affect your riding position or interfere
with operating any controls.
•We strongly advise you not to remove any
original equipment or modify your vehicle in
any way that would change its design or
operation. Such changes could seriously
Accessories
•Do not pull a trailer or sidecar with your
vehicle. This vehicle was not designed for
these attachments, and their use can
seriously impair your vehicle's handling.
7
•Follow all instructions in this owner's manual
regarding accessories and modifications.
•Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
WARNING
!!

Important safety information
VEHICLE SAFETY
Your vehicle can provide many years of
service and pleasure if you take responsibility
for your own safety and understand the
challenges you can meet on the road.
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your pillion are both wearing an
approved vehicle helmet and protective
apparel. Instruct your pillion on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the footrest,
even when the vehicle is stopped.
Take time to learn & practice your vehicle
Even if you have ridden other vehicles,
practice riding in a safe area to become
familiar with how this vehicle works and
handles, and to become accustomed to the
vehicle's size and weight.
Always wear a helmet
It is a proven fact, Helmet significantly reduces
the number and severity of head injuries. So
always wear a helmet and make sure your pillion
rider does the same. We also recommend that
you wear eye protection, sturdy boots, gloves
and other protective gear.
There is much that you can do to protect
yourself when you ride. You will find many
helpful recommendations through out this
manual. Following are a few that we consider
most important.
Before riding your vehicle
Always pay due attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop quickly or
perform an evasive maneuver.
Some drivers do not see because they vehicles
are not looking for them. To make yourself more
visible, wear bright reflective clothing, position
yourself so that others can see you, signal before
turning or changing lanes, and use horn which
will help others to notice you.
Make yourself easily visible
Ride within your limits
Ride efensivelyd
Pushing the limits is another major cause of
vehicle accidents. Never ride beyond your
personal abilities or faster than conditions
demand. Remember that fatigue and
negligence can significantly reduce your ability
to make good judgements and ride safely.
Do not drink and ride
Riding under the influence of alcohol or drugs
is dangerous. Alcohol can reduce your ability
to respond to changing conditions and reduce
the reaction time. Do not drink and ride.
Keep your vehicle in safe condition
For safe riding, its important to inspect your
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and use accessories that have been
recommended by Hero MotoCorp for this
vehicle.
8

•Leather gloves to keep your hands warm
and help prevent blisters, cuts, burns, and
bruises.
An open-face helmet offers some protection,
but a full-face helmet offers more. Always
wear face shield or goggles to protect your
eyes and help your vision.
Your Helmet is your most important piece of
riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and securely.
A bright coloured helmet can make you more
noticeable in traffic, as can reflective strips.
In addition to a helmet and eye protection, we
also recommend:
Additional riding gear
•A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help make
you more noticeable in traffic. Be sure to
avoid loose clothes that could get caught on
any part of your vehicle.
Helmets and eye protection
•Sturdy boots with non-slip soles to help
protect your feet and ankles.
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether
it is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you are involved in a crash
PROTECTIVE APPAREL
For your safety, we strongly recommend that
you always wear an approved helmet (ISI
marked), eye protection, boots, gloves, long
pants and a long sleeve shirt or jacket
whenever you ride. Take care of loose/
hanging clothes while solo/pillion riding.
Although complete protection is not possible,
wearing proper gear can reduce the chance of
injury when you ride.
If you decide to continue riding, first evaluate
the condition of your vehicle. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, brake levers, brakes,
and wheels. Ride slowly and cautiously. Your
vehicle may have suffered damage that is not
immediately apparent. Have your vehicle
thoroughly checked at a qualified service
facility as soon as possible.
Following are suggestions to help you choose
proper riding gear.
9
•Not wearing a helmet increases the chance of
serious injury or death in a crash.
•Be sure you and your pillion always wear a
helmet, eye protection and other protective
apparel when you ride.
WARNING
!!

SAFE RIDING TIPS
•Ride defensively and at a steady speed
(between 40-50 km/hr).
•While riding, sit in a comfortable position
with your legs close to fuel tank.
•Tightly wrap loose/hanging clothes & avoid
entangling with moving parts.
•Before riding make sure in which mode you
are riding whether with i3s switch “ON’ or
“OFF”.
Do's:
•Always wear a helmet (ISI marked) with
chin strap securely fastened and insist on a
helmet for your pillion rider.
•Respect road signs and obey traffic rules for
your own safety and that of others on the
road (page 55).
•Give way to others on the road and signal
before you make a turn.
•To stop the vehicle(in IBS), press the rear
brake pedal for the application of front and
rear brake simultaneously. However for more
effective braking, use both brakes
simultaneously, keeping throttle in the close
position.
•Always conduct simple pre-ride inspection
(page 19).
•During night time, dip headlamps of your
vehicle for oncoming traffic, or when
following another vehicle.
•To make yourself more visible, wear bright
reflective clothing that fits well.
•Get your vehicle serviced regularly by the
Authorised Hero MotoCorp workshop.
•Never use cell phone while riding the
vehicle.
•Concentrate on the road and avoid talking
to the pillion rider or others on the road.
•Never touch any part of the hot exhaust
system like muffler.
•Never ride under the influence of alcohol or
drugs.
•Do not cross the continuous white/ yellow
line in the center of the road, while
overtaking.
•Do not attach large or heavy items to the
handlebars, front forks, or fenders.
•Never take your hands off the steering
handle while riding.
•Never shift gears without disengaging the
clutch and closing the throttle.
•Do not litter the road.
•Avoid sudden acceleration, braking and
turning of your vehicle.
Don't:
10

•Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be
tuned regularly, which will also help reduce pollution and improve vehicle performance &
fuel efficiency.
The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.
•Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your vehicle’s running
condition.
•Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 km. (with top
up every 3000 kilometers) to keep the engine fit and environment healthy.
•Emission pollution : Get emission of your vehicle checked by Authorised agencies atleast
once every 3 months or as notified by the government from time to time.
•Regular servicing: Get your vehicle serviced at an Authorised Hero MotoCorp
workshop, as per the service schedule, for an optimum performance and keep the emission
level under check.
•Noise pollution : Noise beyond a certain decibel is pollution. Whether it is from horns or
defective mufflers, excessive noise will cause headaches and discomfort.
•Fuel saving & Reduce pollution : Switch "OFF" the engine while waiting at traffic signal
points to save fuel and reduce pollution, if the waiting period is long.
TIPS FOR HEALTHY ENVIRONMENT
11

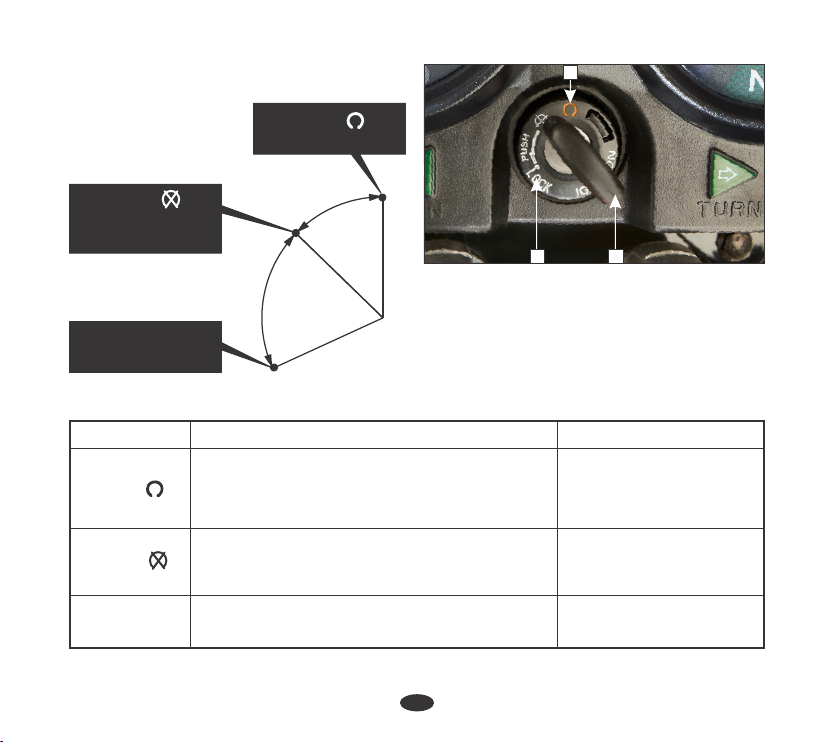

(1) Ignition switch
(2) Ignition key
(3) Steering lock position
The engine can be started. Turn signal lamp,
Horn, Tail/Stop lamp, Fuel gauge will be
functional. Key cannot be removed.
Engine cannot be started and no electrical
system will be functional. Key can be removed
Steering can be locked Key can be removed
“LOCK”
Key Position Function Key Removal
1
23
12
PARTS FUNCTION
IGNITION SWITCH
“LOCK” Position
“ON” ( )
Position
“OFF”( )
Position/
Lock Open
“ON” ( )
“OFF” ( )

(2) Odometer Shows accumulated mileage.
(4) Fuel gauge Indicates approximate fuel quantity.
Sl. No. Description Function
(1) Speedometer Indicates driving speed.
(6) Neutral indicator Light glows when vehicle is in neutral.
(5) High beam indicator Light glows when headlamp is in Hi beam.
(3) Gear shifting Maximum operating speed in each gear.
Indicator glows for few seconds and turns “OFF”
(7) i3s indicator
indicating that i3s system is functional.
(8) Turn signal indicator Flashes when turn signal switch is operated.
INSTRUMENTS AND INDICATORS
The indicators are in the speedometer panel
above the headlamp. The functions are as
below.
12 4
5
13
68
9
(9) Side stand indicator Light glows when vehicle parked on side stand.
3
7

HANDLEBAR SWITCHES CONTROL
(a) Left handlebar controls
1. Dimmer switch
Select “ ” for high beam and “ ” for
low beam.
2. Clutch switch
There is a clutch switch (2) provided for the
safety of the rider. The vehicle cannot be
started by electric starter switch until the clutch
lever is operated when the vehicle is engaged
in gear. 4
3
14
Steering lock
Steering lock is within the ignition switch, turn
the key (1) to “OFF” position & turn the
handle bar towards left or right & push the key
inwards & turn towards "Lock" position. After
locking, take out the key.
FEATURE
(1) Ignition key
1
(3) Turn signal lamp switch (4) Horn switch
Shift the turn signal knob sideways for
right/left indications and leave it to come back
to its normal position on its own.
4. Horn switch ( )
Press the switch to operate the horn.
3. Turn signal lamp switch ( )
IMPORTANT : To switch “OFF” the turn
signal lamp after completing the turn, gently
push the knob inside.
1
2
(1) Dimmer switch (2) Clutch switch

15
•Never hold electric starter switch continuously
more than 5 seconds as continuous cranking
of engine will drain the battery.
•During electric or clutch start, the engine will
cut-off if engine reaches 900 r/min if the
relay is engaged for more than 5 seconds.
CAUTION
!!
There is an i3s switch provided to enable (2)
the rider for turning i3s mode “ON” or “OFF”
based on the traffic conditions.
2. i3s switch
Keep the i3s switch (1) to “OFF” position.
Turn the ignition key to “ON” position. the
i3s (IDLE STOP START SYSTEM)
Starting & Warm up the engine:
i3s indicator (2) will glow on the speedometer
console for 2 seconds and turn “OFF”. Start
the engine and let it idle for 2-3 minutes.
(1) i3s switch
(2) i3s indicator
2
1
(1) Electric starter switch (2) i3s switch
(b) Right handlebar controls
1. Electric starter switch ( )
operating the starter switch. Release starter
switch after the engine has started.
Ensure starter switch (1) is operated when the
vehicle is in neutral gear. If the vehicle is
engaged in gear press the clutch lever before
1
2

16
NOTE
•Use choke during cold conditions.
•The engine will stall if the i3s switch is in
“ON” position during warmup.
Driving with i3s switch in “OFF”
position:
Initial activation of the i3s system:
In this condition, the engine can be restarted
either with kick or electric start only.
Driving with i3s switch in “ON” position:
While driving, if the engine is kept idling (while
waiting in a traf c signal), the engine will cut fi
off in 5 secs. (The vehicle should be in neutral
at less then 2000 r/min with clutch
lever/throttle is in released position) By
pressing the clutch lever, the engine will start
again and gear can be engaged to move the
vehicle.
Keep the i3s switch (1) to “ON” position.
Turn the Ignition key to “ON” position. The
i3s indicator (2) on the speedometer console
will glow for 2 seconds and turn “OFF”. Start
the vehicle and allow the engine to run in
neutral gear position with the r/min less than
2000 r/min. The engine will cut off in 30
secs. After the rst stop start every subsequent fi
stop will be in 5 secs.
While driving in a traffic jam/or very dense
traffic where the vehicle has to encounter a
stop and go situation, the i3s switch can be
changed to “OFF” position. Once this is done,
the i3s system will not work and the vehicle
will be in normal operating conditions as other
vehicles and no special functions will be
performed.
NOTE
•if engine reaches 900 r/min
•If the battery voltage is low, the i3s system will
not work. The i3s indicator on the
speedometer console will start to blink, if the
r/min is less than and the i3s 2000 r/min
indicator goes off if the r/min is more than
2000 r/min. The vehicle will be in normal
operating conditions as other vehicles and no
special functions will be performed.
•If the vehicle is driven without battery or with
the dead battery, the i3s system will not
work. The i3s indicator on the speedometer
console will start to glow continuously. The
vehicle will be in normal operating
conditions as other vehicles and no special
functions will be performed.
•During electric or clutch start, the engine will
cut-off
•if the relay is engaged for more than 5
seconds.
FUEL TANK
•Do not overfill the tank. There should be no
fuel in the filler neck (4).
•Remove the cap by turning it anti-
clockwise.

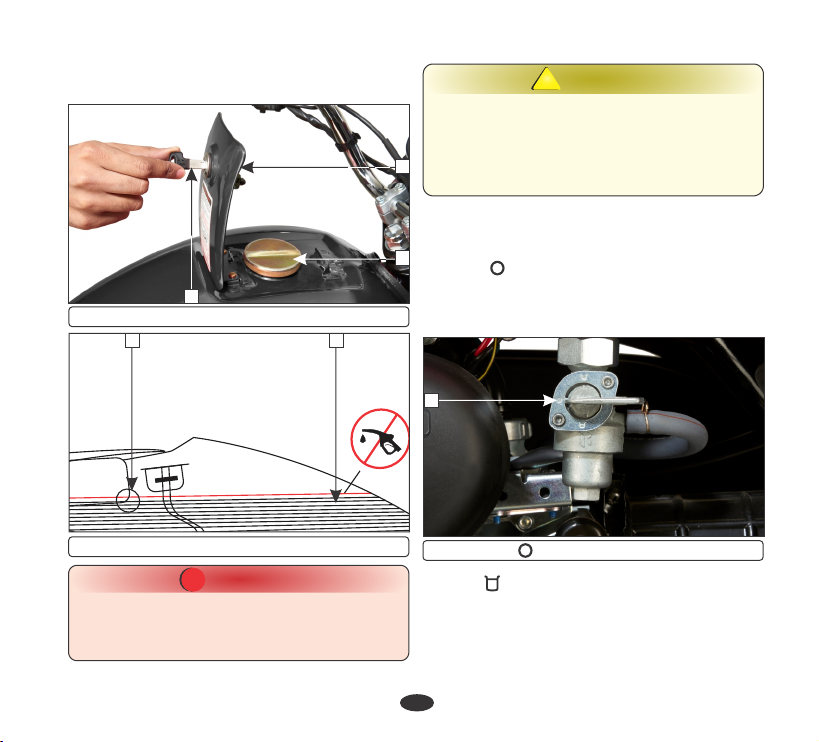

•To remove the fuel tank cap (1), insert the
ignition key (2), turn it anti-clockwise and
lift the lid (3) as shown in the picture.
Fuel tank capacity is 11 litres including
reserve supply of 1.1 litres (usable).

“ON” ( ) position
At “ON” position (2), fuel will flow from the
tank to the carburetor.
CAUTION
!!
•For locking, press the lid gently and turn the
key clockwise.
5
4
(4) Filler neck (5) Fuel
Do not park the vehicle under direct sunlight
as it causes evaporation of petrol due to heat
and deterioration of paint gloss due to ultra
violet rays.
WARNING
!!
Petrol is extremely flammable and is explosive
under certain conditions. Refill in a well
ventilated area with the engine stopped. Do
not smoke or allow flames or sparks in the
area where the petrol is refilled or where
petrol is stored.
FUEL VALVE
The three way fuel valve is on the left side of
the carburetor.
At “OFF” position (1), fuel cannot flow from
the tank to the carburetor. Turn the valve
“OFF” whenever the vehicle is not in use.
“OFF” ( ) position
(1) “OFF” ( ) position
1
17
1
3
(1) Fuel tank cap (2) Ignition key (3) Lid
2
