HERO MAESTRO EDGE 2021 User manual

PREFACE
Thank you for selecting a Hero MotoCorp MAESTRO EDGE vehicle. We wish you many
miles of continued riding pleasure in the years ahead.
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp MAESTRO EDGE vehicle. Please take time to read it carefully. As with any
fine machine, proper care and maintenance is essential for trouble-free operation and
optimum performance.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable environment legislation and strengthen the green
supply chain.
Your Authorised Distributor and Dealer(s) of the Distributor (“Dealer”) will be glad to provide
further information or assistance and is equipped to handle your future service needs.
Let us make this world a safer, healthier and more environment friendly place.
No: IB9B

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM Hero MotoCorp Ltd.
NOTE

CONTENTS
Pg. No.Pg. No.
POLISHING OF VEHICLE 78
IDLE SPEED/BRAKE SHOE WEAR 72
REMOVING ROAD SALT 78
SUSPENSION 75
BULB/LED REPLACEMENT 76
CATALYTIC CONVERTER 78
SAFETY PRECAUTIONS 60
SPARK PLUG 71
MAINTENANCE 59
AIR SUCTION VALVE (ASV) 78
BASIC TROUBLESHOOTING 80
MAINTENANCE SCHEDULE 61
AIR CLEANER ELEMENT 64
FUSE REPLACEMENT 75
STORAGE GUIDE 78
NAVIGATION SIGNS 82
SECONDARY AIR SUPPLY SYSTEM 67
THROTTLE OPERATION 65
DRAIN TUBE 68
ENGINE OIL 68
FINAL DRIVE OIL REPLACEMENT 70
DELIVERY CERTIFICATE
i3s THROTTLE SWITCH ADJUSTMENT 66
HERO GENUINE PARTS
OWNERSHIP RECORD AND DATA
BATTERY 73
SERVICE ADVICE SHEET
JOBS APPLICABLE TO PERIODIC SERVICES
SERVICE RECORD SHEET
•Rear view mirror/Headlamp assembly 47
•Headlamp focus adjustment 48
PRE-RIDE INSPECTION 49
ANTI-THEFT TIPS 50
STARTING THE ENGINE 50
RUNNING IN/RIDING 52
CLEANING OF VEHICLE 58
PARKING/STEERING LOCK 57
TOOL KIT 58
WASHING OF VEHICLE 58
•Brakes (Integrated braking) 20
ESSENTIAL INDIVIDUAL COMPONENTS 27
•Steering lock 35
•Important safety information 4
•Accessories and modifications 8
•Instruments and indicators 14
•Side stand/indicator/switch 39
SAFE RIDING TIPS 9
VEHICLE IDENTIFICATION 1
VEHICLE SPECIFICATION 2
TIPS FOR HEALTHY ENVIRONMENT 10
•Fuel 22
•LCD panel 16
•Tyres (Tubeless) 24
HANDLEBAR SWITCHES CONTROL 28
FEATURES 28
•Ignition switch 27
•i3s (Idle Stop Start System) 28
VEHICLE SAFETY 4
PART FUNCTIONS 14
•Load limits and guidelines 7
•Keys 20
MAJOR COMPONENTS 20
•Protective apparel 5
VEHICLE VIEWS 11
•Rear brake 21
•Hero ride guide/Navigation 30
•Fuel tank lid lock 36
•Seat lock/Helmet holder 36
•Center compartment 37
•Document compartment/Tool kit holder 37
•Luggage hooks 38
•Pillion footrest 40
BODY PARTS REMOVAL 40
•Body cover 41
•Front cover 45
•Center compartment 40
•Front center cover 44
•Floor side cover 46

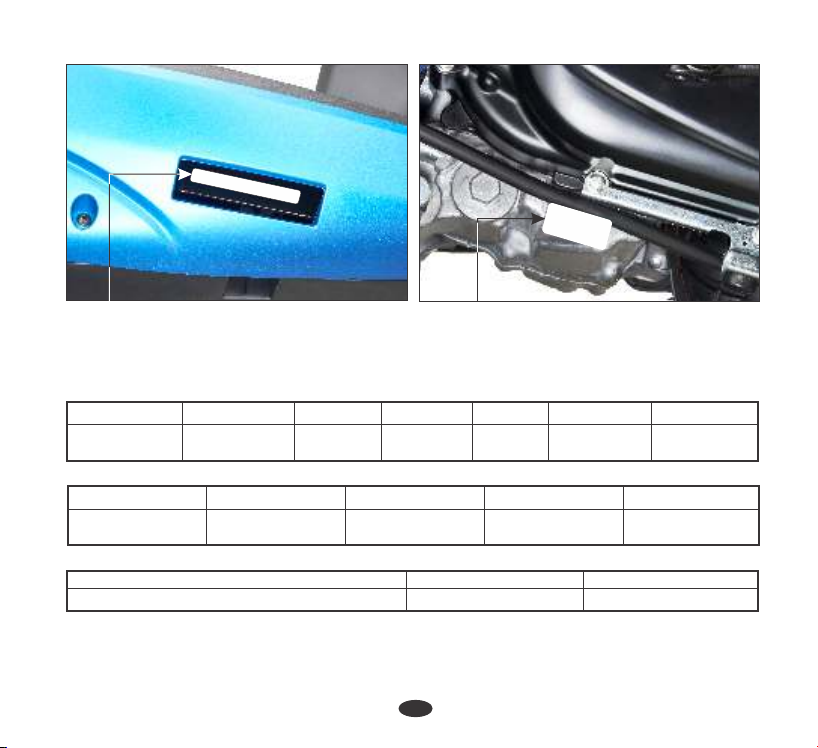

Vehicle Identification Number (VIN)
Location: Stamped on the lower right side of
the frame, visible from the window provided
on right floor side cover.
Engine No.
Location: Stamped on the lower side of
the left crankcase.
VIN and Engine number may be required:
2. For dealing with legal & insurance departments.
1. During registration of the vehicle.
1
Model: Maestro EDGE
VIN Engine
Variant
VEHICLE IDENTIFICATION
JF33AE#
#######
MBLJFW01#########
JFW01 JF33AE
Drum/Cast wheel/Integrated brakes
MBL JFW01 # # # #####
Manufacturer
code Vehicle
Description Model Year Plant
Code Month of
Manufacturing Production
Serial Number
#
Check
Digit
Engine No.: JF33AE########
JF33AE # # # #####
Engine
Description Year of
Manufacturing Assembly Plant Month of Manufacturing Serial Number
VIN: MBLJFW01#########

2
SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance (Under cover)
Kerb weight
1843 mm
715 mm
1139 mm
1261 mm
775 mm
155 mm
110 kg
Weight
Engine oil
Transmission oil
Fuel tank
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
0.80 litre at disassembly and 0.70 litre at draining
0.12 litre at disassembly
0.10 litre at draining
5.5 litres
5.80 kW @ 7500 r/min
8.50 N-m @ 5500 r/min
50.0x56.5 mm
9.5:1
110.9 cc
Champion-RG8YC (Federal Mogul)
Capacities
Engine
Spark plug gap
Valve clearance
Idle speed
Front suspension
Rear suspension
Caster angle
0.8-0.9 mm
0.14±0.02 mm
0.14±0.02 mm
1700±200 r/min
28°
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug
Chassis type High rigidity under bone type
Telescopic, hydraulic shock absorber
Unit swing with spring loaded hydraulic damper
Tyre size Front
Rear
90/90-12 54 J (Tubeless tyre)
90/100-10 53 J (Tubeless tyre)
VEHICLE SPECIFICATION
Front fork oil disassembly 97 ml

3
SPECIFICATIONSITEM
Primary reduction
Final reduction Variomatic drive, (2.53-0.8)
9.423 (50/20X49/13)
Transmission
Front/Rear brake drum type
Battery 12V-4Ah ETZ-5 *MF battery
Electricals
Internal expanding shoe type (Dia. 130 mm)
(Integrated braking)
Clutch system Dry, automatic centrifugal clutch
Alternator 125 W @ 5000 r/min
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Kick/Electric start
13.2V-17W/8.5W (LED)
12V-0.4W/1.6Wx8 nos. (LED)
Turn signal lamp
Position lamp
Meter illumination
12V-10Wx4 nos.(**MFR-Clear lens-Amber bulb)
12V-4.7W (LED)
LED
Turn signal indicator (RH+LH) LED (Green)
Hi beam indicator
Licence plate
Side stand indicator
Low fuel indicator
LED (Blue)
12V-5W
LED (Red)
LED Amber
* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector
VEHICLE SPECIFICATION
i3s indicator LED (Blue)
Boot lamp 14V, 30 mA
Fuse 15A, 10A & 10AMain fuse
Spare fuse 15A & 10A

4
Take time to learn & practice your
vehicle
VEHICLE SAFETY
Your vehicle can provide many years of
service and pleasure if you take responsibility
for your own safety and understand the
challenges you can meet on the road.
Always wear a helmet
Even if you have ridden other vehicles,
practice riding in a safe area to become
familiar with how this vehicle works and
handles, and to become accustomed to the
vehicle's size and weight.
IMPORTANT SAFETY INFORMATION
There is much that you can do to protect
yourself when you ride. You will find many
helpful recommendations through out this
manual. Following are a few that we consider
most important.
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your pillion are both wearing an
approved vehicle helmet and protective
apparel. Instruct your pillion on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the foot pegs,
even when the vehicle is stopped.
It is a proven fact, helmet significantly reduces
the number and severity of head injuries. So
always wear a helmet and make sure your
pillion rider does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves and other protective gear
(page 6).
Before riding your vehicle
For safe riding, its important to inspect your
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and only use accessories that have
been approved by Hero MotoCorp for this
vehicle. See (page 7) for more details.
Make yourself easily visible
Do not drink and ride
Ride defensively
Some drivers do not see vehicles because they
are not looking for them. To make yourself
more visible, wear bright reflective clothing,
position yourself so that others can see you,
signal before turning or changing lanes, and
use horn which will help others to notice you.
Riding under the influence of alcohol or drugs
is dangerous. Alcohol can reduce your ability
to respond to changing conditions and reduce
the reaction time. Do not drink and ride.
Always pay due attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop quickly or
perform an evasive maneuver.
Pushing the limits is another major cause of
vehicle accidents. Never ride beyond your
personal abilities or faster than conditions
demand. Remember that fatigue and
negligence can significantly reduce your ability
to make good judgements and ride safely.
Keep your vehicle in safe condition
Ride within your limits

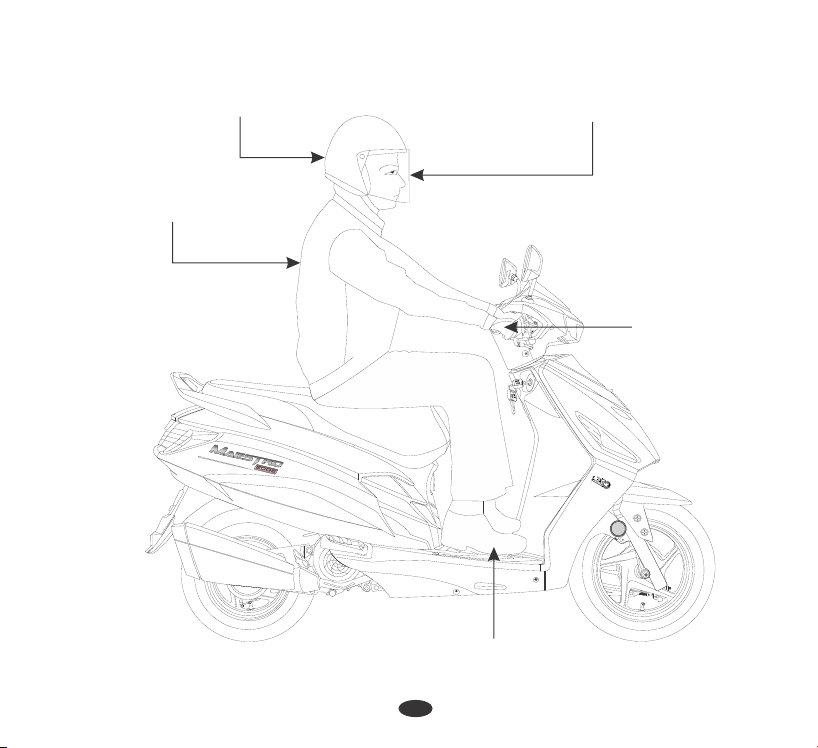

Helmets and eye protection
An open-face helmet offers some protection,
but a full-face helmet offers more. Always
wear face shield or goggles to protect your
eyes and help your vision.
In addition to a helmet and eye protection, we
also recommend:
•A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help make
you more noticeable in traffic. Be sure to
avoid loose clothes that could get caught on
any part of your vehicle.
Additional riding gear
•Leather gloves to keep your hands warm
and help prevent blisters, cuts, burns, and
bruises.
Your helmet is your most important piece of
riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and securely.
A bright coloured helmet can make you more
noticeable in traffic, as can reflective strips.
•Sturdy boots with non-slip soles to help
protect your feet and ankles.
5
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether
it is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
For your safety, we strongly recommend that
you always wear a helmet which should
conform as per your country standards, in
addition to eye protection, boots, gloves, long
Following are suggestions to help you choose
proper riding gear.
If you are involved in a crash
If you decide to continue riding, first evaluate
the condition of your vehicle. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, brake levers, brakes,
and wheels. Ride slowly and cautiously. Your
vehicle may have suffered damage that is not
immediately apparent. Have your vehicle
thoroughly checked at a qualified service
facility as soon as possible.
pants and a long sleeve shirt or jacket
whenever you ride. Take care of loose/
hanging clothes while solo/pillion riding.
Although complete protection is not possible,
wearing proper gear can reduce the chance of
injury when you ride.
PROTECTIVE APPAREL
•Not wearing a helmet increases the chance of
serious injury or death in a crash.
•Be sure you and your pillion always wear a
helmet, eye protection and other protective
apparel when you ride.
WARNING
!!

6
PROTECTIVE APPAREL
Always wear HELMET
Wear bright or
reflective clothing
Wear a face shield or goggles
Shoes should be close fitting,
low heels and offer ankle protection
Wear gloves

Your vehicle has been designed to carry you,
one pillion and limited amount of cargo. When
you add cargo or carry a passenger, you may
feel some difference during acceleration and
braking. But so long as you keep your vehicle
well maintained, with good tyres and brakes,
you can safely carry loads within the limits and
guidelines.
LOAD LIMITS AND GUIDELINES
Loading
How much weight you put on your vehicle,
and how you load it, are important to your
safety. Anytime you ride with a pillion or cargo
you should be aware of the following
information.
However exceeding the weight limit or
carrying an unbalanced load can seriously
affect your vehicle's handling, braking and
stability. Non Hero MotoCorp accessories,
modifications, and poor maintenance can
reduce your safety margin.
The following pages give more specific
information on loading, accessories and
modifications.
Center compartment : 10.0 Kg
Rear luggage hook : 1.5 Kg
Maximum weight:
Front luggage hook : 3.0 Kg
Putting too much weight in individual storage
compartments can also affect stability and
handling. So be sure to stay within the limits
given below:
Following are the load limits for your vehicle:
Maximum weight capacity: 130 Kg
Includes the weight of the rider, pillion, all
cargo and all accessories.
Load limits Improperly loading your vehicle can affect its
stability and handling. Even if your vehicle is
properly loaded, you should ride at reduced
speeds whenever carrying cargo.
Loading guidelines
Your vehicle is primarily intended for
transporting you and a pillion. If you wish to
carry more cargo, check with your Authorised
Distributor/Dealer for advice and be sure to
read the information regarding accessories on
(page 8).
7
(1) Front luggage hook
(2) Rear luggage hook (3) Center compartment
1
2
3
•Overloading or improper loading can cause a
crash and you can be seriously injured.
•Follow all load limits and other loading
guidelines in this manual.
WARNING
!!

•Place cargo weight as close to the center of
the vehicle as possible.
Follow these guidelines whenever you carry a
pillion or cargo:
•Check that both tyres are properly inflated.
•To prevent loose items from creating a
hazard, make sure the center compartment
is closed and that any other cargo is securely
tied down before you ride away.
•Balance cargo weight evenly on both sides.
Modifying your vehicle or using non Hero
unsafe. Before you consider making any
modifications or adding any accessory, be sure
to read the following information.
MotoCorp accessories can make your vehicle
ACCESSORIES AND MODIFICATIONS
We strongly recommend that you use only
genuine Hero MotoCorp accessories that
have been specifically designed and tested for
your vehicle. Hero MotoCorp cannot test all
other accessories, you must be personally
responsible for proper selection, installation
and use of non Hero MotoCorp accessories.
Accessories
Modifications
•Be sure electrical equipment does not
exceed the vehicle's electrical system
capacity (page 3). A blown fuse can cause
loss of lights.
•Do not pull a trailer or sidecar with your
vehicle. This vehicle is not designed for
these attachments, and their use can
seriously impair your vehicle handling.
Removing or modifying your lamps, muffler,
emission control system or other equipment
can also make your vehicle not meeting the
emission standards.
Check with your dealer for assistance and
always follow these guidelines:
•Make sure the accessories does not obstruct
any lamps, reduce ground clearance and
banking angle, limit suspension travel or
steering travel, alter your riding position or
interfere with operating any controls.
We strongly advise you not to remove any
original equipment or modify your vehicle in
any way that would change its design or
operation. Such changes could seriously
impair your vehicle's handling, stability and
braking, making it unsafe to ride.
8
•Follow all instructions in this owner's manual
regarding accessories and modifications.
•Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
WARNING
!!

•Take care of loose/hanging clothes while
solo/pillion riding.
•Always conduct simple pre-ride inspection
(page 49).
•Always wear a helmet with chinstrap
securely fastened and insist on a helmet for
your pillion rider. Helmet should conform as
per safety standards applicable in your
country.
•For stopping vehicle, use both brakes
simultaneously, keeping throttle in the close
position.
•During night time, dip headlamps of your
vehicle for oncoming traffic, or when
following another vehicle.
•Give way to others on the road and signal
before you make a turn.
•While riding, keep your leg closed and sit in
a comfortable position.
•Ride defensively and at a steady speed
(between 40-50 km/hr).
•To make yourself more visible, wear bright
reflective clothing that fits well.
•Get your vehicle serviced regularly by the
Authorised Distributor/Dealer.
•Before riding make sure in which mode you
are riding whether with i3s switch “ON’ or
“OFF”.
•Never use cell phone while riding the
vehicle.
•Avoid sudden acceleration, braking and
turning of your vehicle.
•Never touch any part of the hot exhaust
system like muffler.
•Never ride under the influence of alcohol or
drugs.
•Concentrate on the road and avoid talking
to the pillion rider or others on the road.
•Do not litter the road.
•Do not attach large or heavy items to the
handlebars.
•Do not cross the continuous white/yellow
line in the center of the road, while
overtaking.
•Never take your hands off the steering
handle while riding.
•Navigation system assists you to reach your
destination, don't be distracted while driving.
Drive safely and always obey traffic rules.
SAFE RIDING TIPS
Do's: Don'ts:
9

•Fuel saving & reduce pollution: Switch "OFF" the engine while waiting at traffic signal
points to save fuel and reduce pollution, if the waiting period is long.
•Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 km (with top
up every 3000 kilometres) to keep the engine fit and environment healthy.
•Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your vehicle’s running
condition.
•Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or
defective mufflers, excessive noise will cause headaches and discomfort.
The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.
•Regular servicing: Get your vehicle serviced at an Authorised service station, as per the
service schedule, for an optimum performance and keep the emission level under check.
•Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be
tuned regularly, which will also help reduce pollution and improve vehicle performance.
TIPS FOR HEALTHY ENVIRONMENT
10

11
(1) Turn signal indicators
(2) Low fuel indicator
(3) Side stand indicator
(4) Horn switch
(5) Turn signal switch
(6) Integrated brake lever
(8) Rear view mirror
(9) Dimmer switch/Passing switch
(10) Mode (M) and Set (S) buttons
(7) Lever lock
(11) High beam indicator
(13) i3s indicator
(12) LCD panel of meter console. Refer
instruments and indicators (page 16)
for fuel gauge, speedometer and other
features of console
(14) i3s switch
(15) Front brake lever
(16) Throttle grip
(17) Electric starter switch
(18) Ignition switch with steering lock, seat
lock and fuel lid opener
TOP VIEW VEHICLE VIEWS
18
16
15
*Accessories and features shown may not be part of standard fitment.
8
4
3
5
9
6
M
S
14
11
1
2
7
10 12 13
17

12
(2) Side stand switch
(4) Main stand
(1) Front reflex reflector
(3) Side stand
(9) Seat
(10) Rear luggage hook
(11) Headlamp
LEFT SIDE VIEW
(5) Kick starter pedal
(6) Rear turn signal lamp
(7) Tail/stop lamp
(8) Rear grip
11
*Accessories and features shown may not be part of standard fitment.
12345
6
7
8
910

(3) Pillion step
(1) Exhaust muffler
(2) Oil level dipstick (4) Front turn signal lamp
(6) Front luggage hook
(5) Position lamp

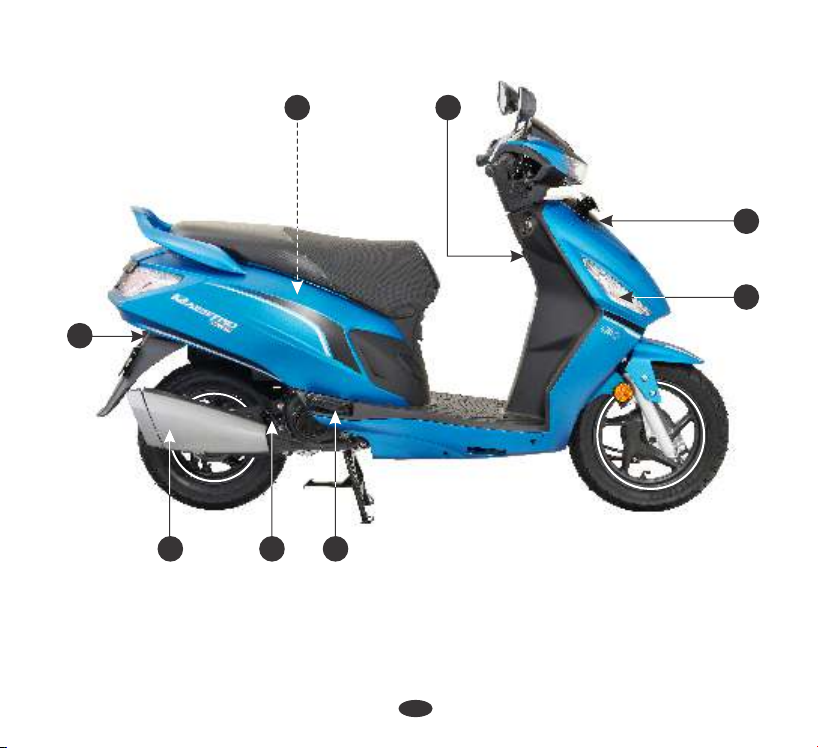

RIGHT SIDE VIEW
13
(7) Center compartment (inside)
(8) Rear reflex reflector
Accessories and features shown may not be part of standard fitment.
5
7
21 3
4
6
8

14
PART FUNCTIONS

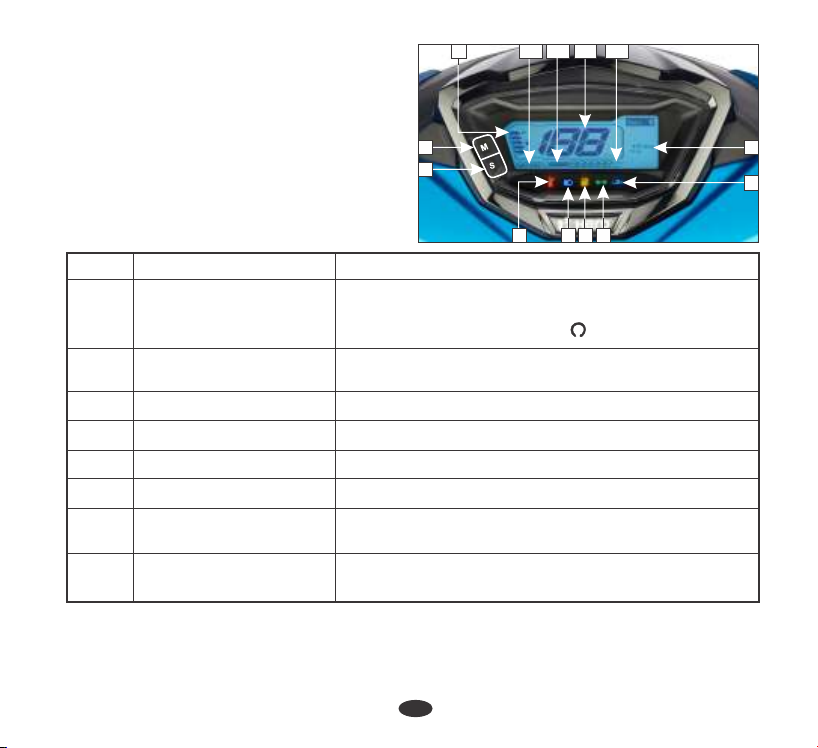

INSTRUMENTS AND INDICATORS
The indicators are in the speedometer panel
above the headlamp. The functions are as
below. 1
2
9
345
11
8
10 12
7
Sl. No. Description Function
6
High beam indicator Light glows when headlamp is in high beam.
7
1
2
Side stand indicator
3
4
5
Indicates how many kilometer are left before the
next service is due. It appears for few seconds when the
ignition switch is turned “ON” ( ) (page 19).
Next service distance
Indicator glows for 2 seconds and turns “OFF”
indicating that i3s system is functional.
i3s indicator
Turn signal indicators Flashes when turn signal switch is operated.
Low fuel indicator Light glows when the fuel quantity is low (page 19).
Light glows when the vehicle is parked on the side stand.
To adjust clock, date & tripmeter.
When long pressed resets tripmeter to zero.
Set button
8Mode button To change the mode (tripmeter-1 & 2 & navigation
mode), clock and date adjust.
13
6

Sl. No. Description Function
15
Shows accumulated distance travelled (page 17).
Odometer
9
11
Indicates time in hour and minute (12 hr format as
AM/PM) (page 16).
Digital clock
12
13
Indicates approximate fuel available in the form of
digital segments. The digital segments will swing to
maximum scale on the meter console once the ignition
switch is turned “ON” ( ) (page 19).
Fuel gauge
Speedometer Indicates .riding speed
Display when the next service is due s (page 19).
Service reminder indicator
10

16
F FF
E
EE
SERVICE
ODO
km
km/h
PM
241.6 km
Trip 2
Date
2 Jan
F FF
E
EE
SERVICE
ODO
km
km / h
AM
241.6 km
Trip 2
Date
2 Jan
•The time advances fast when the
button is pressed and held.
•To set the hour, press mode button (3) until
the desired hour is displayed.
•The time is advanced by 1 hour
each time the button is pressed.
•"AM" will change to "PM" (after midday).
•PM will change to AM (before midday).
•Turn the ignition switch "ON" ( ).
Digital lock (1) shows hour and minute. To c
adjust the time, proceed as follows :
•set b modePress and hold utton (2) and
b ( )utton 3 simultaneously for more than 2
seconds. The clock will be set in the adjust
mode with the display blinking.hour's digit
LCD PANEL
(a) Digital clock
(1) Digital clock (2) Set button
(3) Mode button
2
3
1
•Press the set button (2). The minutes
display starts blinking.
•The time advances fast when the button is
pressed and held.
•To set the minute press set utton ( ) until b 2
the desired minute is displayed. The minute
display will return to when is
" "
" "
reached without affecting the hour display.
•The time advances by 1 minute, each
time the button is pressed.
3
(3) Mode button
F FF
E
EE
SERVICE
ODO
km
km/ h
PM
241.6 km
Trip 2
Date
2 Jan
(2) Set button
2
