Hessaire 36DSW370-N User manual

HVM0009 Rev. 011519 www.hessaire.com
Tools/Materials Needed:
• Drill/drill bits/phillips bit
• Ratchet/Socket set
Contents:
• Exhaust Fan(1)
• Instruction manual(1)
Instruction Manual: Galvanized Slant Wall
Exhaust Fans - Direct Drive
Model Numbers Covered:
36DSW370-N, 48SWD750-N, 48SWD750T-N
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the equipment described within this manual. Carefully follow all
safety information.
Save this manual for future reference.
Model # ________________________________Purchase Date:____________________
General Safety Instructions
Warning:
1. Before installing or servicing, disconnect all power. Keep hands and body parts clear of all moving parts when installing or servicing.
2. Read and follow all instructions, cautions, dangers and warnings. Failure to do so could result in personal injury, death or property damage.
3. Make sure the electrical power source conforms to the requirement of the fan(s) as well as local codes.
4. Electrical connections, installation and maintenance must be done by qualified electrical personnel in accordance with all applicable codes.
5. Unit must be adequately grounded.
6. To reduce the risk of fire or electrical shock, do not expose this fan to water.
7. Do not touch electrically live components.
8. Free rotation of the propeller is critical. It must not touch any part of the venturi or framework.
9. Assure that all power cords do not come in contact with any sharp edges, hot surfaces or chemicals. Immediately replace any damaged cords.
10. Keep hands and body parts clear of all moving parts when installing or servicing.
Specifications(See Dimension Key On Following Page)
Dimension (In.) Rough-in Opening
Model Prop
Dia.
# Of
Wings
A
(In.)
B
(In.)
AA
(In.)
BB
(In.)
C
(In.)
D
(In.)
E
(In.)
F
(In.) Height Width Ship Wt
Ship.
Dims.
36SWD370-N 36” 3 44 45 1/4 39 1/2 40 1/8 27 16 3/4 4 1/2 45 3/4 42 7/8 40 7/8 140 48x32x51
48SWD750-N 48” 2 56 57 7/8 51 1/2 53 1/4 29 1/4 15 5/8 3 58 1/8 55 1/2 52 7/8 260 60x34x62
48SWD750T-N 48” 2 56 57 7/8 51 1/2 53 1/4 29 1/4 15 5/8 3 58 1/8 55 1/2 52 7/8 260 60x34x62
Caution: OSHA requires OSHA compliant guards within 7ft of the floor or working level.
Inspection:
After unpacking your fan, carefully inspect for any damage that may have occurred during transit. Inspect for loose, missing or damaged parts.
If there is physical damage to any parts of the fan, a freight claim must be filed with the carrier. Check to assure that all bolts, screws and set
screws are securely tightened and have not become loose during transit. Retighten as required.
High CFM CFM/Watt
Model HP Spd F.L.A. Volt. Ph Hz Fan
RPM
0.00"
SP
0.05"
SP
0.10"
SP
0.15"
SP
0.00"
SP
0.05"
SP
0.10"
SP
0.15"
SP
Db @
7ft
Bess Labs
Test #
36SWD370-N 1/2 1 5.2/2.6 115/230 1 60 825 10,770 10,100 9,390 8,640 19.3 17.4 15.5 13.8 76 16137
48SWD750-N 1 1 11.0/5.5 115/230 1 60 850 19,100 17,900 16,500 14,900 18.1 16.5 14.8 13.1 80 16143
48SWD750T-N 1 1 5.6/2.8 230/460 3 60 850 19,050 17,850 16,425 14,820 18 16.4 14.7 13 80 -
Performance

HVM0009 Rev. 011519 www.hessaire.com
Dimension Key Symptom Possible Cause(s) Corrective Action
Fan will not start 1. Tripped circuit breaker 1. Reset circuit breaker
2. Defective motor 2. Repair or replace
3. Incorrectly wired 3. Shut off power, check for proper connections
4. Electricity turned off 4. Contact local power company
Excessive noise or vibration 1. Blade is hitting housing 1. Free blade of obstruction
2. Blade is bent 2. Replace blade
3. Fan not securely anchored 3. Secure properly
4. Bad/noisy bearings 4. Replace motor
Insufficient airflow 1. Incorrect voltage applied 1. Wire properly
2. Defective motor 2. Replace motor
3. Propeller is damaged 3. Replace propeller
4. Blocked Airflow 4. Remove obstructions
5. Not enough intake air 5. Add additional air intake openings
6. Fan is dirty 6. Clean fan guards/screens, motor and propeller
Motor overheats or trips out 1. Over/under line voltage 1. Contact local power company
2. Defective motor 2. Replace motor
3. Fan is dirty. 3. Clean fan guards/screens, motor and propeller
4. Not enough intake air 4. Add additional air intake openings
Troubleshooting Guide
Fan Installation Tips:
For framing dimensions, refer to rough-in opening height and width shown in the specifications on
the previous page.
Position the fan for desired airflow. Air will discharge on the side of the fan facing the propeller.
Assure the fan is fastened securely in the opening to avoid excess “rattling” or vibration using
proper fasteners. Fasteners not included.
Refer to motor nameplate for wiring diagram.
Caution: Before operating your new fan, check blade for proper torque, check
all fasteners for tightness and assure screens and/or shutters are securely in place.
Maintenance
Periodic maintenance schedules should be set to assure reliability and performance of the fan.
Check for excessive vibration while fan is running.
Periodically inspect and tighten all set screws and hardware—check torque on propeller.
Assure all mounting hardware is properly secured.
Motors feature permanently sealed ball bearings and require no further lubrication.
The fan propeller should be periodically cleaned to assure proper balance and performance.
Note: Please contact the dealer/distributor where you purchased the fan from with any questions regarding the fan, manual
or if you are in need of replacement parts.

HVM0009 Rev. 011519 www.hessaire.com

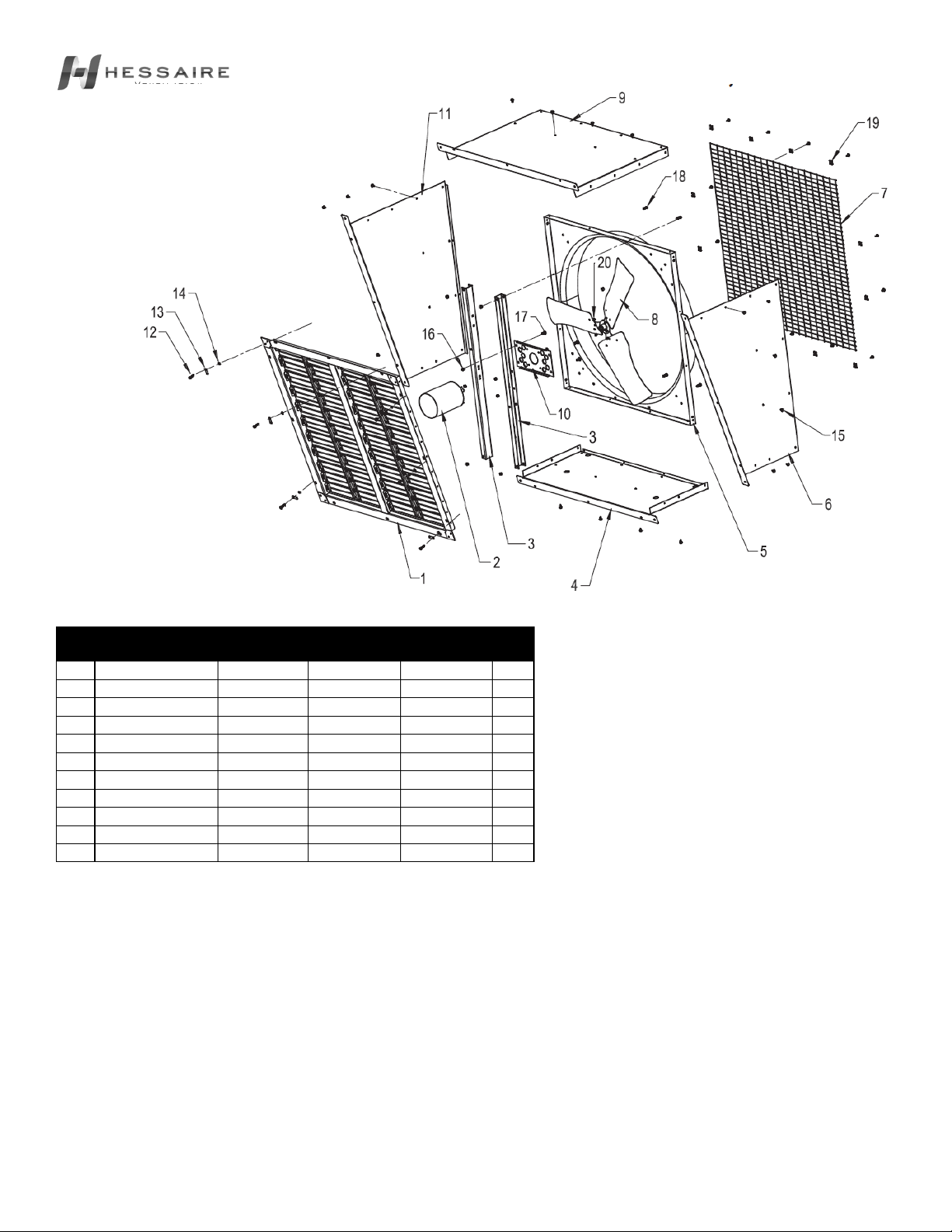

Repair Parts Illustration
Ref
No Description 36SWD370-N 48SWD750-N 48SWD750T-N Qty
1 Intake shutter SA36SW-N SA48SW-N SA48SW-N 1
2 Motor B370-8E A750-8VE A750-8TVE 1
3 Upright N/A N/A N/A 2
4 Bottom housing panel N/A N/A N/A 1
5 Venturi N/A N/A N/A 1
6 Right Housing Panel B370-8E A750-8VE A750-8VE 1
7 Discharge Screen 36SCREEN-N 48SCREEN-N 48SCREEN-N 1
8 Propeller 9001481 9001567 9001567 1
9 Top housing panel N/A N/A N/A
10 Motor mounting plate N/A N/A N/A 1
11 Left housing panel N/A N/A N/A 1
Notes:
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
* 48” model uses a 2 wing prop
