Harbor Breeze RLC52WW5C1R User manual

MERRIMACK CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0593744
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
1
Español p. 19
Lowes.com/harborbreeze
MODEL #RLC52WW5C1R
EB14299

READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 16.53 lbs.
Safety Information ................................................................................................................2
Package Contents ................................................................................................................4
Hardware Contents
. .............................................................................................................5
Preparation
........................................................................................................................... 5
Initial Installation ...................................................................................................................5
Wiring ....................................................................................................................................7
Final Installation ...................................................................................................................
. 8
Operating Instructions ........................................................................................................12
Care and Maintenance ........................................................................................................15
Troubleshooting...................................................................................................................16
Warranty ..............................................................................................................................17
Replacement Parts List .......................................................................................................18
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION
DANGER
If using this fan in a DAMP location, this fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury,
electrical shock or death.

SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
3Lowes.com/harborbreeze
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.
When disposing of household lithium batteries, it is best to check with your local and state recycling
or household hazardous waste coordinators concerning the specifics of the program in your area.
You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.

IMPORTANT: You must use the
parts provided with this fan for proper
installation and safety.
A Mounting Bracket 1
B Motor Housing Screw 4
(preassembled)
C Motor Housing Lock 2
Washer (preassembled)
D Motor Housing Star 2
Washer (preassembled)
E Motor Assembly 1
F Motor Housing 1
G Blade 5
H Blade Arm 5
I Blade Plate 5
J Motor Screw 10
(preassembled) + 1 extra
K Lock Washer 10
(preassembled) + 1 extra
L Light Kit Fitter 1
M Glass Shade 1
N Remote Pack 1
O Bulb
3
DESCRIPTIONPART QUANTITY

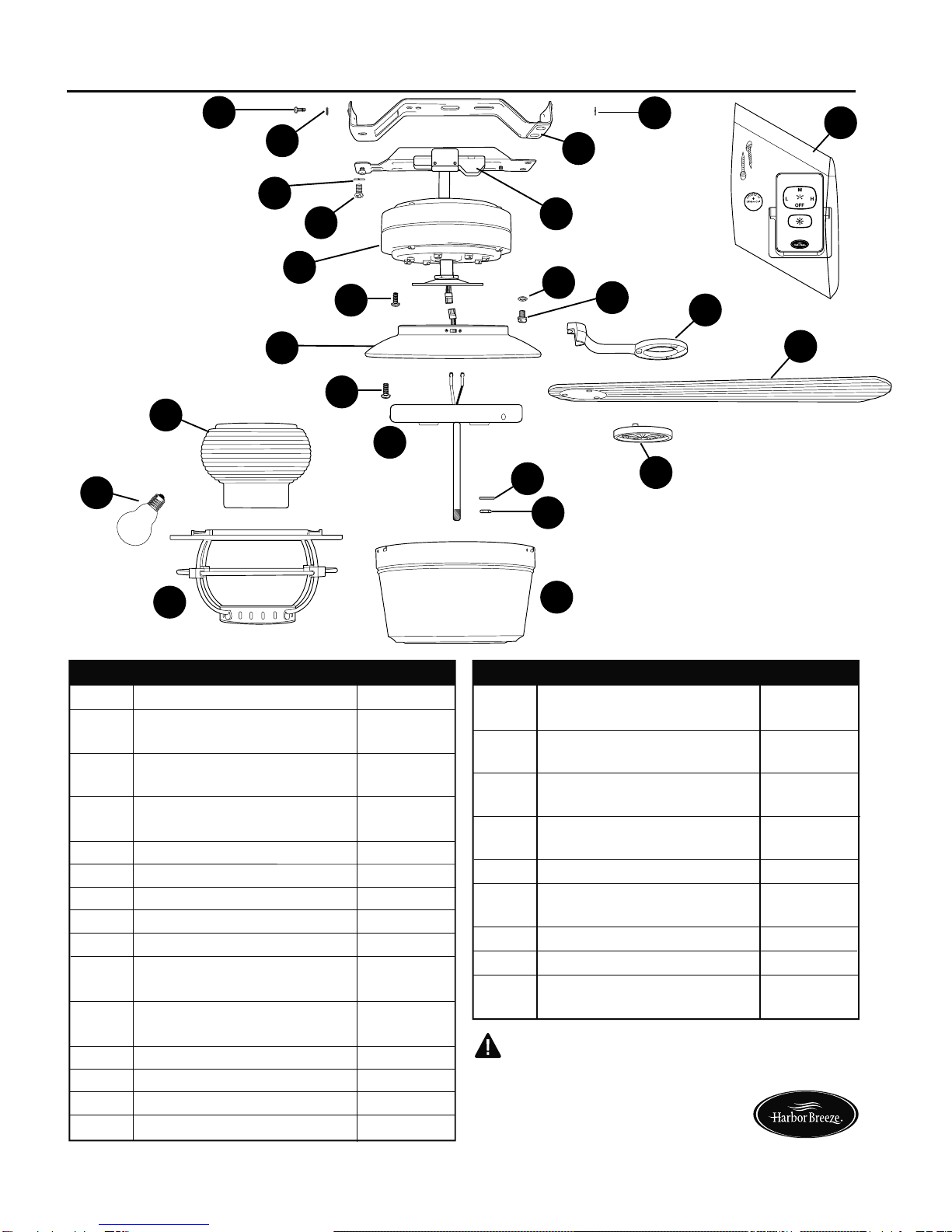

PACKAGE CONTENTS
4Lowes.com/harborbreeze
DESCRIPTIONPART QUANTITY
P Remote Control Receiver 1
(preassembled)
Q Motor Plate Screw 3
(preassembled)
R Motor Mounting Screw 3
(preassembled)
S Motor Mounting Washer 3
(preassembled)
T Fitter Plate 1
U Fitter Plate Screw 3
(preassembled)
V Wire Housing 1
W Hex Nut (preassembled) 1
X Rubber Washer 1
(preassembled)
F
L
T
J
K
QH
G
M
O
N
R
S
U
I
V
W
A
B
D
E
X
P
C

5
PREPARATION
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
AA
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
CC
E3 Wire
Connector
Qty. 3
CC
Blade
Screw
Qty. 15
+ 1 extra
BB
Finial
Qty. 1
DD
Blade
Washer
Qty. 15
+ 1 extra
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1

6

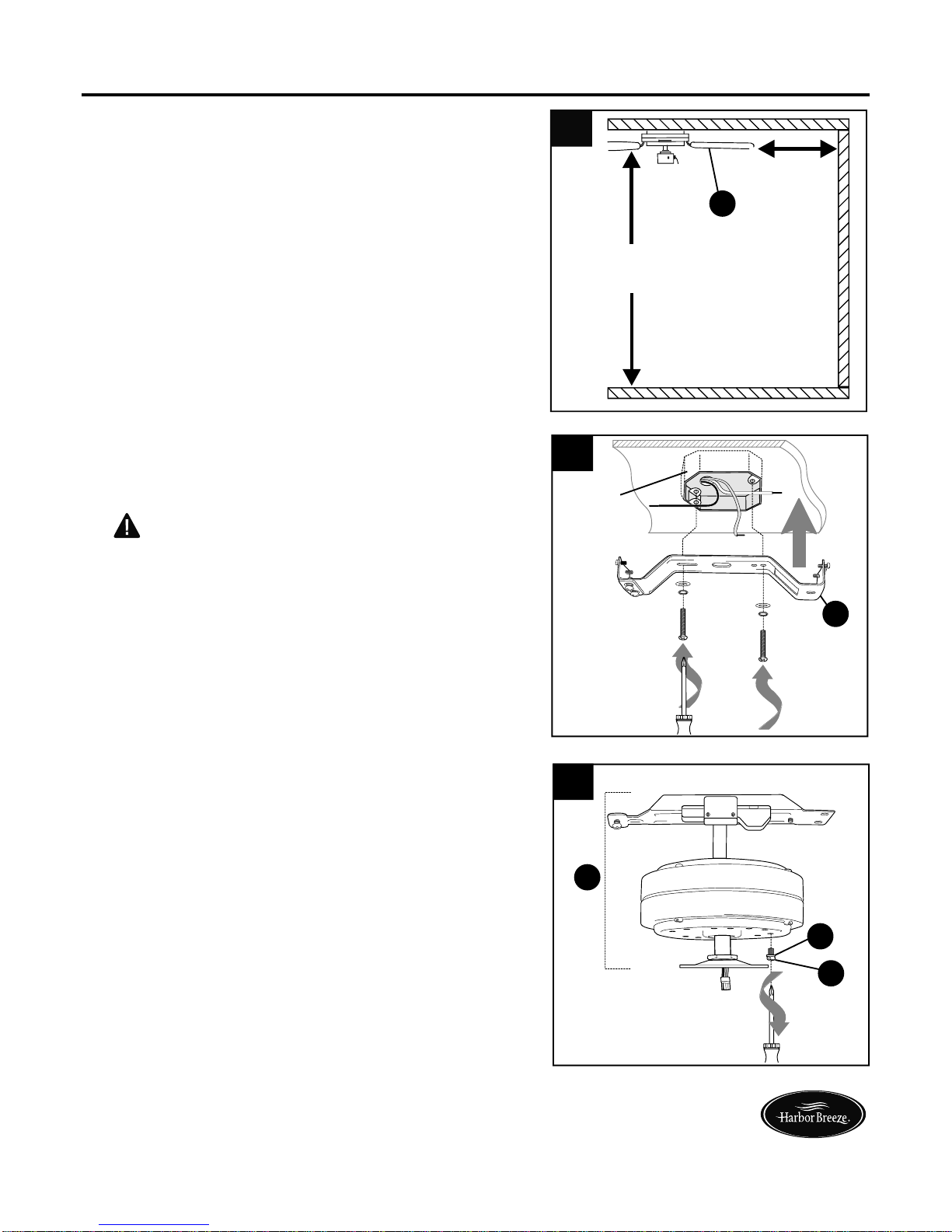

Check to make sure blades (G) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
2.
INITIAL INSTALLATION
Lowes.com/harborbreeze
2
7 ft.
min.
30 in.
min.
G
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers, and flat
washers provided with the outlet box.
WARNING: It is very important that you use
the proper hardware when installing the mounting
bracket (A) as this will support the fan.
Arrange electrical wiring to one side of the
mounting bracket (A).
3. 3
3
A
Outlet
Box
Remove 10 preassembled motor screws (J) and
lock washers (K) from underside of motor
assembly (E). Save for later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
4. 3
4
K
E
J

7
Lowes.com/harborbreeze

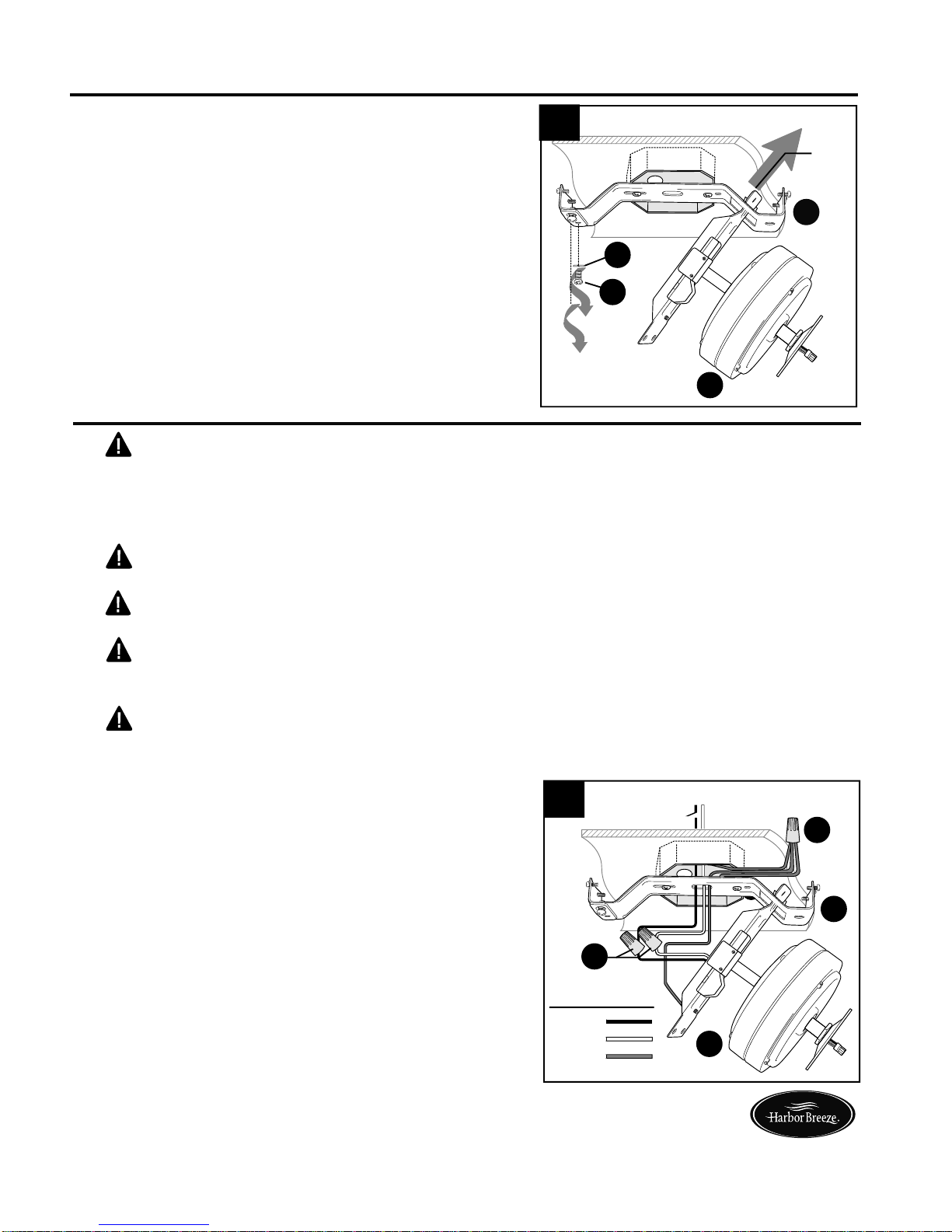

Remove one motor mounting screw (R) and motor
mounting washer (S) from hook end of motor
assembly (E). Remove the other two motor mounting
screws (R) and motor mounting washers (S) from
underside of mounting bracket (A). Save for later use.
Note: Make sure to keep loose hardware separate to
avoid confusion during installation.
Lift motor assembly (E) to mounting bracket (A) and
slide hook end (with single screw hole) of motor
assembly (E) into square opening on mounting
bracket (A). This will allow for hands-free wiring.
5.
INITIAL INSTALLATION
Hook
End
3
5
A
E
S
R
DANGER: If using this fan in a DAMP location, this fan must be connected to a supply circuit
that is protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury,
electrical shock or death.
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to
connect to the corresponding fan lead wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a
loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full
range dimmer switch to control fan speed.
WIRING
1. Make the necessary wiring connections for remote
control operation according to Fig. 1.
Connect BLACK wire from motor assembly (E) to
BLACK wire from outlet box/ceiling. Connect WHITE
wire from motor assembly (E) to WHITE wire from
outlet box/ceiling. Connect GREEN wire from motor
assembly (E) and mounting bracket (A) to
BARE/GREEN wire from outlet box/ceiling.
For each wire connection, use one of the wire
connectors (BB), making sure to screw wire
connector (BB) on in a clockwise direction.
BB
A
E
P
GREEN
WHITE
BLACK
(supply circuit)
WIRE COLORS
1
BB

8
Lowes.com/harborbreeze
WIRING
Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the
opposite side of the outlet box as the BLACK wire
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (BB) into outlet box.
2.
BB
E3 Wire Connector x 3
Hardware Used
BB
BB
2
BB

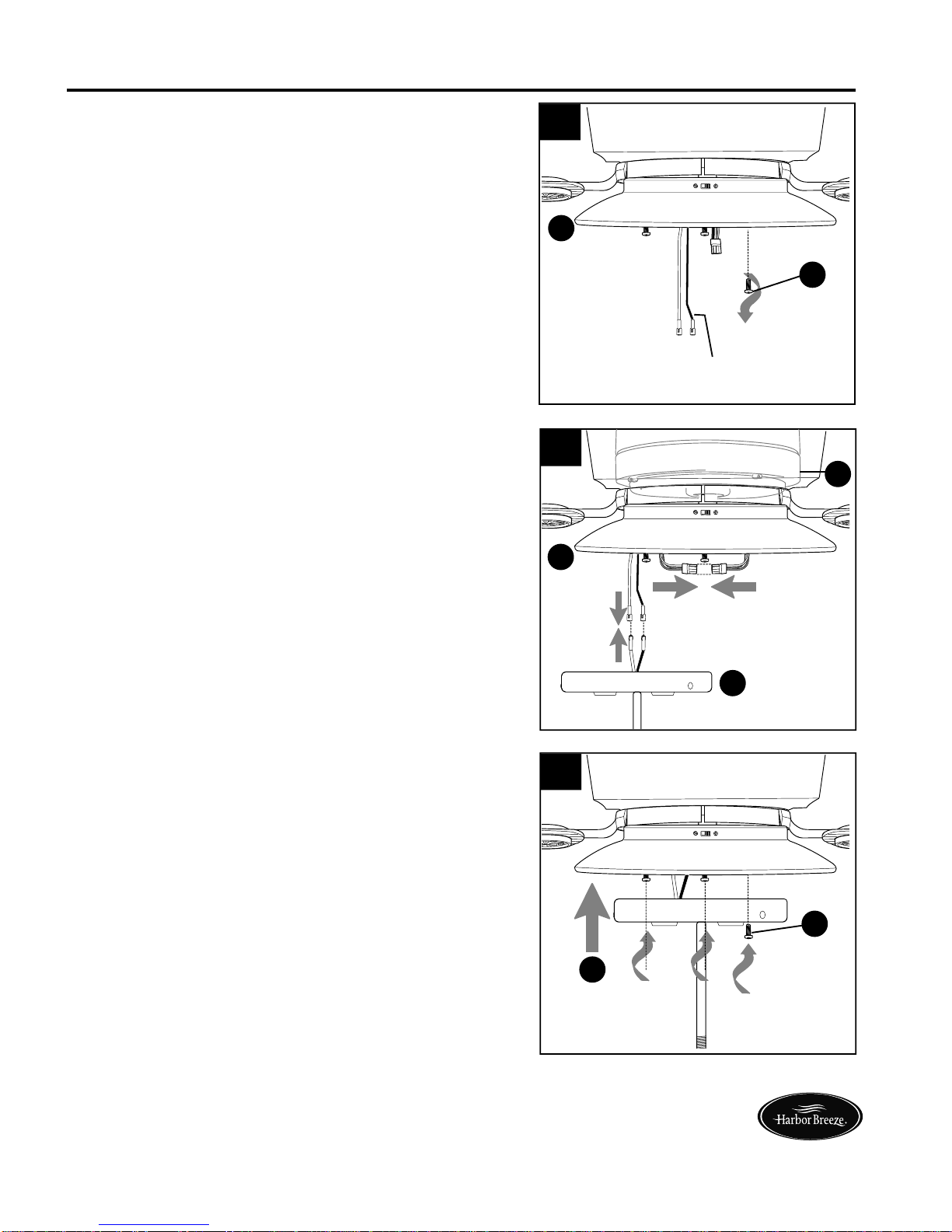

Partially loosen the motor housing screws (B)
installed with the motor housing lock washers (C);
remove the motor housing screws (B) installed with
the motor housing star washers (D).
Raise motor housing (F) to mounting bracket (A)
allowing slotted holes in motor housing (F) to align
with loosened motor housing screws (B). Twist motor
housing (F) to lock in place. Re-install the motor
housing screws (B) and motor housing star washers
(D) that were removed and then tighten all motor
housing screws (B) to secure motor housing (F).
FINAL INSTALLATION
Leave hook end of motor assembly (E) in square
opening of mounting bracket (A) and lift the other end
of motor assembly (E) toward mounting bracket (A).
Align motor assembly (E) screw holes with mounting
bracket (A) screw holes and re-insert motor mounting
screws (R) and motor mounting washers (S)
previously removed (Step 5, page 7). Securely
tighten all motor mounting screws (R) with Phillips
screwdriver (not included).
WARNING: It is extremely important to tighten
motor mounting screws (R) completely so motor
assembly (E) is mounted securely.
1.
2.
1
E
A
R
S
R
S
3
2AC
BD
C
B
D
F
Slotted
Hole

9
Lowes.com/harborbreeze
FINAL INSTALLATION
Blade Washer x 15
Attach blade arms (H) to the bottom of motor
assembly (E) with motor screws (J) and lock
washers (K) previously removed (Step 4, page 6).
Tighten motor screws (J) securely.
Note: Make sure to completely secure each blade
arm (H) before proceeding to the next.
4.
5. Remove one motor plate screw (Q) from motor
plate located at bottom of motor assembly (E) and
loosen the other two motor plate screws (Q). Align
slotted holes in middle of fitter plate (T) with
loosened motor plate screws (Q), allowing male
plug from motor assembly (E) to come through hole
in middle of fitter plate (T). Twist fitter plate (T) to
lock in place. Re-insert motor plate screw (Q) that
was just removed, and then tighten all three motor
plate screws (Q) securely.
3. Noting the THIS SIDE UP label on blade (G), align
posts in blade plate (I) with holes on bottom of blade
(G). Then align holes in blade arm (H) with holes on
top of blade (G), and push up on blade plate (I) until
posts go through the holes in blade arm (H).
Partially insert three blade screws (AA) along with
three blade washers (DD) to secure the blade plate
(I) and blade arm (H) to the blade (G). Then, tighten
each blade screw (AA), starting with the one in the
middle. Repeat for remaining blades (G).
Blade Screw x 15
Hardware Used
AA
3
4
Motor
Plate
5
Male Plug
E
T
Q
3AA
G
H
I
J
K H
J
DD
E
F
Q

10 Lowes.com/harborbreeze
FINAL INSTALLATION
6. Partially loosen two fitter plate screws (U) on the
posts on the underside of the fitter plate (T) and
remove the other fitter plate screw (U). Locate BLUE
(or BLACK) and WHITE wires in fitter plate (T) and
remove plastic that holds these wires together.
7. Connect male plug from motor assembly (E) to
female plug from fitter plate (T), matching up the
colors on the male plug with the colors on the
female plug for correct fit. Make sure plugs are
connected completely.
Connect WHITE wire from light kit fitter (L) to
WHITE wire from fitter plate (T). Connect BLACK
wire from light kit fitter (L) to BLUE or (BLACK) wire
from fitter plate (T). Make sure molex connections
snap together securely.
8. Align slotted holes in light kit fitter (L) with loosened
fitter plate screws (U) on fitter plate (T). Twist light
kit fitter (L) to lock in place. Re-insert the previously
removed fitter plate screw (U) and securely tighten
all fitter plate screws (U).
T
T
L
L
U
U
6
7
8
E
WHITE
BLUE
(or BLACK)
WHITE BLUE (or BLACK)
WHITE BLACK

11
Lowes.com/harborbreeze
FINAL INSTALLATION

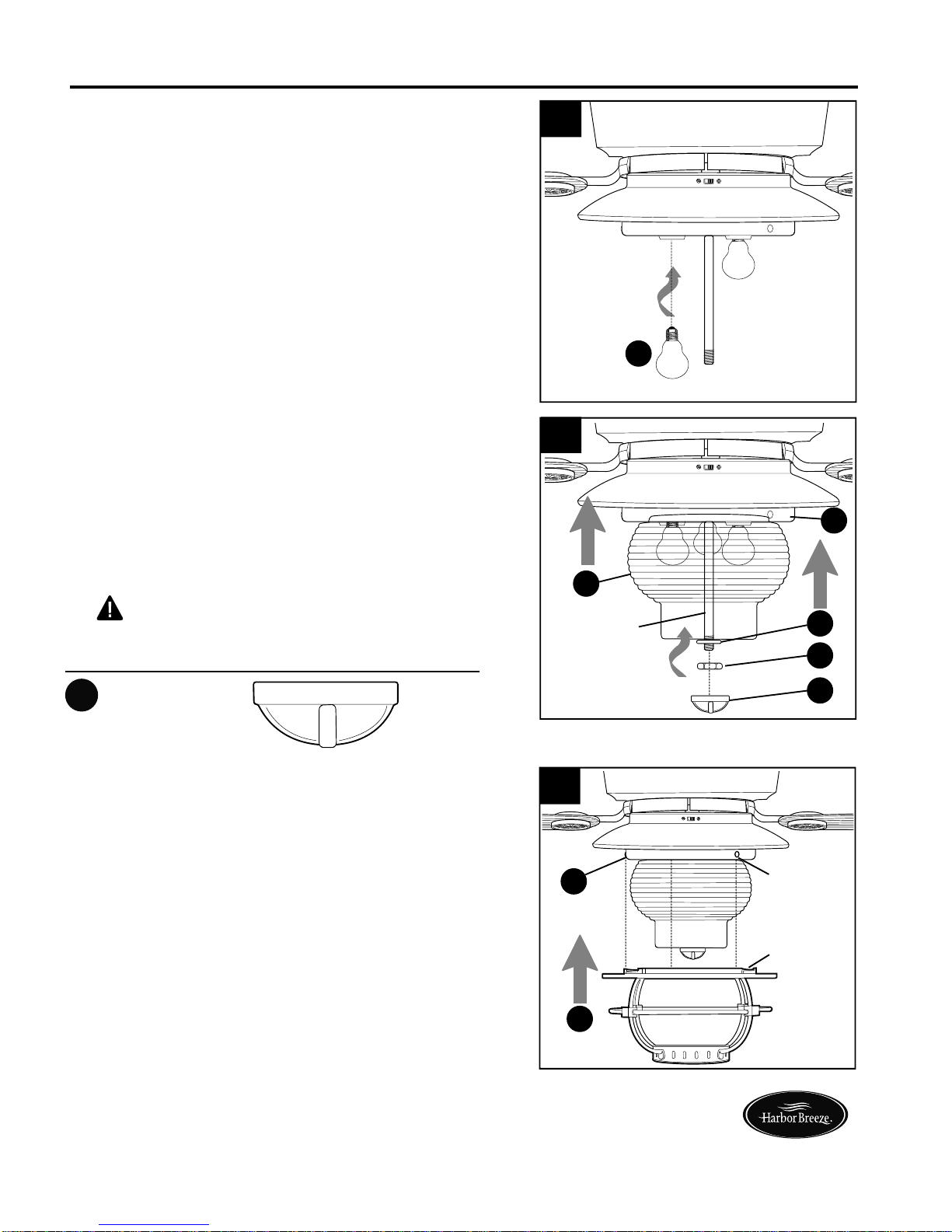

9. Install bulbs (O).
IMPORTANT: When you need to replace bulbs,
please allow the bulb(s) and glass shade(s) to cool
down before touching them.
Remove hex nut (W) and rubber washer (X) from
threaded rod on light kit fitter (L).
Aligh hole in glass shade (M) with threaded rod and
push up gently on glass shade (M) until threaded
rod comes through hole. Replace rubber washer (X)
and secure glass shade (M) with hex nut (W) and
then finial (CC).
CAUTION: Do not overtighten hex nut (W) or
finial (CC) as glass may crack or break.
10.
O
10
9D
M
W
CC
X
L
Threaded
Rod
Finial x 1
Hardware Used
CC
11. Align openings in grooves of wire housing (V)
with small protrusions on the outside of the light
kit fitter (L), then turn wire housing (V) clockwise
until it is secure.
Pull down gently on the wire housing (V) to make
sure it is securely attached.
11
Groove
Protrusion
V
L

12
Lowes.com/harborbreeze
12
Remote Control
Bracket
Wall
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FINAL INSTALLATION

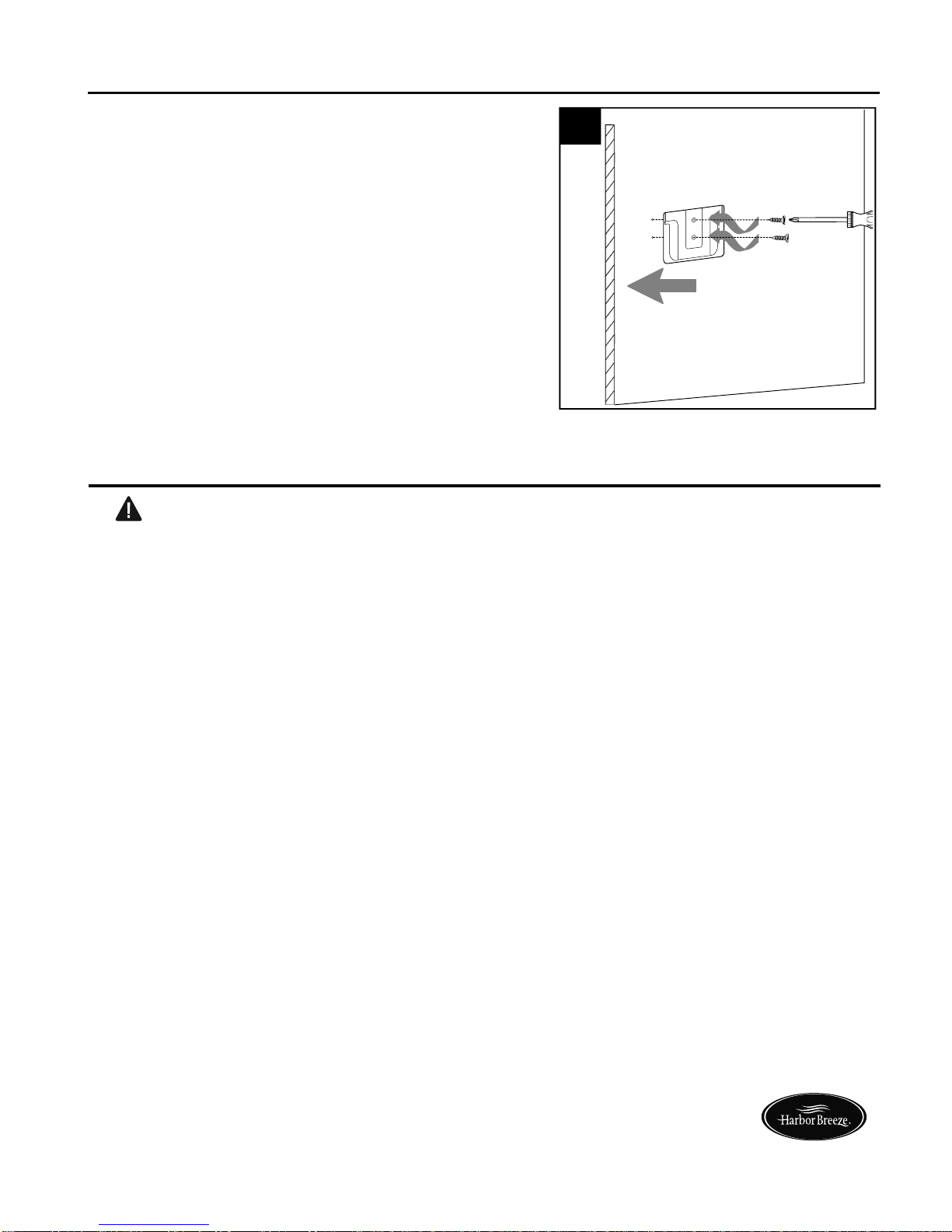

12. If you wish to use the remote control bracket from
remote pack (N), install screws from remote pack (N)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (N)
rests inside the bracket.
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Bracket
Screws

13
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS

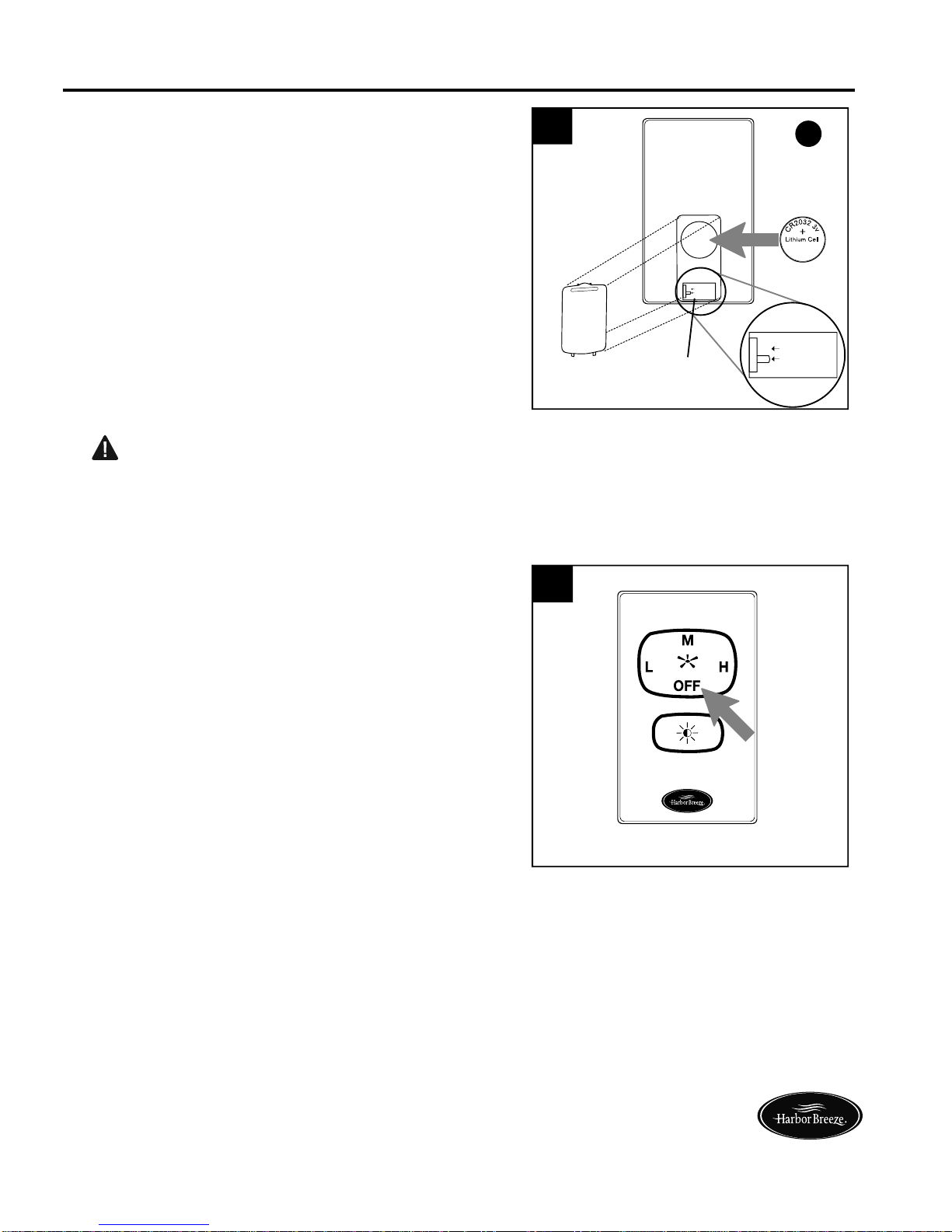

To operate the remote, remove contents of remote
pack (N) and then remove battery cover from back
of remote control transmitter. Install battery from
remote pack (N), positive (+) side up.
Locate dimmer switch at bottom of battery
compartment on remote control transmitter.
Dimmer switch has been pre-set to the “ON”
position. If you prefer not to have dimming
capability, set dimmer switch to “Dimmer Off”.
Replace battery cover on remote control
transmitter.
2. Restore electrical power. Within 60 seconds of
restoring electrical power, press and hold the
“OFF” button on the remote control transmitter for
5 seconds or until light on the fan blinks twice. Use
the remote control transmitter to test the light and
fan functions to confirm the learning process is
complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote
control transmitter, remove the battery if not used
for long periods. Store the remote control
transmitter away from excess heat or humidity.
1.
(back
side)
1
2
Battery
Cover
N
Dimmer Off
Dimmer On
Dimmer Off
Dimmer On
CAUTION: When disposing of household lithium batteries, it is best to check with your local
and state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
Remote
Control
Transmitter
Battery
Remote Control Transmitter
Dimmer
Switch

14
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote control
transmitter:
Hbutton for fan HIGH speed
Mbutton for fan MEDIUM speed
Lbutton for fan LOW speed
OFF button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If
you press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
0.8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3. 3
Remote Control Transmitter
4A 4B
4A. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
4B. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward
airflow that can help move stagnant, hot air off
the ceiling area.
4. Use the fan reverse switch, located on the fitter plate
(T), to optimize the fan for seasonal performance. A
ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting
in winter without feeling a difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before manually
activating the reverse switch.
4
T
Reverse
Switch

Lowes.com/harborbreeze
15
OPERATING INSTRUCTIONS
4C

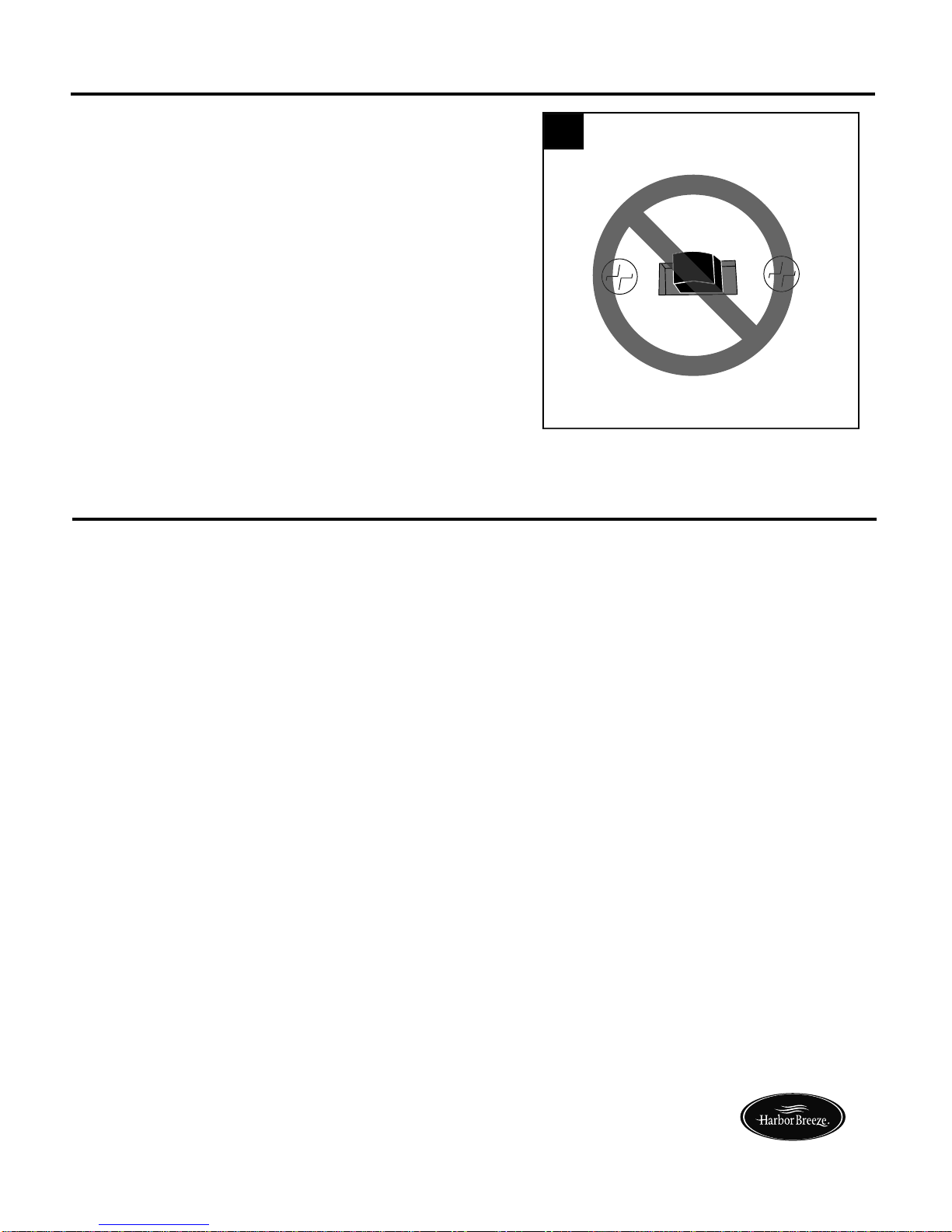

4C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
CARE AND MAINTENANCE
At least twice each year, lower motor housing (F) to check motor assembly (E), and then tighten all
screws on the fan. Clean motor housing (F) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use 40-watt max. candelabra-base incandescent bulbs or 9-watt candelabra base
CFLs.
Battery Replacement: Use 3-volt lithium battery.

Lowes.com/harborbreeze
16
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen motor
housing and check all
connections.
4. Check that male and female plugs
in fitter plate are connected
properly according to instructions
on page 10.
5. Turn off power and repeat
instructions in Step 2 on page 13.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Wires in light kit fitter not wired
correctly.
5. Learning code process between fan
and remote control transmitter (O)
may not have been successful and
learning code was not activated.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
5. Motor housing is loose.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
5. Verify mounting bracket is secure
according to instructions on page
8.
TROUBLESHOOTING
Excessive
wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Verify mounting bracket is secure.
1. Re-install bulb(s).
2. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 7.
3. Make sure wall switch to light is
on.
4. Check that molex connections in
light kit fitter are connected
properly according to instructions
on page 10.
1. Bulb(s) not installed correctly.
2. Wires in outlet box not wired
properly.
3. Wall switch to light is off.
4. Wires in light kit fitter not wired
correctly.
Fan operates but
light fails.

17
Lowes.com/harborbreeze
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
AB
F
C
H
G
L
Q
M
K
I
D
R
A Mounting Bracket
B Motor Housing Screw
C Motor Housing Lock
Washer
D Motor Housing Star
Washer
F Motor Housing
G Blade
H Blade Arm
I Blade Plate
J Motor Screw
K Lock Washer
L Light Kit Fitter
M Glass Shade
Q Motor Plate Screw
R Motor Mounting Screw
S Motor Mounting Washer
T Fitter Plate
U Fitter Plate Screw
V Wire Housing
W Hex Nut
X Rubber Washer
AA Blade Screw
BB E3 Wire Connector
CC Finial
DD Blade Washer
DESCRIPTIONPART PART #
593744-A
593744-B
593744-C
593744-D
593744-F
593744-G
593744-H
593744-I
593744-J
593744-K
593744-L
593744-M
593744-Q
593744-R
593744-S
593744-T
593744-U
593744-V
593744-W
593744-X
593744-AA
593744-BB
593744-CC
593744-DD
S
AA BB
X
T
UV
W
J
CC DD
18
Lowes.com/harborbreeze
KHLI1407

VENTILADOR DE
TECHO MERRIMACK
Harbor Breeze®es una marca registrada
de LF, LLC. Todos los derechos reservados.
ARTÍCULO # 0593744
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m.
a 6 p.m., y los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
19 Lowes.com/harborbreeze
MODELO # RLC52WW5C1R

LEA Y GUARDE ESTAS INSTRUCCIONES
Lea y comprenda completamente este manual antes de intentar ensamblar, instalar o usar el producto.
• No deseche la caja del ventilador ni los accesorios de espuma. En caso de que deba devolverse este
ventilador a la fábrica para realizarle reparaciones, debe ser enviado en su empaque original para
asegurar una protección adecuada contra daños que puedan agravar la causa inicial de la devolución.
• Asegúrese de que todas las conexiones eléctricas cumplan con los códigos y ordenanzas locales, el
Código Eléctrico Nacional y la norma ANSI/NFPA 70-1999. Si no está familiarizado con la instalación
del cableado eléctrico, contrate a un electricista calificado o consulte un manual de cableado para
hacerlo usted mismo.
• Asegúrese de que el sitio de instalación que elija permita establecer una distancia mínima de 2,13 m
desde las aspas hasta el piso y que los extremos de las aspas estén, como mínimo, a 76,2 cm de
cualquier obstáculo.
• Una vez instalado el ventilador, asegúrese de que todas las conexiones sean seguras a fin de evitar
que se caiga.
• El peso neto de este ventilador, incluido el kit de iluminación, es: 7,5 kg
Información de seguridad ....................................................................................................20
Contenido del paquete ........................................................................................................22
Aditamentos ........................................................................................................................23
Preparación .........................................................................................................................23
Instalación inicial .................................................................................................................23
Cableado .............................................................................................................................25
Instalación final ....................................................................................................................26
Instrucciones de funcionamiento .........................................................................................30
Cuidado y mantenimiento ....................................................................................................33
Solución de problemas.........................................................................................................34
Garantía ..............................................................................................................................35
Lista de piezas de repuesto ................................................................................................36
ÍNDICE
20
Lowes.com/harborbreeze
INFORMACIÓN DE SEGURIDAD
PELIGRO
Si utiliza este ventilador en un área HÚMEDA, debe conectarlo a un circuito de suministro
protegido por un interruptor de circuito de falla de puesta a tierra (GFCI) para disminuir el
riesgo de lesiones corporales, descargas eléctricas o la muerte.
