HighLine Bale Pro CFR651 User manual

Operators Manual
E12033V3_A
Bale Pro®
Complete Feed Ration
CFR651

Operator’s
Manual
Starting at Serial Number CFR6510009
Highline Manufacturing Limited
HWY #27, P.O. Box 307
Vonda, SK S0K 4N0
Canada
Phone: [phone]
Fax: [phone]
Toll Free: 1.800.665.2010
E12033V3_A
BalePro®
Complete Feed Ration 651
Bale Processor
Printed in Canada Copyright © 2018 by Highline Manufacturing Ltd. All rights reserved.
The content of this manual was based on the most current information available as of the date of copyright. It is the policy of
Highline Manufacturing Limited to improve and develop our products continually. We reserve the right to make changes or add
improvements, at any time, without incurring any obligation to make changes or improvements on machines previously sold.
Changes may not be reflected in this manual.
103116

Highline Manufacturing Ltd. Complete Feed Ration 651 (CFR 651)
Highline Team Message
CongratulationsonyourpurchaseoftheCompleteFeedRation651manufacturedbyHighline
Manufacturing Ltd.
This Operator's Manual has been prepared to provide information necessary for the safe and
efficient operation of your Complete Feed Ration 651 (CFR 651). In the manual you will find
safety procedures, maintenance routines and detailed operational instructions.
If you find that you require information not covered in this manual, please feel free to consult
your local dealer. Your dealer is always able to contact Highline for this technical information.
HighlineManufacturingLtd.thanksandcongratulatesyouforselectingaCompleteFeedRation
651 as your machine of choice.
Highline Manufacturing Ltd.

Table of Contents
Section 1 - Safety
SerialNumber ............................. 1
SafetySign-offForm ........................ 2
SafetyAlertSymbol......................... 3
GeneralSafety ............................ 4
SafetyDecals .................................4
ShutdownProcedure............................9
Safety Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . 10
Section 2 - Transporting the CFR 651
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . 2
Ensure the correct PTO speed . . . . . . . . . . . . . . . . 2
Adjust the tractor drawbar length . . . . . . . . . . . . . . 2
Liftthehitch............................... 3
Connect the hitch to tractor drawbar . . . . . . . . . . . . 3
Connect the safety chain . . . . . . . . . . . . . . . . . . . . 3
Hoses and wiring harness through the support arm 3
Attach driveline to PTO . . . . . . . . . . . . . . . . . . . . . . 4
Attachhydraulics........................... 5
Connectthelights .......................... 5
Jack in the storage location . . . . . . . . . . . . . . . . . . 5
Adjust wheel stance settings . . . . . . . . . . . . . . . . . . . . . . 6
Check the condition of the tires . . . . . . . . . . . . . . . . . . . . 6
Raise the bale loading forks . . . . . . . . . . . . . . . . . . . . . . 7
Install the cylinder lock on the bale loading forks . . . . . . 7
Raise the discharge deflector door . . . . . . . . . . . . . . . . . 7
Install the discharge deflector door transport lock . . . . . . 7
Secure the rubber panel on door . . . . . . . . . . . . . . . . . . . 7
Slow Moving Vehicle (SMV) clean and visible . . . . . . . . . 8
Transport.....................................8
TransportSpeed ...............................8
Section 3 - Preparing the CFR 651
Park on level ground. . . . . . . . . . . . . . . . . . . . . . . . 1
Ensure all decals are clean & in place. . . . . . . . . . . 1
Slow Moving Vehicle (SMV) clean and visible . . . . . 1
Check the condition of the flail drum . . . . . . . . . . . . 1
Clean debris from the flail drum and processor tub . 2
Check the condition of the flails . . . . . . . . . . . . . . . . 2
Remove twine, netwrap around flail drum/bearings. 2
Check the condition of the feeder chain . . . . . . . . . 3
Check the tension of the feeder chain . . . . . . . . . . . 3
Adjust the height of the hitch tongue . . . . . . . . . . . . 4
Set the level of the lower discharge door. . . . . . . . . 4
Verify the position of the lower discharge door . . . 5
Remove material around the feeder chain bearings 5
Check condition and tension of flail drum drive belt. . . . . 6
Adjust the bale loader forks width . . . . . . . . . . . . . . . . . 7
Inspect all hydraulic motors, cylinders and hoses . . . . . . 8
Inspect the wheels and tires . . . . . . . . . . . . . . . . . . . . . . 8
Check that the axle u-bolts are tight. . . . . . . . . . . . . . . . . 9
Remove twine built up around spindle and hub . . . . . . . 9
Driveline shields in place and in good repair . . . . . . . . . 9
Remove the flail drum lock pin . . . . . . . . . . . . . . . . . . . 10
Remove the fork cylinder lock . . . . . . . . . . . . . . . . . . . 10
Remove the nuts and washers from rubber panel . . . . . 11
Remove lock pin on the discharge deflector door . . . . 12
Lubricate grease fittings and check the fluid level . . . . 12
NetWrap or Twine Removal Procedure . . . . . . . . . . . . . 13
Section 4 - Operating the CFR 651
Unlock the flail drum . . . . . . . . . . . . . . . . . . . . . . . . 1
Set the aggression level of the flails . . . . . . . . . . . . 2
Set the speed of the feeder chain . . . . . . . . . . . . . . 3
Set the upper deflector door . . . . . . . . . . . . . . . . . . 4
Set the level of lower discharge door . . . . . . . . . . . 5
Load the bale into the processor tub . . . . . . . . . . . . 6
Loadasecondbale......................... 7
Start PTO to engage the flail drum . . . . . . . . . . . . . . . . . 7
Begin processing material. . . . . . . . . . . . . . . . . . . . . . . . 8
Adjust the feeder chain speed . . . . . . . . . . . . . . . . . . . . . 8
Adjust the aggression level . . . . . . . . . . . . . . . . . . . . . . 9
Re-adjust the lower discharge door . . . . . . . . . . . . . . . . 9
Crossing ditches and steep inclines . . . . . . . . . . . . . . . 10
Makingturns .................................10
Section 5 - Maintaining the CFR 651
Lubrication................................ 1
Visually Inspect Hydraulic Hoses/Fittings . . . . . . . . 3
Adjust the Feeder Chain Tension . . . . . . . . . . . . . . 4
Adjust the Belt Tension for the Flail Drum Drive . . . 5
Changing the Gearbox to Flail Drum Belt . . . . . . . . 7
Check the Fluid Level in the Gearbox . . . . . . . . . . . . . . . 8
Gearbox Oil Changing Procedures . . . . . . . . . . . . . . . . . 9
Flail Replacement Procedure . . . . . . . . . . . . . . . . . . . . 10
Tires .......................................11
Axles .......................................11

Section 6 - Storing the CFR 651
Clean all the debris from the tub area . . . . . . . . . . . 1
Park the CFR 651 on level ground . . . . . . . . . . . . . . 1
Lubricate all CFR 651 grease points . . . . . . . . . . . . 1
Oil the feeder chains with a rust inhibiting oil . . . . . 1
Lock the CFR 651 flail drum . . . . . . . . . . . . . . . . . . . 2
Lower the forks to the ground . . . . . . . . . . . . . . . . . . 3
Raise the discharge deflector door . . . . . . . . . . . . . . 3
Install the discharge deflector door transport lock . . 3
Place the rubber into the tabs and fasten . . . . . . . . . 3
Place the jack onto the hitch . . . . . . . . . . . . . . . . . . 4
Remove the driveline from the tractor PTO shaft . . . 4
Disconnect the safety chain . . . . . . . . . . . . . . . . . . . . . . 4
Disconnectthehitch............................ 4
Relieve the pressure on the hydraulic hoses and
disconnectthem. .............................. 4
Disconnect the electrical connection . . . . . . . . . . . . . . . 4
Secure the hydraulic hoses and electrical connector to the
hoseholder .................................. 5
Place the driveline into the driveline support . . . . . . . . . 5
Change the oil in the gearbox . . . . . . . . . . . . . . . . . . . . . 5
Check for worn and damaged parts . . . . . . . . . . . . . . . . 5
Touch-up the paint to prevent rusting . . . . . . . . . . . . 5
Section 7 - Troubleshooting
Section 8 - CFR 651 Specifications

GENERAL DESCRIPTION OF THE COMPLETE FEED RATION 651 (CFR 651)
The Complete Feed Ration 651 (CFR 651) is a machine to process round bales of hay or other
animal feed materials. When the CFR 651 is engaged, it uses power from the tractor PTO to
rotate a flail drum. The flails strike the round bale and process it into feed size materials or
animal bedding sized materials. The bale is rotated against the flails by a feeder chain.
The Complete Feed Ration (CFR 651) has forks on the rear of the machine that allow the CFR
651 to pick up and self-load a round bale into the processing tub. An additional bale may be
carried on the forks while the bale in the tub is being processed.
The amount of processing and chopping of material in the processing tub is adjusted by setting
the height of the guard rods. The height of the guard rods determine the level of aggression of
the flails acting on the round bale. The round bale is rotated by a feeder chain while the flail
drum turns to process the material. The rotation of the bale assists in the bale being processed
in an even manner.
The processed material is discharged from the CFR 651 on the right side of the machine. The
height and distance of discharge is adjusted by moving the lower discharge door. A top
discharge deflector door allows the processed material to be laid down into a feed bunk,
windrow or spread to different distances.
The Complete Feed Ration 651 has the option of adding a Feed Chopper for additional
processing of the feed materials. There is also the option of adding a Grain Tank to add feed
grains in a measured amount to the feed mix to achieve the feed ration needed for the animals.
The operator of the CFR 651 is located in the tractor cab to control the speed of driving and the
speed of operation of the CFR 651.
INTENDED USE OF THE COMPLETE FEED RATION 651 (CFR 651)
- The CFR 651 is designed to process animal feed and bedding materials from a
round bale.
- The CFR 651 is intended for use in farming applications.
- The CFR 651 is intended for off road use only.
- The CFR 651 is intended for use in locations away from people who could be
harmed by the discharged materials.
Any uses of the CFR 651 other than the above stated Intended Uses shall be considered
misuse of the CFR 651. This misuse shall include (but not limited to):
- Using the CFR 651 in non-farming applications
- Using the CFR 651 on public roads
- Using the CFR 651 around people or in public places
- Processing materials other than animal feed materials
Always use the CFR 651 according to the instructions contained in this Operator's Manual and
the safety and instruction decals on the machine.
Perform regular maintenance and repair to ensure that the CFR 651 operates safely and
efficiently.

This Page Left Blank

Section 1 - Safety
SERIAL NUMBER
Your serial number isfound on the serial number plate attached to the tub wall of the Complete
Feed Ration 651.
It is important to record the serial number for proof of ownership and for any service or
maintenance assistance.
Serial Number
Owner
Model
Date of Purchase

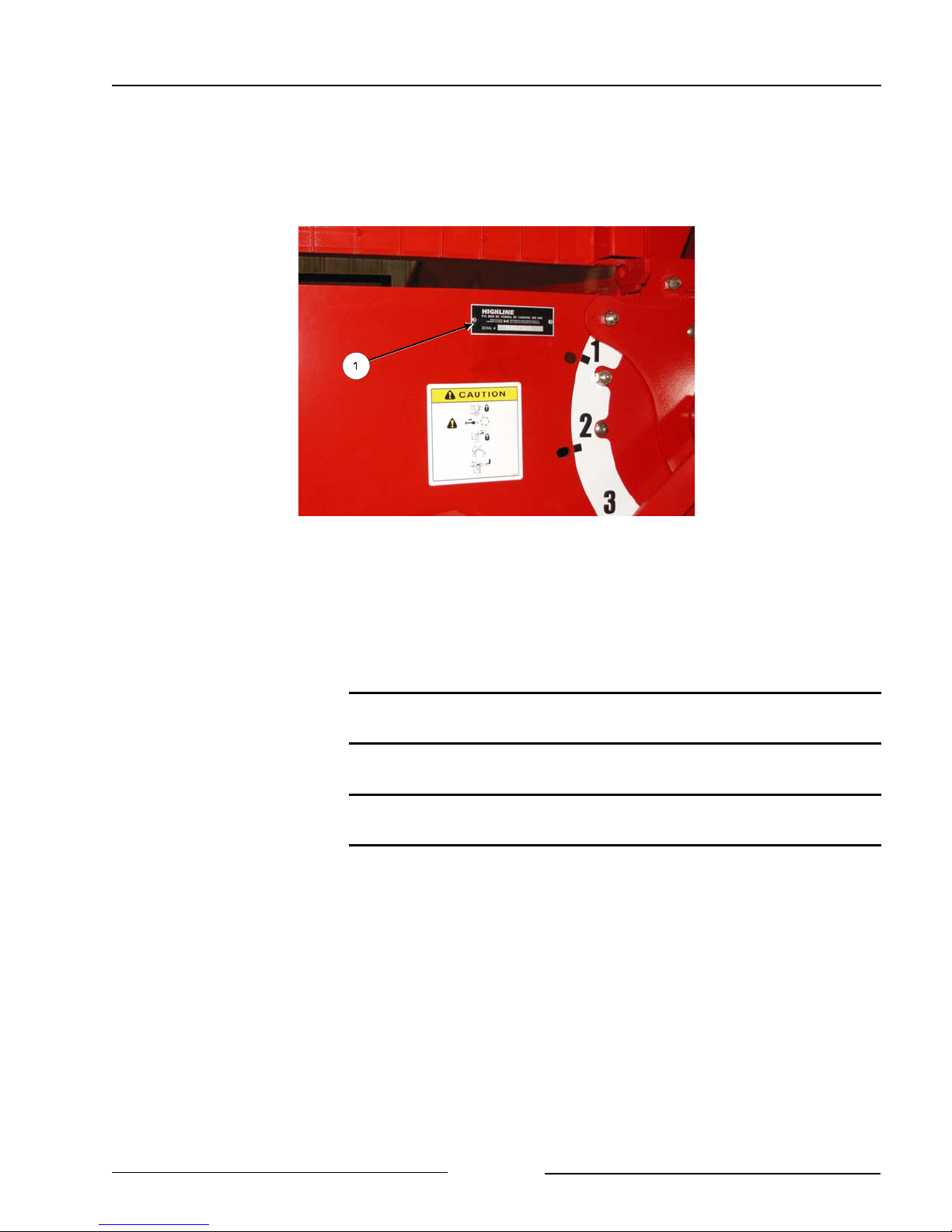

Serial Plate Location
215120C
Page 1-1

Section 1 - Safety
SAFETY SIGN-OFF FORM
Highline Manufacturing Ltd. follows the general Safety Standards specified by the American
SocietyofAgriculturalEngineers(ASAE)andtheOccupationalSafetyandHealthAdministration
(OSHA). Anyone who will be operating and/or maintaining this equipment should read and
clearlyunderstandallSafety,OperatingandMaintenanceinformationpresented inthismanual.
Do not operate or allow someone to operate this equipment until this information has been
reviewed. This information should be reviewed by all operators before the season start-up.
This sign-off sheet is provided for record keeping to indicate that the person working with the
equipment has read and understood the information in the Operator’s Manual and has been
instructed in the safe operation of the equipment.
Date Employee’s Signature Employer’s Signature
Page 1-2

Section 1 - Safety

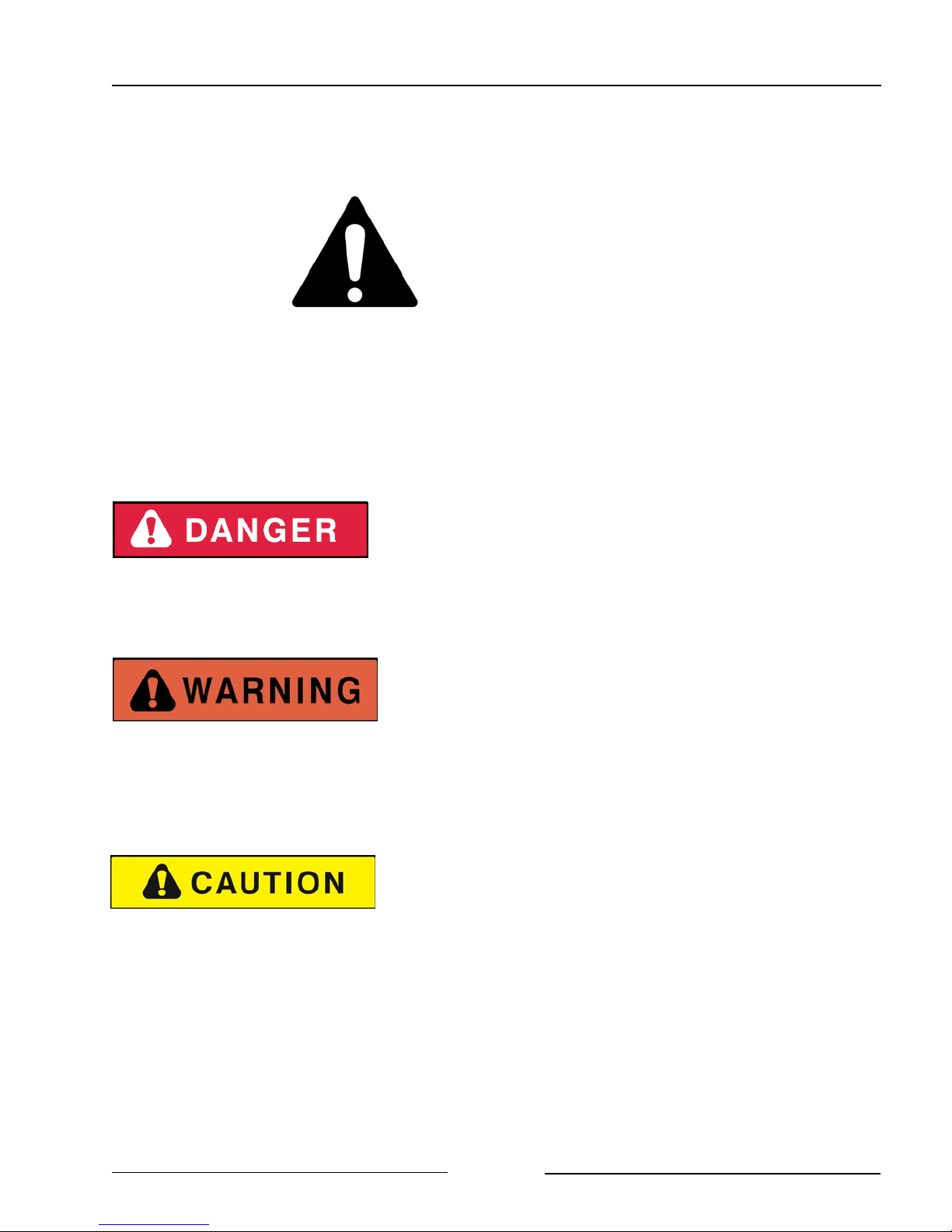

SAFETY ALERT SYMBOL
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The Safety Alert Symbol combined with a Signal Word alert to the presence of a hazard and the
degree of possible injury.
Indicates an imminentlyhazardous situation that, if not
avoided, WILL result in DEATH OR SERIOUS INJURY.
The color is Red with White lettering.
Indicates a potentially hazardous situation that, if not
avoided, COULD result in DEATH OR SERIOUS
INJURY, and includes hazards that are exposed when
guards are removed or unsafe practices. The color is
Orange with Black lettering.
Indicates a potentially hazardous situation that, if not
avoided, MAY result in MINOR INJURY. The color is
Yellow with Black lettering.
Page 1-3
