English
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool.
Carrying power tools with your finger on the switch
or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles.
A careless action can cause severe injury within a
fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power toolʼs operation. If
damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease.
Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in
unexpected situations.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING
Read all safety warnings, instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection used for
appropriate conditions will reduce personal injuries.
(Original instructions)
00BookM1808DA.indb900BookM1808DA.indb9 2021/09/3010:32:372021/09/3010:32:37

10
English
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one type of battery pack
may create a risk of fire when used with another
battery pack.
b) Use power tools only with specifically
designated battery packs.
Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another.
Shorting the battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
e) Do not use a battery pack or tool that is damaged
or modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion
or risk of injury.
f) Do not expose a battery pack or tool to fire or
excessive temperature.
Exposure to fire or temperature above 130°C may
cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside
the specified range may damage the battery and
increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs.
Service of battery packs should only be performed
by the manufacturer or authorized service providers.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of
children and infirm persons.
CORDLESS TRIMMER SAFETY
WARNINGS
1. Hold the power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and could
give the operator an electric shock.
2. Use clamps or another practical way to secure and
support the workpiece to a stable platform.
Holding the work by your hand or against the body
leaves it unstable and may lead to loss of control.
3. The bit and shaft, collet nut, collet cone are very hot
immediately after operation. Avoid bare hand contact
with the bit for any reason.
4. Use bits of the correct shank diameter suitable for the
speed of the tool.
ADDITIONAL SAFETY WARNINGS
1. Always charge the battery at a temperature of 0°C–40°C.
A temperature of less than 0°C will result in over charging
which is dangerous. The battery cannot be charged at a
temperature higher than 40°C.
The most suitable temperature for charging is that of
20°C–25°C.
2. Do not use the charger continuously.
When one charging is completed, leave the charger for
about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for
connecting the rechargeable battery.
4. Never disassemble the rechargeable battery and
charger.
5. Never short-circuit the rechargeable battery.
Shortcircuiting the battery will cause a great electric
current and overheat. It results in burn or damage to the
battery.
6. Do not dispose of the battery in fire. If the battery is burnt,
it may explode.
7. Bring the battery to the shop from which it was purchased
as soon as the post-charging battery life becomes too
short for practical use. Do not dispose of the exhausted
battery.
8. Do not insert object into the air ventilation slots of the
charger. Inserting metal objects or inflammables into the
charger air ventilation slots will result in electrical shock
hazard or damaged charger.
9. When using this unit continuously, the unit may overheat,
leading to damage in the motor and switch. Therefore,
whenever the housing becomes hot, give the tool a
break for a while.
10. If the machine is used continuously at low speed, an
extra load is applied to the motor which can result in
motor seizure. Always operate the power tool so that the
bit is not caught by the material during operation. Always
adjust the bit speed to enable smooth cutting.
11. Preparing and checking the work environment. Make
sure that the work site meets all the conditions laid forth
in the precautions.
12. Make sure that the battery is installed firmly. If it is at all
loose it could come offand cause an accident.

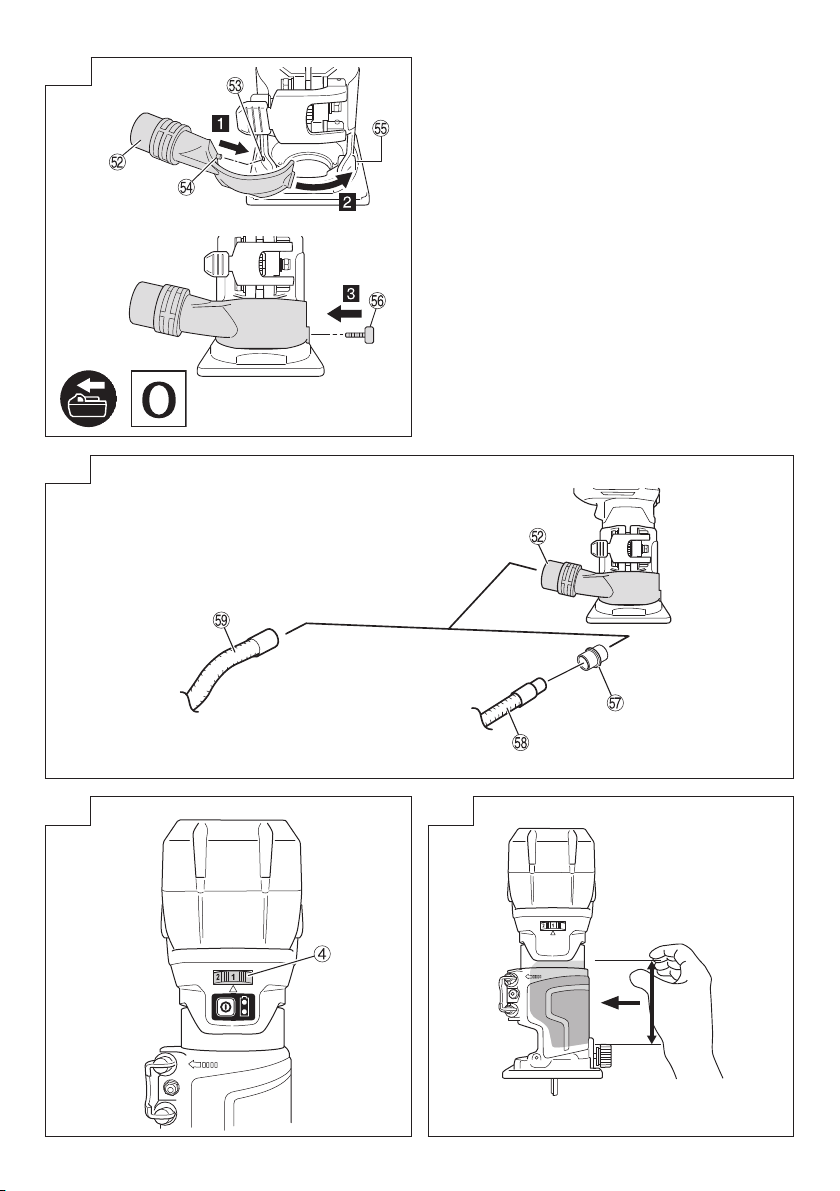

13. Dust produced in operation
The dust produced in normal operation may affect
the operator’s health. Either of following way is
recommended.
a) Wear a dust mask
b) Use external dust collection equipment
(optional accessories) (Fig. 21)
When using the external dust collection equipment,
connect the adapter with the hose from external dust
collection equipment.
14. Handle the bits very carefully.
15. Check the bit carefully for cracks or damage before
operation. Replace cracked or damaged bit immediately.
16. Avoid cutting nails. Inspect for and remove all nails from
the workpiece before operation.
17. Make sure to securely hold the tool during operation.
Failure to do so can result in accidents or injuries.
(Fig. 24)
18. Make sure the bit is not contacting the workpiece before
the switch is turned on.
19. Before using the tool on an actual workpiece, let it run
for a while. Watch for vibration or wobbling that could
indicate improperly installed bit.
20. Be careful of the bit rotating direction and the feed
direction.
00BookM1808DA.indb1000BookM1808DA.indb10 2021/09/3010:32:372021/09/3010:32:37

11
English
21. Always switch offand wait for the bit to come to a
complete stop before removing the tool from workpiece.
22. After changing the bits or making any adjustments, make
sure the collet nut and any other adjustment device are
securely tightened.
Loose adjustment device can unexpectedly shift,
causing loss of control, loose rotating components will
be violently thrown.
23. Do not expose directly your eye to the light by looking
into the light.
If your eye is continuously exposed to the light, your eye
will be hurt.
24. Never touch moving parts.
Never place your hands, fingers or other body parts near
the tool’s moving parts.
25. NEVER leave tool running unattended. Turn power off.
Don’t leave tool until it comes to a complete stop.
26. The power tool is equipped with a temperature
protection circuit to protect the motor. Continuous work
may cause the temperature of the unit to rise, activating
the temperature protection circuit and automatically
stopping operation. If this happens, allow the power tool
to cool before resuming use.
27. Do not give a strong shock to the switch panel or break it.
It may lead to a trouble.
28. Do not use the product if the tool or the battery terminals
(battery mount) are deformed.
Installing the battery could cause a short circuit that
could result in smoke emission or ignition.
29. Keep the tool’s terminals (battery mount) free of swarf
and dust.
○Prior to use, make sure that swarf and dust have not
collected in the area of the terminals.
○During use, try to avoid swarf or dust on the tool from
falling on the battery.
○When suspending operation or after use, do not leave
the tool in an area where it may be exposed to falling
swarf or dust.
Doing so could cause a short circuit that could result in
smoke emission or ignition.
30. Always use the tool and battery at temperatures between
-5°C and 40°C.
31. When operating the tool, do not wear work gloves as
such cloth wear can get caught in the tool.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the
protection function to stop the output.
In the cases of 1 to 3 described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the motor
stops.
In such a case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes of
overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand, please
be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○During work make sure that swarf and dust do not fall on
the battery.
○Make sure that any swarf and dust falling on the power
tool during work do not collect on the battery.
○Do not store an unused battery in a location exposed to
swarf and dust.
○Before storing a battery, remove any swarf and dust that
may adhere to it and do not store it together with metal
parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a
nail, strike with a hammer, step on, throw or subject the
battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car
cigarette lighter sockets.
6. Do not use the battery for a purpose other than those
specified.
7. If the battery charging fails to complete even when a
specified recharging time has elapsed, immediately stop
further recharging.
8. Do not put or subject the battery to high temperatures or
high pressure such as into a microwave oven, dryer, or
high pressure container.
9. Keep away from fire immediately when leakage or foul
odor are detected.
10. Do not use in a location where strong static electricity
generates.
11. If there is battery leakage, foul odor, heat generated,
discolored or deformed, or in any way appears abnormal
during use, recharging or storage, immediately remove it
from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow
inside. Conductive liquid ingress, such as water, can
cause damage resulting in fire or explosion. Store your
battery in a cool, dry place, away from combustible and
flammable items. Corrosive gas atmospheres must be
avoided.
CAUTION
1. If liquid leaking from the battery gets into your eyes,
do not rub your eyes and wash them well with fresh
clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the first time, do not use and return it to your
supplier or vendor.
WARNING
If a conductive foreign matter enters in the terminal of lithium
ion battery, the battery may be shorted, causing fire. When
storing the lithium ion battery, obey surely the rules of
following contents.
○Do not place conductive debris, nail and wires such as
iron wire and copper wire in the storage case.
○To prevent shorting from occurring, load the battery in
the tool or insert securely the battery cover for storing
until the ventilator is not seen.
00BookM1808DA.indb1100BookM1808DA.indb11 2021/09/3010:32:372021/09/3010:32:37

12
English
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe the
following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
○Lithium-ion batteries that exceed a power output of
100 Wh are considered to be in the freight classification
of Dangerous Goods and will require special application
procedures.
○For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.
○If the BSL36B18 is installed in the power tool, the power
output will exceed 100 Wh and the unit will be classified
as Dangerous Goods for freight classification.
Wh
Power Output
2 to 3 digit number
USB DEVICE CONNECTION
PRECAUTIONS (UC18YSL3)
When an unexpected problem occurs, the data in a USB
device connected to this product may be corrupted or lost.
Always make sure to back up any data contained in the USB
device prior to use with this product.
Please be aware that our company accepts absolutely no
responsibility for any data stored in a USB device that is
corrupted or lost, nor for any damage that may occur to a
connected device.
WARNING
○Prior to use, check the connecting USB cable for any
defect or damage.
Using a defective or damaged USB cable can cause
smoke emission or ignition.
○When the product is not being used, cover the USB port
with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke
emission or ignition.
NOTE
○There may be an occasional pause during USB
recharging.
○When a USB device is not being charged, remove the
USB device from the charger.
Failure to do so may not only reduce the battery life
of a USB device, but may also result in unexpected
accidents.
○It may not be possible to charge some USB devices,
depending on the type of device.
<USB charging>
○Charging a USB device from an electrical outlet
(Fig. 27-a)
○Charging a USB device and battery from an electrical
outlet (Fig. 27-b)
○How to recharge USB device (Fig. 28)
○When charging of USB device is completed (Fig. 29)

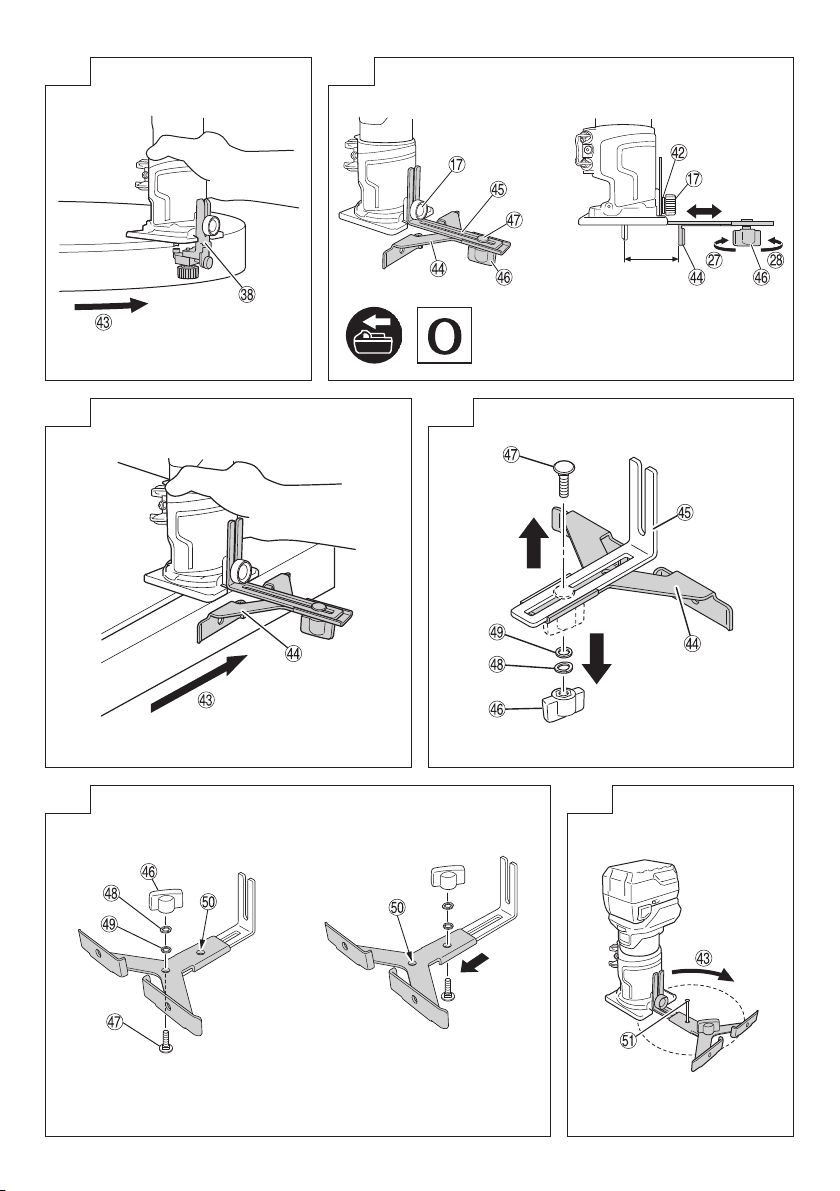

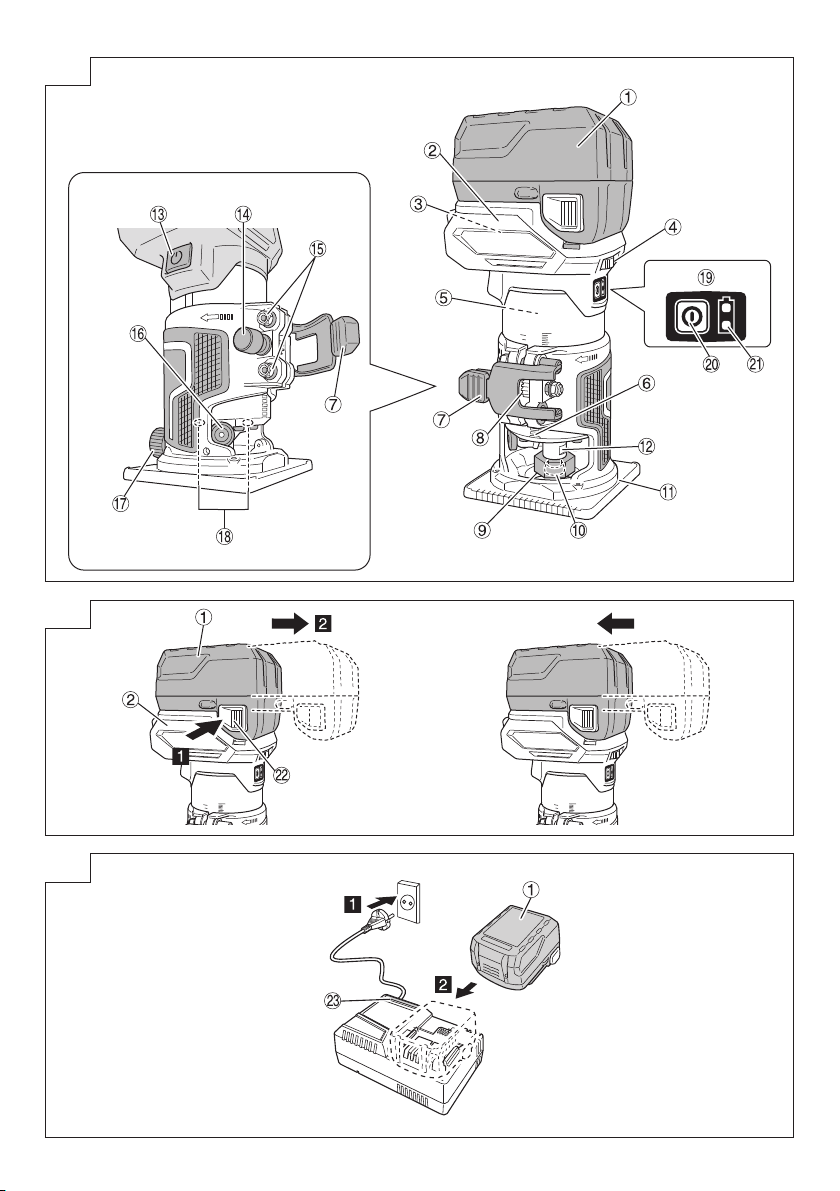

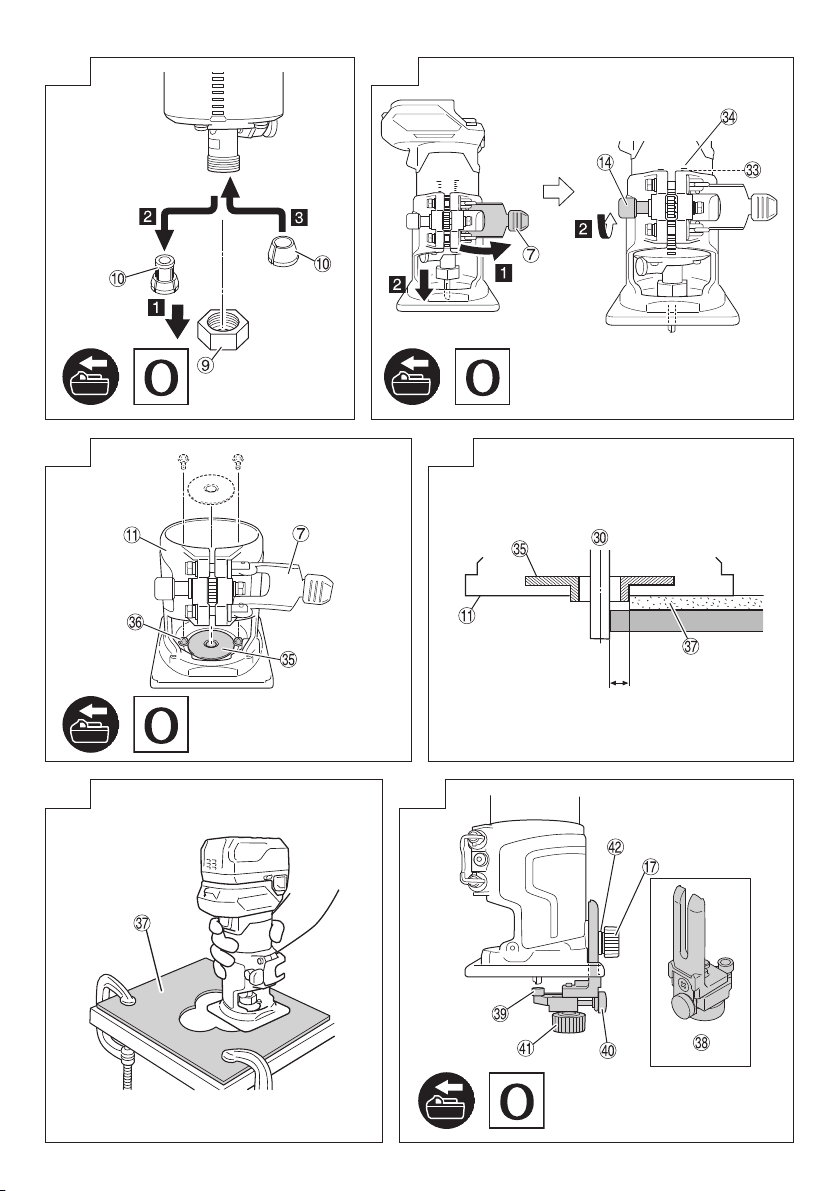

NAMES OF PARTS (Fig. 1–Fig. 29)
Battery Template guide
Head cover Screw
Name plate Template
Dial Trimmer guide
Motor Guide pin
Rack portion Stop screw
Lock lever Knob bolt (C)
Pinion Washer (A)
Collet nut Body feed direction
Collet cone Straight guide
Base ass’y Guide holder
Shaft Wing nut
Switch button Bolt
Knob bolt (A) Wave washer
Fixing nut Washer
Lock pin Center hole
Knob bolt (B) Nail (rotation axis)
LED light Dust collector
Switch Panel Positioning hole
Power button Protrusion
Remaining battery
indicator lamp Screw hole
Latch Knob bolt (D)
Charge indicator lamp Joint (C)
Removing Hose (id 32 mm,
35 mm, 38 mm)
Fixing Hose (id 28 mm)
Socket wrench (8 mm) Work piece
Loosen Rotation of bit
Tighten Trimmer feed
23 mm Wrench Inner peripheral cutting
(Clockwise)
Bit Outer peripheral
cutting
(Counterclockwise)
Collet cone hole Air gun
13 mm Wrench Battery sliding grooves
Upper end of base
ass’y Ventilation holes
Scale
00BookM1808DA.indb1200BookM1808DA.indb12 2021/09/3010:32:372021/09/3010:32:37

13
English
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
M1808DA: Cordless Trimmer
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Always wear hearing protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive
2012/19/EU on waste electrical and electronic
equipment and its implementation in
accordance with national law, electric tools
that have reached the end of their life must
be collected separately and returned to an
environmentally compatible recycling facility.
Direct current
V Rated voltage
n0No-load speed
Disconnect the battery
Switching ON
Switching OFF
Warning
Prohibited action
The battery remaining power is enough.
The battery remaining power is a half.
The battery remaining power is nearly empty.
Recharge the battery soonest possible
No remaining battery charge
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package contains the
accessories listed on page 283.
Standard accessories are subject to change without notice.
APPLICATIONS
○Woodworking jobs centered on grooving and
chamfering.
SPECIFICATIONS
Model M1808DA
Voltage 18 V
No-Load Speed 10000–30000 min–1
Collet cone capacity 8 mm, 6 mm or 1/4"
Main Body Stroke 40 mm
Weight* 1.7 kg (BSL1850C)
2.2 kg (BSL36B18)
* According to EPTA-Procedure 01/2014
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to the receptacle.
When connecting the plug of the charger to a receptacle,
the charge indicator lamp will blink in red (At 1- second
intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig. 3 (on page 2).
3. Charging
When inserting a battery in the charger, the charge
indicator lamp will blink in blue.
When the battery becomes fully recharged, the charge
indicator lamp will light up in green. (See Table 1)
(1) Charge indicator lamp indication
The indications of the charge indicator lamp will be as
shown in Table 1, according to the condition of the
charger or the rechargeable battery.
00BookM1808DA.indb1300BookM1808DA.indb13 2021/09/3010:32:392021/09/3010:32:39

14
English

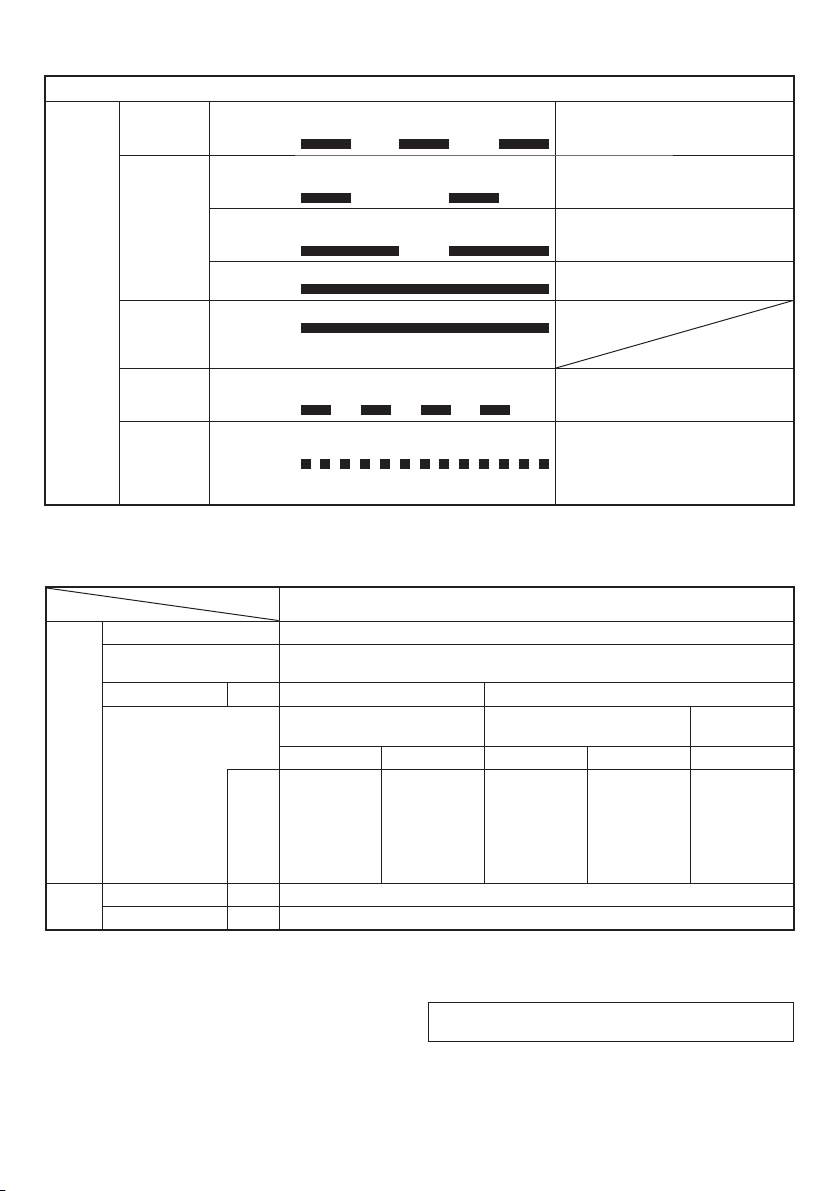

Table 1
Indications of the charge indicator lamp
Charge
indicator
lamp
(RED /
BLUE /
GREEN /
PURPLE)
Before
charging Blinks (RED)
Lights for 0.5 seconds. Does not light for
0.5 seconds. (offfor 0.5 seconds) Plugged into power source
While
charging
Blinks
(BLUE)
Lights for 0.5 seconds. Does not light for
1 second. (offfor 1 second) Battery capacity at less than 50%
Blinks
(BLUE)
Lights for 1 second. Does not light
for 0.5 seconds. (offfor 0.5 seconds) Battery capacity at less than 80%
Lights
(BLUE) Lights continuously Battery capacity at more than 80%
Charging
complete Lights (GREEN)
Lights continuously
(Continuous buzzer sound: about
6 seconds)
Overheat
standby Blinks (RED)
Lights for 0.3 seconds. Does not light for
0.3 seconds. (offfor 0.3 seconds) Battery overheated. Unable to
charge. (Charging will commence
when battery cools)
Charging
impossible Flickers (PURPLE)
Lights for 0.1 seconds. Does not light for
0.1 seconds. (offfor 0.1 seconds)
(Intermittent buzzer sound: about
2 seconds)
Malfunction in the battery or the
charger
(2) Regarding the temperatures and charging time of the rechargeable battery
The temperatures and charging time will become as shown in Table 2.
Table 2
Charger UC18YSL3
Battery
Type of battery Li-ion
Temperatures at which the
battery can be recharged 0°C–50°C
Charging voltage V 14.4 18
Charging time,
approx. (At 20°C)
BSL14xx series BSL18xx series Multi volt
series
(4 cells) (8 cells) (5 cells) (10 cells) (10 cells)
min
BSL1415S : 15
BSL1415 : 15
BSL1415X : 15
BSL1420 : 20
BSL1425 : 25
BSL1430C : 30
BSL1430 : 20
BSL1440 : 26
BSL1450 : 32
BSL1460 : 38
BSL1815S : 15
BSL1815 : 15
BSL1815X : 15
BSL1820 : 20
BSL1825 : 25
BSL1830C : 30
BSL1850C : 32
BSL1830 : 20
BSL1840 : 26
BSL1850 : 32
BSL1860 : 38
BSL36A18 : 32
BSL36B18 : 52
USB Charging voltage V 5
Charging current A 2
NOTE
The recharging time may vary according to the ambient temperature and power source voltage.
Regarding electric discharge in case of new batteries,
etc.
As the internal chemical substance of new batteries and
batteries that have not been used for an extended period
is not activated, the electric discharge might be low when
using them the first and second time. This is a temporary
phenomenon, and normal time required for recharging
will be restored by recharging the batteries 2–3 times.
4. Disconnect the charger’s power cord from the
receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after use,
and then keep it.
00BookM1808DA.indb1400BookM1808DA.indb14 2021/09/3010:32:402021/09/3010:32:40

15
English
How to make the batteries perform longer.
(1) Recharge the batteries before they become completely
exhausted.
When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery. If
you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after
use. If such a battery is recharged immediately after
use, its internal chemical substance will deteriorate, and
the battery life will be shortened. Leave the battery and
recharge it after it has cooled for a while.
CAUTION
○If the battery is charged while it is heated because
it has been left for a long time in a location subject to
direct sunlight or because the battery has just been
used, the charge indicator lamp of the charger lights
for 0.3 seconds, does not light for 0.3 seconds (offfor
0.3 seconds). In such a case, first let the battery cool,
then start charging.
○When the charge indicator lamp flickers (at 0.2-second
intervals), check for and take out any foreign objects in
the charger’s battery connector. If there are no foreign
objects, it is probable that the battery or charger is
malfunctioning. Take it to your authorized Service
Center.
○Since the built-in micro computer takes about
3 seconds to confirm that the battery being charged with
UC18YSL3 is taken out, wait for a minimum of 3 seconds
before reinserting it to continue charging. If the battery
is reinserted within 3 seconds, the battery may not be
properly charged.
PRIOR TO OPERATION
WARNING
Pull out battery before carrying out any adjustment,
servicing or maintenance.
When finished with a job, pull out the battery.
1. Removing and inserting the battery (Fig. 2)

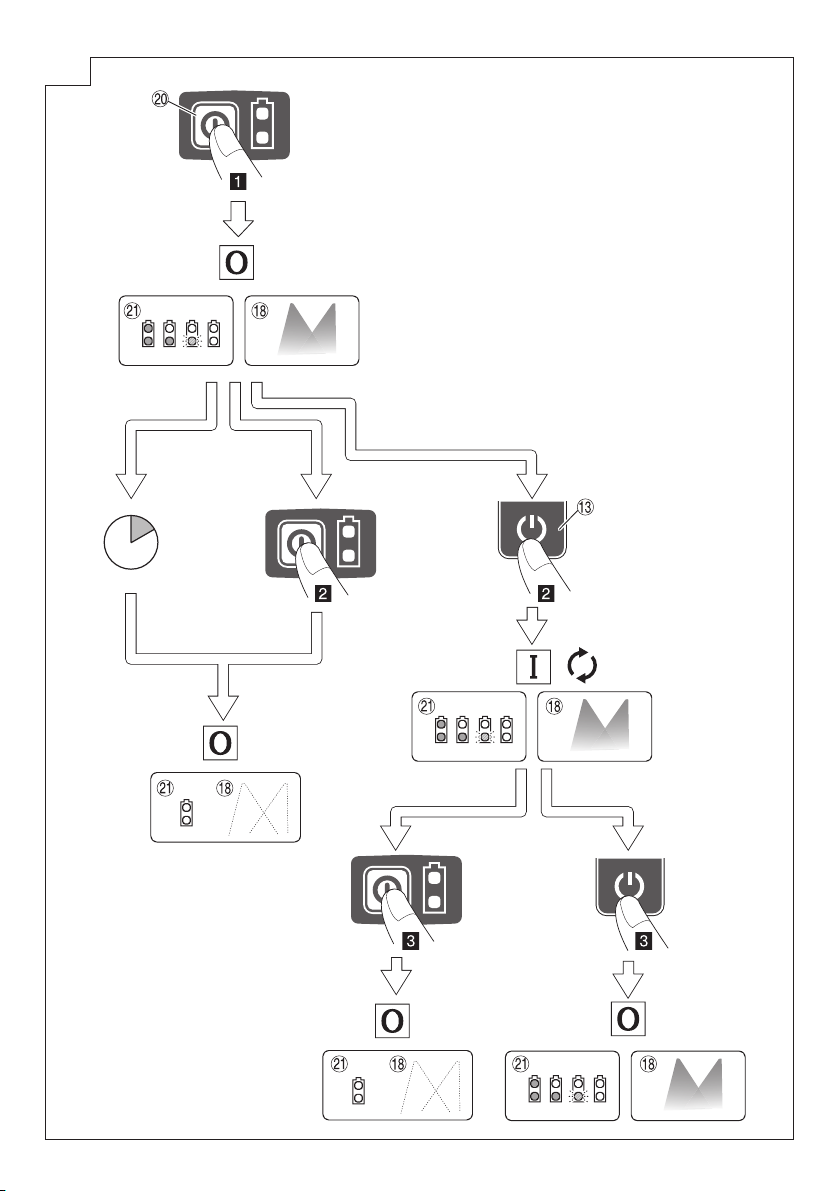

2. Remaining battery indicator (Fig. 20)
3. Installation direction of base ass’y (Fig. 4)
The switch position can be changed according to
preference by reversing the installation direction of the
base ass’y.
4. Fix strength adjustment method (Fig. 5)
If there is a decline in the fix strength, adjust as follows.
Tilt the lock lever towards the fixed side, and tighten
a fixing nut (two locations) using the socket wrench
(8 mm).
Fix it so that upper and lower spaces “A” of the base
ass’y are equal.
NOTE
If the operation load of the lock lever is too heavy, there
is too much fixed strength.
As this situation may damage parts, each fixing nut
(two locations) should be loosened to readjust the fixed
strength.
INSTALLING AND REMOVING BITS
WARNING
Be sure to switch power OFF and pull out the battery to
avoid serious trouble.
1. Installation using the lock pin (Fig. 6)
(1) Remove the base ass’y from the body.
(2) Deeply insert the bit into collet cone hole. (The distance
is 15 mm or more from side of collet nut.
(3) With the bit inserted and pressing the lock pin holding
the shaft, use the 23 mm wrench to firmly tighten the
collet nut in a clockwise direction (viewed from under the
tool). (Fig. 6)
(4) Fit the removed base ass'y to the rack provided on the
body's outer housing after adjusting the pinion of the
base ass'y thereto. Then tilt the lock lever towards the fix
side, and fix the base ass'y securely.
When removing the bits, do so by following the steps for
installing bits in reverse order.
CAUTION
○Ensure that the collet nut is firmly tightened after inserting
a bit. Failure to do so will result in damage to the collet
cone.
○Ensure that the lock pin is not inserted into the shaft after
tightening the collet nut. Failure to do so will result in
damage to the collet cone, lock pin and shaft.
2. Install without using the lock pin (Fig. 7)
(1) Remove the base ass’y from the body.
(2) Deeply insert the bit into collet cone hole. (The distance
is 15 mm or more from side of collet nut.
(3) Use a 13 mm wrench to secure the shaft, and securely
tighten the collet nut with the included wrench.
(4) Fit the removed base ass'y to the rack provided on the
body's outer housing after adjusting the pinion of the
base ass'y thereto. Then tilt the lock lever towards the fix
side, and fix the base ass'y securely.
When removing the bits, do so by following the steps for
installing bits in reverse order.
CAUTION
○Ensure that the collet nut is firmly tightened after inserting
a bit. Failure to do so will result in damage to the collet
cone.
3. Exchanging the collet cone (Fig. 8)
(1) Securing the shaft, remove the collet nut, and exchange
the collet cone.
(2) Attach the nut, insert the bit, and tighten the nut.
NOTE
When tightening the collet nut, make sure that the bit is
inserted.
Otherwise, the collet cone may become misshapen.
HOW TO USE THE TRIMMER
1. Adjusting depth of cut (Fig. 9)
(1) Place the tool on a flat wood surface.
(2) Tilt the lock lever towards the remove side, and turn
knob bolt (A) to lower the unit until the tip of the bit lightly
touches the material. In this position, the scale on the
upper end of the base ass'y can be read.
(3) Turn knob bolt (A) upwards to adjust the scale to the
desired cutting depth according in accordance with the
position read.
00BookM1808DA.indb1500BookM1808DA.indb15 2021/09/3010:32:402021/09/3010:32:40

16
English
2. Guiding the trimmer
WARNING
Be sure to switch power OFF and pull out the battery to
avoid serious trouble.
(1) Template Guide (Standard accessory)
It is handy to process with a template a number of
materials in one same shape.
(In this case 6 × 6 mm or 1/4" × 1/4" straight bit is usable.)
Remove the base ass'y from the main unit.
Install the template guide in the recessed part of the
base ass'y and secure it with two screws. (Fig. 10)
NOTE
Tighten the two screws moderately. Optimum tightening
torque is 10–15 kg-cm.
Install the base ass'y in the main unit.
CAUTION
When fit the template guide, the upper part of the
template guide must not touch the collet nut.
When using the trimmer along the interior plane of the
template, the dimensions of the finished product will be
less than the dimensions of the template by a amount
equal to dimension “a”, the difference between the
radius of the template guide and the radius of the bit. The
reverse is true when using the trimmer along the exterior
of the template. (Fig. 11)
Secure the template to the workpiece. Feed the trimmer
in the manner that the template guide moves along the
template as shown in Fig. 12.
(2) Trimmer guide (Standard accessory)
The guide is handy when used in processing of materials
such as trimming and beveling of plywood.
Fit the trimmer guide on the base ass’y with knob bolt
(B).
Loosen knob bolt (B) to move the trimmer guide up and
down.
Loosen knob bolt (C) and turn the stop screw to move
the guide pin. (Fig. 13)
After moving the guide pin, tighten knob bolt (C) to
secure it.
As shown in Fig. 14, securely attach the bottom of the
base ass’y to processed surface of the materials. Feed
the trimmer with the guide pin alongside the material.
(3) Straight guide (Standard accessory)
Application:
○It is handy when used for linear processing work such as
beveling, grooving and the like.
Fit the straight guide with knob bolt (B) on the base ass’y
and fix it.
Adjust the length "B" from the bit to the surface of straight
guide by loosening the wing nut and moving the straight
guide as necessary. (Fig. 15)
As shown in Fig. 16, securely attach the bottom of the
base ass’y to processed surface of the materials. Feed
the trimmer while keeping the guide plane on the surface
of the materials.
○By exchanging the straight guide with the guide holder,
the tool can be used for circle cutting work.
[Processing range (distance from the enter of rotation to
the center of the bit)]
Minimum: 84 mm
Maximum: 182 mm
Note that circles measuring 102 to 124 mm and 143 mm
to 158 mm cannot be processed.
Turn wing nut and remove the bolt and washers
(2 pieces).
Reverse the top and bottom of the straight guide and
attach it to the guide holder. (Fig. 17)
Depending on the radius of the circle to be processed,
the holes will vary for the wing nut and bolt.
Processing a circle with a radius of 84 to 102 mm
(Fig. 18-a)
Processing a circle with a radius of 124 to 182 mm
(Fig. 18-b)
Installation to the tool is the same as that for straight line
processing.
Align the hole of the straight guide left in the center
position of the circle processing, and firmly secure with
a nail less than 6 mm in diameter which will act as a
rotation axis.
Rotate the body towards the right. (Fig. 19)
3. Switch operation (Fig. 20)
The unit will operate when the switch button is pressed
after pressing the power button.
See Fig. 20 for specifications on button controls.
The remaining battery indicator lamp and LED light will
always operate together with the power button.
If the power is ON and the tool is not operated
for approximately 10 seconds, the power will be
automatically switched OFF and the remaining battery
indicator lamp and LED light will also be switched off.
4. Dust Collector Set (Standard accessory) (Fig. 21)
Connect the dust collector set cleaner to collect dust.
(1) Slot the protrusion on the inside of the dust collector to
the positioning hole at the front lower left of the base
ass’y, and attach it to cover the front of the base ass’y.
(2) Using the included knob bolt (D) to secure the dust
collector hole to the body’s screw hole.
5. Connecting to a dust extractor (sold separately)
(Fig. 22)
Attach the hose that was included with your dust extractor
to the dust collector. The hose can be connected if its
inner diameter on the dust extractor side is 28 mm. For
other hose sizes (inner diameter of 32 mm, 35 mm, or
38 mm), a joint (C) is required.
6. Adjusting the rotation speed
The M1808DA has an electronic control system that
allows rotation speed changes.
As shown in Fig. 23, dial position “1” is for minimum
speed, and position “6” for maximum speed.
7. Cutting
CAUTION
○Wear eye protection when operating this tool.
○Keep your hands, face and other body parts away from
the bits and any other rotating parts, while operating the
tool.
NOTE
○Do not press the lock pin while the motor is rotating.
Also, do not switch the tool on while pressing the lock
pin.
Doing so may damage the lock pin and/or shaft as well
as result in injury.
○Please limit the cutting depth of a single cut to under
5 mm.
○When cutting a deep groove, repeat the cut 2 or 3 times.
Deep cutting operations can make the tool difficult
to control and may overload the motor, resulting in
malfunction.
○Moving the tool forward fast may cause a poor quality
of cut, or damage to the bit or motor. Moving the tool
forward too slowly may burn and mar the cut.
The proper feed rate will depend on the bit size, the kind
of workpiece and depth of cut. Before beginning the cut
on the actual workpiece, it is advisable to make a sample
cut on a piece of scrap lumber. This will show exactly
how the cut will look as well as enable you to check
dimensions.
○Abnormalities and overloads will trigger the overload
protector, and stop operation. Remove the load
immediately, and turn the power off, then on. The
rotation speed should return to normal.
00BookM1808DA.indb1600BookM1808DA.indb16 2021/09/3010:32:402021/09/3010:32:40

17
English
Table 3
Safeguard Function LED Light Display Corrective Action
Overload Protection On 0.1 second/off0.1 second Remove the cause of the overloading.
Temperature Protection On 0.5 second/off0.5 second Allow the tool and battery to thoroughly cool.
It is recommended that the most appropriate guide be
used which is suitable to the type of the work in order to
carry out the work exactly without failure.
(Refer to "2. Guiding the trimmer".) The workpieces to be
processed should be firmly fixed.
(1) Keep the bit separated from the workpieces and hold the
body firmly before switch is turned on. (Fig. 24)
(2) The bit rotates clockwise (arrow direction indicated
on the base ass’y). To obtain maximum cutting
effectiveness, feed the trimmer in conformance with the
feed directions shown in Fig. 25.
LED LIGHT WARNING SIGNALS
(Fig. 30)
This product features functions that are designed to protect
the tool itself as well as the battery. When any of the
safeguard functions are triggered, any of the LED light will
blink as described in Table 3.
In this case, follow the instructions described under
corrective action.
NOTE
On occasion, about two seconds after stopping
operation of the tool, the LED light will shut offand the
power will switch OFF.
This means that either the power is near empty or that
the battery is overheated.
In such a case, allow the battery to cool and then
recharge it for use.
Fig. 30
MAINTENANCE AND INSPECTION
WARNING
Be sure to turned offthe switch and remove the battery
before maintenance and inspection.
1. Inspecting the bit
Continued use of a dull or damaged bit will result in
reduced cutting efficiency and may cause overloading
of the motor. Replace the bit with a new one as soon as
excessive abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws be
loose, retighten them immediately. Failure to do so could
result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the power
tool.
Exercise due care to ensure the winding does not
become damaged and/or wet with oil or water.
4. Inspection of terminals (tool and battery)
Check to make sure that swarf and dust have not
collected on the terminals.
On occasion check prior, during and after operation.
CAUTION
Remove any swarf or dust which may have collected on
the terminals.
Failure to do so may result in malfunction.
5. Cleaning on the outside
WARNING
Wear protective glasses and a dust mask when cleaning
the filter with an air gun.
Failure to do so may result in inhalation or exposure of
the eyes to debris or dust.
Use an air gun or other similar tool to remove materials,
chips, etc. which have adhered to the body (especially
where indicated in Fig. 26), and wipe with a soft dry cloth
or a cloth moistened with soapy water. Do not use chloric
solvents, gasoline or paint thinner, for they melt plastics.
6. Storage
Store the power tool and battery in a place in which
the temperature is less than 40°C and out of reach of
children.
NOTE
Storing lithium-ion batteries.
Make sure the lithium-ion batteries have been fully
charged before storing them.
Prolonged storage (3 months or more) of batteries with
a low charge may result in performance deterioration,
significantly reducing battery usage time or rendering
the batteries incapable of holding a charge.
However, significantly reduced battery usage time may
be recovered by repeatedly charging and using the
batteries two to five times.
If the battery usage time is extremely short despite
repeated charging and use, consider the batteries dead
and purchase new batteries.
00BookM1808DA.indb1700BookM1808DA.indb17 2021/09/3010:32:402021/09/3010:32:40

18
English
CAUTION
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
SELECTING ACCESSORIES
The accessories of this machine are listed on page 284.
For details regarding each bit type, please contact the
HiKOKI Authorized Service Center.
Important notice on the batteries for the HiKOKI
cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used with
batteries other than these designated by us, or when
the battery is disassembled and modified (such as
disassembly and replacement of cells or other internal
parts).
GUARANTEE
We guarantee HiKOKI Power Tools in accordance with
statutory/country specific regulation. This guarantee does
not cover defects or damage due to misuse, abuse, or
normal wear and tear. In case of complaint, please send
the Power Tool, undismantled, with the GUARANTEE
CERTIFICATE found at the end of this Handling instruction,
to a HiKOKI Authorized Service Center.
Information concerning airborne noise and vibration
The measured values were determined according to
EN62841 and declared in accordance with ISO 4871.
Measured A-weighted sound power level: 91 dB (A)
Measured A-weighted sound pressure level: 80 dB (A)
Uncertainty K: 3 dB (A).
Wear hearing protection.
Vibration total values (triax vector sum) determined
according to EN62841.
No load:
Vibration emission value ah= 2.5 m/s2
Uncertainty K = 1.5 m/s2
The declared vibration total value and the declared noise
emission value have been measured in accordance with a
standard test method and may be used for comparing one
tool with another.
They may also be used in a preliminary assessment of
exposure.
WARNING
○The vibration and noise emission during actual use
of the power tool can differ from the declared total
value depending on the ways in which the tool is used
especially what kind of workpiece is processed; and
○Identify safety measures to protect the operator that
are based on an estimation of exposure in the actual
conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is
switched offand when it is running idle in addition to the
trigger time).
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
00BookM1808DA.indb1800BookM1808DA.indb18 2021/09/3010:32:402021/09/3010:32:40

19
English
TROUBLESHOOTING
WARNING
○To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the
battery from the main body before making any adjustments.
○All electrical or mechanical repairs should be done only by qualified service technicians. Contact HiKOKI Authorized
Service Center.
1. Power tool
Problem Possible Cause Remedy
Tool doesn’t run No remaining battery power Charge the battery.
Battery isn’t fully installed. Push the battery in until you hear a click.
The power is OFF. Press the power button to switch the power
ON.
Tool suddenly stopped Tool was overburdened Get rid of the problem causing the
overburden.
During operation, lighten the applied
pressure.
Battery or tool overheated Allow the tool and battery to thoroughly cool.
No remaining battery power Charge the battery.
Doesn’t cut well The bit is worn or missing teeth. Replace with a new bit.
The collet chuck is loose. Firmly tighten the collet chuck.
Remaining battery indicator
lamp is blinking Indicates that the remaining battery charge is very low. Recharge as soon as possible.
Remaining battery indicator
on the machine doesn’t
match to Multi volt battery —Refer to the indicator lamp on the battery.
Battery cannot be installed Attempting to install a battery other than that
specified for the tool. Please install batteries that are multi volt or BSL18xx series.
2. Charger
Symptom Possible cause Remedy
The charge indicator lamp
rapidly flickers purple, and
battery charging doesn’t
begin.
The battery is not inserted all the way. Insert the battery firmly.
There is foreign matter in the battery
terminal or where the battery is attached. Remove the foreign matter.
The charge indicator lamp
blinks red, and battery
charging doesn’t begin.
The battery is not inserted all the way. Insert the battery firmly.
The battery is overheated. If left alone, the battery will automatically
begin charging if its temperature decreases,
but this may reduce battery life. It is
recommended that the battery be cooled in
a well-ventilated location away from direct
sunlight before charging it.
Battery usage time is short
even though the battery is
fully charged.
The battery’s life is depleted. Replace the battery with a new one.
The battery takes a long
time to charge. The temperature of the battery, the charger, or the surrounding environment is extremely
low.
Charge the battery indoors or in another
warmer environment.
The charger’s vents are blocked, causing its
internal components to overheat. Avoid blocking the vents.
The cooling fan is not running. Contact a HiKOKI Authorized Service
Center for repairs.
The USB power lamp
has switched offand the
USB device has stopped
charging.
The battery’s capacity has become low. Replace the battery with one that has
capacity remaining.
Plug the charger’s power plug into an
electric socket.
00BookM1808DA.indb1900BookM1808DA.indb19 2021/09/3010:32:402021/09/3010:32:40

20
English
Symptom Possible cause Remedy
USB power lamp does not
switch offeven though the
USB device has finished
charging.
The USB power lamp lights up green to
indicate that USB charging is possible. This is not a malfunction.
It is unclear what the
charging status of a USB
device is, or whether its
charging is complete.
The USB power lamp does not switch off
even when charging is complete. Examine the USB device that is charging to confirm its charging status.
Charging of a USB device
pauses midway. The charger was plugged into an electrical socket while the USB device was being
charged using the battery as the power
source.
This is not a malfunction.
The charger pauses USB charging for about
5 seconds when it is differentiating between
power sources.
A battery was inserted into the charger while
the USB device was being charged using a
power socket as the power source.
Charging of the USB device
pauses midway when the
battery and the USB device
are being charged at the
same time.
The battery has become fully charged. This is not a malfunction.
The charger pauses USB charging for
about 5 seconds while it checks whether
the battery has successfully completed
charging.
Charging of the USB
device doesn’t start when
the battery and the USB
device are being charged
at the same time.
The remaining battery capacity is extremely
low. This is not a malfunction. When the battery capacity reaches a certain
level, USB charging automatically begins.
00BookM1808DA.indb2000BookM1808DA.indb20 2021/09/3010:32:402021/09/3010:32:40
