IMPORTANT!
Read the instructions for both the patient lift and the lifting accessories before use.
Lifting and transferring a patient always involves a degree of risk. A complete understanding of the contents of
instructions is essential, and only trained personnel should use the equipment.
When in doubt, contact Liko.
FreeStand
Instruction Guide
English
7EN131101 Rev.3
2015-11-02
Product Description
Caution triangles are used to warn of situations that demand extra care and attention.
FreeStand is a freestanding lift system that is intended
for use where there is need for lifting in a specic loca-
tion, e.g., near a bed or in a hygiene room, etc.
Freestanding systems are a good alternative if you
need the features of a xed-installation overhead lift
system but do not wish to install permanent xtures
in the walls or ceiling, or if the need for lifting is only
temporary.
With its simple and safe structural design, the Free-
Stand lift system is ideal for home-care and other care
settings.
Since FreeStand requires no wall or ceiling xtures,
it enables great exibility of placement in the room.
The width of the FreeStand rail system depends on
the choice of lift rail length. The lift rail (H100) is avai-
lable in 7 different lengths: from 2.0 m (79 inch.) up
to 3.2 m (126 inch.).
For a complete lift system, FreeStand is combined
with lift rail H100, a lift unit, parking set and other
accessories.
With the FreeStand lift system, Liko’s stationary lifts
Multirall or Likorall are used.
FreeStand complies with EN ISO 10535 according to
the requirements of directives for medical- technical
products, MDD 93/42/EEC.
In this document, the person being transferred is referred to as the patient and the person helping them is
referred to as the caregiver.

2www.liko.com
FreeStand • 7EN131101 Rev.3
Safety Instructions ...............................................2
Product Description .............................................3
Lift Unit .................................................................3
Lifting Accessories................................................3
Technical Data/Measurements .............................4
Assembly Instructions........................................5-8
Operation..............................................................8
Disassembly .........................................................9
Inspection and Maintenance...............................10
Contents
Safety Instructions
Before using the product, make certain that:
• FreeStand and the lift unit are assembled according to the instructions.
• Lifting devices are properly connected to the lift.
• You have read and understood the instruction guides for FreeStand, the lift unit and lifting accessories.
• Personnel using the products have received appropriate instructions and training.
• You have checked to ensure that lifting accessories are not damaged.
• The appropriate lifting accessory regarding type, size, material and design in proportion to the patient is used.
• The lifting accessory is correctly and securely applied to the patient, so that there is no risk of personal injury.
Never leave a patient unattended during a transfer with FreeStand!
FreeStand complies with EN ISO 10535.
Particular care must be taken when using strong sources of potential disturbance, such as diathermy, etc, so that
cables are not positioned on or near the lift. If you have questions, please consult the responsible assistive-device
technician or the supplier.
Max. load: 200 kg (440 lbs.)
FreeStand is a composite product system consisting of a lift system, lift unit and lifting accessories.
For current product information, please refer to our website, www.liko.com. Instruction guides are also available
on the website for downloading, free of charge.
When in doubt, contact Liko.
NOTE!
This instruction guide contains important information about the use of the product.
All personnel who use this product must be thoroughly familiar with the contents of this instruction guide.
Remember to keep the instructions where they are easily accessible for users of the product.

3www.liko.com
FreeStand • 7EN131101 Rev.3
FreeStand is intended for use in combination with the Likorall or Multirall lift units.
Denitions
1. Rail (H100)
2. Corners (incl. locking rail)
3. Adjustable support arm
4. Upright Supports
5. Parking set
6. Charger
7. Base
8. Parking hook
9. Parking bracket
Installation of the Likorall lift unit on FreeStand is
described in this instruction guide.
Installation of the Multirall lift unit on FreeStand is
described in the Multirall instruction guide.
Lift Unit
1
3
4
5
6
7
2
3
2
4
7
8
9
Lifting Accessories
For appropriate accessories, see the instruction guide for the respective lift unit.

4www.liko.com
FreeStand • 7EN131101 Rev.3

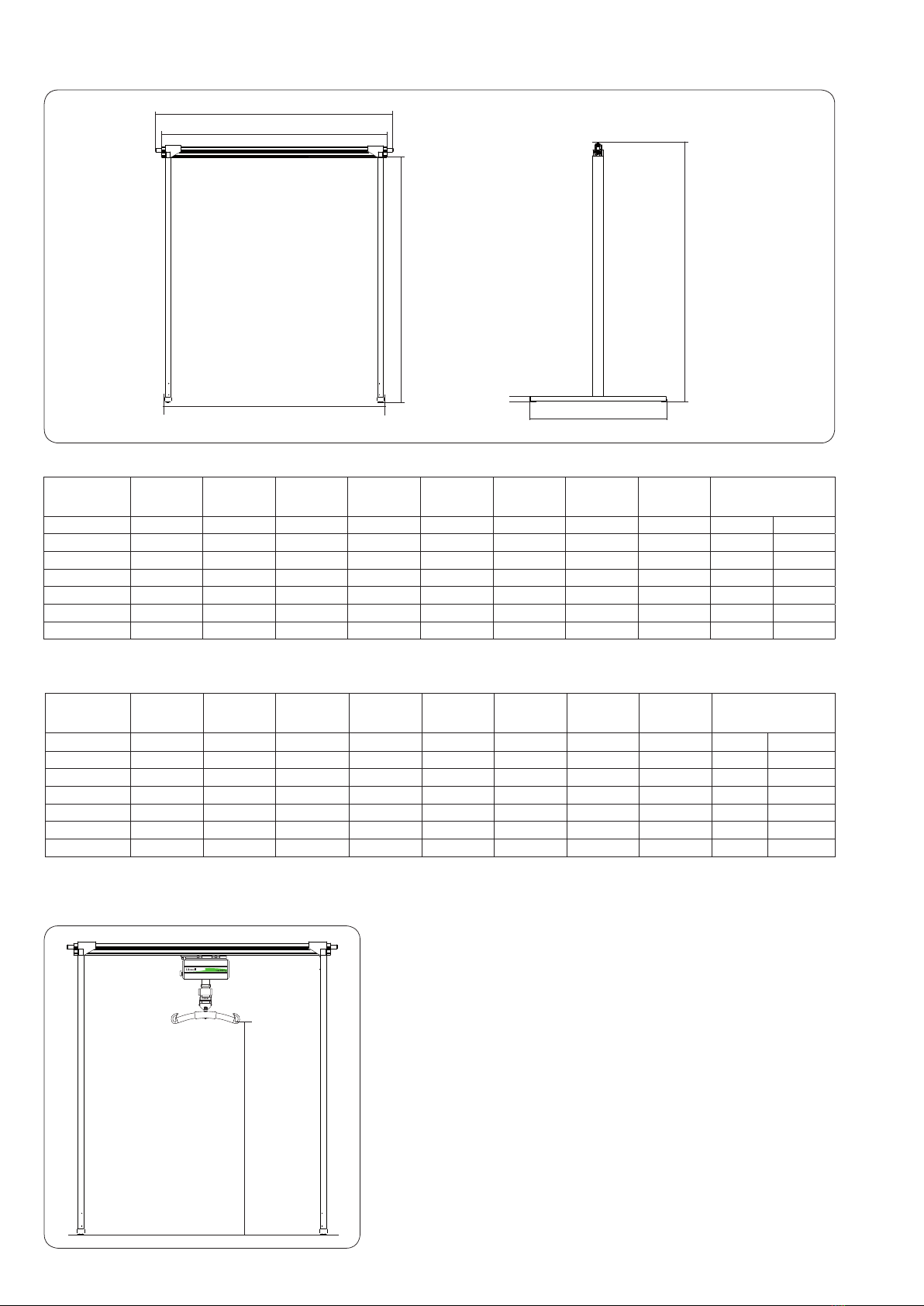

Technical Data/Measurements
* Weight of the single heaviest component on the FreeStand system when disassembled.
F
B
A
D
E
C
L
H
Lifting Height with Lift Unit
The highest lifting height (H) varies depending on the
choice of lift unit model.
Examples:
- Likorall 242 with mechanical emergency lowering:
H = 1715 mm (67.5 inches.)
- Likorall 242 without mechanical emergency lowering:
H = 1820 mm (71.7 inches.)
- Multirall: H = 1740 mm (68.5 inches.)
All lift units with Universal Slingbar 450.
Contact Liko for more information.
Max. load L Amax Amin B C D E F Weight
tot. part*
200 2000 3710 2040 2180 2010 45 1210 2302 27.5 7.3
200 2200 3910 2240 2180 2210 45 1210 2302 28.2 8.0
200 2400 4110 2440 2180 2410 45 1210 2302 29.0 8.8
200 2600 4310 2640 2180 2610 45 1210 2302 29.7 9.5
200 2800 4510 2840 2180 2810 45 1210 2302 30.4 10.2
200 3000 4710 3040 2180 3010 45 1210 2302 31.2 11.0
200 3200 4910 3240 2180 3210 45 1210 2302 31.9 11.7
Max. load and weight in kg. Dimensions in mm.
Max. load and weight in lbs. Dimensions in inches.
* Weight of the single heaviest component on the FreeStand system when disassembled.
Max. load L Amax Amin B C D E F Weight
tot. part*
440 78.8 146.1 81.3 85.8 79.1 1.8 47.6 90.6 61 16
440 86.6 153.9 88.2 85.8 87.0 1.8 47.6 90.6 62 18
440 94.5 161.8 96.1 85.8 94.9 1.8 47.6 90.6 64 19
440 102.4 169.7 103.9 85.8 102.8 1.8 47.6 90.6 66 21
440 110.2 177.6 111.8 85.8 110.6 1.8 47.6 90.6 67 23
440 118.1 185.4 119.7 85.8 118.5 1.8 47.6 90.6 69 24
440 126.0 193.3 127.6 85.8 126.4 1.8 47.6 90.6 70 26

5www.liko.com
FreeStand • 7EN131101 Rev.3
Assembly Instructions
1. Turn the base so that the holes will align with the
holes on the upright support. Mount the upright
support on the base.
• Upright supports with pre-mounted corners including
locking rail (2 pcs) and double-adhesive tape for
charger (mounted on one of the uprights)
• Rail H100 (max 3.2 m/126 inch.)
• Base (2 pcs)
• Support arm (2 pcs)
Before assembly, check to ensure that you have the following components:
• End stop assembly kit
• Charger
• Parking set, with hook and bracket with double-
adhesive tape and wear-guard foil
• Complete lift unit with slingbar, handcontrol and
rail carriers
4. Insert one end stop in the lower
track on the rail, as illustrated.
3. Insert the rail carriers for the
selected lift unit into the rail.
5. To prevent the lift unit from hitting
the upright supports, position the
end stops at least 23 cm (9.1 inch.)
from the rail ends. Secure the end
stop in position by tightening the
screws (see illustration).Repeat
steps 4 and 5 at the other end of
the rail.
• Ring spanner 13 mm/0.5 inch. (2 pcs)
(alt. one ring spanner 13 mm/0.5 inch. and one universal-joint socket wrench 13 mm/0.5 inch.)
• Allen key 4 mm/0.16 inch.
The following tools are required for assembly of FreeStand:
Min 23 cm / 9.1 in.
2. Afx the upright support to the base with the screws
provided (2 on each side of each upright support, 4
screws per upright). Repeat steps 1 and 2 with the
other upright support and base.

6www.liko.com
FreeStand • 7EN131101 Rev.3
8. If support arms are to be used, do as follows: In-
sert the support arm into the upper part of the rail.
Secure the support with the screw on the top of
the locking rail (see 6. B).
NOTE! The support arm may only protrude at
most 855 mm (33 inch.); the red marking must not
be visible. For recommendations concerning use
of support arms, see page 8.
7. Mount the stop bolts in the rail ends, as illustrated.
9. Insert the rail into the corner of the other upright
support, as illustrated. Repeat steps 6 to 8 (above).
10. Press cover caps onto the screw heads on the
corners/locking rails and stop bolts on both ends
of the rail. The FreeStand lift system is now
assembled.
6. A. Insert the rail into the corner of the
upright support. Check to ensure that
the locking rail ts into the upper track
on the rail (see inset illustration).
C. Afx the rail to the corner by
tightening the screws on the
top of the corner (1 and 2).
1
2
B C
11. Mount the lift unit on the twin rail carriers (already mounted on the rail). Note that FreeStand is delivered
without rail carriers.
Follow the mounting instructions for Likorall on page 7.
For mounting Multirall, see the Multirall instruction guide.
Before use, study the instruction guide for the respective lift unit!
A
B. Screw the outermost screw
on the locking rail part way
into the hole on the top of the
rail. NOTE! Do not tighten
the screw, as this will prevent
insertion of the support arm.

7www.liko.com
FreeStand • 7EN131101 Rev.3

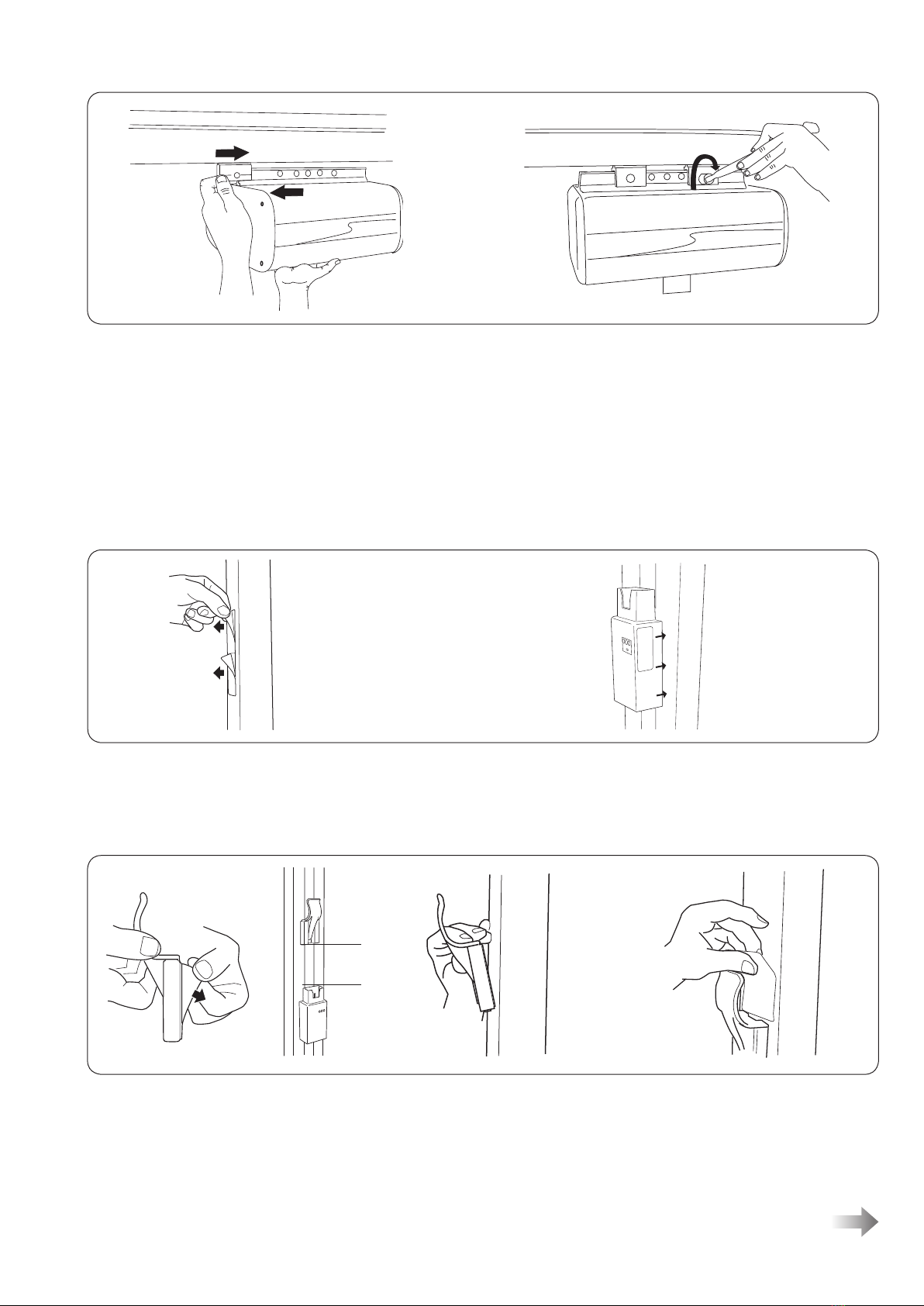

Mounting the Charger and Parking Set
A battery charger for Likorall and Multirall is available as an accessory. The charger is afxed to the inner side of
one of the upright supports using the pre-mounted double-adhesive tape (see instructions, below).
Remove the protective lm from the double-adhesive
tape (on the inner side of one of the upright supports).
Carefully place the charger over the tape, so that the
edges are aligned. Apply pressure. For best results,
allow the tape to bond for 24 hours before using the
charger.
Mounting a Likorall Lift Unit
Guide the other rail carrier onto the lift unit’s mounting
rail and align it with the outermost hole. Use the nut and
bolt provided to secure the rail carrier to lift unit via the
outermost hole in the mounting rail on the top of the lift
unit.
Loosen and remove the nuts and bolts from the rail
carriers. Guide the lift unit onto one of the rail carriers.
Use the nut and bolt provided to secure the rail carrier
to lift unit via the outermost hole in the mounting rail
on the top of the lift unit.
Remove the protective lm from the
double-adhesive tape on the parking
bracket.
The parking bracket should be positioned
so that the distance between the upper
edge of the charger and the lower edge
of the parking bracket is at least 15 cm
(5.9 inch.).
Apply the protective wear-guard
foil behind the parking hook, as
illustrated.
Afx the parking bracket to the
upright support with the hook
facing upward. For best results,
allow the tape to bond for 24
hours before using the parking
hook.
15 cm /
5.9 inch.

8www.liko.com
FreeStand • 7EN131101 Rev.3
Operation
During lifting and transfer, FreeStand should be positioned so that the rail is always centred as much as possible
directly above the centre of gravity. Lifting in a skewed direction has a negative effect on stability. This means that
when lifting e.g., from a bed, the rail should be centred directly over the bed. This applies both when lifting from
the bed to the bedside and to a location below the foot of the bed.
Now the charger and parking hook are ready for use.
• Charger connected to
power supply
• Charging in progress
• Not charging
Use of Support Arms
The support arms are used to stabilize FreeStand
against the walls. This is not normally necessary, since
FreeStand will not tip, even without support arms. To
ensure optimal function, the protruding ends of the
arms must be ush with the wall surface. If there is a
gap between the support arm and the wall, there may
be a risk of the support arm chang against the wall,
thus damaging the paint or wallpaper. Each support
arm may only protrude at most 855 mm (33 inch.).
The red marking on each support arm must not be
visible after assembly (see illustration).
Red tape

9www.liko.com
FreeStand • 7EN131101 Rev.3
Disassembly
1. Unscrew bolts and nuts from the rail carriers. 2. Grasp the lift unit and slide off the rail carriers. Lift
off the lift unit.
3. Remove the cover caps from the screws on the
corner/locking rail and stop bolt on one end of
the rail.
4. Remove the stop bolt.
5. Loosen the screws on the top of the corner and
locking rail (1, 2 and 3).
We recommend that the charger and parking bracket be left on the upright support. If these are removed, the tape
will lose its adhesiveness, making it difcult to re-mount them.
End stops and rail carriers can be left on the rail.
We recommend that the bases be left on the upright supports. Should it be necessary to remove the bases, for
example, for transport, simply remove the screws from the bases and separate them from the upright supports
(4 screws per upright).
1
2
3
6. Pull out the support arm.
7. Separate the rail from the upright support.
Lay the rail end and the loose upright sup-
port on a stable underlying surface. Repeat
steps 3 to 7 at the other end of the rail.
Recommendations for Disassembly

To ensure trouble-free operation, certain details should be inspected each day the lift system is used.
• Check the lift system for any signs of external damage.
• Check rail carrier function.
• Check, where applicable, Quick-release Hook safety function.
• Ensure that all screws, bolts and nuts are tight.
When necessary, clean the lift system regularly using a damp cloth. NOTE! Do not use cleaning agents that
contain phenol or chlorine, since these can damage aluminium and polyamide material.
Inspection
FreeStand should undergo thorough inspection for wear at least once per year.
Inspection must be performed according to the Liko service manual and by authorized personnel.
IMPORTANT!
Repairs and maintenance may only be carried out by authorized Liko service personnel using original Liko spare
parts.
Storage
The lift system must be stored at a temperature above the freezing point and at normal relative humidity (not
exceeding 60%).
Service agreements
Liko invites you to sign a service agreement for regular maintenance and testing of your lift system.
Liko’s products undergo continuous development, which is why we reserve the right to make changes in products
without prior notice. Contact your Liko representative for advice and information about product upgrades.
Recycling
For instructions on how the lift system should be recycled, please see our website: www.liko.com.
Made in Sweden
Liko is quality certied according to ISO 9001 and its equivalence for the medical device industry, ISO 13485.
Liko is also certied according to environmental standard ISO 14001.
Inspection and Maintenance
www.liko.com
Manufacturer:
Liko AB
Nedre vägen 100
SE-975 92 Luleå
[phone]
Sweden
(C)2015. Liko R&D AB. All Rights Reserved.
