Hillrom Golvo 5.275 User manual

61 www.liko.com
Golvo™

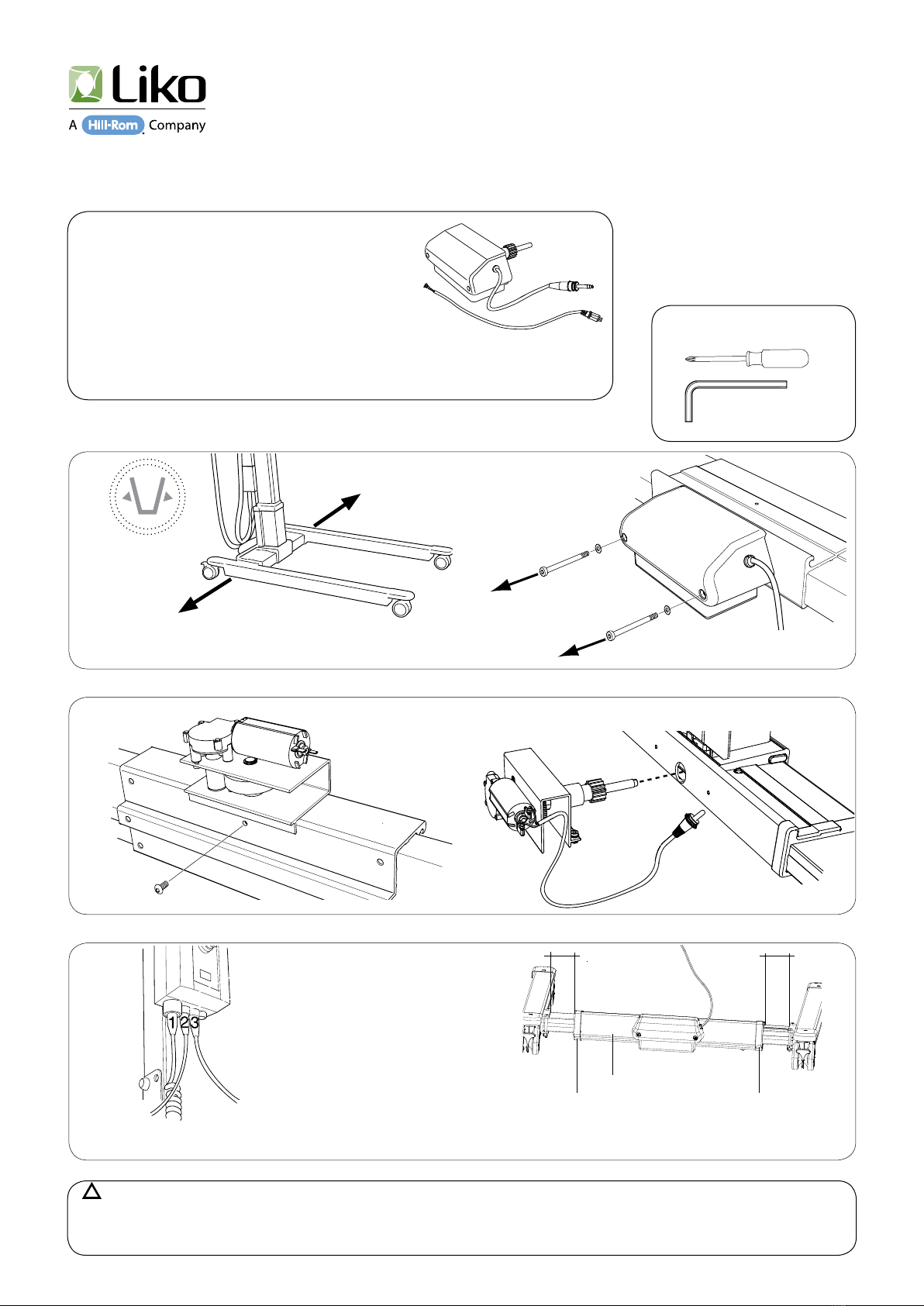

Motor for Base width Adjustment Golvo, grey
Motorpaket komplett Golvo, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090059
3SE630216-05
2014-02-18
© Copyright Liko AB www.liko.com
Tools required:
5.274
2,5 mm
4 mm
Contains: Qty:
Motor for Base with Adjustment 1
Motor cable Mini Fit (for Golvo 8000/8008) 1
Fits:
Golvo 7000/7007 (all models)
Golvo 8000/8008 (all models)
B
A
C C
D
After mounting: The distance A & B must be the same.
Note! The cover proles (C) must be xed to the
middle beam (D).
Assemble the Motor in reverse order.
Connect the cable for base motor to socket number 3.
Adjust the width almost to the outer position.
Disconnect the motor cable from the control box
Golvo 7000/7007 (all models):
5. 6.
2.1.
3. 4.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.

62 www.liko.com
Golvo™
© Copyright Liko AB www.liko.com

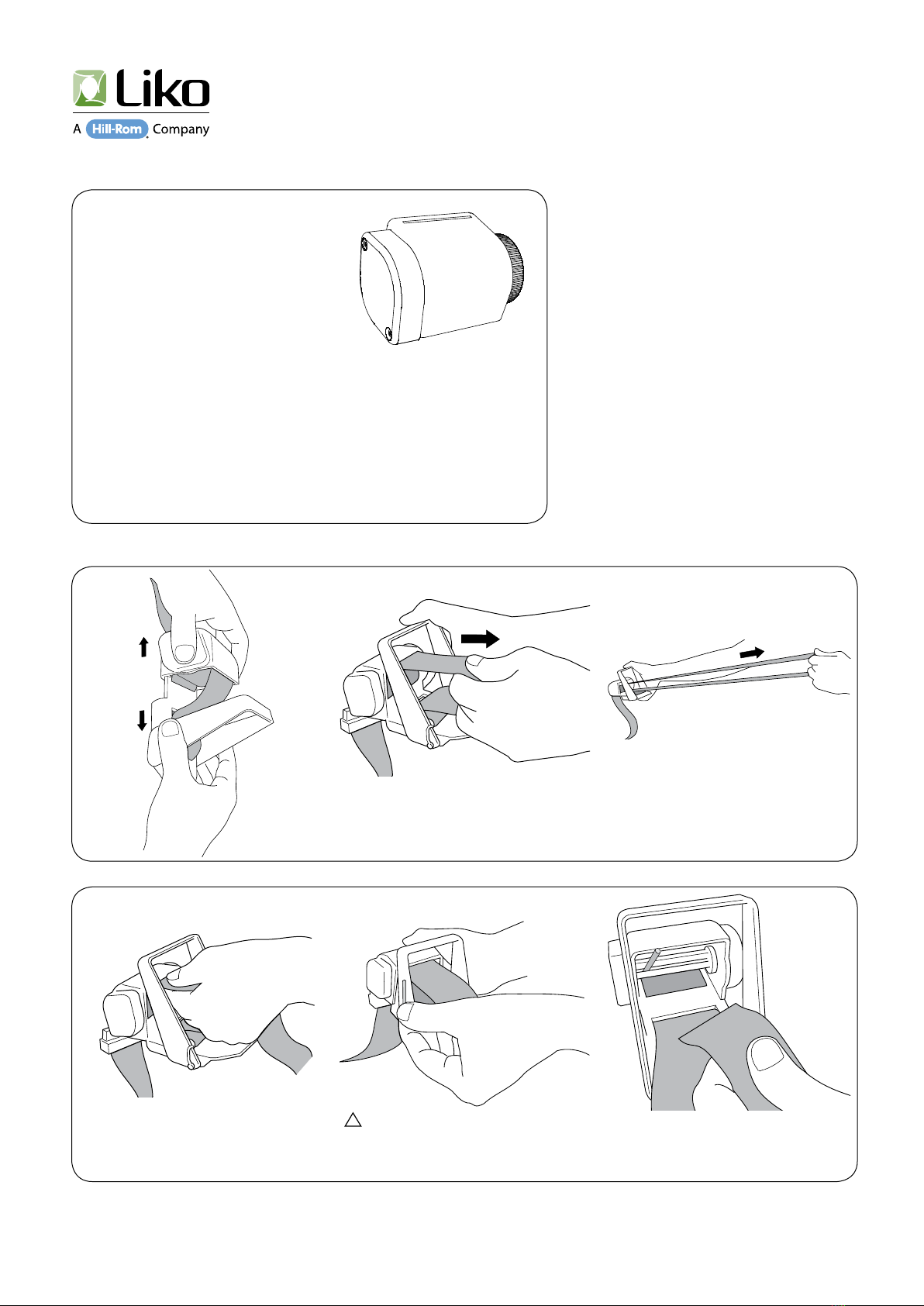

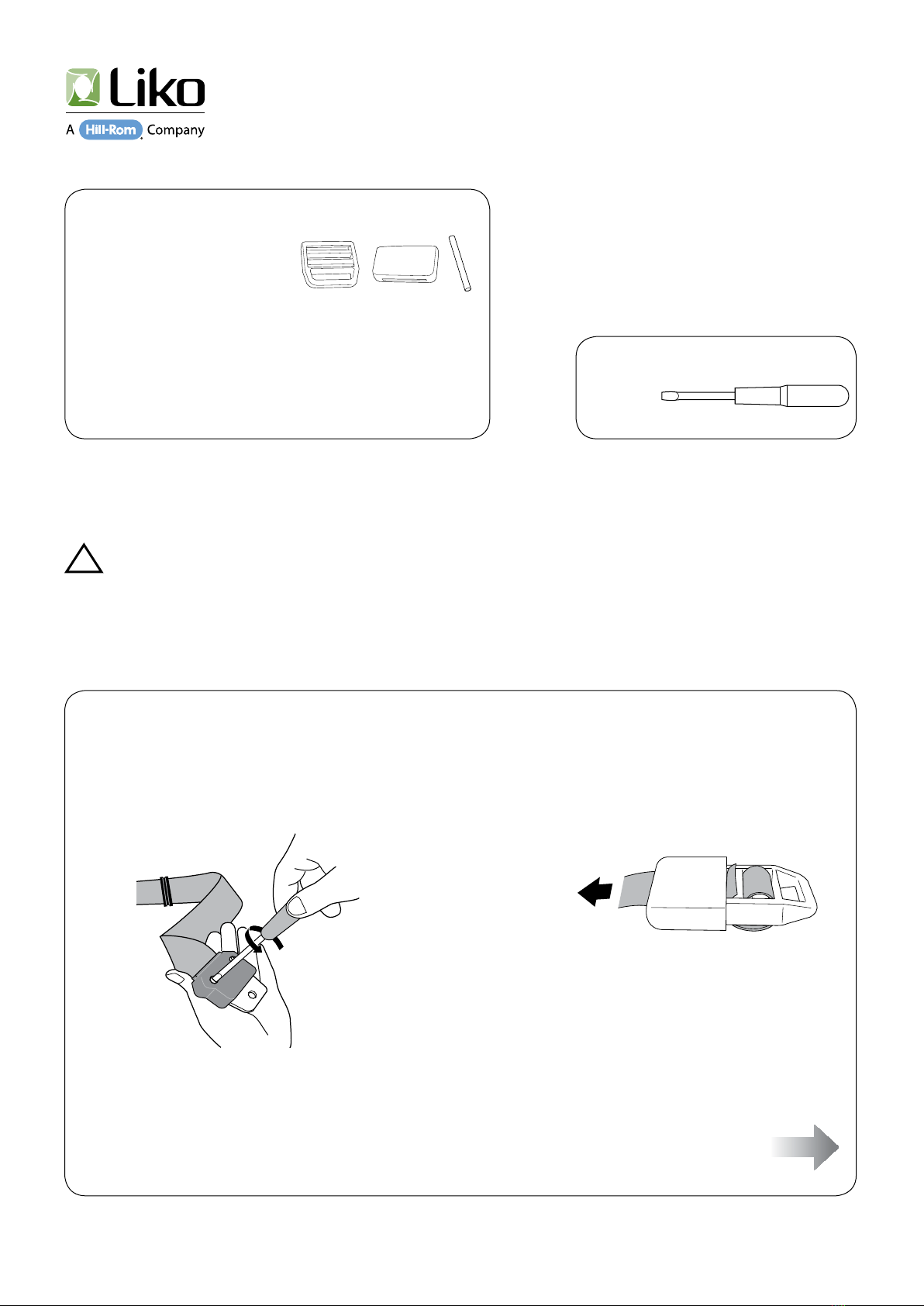

Plastic housing, grey
Bandmagasin, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090060
3SE630267-02
2010-05-10
5.275
Pull the strap all the way out.
Use the pin to lock the axle
where the strap was mounted.
Do not let go of the spring
loaded wheel, since the tension
will release.
Hold the spring loaded wheel
and release the strap by
removing the pin.
Contains: Qty:
Cover spring magazine 1
Strap shaft emergency low 1
Screw K6S M5x12 1
Nut M6M M5 1
Screw TP WN1412 3x20 2
Spring magazine 1
Locking pin 3x48 1
Plastic housing knob rail 1
Fits:
Golvo 7000ES from S/N 7024206
Golvo 7007ES from S/N 7729722
Golvo 7000ES Classic
Golvo 7007ES Classic
Golvo 7007 LowBase
Golvo 8000/8008 (all models)

63 www.liko.com
Golvo™
Plastic housing, grey
Bandmagasin, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090060
5.275
© Copyright Liko AB www.liko.com

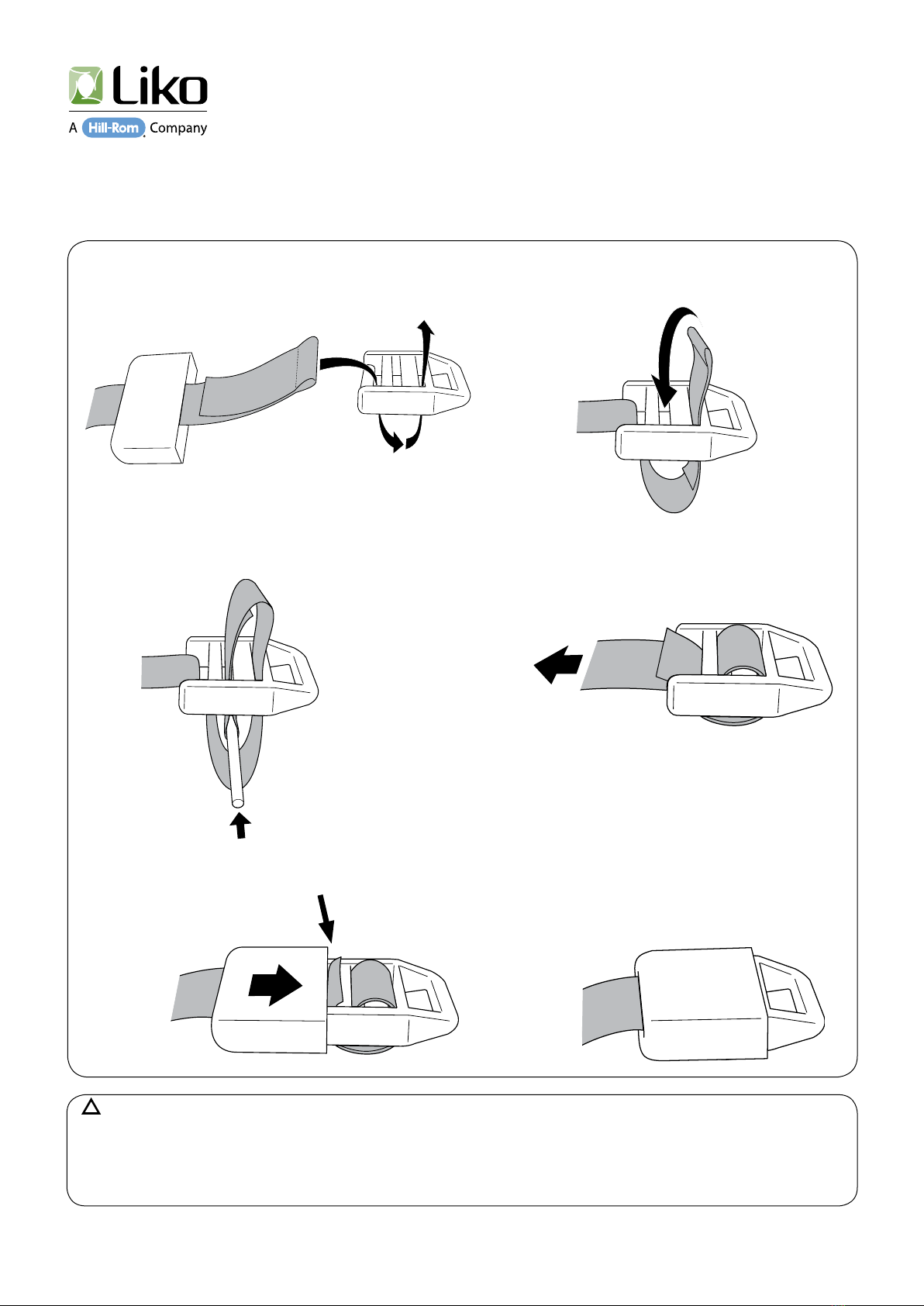

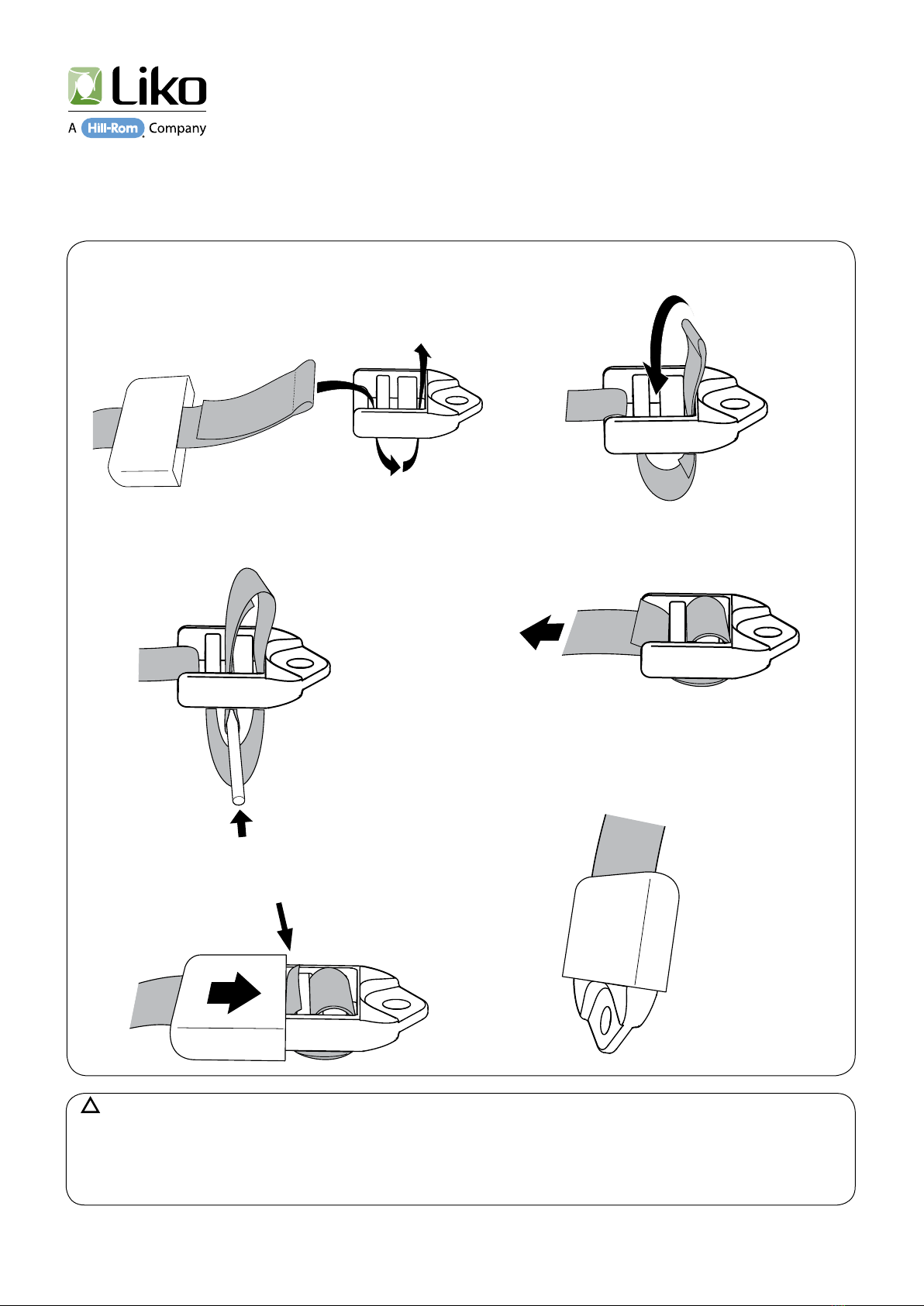

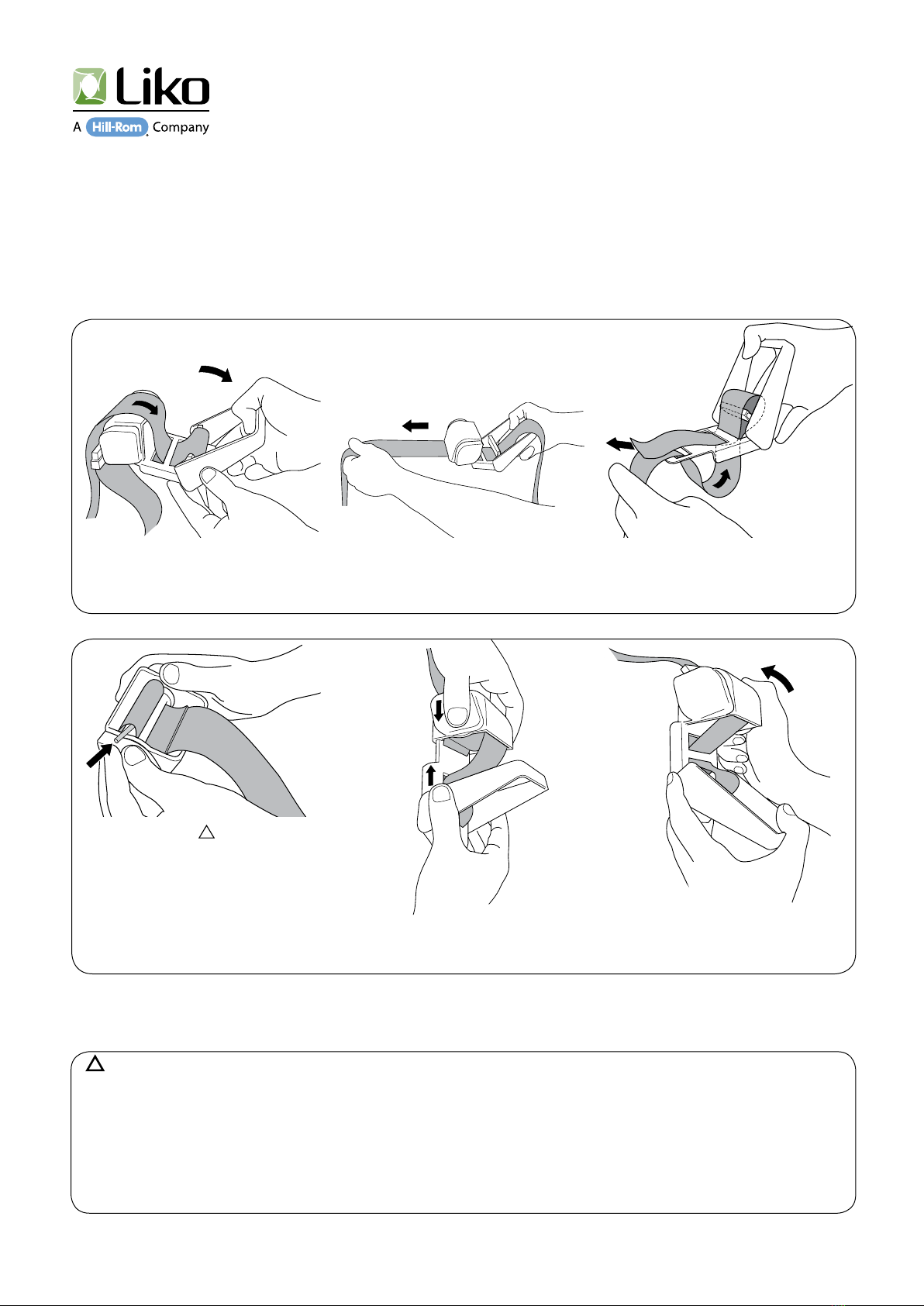

Roll the strap up until the red
mark reaches the plastic housing.
Push the emergency lowering
handle down and pull the strap
away.
Pull the rest of the strap out and
remove the plastic housing. Mount the strap through the new
plastic housing with the red mark
towards the plastic housing and
then as shown above.
Remove the pin. Do not let go of
the spring loaded wheel, since the
tension will release.
Mount the strap through the slot in
the axle and the same way back.
Note! The axle has two different
sides. Place the pin as shown to
lock the strap. Push the plastic housing on to the
strap joint.
NOTE
- After changing plastic housing the SSP Limit Switch must be tested by lifting maximum load all the way up to the highest
position through the entire lifting range.
- With the emergency stop out, move the lifts trap all the way up against the SSP Limit switch. Check that the motor does not
operate when touching the SSP Limit switch.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.

64 www.liko.com
Golvo™
1. 2.
3. 4.
Tools required:
3 mm
4 mm
8 mm
Roll Frame Attachment G7/G77 G
Rulländfäste G7/G77 G
Assembly Instruction
Monteringsanvisning
Prod. No. 20090064
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
5.279

65 www.liko.com
Golvo™

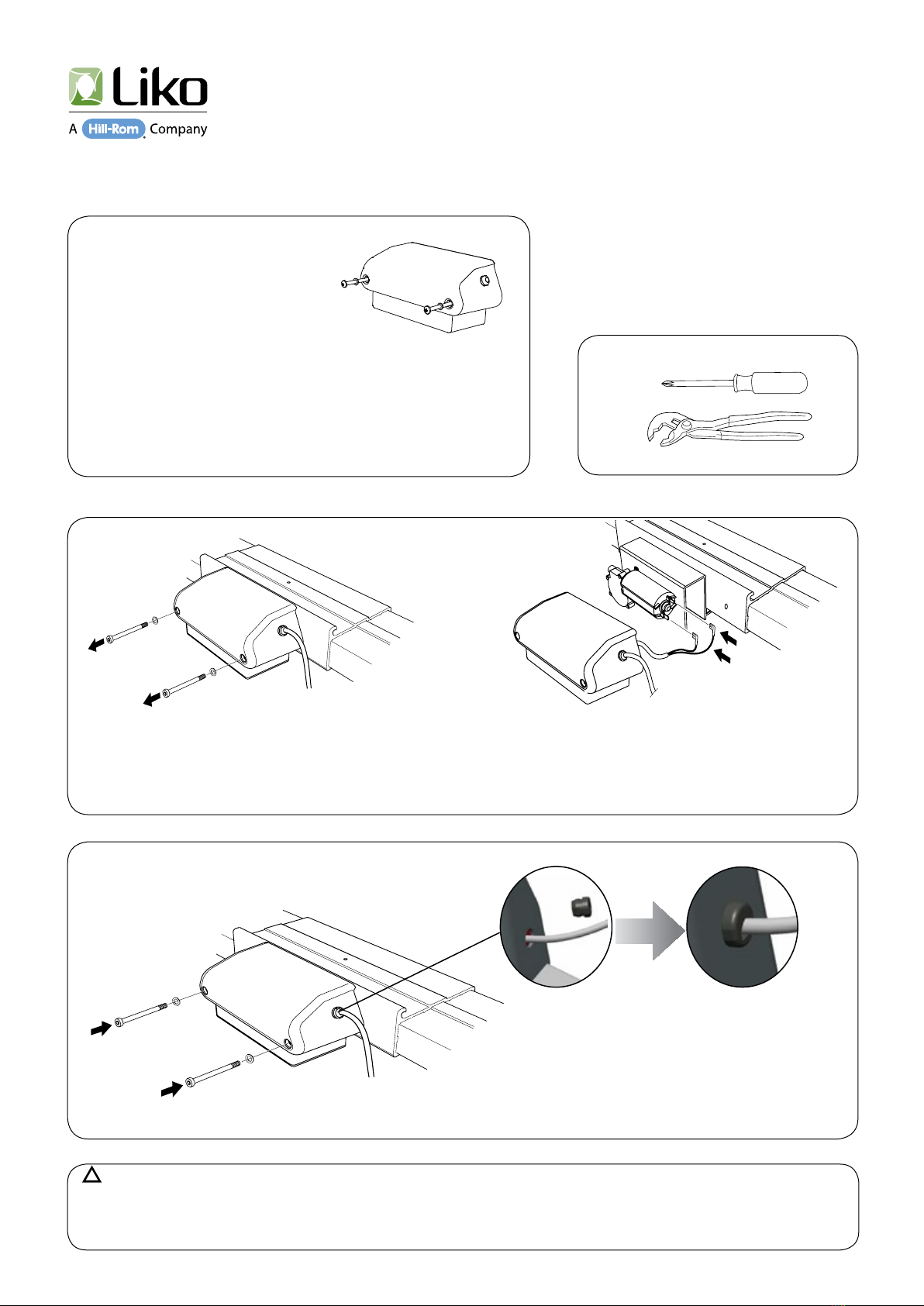

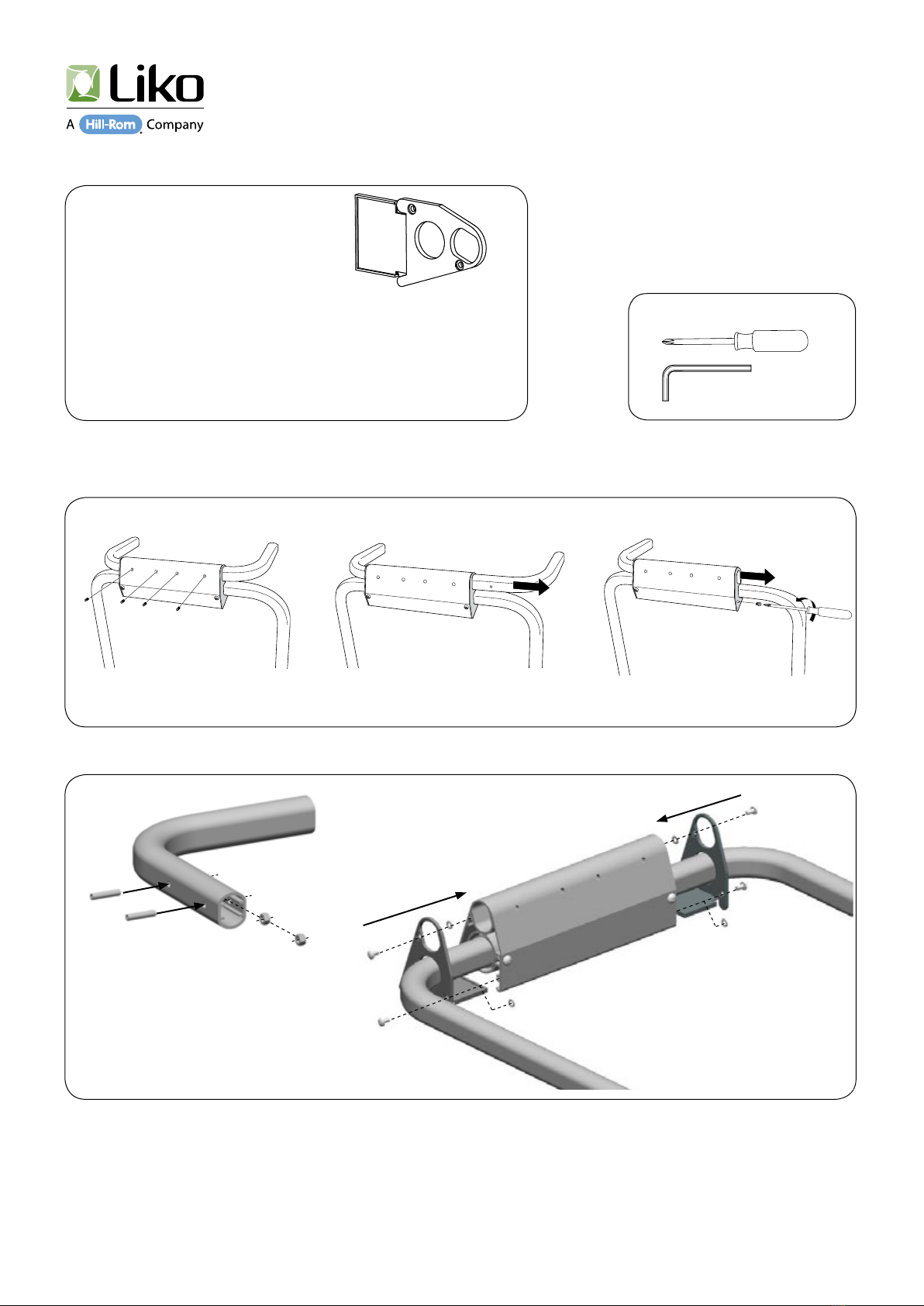

Base Motor Cover, grey
Motorkåpa underrede, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090065
3SE630270-02
2010-05-10
Tools required
www.liko.com
© Copyright Liko AB
Contains: Qty:
Motor cover chassi G7-77 1
Cable grommet/holder 1
Screw MRX M5x90 2
Washer BRB 5.3x10x1 2
Fits:
Golvo 7000 ES fr. S/N 7024206
Golvo 7007 ES fr. S/N 7729722
Golvo 7007 Lowbase
Golvo 7000 ES Classic / 7007 ES Classic
Golvo 8000/8008 (all models)
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
5.280
Remove cable from the old cover. Mount the cable
and the new cover together with the plastic bushing.
5.280

66 www.liko.com
Golvo™

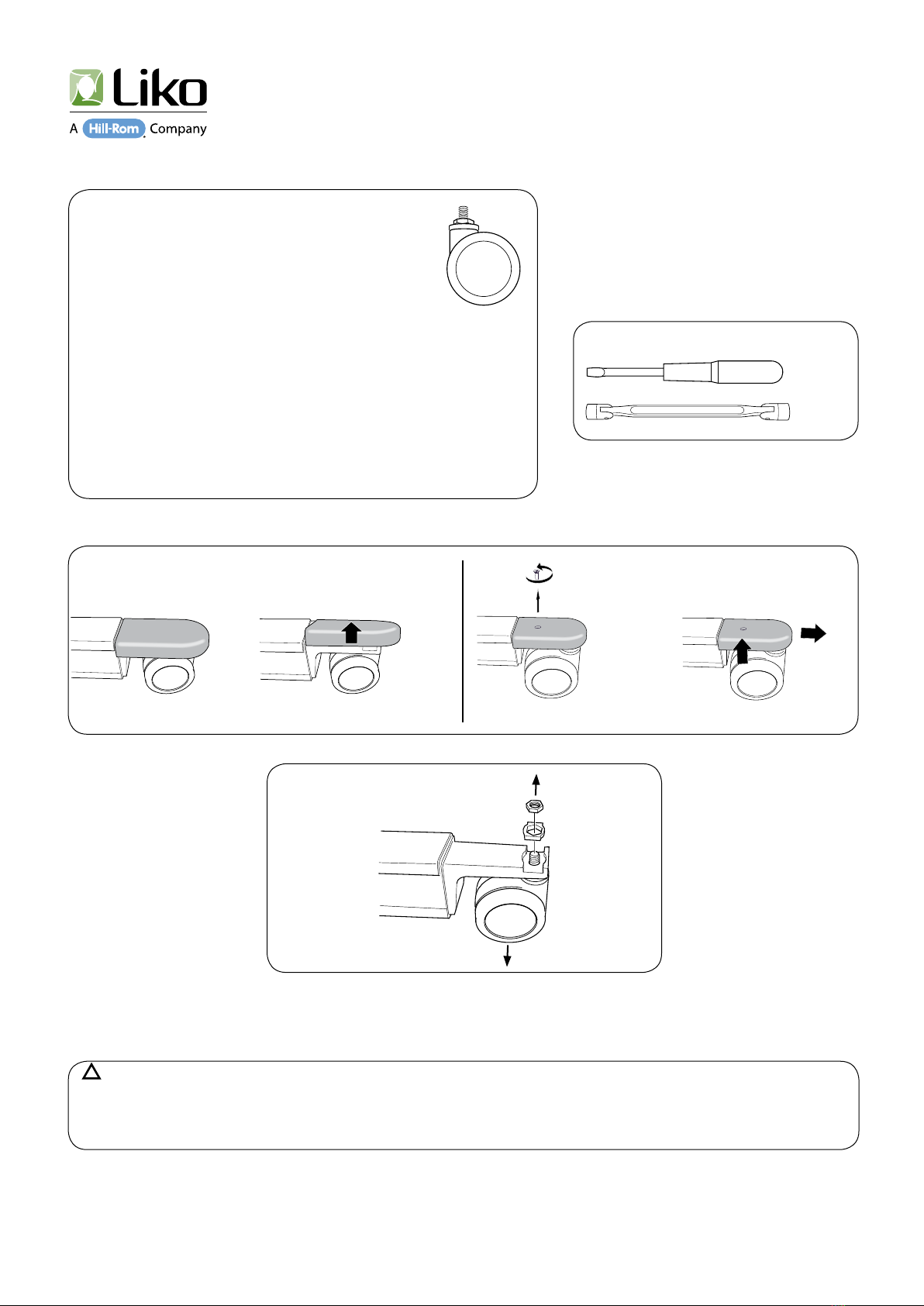

Front Wheel 75 mm
Framhjul 75 mm
Assembly Instruction
Monteringsanvisning
Prod. No. 20390001, 20490014
182904 Rev.1
2013-08-14
© Copyright Liko AB www.liko.com
16 mm
Contains: Qty:
Front wheel 75mm 1
20390001 Fits: LikoLight (up to S/N 2503101)
20490014 Fits: Golvo 7000 (from S/N 7024206)
Golvo 7007 (from S/N 7729722)
Golvo 7000ES Classic / 7007 ES Classic
Golvo 7007 LowBase
Golvo 8000/8008
LikoLight (from S/N 2503102)
RollOn
Viking M 2040005 (from S/N 7102064)
Viking M 2040015
Viking S
Viking XS
Tools required:
A) B)
A&B)
Mount the new spare part. Assemble in reverse order.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
5.284

67 www.liko.com
Golvo™

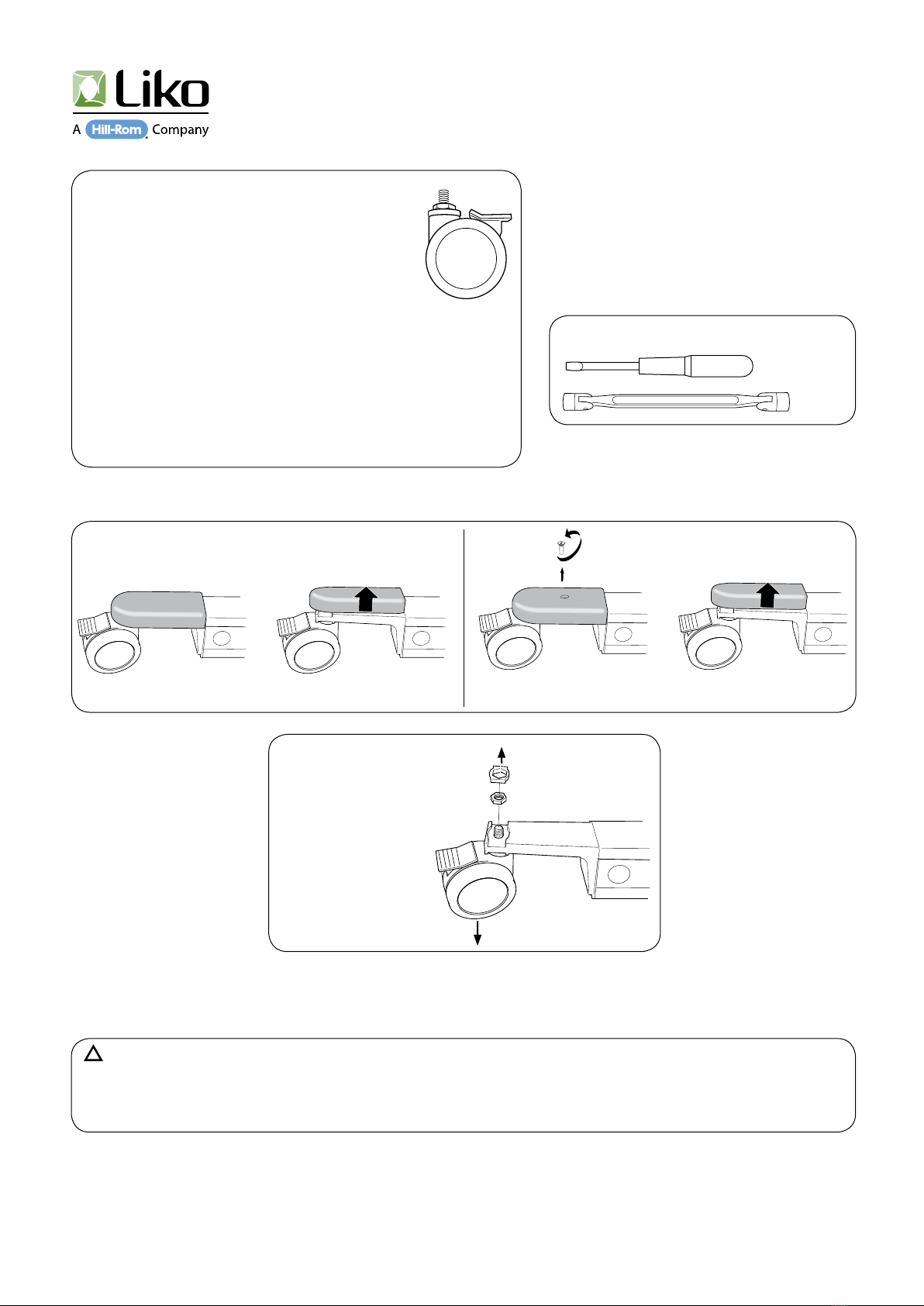

Rear Wheel 75 mm
Bakhjul 75 mm
Assembly Instruction
Monteringsanvisning
Prod. No. 20390002
20490015
182903 Rev.1
2013-08-14
© Copyright Liko AB www.liko.com
Tools required:
16 mm
A) B)
A&B)
Mount the new spare part. Assemble in reverse order.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
Contains: Qty:
Rear wheel 75mm 1
20390002 Fits: LikoLight (up to S/N 2503101)
20490015 Fits: Golvo 7000 (from S/N 7024206)
Golvo 7007 (from S/N 7729722)
Golvo 7000ES Classic / 7007 ES Classic
Golvo 7007 LowBase
Golvo 8000/8008 (all models)
LikoLight (from S/N 2503102)
RollOn
Viking M 2040005 (from S/N 7102064)
Viking M 2040015
Viking S
Viking XS
5.285

68 www.liko.com
Golvo™

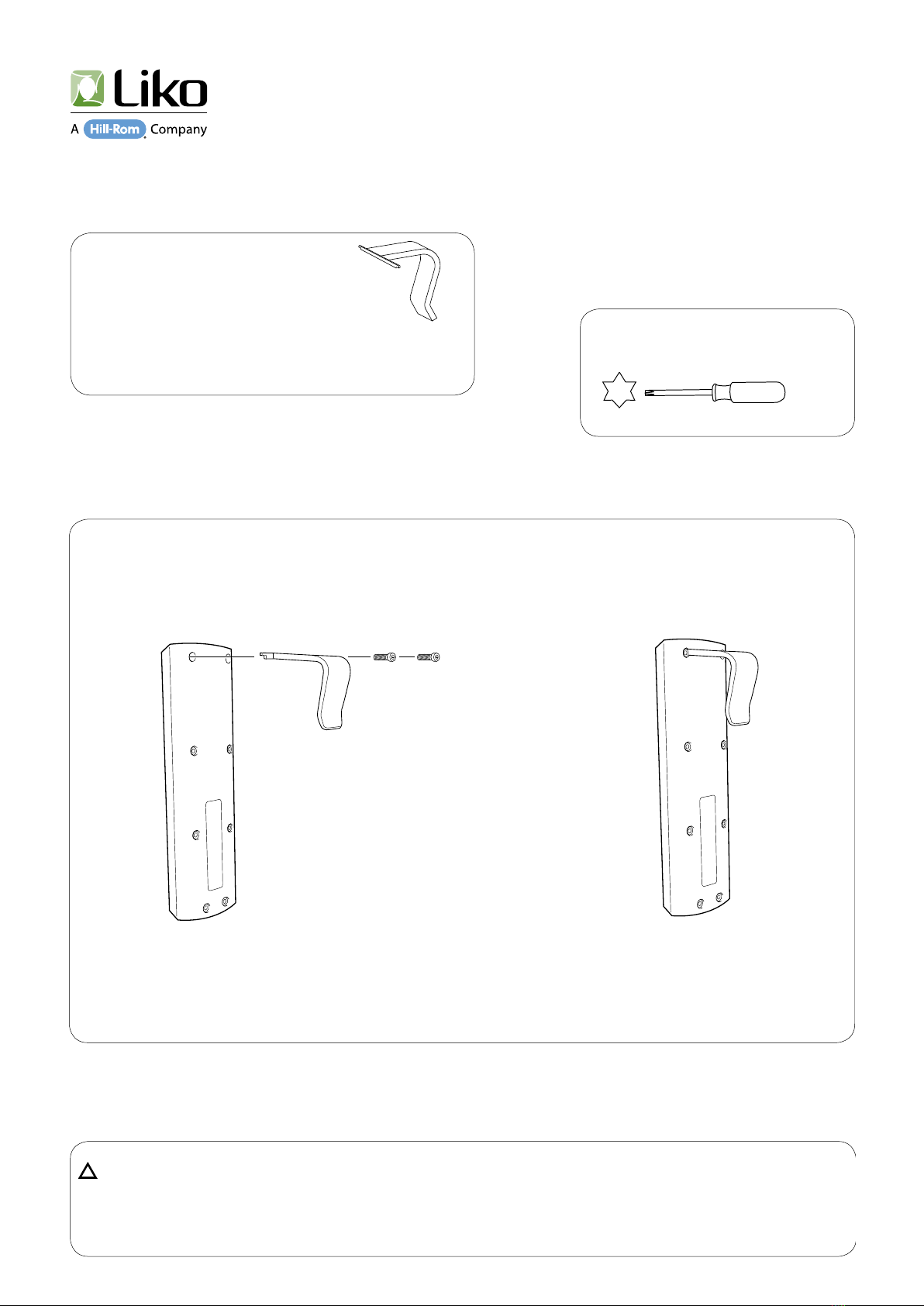

Hook for HandControl 2, 4, 6 button
Krok för handkontroll 2, 4, 6 knappar
Assembly Instruction
Monteringsanvisning
Prod. No. 20090058
3SE630210-06
2012-10-16
© Copyright Liko AB www.liko.com
Tools required:
5.292
T10
Contains: Qty:
Hook for Hand control 2,4,6 1
Fits:
20090089 HandControl 6-button
20190016 HandControl EE 4-button
20190017 HandControl EM 2 button
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
5.292

69 www.liko.com
Golvo™
© Copyright Liko AB www.liko.com
Tools required:
5.293

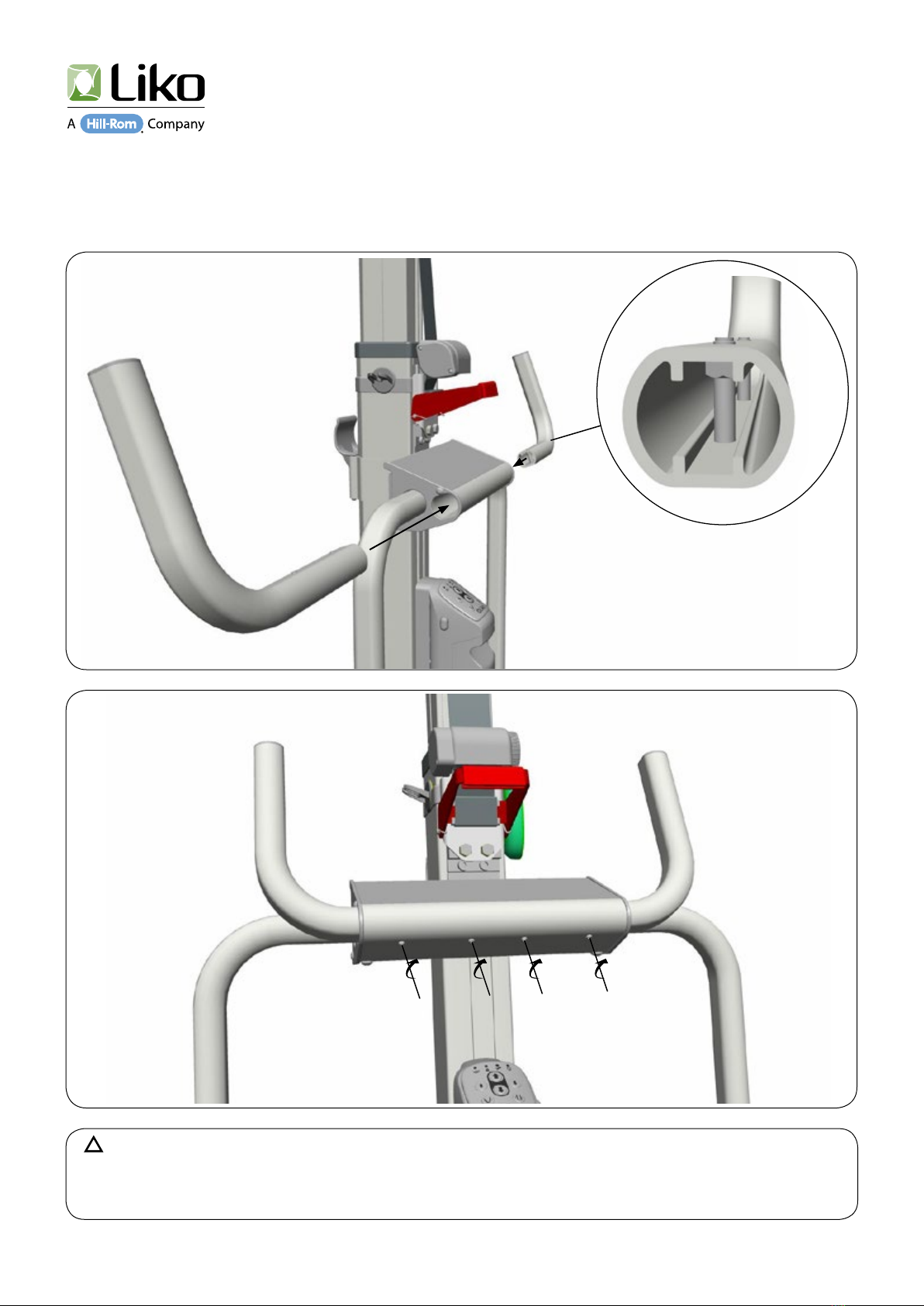

End Cover Handle/Arm Support, grey
Ändplugg handtag/armstöd, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090066
3SE630271-01
2010-04-29
Contains: Qty:
End Cover, grey 4
Fits:
Golvo 7000ES from S/N 7024206
Golvo 7007ES from S/N 7729722
Golvo 7000ES / 7007ES (Classic)
Golvo 7007 LowBase
Golvo 8000/8008 (all models)
LikoLight
Viking XL
Viking L
Viking M
Viking S
Viking XS
RollOn
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.

70 www.liko.com
Golvo™
© Copyright Liko AB www.liko.com

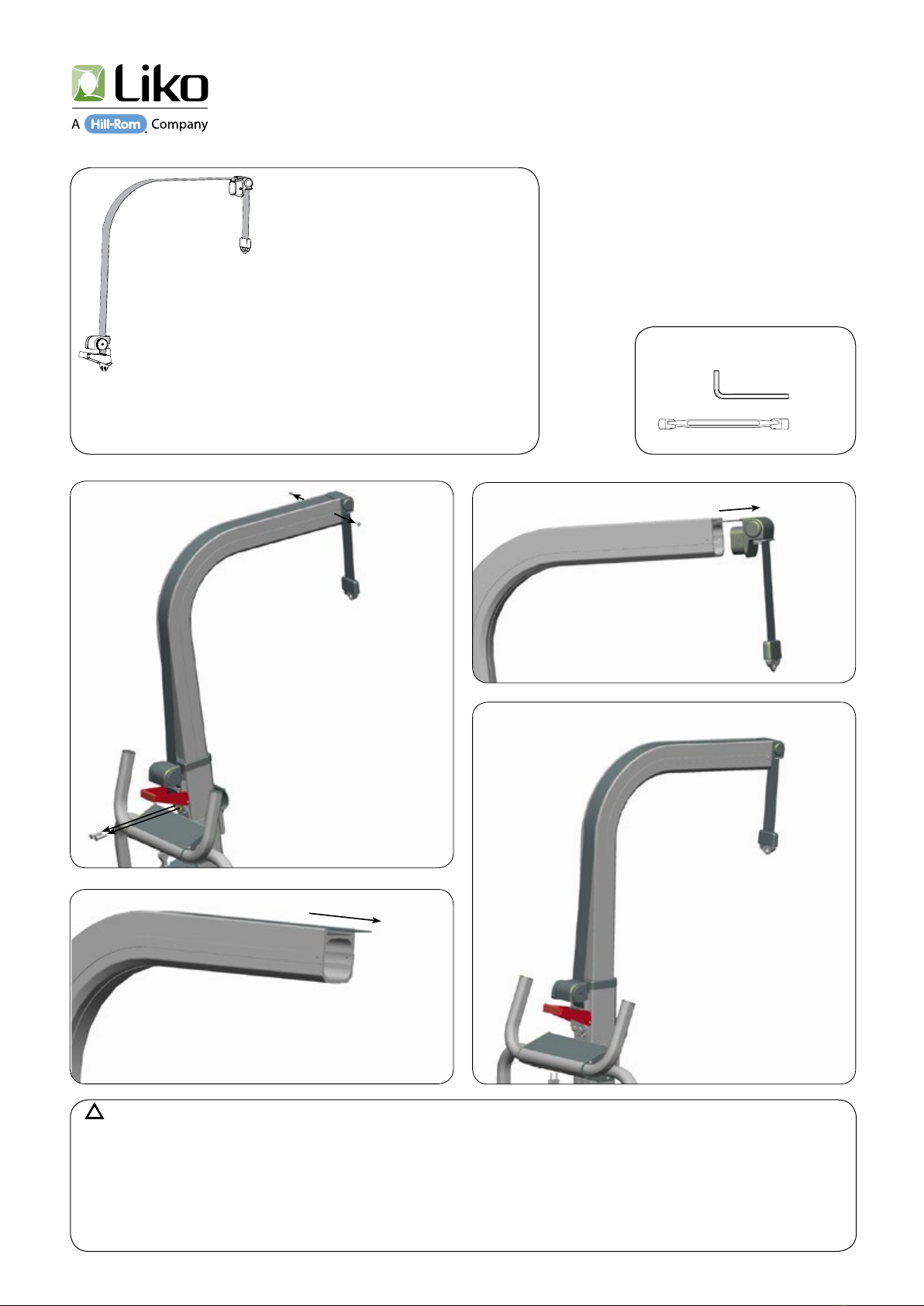

End Cover Armrest, grey
Gavel för armhållare, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090067
3SE630272-01
2010-05-18
Tools required:
3 mm
5.294
Contains: Qty:
Endcover armrest Grey 2
Screw MRX M5x10 Ezloc 4
Washer BRB 5,3x10x1 4
Fits:
Golvo 7000ES from S/N 7024206
Golvo 7007ES from S/N 7729722
Golvo 7007 LowBase
Golvo 8000/8008 (all models except Classic)
Viking L, XL Armrest
Viking M Armrest
1. 2. 3.
4. 5.

71 www.liko.com
Golvo™
© Copyright Liko AB www.liko.com
End Cover Armrest, grey
Gavel för armhållare, grå
Assembly Instruction
Monteringsanvisning
Prod. No. 20090067
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
5.294
6.
7.

72 www.liko.com
Golvo™

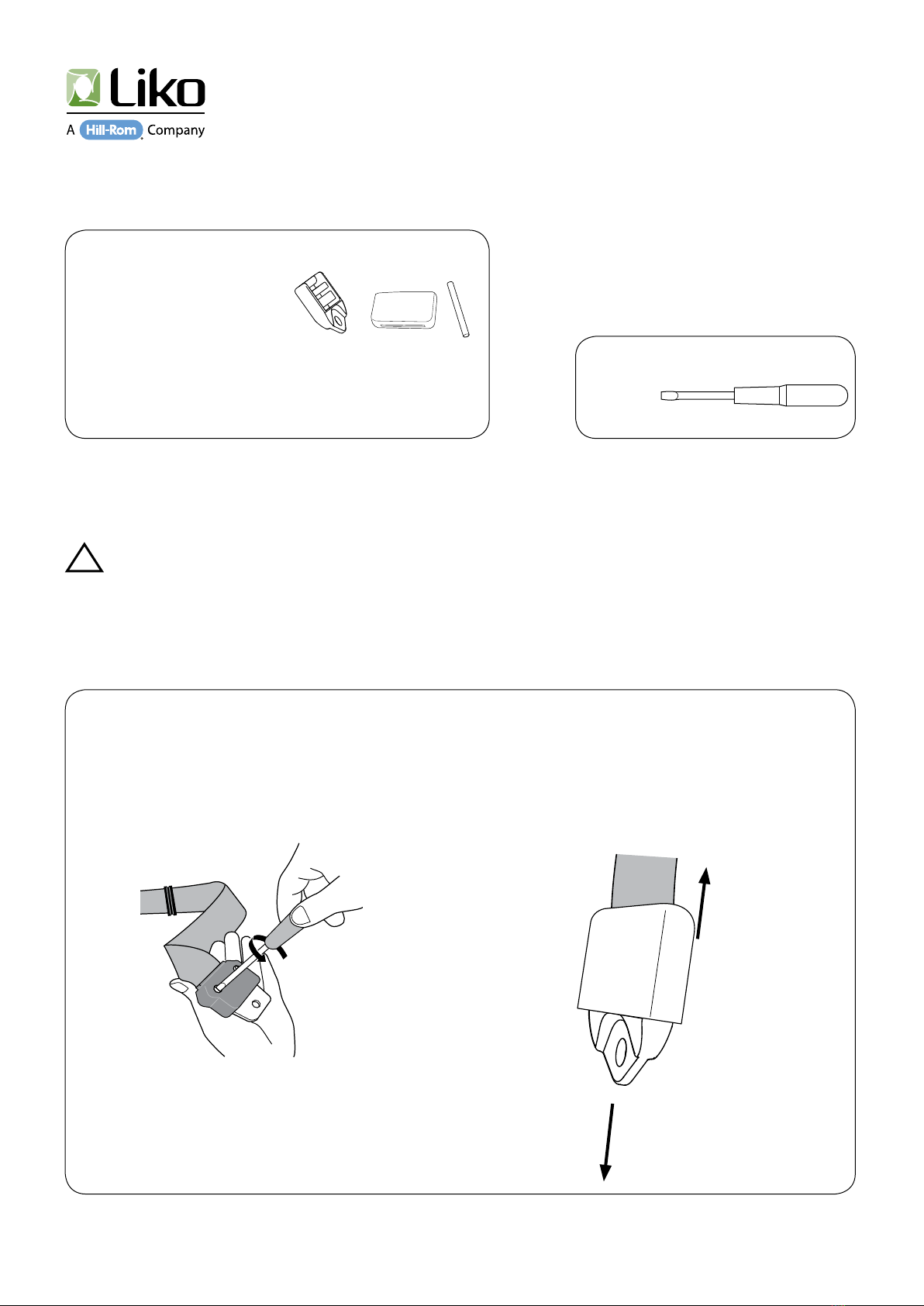

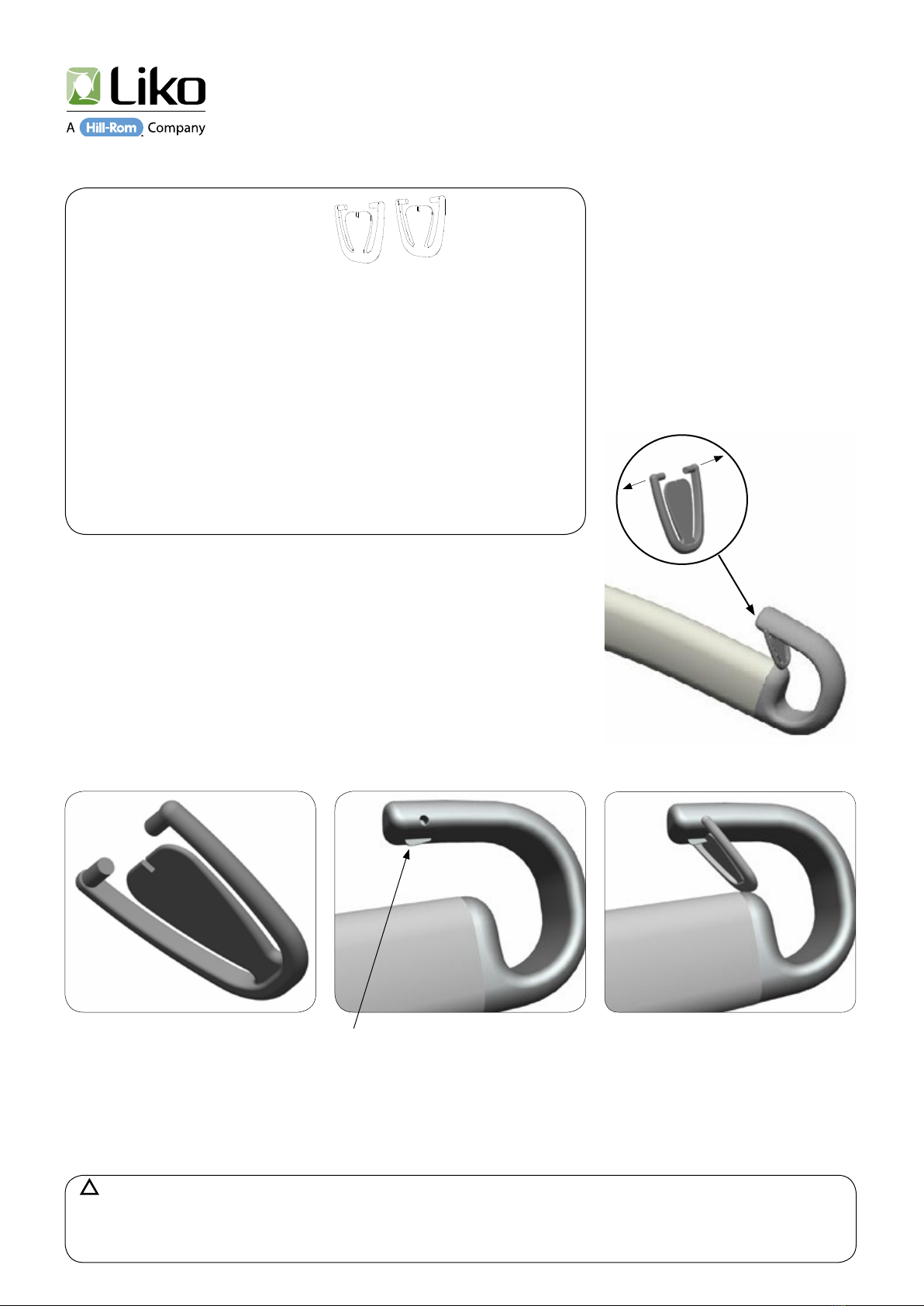

Latch, composite
Urkrokningsskydd komposit
Assembly Instruction
Monteringsanvisning
Prod. No. 31590014
3SE640242-05
2011-02-22
© Copyright Liko AB www.liko.com
5.311
The Latch can only be used on
composite hooks equipped with a
locator.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
Contains: Qty:
Latch composite 2
Fits: From S/N:
3156074 Universal SlingBar 350 1299511
3156075 Universal SlingBar 450 1299511
3156076 Universal SlingBar 600 1299511
3156077 Universal TwinBar 670 1299511
3156079 Universal SideBars 450 1299511
3156084 Universal SlingBar 350 with Quick-release Hook 1299511
3156085 Universal SlingBar 450 with Quick-release Hook 1299511
3156086 Universal SlingBar 600 with Quick-release Hook 1299511
3156087 Universal TwinBar 670 with Quick-release Hook 1299511
3156094 Universal SlingBar 350 R2R 1299511
3156095 Universal SlingBar 450 R2R 1299511
20590006 SlingBar Liko 450 1700101

73 www.liko.com

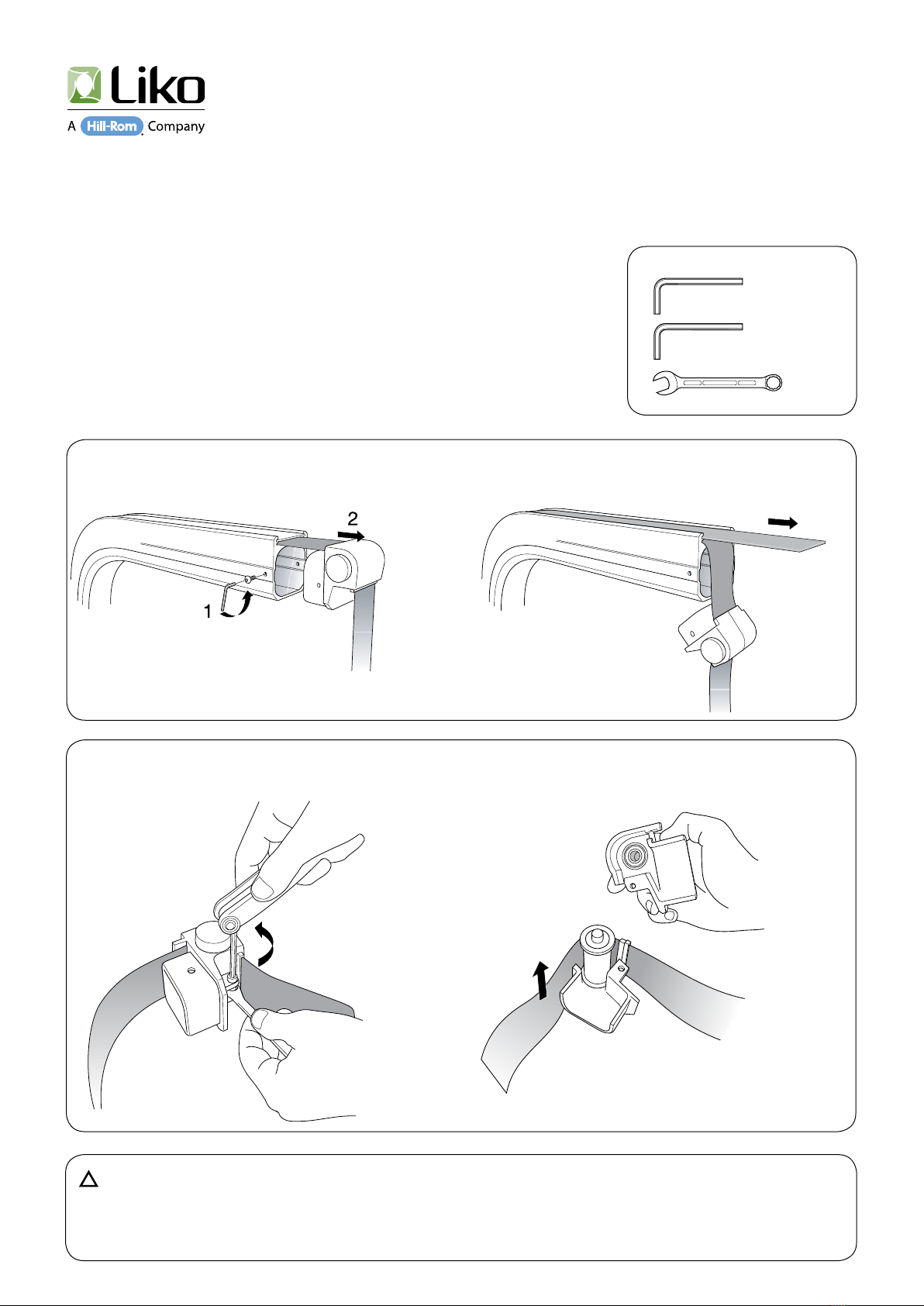

Golvo™Easy Strapper G7/G8, G77/G88
Monteringssats komplett lyftband G7/G8, G77/G88
Assembly Instruction
Monteringsanvisning
Prod. No. 20090069, 20090070
3SE640248-03
2011-03-30
© Copyright Liko AB www.liko.com
1. 2.
3.
4. Mount the spare part,
assemble in reverse order.
NOTE
- After changing lift strap the Limit Switch must be tested by lifting maximum load all the way up to the highest position
through the entire lifting range.
- With the emergency stop out, move the liftstrap all the way up against the Limit switch. Check that the motor does not
operate when touching the Limit switch.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
20090069 Contains: Qty: Fits:
Easy strapper G7/G8 1 Golvo 7000
Golvo 7000 ES Classic
Golvo 8000 (all models)
20090070 Contains: Qty: Fits:
Easy strapper G77/G88 1 Golvo 7007 from S/N 7723630
Golvo 7007 ES Classic
Golvo 7007 LowBase
Golvo 8008 (all models)
Now with grey strap and
grey plastic details.
Tools required:
3mm
13mm
5.323-324

74 www.liko.com
Golvo™

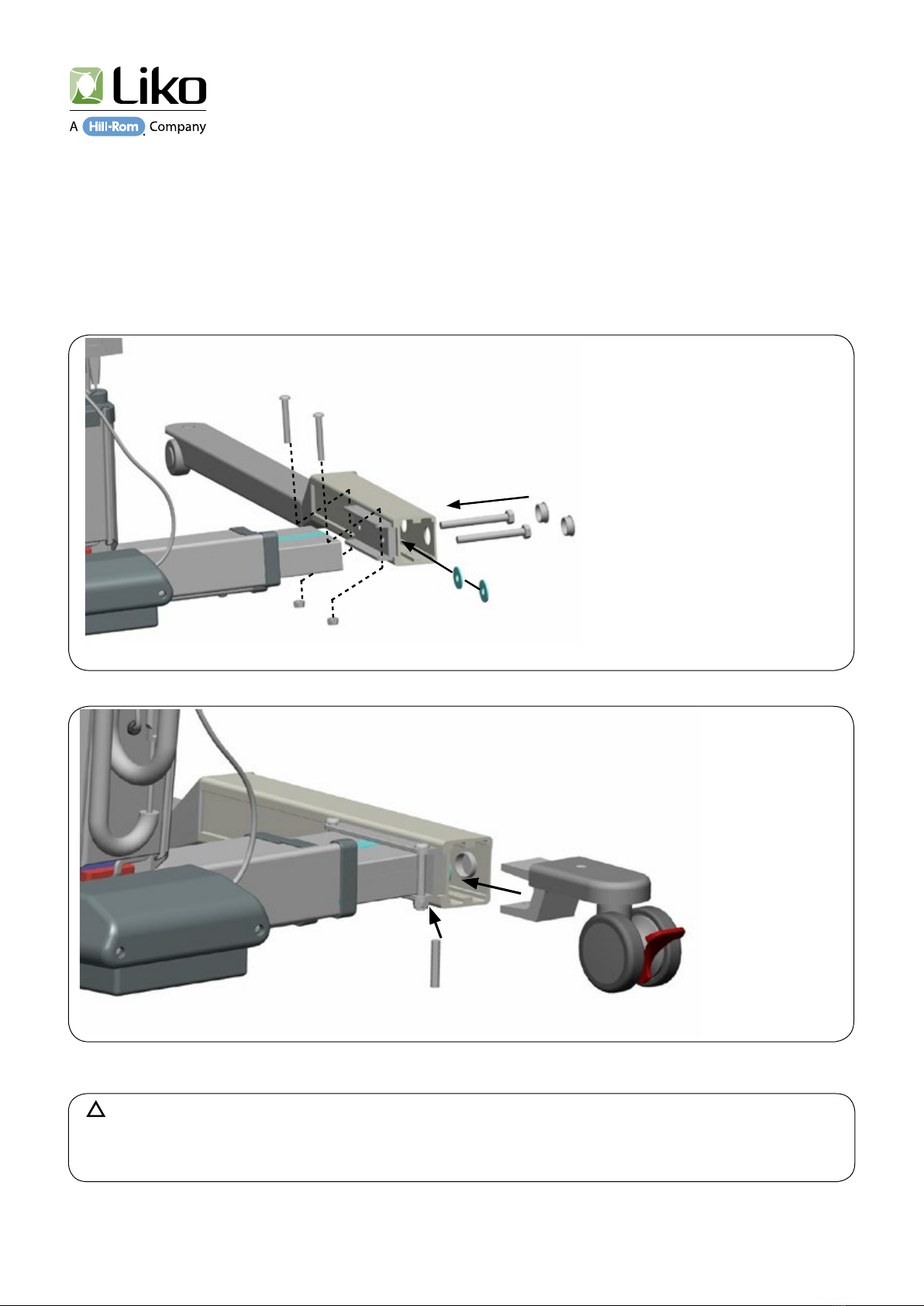

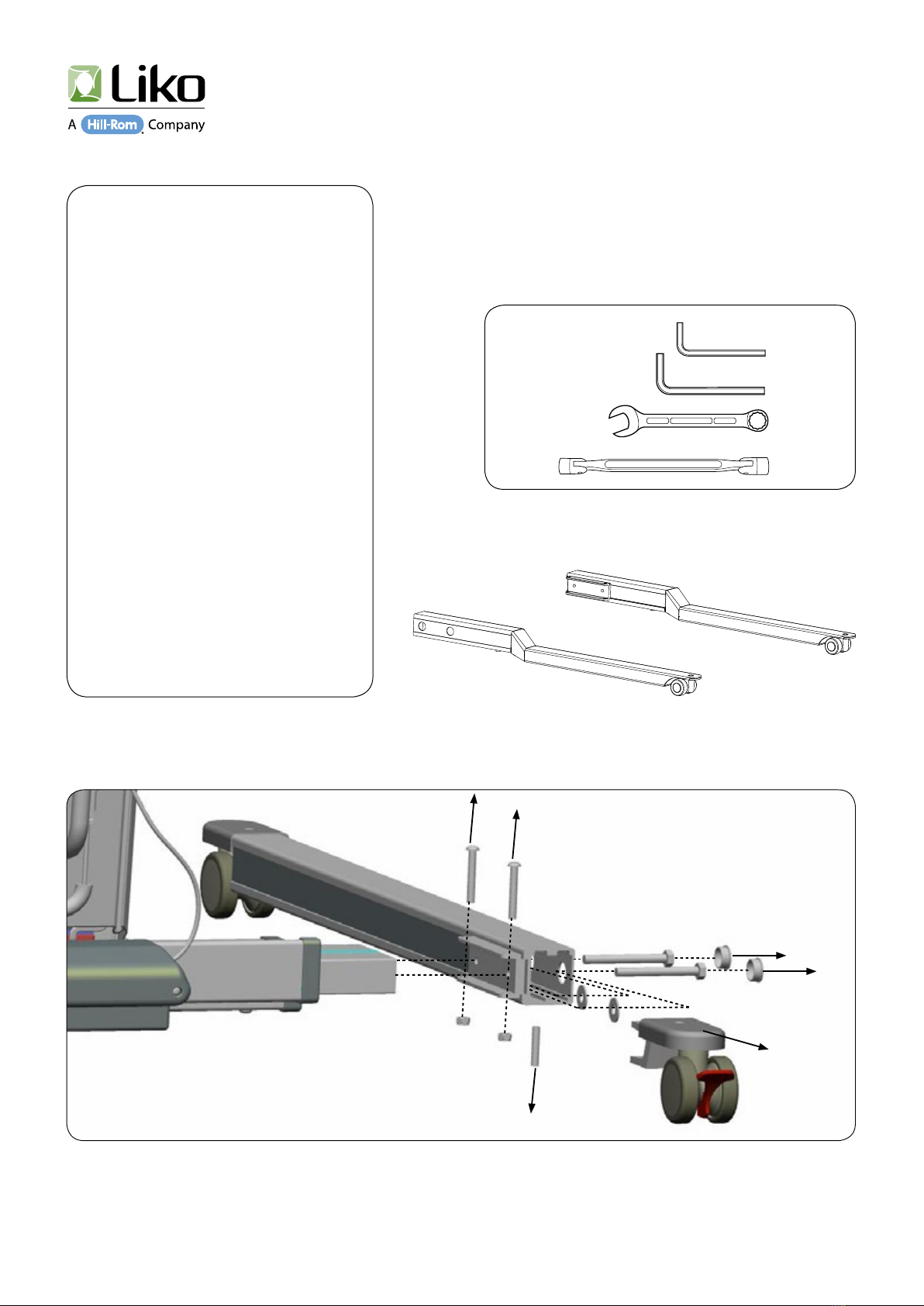

Golvo 7007/8008 LowBase kit
Golvo 7007/8008 LowBase bensats
Assembly Instruction
Monteringsanvisning
Prod. No. 20090071
3SE640262-02
2010-05-10
© Copyright Liko AB www.liko.com
Tools required:
1. Remove rear wheel and leg. (left and right)
4 mm
5 mm
13 mm
17 mm
Contains: Qty:
Coverage list Lowrider 2
Leg alu right 1
Leg alu left 1
Leg adapter 2
Wheel housing Golvo LowR 2
Wheel axle 12x64 Golvo Lo 2
Leg LowRider 2
Wheel D50 Golvo LowRider 4
Leg clip 2
Bearing 10/12x10 2
Bearing Nylonit 10/12/12 2
Ball bearing 6000-2Z/C3 4
Locking nut M8 Nyloc fzb 8
Screw MC6S M8x30mm Ezloc 2
Stop screw S6SS M6x10 2
Tape 25x25 G7 4
Screw F6S M8x25 2
Retaining ring SGH26 4
Plastic cover IKPT 28 26 4
O-ring 9x1 2
Ball Class IV RB 6.35 LR 2
Fits:
Golvo 7007 (all models)
Golvo 8008 (all models)
5.330

75 www.liko.com
Golvo™
Golvo 7007/8008 LowBase kit
Golvo 7007/8008 LowBase bensats
Assembly Instruction
Monteringsanvisning
Prod. No. 20090071
© Copyright Liko AB www.liko.com
5.330
3. Assemble the rear wheels with stop screw.
2. Assemble the legs with screws, nuts, plastic covers and washers from the lift.
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.

76 www.liko.com
Golvo™
Q-link
Assembly Instruction
Monteringsanvisning
Prod. No. 31590005
3SE640236-02
2010-05-10
Tools required
Contains: Qty:
Lift strap joint 1
Strap joint plastic cover 1
Lift strap safety pin 4 mm 1
Fits:
Extension belts
Golvo 7000/7007
Golvo 8000/8008
Likorall
Multirall 200
www.liko.com
© Copyright Liko AB
5.397
Important!
For safety reasons, it is essential that this component is correctly tted to the lift
according to these instructions.
1 X
1a. alt: 1b.
Disassemble:

77 www.liko.com
Golvo™Q-link
Assembly Instruction
Monteringsanvisning
Prod. No. 31590005
NOTE
- After changing Q-link, the assembly must be tested by lifting maximum load all the way up to the highest position.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
www.liko.com
© Copyright Liko AB
5.397
5.
6. 7.
3.
4.
2.
Assemble:

78 www.liko.com
Golvo™
Lift strap joint
Bandlås med hål
Assembly Instruction
Monteringsanvisning
Prod. No. 31590025
3SE640237-02
2010-05-10
Tools required
Contains: Qty:
Lift strap joint 1
Strap joint plastic cover 1
Lift strap safety pin 4mm 1
Fits:
Golvo 7000/7007
Golvo 8000/8008
Likorall
www.liko.com
© Copyright Liko AB
5.398
Important!
For safety reasons, it is essential that this component is correctly tted to the lift
according to these instructions.
1 X
1a. alt: 1b.
Disassemble:

79 www.liko.com
Golvo™Lift strap joint
Bandlås med hål
Assembly Instruction
Monteringsanvisning
Prod. No. 31590025
NOTE
- After changing Lift strap joint, the assembly must be tested by lifting maximum load all the way up to the highest position.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
www.liko.com
© Copyright Liko AB
5.398
5.
6. 7.
3.
4.
2.
Assemble:

80 www.liko.com
Golvo™
Friction plates 2.8-3.4 mm
Glidplattor 2.8-3.4 mm
Assembly Instruction
Monteringsanvisning
Prod. No. 20090072
3SE650254-02
2010-05-10
Fits:
Golvo 7000/7007 (all models)
Golvo 8000/8008 (all models)
www.liko.com
© Copyright Liko AB
5.404
Contains: Qty:
Friction plate 2.8 mm 20
Friction plate 3.0 mm 20
Friction plate 3.2 mm 20
Friction plate 3.4 mm 20
Tools required
Loctite 406 (Glue)
1
When changing Spare part 20090014
Actuator, replacement of Friction plate
(pos1) may be needed. Use the same
dimension as original or as instructions
below.
(Use glue)
Alternative Friction plates.
Friction plate 3,0 mm
Friction plate 3,4 mm
1
When changing Spare part 20090014 Actuator,
replacement of Friction plate (pos1) may be needed.
Use the same dimension as original or as instruc-
tions below. (Use glue)
Alternative Friction plates.
Friction plate 2.8 mm
Friction plate 3.0 mm
Friction plate 3.4 mm
