Promeba STRETCHER Series User manual

USER GUIDE
MANUAL STRETCHER SERIES PC-900
First edition: 2021/05

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
3
INDEX
01 INTRODUCTION
01.1 Using this manual
01.2 Legend of symbols
01.3 Servicing request
01.4 Demolition
01.5 Labelling
01.6 Contraindications and adverse eects
01.7 Physical requirements of the operators
01.8 Intended purpose
01.9 General warnings
01.10 Specic warnings
02 PRODUCT DESCPRIPTION
02.1 Main components
02.2 Technical data sheet
02.3 Features
03 OPERATION
03.1 Transport and storage
03.2 Preparation
03.3 Functioning
03.4 Troubleshooting
04 GENERAL MAINTENANCE
05 SPARE PARTS AND ACCESSORIES
05.1 Spare parts
05.2 Accessories
06 TRAINING REGISTER
07 MAINTENANCE REGISTER
08 LEGAL NOTICES
09 PRODUCT WARRANTY
04
04
04
04
05
05
05
05
05
06
08
10
10
11
12
13
13
13
14
18
19
20
20
21
22
23
24
25

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
4
01.1 Using of manual
The manual provides using and maintenance instructions of the product as well as technical aspects, func-
tioning, spare parts and safety.
It is recommended before the operation of the product to read carefully this manual in order to avoid da-
mages caused by a misuse.
Do not lose this document. It should be accessible to any doubt that could appear by medical personnel.
Remember that a good use and maintenance are necessary for the proper operation of the product.
01 INTRODUCTION
01.3 Servicing request
For information of the correct interpretation of the instruction manual, the use, maintenance, installation
and restoration of the product, please contact Promeba customer service: T. 93 837 12 00, email prome-
[email protected] or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN.
01.2 Legend of Symbols
SYMBOL EXPLANATION / DESCRIPTION
MANUFACTURER symbol. This symbol is accompanied by the name and address of the manufac-
turer, adjacent to the symbol (PRODUCTOS METÁLICOS DEL BAGÉS S.L., Ctra. C-16 Km 59.5, 08650
Sallent (Barcelona)).
Indicates the manufacturer’s reference number to identify the medical device.
PROMEBA, S.L. uses this symbol to set each internal reference for each conguration and business
variant.
Indicates the manufacturer’s serial number to identify a specic medical device.
Indicates the manufacturing date. The symbol must be accompanied by a manufacturing date
(yyyy-mm), adjacent to the symbol.
It is placed to inform that the product is a“Medical Device”.
CE symbol without the intervention of a Notied Organism, as a Medical Device classied as Class I
according to the EU Regulation 2017/745 on Medical Devices.
Symbol for the Unique Device Identier.
Symbol“See instructions for use or operating instructions”.
Symbol “caution”. This symbol is placed to warn of the need for the user to refer to important pre-
cautionary information in the operating instructions, such as warnings and cautions not otherwise
found on the label.
Symbol“Caution”. For a general warning.
Warning, crushing of hands
Indicates the temperature limits. The upper and lower temperature limits should be indicated adja-
cent to the horizontal lines.
+40ºC
-20ºC

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
5
01.4 Demolition
When the devices are no longer suitable for use, if they have not been contaminated by any particular
agent, they can be disposed of as normal solid waste, otherwise, follow the current demolition regulations.
01 INTRODUCTION
01.8 Intended purpose
The MANUAL STRETCHER product family is designed to eortlessly load and transport any type of patient
with litter or neonatal incubator in hospital and pre-hospital environments, including transportation by
medical vehicle (ambulance).
01.6 Contraindications and adverse eects
The use of this device, if used as described in this manual, does not present any contraindications or colla-
teral eects.
01.5 Labelling
Each product incorporates an identication label, positioned on the device itself and/or on the box. It must
never be removed or covered. This label includes the serial number and model of the product. Keep these
numbers so you can tell the dealer if necessary.
01.7 Physical requirements of the operators
Promeba stretcher is destined to professional use only.
The operators must be trained in ecient, eective and safe patient transport and must have the following
minimum requirements:
- Physical capacity for operating the device
- Be able to seize the device rmly with both hands
- Have strong back, arms and legs for lifting, pushing and pulling the stretcher
- Have a good muscular coordination
This stretcher requires the employment of at least two operators equipped with strength, balance, coordi-
nation and common sense. Patient loading procedures for extremely heavy patients, operations in rough
terrain and in particular situations more operators may be needed.
The capacities of the various operators must be considered before determining his role in
the employment of the stretcher.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
6
01 INTRODUCTION
01.9 General warnings
1. The product must be used by trained personnel only, having attended specic training for this device and
not for similar products.
2. At least every 6 months, is important to verify if updated User Manuals are available or there is any change
involving your product. This information is freely available on the website http://promeba.com/
3. Training routines must be registered on a special register in which the names of those trained, of the
trainers, date and place are indicated. This register, which will certify the eligibility of the operators to use
the Promeba, S.L. device, has to be kept for a period of 10 years after the disposal of the device itself. This
register will be made available to the competent authorities and/or manufacturer if requested.
4. Promeba, S.L. is always at your disposal to plan trainings on products.
5. Before carrying out any kind of operation on the appliance (training, installation, use), the operator must
carefully read the enclosed instructions, paying particular attention to the correct safety precautions and to
the procedures to be followed for installation and for correct use.
6. If the instructions belong to another device and not the device received, inform the manufacturer imme-
diately and avoid use of the device.
7. In the case of any doubts as to the correct interpretation of the instructions, please contact Promeba, S.L.
for any necessary clarications.
8. Do not allow untrained persons to help during the use of the device, because they could cause damage
to the patient or to themselves.
9. Regularly check the appliance and carry out the prescribed maintenance.
10. Before each use of device the perfect operating state of the device must be checked as specied in the
instruction manual. If any damage or abnormalities which could in any way inuence the correct functio-
ning and the safety of the device, of the patient and/or of the user are detected, the device must be imme-
diately removed from service and the manufacturer must be contacted.
11. If any failure or incorrect functioning of the device is detected, it must be immediately substituted with
a similar item so that the rescue procedures are guaranteed without any interruption.
12. Use of the device in anyway other than described in this manual is forbidden.
13. Do not alter or modify in any way the appliance; any such interference could cause malfunctions and
injury to the patient and/or rescuer.
14. The appliance must not in any way be tampered with (modication, adjustment, addition, replace-
ment). In such cases all responsibility will be denied for any malfunctions or injuries caused by the appliance
itself; moreover CE certication and product warranty will be considered void.
15. Those who modify or have modied, prepare or have prepared medical appliances in such a way that
they no longer serve the purpose for which they were intended, or no longer supply the intended service,
must satisfy the valid conditions for the introduction onto the market.
16. Handle with care.
17. Ensure that all the necessary precautions are taken in order to avoid the hazards that can arise as the
result of contact with blood or body uids.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
7
01 INTRODUCTION
18. Register and store with these instructions: lot number, place and date of purchase, rst date of use, date
of checks, name of users, any comments.
19. When the device is being used, the assistance of qualied sta must be guaranteed.
20. Do not store the device underneath any heavy objects which could cause structural damage.
21. Store in a cool, dry, dark place and do not expose to direct sun.
22. Store and transport device in its original packaging.
23. The device must not be exposed or come into contact with any source of combustion or inammable
agents.
24. Position and adjust the device taking care not to cause any obstruction to rescuers and or any other
rescue equipment.
25. Attention: laboratory testing, post production tests and instruction manuals cannot always consider
every possible scenario for use. This means that in some cases the performance of the product could be
notable dierent from results to date obtained. Instructions are continually being updated and are under
tight surveillance of fully qualied stas with adequate technical formation.
26. Both public and private operators are obliged to inform the manufacturer of any measures that should
be adopted to guarantee the safety and the health of the patients and the users of any medical device.
27. As a distributor or end users of products manufactured and/or marketed by Promeba, S.L., you are
strictly required to have a basic knowledge of any legal requirements existing in the goods nal destination
country applying to the devices contained in this supply (including laws and norms regarding technical
specications and/or safety requirements) and therefore you are also strictly required to have the necessary
knowledge to guarantee all aspects regarding the total conformity of the products to the regulations in the
relevant territory.
28. Promptly notify PROMEBA regarding any revisions to be made by manufacturer in order to guarantee
the conformity of the product to the territory’s legal specications (including those resulting from rules
and/or norms of other nature).
29. Act with all due care and diligence, and contribute to ensure conformity to general safety requirements
of all devices marketed in the territory, by providing nal users with all necessary information for carrying
out periodical checks on their devices, as specied in the relevant user manual.
30. Actively contribute to product safety checks on products sold, by communicating any relevant risk
analysis information both to the manufacturer and to any competent authorities so that the necessary ac-
tions can be promptly taken.
31. Be aware that in the event of any failure to conform to the above mentioned requirements you will be
deemed fully responsible for all damages that might occur. Therefore we expressly disclaim any responsibi-
lity and/or liability for your non-compliance with the present“Regulatory provisions”.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
8
01 INTRODUCTION
1. Establish a maintenance program and periodic testing, identifying a reference employee. The person to
whom the ordinary maintenance of the device is entrusted must ensure the basic requirements foreseen by
the manufacturer in the user’s manual.
2. Use only accessories/spare parts that are original or approved by Promeba, S.L. when carrying out any
operation, to avoid causing any alteration or modication to the device, otherwise we assume no responsi-
bility for the proper functioning or damage resulting from device to the patient or the operator and warran-
ty will be considered void.
3. Always respect the maximum capacity of the device, as indicated in this user’s manual. Maximum load
capacity means the total weight distributed according to the human anatomy. In determining the load of
the total weight on the product, the operator must consider the weight of the patient, the equipment and
the accessories. Moreover, the operator must consider that the overall dimensions of the patient do not
reduce the functionality of the device.
4. Ride with extreme care and avoiding potholes as much as possible when the stretcher is loaded with a
weight greater than 180kg.
5. Never leave the patient unassisted on the device, because he may be injured.
6. Do not use bleach to disinfect the product. Use a hydroalcoholic based disinfectant and wash with water.
7. The device and all its components, after washing, should be allowed to dry completely before storing.
8. Lubrication must be carried out after cleaning and complete drying.
9. Avoid contact with sharp objects.
10. Do not use the device if it is pierced, torn or frayed.
11. Make sure, before lifting, that the operators have a rm grip on the device.
12. Avoid pulling the device on rough surfaces.
13. The device is a stretcher for patients transport and cannot be used as a stationing device.
14. First practice with an empty stretcher in order to get used to the way in which the stretcher maneuvers.
15. For the use of the device, one operator in suitable physical conditions is needed, with strength, balance,
coordination, and common sense and must be trained on the correct functioning of the device Promeba,
S.L. stretcher.
16. For particularly heavy patient loading and for rescue operations on steep terrain or in unusual circum-
stances, the presence of more operators is recommended (not just one as required under standard condi-
tions).
17.Before each use check the integrity of the belts and their hooks, as specied in the user’s manual. In case
of malfunction or damage that may compromise the function and safety of the device, patient or operator,
it is necessary to replace the belts.
18.Make sure the belts are properly fastened to the frame of the stretcher.
19.Always immobilize the patient, using the belts; lack of immobilization may cause serious damage.
01.10 Specic warnings

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
9
01 INTRODUCTION
20.Make sure the mattress is properly secured/anchored to the stretcher’s board.
21. Use adjustable stretcher covers on medical devices with board. Make sure it does not interfere with the
footrest and does not prevent the operator from manipulating the handrails.
22.Do not operate in case the weight has not been distributed correctly.
23. The handrails may be damaged due to improper use. Keep the handrails always raised during patient
transport.
24. Always grasp the structure or the telescopic handles to lift and carry the stretcher and not the handrails.
25.Avoid extreme force during the loading procedure of the stretcher on the ambulance. Too much force
may have negative eects on the functioning of the trolley.
26.Keep the stretcher rmly if the patient is sitting.
27.Use the stretcher only as described in this user’s manual.
28.Do not alter or modify the stretcher arbitrarily to make it t into the ambulance: the modication may
cause unforeseeable functioning and damages to the patient and operators. In any case the warranty will
be lost.
29.Pay a lot of attention to possible obstacles (water, ice, debris, etc.) on the route of the stretcher, because
they could cause loss of balance for the operator and compromise the proper functioning of the device. If
you cannot set the path free from obstacles, choose an alternative path.
30.Condensation, water, ice and accumulations of dust can aect the correct operation of the device, ma-
king it unpredictable and causing a sudden alteration of the weight that operators have to carry.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
10
02 PRODUCT DESCRIPTION

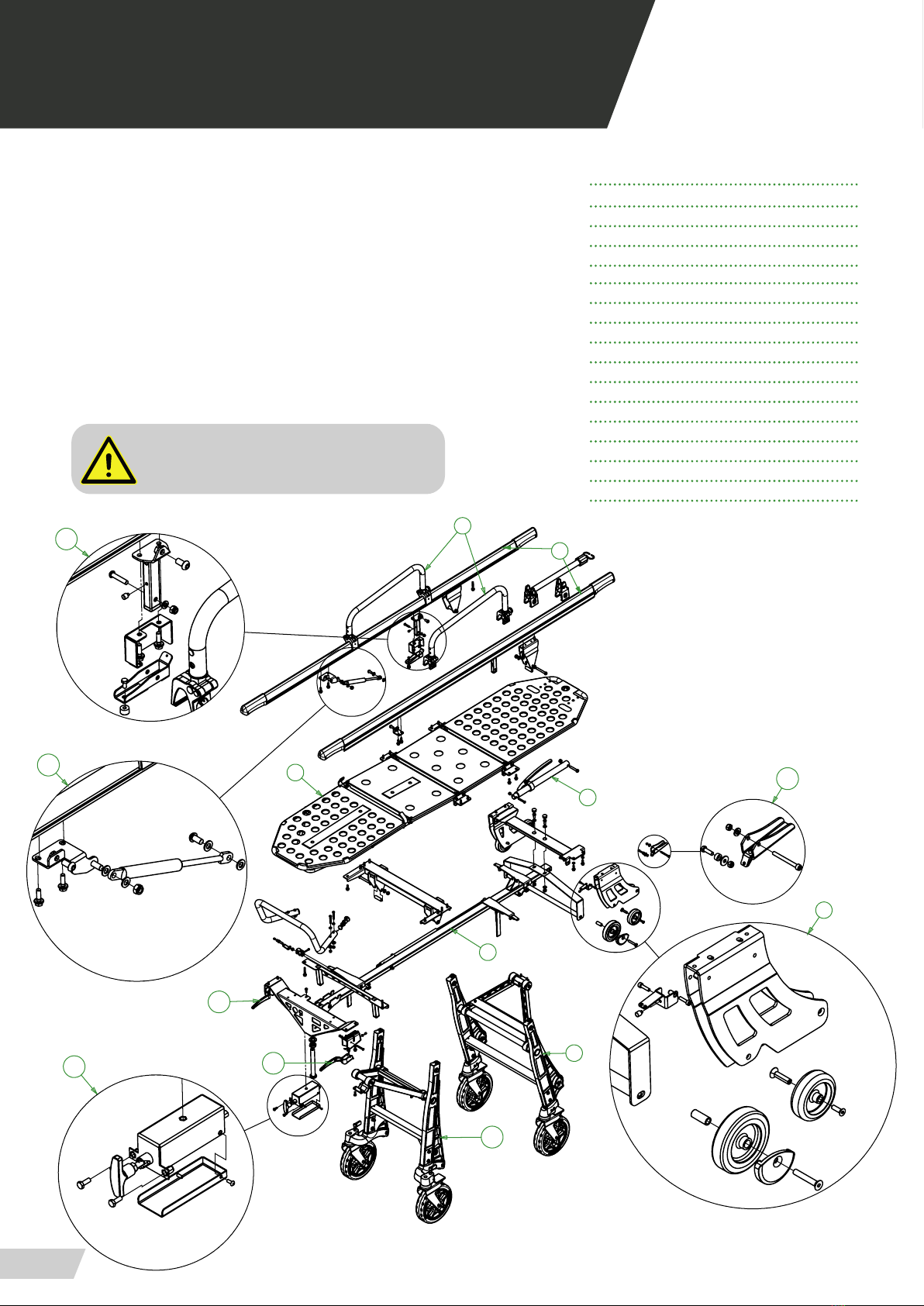

02.1 Main components
Nº DESCRIPTION OF COMPONENTS
1 Guide
2 Proles
3 Board with Trendelenburg function (Fowler optional)
4 Handrails
5 Backrest lever
6 Attack wheels
7 Front legs
Nº DESCRIPTION OF COMPONENTS
8 Rear legs
9 Return piston rear legs
10 Front legs lever
11 Rear legs lever
12 Intermediate position lever
13 Ergoload system (optional)
14 Quick Lock system (optional)
2
1
3
4
5
9
11
13
14
12
7
6
10
8
The drawing is indicative. Depending on the model obtained, it may present
design variations according to its performance.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
11

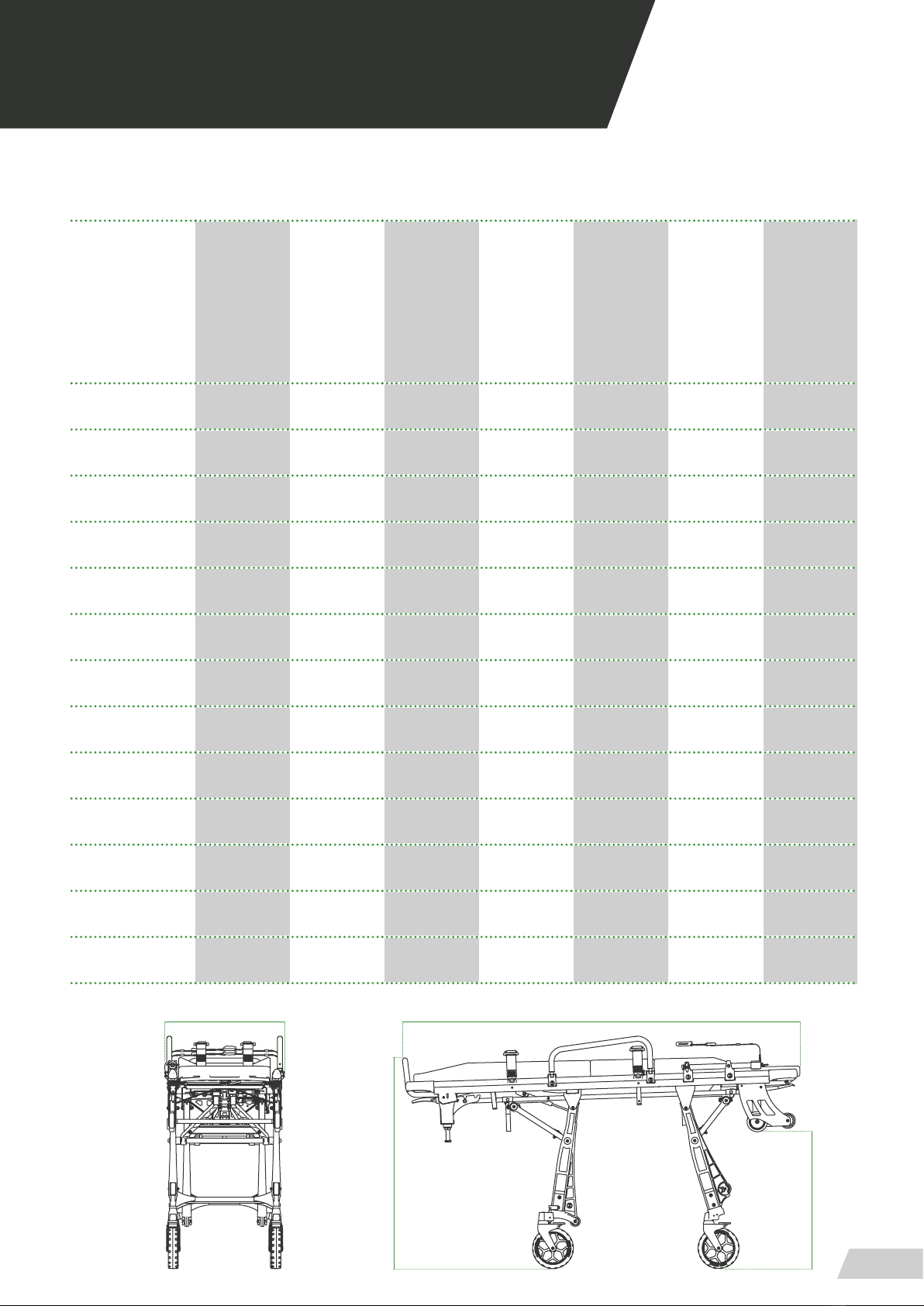

02.2 Technical data sheet
MODELS
Inverted stretcher
(PC-901, PC-902)
Standard stretcher
(PC-921, PC-922)
Stretcher Performance
(PC-911, PC912, PC913)
Stretcher with Fowler
(PC-951, PC-952)
Incubator stretcher
(PC-904)
Funeral stretcher
(PC-905)
Stretcher trolley
(PC-916, PC-917, PC-918)
Length (A) 1940 ±5 mm 1940 ±5 mm 1940 ±5 mm 1940 ±5 mm 1925 ±5 mm 1925 ±5 mm 1940 ±5 mm
Width (B) 585 ±5 mm 585 ±5 mm 585 ±5 mm 585 ±5 mm 570 ±5 mm 570 ±5 mm 585 ±5 mm
Height (C) 935/1035
±5 mm
935/1035
±5 mm
935/1035/
1080 ±5 mm
935/1035
±5 mm 935 ±5 mm 950 ±5 mm 1015/1115/ 1160 ±5 mm
Loading height (D) 580/680
±5 mm
580/680
±5 mm
580/680/740
±5 mm
580/680
±5 mm 580 ±5 mm 580 ±5 mm 580/680/740 ±5 mm
Weight 42/43 kg 42,5/43,5 kg 43/44/45 kg 43,5/44,5 kg 40 kg 45 kg 61/62/63 kg
Max. load 250kg 250kg 250kg 250kg 250kg 250kg 250kg
Wheels 4xØ200 mm 4xØ200 mm 4xØ200 mm 4xØ200 mm 4xØ200 mm 4xØ200 mm 4xØ200 mm
Backrest inclination 75º 75º 75º 75º NO NO 75º
Fowler NO NO NO SI NO NO NO
Trendelenburg 17º 17º 17º 17º NO NO 17º
Recommended
operators 2222222
Needed operators 1 1 1 1 1 1 1
Operation
temperature -20 /+40 ºC -20 /+40 ºC -20 /+40 ºC -20 /+40 ºC -20 /+40 ºC -20 /+40 ºC -20 /+40 ºC
02 PRODUCT DESCRIPTION
BA
C
D

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
12
MODELS
Inverted stretcher
(PC-901, PC-902)
Standard stretcher
(PC-921, PC-922)
Stretcher Performance
(PC-911, PC912, PC913)
Stretcher with Fowler
(PC-951, PC-952)
Incubator stretcher
(PC-904)
Funeral stretcher
(PC-905)
Stretcher trolley
(PC-916, PC-917, PC-918)
Aluminum construction for great strength and very light weight X X X X X X X
Folding handrails to facilitate patient transfer, with the possibility
of incorporating a kit for bariatric patients X X X X X
12 positions to facilitate patient loading X X X X X X X
Aluminum bed tray with built-in Fowler function X
Removable bed tray from the trolley to be able to load patients in
environments where the stretcher cannot reach X X
Anatomic heat-welded mattress, easy to clean and prevents the
entry of uids X X X X X
4 lockable swivel castors X X X
Non-locking front wheels and lockable rear wheels X X X
Locked front wheels and lockable rear wheels X
Belt anchoring system that allows easy change for cleaning X X X X X X
Reinforced footrest that allows to drive and load the stretcher with
the hands on it to improve the ergonomics XXXXXXX
Handles with reinforced material to open doors without breaking X X X X X X X
Rubber seal to avoid scratches and keep the stretcher looking new
for longer XXXXXXX
4 attack wheels to improve load and reduce wear X X X X X X X
Reclining backrest by manual operation X X X X X
Telescopic handles for better maneuverability X X X X X X X
Folding and adjustable IV pole X X X X X X
Stainless at tray to anchor incubator X
Incorporates Quick Lock system to lock the front wheels from the
back of the stretcher X X X
It incorporates the ErgoLoad system that allows maneuvering and
loading the stretcher with a much more ergonomic position X X X
02 PRODUCT DESCRIPTION
02.3 Features

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
13
03 OPERATION
03.1 Transport and storage
Before transporting the appliance, make sure that it is correctly pac-
kaged.
During transport always x the load. If piling up is necessary always
follow the scheme shown on gure 1.
Transport the leveled load and following all precepts and rules for
the transport of loads, ensuring also that there are no risks of shocks,
bumps or falls during the transport itself.
To unpack the device place the box on a at, stable surface and ca-
refully open the seal. Remove the device from the inside of the box
following the scheme shown on gure 2.
Keep the original packaging for use in case of any further transport
and for storage.
Damage to the appliance caused during transport and handling is
not covered by the guarantee. Repairs or replacement of the dama-
ged parts are the responsibility of the client.
The device must be stored in a dry, cool area away from direct sunli-
ght. It must not be placed in contact with any substances or chemical
agents which could cause damage and reduce safety characteristics.
03.2 Preparation
On receipt of the product:
- Remove the packaging and display the material so that all components are visible.
- Check that all the components/pieces on the accompanying list are present.
The appliance must be checked before every use so as to reveal any working abnormalities and/or damage
caused by transport and/or storage. In particular, check:
- General functionality of the device
- Cleanliness of the device (remember that the failure of cleaning may cause the risk of cross infections)
- Absence of cuts, holes, tears on the structure, including the straps
- Correct xation of all nuts, bolts and screws
- Correct xation of belts
- Correct fastening of belts
- State the moving parts, wheels and belts
- Integrity of components
- Lubrication of moving parts
- When taking out for the rst time the stretcher from its box, check that legs bend and lock properly
- Backrest and Trendelenburg (and Fowler if it has) work properly
- Handrails are raised and lowered properly
- State of use of wheels and breaking system
- Functioning of springs
- The stretcher can easily get in the ambulance
- The emergency vehicle is equipped with a fastening system suitable for the stretcher
- Welding are intact, no cracks or breaks
- No piping or metal sheet present bends or cracks
- The backrest has no structural damages or ssures
If the above conditions are met, the device may be considered ready for use; otherwise you must immedia-
tely remove the device from service and contact the manufacturer.

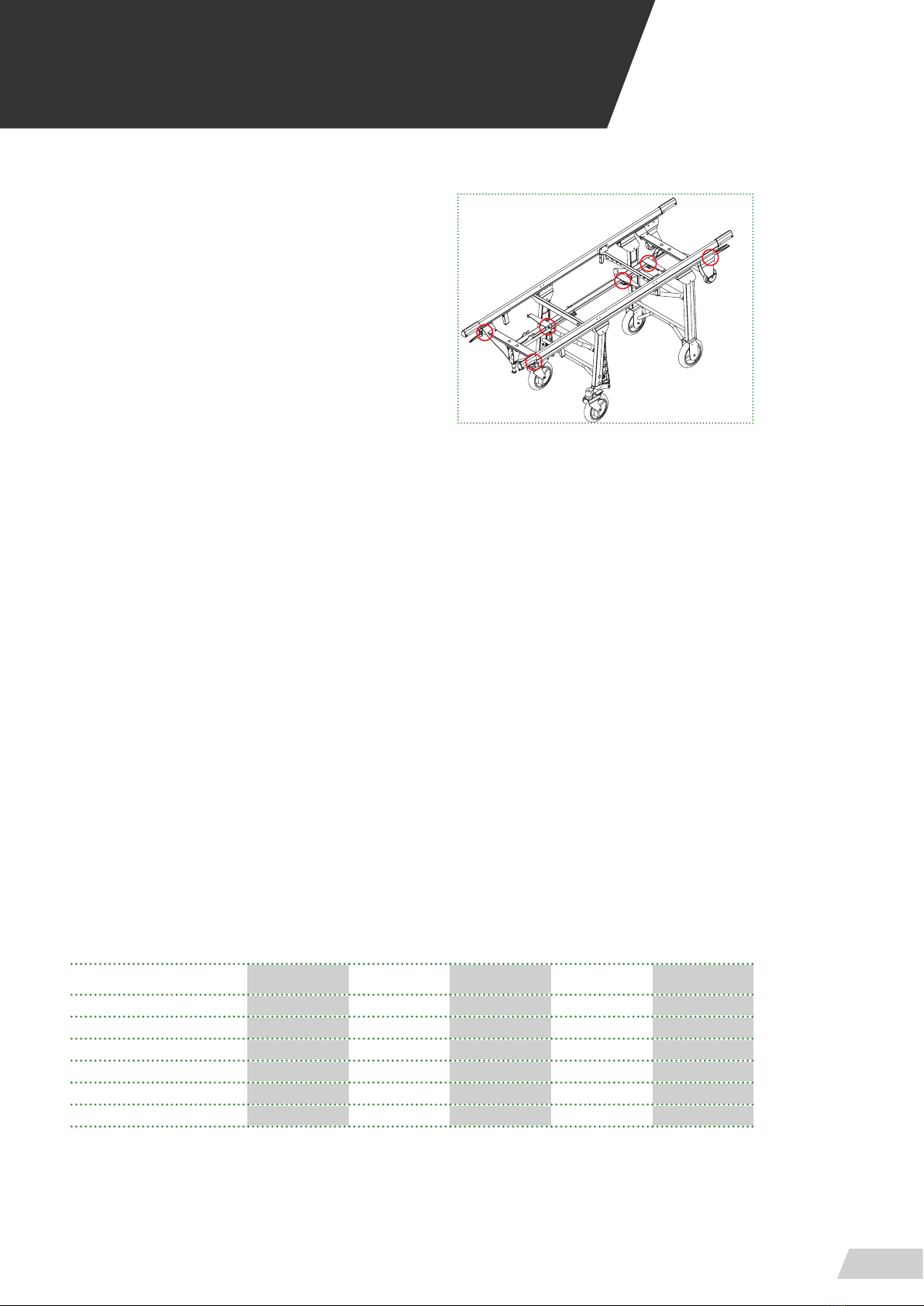

PACKING UNIT
RESPECT THE PACKING’S TRANSPORT
POSITION
PRODUCT’S UNPACKING
ALWAYS USE A FLAT BASE SUPPORT
FIGURE 1
FIGURE 2

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
14
The measurement of the loading platform must be taken with the ambulance positioned on a uniform and
perfectly horizontal surface and with two operators seated in the patient compartment (simulating a load
of approximately 250 kg).
If the vehicle is equipped with pneumatic or hydraulic suspensions, the loading height adjustment must
be carried out taking into account the worst conditions of use and/or the operating one provided by the
vehicle builder. Problems during use and/or safety risks associated with such system, cannot be attributed
to the manufacturer.
Try out the loading and unloading procedures with an empty stretcher before putting the stretcher into
regular service.
03 OPERATION
03.2.2 LOADING THE PATIENT ON THE STRETCHER
Before transferring, lifting or transporting the patient, primary medical evaluations have to be performed.
Once the diagnosis has been assured, it is preferred (if possible) to suggest the patient to collaborate acti-
vely during the transfer onto the stretcher, making sure the patient is fully aware of all risks.
Before loading the patient, move the stretcher as close as possible to him, if it is necessary for facilitating the
operations, position the stretcher in the intermediate height (paragraph 03.3.5).
03.3 Functioning
03.3.1 STRETCHER CIRCULATION
When the stretcher is circulating, the following indications must ALWAYS be observed:
- Ride on at ground, with extreme care and avoiding potholes
- Pay a lot of attention to possible obstacles (water, ice, debris, etc.) on the route of the stretcher. If you
cannot set the path free from obstacles, choose an alternative route.
- The stretcher must be fully unfolded when driving.
- You must always drive with all four wheels in contact with the ground.
- A properly trained operator must always be in the control position.
- Always respect the maximum capacity of the device considering the total weight distributed according
to the human anatomy and also taking into account the weight of the equipment and accessories. Do
not circulate if the weight has not been distributed correctly.
03.2.1 REQUIREMENTS OF THE EMERGENCY VEHICLE
The Promeba stretcher has been designed to enter and exit the patient compartment of an ambulance.
The vehicle must have a levelled loading platform, wide and long enough for the Promeba stretcher and
without obstacles.
Failure to comply with these requirements can
lead to a malfunction in the opening and clo-
sing of the legs.
5 cm

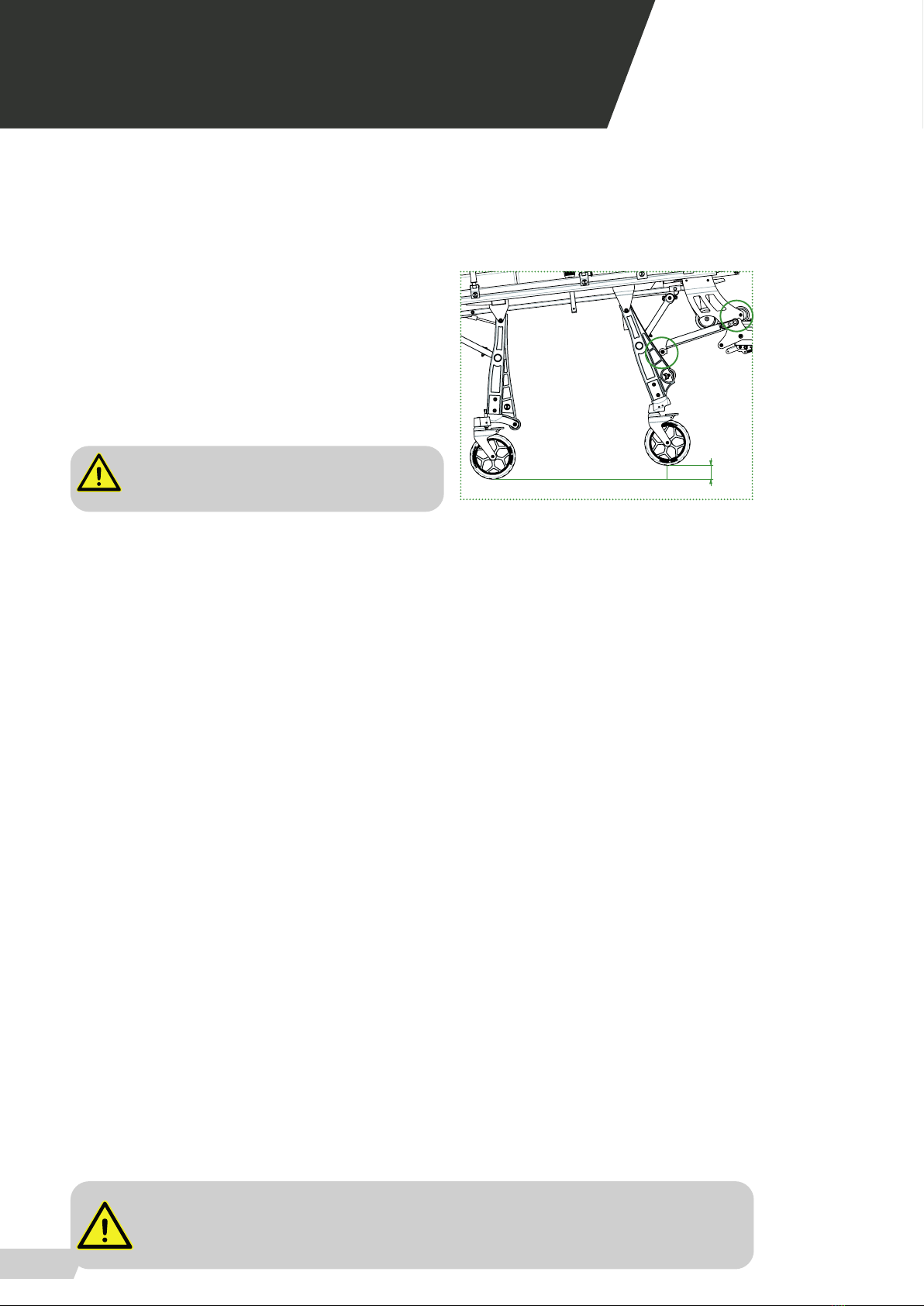

To congure the height of the platform you must take into
account these two requirements:
- Maximum loading height: you can check the height of
each stretcher model in the table of the section 02.2.
- Minimum loading height: when the attack wheels are
placed on the platform and the front legs touch the pla-
tform, the front wheels must be at least 5 cm from the
ground (see gure 3)
FIGURE 3
In the event of any failure to conform to the above mentioned requirements you will be dee-
med fully responsible for all damages that might occur. In such cases, Promeba, S.L. will deny
all responsibility for any malfunctions or injuries caused by the appliance itself; moreover
product warranty will be considered void.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
15
03 OPERATION
03.3.1 LOWERING THE STRETCHER
Make sure the handrails are positioned upwards and locked; otherwise the stretcher may be damaged.
Before lowering the stretcher, reach the place where to make the following operations.
Lower the stretcher without patient, as follows:
1. Grab telescopic handles of the stretcher at the rear end (feet)
2. Lift the rear part (feet) of the stretcher, until the attack wheels touch the ground
3. Holding rmly the stretcher, push both command handles (n° 13 and 14 paragraph 02.1) in order to
close the legs
4. Lower the stretcher, carrying its weight, until it touches the ground.
Before loading the patient, while the stretcher is on the ground, make sure the underground is stable and
horizontal; unstable and non-horizontal surfaces may aect the static balance of the stretcher.
Brake the front wheels (optional) when the stretcher is on the ground and do not forget to unblock them
before raising the stretcher.
03.3.2 LIFTING THE STRETCHER
Before lifting the stretcher x the patient on the stretcher with the belts and make sure the underground is
safe and stable.
The following procedure is recommended to lift the stretcher:
1. Two operators must be positioned to each edge of the stretcher. The capacities of the various ope-
rators must be considered before determining his role in the process (consider how many operators to
employ according to the weight to lift and according to the capacities of each operator).
2. Make sure to grab the stretcher rmly at both ends.
3. Using an adequate lifting technique, lift the stretcher until the legs, front and rear, are open and com-
pletely blocked.
03.3.3 LOADING THE STRETCHER ONTO THE AMBULANCE
Make sure the ambulance’s doors are blocked correctly in open position, in order to avoid any hindrances.
Make sure the handrails are blocked in upward position, otherwise the stretcher may be damaged.
During the charging operation:
1. Place the stretcher towards the rear door opening of the ambulance.
2. Push it onto the loading platform of the ambulance.
3. Make sure that both attack wheels (n ° 7 paragraph 02.1) are positioned on the loading platform (safe-
ty position) and operate the red lever (n ° 13 paragraph 02.1) to unlock the front legs.
4. Push the stretcher into the ambulance, keeping the red lever pushed so that the front legs fold up and
close; avoid strong blows of the front legs against the load platform; the legs and related mechanisms
could be damaged.
5. Insert the stretcher into the ambulance until the rear legs touch the platform, then lift the stretcher
slightly and operate the green handle (nº 14 paragraph 02.1) to unlock the rear legs and complete the
stretcher loading procedure.
* If you have a model with Ergoload system (see models with Ergoload in paragraph 02.3) do not ope-
rate the green lever in this step. Just keep loading the stretcher to the ambulance and the rear legs will
automatically unlock.
6. Make sure the stretcher is securely attached to the ambulance xture.
** It is recommended to use the original xing systems Promeba, S.L. to ensure optimal stability in all
directions. As long as other xing systems are used, the safety and correct functionality of the device is
not guaranteed.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
16
03 OPERATION
03.3.4 UNLOADING THE STRETCHER FROM THE AMBULANCE
During the download operation:
1. Unlock the stretcher from its xation system.
2. Hold the stretcher by the rear telescopic handles and gently pull it out of the ambulance.
3. Hold the stretcher until the rear legs open and lock automatically.
4. Before removing the attack wheels from the platform (safe position), make sure that the front and rear
legs have been opened and locked correctly and that the ground is stable and safe.
3.3.5 INTERMEDIATE POSITIONS
The Promeba stretcher oers up to 12 dierent heights, making easier the transfer of a patient from the
stretcher to a bed and back, optimizing the loading procedures with elder or handicapped people.
The following procedure is recommended to reach the intermediates positions:
1. Bring the stretcher to the place of operations and make sure the ground is stable and safe.
2. Two operators must be positioned to each edge of the stretcher
3. The operator positioned on the rear edge (feet) of the stretcher will lift it slightly and push the green
handle (n° 14 paragraph 02.1) unlocking the rear legs.
4. Always supporting the stretcher load, lower it until the required position and let the lever go.
5. The operator positioned on the front edge (head) of the stretcher will lift it slightly and push the red
handle (n° 15 paragraph 02.1) unlocking the front legs.
6. Always supporting the stretcher load, Flower it until the required position and let the lever go.
The following procedure is recommended to return the stretcher to the standard position:
1. Two operators should be positioned at each edge of the stretcher.
2. Make sure the ground is safe and stable.
2. Hold the stretcher rmly at both ends.
3. Using proper lifting technique, raise the stretcher. The front legs will open and lock automatically.
4. The operator at the front edge should push the front legs with their foot until they are fully open and
locked.
03.3.6 ADJUST PATIENT BOARD
Always inform the patient in case the patient board has to be adjusted.
Adjusting the backrest
Follow these indications:
1. Support the backrest with one hand (to avoid unexpected movements) and push the lever (n° 5 para-
graph 02.1) until the security mechanism is unblocked.
2. Always supporting the backrest with one hand, lower or lift the backrest until the required position
and let the lever go (six positions, plus horizontal position, available).
ATTENTION: When setting the loading height, the vehicle is considered to be on levelled
ground. If this condition is not met when unloading the stretcher, its operation could vary
slightly from what was expected.
In this case, pay special attention that the front and rear legs are fully open and locked
before removing the attack wheels from the platform.

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
17
FIGURE 4
03 OPERATION
Trendelenburg position
The Trendelenburg movement allows the lifting of the
board in order to higher the legs of the patient (see Figure
4).
To put the board in Trendelenburg position:
1. Lift the board with one hand taking away the weight.
2. Select the required position by placing the rod onto
one of the slots. There are three available positions,
plus horizontal position
To put the board horizontal again:
1. Lift slightly the board
2. Release the rod from the slot and lower the board
until the horizontal position is reached.
Fowler position
(see models with Fowler in paragraph 02.3)
The Trendelenburg/Fowler movement allows the lifting of
the patient board into dierent positions, in order to hi-
gher the legs of the patient (see gure 5).
To put the board in Fowler position:
1. Support and lift the board with one hand taking
away the weight.
2. Select the required position by placing the rod onto
one of the slots (three positions, plus horizontal posi-
tion, available).
3. Once on Trendelenburg position, pull the red straps
placed on both sides of the board, at patient’s knees
height, to get the Fowler position.
To put the board horizontal again:
1. Pull the straps down to return to Trendelenburg po-
sition.
2. Lift slightly the board
3. Release the rod from the slot and lower the board
until the horizontal position is reached.
03.3.7 HANDRAILS
In order to avoid accidental functioning, the handrails are
designed to be opened with two hands.
1. Use one hand to unlock the positioner (see gure 6)
2. With the other hand pull the handrail down until it
rotates up to 180º.
To put the handrails back in upward position:
1. Rotate them until they are up and properly locked.
FIGURE 5
FIGURE 6

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
18
03 OPERATION
03.3.8 WHEELS
Brakes
The brakes can be inserted by pushing down the lever po-
sitioned on the upper part on all the wheels, (see gure 7).
The brake system blocks the wheel, immobilizing the stret-
cher.
To unblock the brakes, pull the lever on the wheels.
Rear wheels
Rear wheels are always lockable.
To lock them rotate 90º the red lever, positioned on the
top of it (see gure 8), and it will shift down slightly locking
the wheel.
To unlock, rotate the lever it 90º on the opposite side.
03.4 Troubleshooting
PROBLEM CAUSE REMEDY
Pushing the stretcher against the loading
platform, the legs do not fold away
The lever has not been actioned correctly
or the metal cable under the stretcher does
not transmit the commands
Fully operate the lever. If the problem is not
solved contact the technical service
During patient transport it is dicult to
move the stretcher
There may be an obstruction in the wheels:
the brakes are still blocked or there is some
external element blocking them.
Unlock the brakes or check that there is
nothing blocking the wheels.
Check the condition of the wheels.
Structural damage Improper use or operators not adequately
trained
Put the stretcher out of service immediately
and contact the technical service

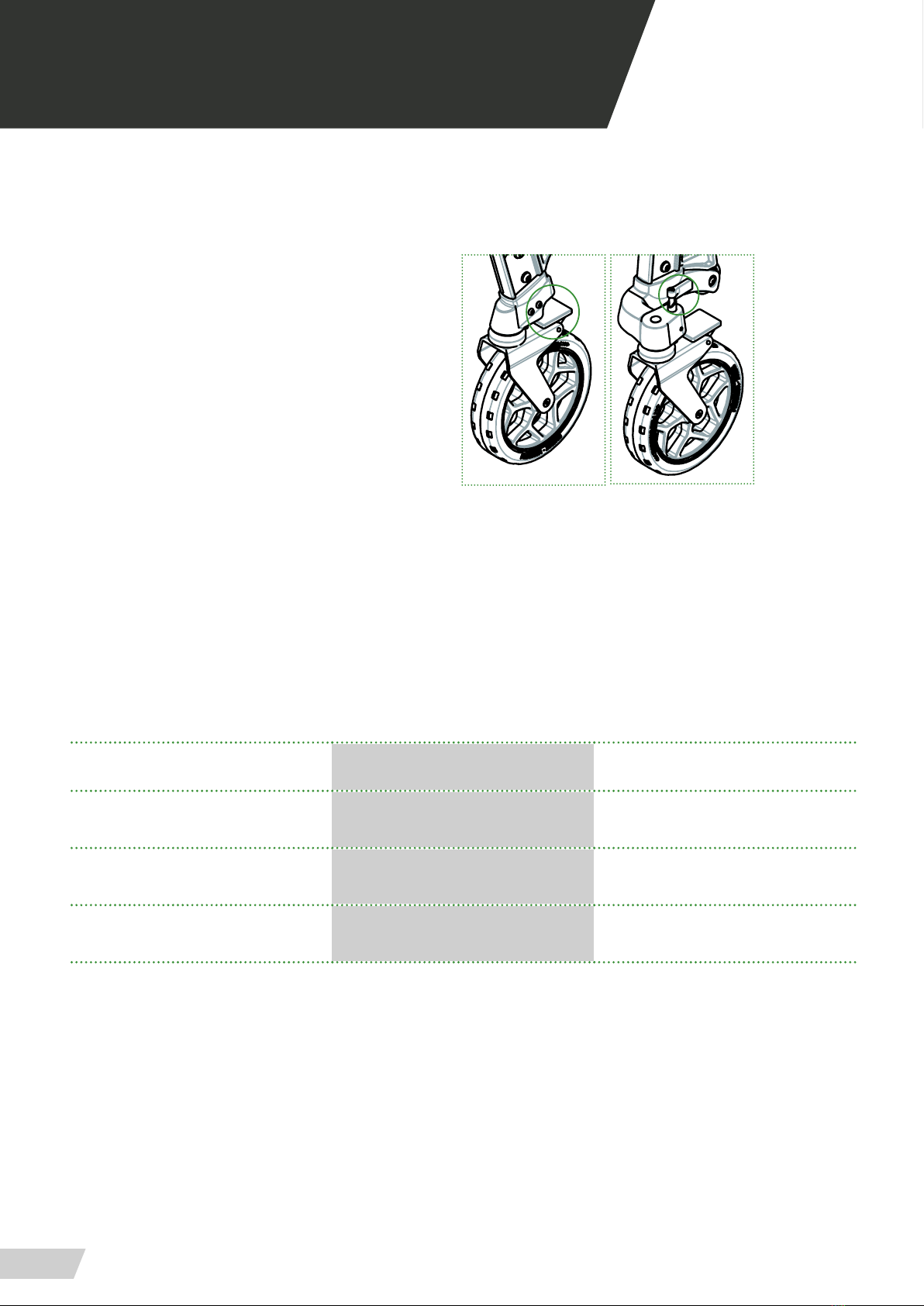

Front wheels (see models with front lockable wheels in paragraph 02.3)
Depending on the model, front wheels may be non-locking, locked or lockable.
In case of lockable front wheels, it is used the Quick lock system (n° 17 paragraph 02.1) placed on the rear
part of the stretcher.
To lock the front wheels turn the handle 90º horizontally, move the stretcher rst backwards and then
forwards so that both wheels turn forward and lock
To unlock the front wheels turn the handle 90º vertically.
FIGURE 7 FIGURE 8

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
19
04 GENERAL MAINTENANCE
CLEANING
It is essential to keep the equipment clean to ensure a pro-
per use and durability of the set. A thorough clean must be
done periodically, especially in areas exposed to dirt that
may be damaged such as gears or mobile elements.
Do not use high-pressure cleaning systems, neither bleach
to disinfect the product, they can damage it. Instead, use
a hydroalcoholic based disinfectant, wash with water and
let it dry naturally, do not use sources of direct heat to dry.
MAKE SURE TO KEEP AREAS FROM FIGURE 9 FREE OF WA-
TER AND HUMIDITY. TAKE SPECIAL CARE NOT TO GET THEM
WET WHILE WASHING THE SET.
MOBILE ELEMENTS
Due to the intense and continuous use of mobile elements such as levers or commands, periodically exa-
mine its proper operating.
Inspect the mechanical connections that may exist.
LUBRICATE
Generally, all moving parts must be lubricated. Our products leave the factory completely lubricated. Howe-
ver, it is possible that the elements lose lubrication with the passage of time and the use of the product,
either due to loss of lubricant or dirt.
Periodically clean and lubricate aected areas according to manufacturer’s specications.
Check for loose, missing or worn parts. Periodically inspect all moving parts to ensure components are tight.
WEAR AREAS
Inspecting regularly on the system components for signs of wear is a preventive measure that can reduce
breakdowns. Check possible lubricant leakages, grooves or bearing in poor condition.
MECHANICAL FIXING
We call mechanical xing elements to the components used to x the product as a whole, mainly screws
and derivatives.
To some terms of use, due to vibrations or impacts, certain elements may lose their tightening torque or
xing properties. Periodically review that there are no loose elements, especially on moving parts. Please
note and always respect the recommended tightening torques.
REPLACEMENT OF COMPONENTS
In the event that certain mechanical parts need to be replaced by qualied service personnel, they should
contact our sales department for more information on ordering spare parts and their installation.
MAINTENANCE SUMMARY EVERY USE WHEN NEEDED EVERY MONTH EVERY YEAR EVERY 4 YEARS
DISINFECT X
CLEAN X
INSPECT X X
LUBRICATE X X
SPRINGS REPLACEMENT X
WHEELS REPLACEMENT X
FIGURE 9

USER GUIDE // STRETCHER SERIES PC900
First edition: 2021/05
20
05 SPARE PARTS AND ACCESSORIES
05.1 Spare parts
To request a spare part, indicate:
- Model of stretcher that needs the replacement
- Number and description of the set in which the needed
part is located (see table on the right)
- Point out the part in the drawing, or the area where it is
located
Following these indications, our sales department will pro-
vide you with a detailed drawing of the set so that you can
specify the reference of the required spare part.
Nº DESCRIPTION OF COMPONENTS
1 Guide
2 Proles
3 Board
4 Handrails
5 Backrest lever
6 Attack wheels
7 Front legs
8 Rear legs
9 Return piston rear legs
10 Front legs lever
11 Rear legs lever
12 Intermediate position lever
13 Ergoload system (optional)
14 Quick Lock system (optional)
15 Main assembly
2
1
3
4
5
9
11
13
14
12
7
6
10
8
The drawing is indicative. Depending on the
model obtained, it may present design varia-
tions according to its performance.
