PMP 34
ತ
F point laser
It is essential that the operating instruc-
tions are read before the tool is operated
for the first time.
Always keep these operating instructions
together with the tool.
Ensure that the operating instructions are
with the tool when it is given to other per-
sons.
Contents Page
1. General information 1
2. Description 2
3. Accessories 3
4. Technical data 4
5. Safety rules 4
6. Before use 5
7. Operation 6
8. Care and maintenance 8
9. Troubleshooting 8
10. Disposal 9
11. Manufacturer’s warranty - tools 9
12. EC declaration of conformity 10

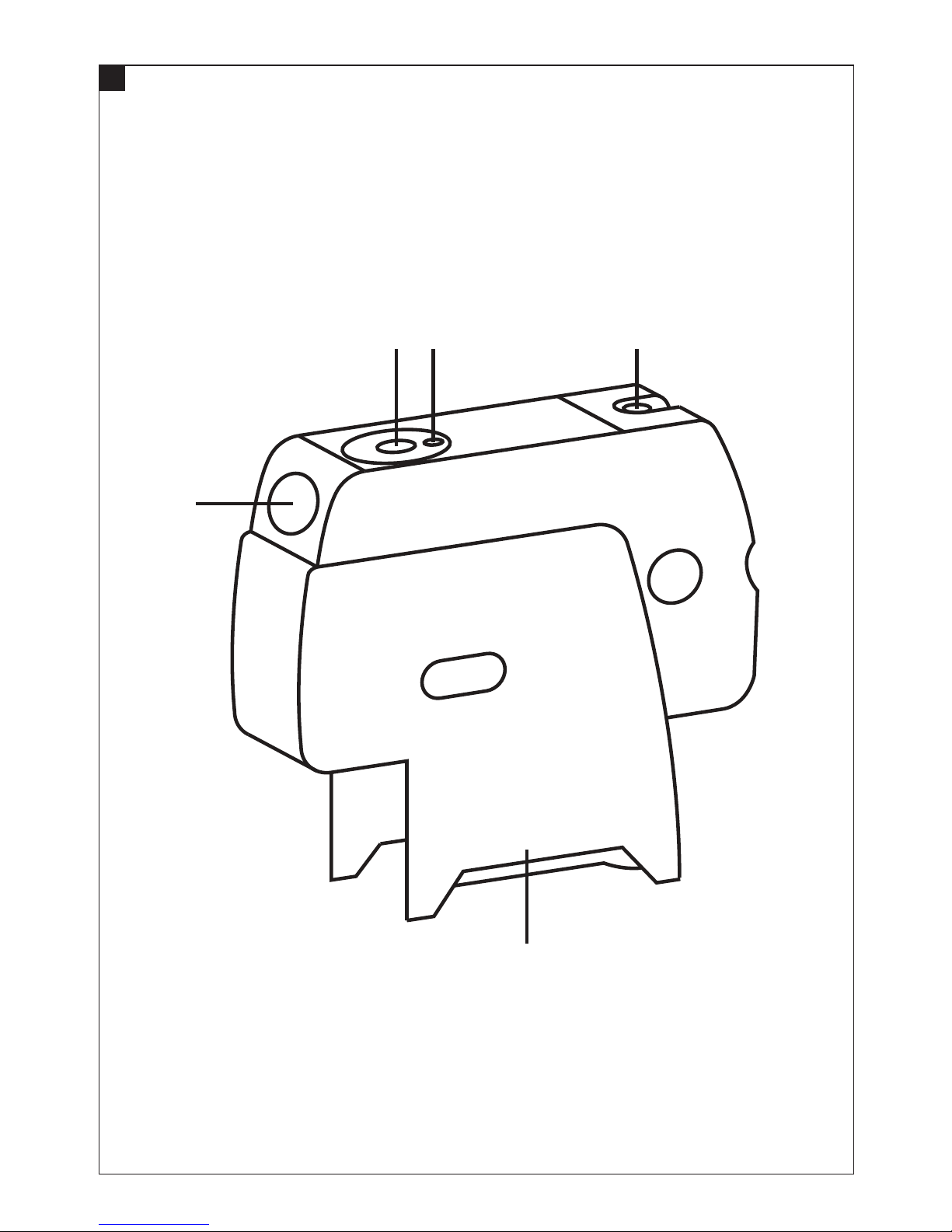

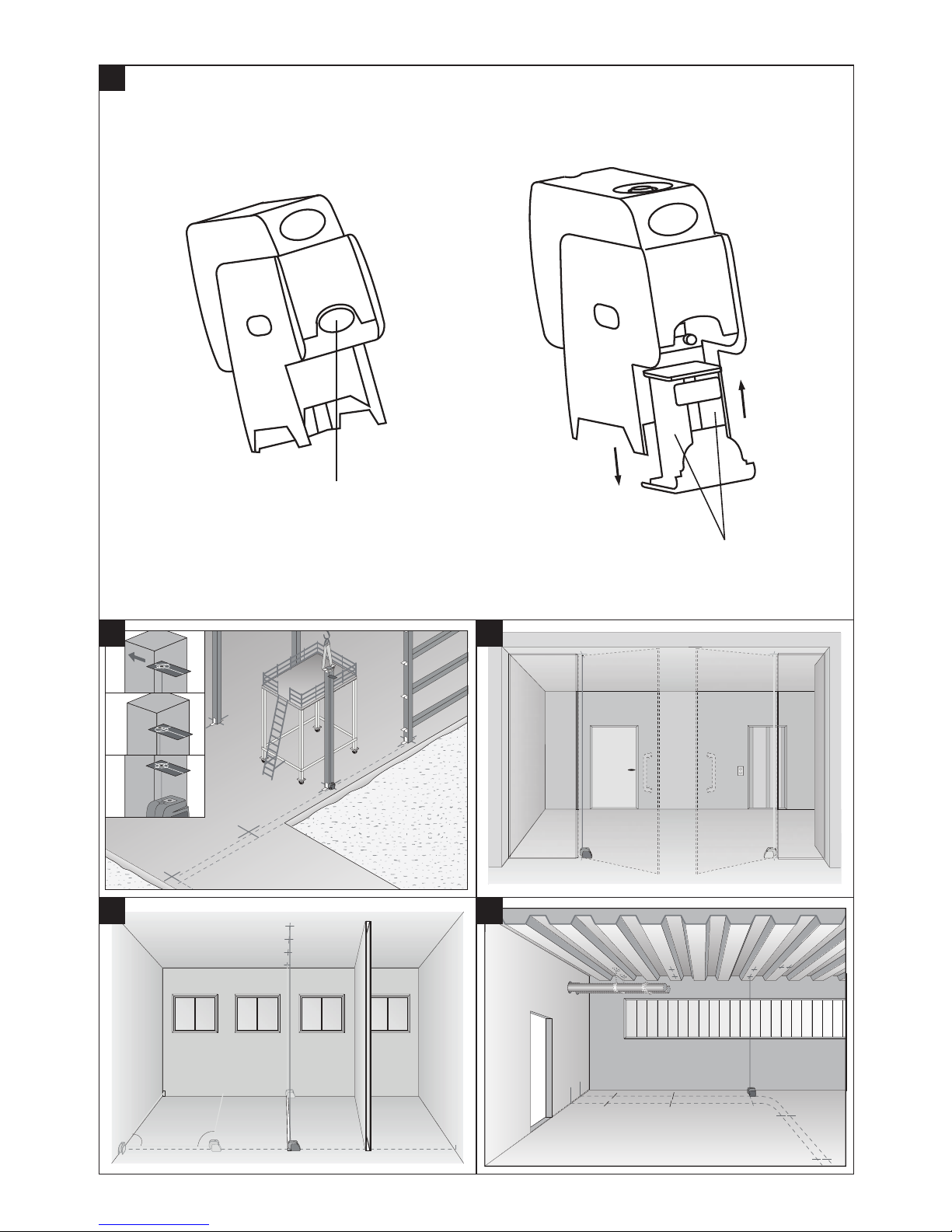

Component parts 1
@Pendulum lockbutton
;On/off button
=LED
%Pendulum
&Foot
1. General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to
serious bodily injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation
that could lead to slight personal injury or damage to
the equipment or other property.
NOTE
Draws attention to an instruction or other useful
information.
1.2 Explanation of the pictograms and other
information
Warning signs
General
warning
en
1
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

>1/4s
319995
PMP 34-F
Hilti =trademark of Hilti Corp., Schaan, LI Made in Germany
Item.no.
S.No.
Manufact:
6V=
100mA max.
Symbols
Read the
operating
instructions
before use.
Return waste
material for
recycling.
Disposal of
power tools or
appliances and
batteries
together with
household
waste is not
permissible.
Laser class 2
in accordance
with
EN 60825-
1:2003
Do not look
into the beam.
Laser class II according
to CFR 21, § 1040

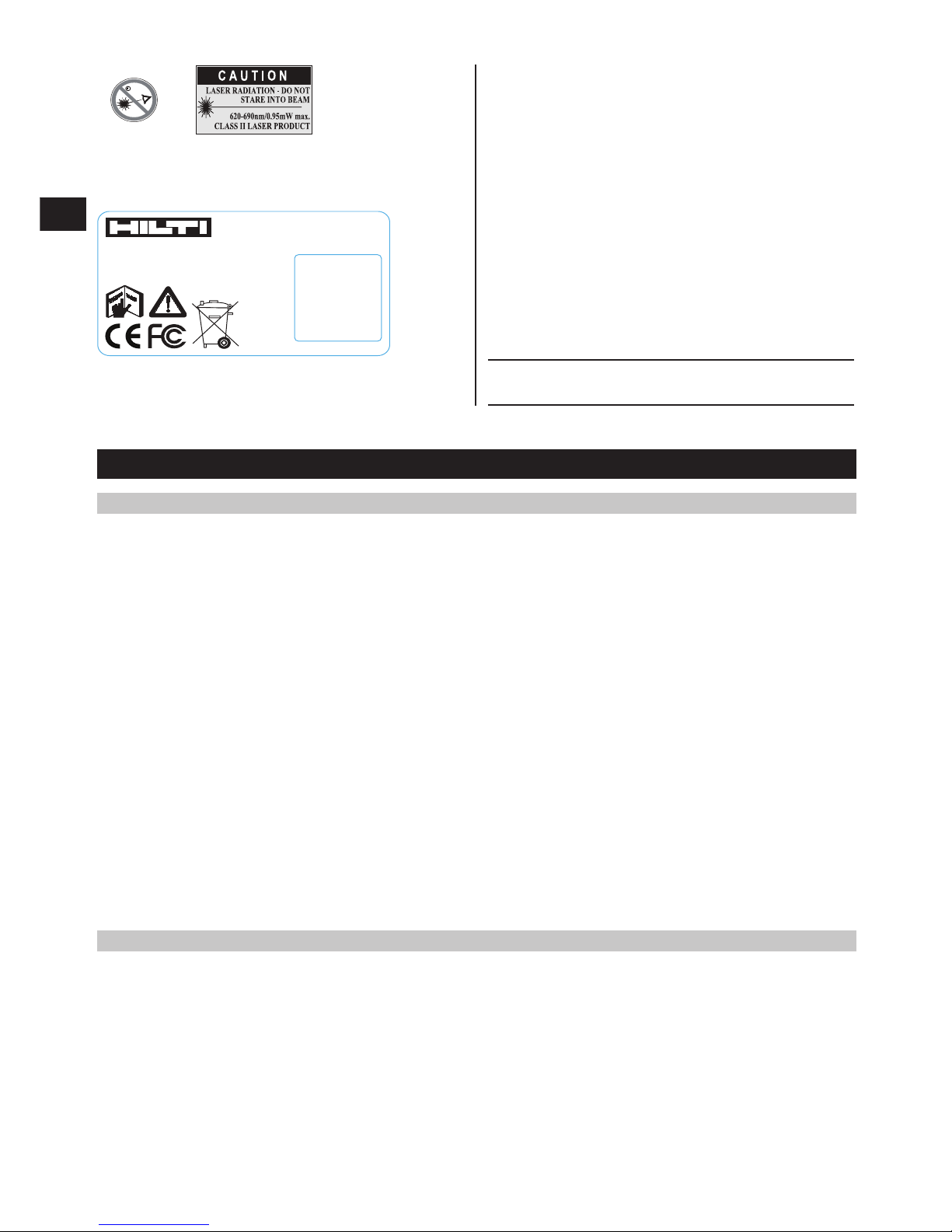

Type identification plate on the tool
PMP 34ತF
1These numbers refer to the corresponding illustra-
tions. The illustrations can be found on the fold-out
cover pages. Keep these pages open while studying
the operating instructions.
In these operating instructions, the designation “the
tool” always refers to the PMP 34-F point laser.
Location of identification data on the tool
The type designation and serial number can be found
on the type plate on the tool. Make a note of this data
in your operating instructions and always refer to it
when making an enquiry to your Hilti representative
or service department.
Type:
Serial no.:
2. Description
2.1 Use of the product as directed
The PMP 34ತF is a self-levelling point laser which allows a single person to level, plumb, align and transfer
right angles quickly and accurately. The tool features four coincident laser beams (beams that originate from
the same point). All beams have the same range of 30m (range depends on the brightness of ambient light).
The tool is designed for use mainly in interiors, for determining and checking vertical lines, alignment lines,
and for marking plumb points.
When the tool is used outdoors, care must be taken to ensure that the conditions correspond to working
indoors. For example:
Marking the position of partition walls (at right angles and in the vertical plane).
Aligning components to be installed or sections of a structure in three axes.
Checking and transferring right angles.
Transferring points marked on the floor to the ceiling.
Modification of the tool is not permissible.
Observe the information printed in the operating instructions concerning operation, care and maintenance.
To avoid the risk of injury, use only genuine Hilti accessories and insert tools.
The tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or
when used not as directed.
en
2
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

2.2 Features
Highly accurate horizontal and vertical beams (±3 mm at 10 m).
Self-levelling to within ±5° in all directions.
Short self-levelling time: ~3 seconds
Warning signal “Out of self-levelling range” when the self-levelling range is exceeded (the laser beams blink).
Robust, impact-resistant plastic casing.
Small and light - easy to use and easily transportable.
Automatic cut-out: The tool switches itself off automatically after 15 minutes. Sustained operating mode may
be selected if desired.
Easy to operate.
2.3 Information displayed during operation
LED LED doesn’t light. The tool is switched off.
LED doesn’t light. The batteries are exhausted.
LED doesn’t light. The batteries are inserted incorrectly.
The LED lights con-
stantly.
The laser beam is switched on. The tool is in opera-
tion.
The LED blinks. The batteries are almost exhausted.
The LED blinks. The temperature of the tool is above 40 °C (104 °F)
or below -10 °C (14 °F) (laser beam doesn’t light.)
Laser beam The laser beam blinks
twice every 10 seconds.
The batteries are almost exhausted.
The laser beam blinks
rapidly.
Movement of the pendulum is blocked.
The laser beam blinks
rapidly.
The tool cannot level itself.
2.4 Items supplied with the point laser (cardboard box version)
1 PMP 34ತF point laser
1 Soft pouch
4 Batteries
1 Operating instructions
2 Target plate
1 Manufacturer’s certificate
3. Accessories
Target plate (CM) PMA 50
Target plate (IN) PMA 51
Soft pouch PMA 60
Hilti toolbox PMP 34ತF
Laser visibility glasses PUA 60
en
3
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

4. Technical data
Range 30 m
Range depends on the brightness of ambient light.
Right of technical changes reserved.
Accuracy of the front beam (horizontal) Temperature 25°C: ±3 mm at 10 m ({/೩" at 30 ft)
Accuracy of the perpendicular (horizontal) beam Temperature 25°C: ±3 mm at 10 m ({/೩" at 30 ft)
Angle accuracy (horizontal) Temperature 25°C: 90° ±60"
Accuracy of the plumb beam Temperature 25°C: ±3 mm at 10 m ({/೩" at 30 ft)
Self-levelling time (approx.) 3s
Laser class: Class 2 Temperature 25°C, Visible: 635 Nm
IEC 825ತ1:2003, EN 60825ತ01:2003,
CFR 21 § 1040 (FDA)
Beam diameter Temperature 25°C, Distance 5 m: ู3mm
Temperature 25°C, Distance 20 m: ู12 mm
Self-leveling range ±5°
Automatic cut-out Activated after: 15 min
Operating status indicator LED and laser beams
Power supply AAತsize batteries, Alkaline batteries: 4
Battery life Alkaline battery, Temperature 25°C
(+77°F): Min. 20 h
Operating temperature range ತ10 - 40°C (+14 °F to 104 °F)
Storage temperature ತ20 - 63°C (-4 °F to 145 °F)
Dust and water spray protection (except battery
compartment)
IP 54
IEC 529
Weight Without batteries: 660 g
Dimensions 138 mm X 51 mm X 126 mm
5. Safety rules
5.1 Basic information concerning safety
In addition to the information relevant to safety
given in each of the sections of these operating
instructions, the following points must be strictly
observed at all times.
5.2 General safety rules
a) Do not render safety devices ineffective and do
not remove information and warning notices.
b) The laser visibility glasses have no protective
function and do not protect your eyes from laser
light. As the laser visibility glasses restrict color
vision, they should be worn only when working
with this tool and must not be worn while driving
a vehicle on a public road.
c) Keep laser tools out of reach of children.
d) Failure to follow the correct procedures when
opening the tool may cause emission of laser
radiation in excess of class 2. Have the tool
repaired only at a Hilti service center.
e) Do not open the casing of the tool.
f) Check the condition of the tool before use. If the
tool is found to be damaged, have it repaired at
a Hilti service center.
g) Check the accuracy of the tool before using it to
take measurements.
h) The tool must be checked at a Hilti service
center after it has been dropped or subjected to
other mechanical stresses.
i) When the tool is brought into a warm environ-
ment from very cold conditions, or vice-versa,
allow it to become acclimatized before use.
en
4
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

j) If mounting on an adapter, check that the tool
is screwed on securely.
k) Keep the laser exit aperture clean to avoid
measurement errors.
l) Although the tool is designed for the tough con-
ditions of jobsite use, as with other optical and
electronic instruments (e.g. binoculars, spec-
tacles, cameras) it should be treated with care.
m) Although the tool is protected to prevent entry
of dampness, it should be wiped dry each time
before being put away in its transport container.
n) Take the influences of the surrounding area into
account. Do not expose the tool to rain or snow
and do not use it in damp or wet conditions. Do
not use the tool where there is a risk of fire or
explosion.
5.3 Electrical
a) Always remove the batteries before shipping
the tool.
b) To avoid pollution of the environment, the tool
must be disposed of in accordance with the cur-
rently applicable national regulations. Consult
the manufacturer if you are unsure of how to
proceed.
5.4 Proper organization of the work area
a) Secure the area in which you are working and
take care to avoid directing the beam towards
other persons or towards yourself when setting
up the tool.
b) Avoid unfavorable body positions when working
on ladders or scaffolding. Make sure you work
from a safe stance and stay in balance at all
times.
c) Measurements taken through panes of glass or
other objects may be inaccurate.
d) Ensure that the tool is set up on a steady, level
surface (not subject to vibration).
e) Use the tool only within its specified limits.
5.5 Electromagnetic compatibility
Although the tool complies with the strict require-
ments of the applicable directives, Hilti cannot en-
tirely rule out the possibility of the tool being subject
to interference caused by powerful electromagnetic
radiation, leading to incorrect operation. Check the
accuracy of the tool by taking measurements by other
means when working under such conditions or if you
are unsure. Likewise, Hilti cannot rule out the pos-
sibility of interference with other devices (e.g. aircraft
navigation equipment).
5.6 Laser classification
Depending on the version purchased, the tool con-
forms to laser class 2 in accordance with the IEC825-1
/ EN60825-1:2003 standardand CFR 21 § 1040 (FDA).
This tool may be used without need for further pro-
tective measures. The eyelid closure reflex protects
the eyes when a person looks into the beam uninten-
tionally for a brief moment. This eyelid closure reflex,
however, may be negatively affected by medicines,
alcohol or drugs. Nevertheless, as with the sun, one
should not look directly into sources of bright light.
Do not direct the laser beam toward persons.
6. Before use
6.1 Inserting the batteries 2
CAUTION
Do not use damaged batteries.
DANGER
Do not mix old and new batteries. Do not mix
batteries of different makes or types.
1. Press the catch on the battery compartment.
2. Pull the battery holder downwards away from
the tool.
3. Change the batteries.
NOTE Take care to ensure correct polarity.
4. Close the battery compartment.
NOTE Check that the catch engages properly.
en
5
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

R = x (2)
30
RH [ft]
(d1 + d2) [inch]
4
R = x (1)
10
RH [m]
(d1 + d2) [mm]
4
7. Operation
7.1 Operation
7.1.1 Switching on the laser beams
Activate the tool by pressing the on/off button once.
This switches on all laser beams (plumb beam, front
beam and perpendicular beam).
7.1.2 Switching off the tool / laser beams
Press the on/off button until the laser beam is no
longer visible and the LED goes out.
NOTE
The tool switches itself off automatically after approx.
15 min.
7.1.3 Deactivating the automatic cut-out
Press and hold the selector button down for approx.
4 sec. until the laser beams blink three times as
confirmation.
NOTE
The tool is switched off when the selector button is
pressed (between one and three times, depending on
operating status) or when the batteries are exhausted.
7.2 Examples of applications
7.2.1 Vertical alignment of sections of a steel
structure 3
7.2.2 Vertical alignment of door and window
frames 4
7.2.3 Alignment of drywall track for a partition
wall 5
7.2.4 Alignment of pipe fastenings 6
7.3 Checking
7.3.1 Checking the vertical (plumb) beam 7
1. Make a mark on the floor (a cross) in a high
room (e.g. in a stairwell or hallway with a height
of 5–10 m).
2. Place the tool on a smooth, level (horizontal)
surface.
3. Switch the tool on.
4. Position the tool with the lower beam on the
center of the cross.
5. Mark the position of the vertical beam on the
ceiling. Attach a piece of paper to the ceiling
before making the mark.
6. Pivot the tool through 90°.
NOTE The reference beam must remain on the
center of the cross.
7. Mark the position of the vertical beam on the
ceiling.
8. Repeat the procedure after pivoting the tool
through 180° and 270°.
NOTE The resulting 4 marks define a circle in
which the intersection of the diagonals d1 (1 –
3) and d2 (2 – 4) marks the exact center of the
plumb point.
7.3.1.1 Calculation of accuracy
The result (R) provided by this formula (RH = room
height) refers to the tool’s accuracy “in mm at 10 m”
(formula (1)). This result (R) should be within the
specification for the tool (3 mm at 10 m).
7.3.2 Checking the forward beam and/or
perpendicular beam for height
deviation 8
1. Place the tool on a smooth, level surface approx.
20 cm from the wall (A) with the laser beam
directed toward the wall (A).
2. Mark the center of the laser beam on the wall (A)
with a cross.
en
6
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

== 1 mm/10 m
2mm
20 m
6 mm – 4 mm
10 x 2
3. Pivot the tool through 180° and mark the center
of the laser beam (4) on the opposite wall (B)
with a cross.
4. Place the tool on an even, level surface approx.
20 cm from the wall (B) with the laser beam
directed toward the wall (B).
5. Mark the center of the laser beam on the wall (B)
with a cross.
6. Pivot the tool through 180° and mark the center
of the laser beam on the opposite wall (A) with a
cross.
7.3.2.1 Calculation of accuracy
1. Measure the distances d1 between 1 and 4 and
d2 between 2 and 3.
2. Mark the mid points of d1 and d2.
If the reference points 1 and 3 are located on
different sides of the mid point, then subtract d2
from d1.
If the reference points 1 and 3 are located on the
same side of the mid point, then add d1 and d2
together.
3. Divide the result by twice the length of the room
(room length x 2).
The maximum permissible error is 3 mm at 10
m.
Example d1 = 6 mm/ d2 = 4 mm/ room length
(D) = 10 m
Points 1 and 3 are on different sides of the exact
horizontal.
7.3.3 Checking the angle between the
forward beam and the perpendicular
beam 9
1. Place the tool on a smooth, horizontal surface at
the edge of a room with a length of at least 10 m
and width of at least 5 m (or with the same 2:1
size ratio).
NOTE The floor surface must be smooth and
level.
2. Switch the tool on.
3. Fix a target plate at a distance of at least 10 m
from the tool so that the forward beam strikes
exactly the center of the target plate.
4. Using a second target plate, mark a reference
cross on the floor at a distance of 5 m (measure
the distance) from the first target plate.
The beam must strike the second target plate
exactly in the center (cross-hairs).
5. Fix the second target plate at a distance of 5 m
from the reference cross (marked at step 4) so
that the vertical line on the second target plate
lies exactly in the center of the front laser beam.
6. Now position the tool with the lower plumb beam
exactly on the center of the reference cross (from
step 4) so that the vertical line on the first target
plate (from step 3) lies exactly in the center of
the front beam.
7. Fix another target plate or a piece of stout paper
at a distance of 5 m from the perpendicular
beam, half-way, in the middle. Mark the center
point (d1) of the perpendicular beam.
8. Pivot the tool clockwise through 90° (as seen
from above). The lower plumb beam must remain
in the center of the referencecross and the center
of the perpendicular beam must lie exactly on
the vertical line on the second target plate (from
step 5).
9. Mark the center point (d2) of the front beam on
the target plate or paper (from step 7).
NOTE The horizontal distance between d1 and
d2 must be no greater than 3 mm at a working
distance of 5 m.
7.3.4 Calculation of accuracy (g) at a working
distance other than 5 m
g=(3 mm x working distance (m))/5 m.
In this case, the horizontal distance between d1 and
d2 must not exceed the value (g) at the defined
working distance (m).
en
7
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

8. Care and maintenance
8.1 Cleaning and drying
1. Blow dust off the lenses.
2. Do not touch the glass with the fingers.
3. Use only a clean, soft cloth for cleaning. If
necessary, moisten the cloth slightly with pure
alcohol or a little water.
NOTE Do not use any other liquids as these may
damage the plastic components.
4. Observe the temperature limits when storing
your equipment. This is particularly important in
winter / summer if the equipment is kept inside a
motor vehicle (-20°C to +63°C / -4°F to 145°F).
8.2 Storage
Remove the tool from its case if it has become wet.
The tool, its carrying case and accessories should
be cleaned and dried (at maximum 40°C / 104°F).
Repack the equipment only once it is completely dry.
Check the accuracy of the equipment before it is used
after a long period of storage or transportation.
Remove the batteries from the tool before storing it
for a long period. Leaking batteries may damage the
tool.
8.3 Transport
Use the Hilti toolbox or packaging of equivalent quality
for transporting or shipping your equipment.
CAUTION
Always remove the batteries before shipping the
tool.
9. Troubleshooting
Fault Possible cause Remedy
The tool can’t be switched on. The battery is exhausted. Replace the battery.
The battery is inserted the wrong
way round (incorrect polarity).
Insert the battery correctly.
The battery compartment is not
closed.
Close the battery compartment.
The tool or selector switch is faulty. If necessary, have the power tool
repaired by Hilti Service.
Individual laser beams don’t
function.
The laser source or laser control
unit is faulty.
If necessary, have the power tool
repaired by Hilti Service.
The tool can be switched on
but no laser beam is visible.
The laser source or laser control
unit is faulty.
If necessary, have the power tool
repaired by Hilti Service.
The temperature is too high or too
low.
Allow the tool to cool down or
warm up.
Automatic leveling doesn’t
function.
The tool is set up on an excessively
inclined surface.
Set up the tool on the level.
The pendulum is locked. Release the pendulum.
Extraneous light is too bright. Reduce extraneous light.
The tilt sensor is faulty. If necessary, have the power tool
repaired by Hilti Service.
en
8
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

10. Disposal
CAUTION
Improper disposal of the equipment may have serious consequences: The burning of plastic components
generates toxic fumes which may present a health hazard. Batteries may explode if damaged or exposed to
very high temperatures, causing poisoning, burns, acid burns or environmental pollution. Careless disposal
may permit unauthorized and improper use of the equipment. This may result in serious personal injury, injury
to third parties and pollution of the environment.
Most of the materials from which Hilti tools or machines are manufactured can be recycled. The materials must
be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements
for taking back old tools and appliances for recycling. Ask Hilti customer service or your Hilti representative
for further information.
For EC countries only
Disposal of electric tools together with household waste is not permissible.
In observance of European Directive 2002/96/EC on waste electrical and electronic equipment
and its implementation in accordance with national law, electric tools that have reached the end
of their life must be collected separately and returned to an environmentally compatible recycling
facility.
Dispose of the batteries in accordance with national regulations.
11. Manufacturer’s warranty - tools
Hilti warrants that the tool supplied is free of defects
in material and workmanship. This warranty is valid
so long as the tool is operated and handled correctly,
cleaned and serviced properly and in accordance with
the Hilti Operating Instructions, and the technical
system is maintained. This means that only original
Hilti consumables, components and spare parts may
be used in the tool.
This warranty provides the free-of-charge repair or
replacement of defective parts only over the entire
lifespan of the tool. Parts requiring repair or replace-
ment as a result of normal wear and tear are not
covered by this warranty.
Additionalclaims areexcluded, unless stringentna-
tional rules prohibit such exclusion. In particular,
Hilti is not obligated for direct, indirect, incidental
or consequential damages, losses or expenses in
connection with, or by reason of, the use of, or
inability to use the tool for any purpose. Implied
warranties of merchantability or fitness for a par-
ticular purpose are specifically excluded.
For repair or replacement, send the tool or related
parts immediately upon discovery of the defect to
the address of the local Hilti marketing organization
provided.
This constitutes Hilti's entire obligation with regard
to warranty and supersedes all prior or contempor-
aneous comments and oral or written agreements
concerning warranties.
en
9
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

12. EC declaration of conformity
Designation: Point laser
Type: PMP 34ತF
Year of design: 2006
We declare, on our sole responsibility, that this
product complies with the following directives
and standards: EN 61000ತ6ತ3, EN 61000ತ6ತ2,
89/336/EEC.
Hilti Corporation
Bodo Baur Tassilo Deinzer
Quality Manager Head BU Measuring Systems
BA Electric Tools & Accessories BU Measuring Systems
08 2006 08 2006
en
10
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

PMP 34
ತ
F Punktlaser
Læs brugsanvisningen grundigt igennem,
inden maskinen/instrumentet tages i brug.
Opbevar altid brugsanvisningen sammen
med maskinen/instrumentet.
Sørg for, at brugsanvisningen altid
følger med ved overdragelse af
maskinen/instrumentet til andre.
Indholdsfortegnelse side
1. Generelle anvisninger 11
2. Beskrivelse 12
3. Tilbehør 13
4. Tekniske specifikationer 13
5. Sikkerhedsanvisninger 14
6. Ibrugtagning 15
7. Anvendelse 16
8. Rengøring og vedligeholdelse 17
9. Fejlsøgning 18
10. Bortskaffelse 18
11. Producentgaranti - Produkter 19
12. EF-overensstemmelseserklæring 19
Apparatets dele 1
@Tast til pendullås
;Tænd/sluk-tast
=Lysdiode
%Pendul
&Stillefod
1. Generelle anvisninger
1.1 Signalord og deres betydning
FARE
Står ved en umiddelbart truende fare, der kan medføre
alvorlige kvæstelser eller døden.
FORSIGTIG
Advarer om en potentielt farlig situation, der kan
forårsage lettere personskader eller materielle skader.
BEMÆRK
Står ved anvisninger om brug og andre nyttige oplys-
ninger.
1.2 Forklaring af piktogrammer og yderligere
anvisninger
Advarselssymboler
Generel fare
Symboler
Læs brugsan-
visningen før
brug
Affald skal
indleveres til
genvinding på
en genbrugs-
station.
Instrumenter
og batterier
må ikke
bortskaffes
som
almindeligt
affald.
Laser, klasse 2
iht.
EN 608251:2003
da
11
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

>1/4s
319995
PMP 34-F
Hilti =trademark of Hilti Corp., Schaan, LI Made in Germany
Item.no.
S.No.
Manufact:
6V=
100mA max.
Undgå at se
ind i laseren
Laserklasse II iht.
CFR 21, § 1040
Typeskilt på instrumentet
PMP 34ತF
1Disse tal henviser til illustrationer. Illustrationerne
kan du finde på udfoldssiderne på omslaget. Kig på
disse sider, når du læser brugsanvisningen.
I denne brugsanvisning betegner »instrumentet« altid
punktlaser PMP 34ತF.
Placering af identifikationsoplysninger på maski-
nen/instrumentet
Typebetegnelse og serienummer fremgår af instru-
mentets typeskilt. Skriv disse oplysninger i brugsan-
visningen, og henvis til disse, når du henvender dig
til vores kundeservice eller værksted.
Type:
Serienummer:
2. Beskrivelse
2.1 Anvendelsesformål
PMP 34-F er en selvnivellerende punktlaser, som kan betjenes af én person. Med denne punktlaser kan
man hurtigt og præcist foretage pejlinger, overføre en vinkel på 90°, nivellere horisontalt og gennemføre
justeringsarbejde. Instrumentet har fire laserstråler, som stemmer overens med hinanden (stråler med det
samme udgangspunkt). Alle stråler har samme rækkevidde på 30 m (rækkevidden er afhængig af lysstyrken i
omgivelserne).
Instrumentet er først og fremmest beregnet til indendørs brug, til beregning og kontrol af vertikale linjer,
udligningslinjer samt til markering af pejlepunkter.
Ved udendørs anvendelse skal rammebetingelserne være de samme som ved indendørs arbejde. For eksempel:
Markering af position for skillevægge (i ret vinkel og vertikalt plan).
Justering af anlægsdele/installationer og andre strukturelementer i tre akser.
Kontrol og overførsel af rette vinkler.
Overførsel af punkter, der er markeret på gulvet, til loftet.
Det er ikke tilladt at modificere eller tilføje ekstra dele til instrumentet.
Overhold forskrifterne i denne brugsanvisning med hensyn til drift, pleje og vedligeholdelse.
Brug kun originalt Hilti-tilbehør og -ekstraudstyr for at undgå ulykker.
Der kan opstå farlige situationer ved anvendelse af instrumentet og det tilhørende udstyr, hvis det anvendes af
personer, der ikke er blevet undervist i dets brug, eller hvis det ikke anvendes korrekt i henhold til forskrifterne
i denne brugsanvisning.
2.2 Egenskaber
Stor nøjagtighed for de horisontale stråler og pejlestrålerne (±3 mm pr. 10 m).
Selvnivellerende i alle retninger inden for ±5°.
Kort selvnivelleringstid: ~3 sekunder
Advarselssignal "Uden for nivelleringsområdet", når selvnivelleringsområdet overskrides (laserstrålerne blin-
ker).
Robust, slagfast kunststofhus.
Lille og let - let at bruge og transportere.
Automatisk frakobling: Maskinen kobler selv fra efter 15 minutter. Det er muligt at vælge en tilstand med
permanent drift.
da
12
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

Let at betjene.
2.3 Driftsmeddelelser
Lysdiode Lysdioden lyser ikke. Instrumentet er slukket.
Lysdioden lyser ikke. Batterierne er flade.
Lysdioden lyser ikke. Batterierne er sat forkert i.
Lysdioden lyser perma-
nent.
Der er tændt for laserstrålen. Der er tændt for in-
strumentet.
Lysdioden blinker. Batterierne er næsten flade.
Lysdioden blinker. Temperaturen på instrumentet er over 40° C (104°
F) eller lavere end -10° C (14° F) (Laserstrålen lyser
ikke.).
Laserstråle Laserstrålen blinker to
gange hvert 10. sekund.
Batterierne er næsten flade.
Laserstrålen blinker hur-
tigt.
Pendulet er blokeret.
Laserstrålen blinker hur-
tigt.
Laseren kan ikke selvnivellere.
2.4 Leveringsomfang, punktlaser i en papkasse
1 Punktlaser PMP 34ತF
1 Taske
4 Batterier
1 Brugsanvisning
2 Måltavler
1 Producentcertifikat
3. Tilbehør
Måltavle (CM) PMA 50
Måltavle (IN) PMA 51
Taske PMA 60
Hilti-kuffert PMP 34ತF
Laserbriller PUA 60
4. Tekniske specifikationer
Rækkevidde 30 m
Rækkevidden afhænger af omgivelsernes lysstyrke.
Ret til tekniske ændringer forbeholdes!
Nøjagtighed for frontstråle (horisontalt) Temperatur 25 °C: ±3 mm pr. 10 m ({/೩" pr. 30ft)
Nøjagtighed for vinklet stråle (horisontalt) Temperatur 25 °C: ±3 mm pr. 10 m ({/೩" pr. 30ft)
Nøjagtighed for vinkel (horisontalt) Temperatur 25 °C: 90° ±60"
Nøjagtighed for pejlestråler Temperatur 25 °C: ±3 mm pr. 10 m ({/೩" pr. 30ft)
da
13
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

Selvnivelleringstid (ca.) 3 S
Laserklasse: Klasse 2 Temperatur 25 °C, synlig: 635 Nm
IEC 825ತ1:2003, EN 60825ತ01:2003,
CFR 21 § 1040 (FDA)
Strålediameter Temperatur 25 °C, Afstand 5 m: ู3mm
Temperatur 25 °C, Afstand 20 m: ู12 mm
Selvnivelleringsområde ±5 °
Deaktiveringsautomatik aktiveres efter: 15 min
Driftstilstandsvisning Lysdiode og laserstråler
Strømforsyning Batterier type AA, Alkalimangan-batterier: 4
Driftstid Alkalimangan-batteri, Temperatur 25 °C (+77°F):
Min. 20 h
Arbejdstemperatur ತ10 - 40 °C (+14 °F til 104 °F)
Opbevaringstemperatur ತ20 - 63 °C (-4 °F til 145 °F)
Støv- og stænkvandsbeskyttet (undtagen batteri-
dæksel)
IP 54
IEC 529
Vægt uden batterier: 660 g
Mål 138 mm X 51 mm X 126 mm
5. Sikkerhedsanvisninger
5.1 Grundlæggende sikkerhedsanvisninger
Ud over de sikkerhedstekniske forskrifter i de en-
kelte afsnit i denne brugsanvisning skal følgende
retningslinjer altid overholdes.
5.2 Generelle sikkerhedsforanstaltninger
a) Undlad at deaktivere sikkerhedsanordninger og
fjerne advarselsskilte af nogen art.
b) Laserbrillerne er ikke laserbeskyttelsesbriller,
og de beskytter ikke øjnene mod laserstråler.
Brillerne må ikke bruges i trafikken, da de
begrænser farvesynet. Brillerne må kun bruges
ved arbejde med dette instrument.
c) Opbevar laseren utilgængeligt for børn.
d) Der kan forekomme højere stråling end klasse
2, hvis de korrekte procedurer ikke overholdes,
når kabinettet åbnes. Fjernbetjeningen må kun
repareres af Hiltis kundeservice.
e) Adskil ikke instrumentet.
f) Kontrollér fjernbetjeningen før brug. Hvis fjern-
betjeningen er beskadiget, skal den sendes til
reparation hos Hilti.
g) Kontrollér instrumentets nøjagtighed, før du fo-
retager målinger eller tager instrumentet i brug.
h) Hvis instrumentet er blevet tabt eller har været
udsat for andre mekaniske påvirkninger, skal
det efterses hos et Hilti-servicecenter.
i) Hvis instrumentet flyttes fra en meget lav tem-
peratur ind i varmere omgivelser, eller om-
vendt, skal det have tid til at akklimatisere,
inden det tages i brug.
j) Ved brug af adaptere/holdere skal det kontrol-
leres, at instrumentet er skruet ordentligt på.
k) For at undgå unøjagtige målinger skal laser-
strålevinduerne altid holdes rene.
l) Selv om fjernbetjeningen er konstrueret til den
krævende anvendelse på en byggeplads, skal
den behandles forsigtigt som ethvert andet op-
tisk og elektrisk instrument (kikkert, briller,
kamera).
m) Selvom fjernbetjeningen er modstandsdygtig
over for fugt, bør den tørres af, så den er
tør, inden den lægges i transportbeholderen.
n) Tag hensyn til påvirkning fra omgivelserne. Ud-
sæt ikke instrumentet for nedbør, brug ikke
instrumentet i fugtige eller våde omgivelser.
Brug ikke fjernbetjeningen, hvis der er risiko for
brand eller eksplosion.
da
14
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00

5.3 Elektrisk
a) Instrumentet skal altid sendes uden
batterier/akku i.
b) Af miljøhensyn skal instrumentet bortskaffes
i overensstemmelse med gældende national
lovgivning. Er du i tvivl, så spørg producenten.
5.4 Formålstjenlig indretning af
arbejdspladserne
a) Sørg for at sikre det sted, hvor instrumentet
benyttes. Sørg ved opstilling af instrumentet
for, at strålen ikke er rettet mod andre personer
eller mod dig selv.
b) Undgå at stå i akavede stillinger, når du ar-
bejder på en stige. Sørg for at have et sikkert
fodfæste, og hold balancen.
c) Målinger foretaget gennem glasplader eller andre
objekter kan være unøjagtige.
d) Sørg for, at instrumentet er opstillet med god
støtte og på et jævnt, stabilt underlag (vibra-
tionsfrit).
e) Anvend kun fjernbetjeningen inden for de defi-
nerede driftsgrænser.
5.5 Elektromagnetisk kompatibilitet
Selv om instrumentet opfylder de strenge krav i gæl-
dende direktiver, kan Hilti ikke udelukke muligheden
for, at instrumentet forstyrres af stærk stråling, hvil-
ket kan medføre en fejl. Hvis det er tilfældet eller
i tilfælde af usikkerhed, skal der foretages kontrol-
målinger. Hilti kan ligeledes ikke udelukke, at andre
instrumenter (f.eks. navigationsudstyr i fly) forstyr-
res.
5.6 Laserklassificering
Afhængigt af den solgte version er instrumentet i
overensstemmelse med lasersikkerhedsklasse 2 ba-
seret på standarderne IEC825-1 / EN60825-1 2003
og CFR 21 § 1040 (FDA). Disse instrumenter kan be-
tjenes uden yderligere beskyttelsesforanstaltninger.
Øjenlågets lukkerefleks beskytter øjet, hvis man kom-
mer til at kigge kortvarigt ind i laserstrålen. Medicin,
alkohol eller narkotika kan dog forringe øjets lukkere-
fleks. Dog bør man, ligesom med solen, undgå at
kigge direkte ind i lyskilden. Undlad at pege på andre
personer med laserstrålen.
6. Ibrugtagning
6.1 Isætning af batterier 2
FORSIGTIG
Brug aldrig beskadigede batterier.
FARE
Brug ikke nye og gamle batterier sammen. Undgå
at bruge batterier af forskellige mærker eller med
forskellige typebetegnelser.
1. Tryk på lukkehagen til batterirummet.
2. Træk batteriholderen nedad og ud af laseren.
3. Udskift batterierne.
BEMÆRK Vær opmærksom på, at batterierne
vender rigtigt.
4. Luk for batterirummet.
BEMÆRK Sørg for, at batterirummet er lukket
ordentligt.
da
15
Printed: 07.07.2013 | Doc-Nr: PUB / 5071666 / 000 / 00
